7inch Camera Top Monitor

Short Description:

5D-11 is sure to add instant production value for mirrorless and DSLR shooters. Its bright display, professional software tools, and convenient mounting is invaluable for shooters looking to do more with less gear. The monitor includes a plethora of useful features such as histogram, false color, focus assist, embedded audio, pixel to pixel, frame guides, nine grid etc.The 5D-11 provides a sharp image, ideal for focus pulling and image analysis on set and in the field. With native 1920×1080 high resolution and 16:9 display, 250cd/m2 brightness, 1000:1 contrast ratio, delivers excellent detail, so you can enjoy sharper and richer colors image, full-screen display uniform, no difference, no trailing. Its size, weight and resolution make it an attractive option for DSLR shooters looking to attach it straight to the camera.

    • Panel:7″ LED backlit
    • Physical Resolution:1024×600, support up to 1920×1080
    • Brightness:250cd/㎡
    • Input / Output:HDMI
  • Product Detail



    The Lilliput 5D-II is a 7 inch 16:9  LED field monitor with HDMI, and foldable sun hood. Optimised for DSLR & Full HD Camcorder.

    Note: 5D-II     (with HDMI input)
    5D-II/O (with HDMI input & output)

    4/5 star award in Amateur Photographer

    This monitor was reviewed in the 29 September 2012 issue of Amateur Photographer magazine, and was awarded a solid 4 out of 5 stars. The reviewer, Damien Demolder, praised the 5D-II as ‘a first rate screen that offers very good value compared to the Sony competitor’.

    7 inch monitor with wide screen aspect ratio

    5D-II has a high resolution, wide screen 7″ LCD: the perfect combination for DSLR use and the ideal size to fit neatly in a camera bag.

    Optimised for DSLR cameras

    Compact size, 1:1 pixel mapping, and peaking functionality are the perfect complements to your DSLR camera’s features

    1:1 pixel mapping – find the finest details

    5D-II shows you the true detail your camera captures. This feature is called 1:1 pixel mapping, allowing you to maintain the original resolution of your cameras output and avoid any unexpected focus issues in post-production.

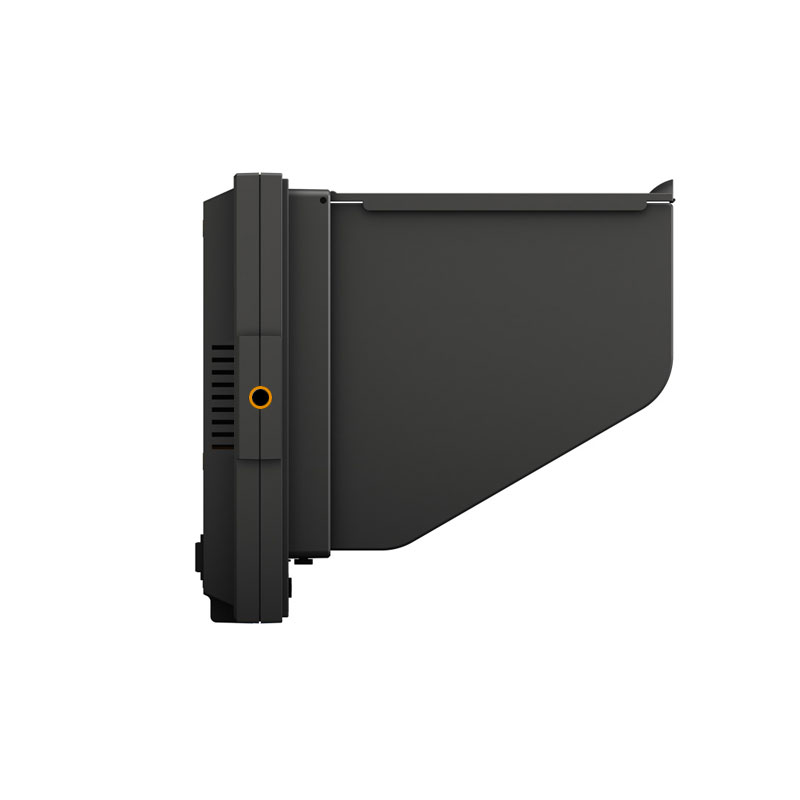

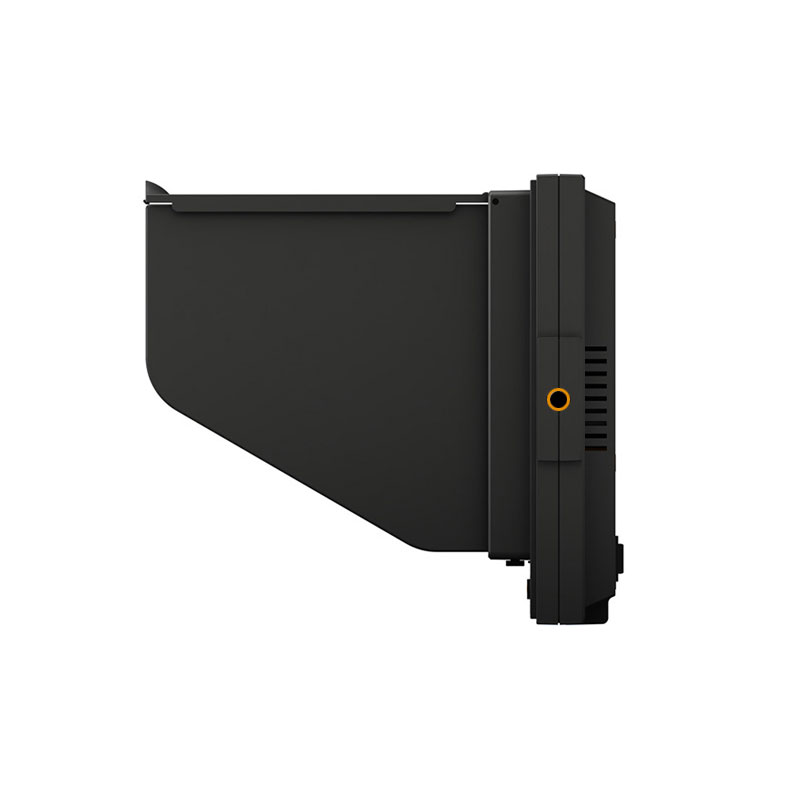

    Foldable sunhood becomes screen protector

    Customers frequently asked Lilliput how to prevent their monitor’s LCD from getting scratched, especially in transit. Lilliput responded by designing 5D-II’s smart screen protector that folds out to become a sun hood. This solution provides protection for the LCD and saves space in the customers camera bag.

    HDMI video output – no annoying splitters

    Most DSLRs only have one HDMI video output, so customers need to buy expensive and cumbersome HDMI splitters to connect more than one monitor to the camera.

    5D-II/O includes an HDMI-output feature which allows allows customers to duplicate the video content onto a second monitor – no annoying HDMI splitters required. The second monitor can be any size and picture quality will not be affected.

    High resolution

    Lilliput’s intelligent HD scaling technology used on the 668GL has worked wonders for our customers. But some customers need higher physical resolutions. 5D-II uses the latest LED-backlit display panels that feature 25% higher physical resolutions. This provides higher levels of detail and image accuracy.

    High contrast ratio

    5D-II provides even more innovations to pro-video customers with its super-high contrast LCD. The 800:1 contrast ratio produces colours that are vivid, rich – and importantly – accurate. Combine this with the high resolution LCD and 1:1 pixel mapping, 5D-II provides the most accurate picture of all Lilliput monitors.

    Configurable to suit your style

    Since Lilliput introduced the complete range of HDMI monitors, we have had countless requests from our customers to make changes to improve our offering. Some features have been included as standard on 5D-II. Users can customize the 4 programmable function buttons (namely F1, F2, F3, F4) for shortcut operation according to different needs.

    Wide viewing angles

    Lilliput’s monitor With a stunning 150+ degrees viewing angle, you can get the same vivid picture from wherever you are standing – great for sharing the video from your DSLR with the whole film crew

  • Previous: 7 inch on camera top monitor
  • Next: Next:7 inch HDMI Camera-top Monitor

  • Display
    Size 7″ LED backlit
    Resolution 1024×600, support up to 1920×1080
    Brightness 250cd/m²
    Aspect Ratio 16:9
    Contrast 800:1
    Viewing Angle 160°/150°(H/V)
    HDMI  1
    HDMI  1
    Ear Phone Slot  1
    Speaker  1(bulit-in)
    Current  800mA
    Input Voltage  DC7-24V
    Power Consumption  ≤10W
    Battery Plate  F970 / QM91D / DU21 / LP-E6
    Operating Temperature  -20℃ ~ 60℃
    Storage Temperature  -30℃ ~ 70℃
    Dimension(LWD)  196.5×145×31/151.3mm(with cover)
    Weight  505g/655g(with cover)
