Smart Converter
SMART CONVERTER
RS232/422/485 ⇄CAN BUS
The smart converter which can be easily read the CAN Bus data through RS232, RS422 and RS485. It supports baud rates from 2400 to 921600 bps for series port and baud rates from 10K-1Mbps for CAN Bus data transfer. Moreover, the device comes with 3500Vrms isolation voltage and ±8KV anti-static grade.Therefore, it can working in extreme environments.

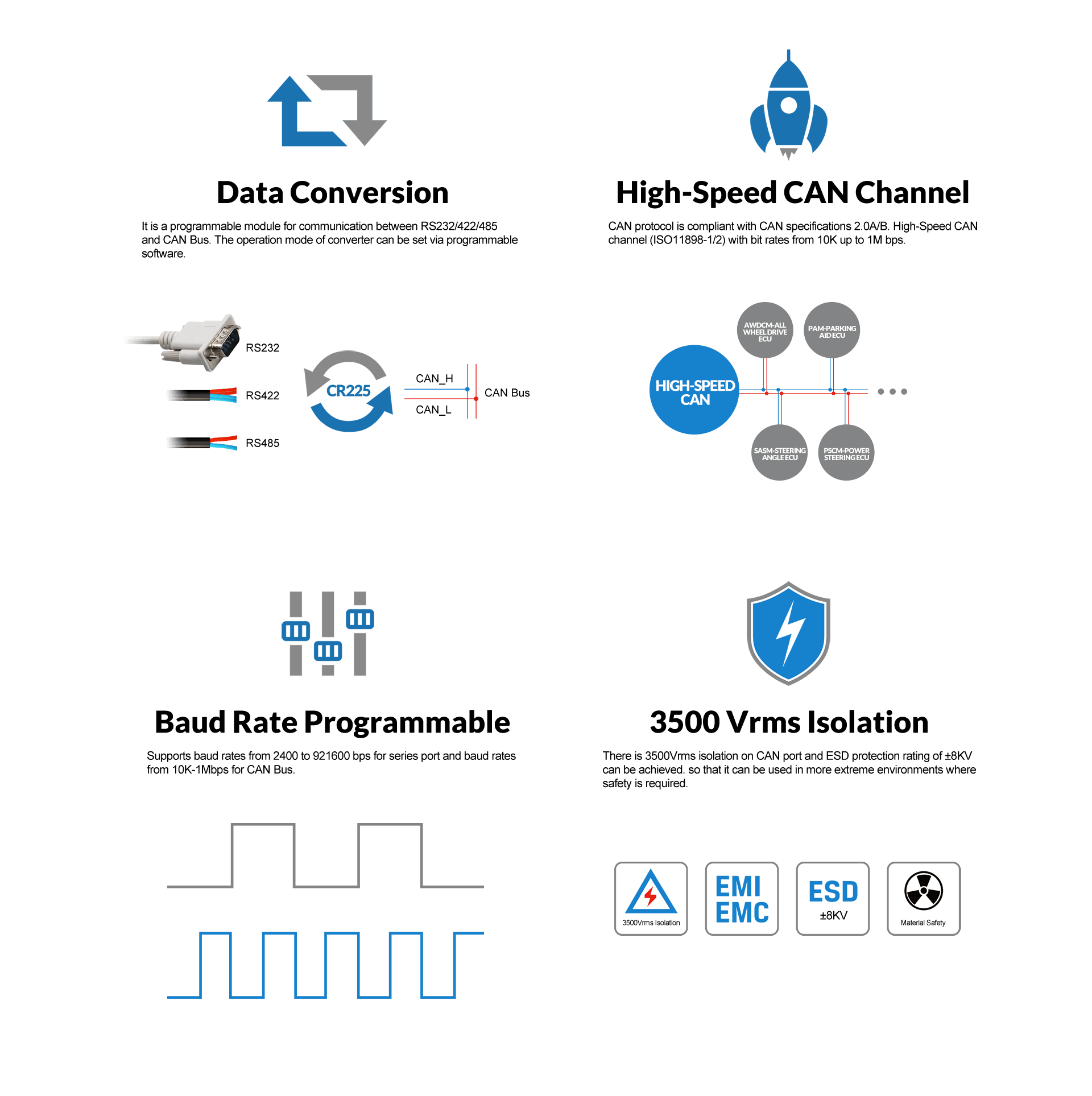

Technical Features
The converter is not only focused on its technical details, but also the best choice in terms of safety.
Excellent performance of protection creates a safe and stronge bridge between devices.
| Model | CR225 |
| CAN Channels | 1 channel |
| CAN baud rate | 10k-1Mbps |
| Serial ports | RS232/485/422 software selection |
| Baud rate of serial ports | 2400-921600bps |
| Configured interface | RS232 |
| Data reception capability | 1200 frames/second |
| Data transmission | 1200 frames/second |
| Interface card format conversion | Supported |
| Transparent conversion | Supported |
| Transparent mark-borne conversion | Supported |
| 120ohm terminal resistor | External |
| ESD | ±8KV |
| Operating temperature | -40°C ~ 85°C |
| Supply voltage | DC 9-36V |
| Material | Metal housing |

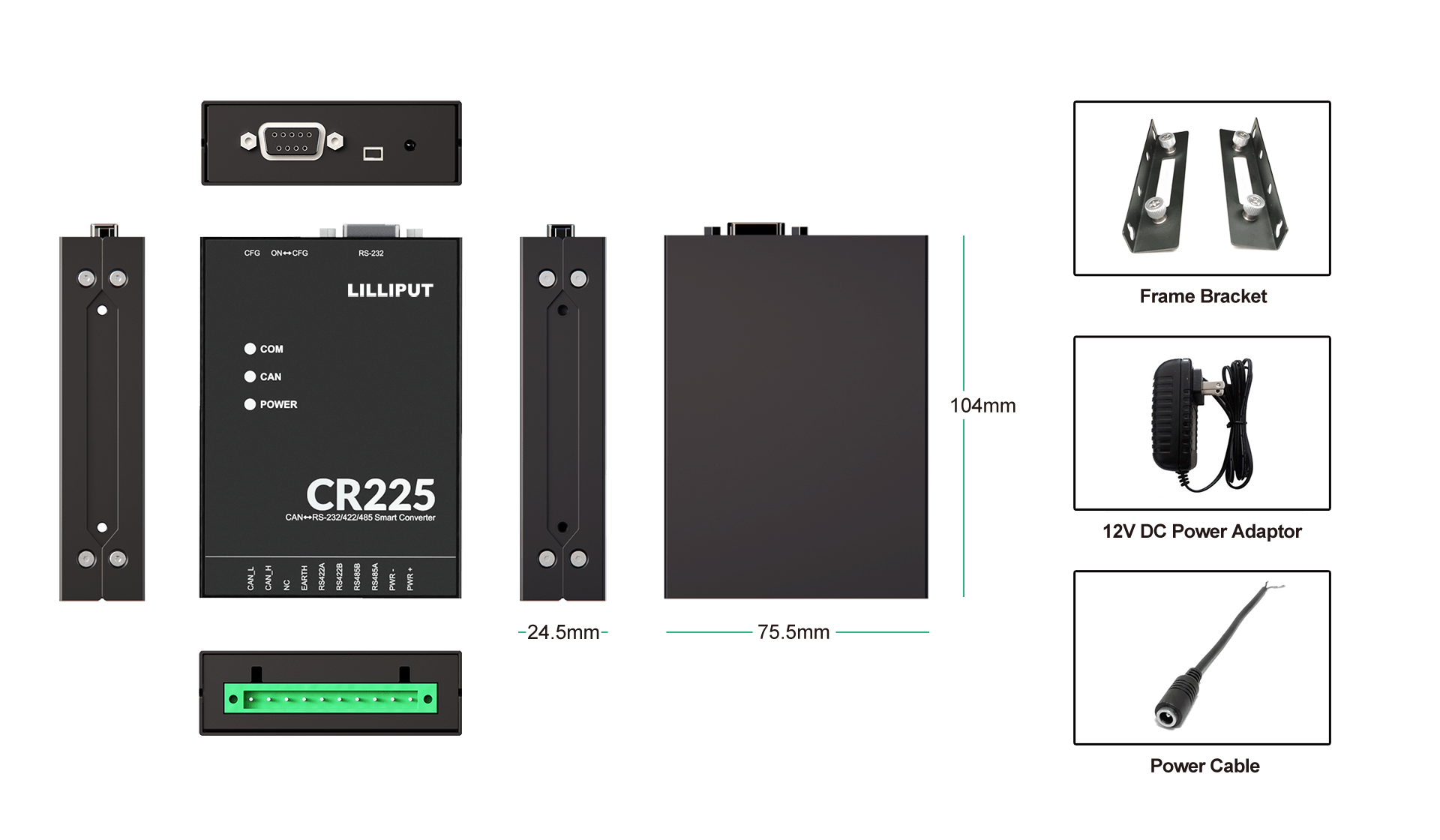

| Dimension | 104mm*75.5mm*24.5mm |
