PVM160S-H
PVM160S-E
Building on the PVM150S

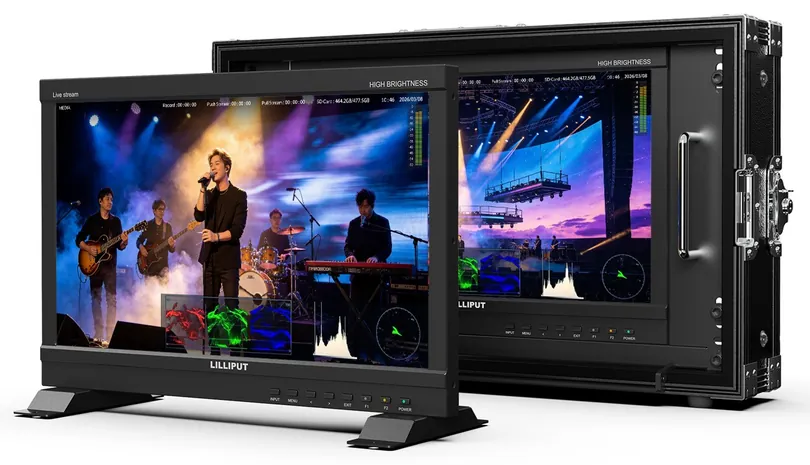

The PVM150S reliably serves video producers in their HD productions. Customers value its practicality and durability at a great price: the 3G-SDI and HDMI 1.4 connectivity, 3G-SDI loop-out, in a rugged metal frame. The PVM160S series expands Lilliput's range of 15 inch Full HD monitors with higher brightness, latest connectivity standards, and professional video production scopes.
PVM160S-H: high-brightness video monitoring with comprehensive video analysis

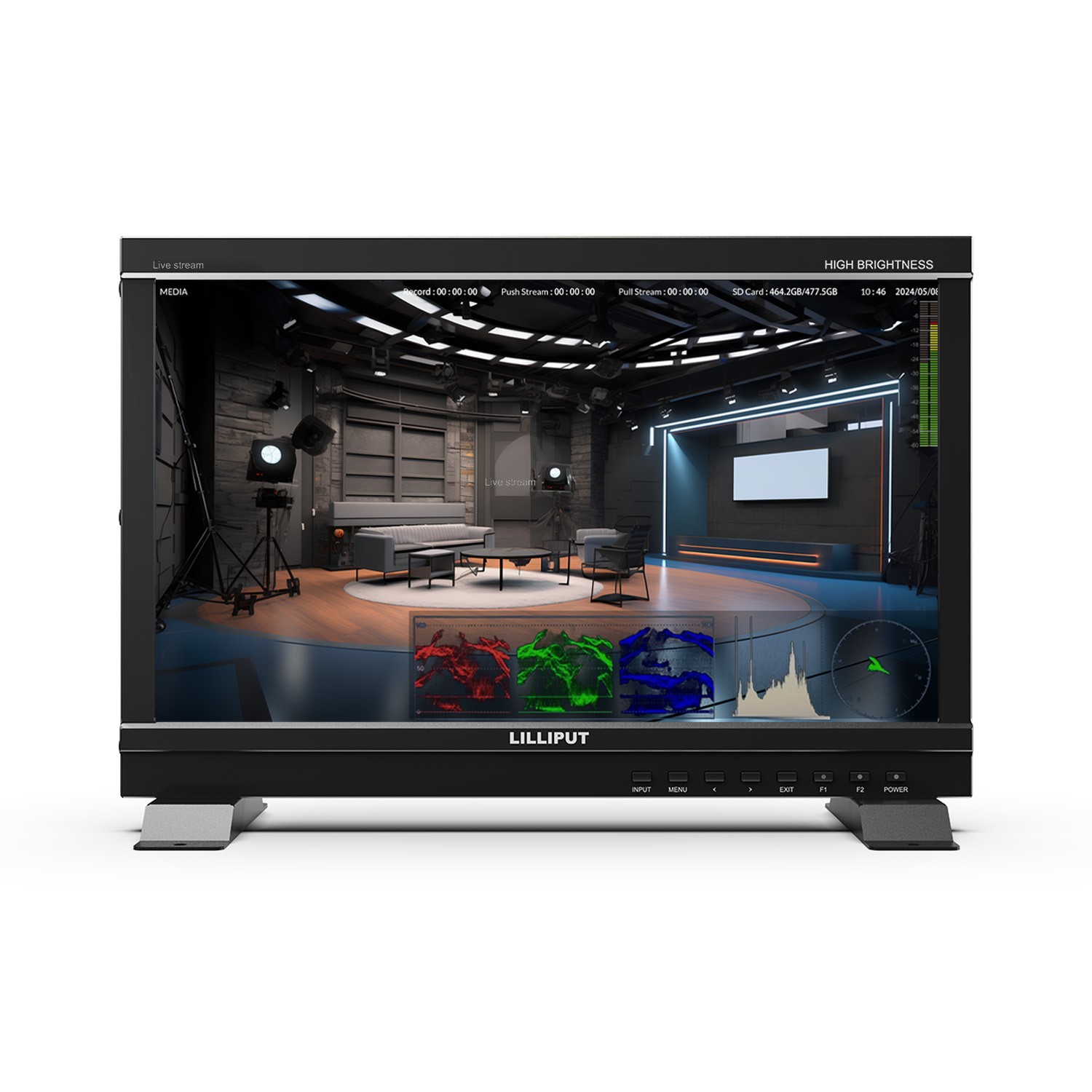

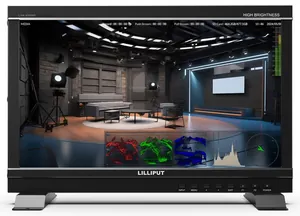

The PVM160S-H offers higher brightness at 1200 cd/m2 for video productions needing a reliable on-location 15 inch reference monitor, in a studio or outdoor broadcast truck. HDMI 2.0 and 3G-SDI loop-through supports Full HD workflows. Video analysis scopes, HDR and 3D LUT give directors more confidence on the incoming feed.
PVM160S-E: NDI®|HX through HX3, PoE++ and onboard recording

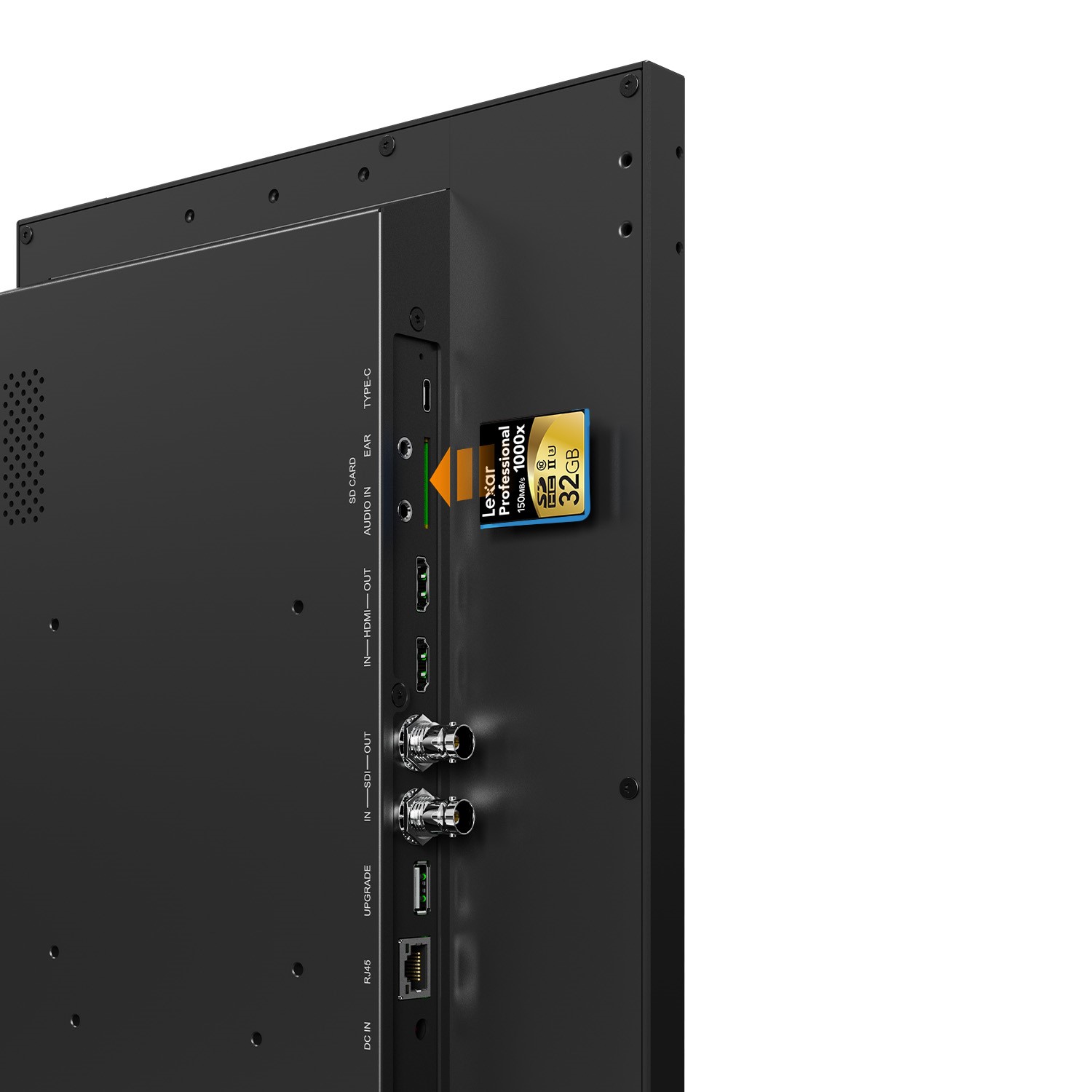

The PVM160S-E builds on the PVM160S-H further with networked and live streaming capabilities. With native NDI®|HX, NDI®|HX2 and NDI®|HX3 decoding and real-time SRT and RTMP encoding and transmission, the PVM160S-E is built for video monitoring in AV over IP workflows. Paired with PoE++ (IEEE 802.3bt) on the Gigabit Ethernet port, the PVM160S-E brings single-cable simplicity to your video productions. Finally, onboard recording to SD card (up to 512GB) in H.264 at up to 1080p makes the PVM160S-E an all-in-one solution for video monitoring, recording and streaming, removing the need for external recorders, video decoders or streaming encoders.
VESA 75 mounting with accessible battery mount

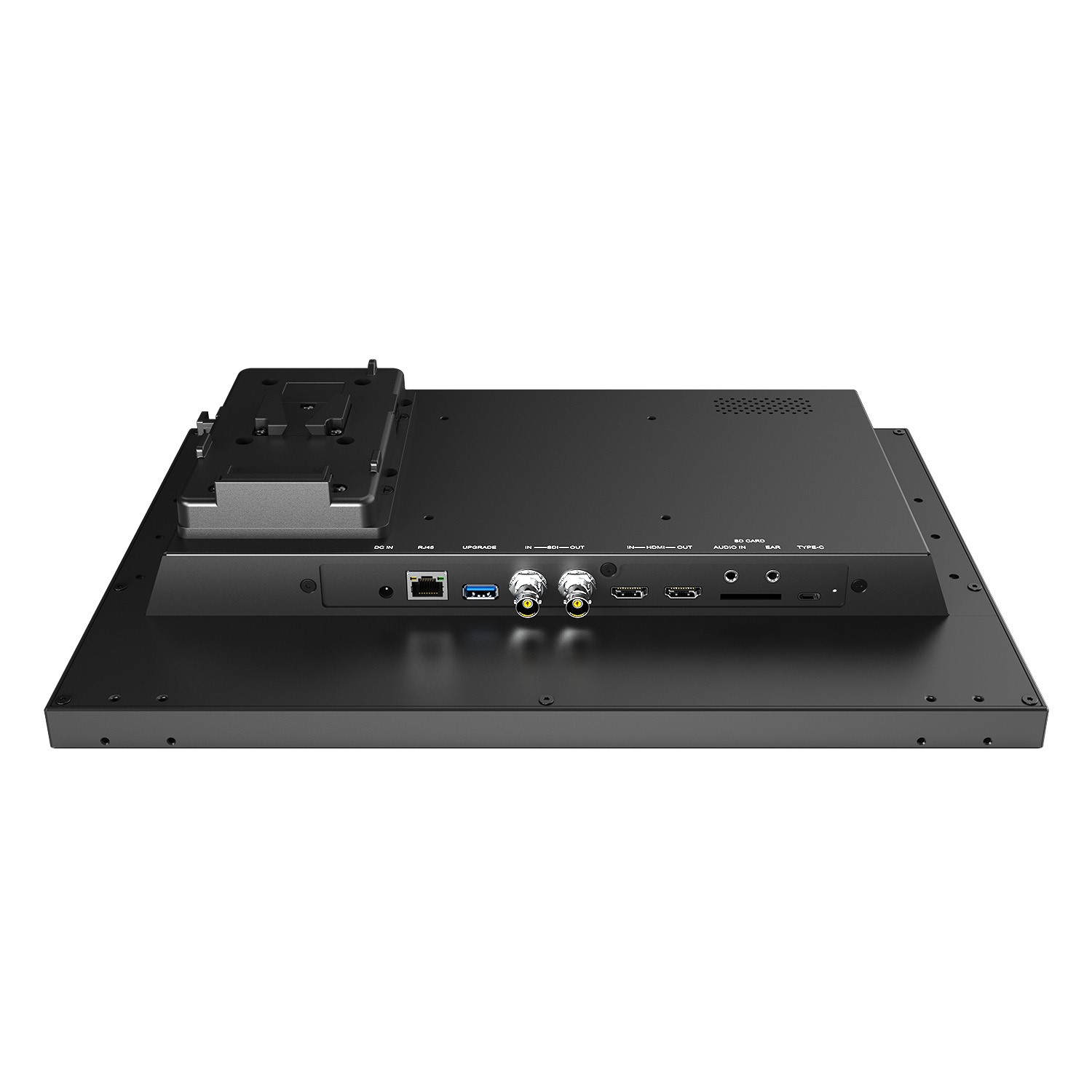

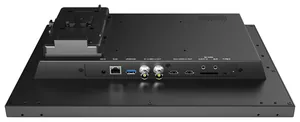

Both models are thoughtfully designed with an offset battery mount so the monitor can be fixed using VESA 75 x 75 mm while still running from battery power when needed. The plate sits clear of the VESA pattern, so cart, arm or wall mounting does not block an optional V-Lock or Anton Bauer plate.
Designed to mount into any environment

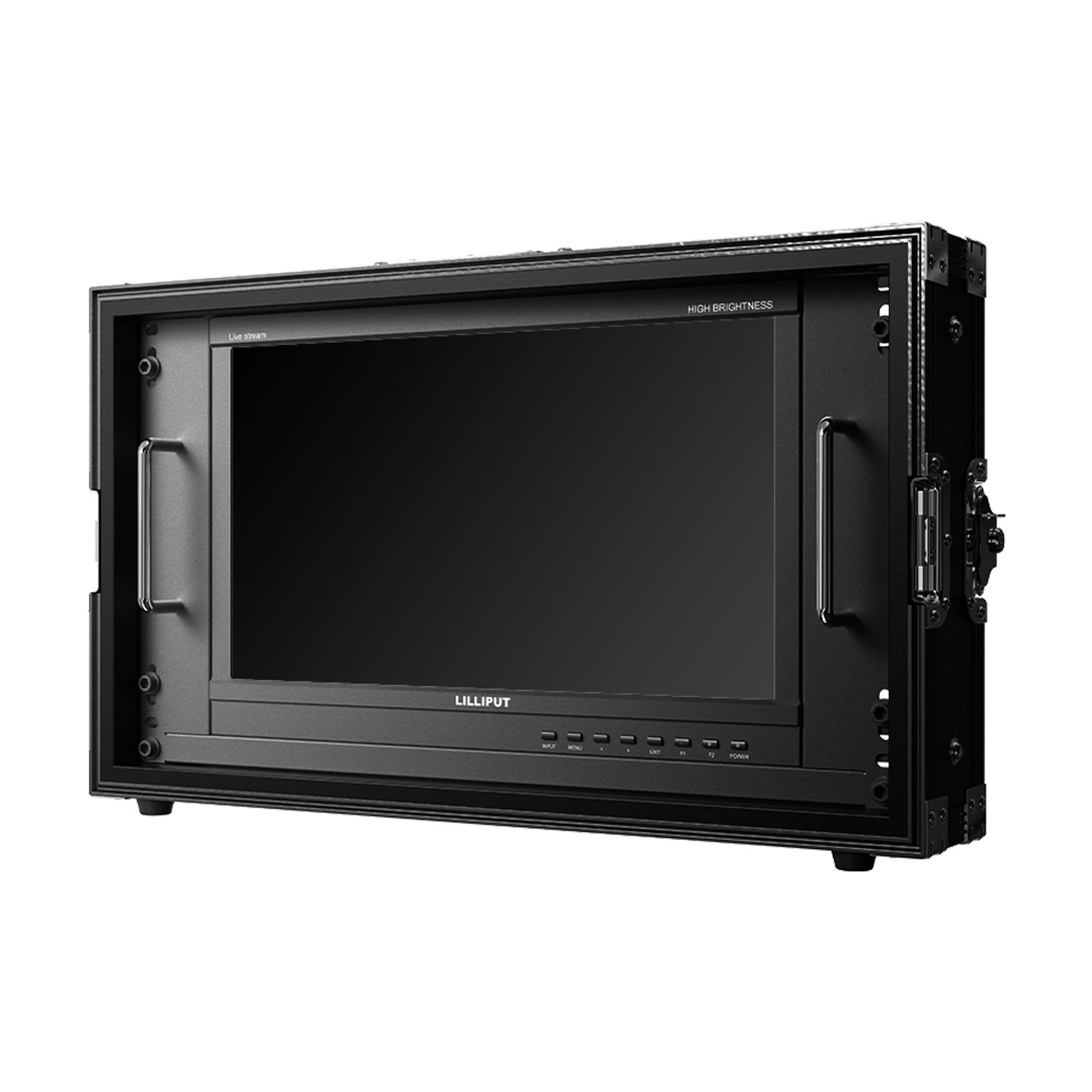

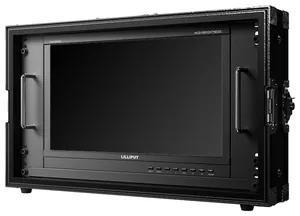

Customers appreciate Lilliput video monitors' adaptability to many environments. The PVM160S range is no different. The optional carry case (with included sunshade) is perfect for on-location use, protecting the monitor in transit and on set. Optional rackmount brackets fit the monitor into a standard 19 inch rack for studio or outdoor broadcast truck installs. Optional gimbal brackets are suited to desk mounting with a sturdy tilt mechanism.
Choosing between H and E
Both offer brighter screens, 3G-SDI and HDMI 2.0 with loop-out, and Lilliput’s comprehensive professional video analysis tools. Choose the PVM160S-E when you need built-in NDI®|HX / HX2 / HX3 decoding, IP video streaming, PoE++ (IEEE 802.3bt) or onboard recording for network or field workflows.
Availability
Both models are available to order through Lilliput UK’s authorised resellers. Full specifications and downloads are on the product pages.
View the Lilliput PVM160S-H product page →
View the Lilliput PVM160S-E product page →
Contact
For pricing, demonstrations, or advice on which model fits your workflow, contact Keith Rogers, Broadcast Category Manager, at [email protected] or call +44 (0)1902 428688 ext. 302.
