MMV1630
Broadcast and Live Events
- 16-channel multiview and 16x16 3G-SDI video switcher
- Multiview output: 2x 3G-SDI + 1x HDMI, up to 1080p 60
- 20 preset multiview layouts (16/12/11/10/9/8/6/4 windows) with full-screen SOLO
- UMD, audio meter, timecode, and border overlays per window with customisable colours
From €1,399 / £1,239

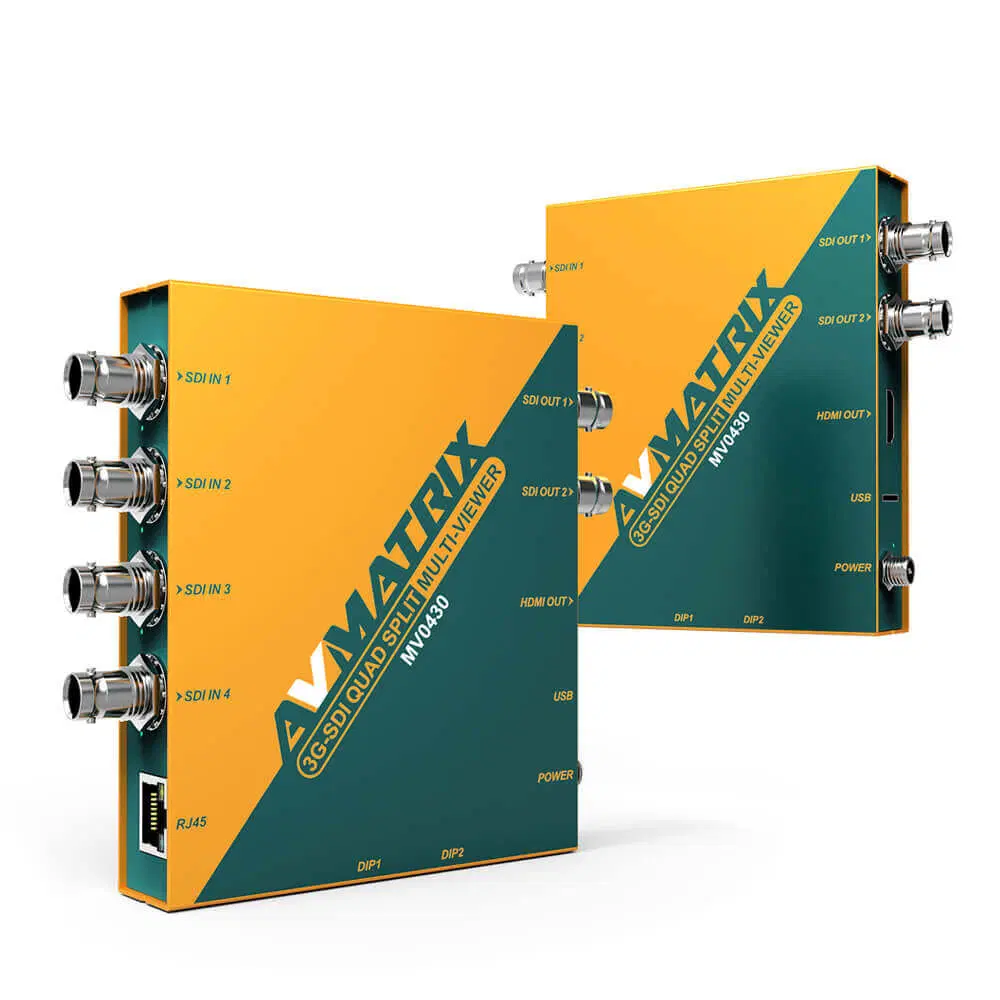

MV0430
Broadcast and Live Events
- 4-channel 3G-SDI multi-viewer: 4x SD/HD/3G-SDI in, 2x 3G-SDI out, 1x HDMI type A out
- 16 preset layouts including quad split, full screen, triple, PIP, and POP; output scaling and frame rate conversion via DIP
- 11-character UMD, 2-channel audio meter from 16 embedded SDI pairs, input info OSD, and coloured borders
- Control via DIP switches, USB keyboard, or PC software over LAN (UDP, port 7000) with API; 2 custom presets
From €289 / £259
Compare our Video Multi Viewers products in more detail.
| Technical Data | MMV1630 View product | MV0430 View product |
|---|---|---|
| Connections | ||
| Video inputs | 16x SD/HD/3G-SDI (BNC) | 4x SD/HD/3G-SDI (75Ω BNC) |
| Video outputs | 16x SD/HD/3G-SDI (BNC) | 2x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A |
| Multiview outputs | 2x 3G-SDI (BNC), 1x HDMI Type-A | 2x 3G-SDI (75Ω BNC), 1x HDMI type A |
| Audio | 3G-SDI embedded, selectable per window | 3G-SDI embedded; 2-channel audio meter selectable from 16 pairs |
| Network | — | 1x LAN (RJ45; configuration, firmware updates, and PC software) |
| Other interfaces | — | USB keyboard |
| Video Standards | ||
| 3G-SDI input (multiviewer) | 1080p 60/59.94/50 (3G-SDI level-A), 1080p 30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 |
| 3G-SDI input (switcher) | 2048 x 1080p 30/29.97/25/24/23.98, 2048 x 1080psF 30/29.97/25/24/23.98, 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94 | — |
| 3G-SDI/HDMI output | 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 | 1080p 24/25/30/50/60, 1080i 50/60, 720p 25/30/50/60 |
| 3G-SDI compliance (multiviewer) | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 352M, SMPTE 424M | SMPTE 292M, SMPTE 259M, SMPTE 424M, SMPTE 352M, SMPTE 296M |
| 3G-SDI compliance (switcher) | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, DVB-ASI | — |
| Colour space (multiviewer) | Input: YUV 4:2:2/4:4:4, RGB 4:4:4; Output: YUV 4:2:2 | Input: YUV or RGB; Output: YUV |
| Colour space (switcher) | YUV 4:2:2/4:4:4, RGB 4:4:4 10/12-bit, XYZ 4:4:4 12-bit | — |
| Operational Features | ||
| Multi Viewer | Quad-View | Picture-by-Picture, Picture-in-Picture, Three-Way Split, Quad-View |
| Front panel | 2.2 inch LCD display, IN/OUT channel buttons (1 to 16), knob control | DIP switches; USB keyboard |
| Control interfaces | LAN (RJ45), UDP, port 7000, RS-422, 9600 baud, 8N1 | LAN (RJ45), UDP, port 7000, USB keyboard |
| Custom presets | 2 user-defined configurations (Custom1, Custom2) | 2 user-defined configurations (Custom1, Custom2) |
| DIP switches | — | Output format and scaling, 16 layouts (quad, PIP, POP, full screen), audio meter pair and overlay, UMD, status overlay, and custom presets |
| Remote control | — | PC software via LAN |
| Scaler | — | Output scaling and frame rate conversion via DIP (SDI and HDMI) |
| Frame rate conversion | — | Yes — selectable SDI and HDMI output format via DIP |
| Power | ||
| Input voltage | DC 12 to 20V | DC 6 to 24 V |
| Power supply | Dual redundant (PS-1, PS-2), threaded locking connectors | — |
| Power consumption | ≤36 W | 6 W |
| Environmental | ||
| Operating temperature | 0°C to 60°C | -20°C to 60°C (HDMI output 0°C to 60°C) |
| Storage temperature | -30°C to 70°C | -30°C to 70°C |
| Relative humidity | 0% to 90% non-condensing | 0% to 90% non-condensing |
| Mechanical | ||
| Dimensions | 482.5 x 44 x 148.6 mm | 125.5 x 104 x 24.5 mm |
| Weight | 2000 g (net), 3800 g (gross) | 512 g |
| Rack height | 1U | — |
| Mounting | ||
| Rack mount | Standard 19 inch rack mounting | — |
| Wall mount | — | Detachable mounting brackets included |
| Switching | ||
| Modes | Multiviewer, 16 x 16 Matrix Switcher | — |
| Matrix routing | Any input to any output (switcher mode) | — |
| 3G-SDI auto switching | Auto-detects SD, HD, and 3G-SDI on inputs | — |
| Multiviewer | ||
| Layouts | 20 presets (16/12/11/10/9/8/6/4 windows) | 16 presets including quad split, full screen, triple windows, PIP, and POP |
| Full screen | SOLO any input in full screen via shortcut key | Full screen any input, or quad view, via USB keyboard |
| Overlays | UMD, Audio meter, Timecode, Input resolution (OSD), Border, Audio alarm | UMD (11 characters), Audio meter, Input information (OSD), Border |
| Other | ||
| Warranty | — | 3 years limited |
| Browse products | View MMV1630 | View MV0430 |
