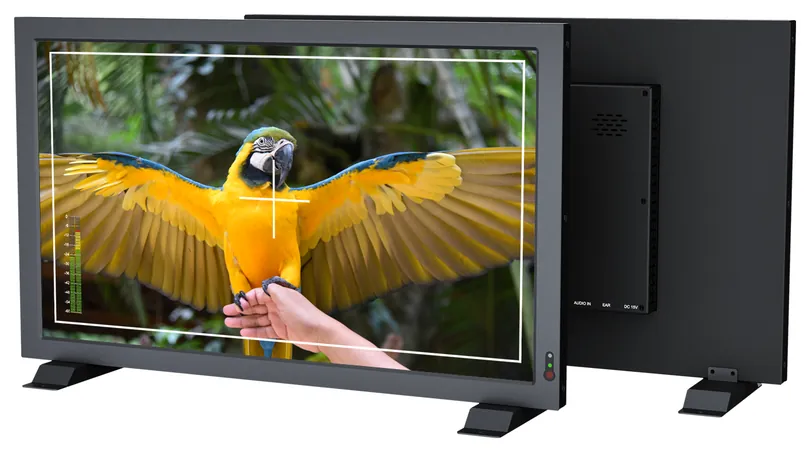

Key Features
- 21.5 inch 1920 x 1080 display, 1000 cd/m², 1000:1 contrast
- 1x 3G-SDI, 1x HDMI 1.4, VGA, Composite, versatile input options
- HDMI 4K passthrough (2160p 24/25/30); HDR support (ST2084, HLG)
- Sturdy metal frame, well-built for reliable field use
- 16ch 3G-SDI audio, 3.5 mm ear jack
- Versatile mounting: VESA 75 x 75 mm and VESA 100 x 100 mm, base brackets included
Buy the PVM210S From an Authorised Reseller
Lilliput's authorised broadcast resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the PVM210S now, or if your country is not listed, browse all authorised resellers here.
- 3D Broadcast Ltd Opens in a new tab.
- APODAX SL Opens in a new tab.
- Broadcast & Production Services (UK) Limited Opens in a new tab.
- Camera World Limited Opens in a new tab.
- E-MOTION CREATIONS di Pierfrancesco Armati Opens in a new tab.
- Eastwood (Sound and Vision) Ltd Opens in a new tab.
- Fotospecialisti d.o.o. Opens in a new tab.
- HDEWCameras Opens in a new tab.
- Más Que Vídeo Profesional, SA Opens in a new tab.
- PBS Opens in a new tab.
- Proactive UK Ltd Opens in a new tab.
- RCB Logic Limited Opens in a new tab.
- Swiss Event Corporation AG Opens in a new tab.
- Top-Teks Limited Opens in a new tab.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data
Display
- Screen size
- 21.5 inch
- Aspect ratio
- 16:9
- Native resolution
- 1920 x 1080
- Panel type
- LCD
- Brightness
- 1000 cd/m²
- Contrast
- 1000:1
- Viewing angle
- 160°/160° (H/V)
- HDR
- ST2084 300/1000/10000, HLG

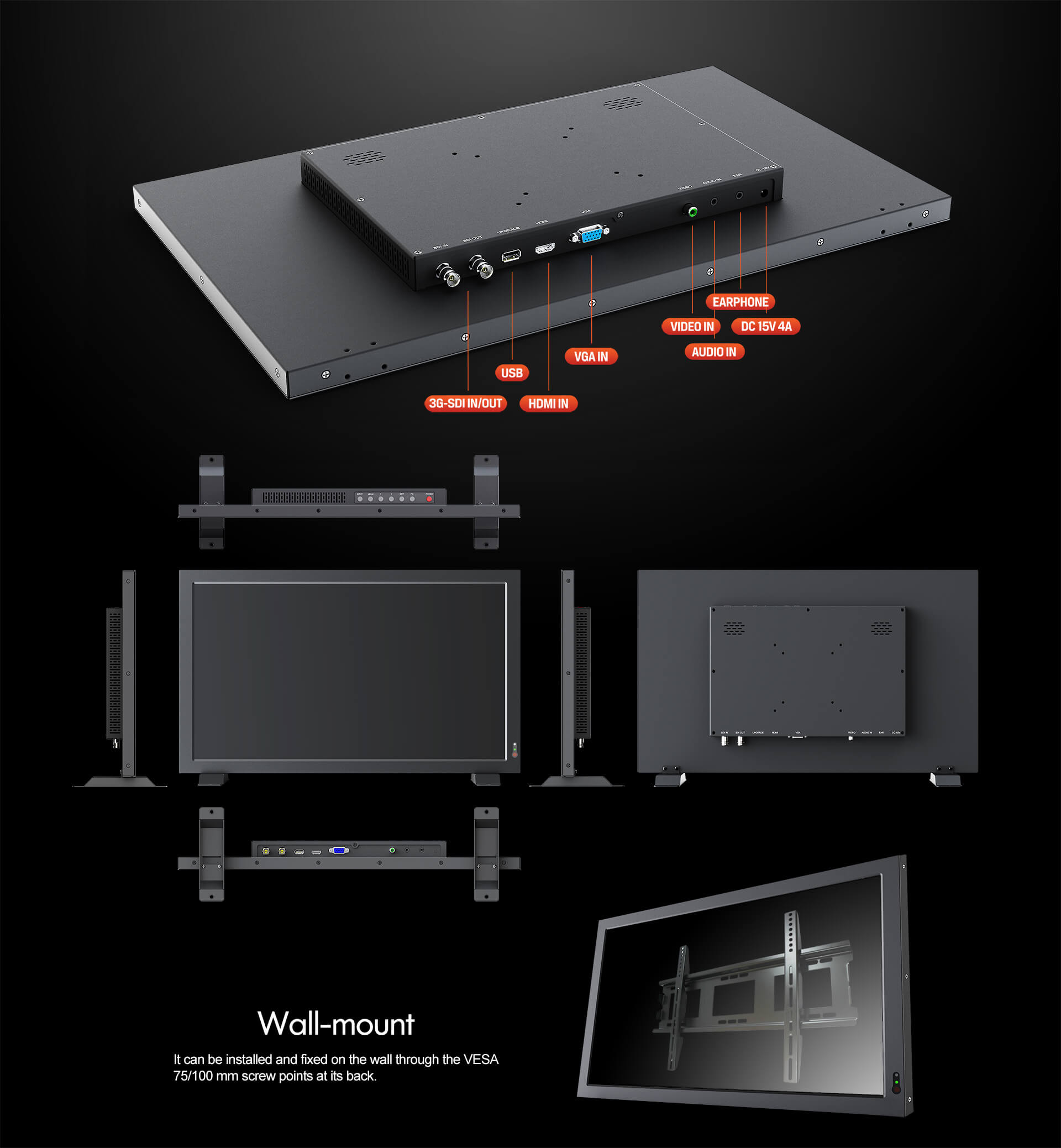

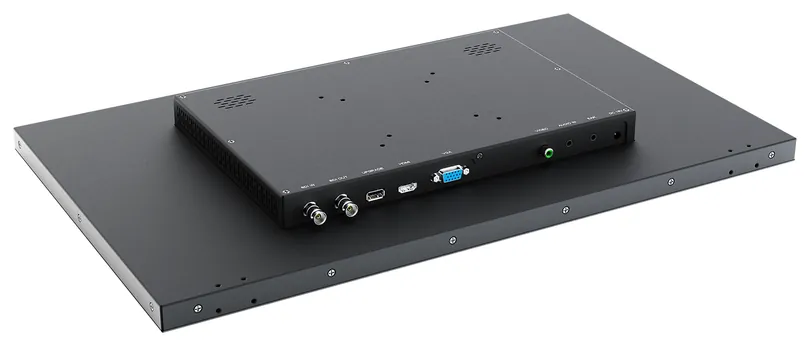

Connections
- Video inputs
- 1x 3G-SDI, 1x HDMI 1.4, 1x VGA, 1x Composite
- Video outputs
- 1x 3G-SDI
- Audio
- 3G-SDI 16ch 48kHz 24-bit, 3.5 mm ear jack, 2x Built-in speakers
Video Standards
- 3G-SDI
- 3G-SDI Level A/B: 1080p 24/25/30/50/60, 1080i 50/60, HD-SDI: 720p 24 to 60, 1080i 50/60, SD-SDI: 525i, 625i
- HDMI 1.4
- 2160p 24/25/30, 1080p 24 to 60, 1080i 50/60
Power
- Input voltage
- DC 12 to 24V
- Power consumption
- ≤36 W
Environmental
- Operating temperature
- 0°C to 50°C
- Storage temperature
- -10°C to 60°C

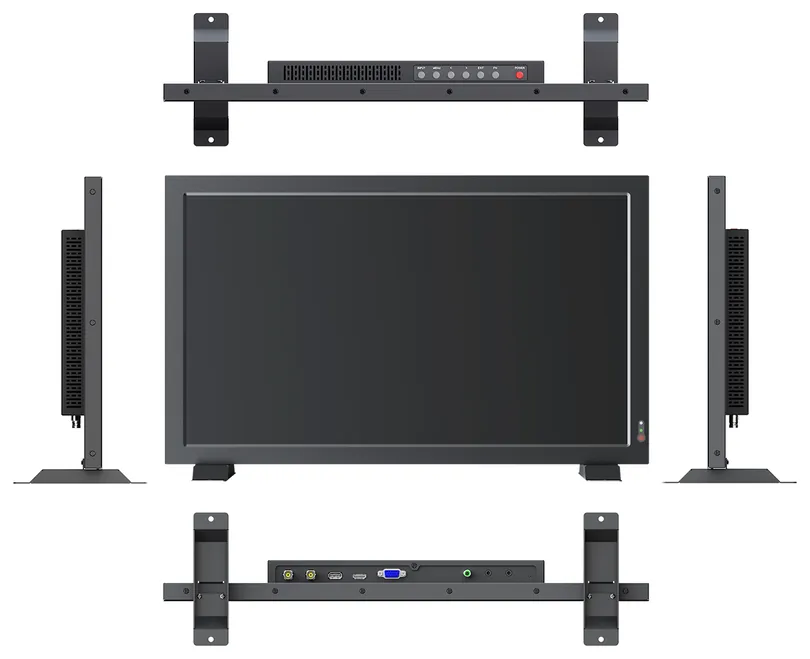

Mechanical
- Dimensions
- 524.8 x 313.3 x 44.5 mm
- Weight
- 5.1 kg

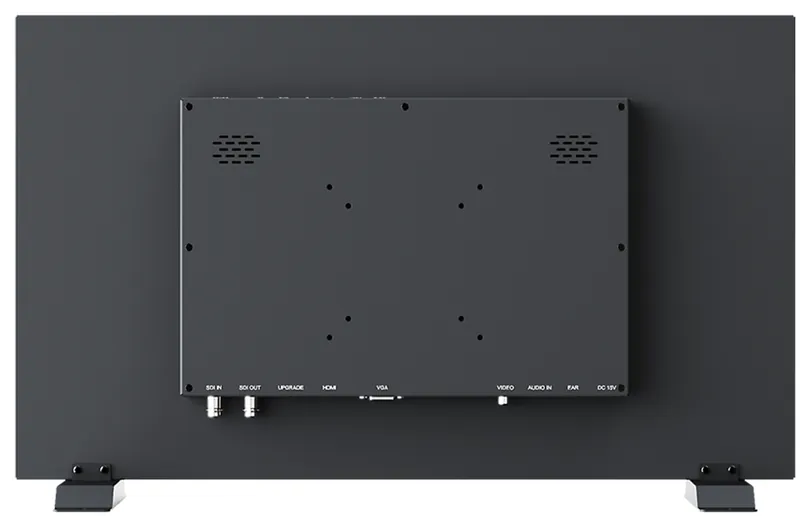

Mounting
- VESA mount
- 75 x 75 mm, 100 x 100 mm (external bracket)
- Base brackets
- Base bracket (1 pair) included
Operational Features
- Markers
- Aspect markers: 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
Accessories
Included
- 15V DC Adapter
- HDMI A/A Cable
- VGA Cable
- VIDEO Cable
- AUDIO Cable
- Base Bracket (1 pair)
- User manual
Optional
- Carry case
- VESA Mount Plate
- V-Lock / Anton Bauer Mount
Product Downloads
Similar Products
Compare key technical data across similar Lilliput products.
| Technical Data | PVM210S | PVM220S | PVM220S-H | PVM220S-E | Q23-8K |
|---|---|---|---|---|---|
| Display | |||||
| Screen size | 21.5 inch | 21.5 inch | 21.5 inch | 21.5 inch | 23.8 inch |
| Aspect ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Native resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 3840 x 2160 |
| Panel type | LCD | LCD | LCD | LCD | LED |
| Brightness | 1000 cd/m² | 500 cd/m² | 1000 cd/m² | 1000 cd/m² | 300 cd/m² |
| Contrast | 1000:1 | 1500:1 | 1000:1 | 1000:1 | 1000:1 |
| Viewing angle | 160°/160° (H/V) | 170°/170° (H/V) | 178°/178° (H/V) | 178°/178° (H/V) | 178°/178° (H/V) |
| HDR | ST2084 300/1000/10000, HLG | — | ST2084 300/1000/10000, HLG | ST2084 300/1000/10000, HLG | HLG, ST 2084 300/1000/10000 |
| Supported log formats | — | — | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined |
| LUT support | — | — | 3D-LUT (.cube format) | 3D-LUT (.cube format) | 3D-LUT (.cube format) |
| Colour space | — | — | — | — | Rec.709: 100% |
| Connections | |||||
| Video inputs | 1x 3G-SDI, 1x HDMI 1.4, 1x VGA, 1x Composite | 2x 3G-SDI, 2x HDMI, 1x USB Type-C | 1x 3G-SDI, 1x HDMI 2.0 | 1x 3G-SDI, 1x HDMI 2.0, 1x LAN 1000M | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 |
| Video outputs | 1x 3G-SDI | 2x 3G-SDI | 1x 3G-SDI, 1x HDMI 2.0 | 1x 3G-SDI, 1x HDMI 2.0 | 4x 12G-SDI, 1x HDMI 2.0 |
| Audio | 3G-SDI 16ch 48kHz 24-bit, 3.5 mm ear jack, 2x Built-in speakers | 3G-SDI 2ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker | 3G-SDI 2ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker | 3G-SDI 2ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers |
| Program output | — | 1x PGM HDMI + 1x PGM 3G-SDI (simultaneous, 1080p 24/25/30/50/60) | — | — | — |
| Video Standards | |||||
| 3G-SDI | 3G-SDI Level A/B: 1080p 24/25/30/50/60, 1080i 50/60, HD-SDI: 720p 24 to 60, 1080i 50/60, SD-SDI: 525i, 625i | 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — |
| HDMI 1.4 | 2160p 24/25/30, 1080p 24 to 60, 1080i 50/60 | — | — | — | — |
| HDMI | — | 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60 | — | — | — |
| HDMI 2.0 | — | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| USB Type-C | — | 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60 | — | — | — |
| NDI® | — | — | — | NDI®|HX, NDI®|HX2, NDI®|HX3 | — |
| 12G-SDI | — | — | — | — | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| SFP | — | — | — | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| Scopes | |||||
| Video analysis | — | Histogram, Exposure, Peaking, False colour (ARRI, RED), Check field, Freeze | Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Check field, Freeze, Colour bar | Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Check field, Freeze, Colour bar | Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom |
| Audio analysis | — | Level meter | Audio vector, Level meter | Audio vector, Level meter | Audio vector, Level meter |
| Power | |||||
| Input voltage | DC 12 to 24V | DC 12 to 24V | DC 9 to 24V | DC 9 to 24V | DC 12 to 24V |
| Power consumption | ≤36 W | ≤33 W (15V) | ≤53 W (15V) | ≤53 W (15V) | ≤60 W (15V) |
| Compatible batteries | — | — | V-Lock or Anton Bauer mount (optional) | V-Lock or Anton Bauer mount (optional) | V-Lock or Anton Bauer mount |
| Input voltage (battery) | — | — | 14.8V nominal | 14.8V nominal | 14.8V nominal |
| PoE | — | — | — | PoE++ IEEE 802.3bt | — |
| Environmental | |||||
| Operating temperature | 0°C to 50°C | -20°C to 60°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C |
| Storage temperature | -10°C to 60°C | -30°C to 70°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C |
| Mechanical | |||||
| Dimensions | 524.8 x 313.3 x 44.5 mm | 508 x 321 x 47 mm | 508 x 321 x 47 mm | 508 x 321 x 47 mm | 567 x 376.4 x 45.7 mm |
| Weight | 5.1 kg | 5.39 kg | 4.7 kg | 4.75 kg | 7.4 kg |
| Mounting | |||||
| VESA mount | 75 x 75 mm, 100 x 100 mm (external bracket) | 75 x 75 mm, 100 x 100 mm | 75 x 75 mm, 100 x 100 mm (external bracket); 75 x 75 mm (V-mount/Anton Bauer battery) | 75 x 75 mm, 100 x 100 mm (external bracket); 75 x 75 mm (V-mount/Anton Bauer battery) | 75 x 75 mm, 100 x 100 mm (plate included) |
| Base brackets | Base bracket (1 pair) included | Base brackets included | Base brackets included | Base brackets included | Base brackets included |
| Operational Features | |||||
| Markers | Aspect markers: 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.3X, 1.5X, 1.8X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.3X, 1.5X, 1.8X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.3X, 1.5X, 1.8X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off |
| Multi Viewer | — | Picture-by-Picture, Picture-in-Picture, PVW/PGM, Three-Way Split, Quad-View | — | — | Quad-View |
| UMD | — | User-defined text with colour coding | — | — | User-defined text (7 colours) |
| Function buttons | — | F1, F2 user-definable | F1, F2 user-definable | F1, F2 user-definable | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) |
| Colour temperature | — | — | 5500K, 6500K, 7500K, 9300K, User | 5500K, 6500K, 7500K, 9300K, User | 3200K, 5500K, 6500K, 7500K, 9300K, User |
| Gamma | — | — | 1.8 to 2.8 | 1.8 to 2.8 | 1.8 to 2.8 |
| Selectable colour spaces | — | — | Native, SMPTE-C, Rec.709, EBU | Native, SMPTE-C, Rec.709, EBU | Native, SMPTE-C, Rec.709, EBU, DCI-P3, Rec.2020 |
| Comparison | — | — | Gamma/HDR, Colour space, Camera LUT | Gamma/HDR, Colour space, Camera LUT | Colour space, HDR, Gamma, Camera Log (side-by-side with original) |
| Peaking | — | — | Red, Green, Blue, White, Black | Red, Green, Blue, White, Black | Red, Green, Blue, White, Black |
| Time code | — | — | LTC, VITC | LTC, VITC | LTC, VITC |
| Menu control | — | — | — | — | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) |
| Remote control | — | — | — | — | GPI, LAN, RS422 In/Out |
| Tally | — | — | — | — | Red, Green, Yellow |
| Image mirroring | — | — | — | — | Vertical flip, Horizontal flip |
| Recording | |||||
| Storage | — | — | — | SD card | — |
| File segment | — | — | — | 1/5/10/20/30/60 min | — |
| Record file format | — | — | — | H.264 | — |
| Video resolution | — | — | — | 1920 x 1080, 1280 x 720, 720 x 480 | — |
| Frame rates | — | — | — | 60/50/30/25/24 fps | — |
| Audio sample rate | — | — | — | 44.1 kHz / 48 kHz | — |
| Streaming | |||||
| IP streaming | — | — | — | Push/Pull: YCbCr 4:2:2 (up to 32 Mbps @ 1080p60) | — |
| Streaming protocols | — | — | — | Push: SRT, RTMP; Pull: RTMP, RTSP, HTTP, HTTPS, NDI®|HX, NDI®|HX2, NDI®|HX3 | — |
