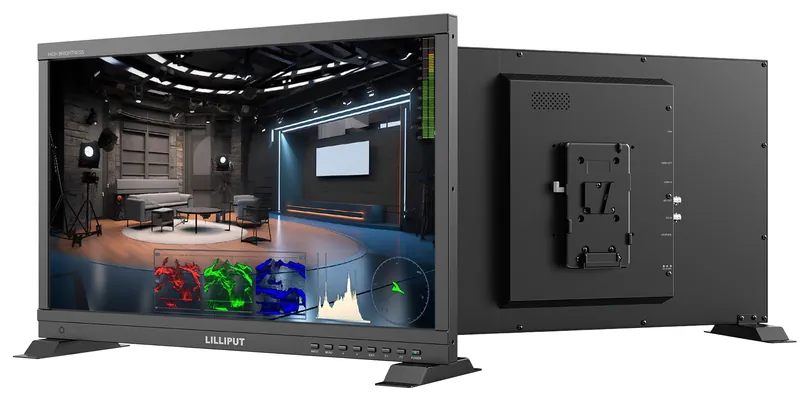

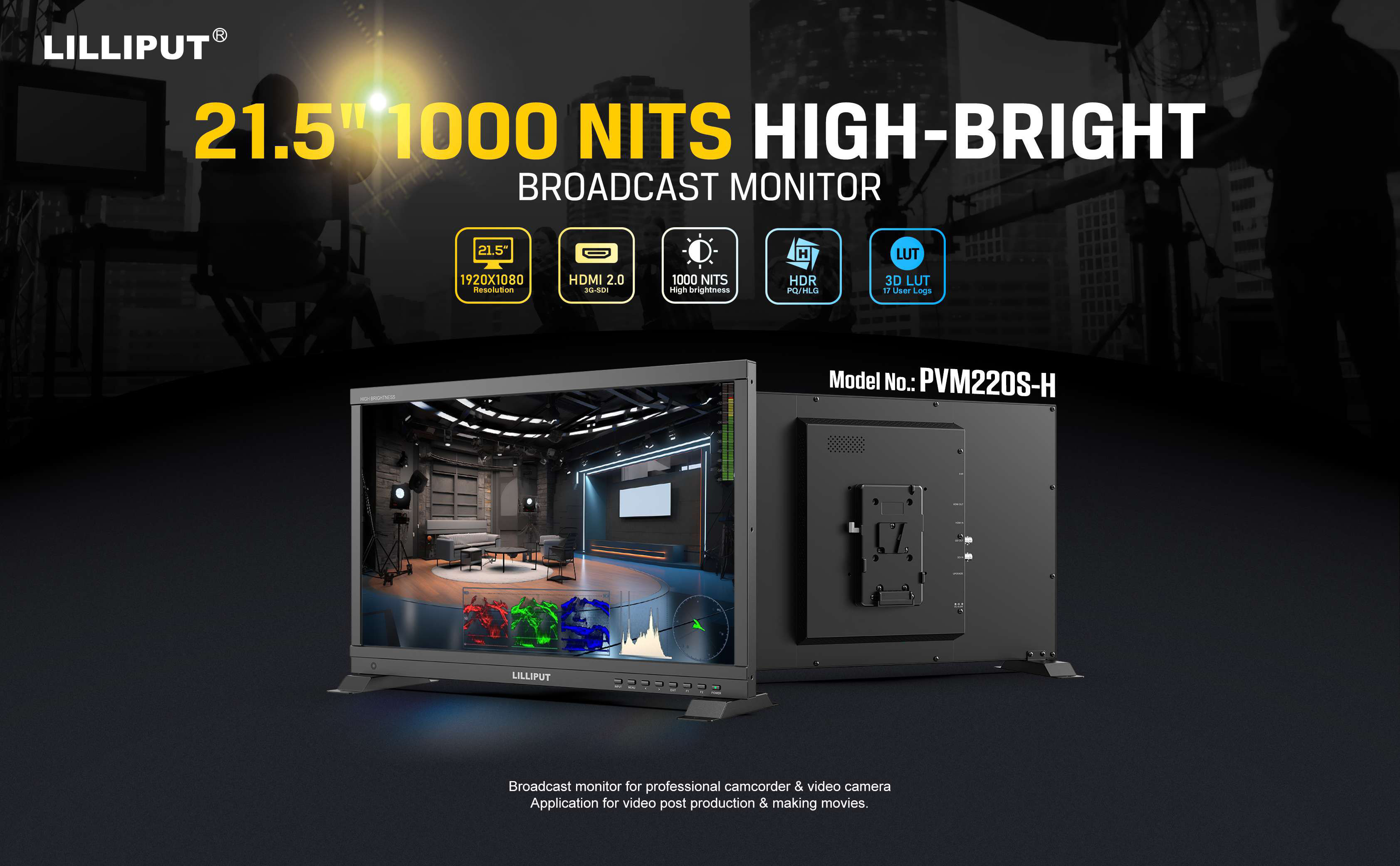

Key Features
- 21.5 inch 1920 x 1080 display, 1000 cd/m², 1000:1 contrast
- 1x 3G-SDI, 1x HDMI 2.0, signal loop through
- HDR: ST2084 300/1000/10000, HLG; 3D LUT (.cube); Rec.709 calibration
- Log formats: SLog2/SLog3, CLog, NLog, ArriLog, JLog, user-defined
- Waveform, Vectorscope, Histogram, Level Meter; False Color; Anamorphic de-squeeze
- Color gamut SMPTE-C/Rec709/EBU; Gamma 1.8 to 2.8; V-Lock/Anton Bauer compatible

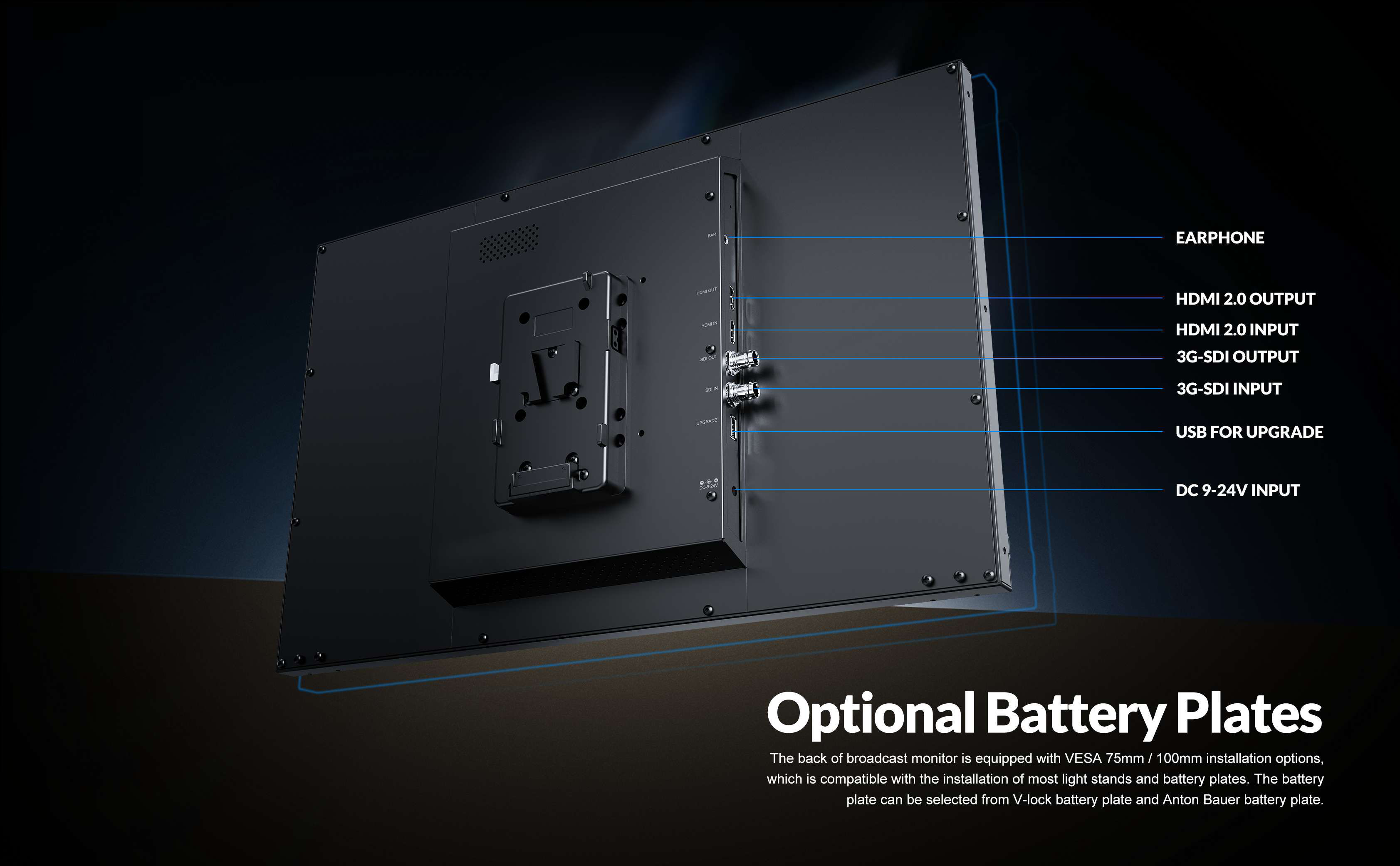

- Versatile mounting: VESA 75 x 75 mm and VESA 100 x 100 mm, base brackets included
Buy the PVM220S-H From an Authorised Reseller
Lilliput's authorised broadcast resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the PVM220S-H now, or if your country is not listed, browse all authorised resellers here.
- 3D Broadcast Ltd Opens in a new tab.
- APODAX SL Opens in a new tab.
- Broadcast & Production Services (UK) Limited Opens in a new tab.
- Camera World Limited Opens in a new tab.
- DigiBroadcast Co. Ltd Opens in a new tab.
- E-MOTION CREATIONS di Pierfrancesco Armati Opens in a new tab.
- Eastwood (Sound and Vision) Ltd Opens in a new tab.
- HDEWCameras Opens in a new tab.
- Más Que Vídeo Profesional, SA Opens in a new tab.
- Proactive UK Ltd Opens in a new tab.
- RCB Logic Limited Opens in a new tab.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data

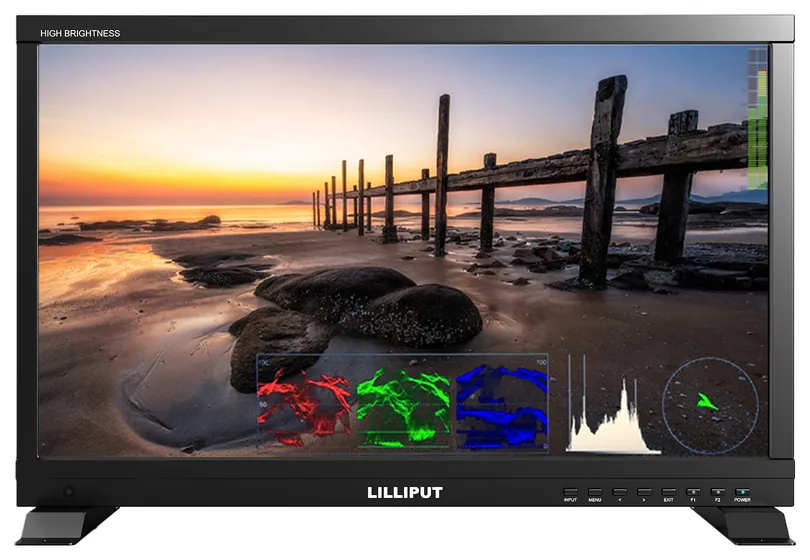

Display
- Screen size
- 21.5 inch
- Aspect ratio
- 16:9
- Native resolution
- 1920 x 1080
- Panel type
- LCD
- Brightness
- 1000 cd/m²
- Contrast
- 1000:1
- Viewing angle
- 178°/178° (H/V)

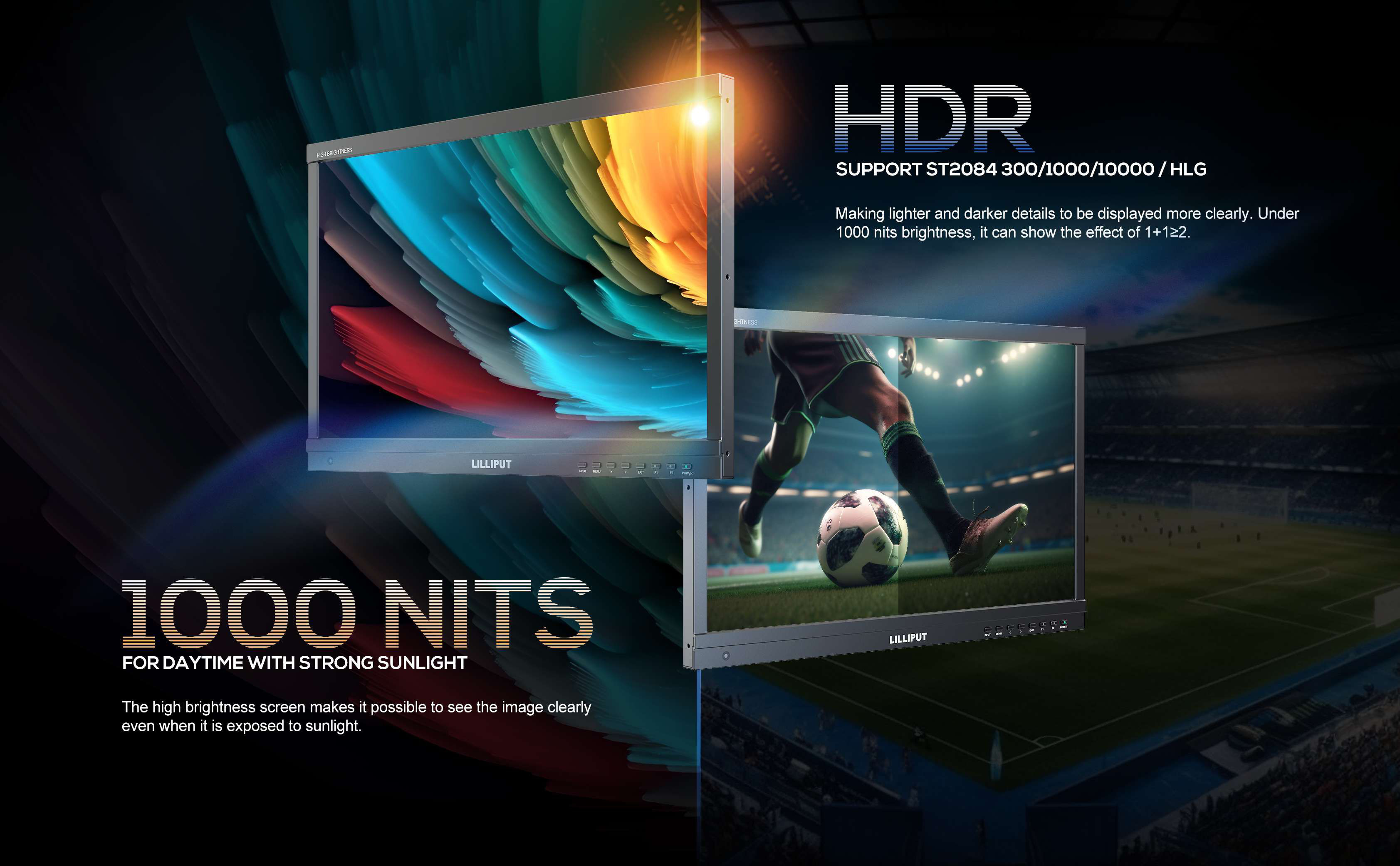

- HDR
- ST2084 300/1000/10000, HLG
- Colour space
- Calibration to Rec.709 (optional calibration unit)
- Supported log formats
- SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined

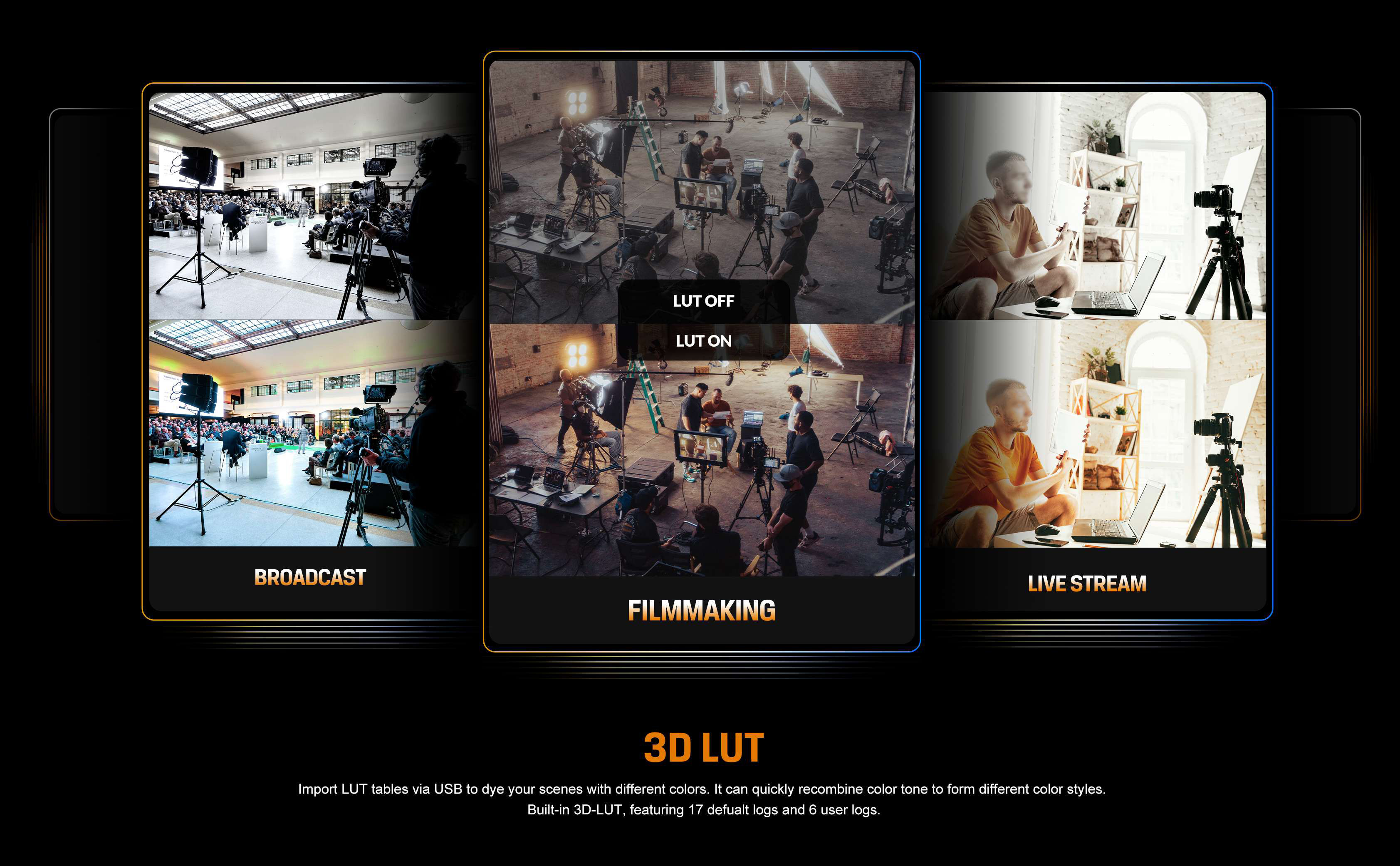

- LUT support
- 3D-LUT (.cube format)

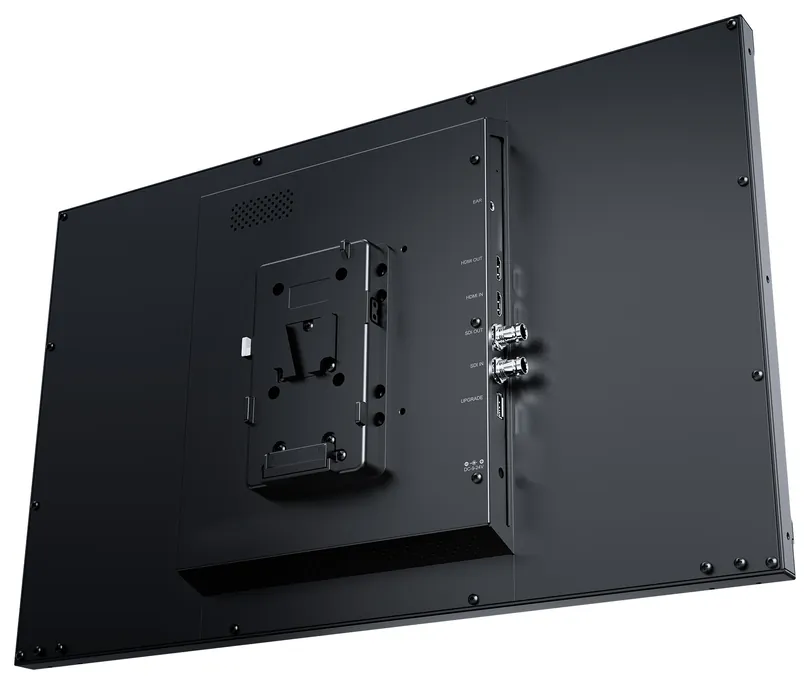

Connections
- Video inputs
- 1x 3G-SDI, 1x HDMI 2.0
- Video outputs
- 1x 3G-SDI, 1x HDMI 2.0
- Audio
- 3G-SDI 2ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker
Video Standards
- 3G-SDI
- 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
- HDMI 2.0
- 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60

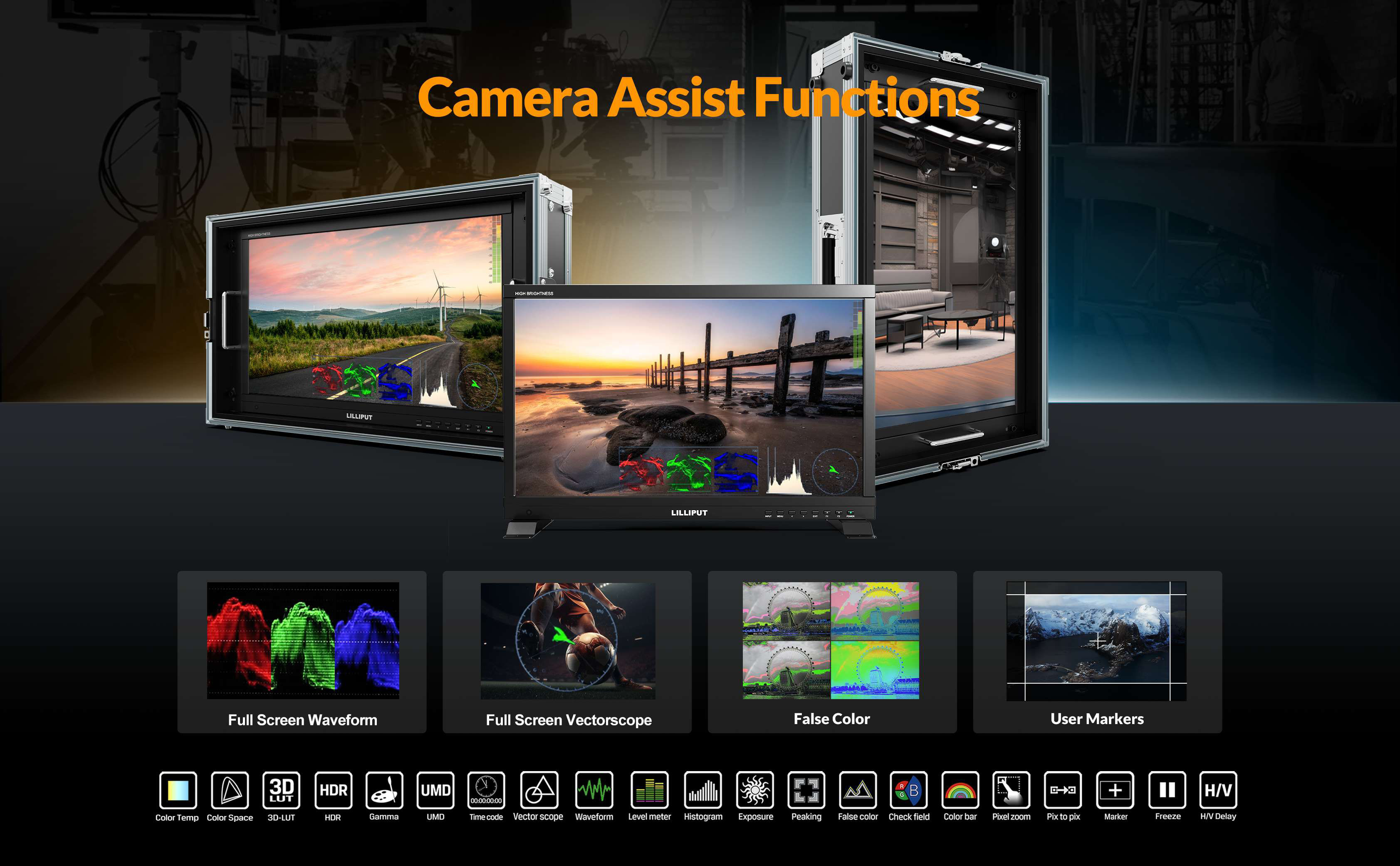

Scopes
- Video analysis
- Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Check field, Freeze, Colour bar
- Audio analysis
- Audio vector, Level meter
Power
- Input voltage
- DC 9 to 24V
- Power consumption
- ≤53 W (15V)
- Compatible batteries
- V-Lock or Anton Bauer mount (optional)
- Input voltage (battery)
- 14.8V nominal
Environmental
- Operating temperature
- 0°C to 50°C
- Storage temperature
- -20°C to 60°C
Mechanical

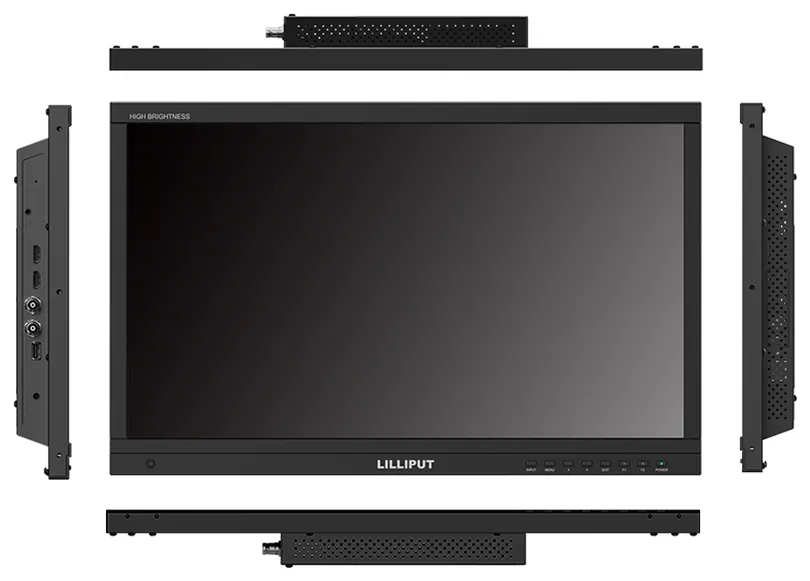

- Dimensions
- 508 x 321 x 47 mm
- Weight
- 4.7 kg

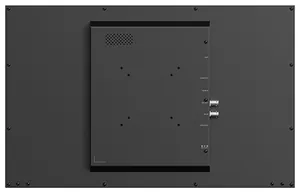

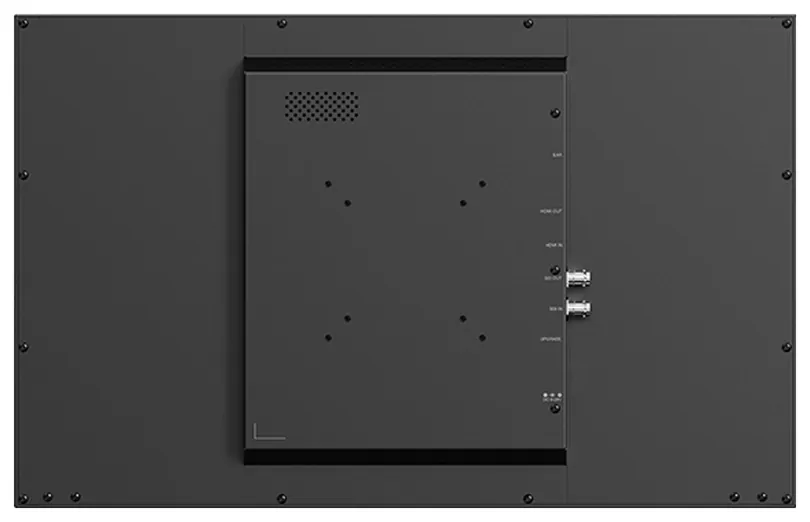

Mounting
- VESA mount
- 75 x 75 mm, 100 x 100 mm (external bracket); 75 x 75 mm (V-mount/Anton Bauer battery)
- Base brackets
- Base brackets included
Operational Features
- Markers
- Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.3X, 1.5X, 1.8X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
- Function buttons
- F1, F2 user-definable
- Colour temperature
- 5500K, 6500K, 7500K, 9300K, User
- Gamma
- 1.8 to 2.8
- Comparison
- Gamma/HDR, Colour space, Camera LUT
- Peaking
- Red, Green, Blue, White, Black
- Time code
- LTC, VITC
Accessories
Included
- 15V 4A DC Power Adapter
- Base Bracket
- E-User Manual
Optional
- Battery Plate + D-Tap Cable

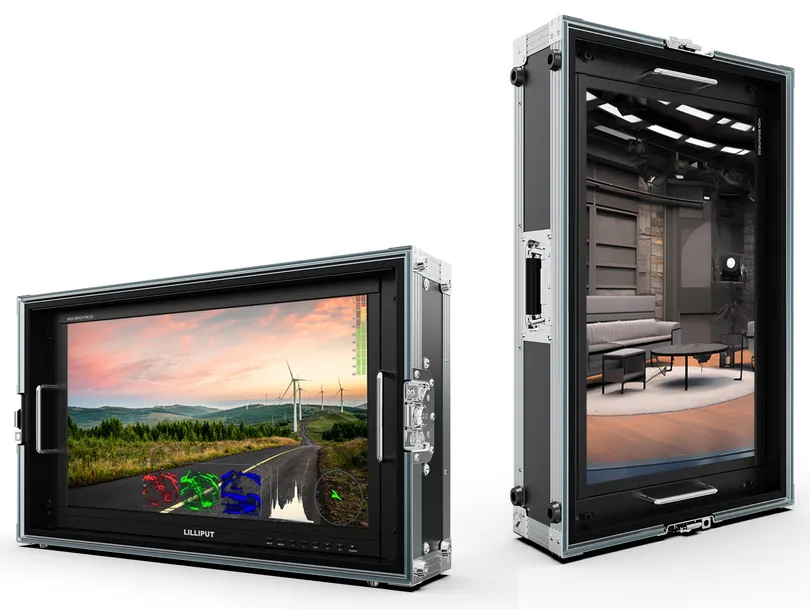

- Carry case & Sunshade
