Wall Mount AV Signal Management

5 results

Applied filters Clear all
SD1121-12G

SD1121-12G

Broadcast and Live Events

  • 1x2 12G-SDI signal repeater: 1x 12G-SDI BNC in, 2x 12G-SDI BNC out; automatically detects SD, HD, 3G, 6G, and 12G-SDI
  • DVB-ASI compatible; automatic cable equalization and signal retiming (long-reach SDI up to 12G 60 m, 3G 120 m per Belden-class coax)
  • Passes embedded audio and ancillary data on both outputs
  • 5 V USB Type-C power (1 W typical); detachable wall-mount bracket included

From €199 / £179
SC1112

SC1112

Broadcast and Live Events

  • 3G-SDI to HDMI mini converter: 1x SD/HD/3G-SDI BNC in, 1x SDI loop out, 1x HDMI type A out
  • Pocket-size broadcast converter with full-size SDI and HDMI connectors for convenient field and studio use
  • Auto-detects SD, HD, and 3G-SDI Level A/B on input up to 1080p60; YUV 4:2:2 colour space on SDI and HDMI
  • SDI formats: 525i/625i, 720p, 1080i, 1080pSF, and 1080p; HDMI output: 480i/576i, 720p, 1080i, and 1080p

From €79 / £69
SC1221

SC1221

Broadcast and Live Events

  • HDMI to 3G-SDI mini converter: 1x HDMI type A in, 2x SD/HD/3G-SDI BNC out
  • Pocket-size broadcast converter with full-size HDMI and SDI connectors for convenient field and studio use
  • Converts full HD 1080p60 HDMI to professional SDI; selectable SD/HD/3G-SDI output rate
  • HDMI input: YUV 4:2:2/4:4:4 and RGB 4:4:4; SDI output: YUV 4:2:2

From €79 / £69

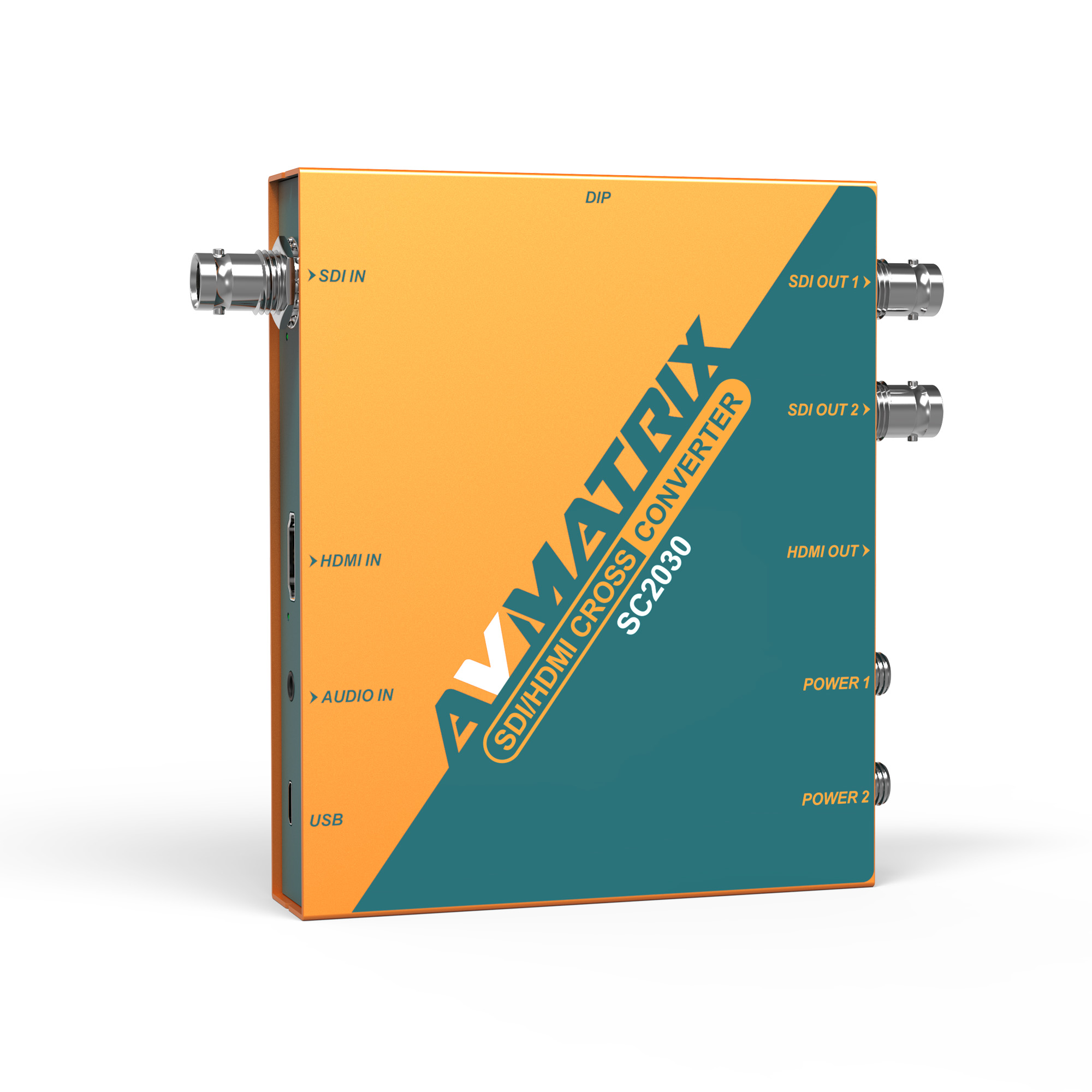

SC2030

SC2030

Broadcast and Live Events

  • SDI/HDMI up/down cross converter: 1x SD/HD/3G-SDI BNC in, 1x HDMI type A in, 2x SDI out, 1x HDMI out
  • Up/down scaling and frame rate conversion with selectable SDI/HDMI output formats through 1080p60
  • Analog audio embedding from 3.5 mm input, or pass-through from SDI/HDMI embedded audio
  • Configuration via DIP switches or PC software over Micro USB

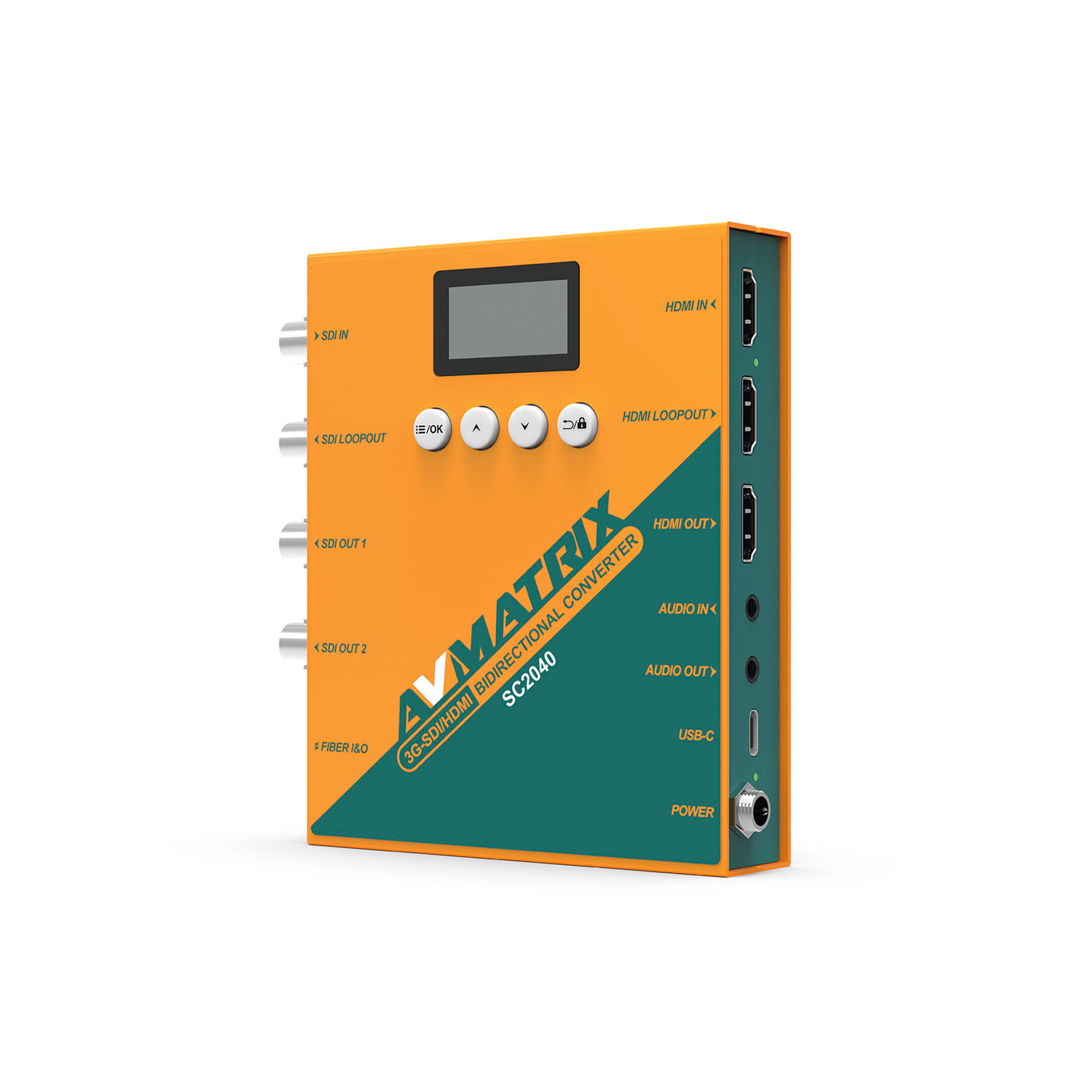

SC2040

SC2040

Broadcast and Live Events

  • 3G-SDI/HDMI bidirectional converter: 1x HDMI in, 1x SD/HD/3G-SDI or SFP fiber in (select 1 of 2), HDMI and SDI loop outs, 2x SDI out, 1x HDMI out, 1x SFP fiber out
  • Up/down scaling and frame rate conversion with selectable SDI/HDMI output formats through 1080p60; 24 processing modes across HDMI, SDI, and fiber
  • Optional bidirectional 3G video SFP (MSA Type) fiber transmission up to 20 km
  • Analog audio embedding and de-embedding via 3.5 mm in/out; built-in test pattern and audio tone generator; horizontal and vertical image flip

Compare our Wall Mount AV Signal Management products in more detail.

Technical Data SD1121-12G View product SC1112 View product SC1221 View product SC2030 View product SC2040 View product
Connections
Video inputs 1x SD/HD/3G/6G/12G-SDI (BNC) 1x SD/HD/3G-SDI (75Ω BNC) 1x HDMI type A 1x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A 1x HDMI type A, 1x SD/HD/3G-SDI (75Ω BNC) or 1x SFP fiber (select 1 of 2)
Video outputs 2x SD/HD/3G/6G/12G-SDI/DVB-ASI (BNC) 1x SD/HD/3G-SDI loop out (75Ω BNC), 1x HDMI type A 2x SD/HD/3G-SDI (75Ω BNC) 2x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A 1x HDMI loop out, 1x HDMI type A, 1x SD/HD/3G-SDI loop out, 2x SD/HD/3G-SDI (75Ω BNC), 1x SFP fiber
Audio SDI embedded audio and ancillary data pass-through — — 1x 3.5 mm analog audio in 1x 3.5 mm analog audio in, 1x 3.5 mm analog audio out
Power input 1x USB Type-C (5 V) 1x USB Type-C (3.3 to 5 V) 1x USB Type-C (3.3 to 5 V) 2x DC threaded locking connector (6 to 23 V), 1x Micro USB (3.3 to 5 V) 1x DC threaded locking connector (9 to 24 V), 1x USB Type-C (5 V; upgrade, power and control)
Fiber interface — — — — 1x SFP module slot (optional 3G video SFP, MSA Type), Bidirectional fiber I/O; up to 20 km
Video Standards
3G-SDI 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 2048 x 1080p 23.98/24/25/29.97/30, 2048 x 1080pSF 23.98/24/25/29.97/30, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 2048 x 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60, 625i 50, 525i 59.94 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94
12G-SDI 2160p 23.98/24/25/29.97/30, 4096 x 2160 23.98/24/25/29.97/30, 2160p 47.95/48/50/59.94/60, 4096 x 2160 47.95/48/50/59.94/60, 1080p 47.95/48/50/59.94/60, 2048 x 1080p 47.95/48/50/59.94/60 — — — —
3G-SDI compliance SMPTE ST-2081, SMPTE ST-2082, SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 274M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, DVB-ASI SMPTE 259M, SMPTE 292M, SMPTE 424M SMPTE 259M, SMPTE 292M, SMPTE 424M 3G Level A and Level B; SMPTE 259M, SMPTE 292M, SMPTE 424M 3G Level A and Level B
Colour space RGB 4:4:4 10/12-bit; YUV 4:2:2/4:4:4 10/12-bit; XYZ 4:4:4 12-bit YUV 4:2:2 (SDI and HDMI) YUV 4:2:2/4:4:4 and RGB 4:4:4 (HDMI input); YUV 4:2:2 (SDI output) YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI input) RGB 4:4:4, YUV 4:4:4, YUV 4:2:2 (HDMI output)
Cable equalization (max cable) SD 400 m, HD 200 m, 3G 120 m, 12G 60 m — — — —
Format auto-detection Auto-detects SD, HD, 3G, 6G, and 12G-SDI; DVB-ASI compatible Auto-detects SD, HD, and 3G-SDI Level A/B on input — — —
HDMI — 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 576i 50, 480i 59.94 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60, 576i 50, 480i 59.94/60 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576p 50, 576i 50, 480i 59.94/60 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94
SDI output rate — — SD/HD/3G-SDI selectable SD/HD/3G-SDI SD/HD/3G-SDI
SFP — — — — 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94
Max fiber distance — — — — 20 km (optional SFP)
Operational Features
Cross conversion — — — SDI → HDMI or HDMI → SDI (selectable input); up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60 Bidirectional SDI ↔ HDMI ↔ fiber (selectable sources); up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60
Scaler — — — Up/down scaling with selectable SDI/HDMI output formats through 1080p60 Up/down scaling with selectable SDI/HDMI output formats through 1080p60
Frame rate conversion — — — Yes — via selectable output format (up/down scaling and frame rate conversion) Yes — via selectable output format (up/down scaling and frame rate conversion)
Aspect ratio conversion — — — SD up-conversion aspect via DIP switches SD/HD aspect conversion (anamorphic, letterbox, pillarbox, zoom)
SDI distribution — — — 1 in, 2 out 1 in, 3 out (loop + 2x SDI out)
Audio embedding — — — 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio
DIP switches — — — 4x for output control —
Remote control — — — PC software via Micro USB PC software via USB Type-C
Front panel control — — — 4x DIP switches; PC software via Micro USB LCD status display with 4 buttons; PC software via USB Type-C
Image mirroring — — — — Horizontal, vertical, and horizontal+vertical flip on SDI and HDMI outputs
HDMI fibre extender — — — — TX and RX (SFP optional)
SDI fibre extender — — — — TX and RX (SFP optional)
Audio de-embedding — — — — 1x 3.5 mm analog audio out
Audio pair rearrangement — — — — Yes — HDMI (4 stereo pairs) and SDI (8 stereo pairs) output remapping
Test pattern generator — — — — 23 professional test patterns and audio tones
Frame counter and circle overlay — — — — Dynamic circle and frame-count overlays on test pattern output
Menu control — — — — LCD status display with 4 buttons
Power
Input voltage 5 V USB Type-C DC 3.3 to 5 V USB Type-C DC 3.3 to 5 V USB Type-C USB 3.3 to 5 V; DC 6 to 23 V USB-C 5 V; DC 9 to 24 V
Power consumption 1 W 1.5 W 2 W 4 W 7 W
Environmental
Operating temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C
Storage temperature -30°C to 70°C -30°C to 70°C -30°C to 70°C -30°C to 70°C -30°C to 70°C
Relative humidity 0% to 90% non-condensing 0% to 90% non-condensing 0% to 90% non-condensing 0% to 90% non-condensing —
Mechanical
Dimensions 105.5 x 41 x 23 mm 71 x 41 x 23 mm 71 x 41 x 23 mm 125.5 x 104 x 24.5 mm 104 x 125.5 x 24.5 mm
Weight 156 g 168 g 168 g 485 g 517 g
Mounting
Wall mount Detachable wall mounting bracket included Detachable mounting bracket included Detachable mounting bracket included Detachable mounting brackets included Mounting bracket (optional)
Other
Warranty 3 years limited 3 years limited 3 years limited 3 years limited 3 years limited
View SD1121-12G View SC1112 View SC1221 View SC2030 View SC2040
