Key Features
- 27 inch 1920 x 1080 display, 1000 cd/m², 1000:1 contrast, 178°/178° viewing angle
- 5 video inputs: 2x 3G-SDI and 3x HDMI 2.0; multiview layouts including full screen, vertical, dual, triple, and quad

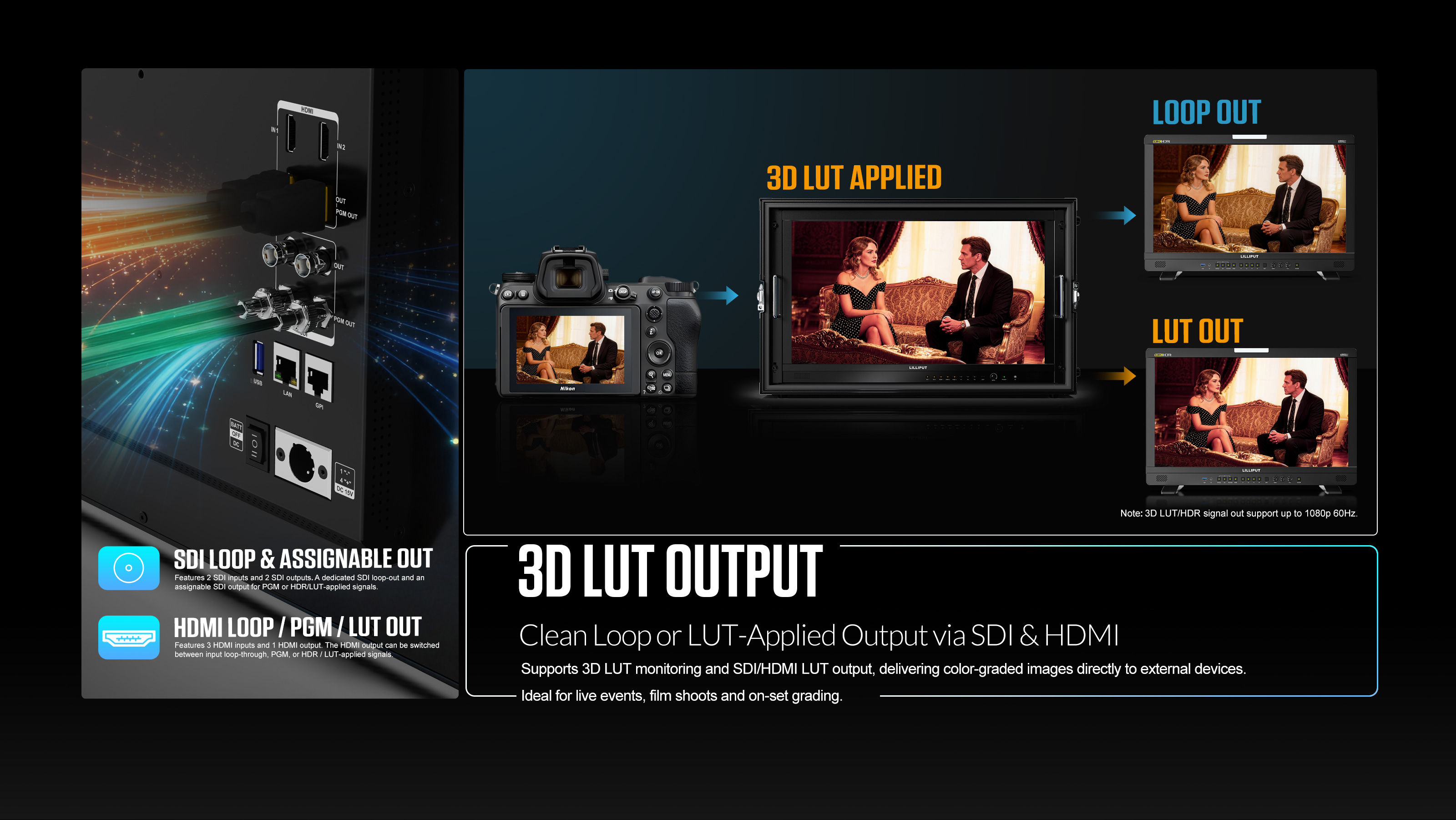

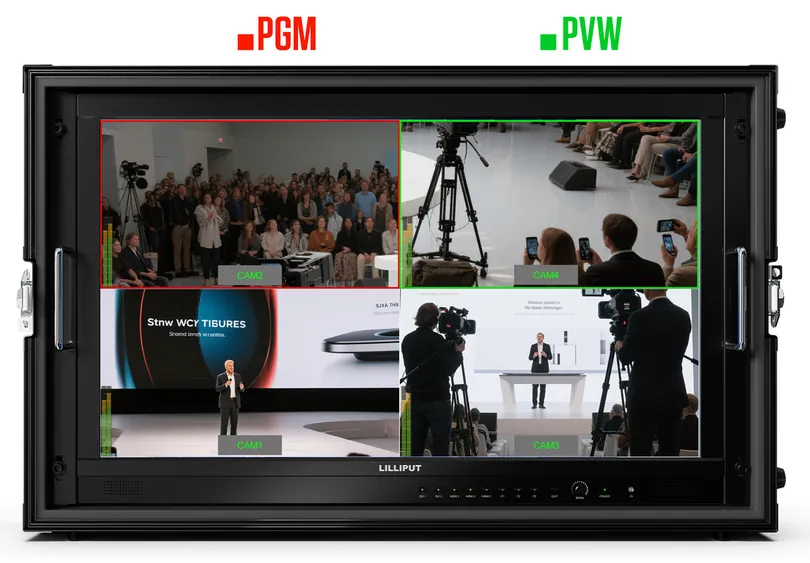

- PVW/PGM workflow with configurable sources; PGM Cut shortcut; PGM and 3D LUT on 3G-SDI PGM/LUT OUT and shared HDMI OUT
- HDR: ST2084 300/1000/10000, HLG; 3D LUT (.cube); log formats SLog2/SLog3, CLog, NLog, ArriLog, JLog, user-defined
- HDMI 2.0 ↔ 3G-SDI (bidirectional); up to 1080p 24/25/30/50/60 on PGM/LUT HDMI OUT and SDI PGM/LUT OUT; excludes SDI loop-out
- Scopes and camera assist: waveform, histogram, peaking, false colour, exposure; audio level meter for multiview
- Remote control: LAN (RJ45); GPI (8-pin RJ45); USB for LUT load and firmware updates
- DC 10 to 24V operation (15V DC adapter with 4-pin XLR included); V-mount or Anton Bauer plate included; 2x built-in speakers; VESA mount plate and base stand included
Buy the PVM270S From an Authorised Reseller
Lilliput's authorised resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the PVM270S now, or if your country is not listed, browse all authorised resellers here.
- 3D Broadcast Ltd Opens in a new tab.
- Fotospecialisti d.o.o. Opens in a new tab.
- RCB Logic Limited Opens in a new tab.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data

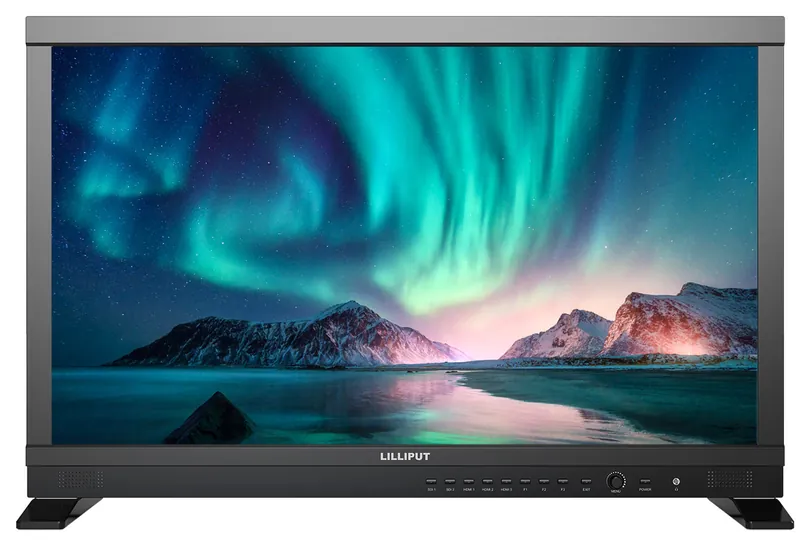

Display
- Screen size
- 27 inch
- Aspect ratio
- 16:9
- Native resolution
- 1920 x 1080
- Panel type
- LCD
- Brightness
- 1000 cd/m²
- Contrast
- 1000:1
- Viewing angle
- 178°/178° (H/V)
- HDR
- ST2084 300/1000/10000, HLG
- Supported log formats
- SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
- LUT support
- 3D-LUT (.cube format)
- Colour space
- Native, SMPTE-C, Rec.709, EBU (selectable)
- Colour temperature
- 6500K, 7500K, 9300K, User

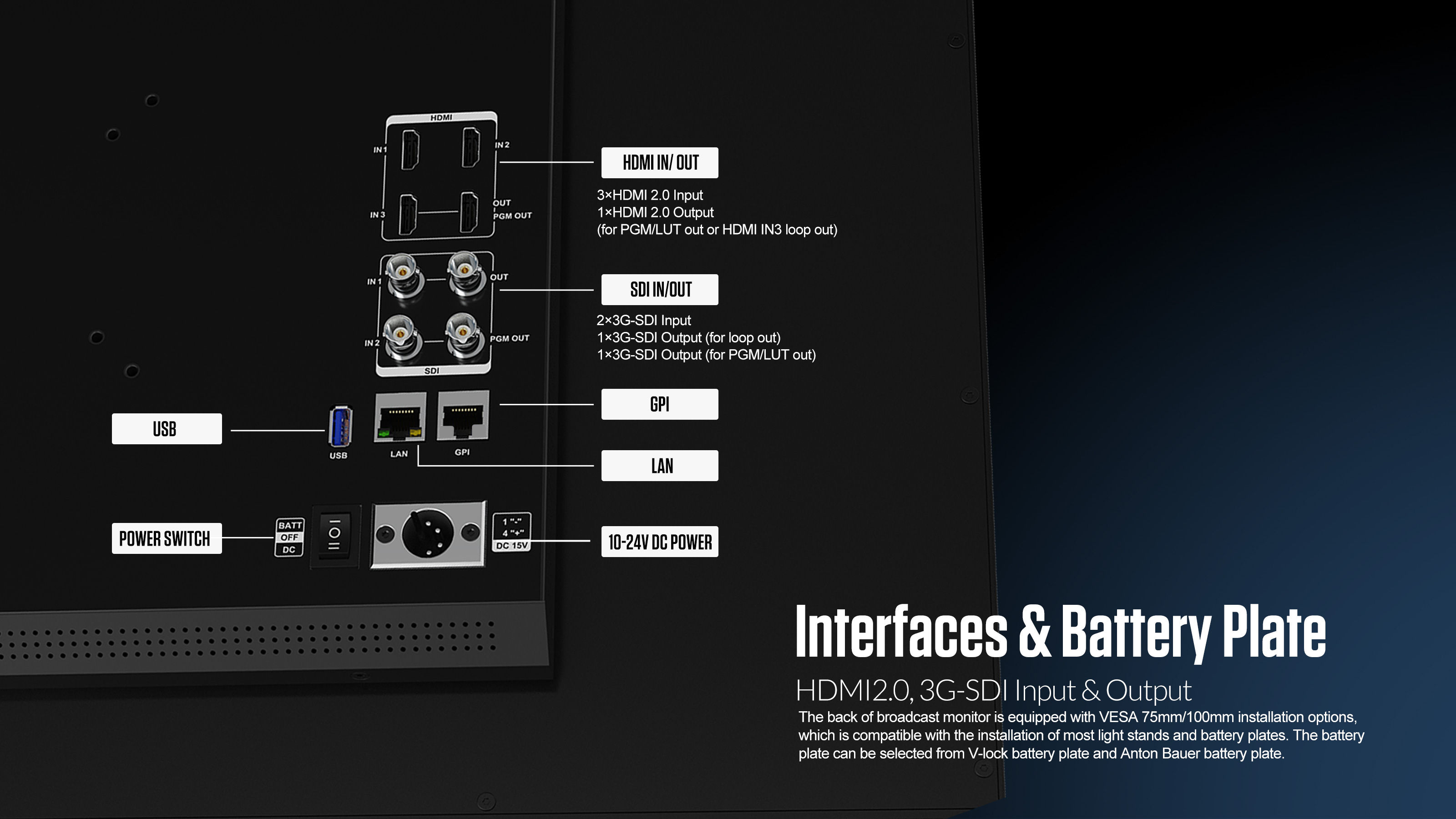

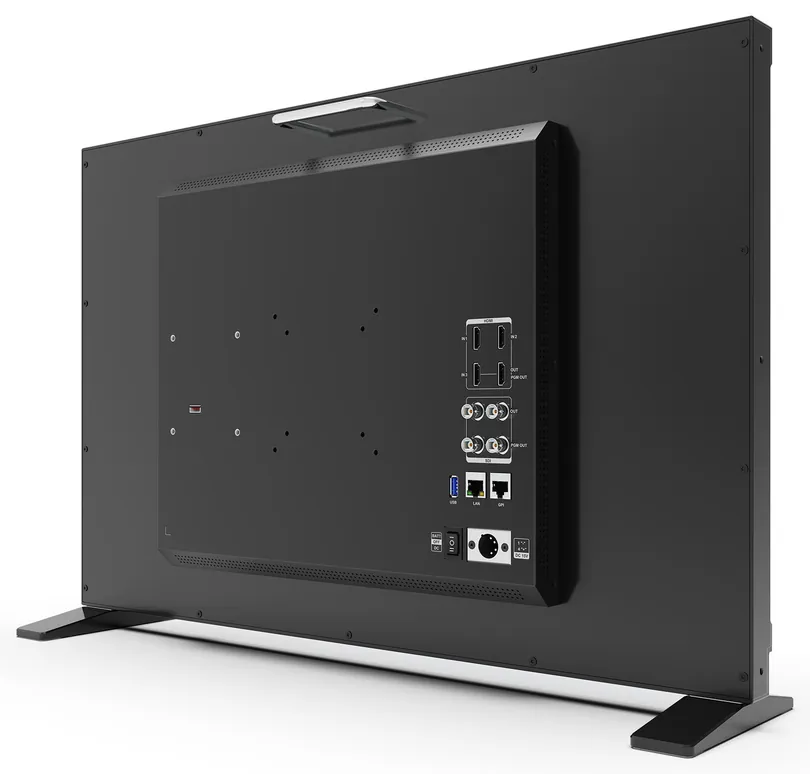

Connections
- Video inputs
- 2x 3G-SDI, 3x HDMI 2.0
- Video outputs
- 1x 3G-SDI (loop out), 1x 3G-SDI (PGM/LUT out), 1x HDMI 2.0 (loop / PGM / LUT out)
- Program output
- PGM or LUT on shared 3G-SDI PGM/LUT OUT and HDMI OUT (1080p 24/25/30/50/60)
- Audio
- 3G-SDI 2ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers
- USB
- LUT load and firmware update
Video Standards
- 3G-SDI
- 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
- HDMI 2.0
- 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- PGM/LUT Out
- 1080p 24/25/30/50/60
Scopes
- Video analysis
- Waveform, Histogram, Peaking, False colour, Exposure, Check field, Freeze
- Audio analysis
- Level meter
Operational Features
- View modes
- Picture-by-Picture, PVW/PGM, Three-Way Split, Quad-View
- Cross conversion
- HDMI 2.0 ↔ 3G-SDI (bidirectional); up to 1080p 24/25/30/50/60 on PGM/LUT HDMI OUT and SDI PGM/LUT OUT; excludes SDI loop-out
- Markers
- Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 9:16, 1.33X, 1.5X, 1.6X, 1.7X, 1.8X, 2.0X, 2.0X MAG; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
- UMD
- User-defined text; per-source colour

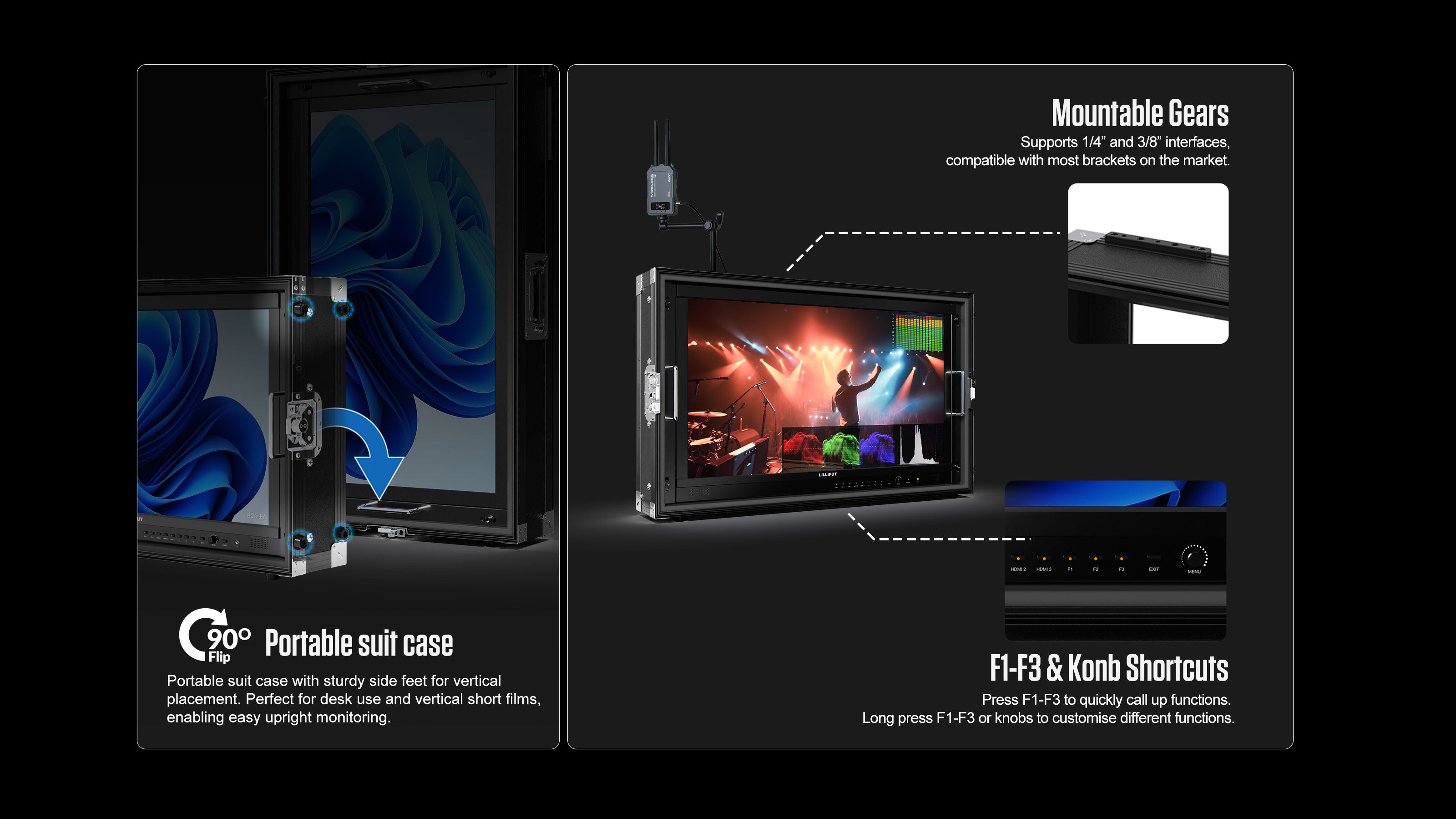

- Function buttons
- F1, F2, F3 user-definable
- Remote control
- LAN (RJ45), GPI (8-pin RJ45)
Power
- Input voltage
- DC 10 to 24V
- Input voltage (battery)
- 14.8V nominal
- Power consumption
- ≤58 W (10V)
- Compatible batteries
- V-Lock or Anton Bauer mount
- Power connector
- 4-pin XLR (supplied 15V DC adapter)
Environmental
- Operating temperature
- 0°C to 50°C
- Storage temperature
- -20°C to 60°C

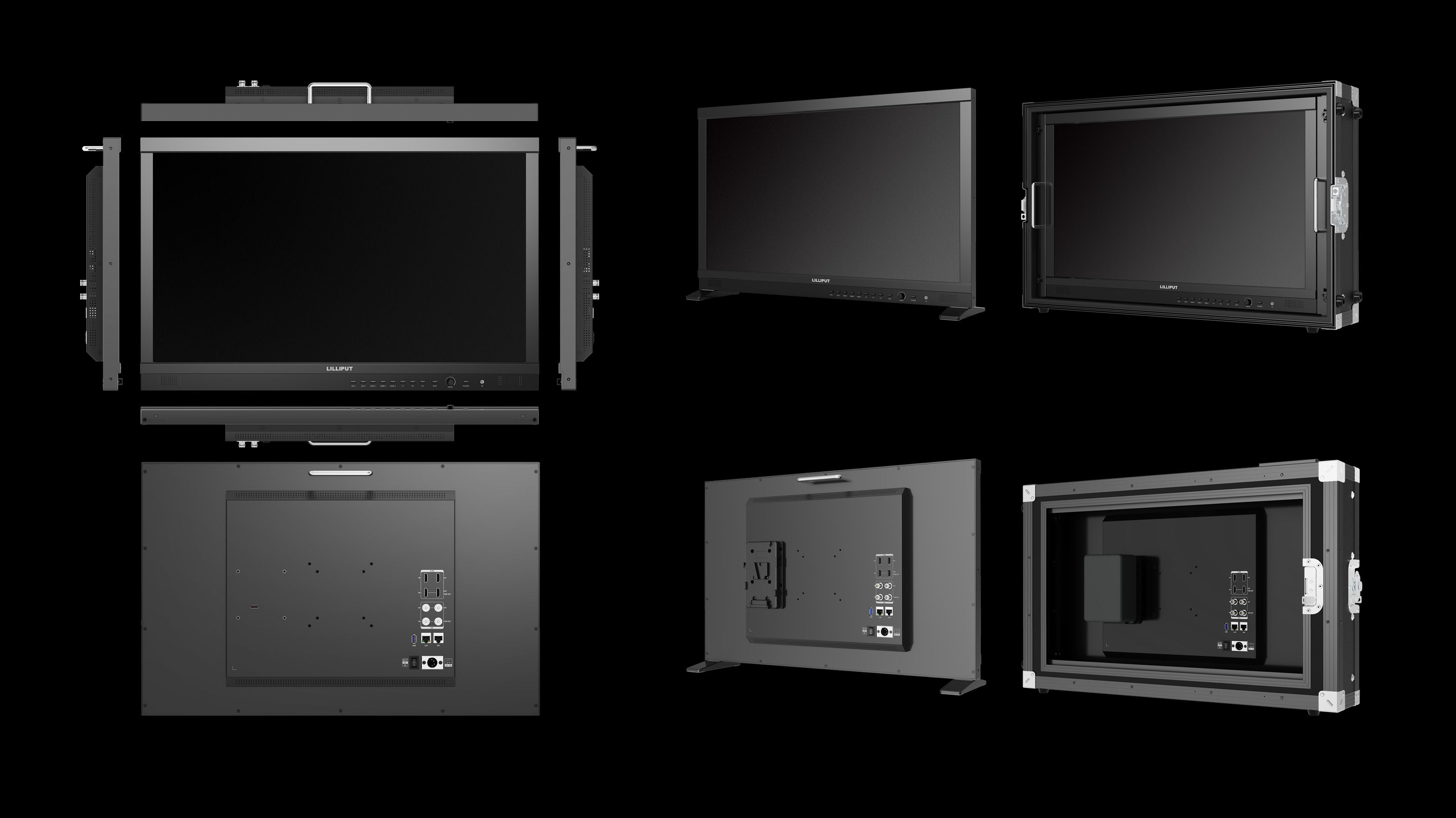

Mechanical
- Dimensions
- 644 x 409.1 x 55.3 mm
- Weight
- 8.8 kg
Mounting

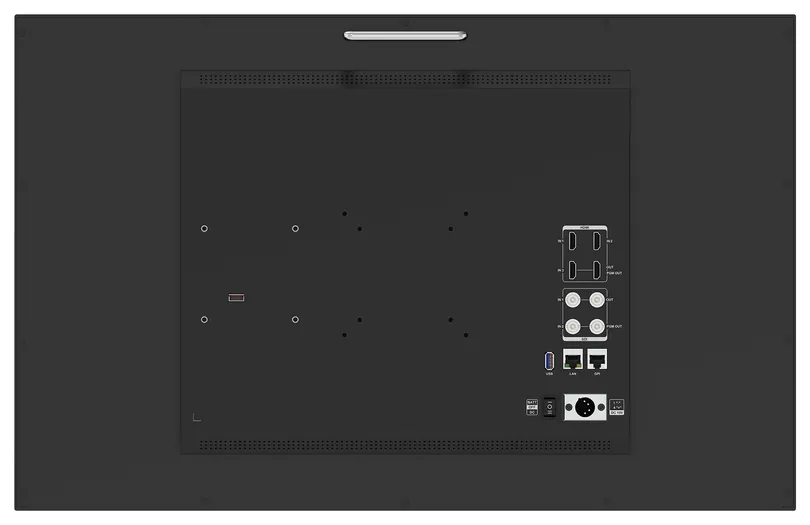

- VESA mount
- 75 x 75 mm, 100 x 100 mm (mount plate included)
- Base brackets
- Base stand included
Accessories
Included
- 15V DC power adapter (4-pin XLR)
- Base stand
- V-mount or Anton Bauer battery plate
- VESA mount plate
- User manual
Optional

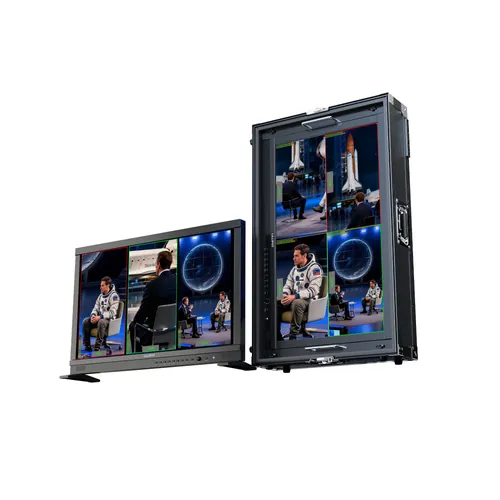

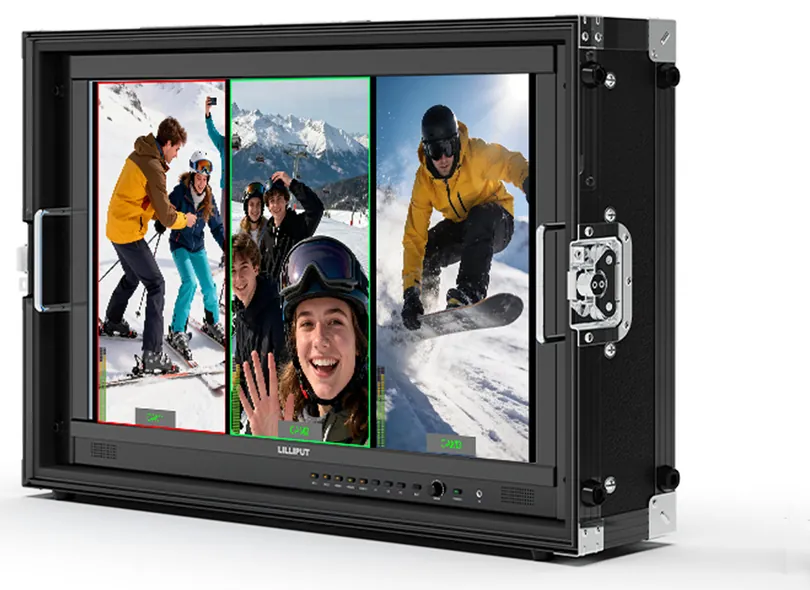

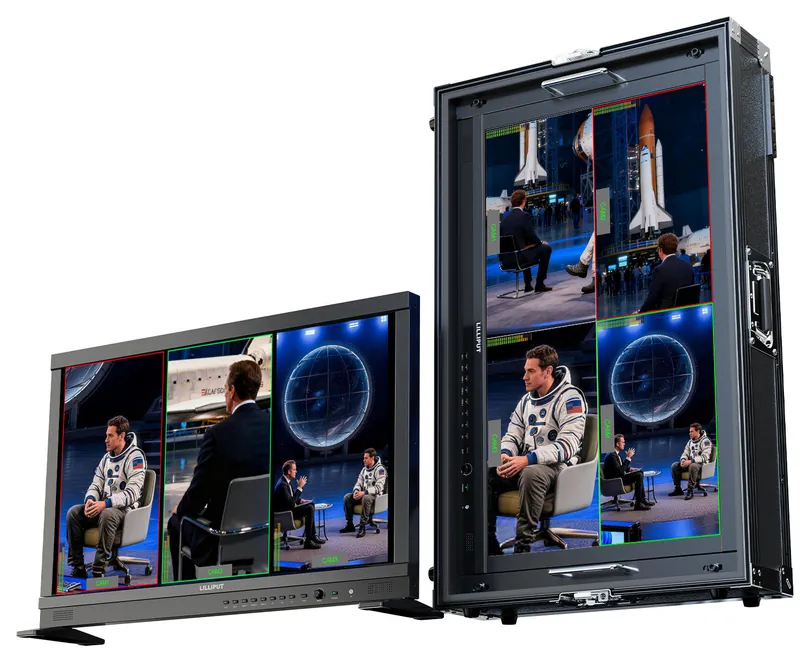

- Carry case & Sunshade
Product Downloads
Similar Products
Compare key technical data across similar products.
| Technical Data | PVM270S | PVM220S | PVM220S-E | PVM220S-H | Q23-8K |
|---|---|---|---|---|---|
| Display | |||||
| Screen size | 27 inch | 21.5 inch | 21.5 inch | 21.5 inch | 23.8 inch |
| Native resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 3840 x 2160 |
| Aspect ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Brightness | 1000 cd/m² | 500 cd/m² | 1000 cd/m² | 1000 cd/m² | 300 cd/m² |
| Colour space | Native, SMPTE-C, Rec.709, EBU (selectable) | — | Calibration to Rec.709 (optional calibration unit) | Calibration to Rec.709 (optional calibration unit) | Calibration to Rec.709 (optional calibration unit) |
| Colour temperature | 6500K, 7500K, 9300K, User | — | 5500K, 6500K, 7500K, 9300K, User | 5500K, 6500K, 7500K, 9300K, User | 3200K, 5500K, 6500K, 7500K, 9300K, User |
| Contrast | 1000:1 | 1500:1 | 1000:1 | 1000:1 | 1000:1 |
| HDR | ST2084 300/1000/10000, HLG | — | ST2084 300/1000/10000, HLG | ST2084 300/1000/10000, HLG | HLG, ST 2084 300/1000/10000 |
| LUT support | 3D-LUT (.cube format) | — | 3D-LUT (.cube format) | 3D-LUT (.cube format) | 3D-LUT (.cube format) |
| Panel type | LCD | LCD | LCD | LCD | LED |
| Supported log formats | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | — | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined |
| Viewing angle | 178°/178° (H/V) | 170°/170° (H/V) | 178°/178° (H/V) | 178°/178° (H/V) | 178°/178° (H/V) |
| Mechanical | |||||
| Dimensions | 644 x 409.1 x 55.3 mm | 508 x 321 x 47 mm | 508 x 321 x 47 mm | 508 x 321 x 47 mm | 567 x 376.4 x 45.7 mm |
| Weight | 8.8 kg | 5.39 kg | 4.75 kg | 4.7 kg | 7.4 kg |
| Connections | |||||
| Video inputs | 2x 3G-SDI, 3x HDMI 2.0 | 2x 3G-SDI, 2x HDMI, 1x USB Type-C | 1x 3G-SDI, 1x HDMI 2.0 | 1x 3G-SDI, 1x HDMI 2.0 | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 |
| Video outputs | 1x 3G-SDI (loop out), 1x 3G-SDI (PGM/LUT out), 1x HDMI 2.0 (loop / PGM / LUT out) | 2x 3G-SDI | 1x 3G-SDI, 1x HDMI 2.0, 1x LAN 1000M | 1x 3G-SDI, 1x HDMI 2.0 | 4x 12G-SDI, 1x HDMI 2.0 |
| Audio | 3G-SDI 2ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers | 3G-SDI 2ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker | 3G-SDI 2ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker | 3G-SDI 2ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers |
| Program output | PGM or LUT on shared 3G-SDI PGM/LUT OUT and HDMI OUT (1080p 24/25/30/50/60) | 1x PGM HDMI + 1x PGM 3G-SDI (simultaneous, 1080p 24/25/30/50/60) | — | — | — |
| USB | LUT load and firmware update | — | — | — | — |
| Video Standards | |||||
| 12G-SDI | — | — | — | — | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| 3G-SDI | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — |
| HDMI | — | 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60 | — | — | — |
| HDMI 2.0 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| IP streaming | — | — | Push/Pull: YCbCr 4:2:2 (up to 32 Mbps @ 1080p60) | — | — |
| PGM/LUT Out | 1080p 24/25/30/50/60 | — | — | — | — |
| SFP | — | — | — | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| Streaming formats | — | — | Push: SRT, RTMP, Pull: RTMP, RTSP, HTTP, HTTPS, NDI®|HX (optional) | — | — |
| USB Type-C | — | 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60 | — | — | — |
| Power | |||||
| Power consumption | ≤58 W (10V) | ≤33 W (15V) | ≤53 W (15V) | ≤53 W (15V) | ≤60 W (15V) |
| Compatible batteries | V-Lock or Anton Bauer mount | — | V-Lock or Anton Bauer mount (optional) | V-Lock or Anton Bauer mount (optional) | V-Lock or Anton Bauer mount |
| Input voltage | DC 10 to 24V | DC 12 to 24V | DC 9 to 24V | DC 9 to 24V | DC 12 to 24V |
| Input voltage (battery) | 14.8V nominal | — | 14.8V nominal | 14.8V nominal | 14.8V nominal |
| Power connector | 4-pin XLR (supplied 15V DC adapter) | — | — | — | — |
| Environmental | |||||
| Operating temperature | 0°C to 50°C | -20°C to 60°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C |
| Storage temperature | -20°C to 60°C | -30°C to 70°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C |
| Record | |||||
| Storage | — | — | SD card | — | — |
| File segment | — | — | 1/5/10/20/30/60 min | — | — |
| Record file format | — | — | H.264 | — | — |
| Audio sample rate | — | — | 44.1 kHz / 48 kHz | — | — |
| Frame rates | — | — | 60/50/30/25/24 fps | — | — |
| Video resolution | — | — | 1920 x 1080, 1280 x 720, 720 x 480 | — | — |
| Operational Features | |||||
| Comparison | — | — | Gamma/HDR, Colour space, Camera LUT | Gamma/HDR, Colour space, Camera LUT | Colour space, HDR, Gamma, Camera Log (side-by-side with original) |
| Cross conversion | HDMI 2.0 ↔ 3G-SDI (bidirectional); up to 1080p 24/25/30/50/60 on PGM/LUT HDMI OUT and SDI PGM/LUT OUT; excludes SDI loop-out | — | — | — | — |
| Function buttons | F1, F2, F3 user-definable | F1, F2 user-definable | F1, F2 user-definable | F1, F2 user-definable | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) |
| Gamma | — | — | 1.8 to 2.8 | 1.8 to 2.8 | 1.8 to 2.8 |
| Image mirroring | — | — | — | — | Vertical flip, Horizontal flip |
| Markers | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 9:16, 1.33X, 1.5X, 1.6X, 1.7X, 1.8X, 2.0X, 2.0X MAG; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.3X, 1.5X, 1.8X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.3X, 1.5X, 1.8X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.3X, 1.5X, 1.8X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off |
| Menu control | — | — | — | — | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) |
| Peaking | — | — | Red, Green, Blue, White, Black | Red, Green, Blue, White, Black | Red, Green, Blue, White, Black |
| Remote control | LAN (RJ45), GPI (8-pin RJ45) | — | — | — | GPI, LAN, RS422 In/Out |
| Tally | — | — | — | — | Red, Green, Yellow |
| Time code | — | — | LTC, VITC | LTC, VITC | LTC, VITC |
| UMD | User-defined text; per-source colour | User-defined text with colour coding | — | — | User-defined text (7 colours) |
| View modes | Picture-by-Picture, PVW/PGM, Three-Way Split, Quad-View | Picture-by-Picture, Picture-in-Picture, PVW/PGM, Three-Way Split, Quad-View | — | — | Quad-View |
| Mounting | |||||
| Base brackets | Base stand included | Base brackets included | Base brackets included | Base brackets included | Base brackets included |
| VESA mount | 75 x 75 mm, 100 x 100 mm (mount plate included) | 75 x 75 mm, 100 x 100 mm | 75 x 75 mm, 100 x 100 mm (external bracket); 75 x 75 mm (V-mount/Anton Bauer battery) | 75 x 75 mm, 100 x 100 mm (external bracket); 75 x 75 mm (V-mount/Anton Bauer battery) | 75 x 75 mm, 100 x 100 mm (plate included) |
| Accessories | |||||
| Included | 15V DC power adapter (4-pin XLR), Base stand, V-mount or Anton Bauer battery plate, VESA mount plate, User manual | 15V DC Power Adapter, Base Bracket, USB Type-C Cable, User Manual | 15V 4A DC Power Adapter, Base Bracket, E-User Manual | 15V 4A DC Power Adapter, Base Bracket, E-User Manual | 15V DC Adapter, VESA Mount Plate, Battery Plate (V-mount or Anton Bauer), Base Bracket, USB Flash Disk |
| Optional | Carry case & Sunshade | Battery Plate + D-Tap Cable, Swivel Stand, Carry case & Sunshade | Battery Plate + D-Tap Cable, Carry case & Sunshade | Battery Plate + D-Tap Cable, Carry case & Sunshade | Carry case & Sunshade, SFP Optical Fiber Module |
| Scopes | |||||
| Audio analysis | Level meter | Level meter | Audio vector, Level meter | Audio vector, Level meter | Audio vector, Level meter |
| Video analysis | Waveform, Histogram, Peaking, False colour, Exposure, Check field, Freeze | Histogram, Exposure, Peaking, False colour (ARRI, RED), Check field, Freeze | Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Check field, Freeze, Colour bar | Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Check field, Freeze, Colour bar | Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom |
