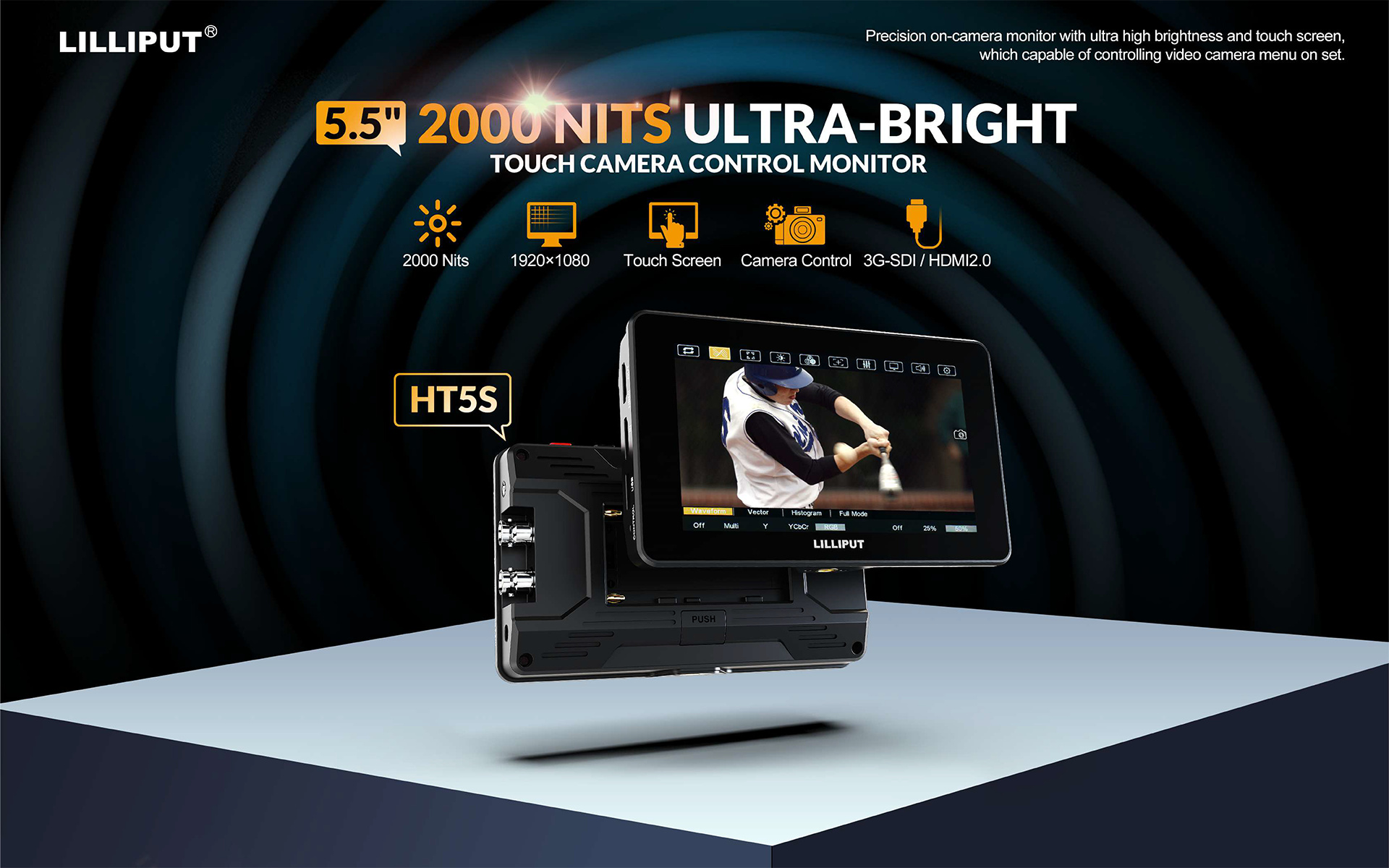

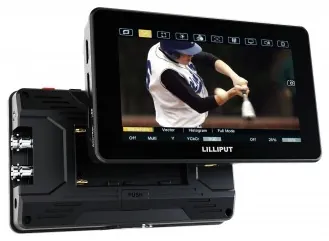

Key Features

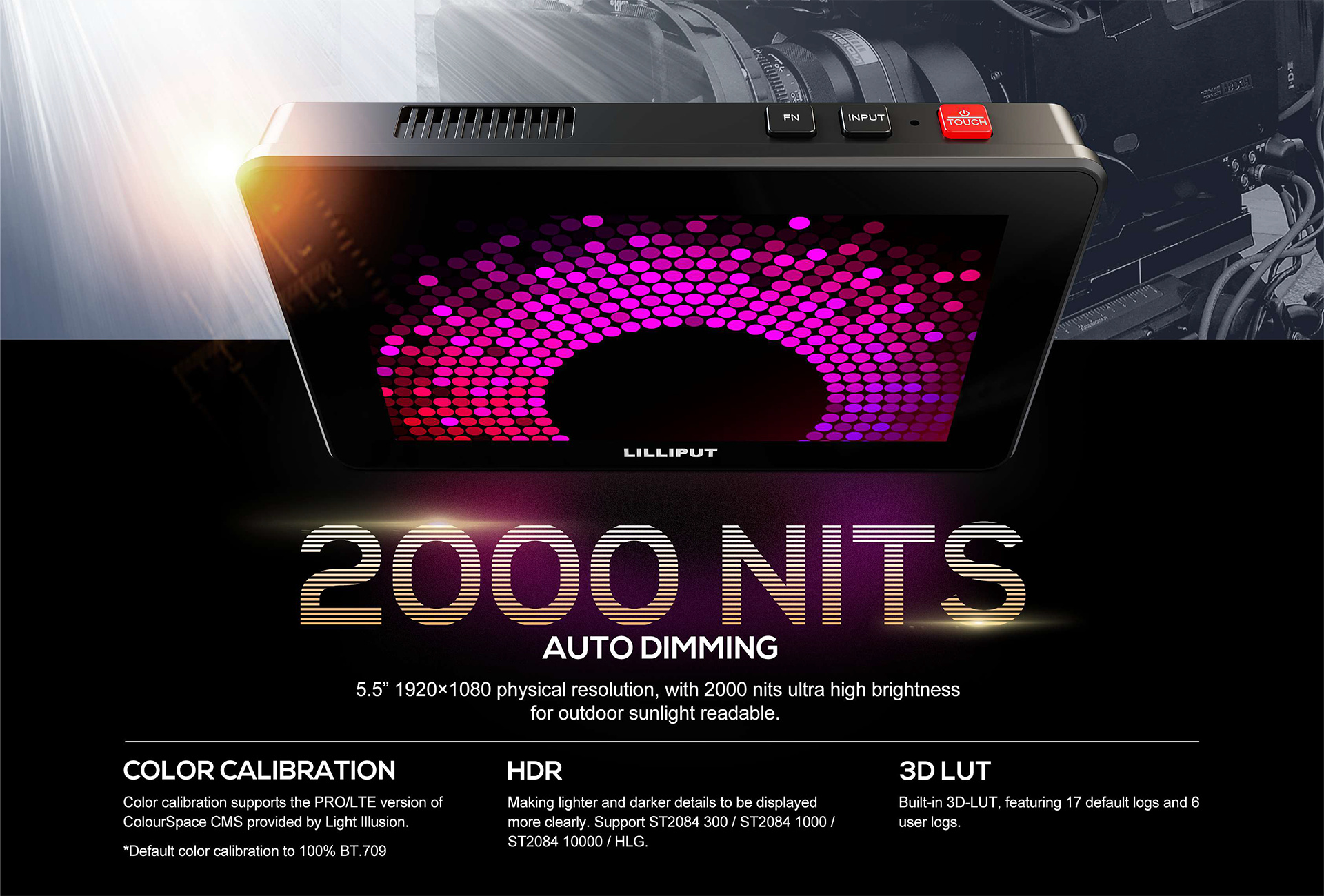

- 5.5 inch 1920 x 1080 LCD display, 2000 cd/m² high brightness, 1000:1 contrast, 100% BT.709

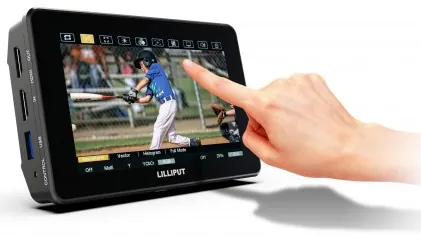

- Capacitive touch screen, menu control via touch gestures; shortcut swipes for backlight, volume, zoom

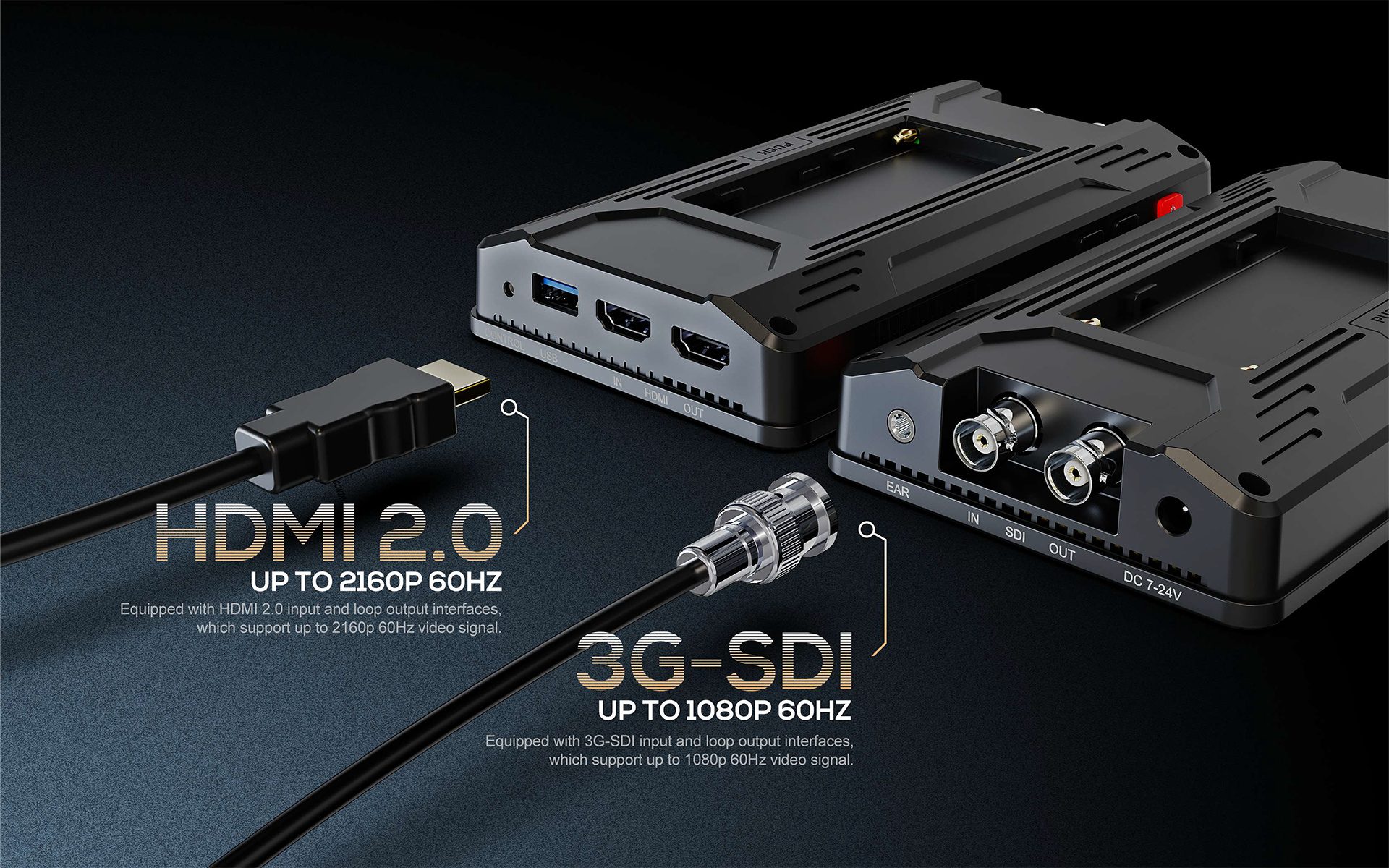

- 1x 3G-SDI and 1x HDMI 2.0 input/output, 4K 60Hz support
- HDR ST 2084 (300/1000/10000 cd/m²) and HLG; 3D LUT (.cube); 17 default camera logs plus 6 user LUTs
- LANC port for Sony camera control; FN user-definable function button
- 310 g; 154.8 x 93.8 x 26.5 mm; shoe mount 1/4 inch thread; NP-F battery compatible
Buy the HT5S From an Authorised Reseller
Lilliput's authorised resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the HT5S now, or if your country is not listed, browse all authorised resellers here.
- AVNed B.V. Opens in a new tab.
- Broadcast Center S.R.L. Opens in a new tab.
- Camera World Limited Opens in a new tab.
- DigiBroadcast Co. Ltd Opens in a new tab.
- E-MOTION CREATIONS di Pierfrancesco Armati Opens in a new tab.
- Eastwood (Sound and Vision) Ltd Opens in a new tab.
- MISS NUMERIQUE Opens in a new tab.
- Proactive UK Ltd Opens in a new tab.
- Production Gear Ltd Opens in a new tab.
- RCB Logic Limited Opens in a new tab.
- Wendys Broadcast Services Ltd Opens in a new tab.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data
Display
- Screen size
- 5.5 inch
- Aspect ratio
- 16:9
- Native resolution
- 1920 x 1080
- Panel type
- LCD
- Brightness
- 2000 cd/m²
- Contrast
- 1000:1
- Viewing angle
- 160°/160° (H/V)
- Colour space
- 100% BT.709
- HDR
- ST 2084 300/1000/10000 cd/m², HLG
- Touch screen
- Capacitive touch

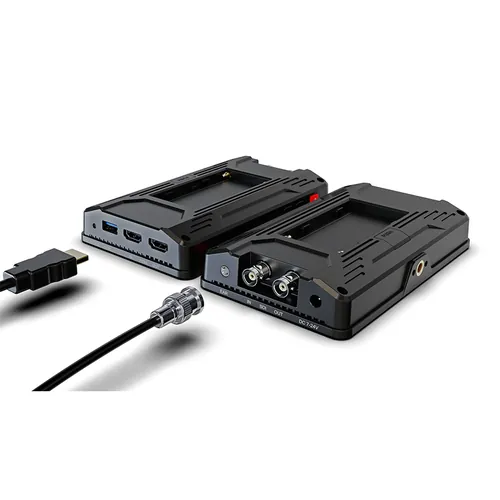

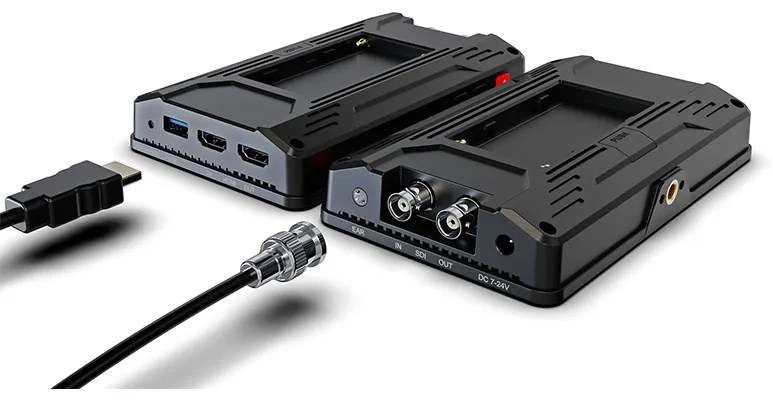

Connections
- Video inputs
- 1x 3G-SDI, 1x HDMI 2.0
- Video outputs
- 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz)
- Audio
- 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit), HDMI 8ch 24-bit
Video Standards
- 3G-SDI
- 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
- HDMI 2.0
- 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60

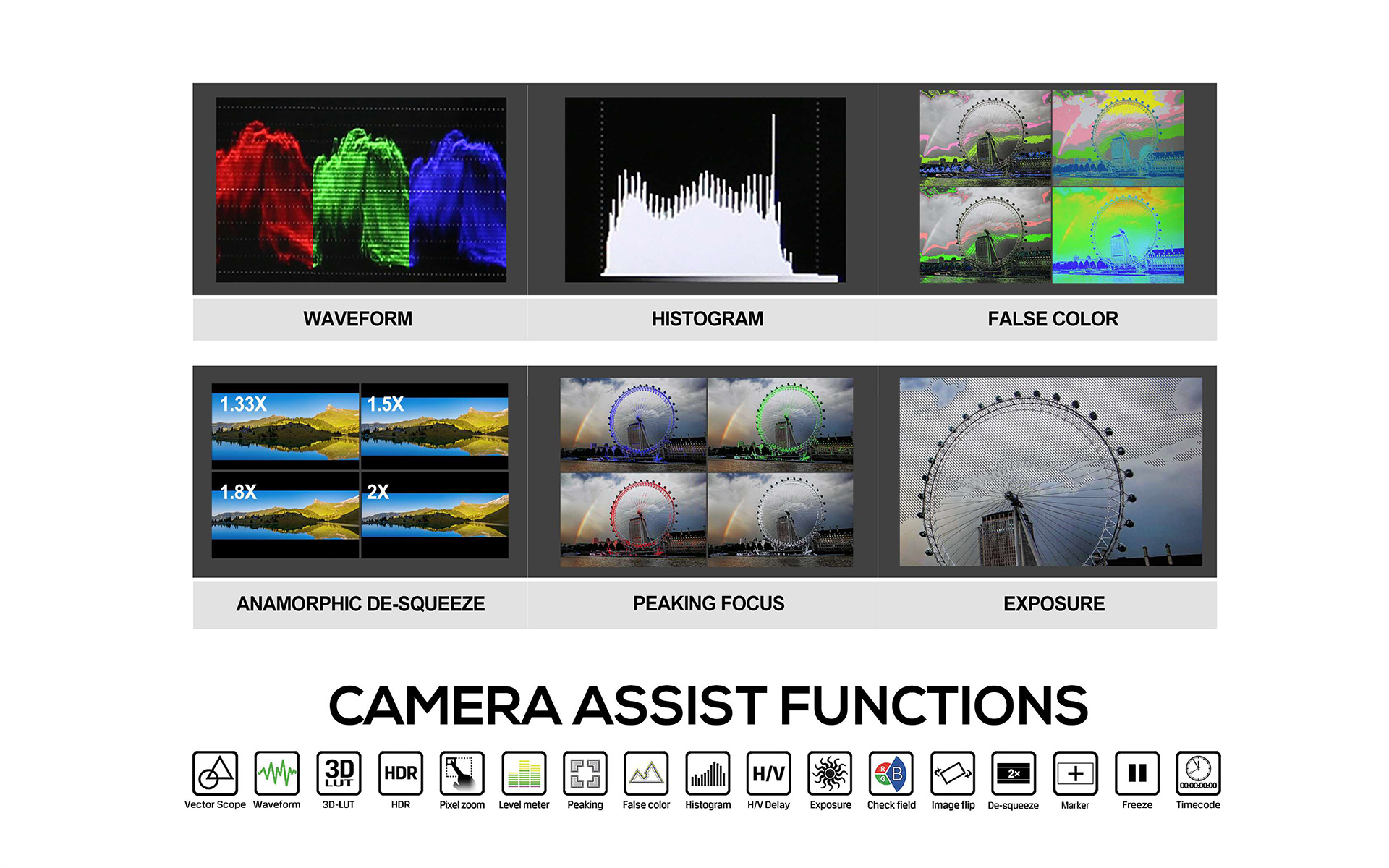

Scopes
- Video analysis
- Waveform (Multi, Y, YCbCr, RGB), Vector, Peaking, False colour, Exposure, Histogram
- Audio analysis
- Level meter
Operational Features

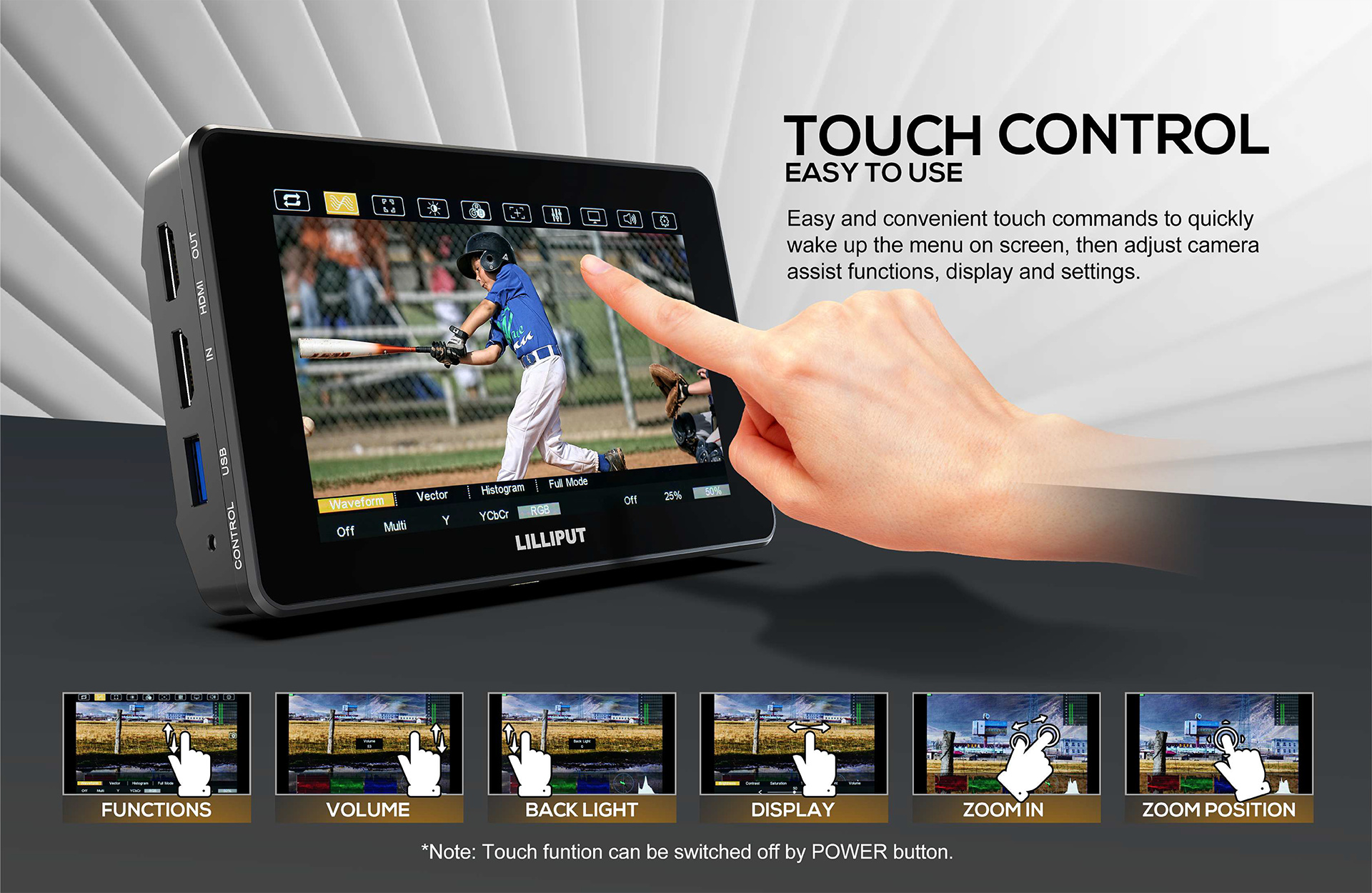

- Touch gestures
- Centre swipe: menu; left/right swipe: backlight/volume; two-finger zoom

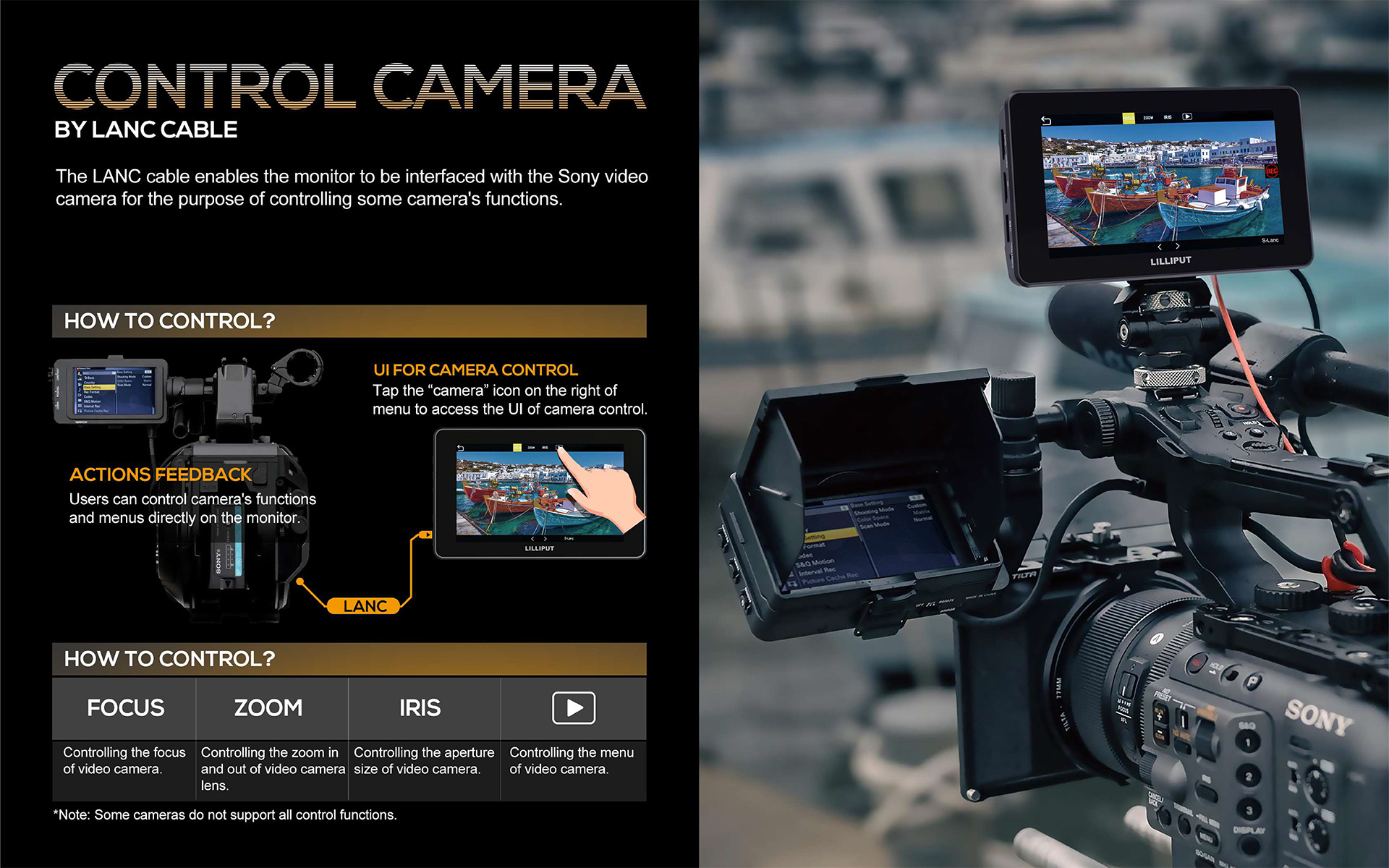

- Camera control
- LANC (Sony S-Lanc compatible)
- Markers
- Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.33X, 1.5X, 1.8X, 2X, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
Power
- Input voltage
- DC 7 to 24V
- Power consumption
- ≤14 W (15V)
- Compatible batteries
- Sony NP-F series
Environmental
- Operating temperature
- 0°C to 50°C
- Storage temperature
- -20°C to 60°C

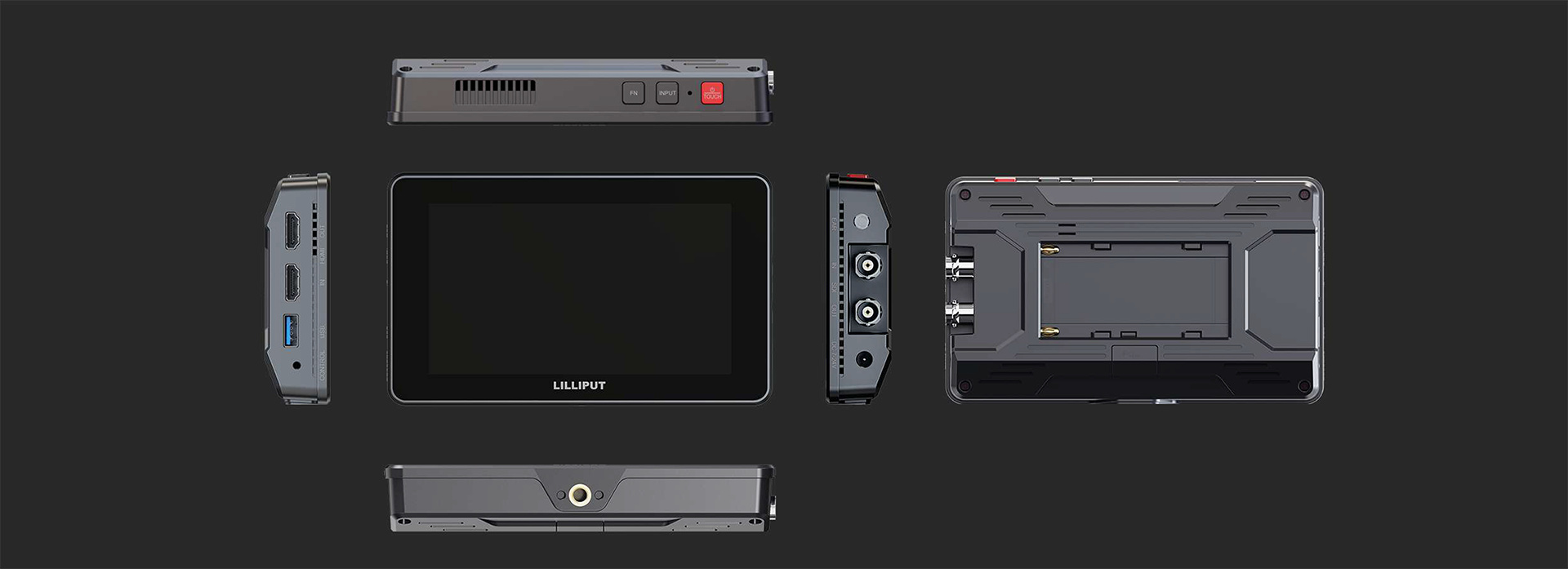

Mechanical
- Dimensions
- 154.8 x 93.8 x 26.5 mm
- Weight
- 310 g
Mounting
- Shoe mount
- 1x 1/4 inch BSW
Accessories
Included
- 0.8 m HDMI A-D cable
- LANC cable
- Mini shoe mount
- USB drive disk
Optional
- 12V 2A DC power adapter
Product Downloads
Similar Products
Compare key technical data across similar products.
| Technical Data | HT5S | A5 | FS5 | Q5 | HT7S | H7S | A7S | FS7 |
|---|---|---|---|---|---|---|---|---|
| Display | ||||||||
| Screen size | 5.5 inch | 5 inch | 5.4 inch | 5.5 inch | 7 inch | 7 inch | 7 inch | 7 inch |
| Native resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1200 | 1920 x 1080 | 1920 x 1200 | 1920 x 1200 | 1920 x 1200 | 1920 x 1200 |
| Touch screen | Capacitive touch | — | — | — | Capacitive touch | — | — | — |
| Aspect ratio | 16:9 | 16:9 | 16:10 | 16:9 | 16:10 | 16:10 | 16:10 | 16:10 |
| Brightness | 2000 cd/m² | 400 cd/m² | 600 cd/m² | 500 cd/m² | 2000 cd/m² | 1800 cd/m² | 500 cd/m² | 500 cd/m² |
| Colour space | 100% BT.709 | ITU-R BT.709 | — | — | 100% BT.709 | — | ITU-R BT.709 | ITU-R BT.709 |
| Contrast | 1000:1 | 1000:1 | 1100:1 | 1000:1 | 1200:1 | 1200:1 | 1000:1 | 1000:1 |
| HDR | ST 2084 300/1000/10000 cd/m², HLG | — | ST 2084 300/1000/10000 cd/m², HLG | — | HLG, ST 2084 300, ST 2084 1000, ST 2084 10000 | HLG, ST 2084 300, ST 2084 1000, ST 2084 10000 | — | — |
| LUT support | — | — | 3D-LUT (.cube format) | — | 3D-LUT (.cube format, 17x17x17 or 33x33x33 BGR) | 3D-LUT (.cube format, 17x17x17 BGR) | — | — |
| Panel type | LCD | IPS | LTPS | LCD | LCD | LCD | IPS | IPS |
| Supported log formats | — | — | SLog2/SLog3, ArriLog, CLog, JLog, VLog, NLog or User | — | SLog2, SLog3, ArriLog, CLog, VLog, JLog, NLog, User (1 to 6) | SLog2, SLog3, User (1 to 6) | — | — |
| Viewing angle | 160°/160° (H/V) | 170°/170° (H/V) | 160°/160° (H/V) | 160°/160° (H/V) | 160°/160° (H/V) | 160°/160° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) |
| Mechanical | ||||||||
| Dimensions | 154.8 x 93.8 x 26.5 mm | 129.6 x 80.1 x 23.6 mm | 154.5 x 90 x 20 mm | 154.5 x 90 x 20 mm | 186 x 128 x 29 mm | 225 x 155 x 23 mm | 182.1 x 124 x 20.5 mm | 182 x 124 x 22 mm |
| Weight | 310 g | 118 g | 295 g | 320 g | 520 g | 535 g | 320 g | 405 g |
| Connections | ||||||||
| Video inputs | 1x 3G-SDI, 1x HDMI 2.0 | 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 2.0 | 1x 3G-SDI, 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 2.0 | 1x 3G-SDI, 1x HDMI 1.4 | 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 1.4 |
| Video outputs | 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) | 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) | 1x 3G-SDI, 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) | 1x 3G-SDI, 1x HDMI 1.4 | 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 1.4 |
| Audio | 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit), HDMI 8ch 24-bit | HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker | 1x Built-in speaker, 1x 3.5 mm ear jack | 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker | 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit), HDMI 8ch 24-bit | 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker | HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker | 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker |
| Video Standards | ||||||||
| 3G-SDI | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| HDMI 1.4 | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| HDMI 2.0 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | — | — |
| Power | ||||||||
| Power consumption | ≤14 W (15V) | ≤9 W | ≤9 W | ≤12 W | ≤16 W (15V) | ≤15 W | ≤12 W | ≤12 W |
| Compatible batteries | Sony NP-F series | Sony NP-F (F970), Canon LP-E6 | Sony NP-F, Canon LP-E6 | Sony NP-F (F970), Canon LP-E6 | Sony NP-F series | Sony NP-F series (F970) | Sony NP-F (F970), Canon LP-E6 | Sony NP-F (F970), Canon LP-E6 |
| Current | — | — | 0.75 A (12V) | — | — | — | — | — |
| Input voltage | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V |
| Input voltage (battery) | — | 7.2V nominal | — | 7.2V nominal | — | 7.2V nominal | 7.2V nominal | 7.2V nominal |
| Environmental | ||||||||
| Operating temperature | 0°C to 50°C | -20°C to 50°C | -20°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C |
| Storage temperature | -20°C to 60°C | -30°C to 70°C | -30°C to 70°C | -20°C to 60°C | -20°C to 60°C | -10°C to 60°C | -20°C to 60°C | -20°C to 60°C |
| Operational Features | ||||||||
| Anamorphic de-squeeze | — | — | — | — | 1.33X, 1.5X, 1.8X, 2X, 2X MAG | — | — | — |
| Camera control | LANC (Sony S-Lanc compatible) | — | — | — | LANC (Sony S-Lanc compatible) | — | — | — |
| Colour temperature | — | — | — | — | 3200K, 5500K, 6500K, 7500K, 9300K, User | 6500K, 7500K, 9300K, User | — | — |
| Comparison | — | — | — | — | Gamma/HDR, Colour space, Camera LUT | — | — | — |
| Cross conversion | — | — | — | HDMI 1.4 ↔ 3G-SDI (bidirectional) | — | — | — | — |
| DSLR presets | — | — | — | — | — | 5D2, 5D3 | — | — |
| Display scan | — | — | — | — | Aspect, Pixel to pixel, Zoom | Fullscan, Overscan, Underscan | — | — |
| Freeze | — | — | — | — | On/Off | On/Off | — | — |
| Function buttons | — | User-definable (peaking, waveform, histogram, false colour, exposure, centre marker, aspect marker, etc.) | — | F1 and F2 user-definable (default: Waveform, Scan) | FN user-definable | F1 user-definable; INPUT key switches HDMI and SDI | User-definable (peaking, level meter, centre marker, aspect marker, false colour, exposure, histogram, etc.) | User-definable (peaking, level meter, centre marker, aspect marker, false colour, exposure, histogram, etc.) |
| Gamma | — | — | — | — | 1.8 to 2.8 | 1.8 to 2.6 | — | — |
| H/V delay | — | — | — | — | Horizontal, Vertical, H/V | — | — | — |
| Histogram | — | — | — | Y, RGB, Colour | — | — | — | — |
| Image mirroring | — | Vertical flip, Horizontal flip | — | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | — |
| Markers | Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.33X, 1.5X, 1.8X, 2X, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 1.5X, 2.0X, 2.0X MAG, Grid; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.33X, 1.5X, 1.8X, 2X, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off |
| Menu control | — | — | — | — | Capacitive touch menu; centre swipe menu; left/right backlight and volume shortcuts | — | — | — |
| Overscan | — | — | — | — | On/Off | — | — | — |
| Peaking | — | — | — | Red, Green, Blue, White | Red, Green, Blue, White | Red, Green, Blue, White, Black | — | — |
| Tally | — | — | — | — | — | Red, Green | — | — |
| Time code | — | — | LTC, VITC | LTC, VITC (SDI only) | LTC, VITC | LTC, VITC | — | — |
| Touch gestures | Centre swipe: menu; left/right swipe: backlight/volume; two-finger zoom | — | — | — | Centre swipe: menu; left/right swipe: backlight/volume; two-finger zoom; shortcut menu swipe | — | — | — |
| Waveform | — | — | — | Multi, Y, YCbCr, RGB | — | — | — | — |
| Zoom | — | — | — | — | — | 1.5x, 2x, 3x, 4x | — | — |
| Accessories | ||||||||
| Included | 0.8 m HDMI A-D cable, LANC cable, Mini shoe mount, USB drive disk | Sun Shade, HDMI A/C Cable, Shoe Mount, User Manual | 12V 2A DC power adapter, 0.8 m HDMI A-C cable, Battery plate (NP-F / LP-E6), Silicone case, Sunshade, Hot shoe mount, Mini USB to USB-A connector | 12V DC power adapter, Folding sun shade, HDMI A/C cable, Hot shoe mount, Silicone rubber case, Sony NP-F (F970) battery plate, Canon LP-E6 battery plate, User manual | 0.8 m HDMI A-D cable, LANC cable, Mini shoe mount, USB drive disk | HDMI A/C cable, Tally control line, Mini shoe mount, USB drive disk, Carry-on bag, User manual | Folding sun shade, Silicone rubber case, HDMI A/C cable, Battery plate (F970), Hot shoe mount, User manual | 12V DC adapter, Sun shade, HDMI A/C cable, Shoe mount, NP-F series battery plate, User manual |
| Optional | 12V 2A DC power adapter | — | — | Battery | 12V 2A DC power adapter, Battery plate adapter, Wireless video transmission, Carry case | 12V 2A DC power adapter | — | VESA mount plate, V-Lock / Anton Bauer battery mount |
| Mounting | ||||||||
| Shoe mount | 1x 1/4 inch BSW | 3x 1/4 inch BSW | 1x 1/4 inch BSW | 1x 1/4 inch BSW | 3x 1/4 inch BSW | 4x 1/4 inch BSW | 3x 1/4 inch BSW | 3x 1/4 inch BSW |
| Scopes | ||||||||
| Audio analysis | Level meter | Level meter | Audio vector, Level meter | Level meter | Level meter | Level meter | Level meter | Level meter |
| Video analysis | Waveform (Multi, Y, YCbCr, RGB), Vector, Peaking, False colour, Exposure, Histogram | Peaking, False colour, Exposure, Histogram | Waveform, Vector, Peaking, Histogram, False colour | Waveform, Peaking, False colour, Exposure, Histogram | Waveform (Multi, Y, YCbCr, RGB), Vector, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Histogram, Check field | Peaking, False colour, Exposure, Histogram, Check field | Peaking, False colour, Exposure, Histogram | Peaking, False colour, Exposure, Histogram |
