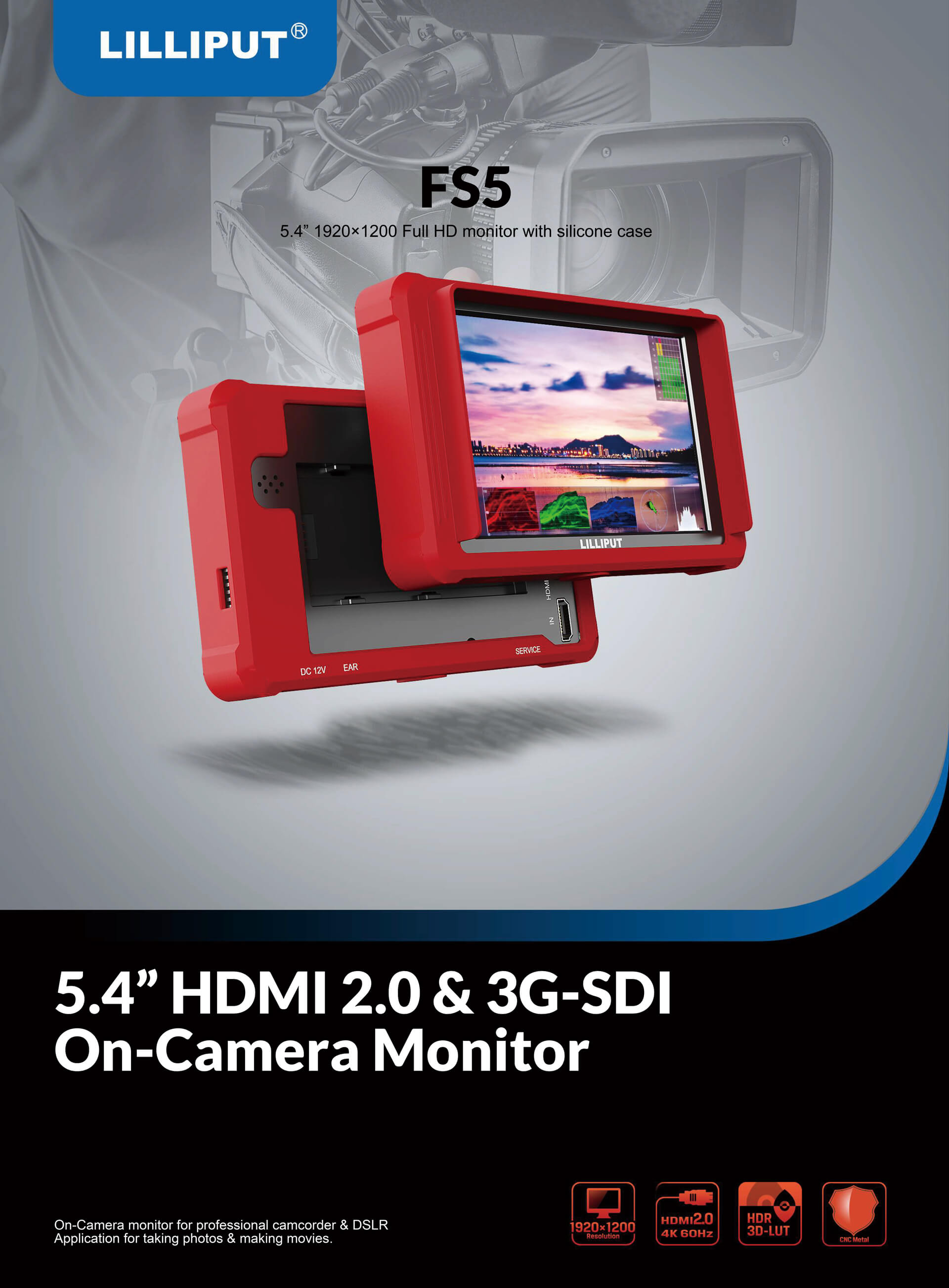

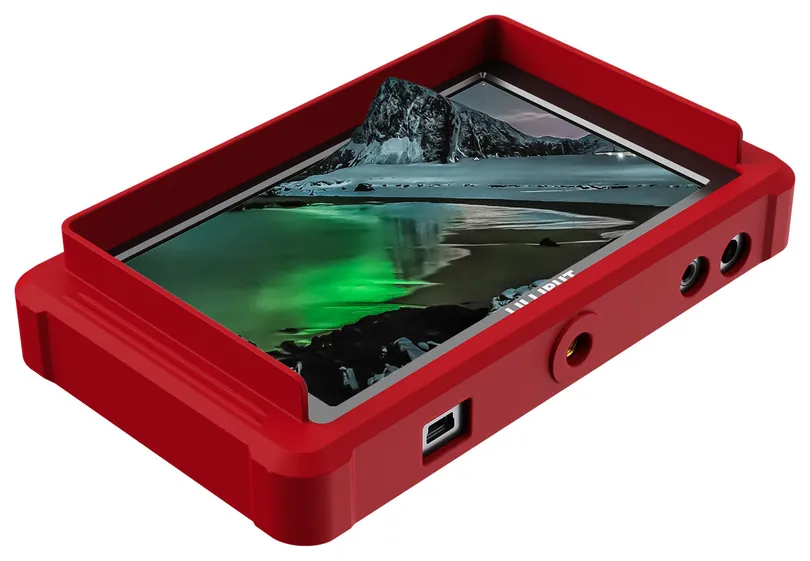

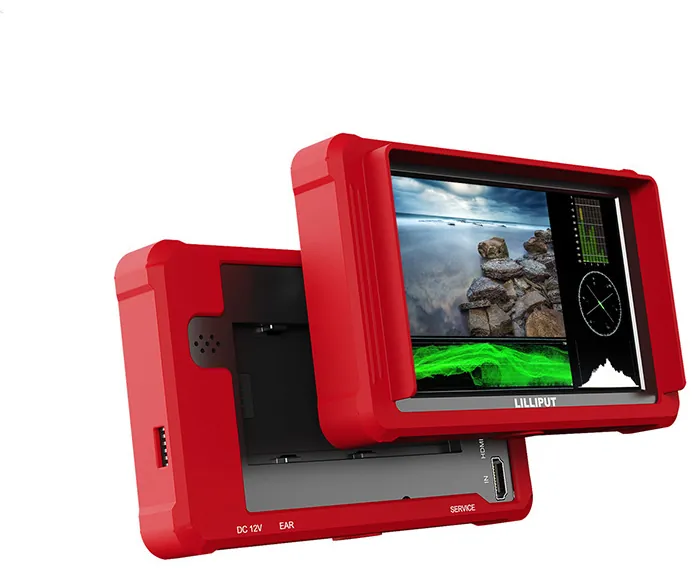

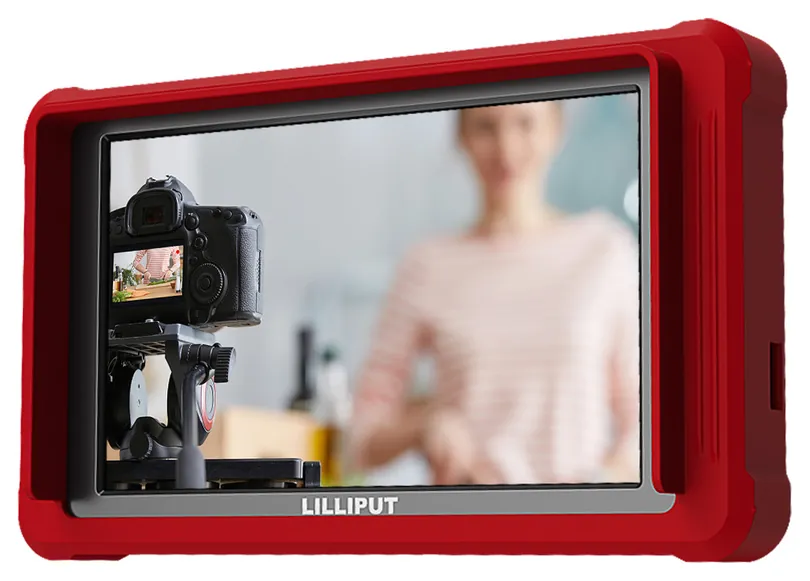

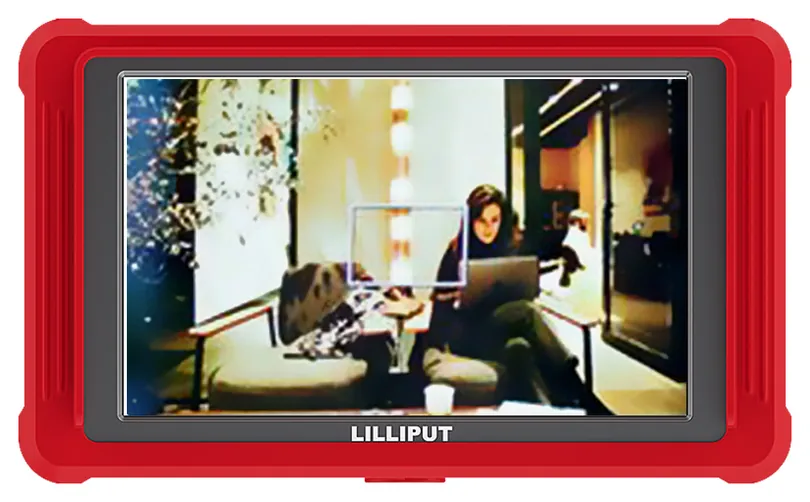

Key Features

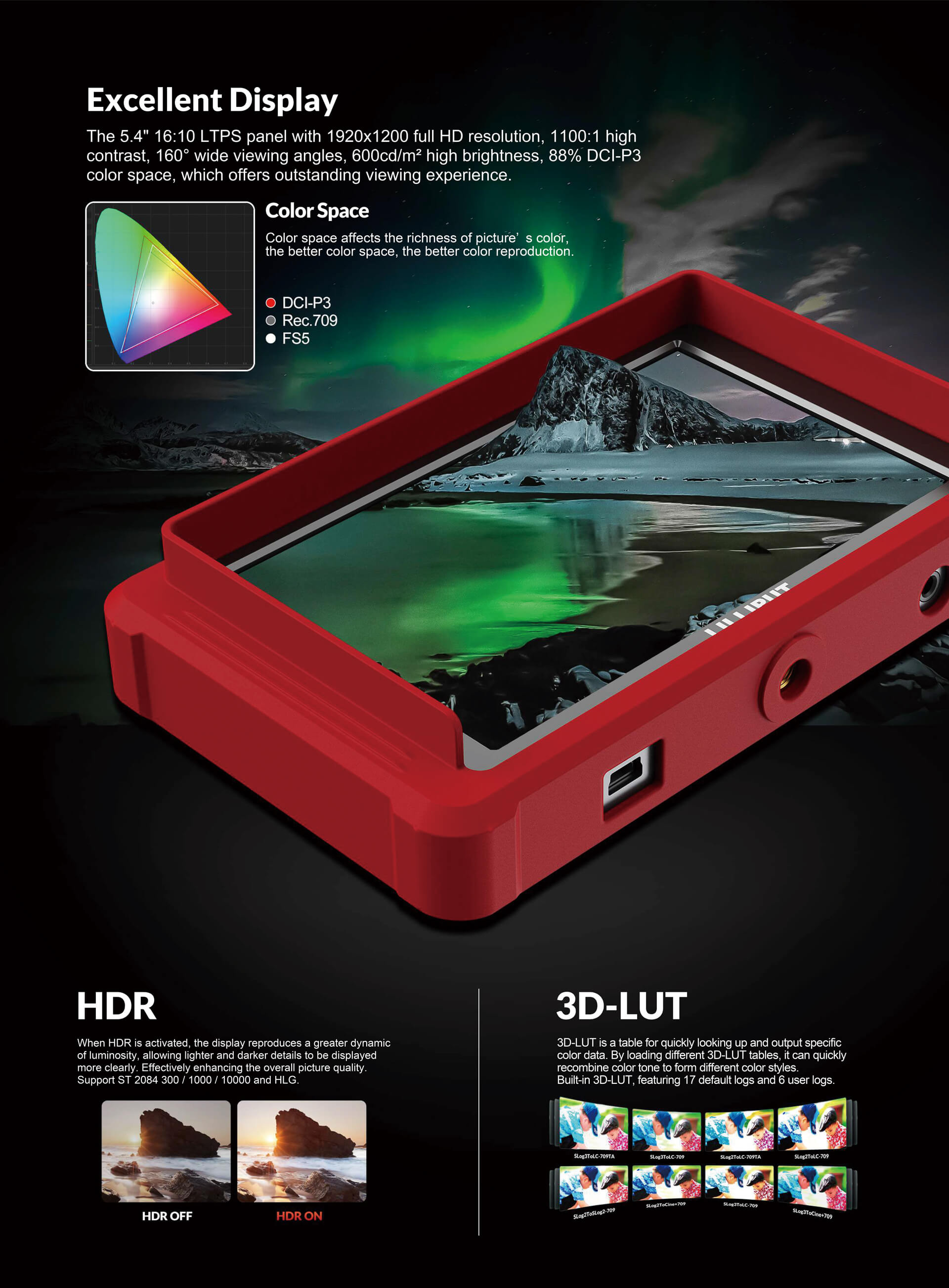

- 5.4 inch 1920 x 1200 LTPS display, 600 cd/m², 1100:1 contrast, 16:10 aspect ratio
- 1x 3G-SDI and 1x HDMI 2.0 input/output, 4K 60Hz support
- HDR ST 2084 (300/1000/10000 cd/m²) and HLG; 3D LUT (.cube); camera log (SLog2/SLog3, ArriLog, CLog, JLog, VLog, NLog)
- 295 g; 154.5 x 90 x 20 mm compact design
- Shoe mount: 1/4 inch British Standard Whitworth (BSW) thread
- NP-F and LP-E6 battery compatible; waveform, vector, peaking, histogram, false colour, time code LTC/VITC
Buy the FS5 From an Authorised Reseller
Lilliput's authorised resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the FS5 now, or if your country is not listed, browse all authorised resellers here.
- APODAX SL Opens in a new tab.
- AVNed B.V. Opens in a new tab.
- Broadcast Center S.R.L. Opens in a new tab.
- Camera World Limited Opens in a new tab.
- DigiBroadcast Co. Ltd Opens in a new tab.
- E-MOTION CREATIONS di Pierfrancesco Armati Opens in a new tab.
- Eastwood (Sound and Vision) Ltd Opens in a new tab.
- Fotospecialisti d.o.o. Opens in a new tab.
- HDEWCameras Opens in a new tab.
- MISS NUMERIQUE Opens in a new tab.
- Proactive UK Ltd Opens in a new tab.
- Production Gear Ltd Opens in a new tab.
- RCB Logic Limited Opens in a new tab.
- Wendys Broadcast Services Ltd Opens in a new tab.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data
Display
- Screen size
- 5.4 inch
- Aspect ratio
- 16:10
- Native resolution
- 1920 x 1200
- Panel type
- LTPS
- Brightness
- 600 cd/m²
- Contrast
- 1100:1
- Viewing angle
- 160°/160° (H/V)
- HDR
- ST 2084 300/1000/10000 cd/m², HLG
- Supported log formats
- SLog2/SLog3, ArriLog, CLog, JLog, VLog, NLog or User
- LUT support
- 3D-LUT (.cube format)

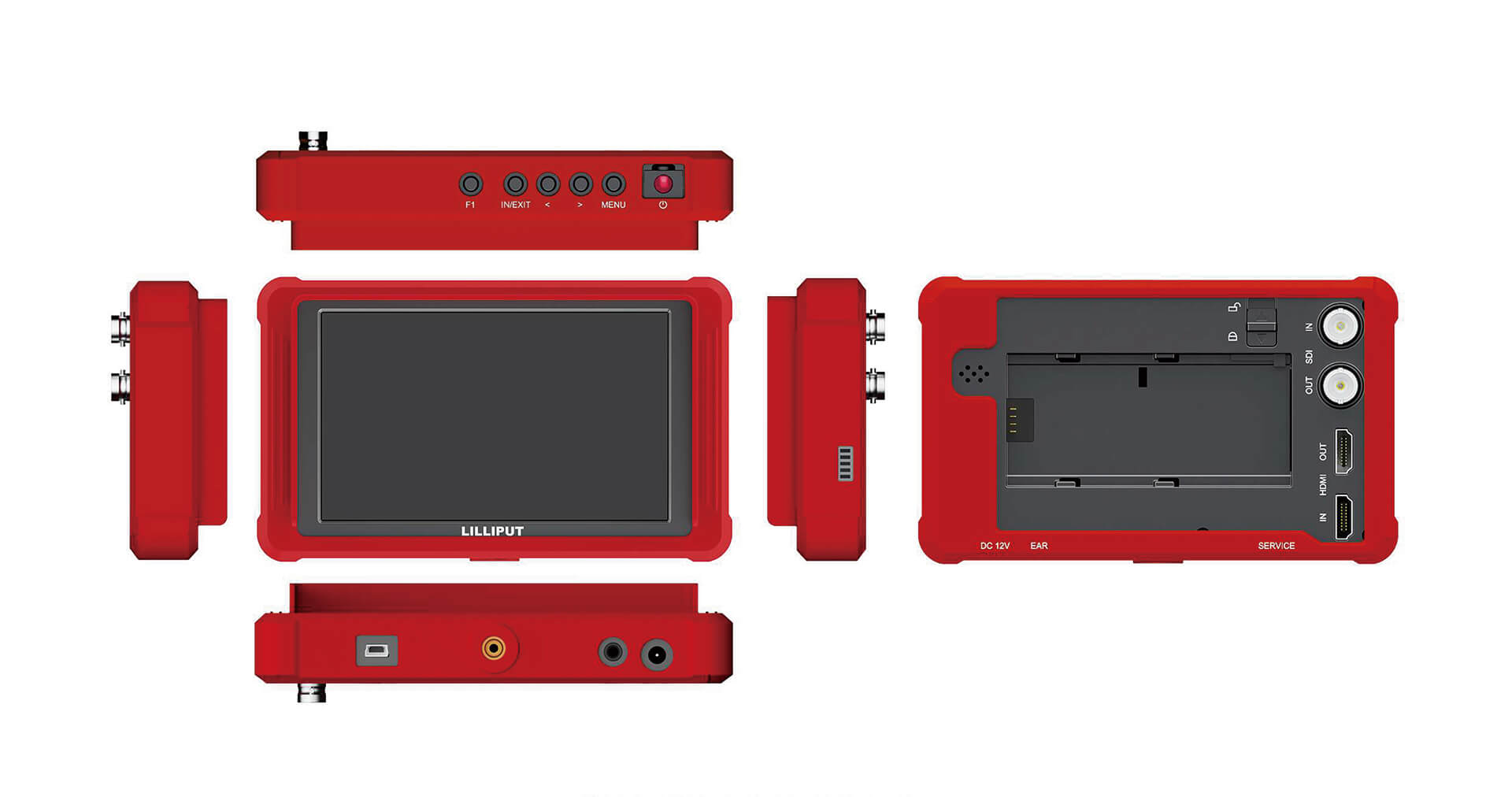

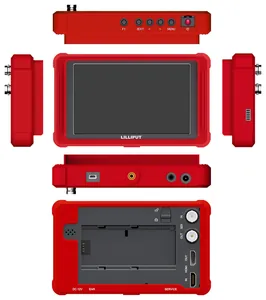

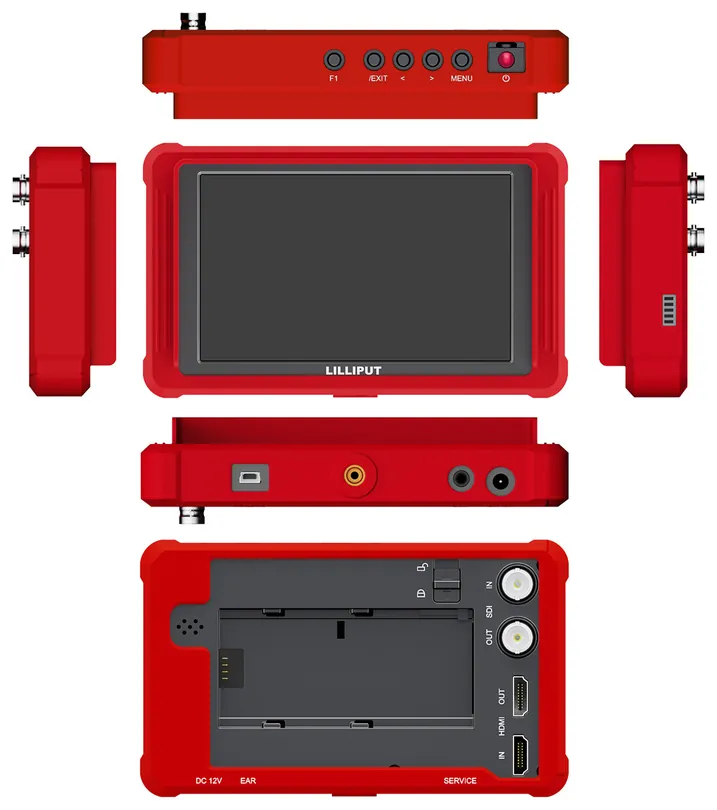

Connections

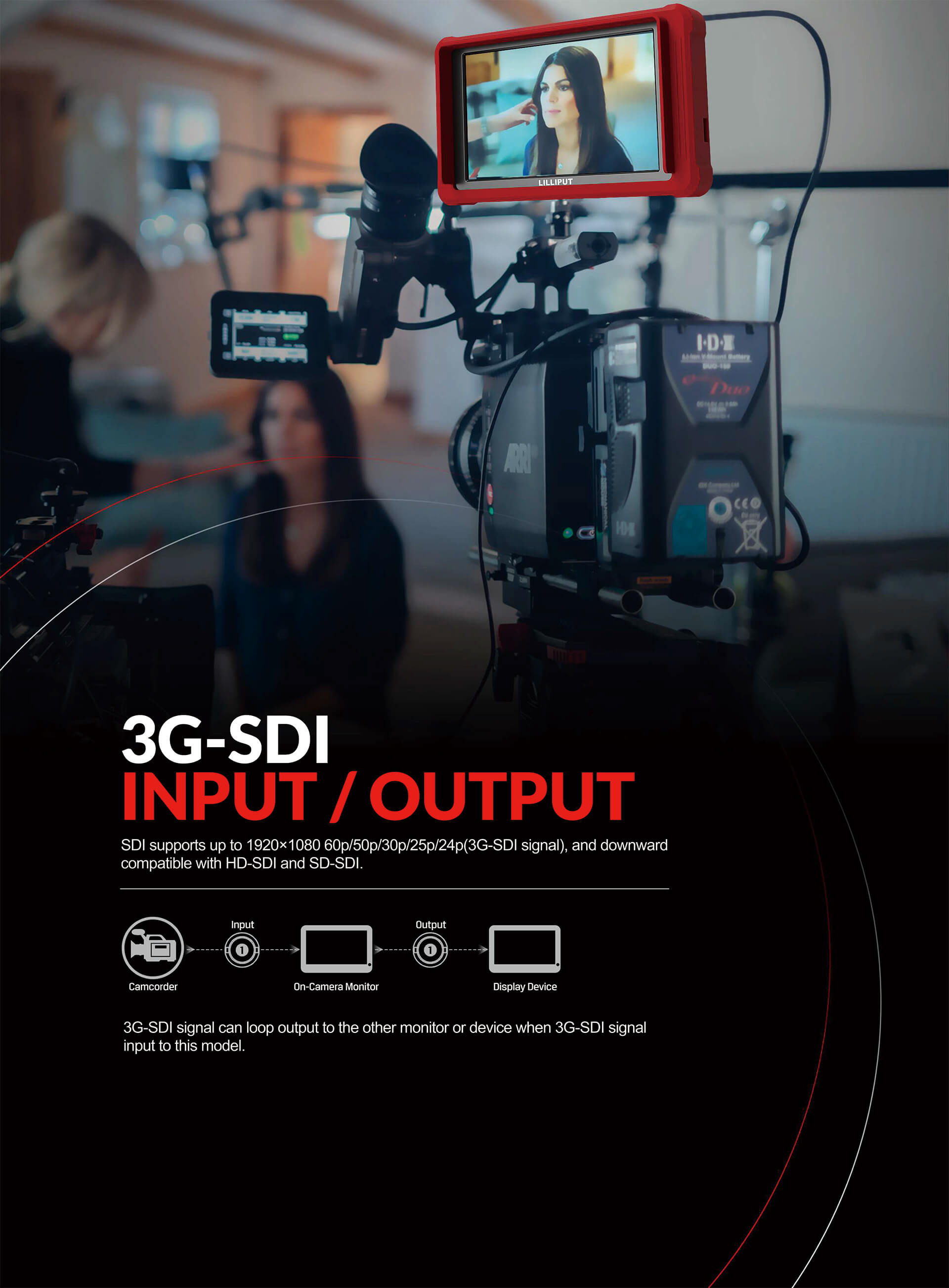

- Video inputs
- 1x 3G-SDI, 1x HDMI 2.0
- Video outputs

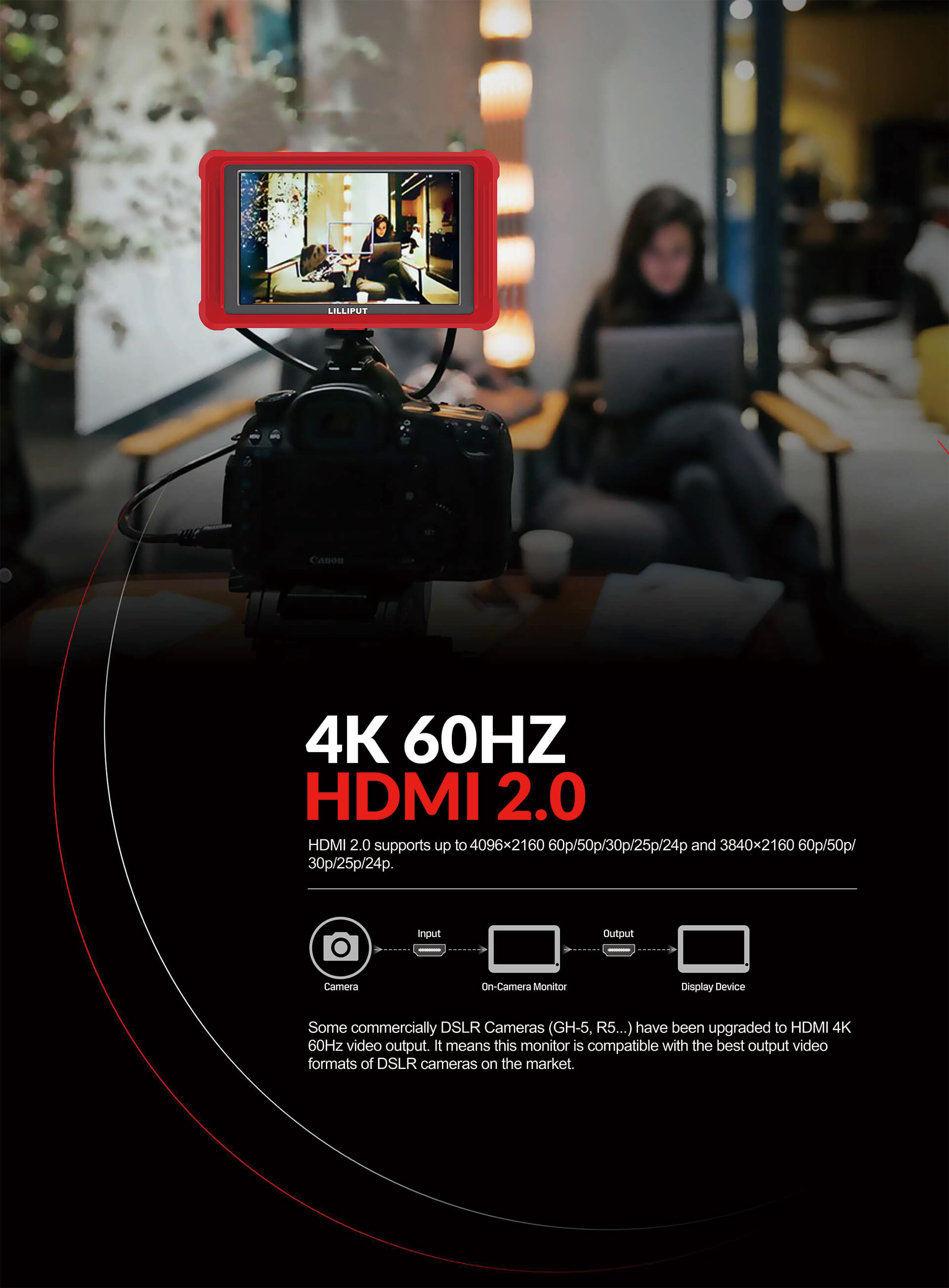

- 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz)
- Audio
- 1x Built-in speaker, 1x 3.5 mm ear jack
Video Standards
- 3G-SDI
- 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50
- HDMI 2.0
- 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50

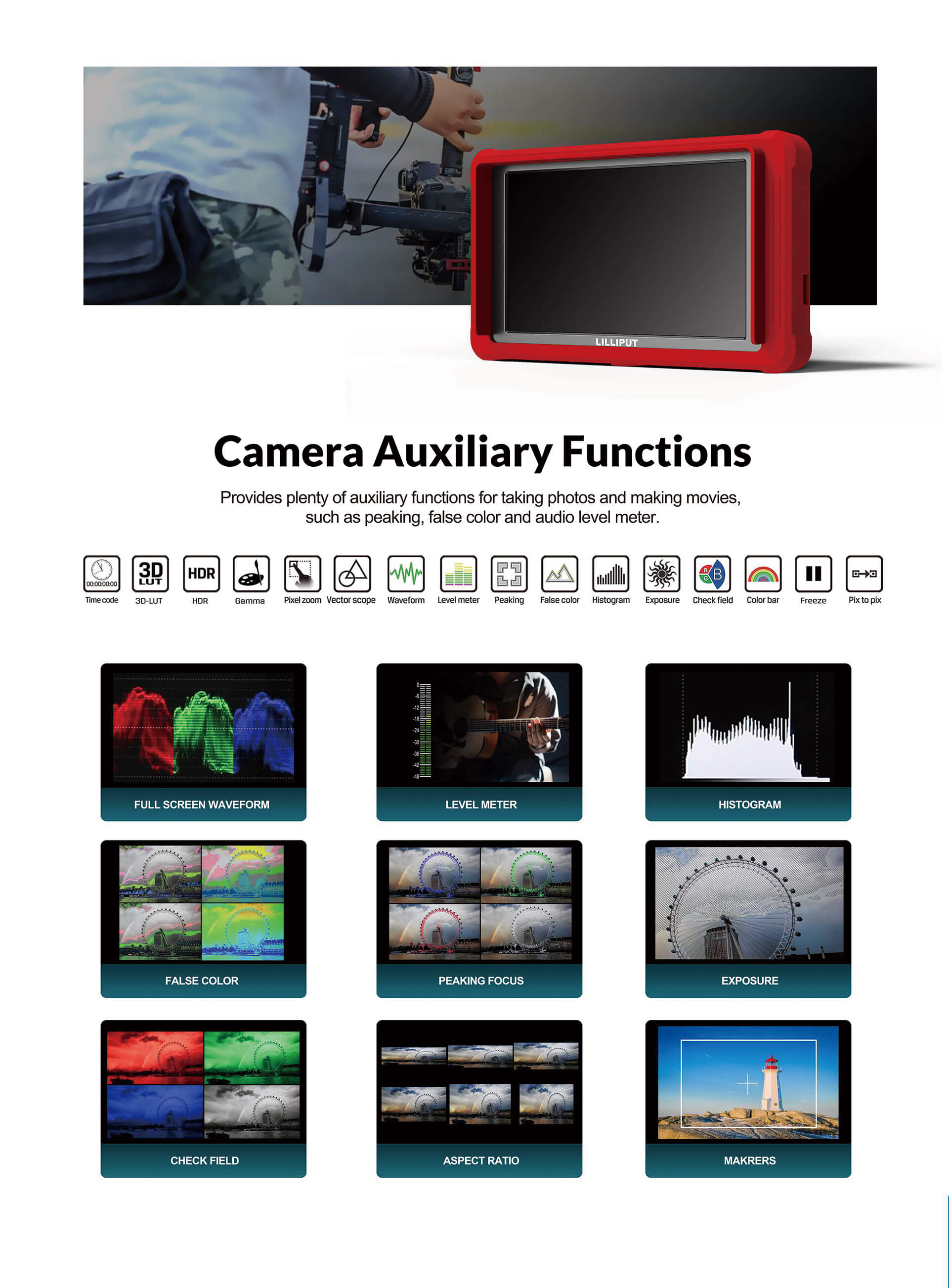

Scopes
- Video analysis
- Waveform, Vector, Peaking, Histogram, False colour
- Audio analysis
- Audio vector, Level meter
Operational Features
- Time code
- LTC, VITC
- Markers
- Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 1.5X, 2.0X, 2.0X MAG, Grid; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
Power
- Input voltage
- DC 7 to 24V
- Power consumption
- ≤9 W
- Compatible batteries
- Sony NP-F, Canon LP-E6
- Current
- 0.75 A (12V)
Environmental
- Operating temperature
- -20°C to 50°C
- Storage temperature
- -30°C to 70°C
Mechanical
- Dimensions
- 154.5 x 90 x 20 mm
- Weight
- 295 g
Mounting
- Shoe mount
- 1x 1/4 inch BSW
Accessories
Included
- 12V 2A DC power adapter
- 0.8 m HDMI A-C cable
- Battery plate (NP-F / LP-E6)
- Silicone case
- Sunshade
- Hot shoe mount
- Mini USB to USB-A connector
Product Downloads
Similar Products
Compare key technical data across similar products.
| Technical Data | FS5 | A5 | Q5 | HT5S | A7S | FS7 |
|---|---|---|---|---|---|---|
| Display | ||||||
| Screen size | 5.4 inch | 5 inch | 5.5 inch | 5.5 inch | 7 inch | 7 inch |
| Native resolution | 1920 x 1200 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1200 | 1920 x 1200 |
| Touch screen | — | — | — | Capacitive touch | — | — |
| Aspect ratio | 16:10 | 16:9 | 16:9 | 16:9 | 16:10 | 16:10 |
| Brightness | 600 cd/m² | 400 cd/m² | 500 cd/m² | 2000 cd/m² | 500 cd/m² | 500 cd/m² |
| Colour space | — | ITU-R BT.709 | — | 100% BT.709 | ITU-R BT.709 | ITU-R BT.709 |
| Contrast | 1100:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 |
| HDR | ST 2084 300/1000/10000 cd/m², HLG | — | — | ST 2084 300/1000/10000 cd/m², HLG | — | — |
| LUT support | 3D-LUT (.cube format) | — | — | — | — | — |
| Panel type | LTPS | IPS | LCD | LCD | IPS | IPS |
| Supported log formats | SLog2/SLog3, ArriLog, CLog, JLog, VLog, NLog or User | — | — | — | — | — |
| Viewing angle | 160°/160° (H/V) | 170°/170° (H/V) | 160°/160° (H/V) | 160°/160° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) |
| Mechanical | ||||||
| Dimensions | 154.5 x 90 x 20 mm | 129.6 x 80.1 x 23.6 mm | 154.5 x 90 x 20 mm | 154.8 x 93.8 x 26.5 mm | 182.1 x 124 x 20.5 mm | 182 x 124 x 22 mm |
| Weight | 295 g | 118 g | 320 g | 310 g | 320 g | 405 g |
| Connections | ||||||
| Video inputs | 1x 3G-SDI, 1x HDMI 2.0 | 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 2.0 | 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 1.4 |
| Video outputs | 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) | 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) | 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 1.4 |
| Audio | 1x Built-in speaker, 1x 3.5 mm ear jack | HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker | 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker | 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit), HDMI 8ch 24-bit | HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker | 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker |
| Video Standards | ||||||
| 3G-SDI | 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| HDMI 1.4 | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| HDMI 2.0 | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 | — | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | — |
| Power | ||||||
| Power consumption | ≤9 W | ≤9 W | ≤12 W | ≤14 W (15V) | ≤12 W | ≤12 W |
| Compatible batteries | Sony NP-F, Canon LP-E6 | Sony NP-F (F970), Canon LP-E6 | Sony NP-F (F970), Canon LP-E6 | Sony NP-F series | Sony NP-F (F970), Canon LP-E6 | Sony NP-F (F970), Canon LP-E6 |
| Current | 0.75 A (12V) | — | — | — | — | — |
| Input voltage | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V |
| Input voltage (battery) | — | 7.2V nominal | 7.2V nominal | — | 7.2V nominal | 7.2V nominal |
| Environmental | ||||||
| Operating temperature | -20°C to 50°C | -20°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C |
| Storage temperature | -30°C to 70°C | -30°C to 70°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C |
| Operational Features | ||||||
| Camera control | — | — | — | LANC (Sony S-Lanc compatible) | — | — |
| Cross conversion | — | — | HDMI 1.4 ↔ 3G-SDI (bidirectional) | — | — | — |
| Function buttons | — | User-definable (peaking, waveform, histogram, false colour, exposure, centre marker, aspect marker, etc.) | F1 and F2 user-definable (default: Waveform, Scan) | — | User-definable (peaking, level meter, centre marker, aspect marker, false colour, exposure, histogram, etc.) | User-definable (peaking, level meter, centre marker, aspect marker, false colour, exposure, histogram, etc.) |
| Histogram | — | — | Y, RGB, Colour | — | — | — |
| Image mirroring | — | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | — | Vertical flip, Horizontal flip | — |
| Markers | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 1.5X, 2.0X, 2.0X MAG, Grid; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.33X, 1.5X, 1.8X, 2X, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off |
| Peaking | — | — | Red, Green, Blue, White | — | — | — |
| Time code | LTC, VITC | — | LTC, VITC (SDI only) | — | — | — |
| Touch gestures | — | — | — | Centre swipe: menu; left/right swipe: backlight/volume; two-finger zoom | — | — |
| Waveform | — | — | Multi, Y, YCbCr, RGB | — | — | — |
| Mounting | ||||||
| Shoe mount | 1x 1/4 inch BSW | 3x 1/4 inch BSW | 1x 1/4 inch BSW | 1x 1/4 inch BSW | 3x 1/4 inch BSW | 3x 1/4 inch BSW |
| Accessories | ||||||
| Included | 12V 2A DC power adapter, 0.8 m HDMI A-C cable, Battery plate (NP-F / LP-E6), Silicone case, Sunshade, Hot shoe mount, Mini USB to USB-A connector | Sun Shade, HDMI A/C Cable, Shoe Mount, User Manual | 12V DC power adapter, Folding sun shade, HDMI A/C cable, Hot shoe mount, Silicone rubber case, Sony NP-F (F970) battery plate, Canon LP-E6 battery plate, User manual | 0.8 m HDMI A-D cable, LANC cable, Mini shoe mount, USB drive disk | Folding sun shade, Silicone rubber case, HDMI A/C cable, Battery plate (F970), Hot shoe mount, User manual | 12V DC adapter, Sun shade, HDMI A/C cable, Shoe mount, NP-F series battery plate, User manual |
| Optional | — | — | Battery | 12V 2A DC power adapter | — | VESA mount plate, V-Lock / Anton Bauer battery mount |
| Scopes | ||||||
| Audio analysis | Audio vector, Level meter | Level meter | Level meter | Level meter | Level meter | Level meter |
| Video analysis | Waveform, Vector, Peaking, Histogram, False colour | Peaking, False colour, Exposure, Histogram | Waveform, Peaking, False colour, Exposure, Histogram | Waveform (Multi, Y, YCbCr, RGB), Vector, Peaking, False colour, Exposure, Histogram | Peaking, False colour, Exposure, Histogram | Peaking, False colour, Exposure, Histogram |
