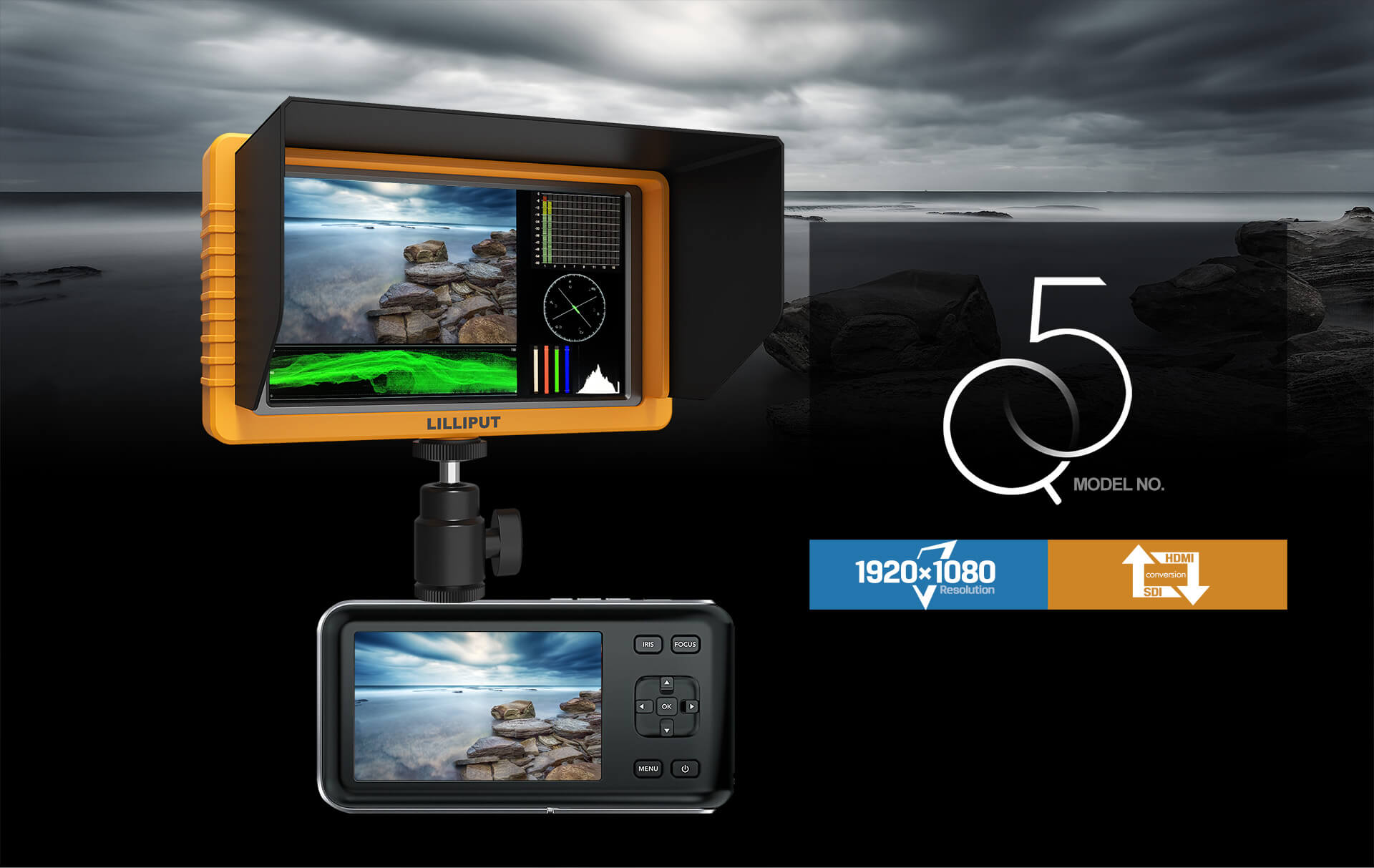

Key Features
- 5.5 inch 1920 x 1080 LCD display, 500 cd/m², 1000:1 contrast, 16:9 aspect ratio
- 1x 3G-SDI and 1x HDMI 1.4 input/output with loop-through and SDI/HDMI cross conversion

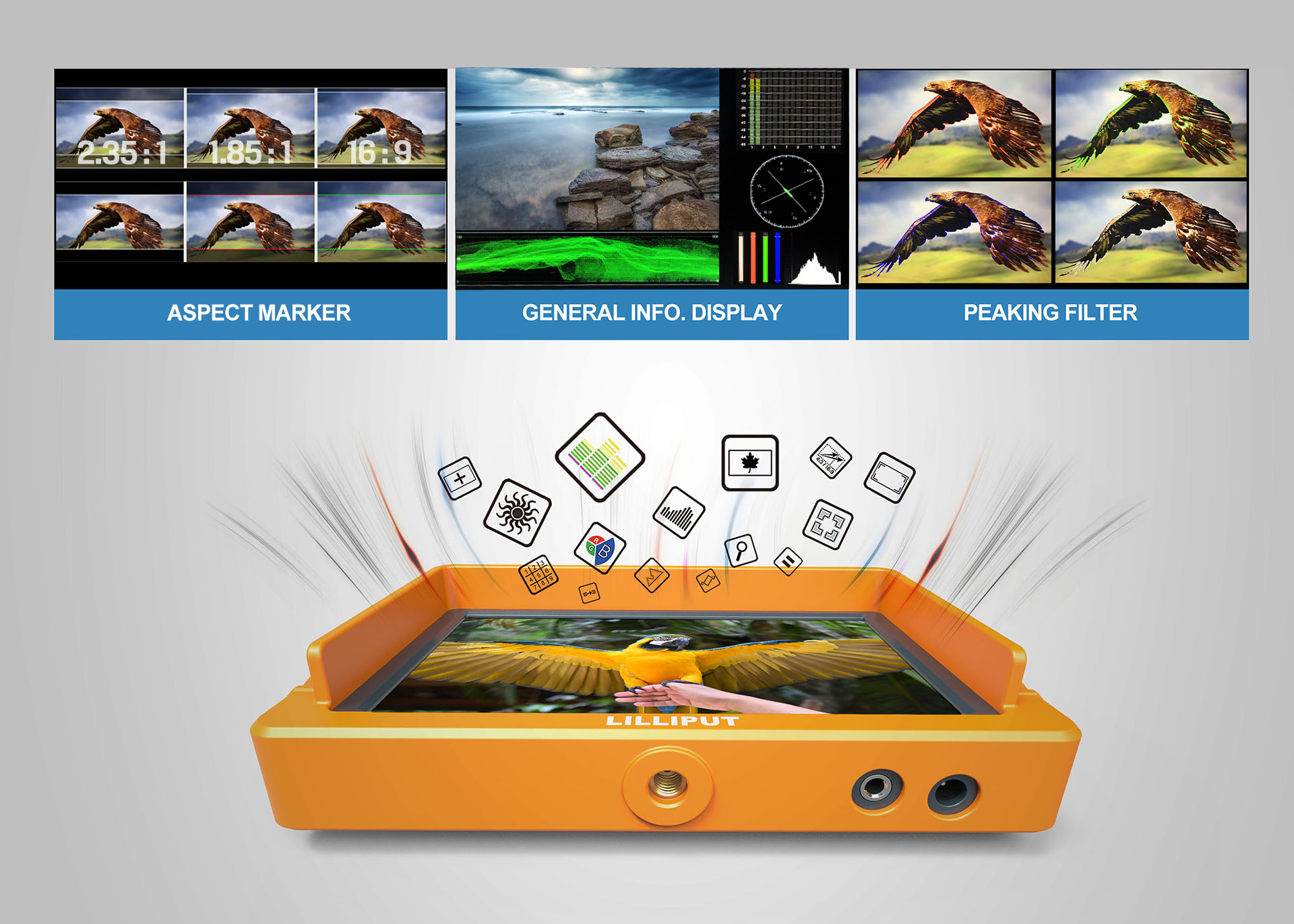

- Waveform (Multi, Y, YCbCr, RGB), peaking, false colour, exposure, histogram, level meter; time code LTC/VITC (SDI)
- F1/F2 user-definable function buttons (default: Waveform, Scan); integrated recording info display; metal housing
- 320 g; 154.5 x 90 x 20 mm; hot shoe mount with 1/4 inch BSW thread; silicone rubber case and folding sun shade included
- Sony NP-F (F970) and Canon LP-E6 battery plates included; DC 7 to 24V, ≤12 W
Buy the Q5 From an Authorised Reseller
Lilliput's authorised broadcast resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the Q5 now, or if your country is not listed, browse all authorised resellers here.
- APODAX SL Opens in a new tab.
- AVNed B.V. Opens in a new tab.
- Fotospecialisti d.o.o. Opens in a new tab.
- MISS NUMERIQUE Opens in a new tab.
- Swiss Event Corporation AG Opens in a new tab.
- TRM Opens in a new tab.
- Voosestore AB Opens in a new tab.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data
Display
- Screen size
- 5.5 inch
- Aspect ratio
- 16:9
- Native resolution
- 1920 x 1080
- Panel type
- LCD
- Brightness
- 500 cd/m²
- Contrast
- 1000:1
- Viewing angle
- 160°/160° (H/V)

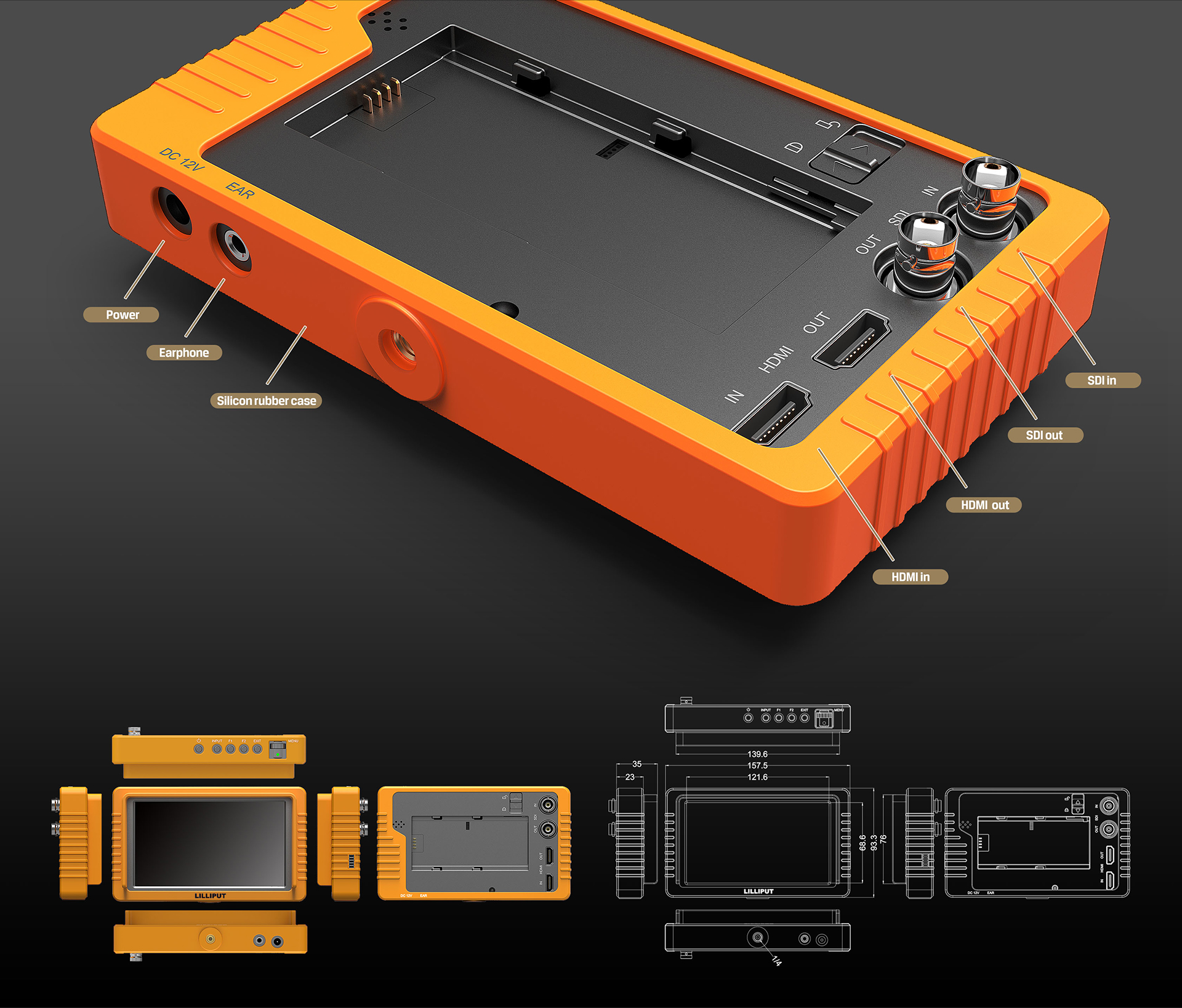

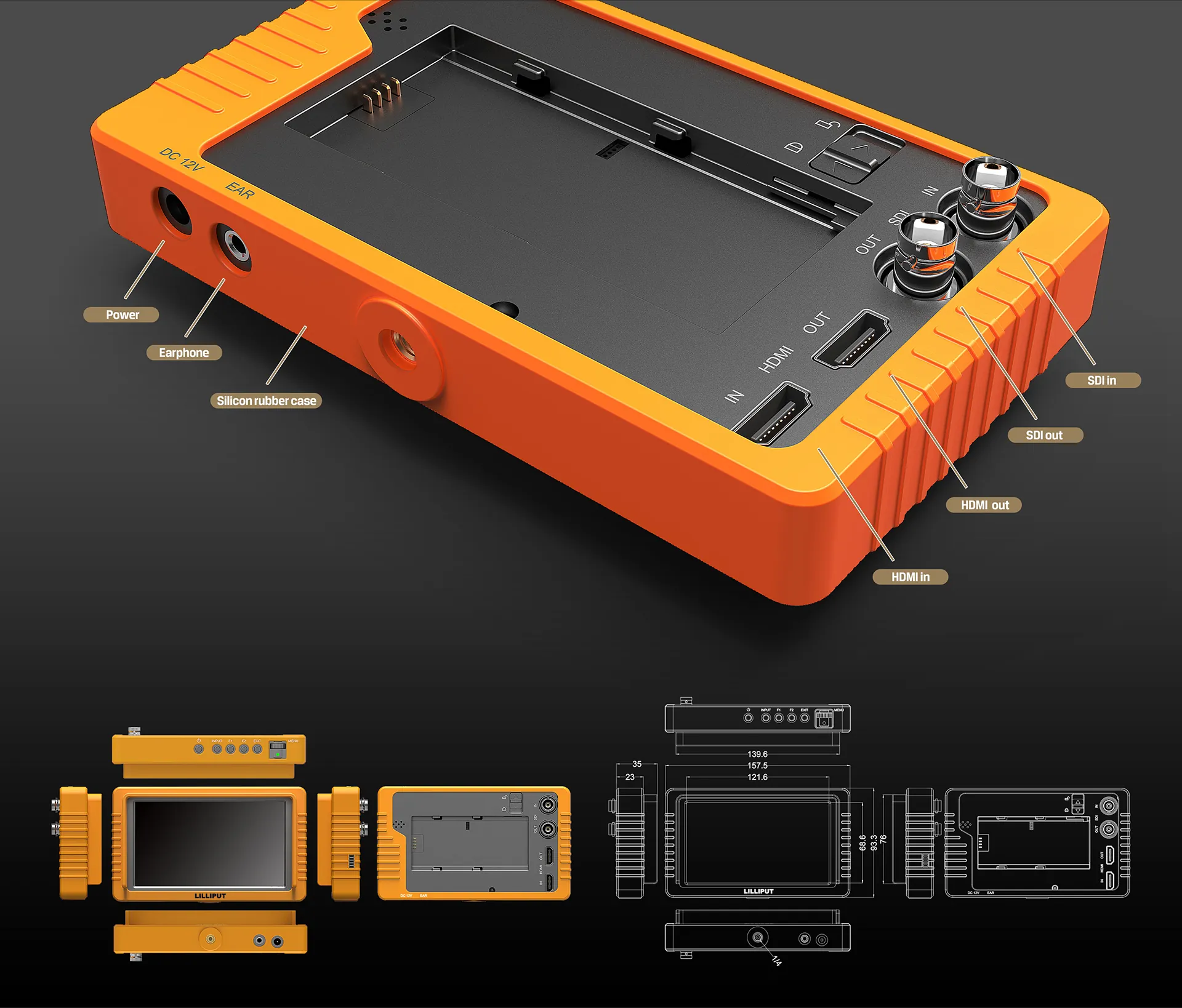

Connections
- Video inputs
- 1x 3G-SDI, 1x HDMI 1.4
- Video outputs
- 1x 3G-SDI, 1x HDMI 1.4
- Audio
- 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker
Video Standards
- 3G-SDI
- 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
- HDMI 1.4
- 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
Scopes
- Video analysis
- Waveform, Peaking, False colour, Exposure, Histogram
- Audio analysis
- Level meter
Operational Features
- Function buttons
- F1 and F2 user-definable (default: Waveform, Scan)
- Markers
- Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
- Image mirroring
- Vertical flip, Horizontal flip
- Cross conversion
- HDMI 1.4 ↔ 3G-SDI (bidirectional)
- Waveform
- Multi, Y, YCbCr, RGB
- Histogram
- Y, RGB, Colour
- Peaking
- Red, Green, Blue, White
- Time code
- LTC, VITC (SDI only)
Power
- Input voltage
- DC 7 to 24V
- Power consumption
- ≤12 W
- Compatible batteries
- Sony NP-F (F970), Canon LP-E6
- Input voltage (battery)
- 7.2V nominal
Environmental
- Operating temperature
- 0°C to 50°C
- Storage temperature
- -20°C to 60°C
Mechanical
- Dimensions
- 154.5 x 90 x 20 mm
- Weight
- 320 g
Mounting
- Shoe mount
- 1x 1/4 inch BSW
Accessories
Included
- 12V DC power adapter
- Folding sun shade
- HDMI A/C cable
- Hot shoe mount
- Silicone rubber case
- Sony NP-F (F970) battery plate
- Canon LP-E6 battery plate
- User manual
Optional
- Battery
Product Downloads
Similar Products
Compare key technical data across similar products.
| Technical Data | Q5 | A5 | FS5 | HT5S | FS7 |
|---|---|---|---|---|---|
| Display | |||||
| Screen size | 5.5 inch | 5 inch | 5.4 inch | 5.5 inch | 7 inch |
| Native resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1200 | 1920 x 1080 | 1920 x 1200 |
| Touch screen | — | — | — | Capacitive touch | — |
| Aspect ratio | 16:9 | 16:9 | 16:10 | 16:9 | 16:10 |
| Brightness | 500 cd/m² | 400 cd/m² | 600 cd/m² | 2000 cd/m² | 500 cd/m² |
| Colour space | — | ITU-R BT.709 | — | 100% BT.709 | ITU-R BT.709 |
| Contrast | 1000:1 | 1000:1 | 1100:1 | 1000:1 | 1000:1 |
| HDR | — | — | ST 2084 300/1000/10000 cd/m², HLG | ST 2084 300/1000/10000 cd/m², HLG | — |
| LUT support | — | — | 3D-LUT (.cube format) | — | — |
| Panel type | LCD | IPS | LTPS | LCD | IPS |
| Supported log formats | — | — | SLog2/SLog3, ArriLog, CLog, JLog, VLog, NLog or User | — | — |
| Viewing angle | 160°/160° (H/V) | 170°/170° (H/V) | 160°/160° (H/V) | 160°/160° (H/V) | 170°/170° (H/V) |
| Mechanical | |||||
| Dimensions | 154.5 x 90 x 20 mm | 129.6 x 80.1 x 23.6 mm | 154.5 x 90 x 20 mm | 154.8 x 93.8 x 26.5 mm | 182 x 124 x 22 mm |
| Weight | 320 g | 118 g | 295 g | 310 g | 405 g |
| Connections | |||||
| Video inputs | 1x 3G-SDI, 1x HDMI 1.4 | 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 2.0 | 1x 3G-SDI, 1x HDMI 2.0 | 1x 3G-SDI, 1x HDMI 1.4 |
| Video outputs | 1x 3G-SDI, 1x HDMI 1.4 | 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) | 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) | 1x 3G-SDI, 1x HDMI 1.4 |
| Audio | 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker | HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker | 1x Built-in speaker, 1x 3.5 mm ear jack | 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit), HDMI 8ch 24-bit | 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker |
| Video Standards | |||||
| 3G-SDI | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| HDMI 1.4 | 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| HDMI 2.0 | — | — | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — |
| Power | |||||
| Power consumption | ≤12 W | ≤9 W | ≤9 W | ≤14 W (15V) | ≤12 W |
| Compatible batteries | Sony NP-F (F970), Canon LP-E6 | Sony NP-F (F970), Canon LP-E6 | Sony NP-F, Canon LP-E6 | Sony NP-F series | Sony NP-F (F970), Canon LP-E6 |
| Current | — | — | 0.75 A (12V) | — | — |
| Input voltage | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V |
| Input voltage (battery) | 7.2V nominal | 7.2V nominal | — | — | 7.2V nominal |
| Environmental | |||||
| Operating temperature | 0°C to 50°C | -20°C to 50°C | -20°C to 50°C | 0°C to 50°C | 0°C to 50°C |
| Storage temperature | -20°C to 60°C | -30°C to 70°C | -30°C to 70°C | -20°C to 60°C | -20°C to 60°C |
| Operational Features | |||||
| Camera control | — | — | — | LANC (Sony S-Lanc compatible) | — |
| Cross conversion | HDMI 1.4 ↔ 3G-SDI (bidirectional) | — | — | — | — |
| Function buttons | F1 and F2 user-definable (default: Waveform, Scan) | User-definable (peaking, waveform, histogram, false colour, exposure, centre marker, aspect marker, etc.) | — | — | User-definable (peaking, level meter, centre marker, aspect marker, false colour, exposure, histogram, etc.) |
| Histogram | Y, RGB, Colour | — | — | — | — |
| Image mirroring | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | — | — | — |
| Markers | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 1.5X, 2.0X, 2.0X MAG, Grid; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.33X, 1.5X, 1.8X, 2X, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off |
| Peaking | Red, Green, Blue, White | — | — | — | — |
| Time code | LTC, VITC (SDI only) | — | LTC, VITC | — | — |
| Touch gestures | — | — | — | Centre swipe: menu; left/right swipe: backlight/volume; two-finger zoom | — |
| Waveform | Multi, Y, YCbCr, RGB | — | — | — | — |
| Accessories | |||||
| Included | 12V DC power adapter, Folding sun shade, HDMI A/C cable, Hot shoe mount, Silicone rubber case, Sony NP-F (F970) battery plate, Canon LP-E6 battery plate, User manual | Sun Shade, HDMI A/C Cable, Shoe Mount, User Manual | 12V 2A DC power adapter, 0.8 m HDMI A-C cable, Battery plate (NP-F / LP-E6), Silicone case, Sunshade, Hot shoe mount, Mini USB to USB-A connector | 0.8 m HDMI A-D cable, LANC cable, Mini shoe mount, USB drive disk | 12V DC adapter, Sun shade, HDMI A/C cable, Shoe mount, NP-F series battery plate, User manual |
| Optional | Battery | — | — | 12V 2A DC power adapter | VESA mount plate, V-Lock / Anton Bauer battery mount |
| Mounting | |||||
| Shoe mount | 1x 1/4 inch BSW | 3x 1/4 inch BSW | 1x 1/4 inch BSW | 1x 1/4 inch BSW | 3x 1/4 inch BSW |
| Scopes | |||||
| Audio analysis | Level meter | Level meter | Audio vector, Level meter | Level meter | Level meter |
| Video analysis | Waveform, Peaking, False colour, Exposure, Histogram | Peaking, False colour, Exposure, Histogram | Waveform, Vector, Peaking, Histogram, False colour | Waveform (Multi, Y, YCbCr, RGB), Vector, Peaking, False colour, Exposure, Histogram | Peaking, False colour, Exposure, Histogram |
