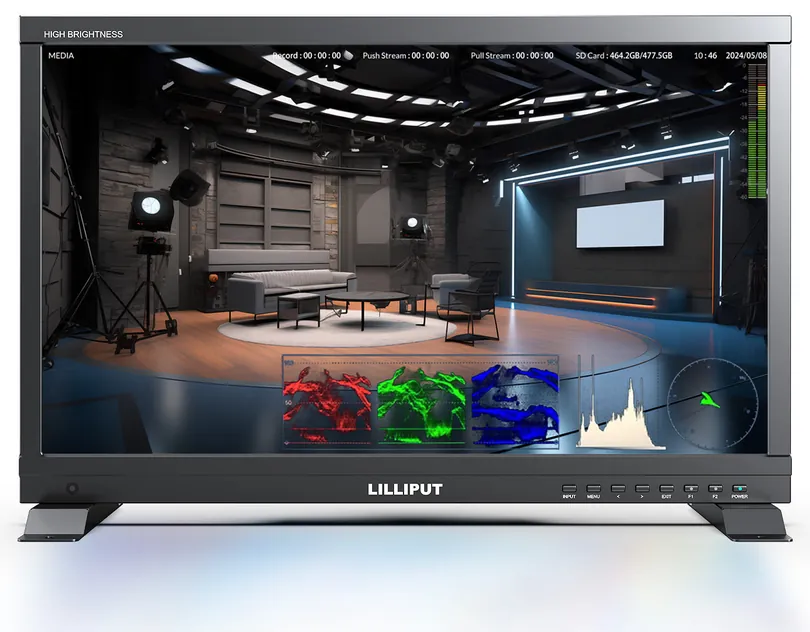

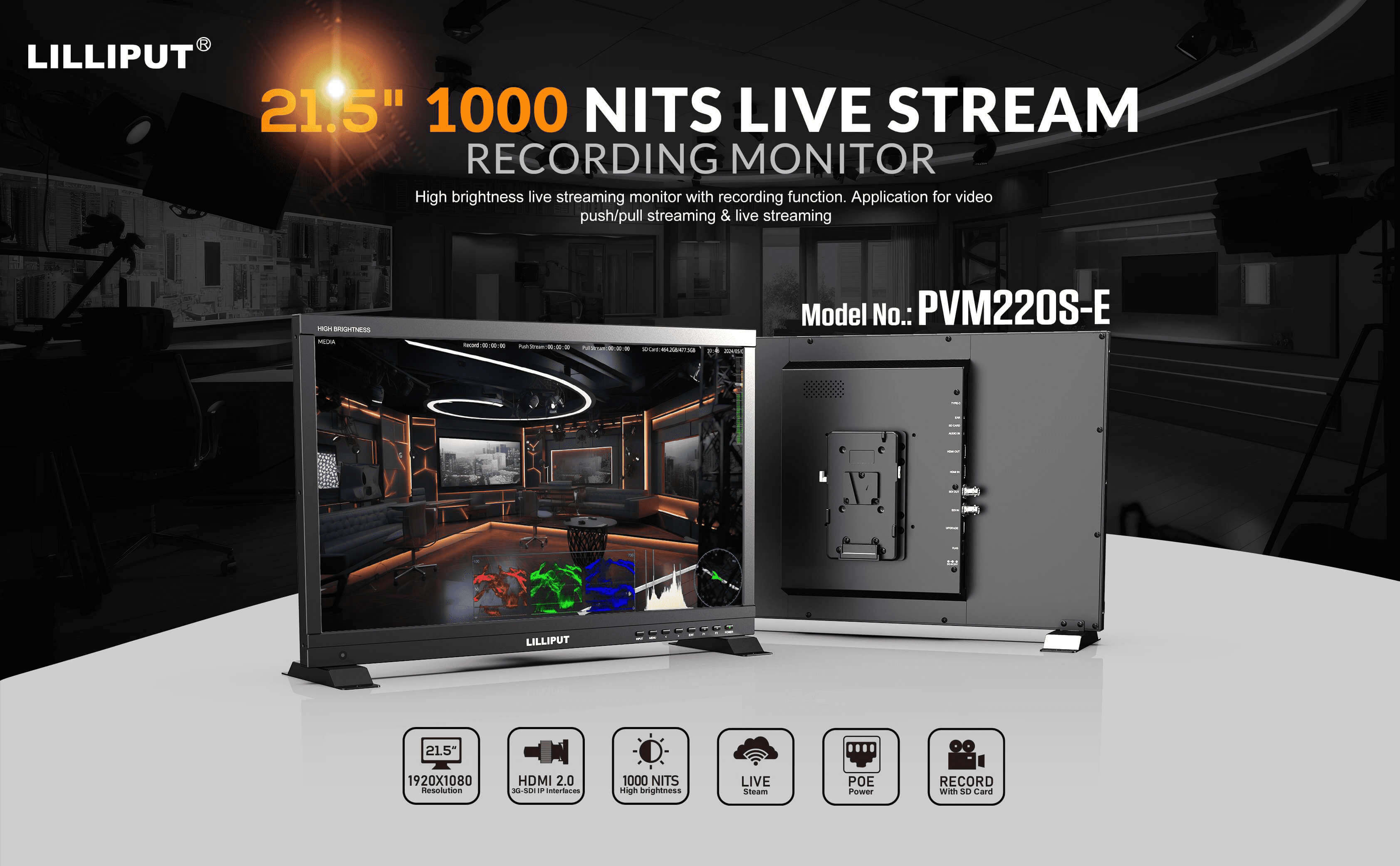

Key Features

  • 21.5 inch 1920 x 1080 display, 1000 cd/m², 1000:1 contrast
  • 1x 3G-SDI, 1x HDMI 2.0, broadcast-quality inputs
  • Onboard recording: 1080p/720p/480p to SD card (up to 512GB), H.264, .mkv
  • HDR: ST2084 300/1000/10000, HLG; 3D LUT (.cube); Rec.709 calibration
  • Log formats: SLog2/SLog3, CLog, NLog, ArriLog, JLog, user-defined

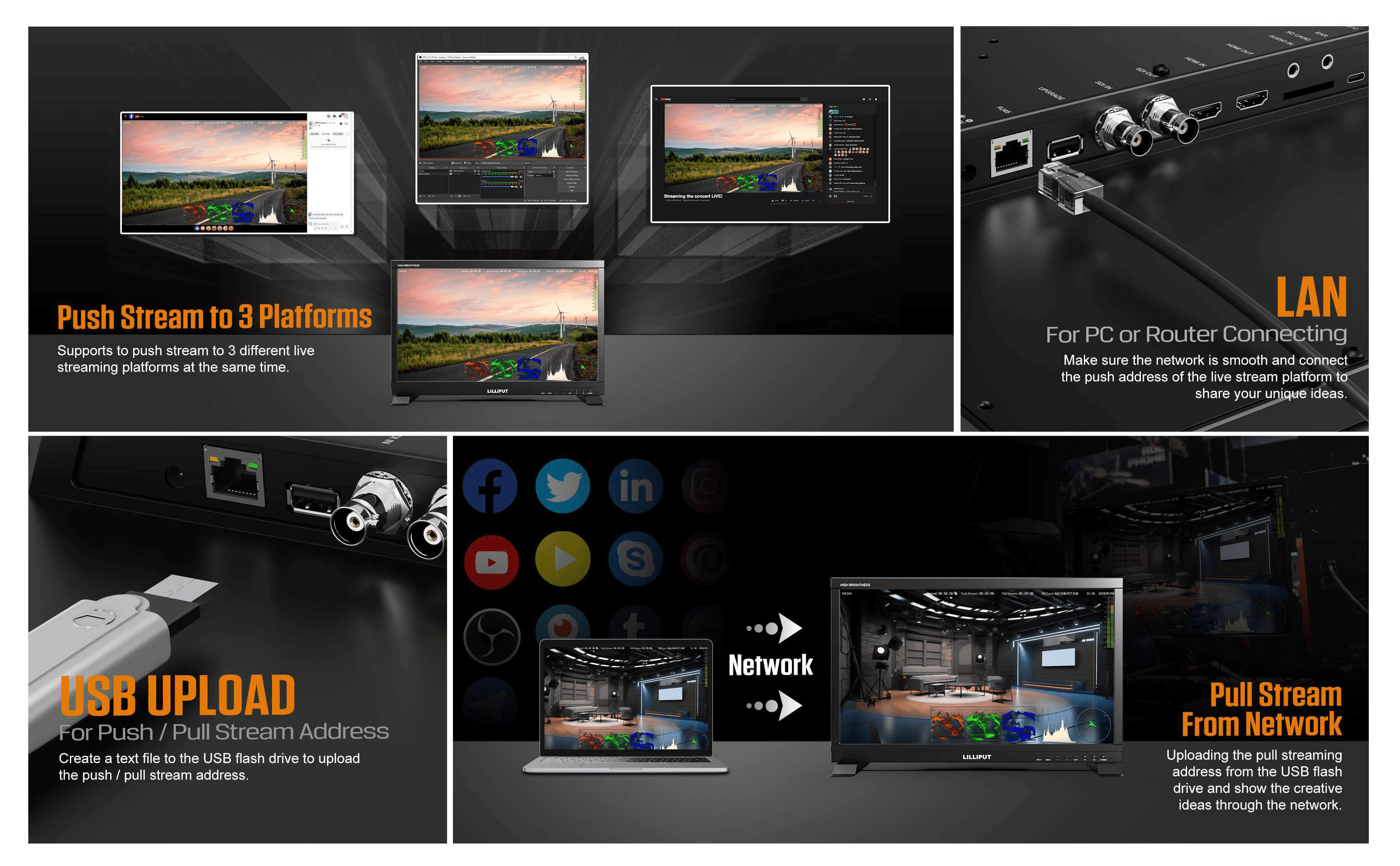

  • IP streaming: Push/Pull YCbCr 4:2:2 (32 Mbps @ 1080p60); SRT, RTMP, RTSP; NDI®|HX optional
  • Waveform and vector scopes; LAN 1000M; V-Lock/Anton Bauer compatible
  • Versatile mounting: VESA 75 x 75 mm and VESA 100 x 100 mm, base brackets included

Buy the PVM220S-E From an Authorised Reseller

Lilliput's authorised resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the PVM220S-E now, or if your country is not listed, browse all authorised resellers here.

Technical Data

Display

Screen size
21.5 inch
Aspect ratio
16:9
Native resolution
1920 x 1080
Panel type
LCD
Brightness
1000 cd/m²
Contrast
1000:1
Viewing angle
178°/178° (H/V)

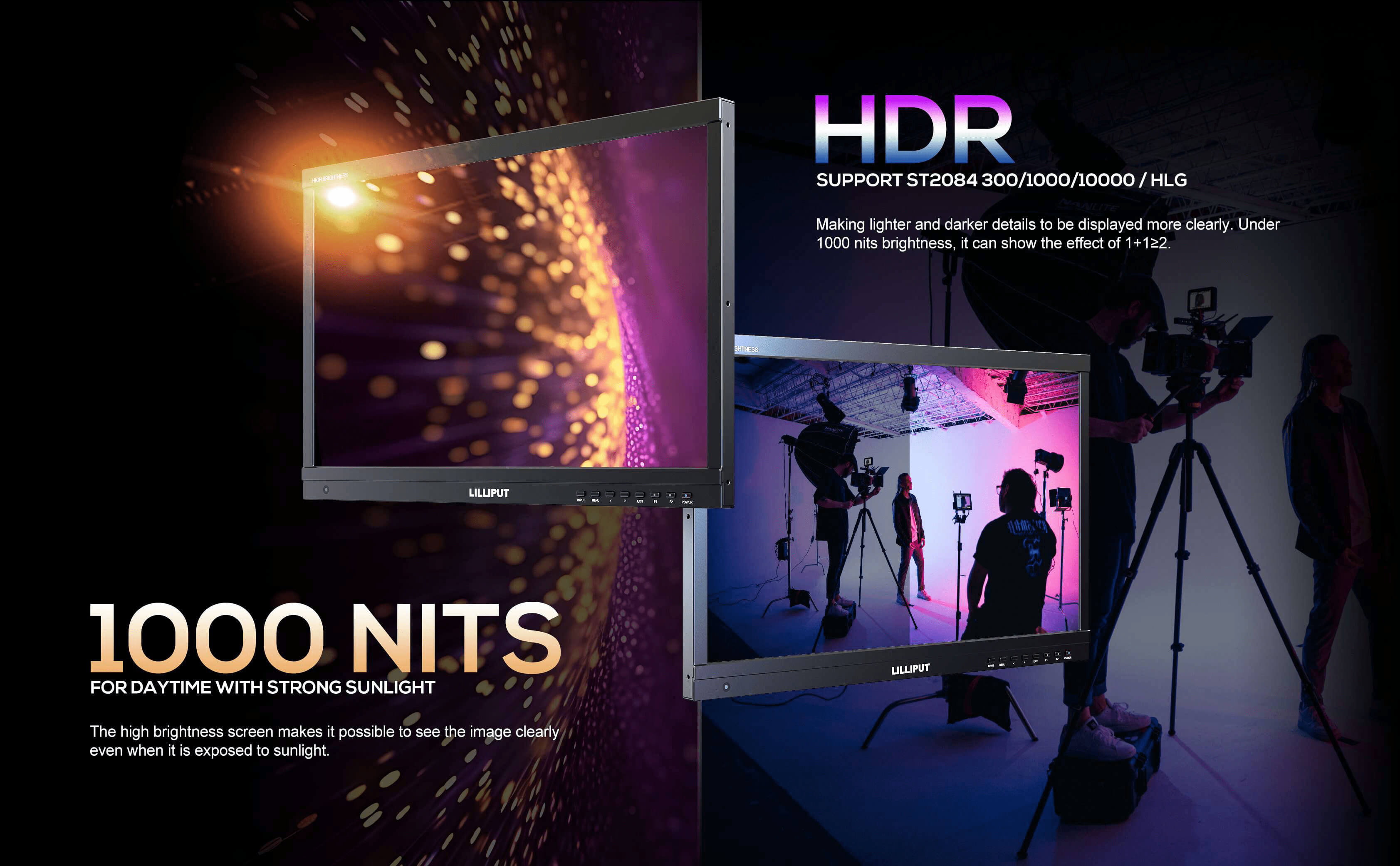

HDR
ST2084 300/1000/10000, HLG
Supported log formats
SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined

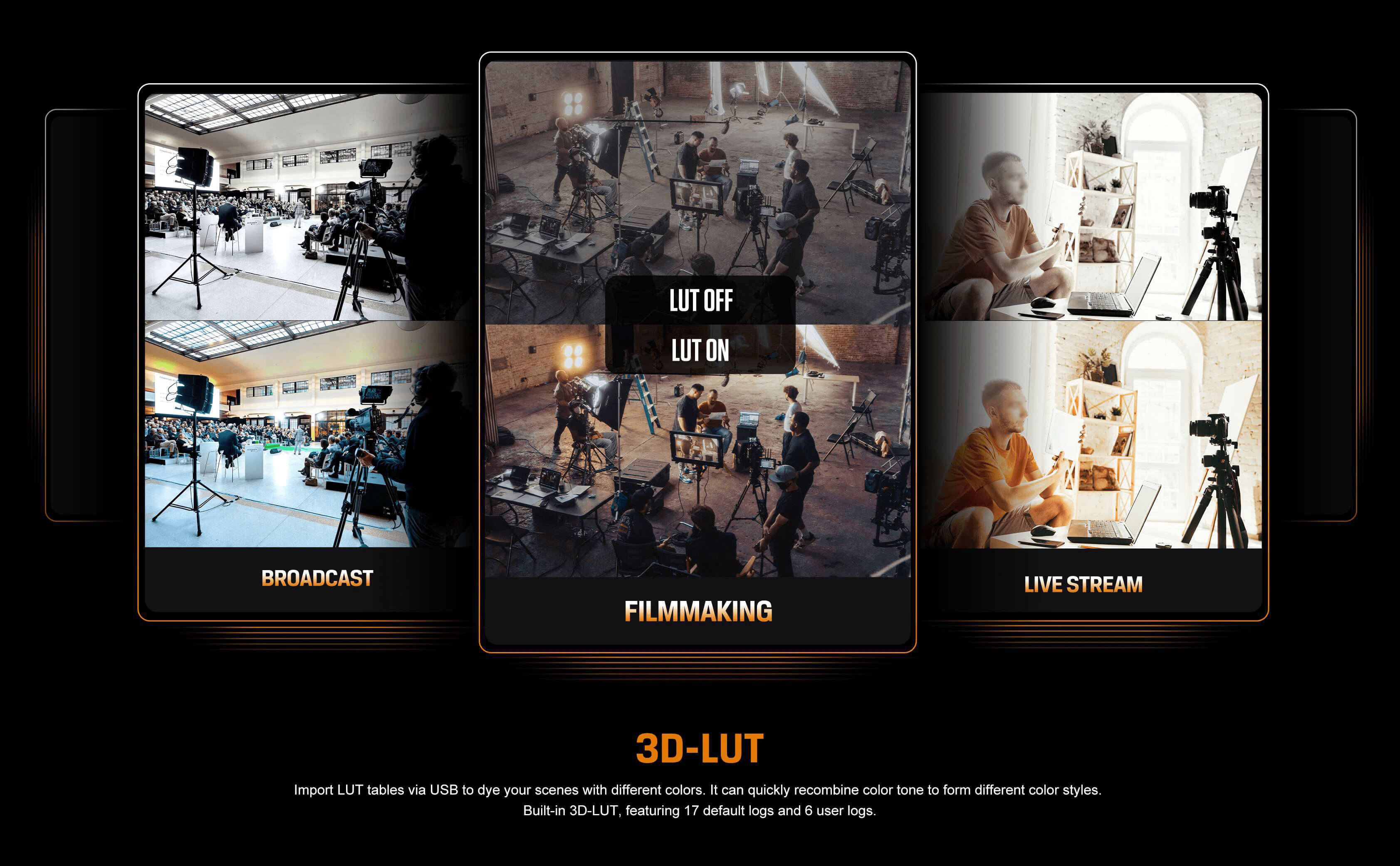

LUT support
3D-LUT (.cube format)
Colour space
Calibration to Rec.709 (optional calibration unit)

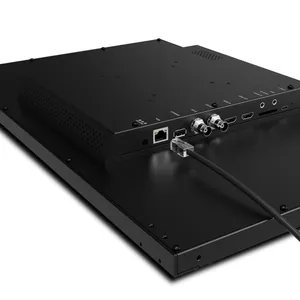

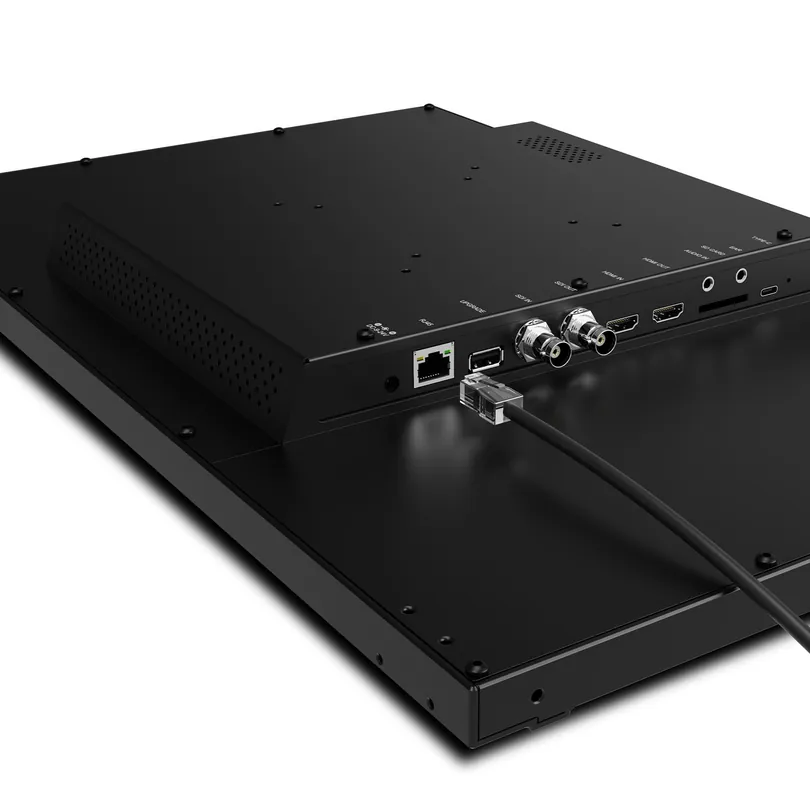

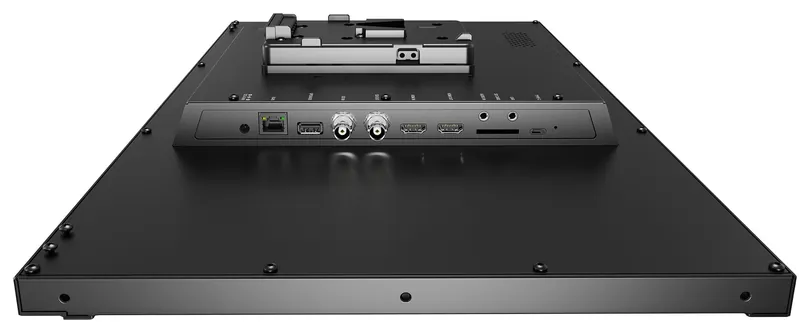

Connections

Video inputs

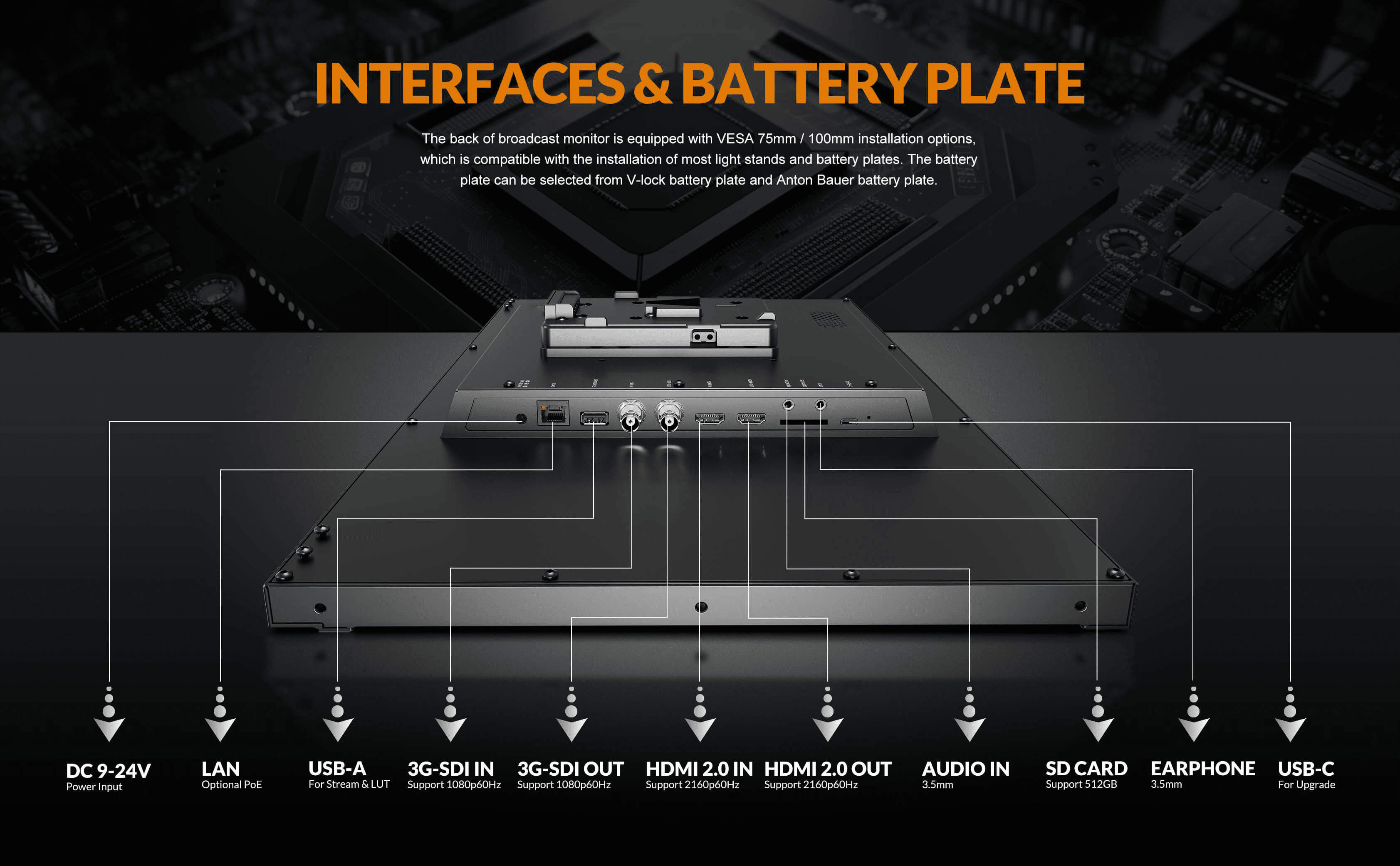

1x 3G-SDI, 1x HDMI 2.0
Video outputs
1x 3G-SDI, 1x HDMI 2.0, 1x LAN 1000M
Audio
3G-SDI 2ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker

Video Standards

3G-SDI
1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 2.0
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
IP streaming
Push/Pull: YCbCr 4:2:2 (up to 32 Mbps @ 1080p60)
Streaming formats
Push: SRT, RTMP, Pull: RTMP, RTSP, HTTP, HTTPS, NDI®|HX (optional)

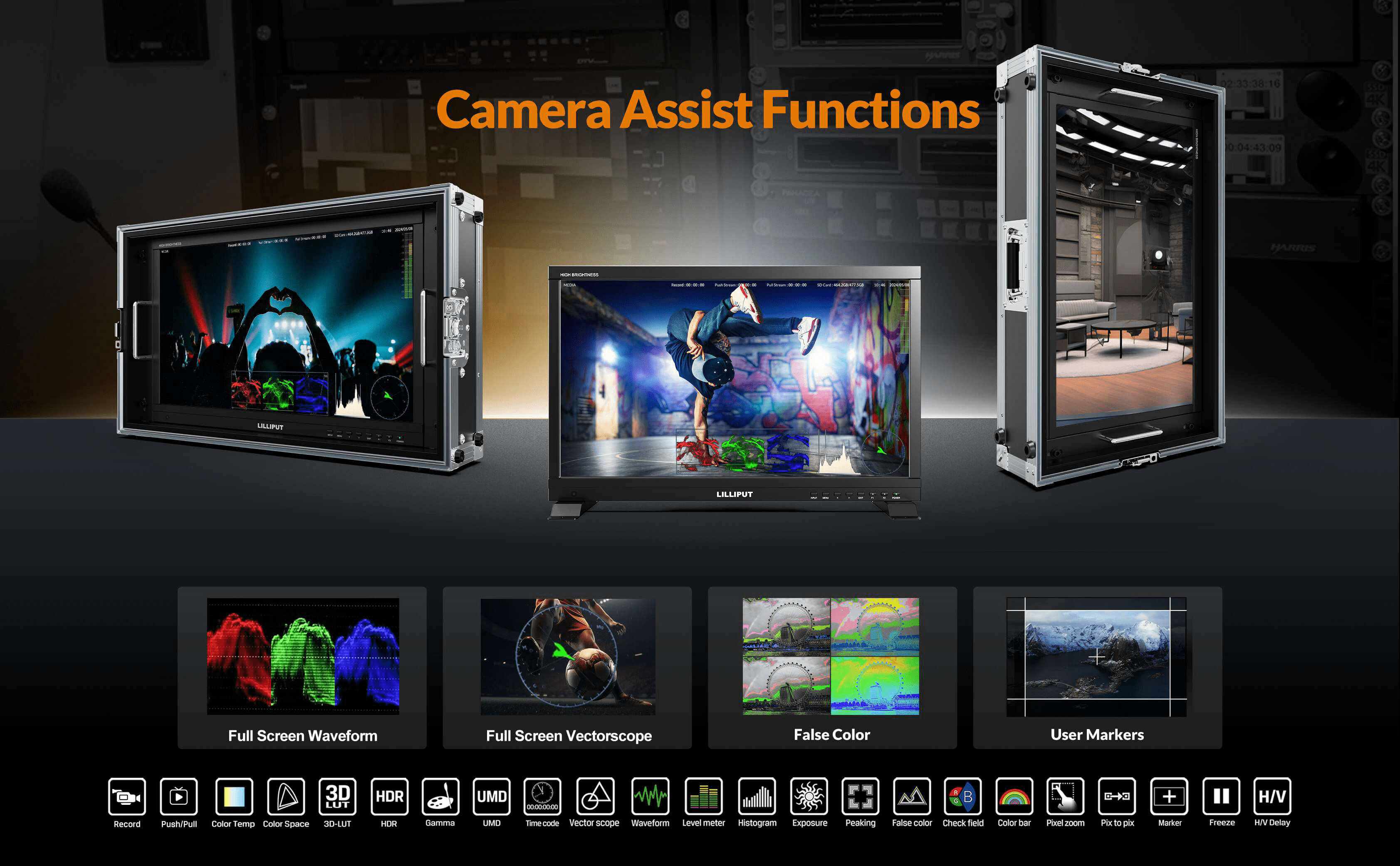

Scopes

Video analysis
Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Check field, Freeze, Colour bar
Audio analysis
Audio vector, Level meter

Operational Features

Markers
Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.3X, 1.5X, 1.8X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
Function buttons
F1, F2 user-definable
Colour temperature
5500K, 6500K, 7500K, 9300K, User
Gamma
1.8 to 2.8
Comparison
Gamma/HDR, Colour space, Camera LUT
Peaking
Red, Green, Blue, White, Black
Time code
LTC, VITC

Power

Input voltage
DC 9 to 24V
Input voltage (battery)
14.8V nominal
Power consumption
≤53 W (15V)
Compatible batteries
V-Lock or Anton Bauer mount (optional)

Environmental

Operating temperature
0°C to 50°C
Storage temperature
-20°C to 60°C

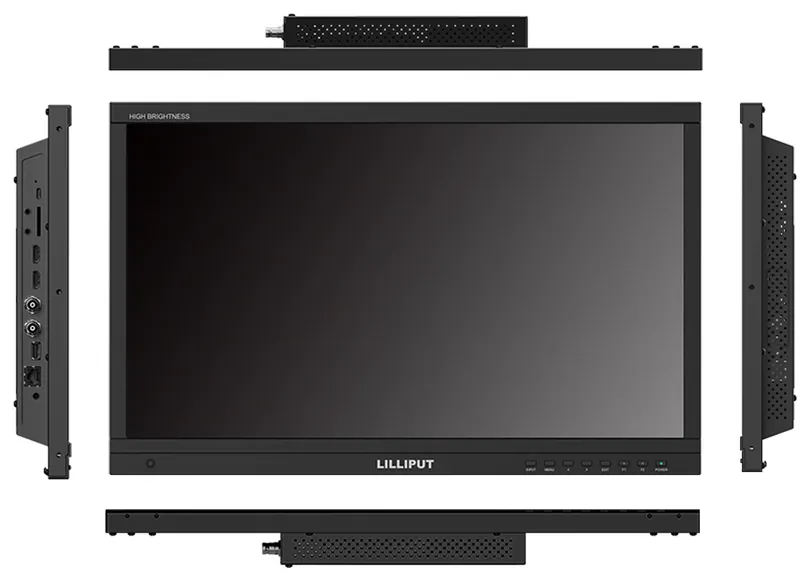

Mechanical

Dimensions
508 x 321 x 47 mm
Weight
4.75 kg

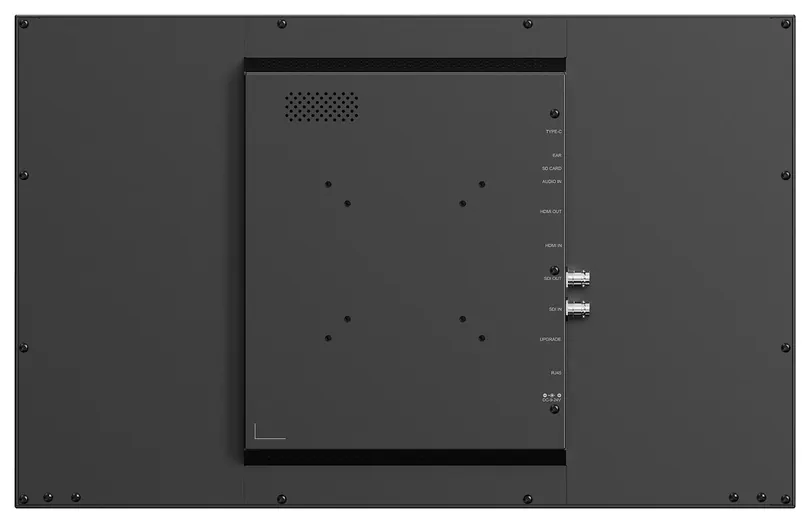

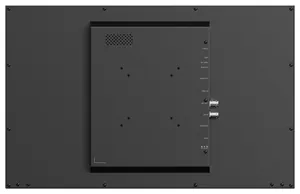

Mounting

VESA mount
75 x 75 mm, 100 x 100 mm (external bracket); 75 x 75 mm (V-mount/Anton Bauer battery)
Base brackets
Base brackets included

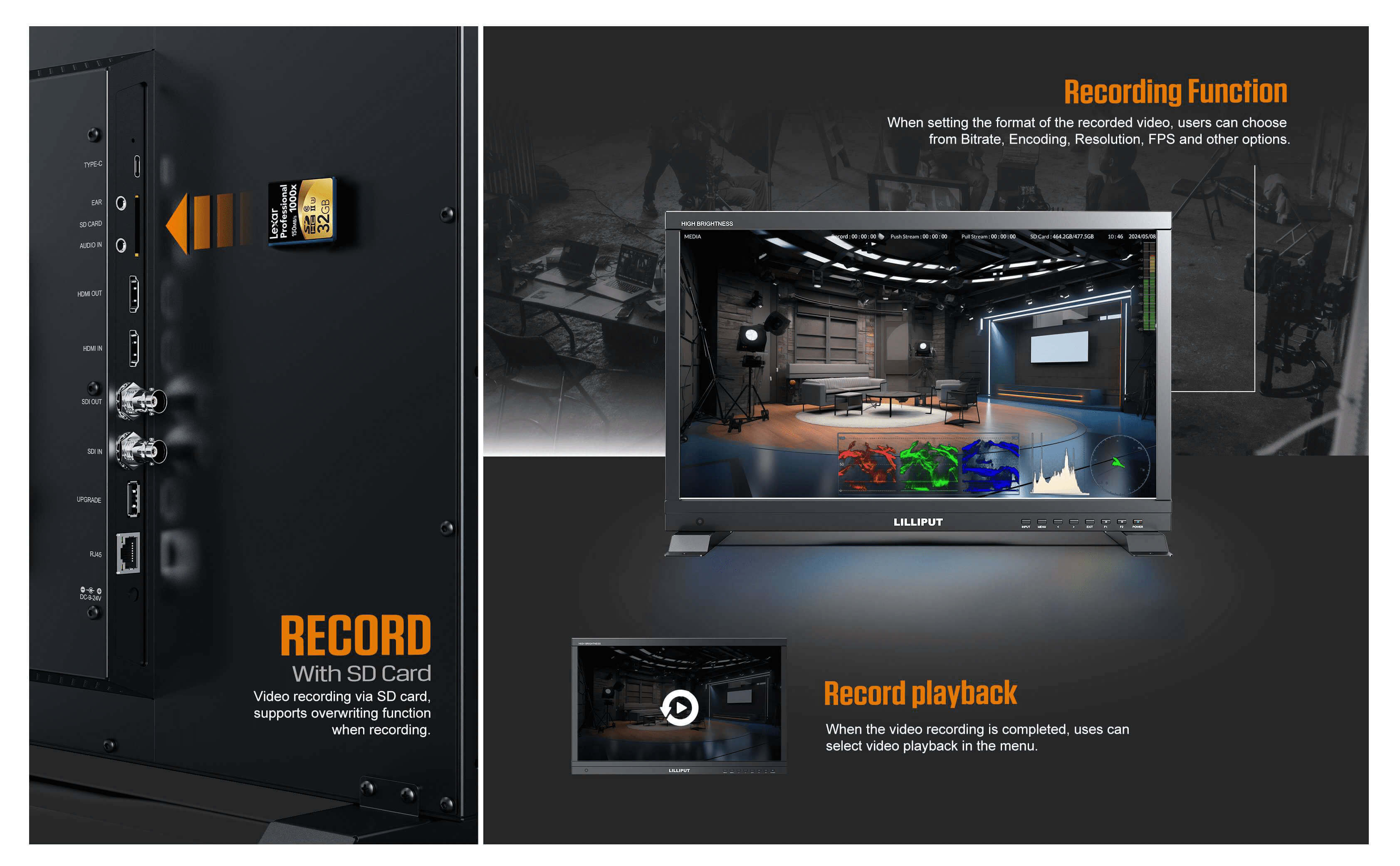

Record

Storage
SD card
File segment
1/5/10/20/30/60 min
Record file format
H.264
Video resolution
1920 x 1080, 1280 x 720, 720 x 480
Frame rates
60/50/30/25/24 fps
Audio sample rate
44.1 kHz / 48 kHz

Accessories

Included

  • 15V 4A DC Power Adapter
  • Base Bracket
  • E-User Manual

Optional

  • Battery Plate + D-Tap Cable

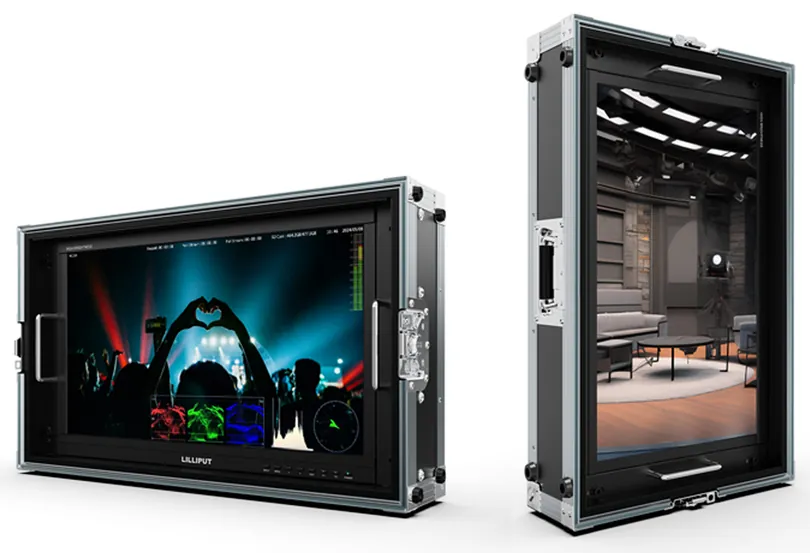

  • Carry case & Sunshade

Product Downloads

Similar Products

Compare key technical data across similar products.

Technical Data PVM220S-E PVM220S PVM220S-H Q23-8K PVM270S
Display
Screen size 21.5 inch 21.5 inch 21.5 inch 23.8 inch 27 inch
Native resolution 1920 x 1080 1920 x 1080 1920 x 1080 3840 x 2160 1920 x 1080
Aspect ratio 16:9 16:9 16:9 16:9 16:9
Brightness 1000 cd/m² 500 cd/m² 1000 cd/m² 300 cd/m² 1000 cd/m²
Colour space Calibration to Rec.709 (optional calibration unit) — Calibration to Rec.709 (optional calibration unit) Calibration to Rec.709 (optional calibration unit) Native, SMPTE-C, Rec.709, EBU (selectable)
Contrast 1000:1 1500:1 1000:1 1000:1 1000:1
HDR ST2084 300/1000/10000, HLG — ST2084 300/1000/10000, HLG HLG, ST 2084 300/1000/10000 ST2084 300/1000/10000, HLG
LUT support 3D-LUT (.cube format) — 3D-LUT (.cube format) 3D-LUT (.cube format) 3D-LUT (.cube format)
Panel type LCD LCD LCD LED LCD
Supported log formats SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined — SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
Viewing angle 178°/178° (H/V) 170°/170° (H/V) 178°/178° (H/V) 178°/178° (H/V) 178°/178° (H/V)
Mechanical
Dimensions 508 x 321 x 47 mm 508 x 321 x 47 mm 508 x 321 x 47 mm 567 x 376.4 x 45.7 mm 644 x 409.1 x 55.3 mm
Weight 4.75 kg 5.39 kg 4.7 kg 7.4 kg 8.8 kg
Connections
Video inputs 1x 3G-SDI, 1x HDMI 2.0 2x 3G-SDI, 2x HDMI, 1x USB Type-C 1x 3G-SDI, 1x HDMI 2.0 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 2x 3G-SDI, 3x HDMI 2.0
Video outputs 1x 3G-SDI, 1x HDMI 2.0, 1x LAN 1000M 2x 3G-SDI 1x 3G-SDI, 1x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.0 1x 3G-SDI (loop out), 1x 3G-SDI (PGM/LUT out), 1x HDMI 2.0 (loop / PGM / LUT out)
Audio 3G-SDI 2ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker 3G-SDI 2ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker 3G-SDI 2ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers 3G-SDI 2ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers
Program output — 1x PGM HDMI + 1x PGM 3G-SDI (simultaneous, 1080p 24/25/30/50/60) — — PGM or LUT on shared 3G-SDI PGM/LUT OUT and HDMI OUT (1080p 24/25/30/50/60)
USB — — — — LUT load and firmware update
Video Standards
12G-SDI — — — 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 —
3G-SDI 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 — 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI — 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60 — — —
HDMI 2.0 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 — 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
IP streaming Push/Pull: YCbCr 4:2:2 (up to 32 Mbps @ 1080p60) — — — —
PGM/LUT Out — — — — 1080p 24/25/30/50/60
SFP — — — 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 —
Streaming formats Push: SRT, RTMP, Pull: RTMP, RTSP, HTTP, HTTPS, NDI®|HX (optional) — — — —
USB Type-C — 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60 — — —
Power
Power consumption ≤53 W (15V) ≤33 W (15V) ≤53 W (15V) ≤60 W (15V) ≤58 W (10V)
Compatible batteries V-Lock or Anton Bauer mount (optional) — V-Lock or Anton Bauer mount (optional) V-Lock or Anton Bauer mount V-Lock or Anton Bauer mount
Input voltage DC 9 to 24V DC 12 to 24V DC 9 to 24V DC 12 to 24V DC 10 to 24V
Input voltage (battery) 14.8V nominal — 14.8V nominal 14.8V nominal 14.8V nominal
Power connector — — — — 4-pin XLR (supplied 15V DC adapter)
Environmental
Operating temperature 0°C to 50°C -20°C to 60°C 0°C to 50°C 0°C to 50°C 0°C to 50°C
Storage temperature -20°C to 60°C -30°C to 70°C -20°C to 60°C -20°C to 60°C -20°C to 60°C
Record
Storage SD card — — — —
File segment 1/5/10/20/30/60 min — — — —
Record file format H.264 — — — —
Audio sample rate 44.1 kHz / 48 kHz — — — —
Frame rates 60/50/30/25/24 fps — — — —
Video resolution 1920 x 1080, 1280 x 720, 720 x 480 — — — —
Operational Features
Colour temperature 5500K, 6500K, 7500K, 9300K, User — 5500K, 6500K, 7500K, 9300K, User 3200K, 5500K, 6500K, 7500K, 9300K, User 6500K, 7500K, 9300K, User
Comparison Gamma/HDR, Colour space, Camera LUT — Gamma/HDR, Colour space, Camera LUT Colour space, HDR, Gamma, Camera Log (side-by-side with original) —
Cross conversion — — — — HDMI 2.0 ↔ 3G-SDI (bidirectional); up to 1080p 24/25/30/50/60 on PGM/LUT HDMI OUT and SDI PGM/LUT OUT; excludes SDI loop-out
Function buttons F1, F2 user-definable F1, F2 user-definable F1, F2 user-definable F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) F1, F2, F3 user-definable
Gamma 1.8 to 2.8 — 1.8 to 2.8 1.8 to 2.8 —
Image mirroring — — — Vertical flip, Horizontal flip —
Markers Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.3X, 1.5X, 1.8X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.3X, 1.5X, 1.8X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.3X, 1.5X, 1.8X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 9:16, 1.33X, 1.5X, 1.6X, 1.7X, 1.8X, 2.0X, 2.0X MAG; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
Menu control — — — Custom Menu Knob (brightness, contrast, volume, peaking, etc.) —
Peaking Red, Green, Blue, White, Black — Red, Green, Blue, White, Black Red, Green, Blue, White, Black —
Remote control — — — GPI, LAN, RS422 In/Out LAN (RJ45), GPI (8-pin RJ45)
Tally — — — Red, Green, Yellow —
Time code LTC, VITC — LTC, VITC LTC, VITC —
UMD — User-defined text with colour coding — User-defined text (7 colours) User-defined text; per-source colour
View modes — Picture-by-Picture, Picture-in-Picture, PVW/PGM, Three-Way Split, Quad-View — Quad-View Picture-by-Picture, PVW/PGM, Three-Way Split, Quad-View
Mounting
Base brackets Base brackets included Base brackets included Base brackets included Base brackets included Base stand included
VESA mount 75 x 75 mm, 100 x 100 mm (external bracket); 75 x 75 mm (V-mount/Anton Bauer battery) 75 x 75 mm, 100 x 100 mm 75 x 75 mm, 100 x 100 mm (external bracket); 75 x 75 mm (V-mount/Anton Bauer battery) 75 x 75 mm, 100 x 100 mm (plate included) 75 x 75 mm, 100 x 100 mm (mount plate included)
Accessories
Included 15V 4A DC Power Adapter, Base Bracket, E-User Manual 15V DC Power Adapter, Base Bracket, USB Type-C Cable, User Manual 15V 4A DC Power Adapter, Base Bracket, E-User Manual 15V DC Adapter, VESA Mount Plate, Battery Plate (V-mount or Anton Bauer), Base Bracket, USB Flash Disk 15V DC power adapter (4-pin XLR), Base stand, V-mount or Anton Bauer battery plate, VESA mount plate, User manual
Optional Battery Plate + D-Tap Cable, Carry case & Sunshade Battery Plate + D-Tap Cable, Swivel Stand, Carry case & Sunshade Battery Plate + D-Tap Cable, Carry case & Sunshade Carry case & Sunshade, SFP Optical Fiber Module Carry case & Sunshade
Scopes
Audio analysis Audio vector, Level meter Level meter Audio vector, Level meter Audio vector, Level meter Level meter
Video analysis Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Check field, Freeze, Colour bar Histogram, Exposure, Peaking, False colour (ARRI, RED), Check field, Freeze Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Check field, Freeze, Colour bar Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Histogram, Peaking, False colour, Exposure, Check field, Freeze
