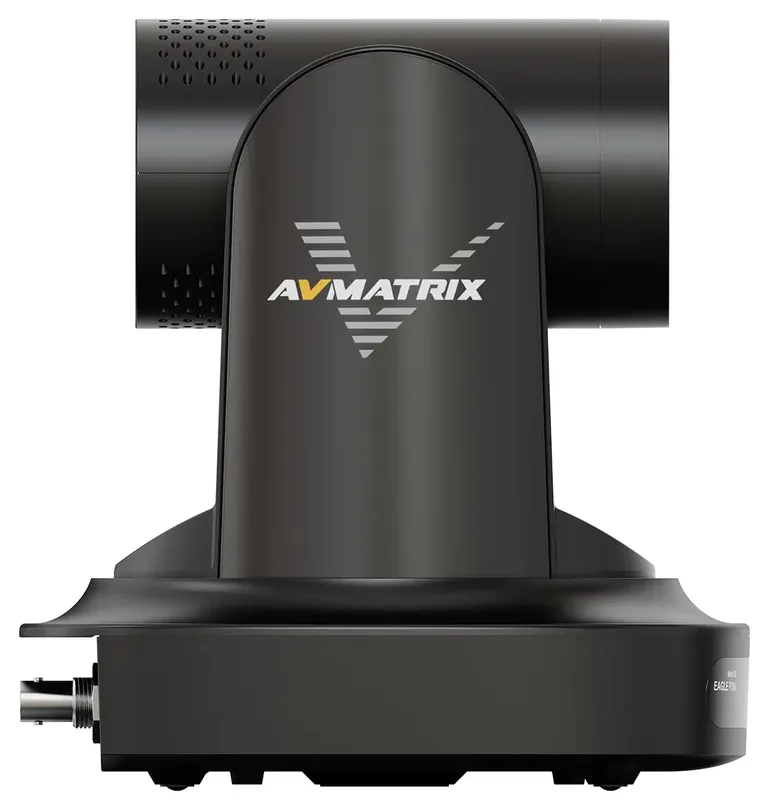

P20A, product overview P20A, view 2 P20A, view 3 P20A, view 4 P20A, view 5 P20A, view 6 P20A, view 7 P20A, view 8 P20A, view 9 P20A, view 10 P20A, view 11

Key Features

  • 1/2.8 inch HD CMOS sensor, 2.07 megapixels, 16:9
  • 20x optical zoom (f=5.1 to 94.49 mm), 16x digital zoom
  • Viewing angle: D 67.45° to 3.94°, H 60.04° to 3.45°, V 35.31° to 1.97°

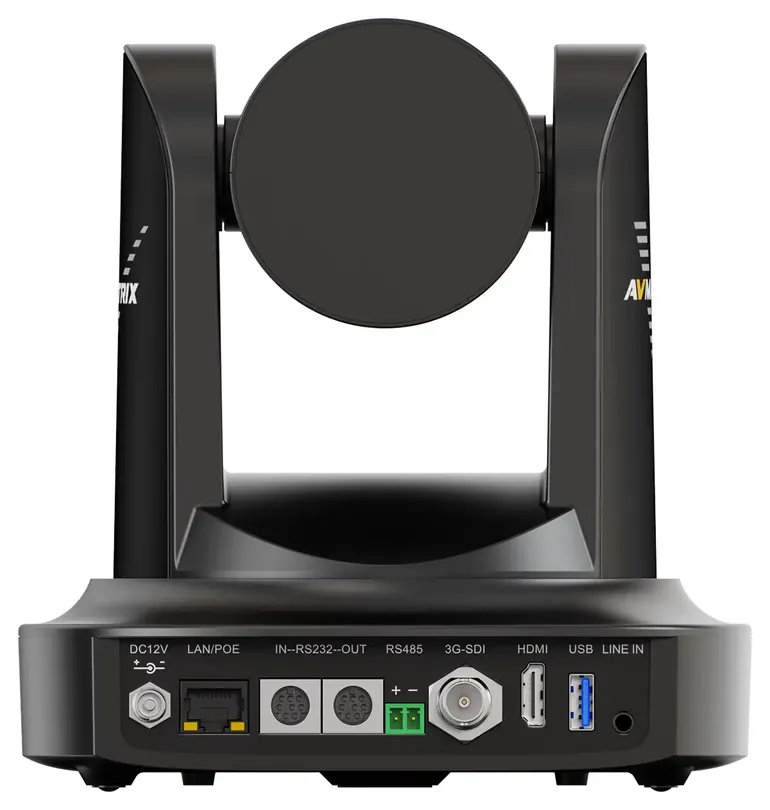

  • 1x HDMI, 1x 3G-SDI, 1x USB 3.0 (UVC), LAN (RJ45)
  • USB 3.0 UVC output for direct PC capture (webcam); compatible with OBS, vMix, Zoom, Teams
  • LAN streaming via RTSP, RTMP, ONVIF, SRT, NDI®|HX3
  • 1080p60/50/30/25, 1080i60/50, 720p60/50 on HDMI and 3G-SDI
  • 2D and 3D noise reduction; ≥50 dB SNR; 0.5 Lux (F1.8, AGC ON)

Buy the P20A From an Authorised Reseller

Lilliput's authorised broadcast resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the P20A now, or if your country is not listed, browse all authorised resellers here.

Technical Data

Note: the specifications listed are for the NDI and POE variant, which is the default unit stocked by Lilliput UK. If you do not require NDI or POE, please contact us directly.

Connections

Video outputs
1x HDMI, 1x 3G-SDI, 1x USB 3.0 (UVC), LAN (RJ45)
Audio in
3.5 mm dual-channel linear input
Audio output
HDMI, 3G-SDI, LAN, USB 3.0
Audio bitrate
96 Kbps, 128 Kbps
Audio compression
AAC, G.711A
Video compression
MJPEG, YUY2, NV12
Video bitrate
64 to 40960
Bitrate control
Fixed bitrate, Variable bitrate
Frequency
50 Hz: 1 to 50 fps; 60 Hz: 1 to 60 fps
Network
100M Ethernet; PoE+ IEEE 802.3at; audio and video output; remote upgrade, reboot, and reset
Network protocol
RTSP, RTMP, ONVIF, GB/T28181, SRT, NDI®|HX3, IP VISCA
IP protocol
VISCA over IP, ONVIF, UVC (USB only), NDI®|HX3
USB protocol
UVC, UAC
Serial protocol
VISCA, PELCO-D, PELCO-P (2400/4800/9600/38400/115200 bps)

Video Standards

HDMI
1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50
3G-SDI
1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50
LAN (main stream MJPEG)
1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps
LAN (sub-stream MJPEG)
1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 320 x 240 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps
USB capture (MJPG)
1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 320 x 240 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps
USB capture (YUY2/NV12)
1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 1024 x 576 @ 60/30/25/20/15/10/5 fps, 800 x 600 @ 60/30/25/20/15/10/5 fps, 800 x 448 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 480 x 270 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps

Operational Features

Tracking modes
Off, Real-time tracking, Stage tracking, Area tracking, Intelligent framing
Tracking distance
Up to 18 m
Remote control
1x RS232-IN, 1x RS232-OUT, 1x RS485

Power

Power interface
HEC3800 (DC 12V)
Power adapter
AC 110 to 220V input, DC 12V/1.5A output
Input voltage
DC 12V ±10%
Input current
≤1.2 A
Power consumption
≤13.8 W
PoE
PoE+ IEEE 802.3at

Environmental

Operating temperature
-10°C to +50°C
Operating humidity
20 to 80%
Storage temperature
-10°C to +70°C
Storage humidity
20 to 95%
Environment
Indoors

Mechanical

Dimensions
170 x 170 x 180 mm
Pan/Tilt range
Pan -170° to +170°, Tilt -30° to +90°
Pan speed
0.1 to 100°/s
Tilt speed
0.1 to 45°/s
Preset speed
Pan 100°/s, Tilt 45°/s
Presets
255 (10 via IR remote control)
Weight
1.26 kg

Imaging

Sensor
1/2.8 inch HD CMOS
Effective pixels
2.07 megapixels, 16:9
Optical zoom
20x (f=5.1 to 94.49 mm)
Digital zoom
16x
Viewing angle
D: 67.45° to 3.94°, H: 60.04° to 3.45°, V: 35.31° to 1.97°
Minimum illumination
0.5 Lux (F1.8, AGC ON)
Noise reduction
2D, 3D
White balance
Auto, Manual, One Touch White Balance, 2400K to 7100K (100K steps)
Focus modes
Auto, Manual, One-push
Iris
Auto, Manual
Electronic shutter
Auto, Manual
BLC
On, Off
Dynamic range
Off, Dynamic level adjustment
Video adjustment
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR
≥50 dB

Accessories

Included

  • 12V 2A Power Adapter
  • USB 3.0 A-A Cable
  • RS232 Serial Cable
  • RS485 PIN Connector
  • Remote Control
  • PoE Module

Similar Products

Compare key technical data across similar products.

Technical Data P20A P12A P30A P20-12G P30-12G T10-4K
Connections
Video outputs 1x HDMI, 1x 3G-SDI, 1x USB 3.0 (UVC), LAN (RJ45) 1x HDMI, 1x 3G-SDI, 1x USB 3.0 (UVC), LAN (RJ45) 1x HDMI, 1x 3G-SDI, 1x USB 3.0 (UVC), LAN (RJ45) 1x HDMI 2.0, 2x 12G-SDI, 1x USB 3.0, LAN (RJ45) 1x HDMI 2.0, 2x 12G-SDI, 1x USB 3.0, LAN (RJ45) HDMI, USB-C (UVC)
Audio in 3.5 mm dual-channel linear input 3.5 mm dual-channel linear input 3.5 mm dual-channel linear input Dual channel 3.5 mm line input Dual channel 3.5 mm line input 3.5 mm stereo
Audio output HDMI, 3G-SDI, LAN, USB 3.0 HDMI, 3G-SDI, LAN, USB 3.0 HDMI, 3G-SDI, LAN, USB 3.0 HDMI, 3G-SDI, LAN, USB 3.0 HDMI, 3G-SDI, LAN, USB 3.0 —
Audio bitrate 96 Kbps, 128 Kbps 96 Kbps, 128 Kbps 96 Kbps, 128 Kbps — — —
Audio compression AAC, G.711A AAC, G.711A AAC, G.711A AAC, G.711A, G.711U AAC, G.711A, G.711U —
Video compression MJPEG, YUY2, NV12 MJPEG, YUY2, NV12 MJPEG, YUY2, NV12 MJPEG MJPEG —
Video bitrate 64 to 40960 64 to 40960 64 to 40960 — — —
Bitrate control Fixed bitrate, Variable bitrate Fixed bitrate, Variable bitrate Fixed bitrate, Variable bitrate — — —
Frequency 50 Hz: 1 to 50 fps; 60 Hz: 1 to 60 fps 50 Hz: 1 to 50 fps; 60 Hz: 1 to 60 fps 50 Hz: 1 to 50 fps; 60 Hz: 1 to 60 fps — — —
Network 100M Ethernet; PoE+ IEEE 802.3at; audio and video output; remote upgrade, reboot, and reset 100M Ethernet; PoE+ IEEE 802.3at; audio and video output; remote upgrade, reboot, and reset 100M Ethernet; PoE+ IEEE 802.3at; audio and video output; remote upgrade, reboot, and reset 1000M Ethernet (10/100BASE-TX) 1000M Ethernet (10/100BASE-TX) —
Network protocol RTSP, RTMP, ONVIF, GB/T28181, SRT, NDI®|HX3, IP VISCA RTSP, RTMP, ONVIF, GB/T28181, SRT, NDI®|HX3, IP VISCA RTSP, RTMP, ONVIF, GB/T28181, SRT, NDI®|HX3, IP VISCA RTSP, RTMP, ONVIF, SRT, GB28181, VPN RTSP, RTMP, ONVIF, SRT, GB28181, VPN —
IP protocol VISCA over IP, ONVIF, UVC (USB only), NDI®|HX3 VISCA over IP, ONVIF, UVC (USB only), NDI®|HX3 VISCA over IP, ONVIF, UVC (USB only), NDI®|HX3 VISCA over IP, ONVIF, UVC (USB only), NDI®|HX3 (optional) VISCA over IP, ONVIF, UVC (USB only), NDI®|HX3 (optional) —
USB protocol UVC, UAC UVC, UAC UVC, UAC — — —
Serial protocol VISCA, PELCO-D, PELCO-P (2400/4800/9600/38400/115200 bps) VISCA, PELCO-D, PELCO-P (2400/4800/9600/38400/115200 bps) VISCA, PELCO-D, PELCO-P (2400/4800/9600/38400/115200 bps) VISCA, PELCO-D, PELCO-P (2400/4800/9600/19200/38400 bps) VISCA, PELCO-D, PELCO-P (2400/4800/9600/19200/38400 bps) VISCA
Video Standards
HDMI 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 — — 2160p30, 1080p 60/50/30/25, 720p 60/50/30/25
HDMI 2.0 — — — 2160p 60/59.94/50/30/29.97/25, 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 2160p 60/59.94/50/30/29.97/25, 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 —
3G-SDI 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 — — —
LAN (main stream MJPEG) 1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps 1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps 1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps — — —
LAN (sub-stream MJPEG) 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 320 x 240 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 320 x 240 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 320 x 240 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps — — —
USB capture (MJPG) 1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 320 x 240 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps 1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 320 x 240 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps 1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 320 x 240 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps — — 3840 x 2160 @ 30fps, 1920 x 1080 @ 60fps, 1280 x 960 @ 60fps, 1024 x 768 @ 60fps, 1280 x 720 @ 60fps, 800 x 600 @ 60fps, 720 x 576 @ 60fps, 640 x 480 @ 60fps
USB capture (YUY2/NV12) 1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 1024 x 576 @ 60/30/25/20/15/10/5 fps, 800 x 600 @ 60/30/25/20/15/10/5 fps, 800 x 448 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 480 x 270 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps 1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 1024 x 576 @ 60/30/25/20/15/10/5 fps, 800 x 600 @ 60/30/25/20/15/10/5 fps, 800 x 448 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 480 x 270 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps 1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 1024 x 576 @ 60/30/25/20/15/10/5 fps, 800 x 600 @ 60/30/25/20/15/10/5 fps, 800 x 448 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 480 x 270 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps — — —
12G-SDI — — — 2160p 60/59.94/50/30/29.97/25, 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 2160p 60/59.94/50/30/29.97/25, 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 —
USB capture (YUY2) — — — — — 1920 x 1080 @ 60fps, 1280 x 960 @ 60fps, 1024 x 768 @ 60fps, 1280 x 720 @ 60fps, 800 x 600 @ 60fps, 720 x 576 @ 60fps, 640 x 480 @ 60fps
Operational Features
Tracking modes Off, Real-time tracking, Stage tracking, Area tracking, Intelligent framing Off, Real-time tracking, Stage tracking, Area tracking, Intelligent framing Off, Real-time tracking, Stage tracking, Area tracking, Intelligent framing — — —
Tracking distance Up to 18 m Up to 18 m Up to 18 m — — —
Remote control 1x RS232-IN, 1x RS232-OUT, 1x RS485 1x RS232-IN, 1x RS232-OUT, 1x RS485 1x RS232-IN, 1x RS232-OUT, 1x RS485 1x RS232-IN, 1x RS232-OUT, 1x RS422-IN, 1x RS422-OUT, 1x RJ45 1x RS232-IN, 1x RS232-OUT, 1x RS422-IN, 1x RS422-OUT, 1x RJ45 RS485
Power
Power interface HEC3800 (DC 12V) HEC3800 (DC 12V) HEC3800 (DC 12V) DC-038 (DC 12V) DC-038 (DC 12V) —
Power adapter AC 110 to 220V input, DC 12V/1.5A output AC 110 to 220V input, DC 12V/1.5A output AC 110 to 220V input, DC 12V/1.5A output AC 100 to 240V input, DC 12V/2A output AC 100 to 240V input, DC 12V/2A output —
Input voltage DC 12V ±10% DC 12V ±10% DC 12V ±10% DC 12V DC 12V 5 V ±5% via USB-C (4.75 to 5.25 V)
Input current ≤1.2 A ≤1.2 A ≤1.2 A — — —
Power consumption ≤13.8 W ≤13.8 W ≤13.8 W 15 W (max) 15 W (max) <5 W
PoE PoE+ IEEE 802.3at PoE+ IEEE 802.3at PoE+ IEEE 802.3at PoE+ IEEE 802.3at (optional) PoE+ IEEE 802.3at (optional) —
Environmental
Operating temperature -10°C to +50°C -10°C to +50°C -10°C to +50°C -10°C to +50°C -10°C to +50°C 0°C to 40°C
Operating humidity 20 to 80% 20 to 80% 20 to 80% 20 to 80% 20 to 80% —
Storage temperature -10°C to +70°C -10°C to +70°C -10°C to +70°C -10°C to +60°C -10°C to +60°C —
Storage humidity 20 to 95% 20 to 95% 20 to 95% 20 to 95% 20 to 95% —
Environment Indoors Indoors Indoors — — Indoors
Mechanical
Dimensions 170 x 170 x 180 mm 170 x 170 x 180 mm 170 x 170 x 180 mm — — 78 x 78 x 154.5 mm
Pan/Tilt range Pan -170° to +170°, Tilt -30° to +90° Pan -170° to +170°, Tilt -30° to +90° Pan -170° to +170°, Tilt -30° to +90° Pan ±175°, Tilt -30° to +90° Pan ±175°, Tilt -30° to +90° —
Pan speed 0.1 to 100°/s 0.1 to 100°/s 0.1 to 100°/s 0.1 to 100°/s 0.1 to 100°/s —
Tilt speed 0.1 to 45°/s 0.1 to 45°/s 0.1 to 45°/s 0.1 to 80°/s 0.1 to 80°/s —
Preset speed Pan 100°/s, Tilt 45°/s Pan 100°/s, Tilt 45°/s Pan 100°/s, Tilt 45°/s — — —
Presets 255 (10 via IR remote control) 255 (10 via IR remote control) 255 (10 via IR remote control) 255 255 —
Weight 1.26 kg 1.26 kg 1.26 kg 2.97 kg (net) 2.97 kg (net) 686.7 g
Installation — — — — — Landscape & Portrait
Imaging
Sensor 1/2.8 inch HD CMOS 1/2.8 inch HD CMOS 1/2.8 inch HD CMOS 1/1.8 inch CMOS 1/1.8 inch CMOS 1/2.8 inch 8MP CMOS
Effective pixels 2.07 megapixels, 16:9 2.07 megapixels, 16:9 2.07 megapixels, 16:9 8.3 megapixels 8.3 megapixels 8.29 megapixels
Optical zoom 20x (f=5.1 to 94.49 mm) 12x (f=4.1 to 49.2 mm) 30x (f=5.2 to 148.4 mm) 20x (f=7.1 to 141.3 mm) 30x (f=7.1 to 211.95 mm) 10x (f=4.32 to 40.9 mm)
Digital zoom 16x 16x 16x 12x 12x —
Viewing angle D: 67.45° to 3.94°, H: 60.04° to 3.45°, V: 35.31° to 1.97° D: 78.36° to 7.50°, H: 70.28° to 6.57°, V: 42.06° to 3.76° D: 65.4° to 2.48°, H: 58.1° to 2.14°, V: 33.8° to 1.2° — — 75.4° (max wide)
Minimum illumination 0.5 Lux (F1.8, AGC ON) 0.5 Lux (F1.8, AGC ON) 0.5 Lux (F1.8, AGC ON) 0.05 Lux (F1.61) 0.05 Lux (F1.61) —
Noise reduction 2D, 3D 2D, 3D 2D, 3D 2D and 3D 2D and 3D 2D NR and 3D NR
White balance Auto, Manual, One Touch White Balance, 2400K to 7100K (100K steps) Auto, Manual, One Touch White Balance, 2400K to 7100K (100K steps) Auto, Manual, One Touch White Balance, 2400K to 7100K (100K steps) Manual, Auto, Indoor, Outdoor, One Push, 3000K, 4000K, 5000K, 6500K, ATW Manual, Auto, Indoor, Outdoor, One Push, 3000K, 4000K, 5000K, 6500K, ATW AWB, AWB Lock, Custom, VAR
Focus modes Auto, Manual, One-push Auto, Manual, One-push Auto, Manual, One-push Manual, Auto, Z-Trigger Manual, Auto, Z-Trigger AF, AF Lock, Manual
Iris Auto, Manual Auto, Manual Auto, Manual F1.61 to F5.19 F1.61 to F5.19 —
Electronic shutter Auto, Manual Auto, Manual Auto, Manual — — —
BLC On, Off On, Off On, Off — — —
Dynamic range Off, Dynamic level adjustment Off, Dynamic level adjustment Off, Dynamic level adjustment — — —
Video adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve — — Sharpness, Contrast, Saturation, Brightness, Hue, Colour Temp, Gamma
SNR ≥50 dB ≥50 dB ≥50 dB — — —
HFOV — — — 3.6°(T) to 59.2°(W) 2.5°(T) to 59.2°(W) —
Aperture — — — — — F1.76 to F3.0
Minimum focus distance — — — — — Wide: 30 cm, Tele: 150 cm
Focus technology — — — — — ToF (Time of Flight)
Exposure modes — — — — — AE, AE Lock, Custom
Preset image styles — — — — — Meeting, Beauty, Jewel, Fashion, Custom
Anti-flicker — — — — — 50 Hz / 60 Hz
Backlight compensation — — — — — Yes
Image flip — — — — — H Flip, V Flip, H&V Flip
