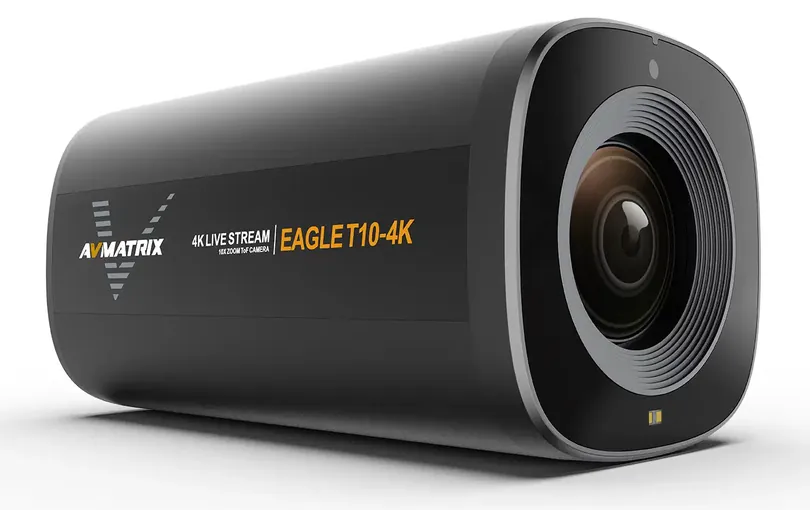

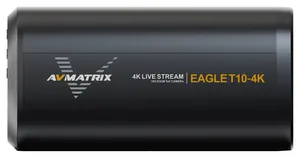

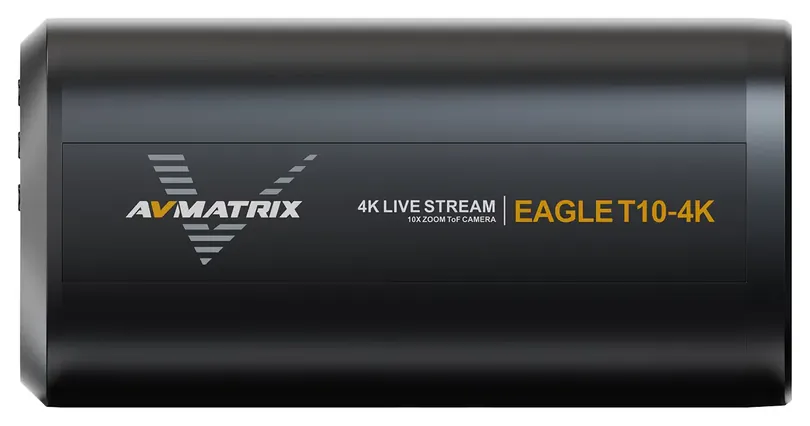

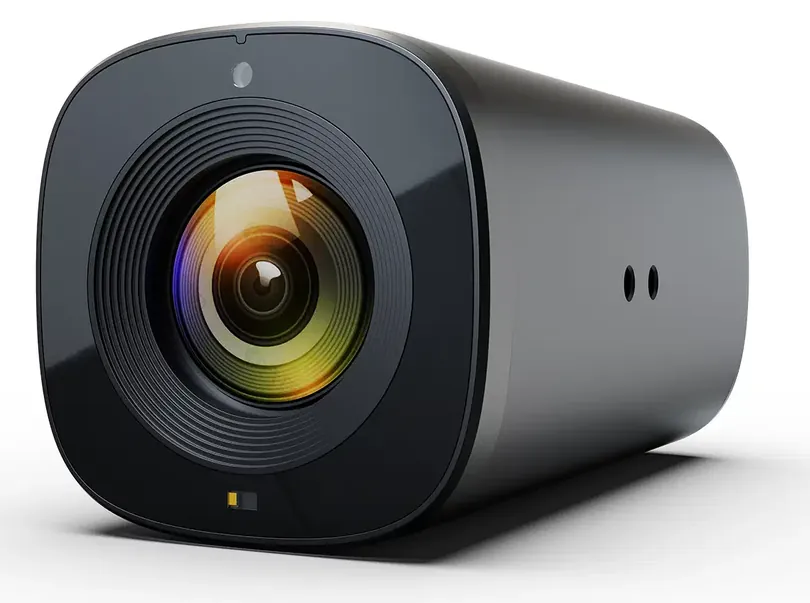

4K live streaming block camera with 10x optical zoom and ToF autofocus. 1/2.8" 8MP CMOS sensor. HDMI (2160p30) and USB-C UVC dual outputs. RS485 VISCA control with IR remote. Aluminium alloy body rated for 24/7 operation.
4K live streaming block camera with 10x optical zoom and ToF autofocus. 1/2.8" 8MP CMOS sensor. HDMI (2160p30) and USB-C UVC dual outputs. RS485 VISCA control with IR remote. Aluminium alloy body rated for 24/7 operation.
Discover T10-4K
Key Features
- 1/2.8" 8MP CMOS sensor, 10x optical zoom (f=4.32 to 40.9 mm), 75.4° max field of view
- ToF (Time of Flight) autofocus — fast, accurate focus even on moving subjects
- 4K HDMI output up to 2160p30; USB-C UVC for direct PC capture
- RS485 VISCA serial control; IR remote control and on-camera menu buttons
- Preset image styles: Meeting, Beauty, Jewel, Fashion, Custom
- Landscape and portrait installation; H Flip, V Flip, H&V Flip
- Compatible with Windows, Mac, and Android; works with OBS, vMix, Zoom, Teams
Buy the T10-4K From an Authorised Reseller
Lilliput's authorised broadcast resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the T10-4K now, or if your country is not listed, browse all authorised resellers here.
- 3D Broadcast Ltd Opens in a new tab.
- E-MOTION CREATIONS di Pierfrancesco Armati Opens in a new tab.
- RCB Logic Limited Opens in a new tab.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data

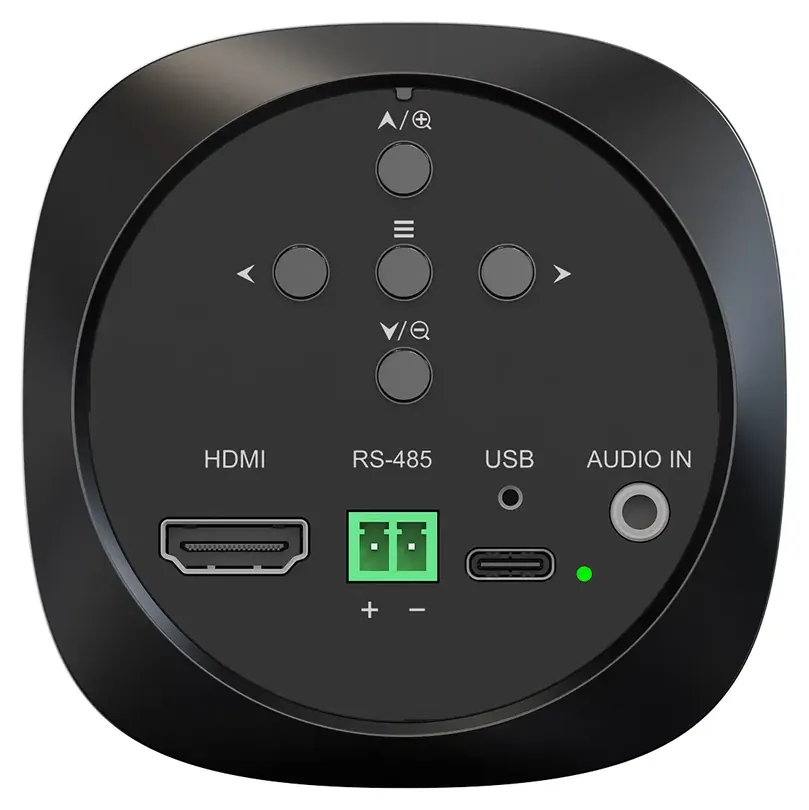

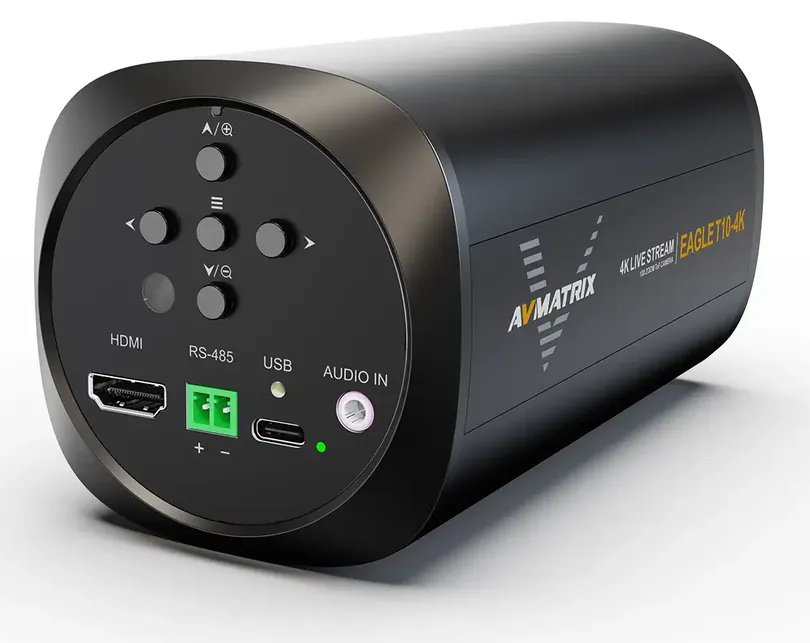

Connections
- Video outputs
- HDMI, USB-C (UVC)
- Audio in
- 3.5 mm stereo
- Serial protocol
- VISCA
Video Standards
- HDMI
- 2160p30, 1080p 60/50/30/25, 720p 60/50/30/25
- USB capture (MJPG)
- 3840 x 2160 @ 30fps, 1920 x 1080 @ 60fps, 1280 x 960 @ 60fps, 1024 x 768 @ 60fps, 1280 x 720 @ 60fps, 800 x 600 @ 60fps, 720 x 576 @ 60fps, 640 x 480 @ 60fps
- USB capture (YUY2)
- 1920 x 1080 @ 60fps, 1280 x 960 @ 60fps, 1024 x 768 @ 60fps, 1280 x 720 @ 60fps, 800 x 600 @ 60fps, 720 x 576 @ 60fps, 640 x 480 @ 60fps
Operational Features
- Remote control
- RS485
Power
- Input voltage
- 5 V ±5% via USB-C (4.75 to 5.25 V)
- Power consumption
- <5 W
Environmental
- Operating temperature
- 0°C to 40°C
- Environment
- Indoors
Mechanical
- Dimensions
- 78 x 78 x 154.5 mm
- Weight
- 686.7 g
- Installation
- Landscape & Portrait
Imaging
- Sensor
- 1/2.8 inch 8MP CMOS
- Effective pixels
- 8.29 megapixels
- Optical zoom
- 10x (f=4.32 to 40.9 mm)
- Aperture
- F1.76 to F3.0
- Viewing angle
- 75.4° (max wide)
- Minimum focus distance
- Wide: 30 cm, Tele: 150 cm
- Focus technology
- ToF (Time of Flight)
- Focus modes
- AF, AF Lock, Manual
- White balance
- AWB, AWB Lock, Custom, VAR
- Exposure modes
- AE, AE Lock, Custom
- Preset image styles
- Meeting, Beauty, Jewel, Fashion, Custom
- Noise reduction
- 2D NR and 3D NR
- Anti-flicker
- 50 Hz / 60 Hz
- Backlight compensation
- Yes
- Image flip
- H Flip, V Flip, H&V Flip
- Video adjustment
- Sharpness, Contrast, Saturation, Brightness, Hue, Colour Temp, Gamma
Accessories
Included
- IR Remote Control
- Lens Cap
- USB3.0 A-C Cable (Locker)
- HDMI Cable
- 5V 2A Power Adapter
Product Downloads
Similar Products
Compare key technical data across similar AV Matrix products.
| Technical Data | T10-4K | P20A | P20-12G |
|---|---|---|---|
| Connections | |||
| Video outputs | HDMI, USB-C (UVC) | 1x HDMI, 1x 3G-SDI, 1x USB 3.0 (UVC), LAN (RJ45) | 1x HDMI 2.0, 2x 12G-SDI, 1x USB 3.0, LAN (RJ45) |
| Audio in | 3.5 mm stereo | 3.5 mm dual-channel linear input | Dual channel 3.5 mm line input |
| Serial protocol | VISCA | VISCA, PELCO-D, PELCO-P (2400/4800/9600/38400/115200 bps) | VISCA, PELCO-D, PELCO-P (2400/4800/9600/19200/38400 bps) |
| Audio output | — | HDMI, 3G-SDI, LAN, USB 3.0 | HDMI, 3G-SDI, LAN, USB 3.0 |
| Audio bitrate | — | 96 Kbps, 128 Kbps | — |
| Audio compression | — | AAC, G.711A | AAC, G.711A, G.711U |
| Video compression | — | MJPEG, YUY2, NV12 | MJPEG |
| Video bitrate | — | 64 to 40960 | — |
| Bitrate control | — | Fixed bitrate, Variable bitrate | — |
| Frequency | — | 50 Hz: 1 to 50 fps; 60 Hz: 1 to 60 fps | — |
| Network | — | 100M Ethernet; PoE+ IEEE 802.3at; audio and video output; remote upgrade, reboot, and reset | 1000M Ethernet (10/100BASE-TX) |
| Network protocol | — | RTSP, RTMP, ONVIF, GB/T28181, SRT, NDI®|HX3, IP VISCA | RTSP, RTMP, ONVIF, SRT, GB28181, VPN |
| IP protocol | — | VISCA over IP, ONVIF, UVC (USB only), NDI®|HX3 | VISCA over IP, ONVIF, UVC (USB only), NDI®|HX3 (optional) |
| USB protocol | — | UVC, UAC | — |
| Video Standards | |||
| HDMI | 2160p30, 1080p 60/50/30/25, 720p 60/50/30/25 | 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 | — |
| HDMI 2.0 | — | — | 2160p 60/59.94/50/30/29.97/25, 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 |
| USB capture (MJPG) | 3840 x 2160 @ 30fps, 1920 x 1080 @ 60fps, 1280 x 960 @ 60fps, 1024 x 768 @ 60fps, 1280 x 720 @ 60fps, 800 x 600 @ 60fps, 720 x 576 @ 60fps, 640 x 480 @ 60fps | 1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 320 x 240 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps | — |
| USB capture (YUY2) | 1920 x 1080 @ 60fps, 1280 x 960 @ 60fps, 1024 x 768 @ 60fps, 1280 x 720 @ 60fps, 800 x 600 @ 60fps, 720 x 576 @ 60fps, 640 x 480 @ 60fps | — | — |
| 3G-SDI | — | 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 | — |
| LAN (main stream MJPEG) | — | 1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps | — |
| LAN (sub-stream MJPEG) | — | 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 320 x 240 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps | — |
| USB capture (YUY2/NV12) | — | 1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 1024 x 576 @ 60/30/25/20/15/10/5 fps, 800 x 600 @ 60/30/25/20/15/10/5 fps, 800 x 448 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 480 x 270 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps | — |
| 12G-SDI | — | — | 2160p 60/59.94/50/30/29.97/25, 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 |
| Operational Features | |||
| Remote control | RS485 | 1x RS232-IN, 1x RS232-OUT, 1x RS485 | 1x RS232-IN, 1x RS232-OUT, 1x RS422-IN, 1x RS422-OUT, 1x RJ45 |
| Tracking modes | — | Off, Real-time tracking, Stage tracking, Area tracking, Intelligent framing | — |
| Tracking distance | — | Up to 18 m | — |
| Power | |||
| Input voltage | 5 V ±5% via USB-C (4.75 to 5.25 V) | DC 12V ±10% | DC 12V |
| Power consumption | <5 W | ≤13.8 W | 15 W (max) |
| Power interface | — | HEC3800 (DC 12V) | DC-038 (DC 12V) |
| Power adapter | — | AC 110 to 220V input, DC 12V/1.5A output | AC 100 to 240V input, DC 12V/2A output |
| Input current | — | ≤1.2 A | — |
| PoE | — | PoE+ IEEE 802.3at | PoE+ IEEE 802.3at (optional) |
| Environmental | |||
| Operating temperature | 0°C to 40°C | -10°C to +50°C | -10°C to +50°C |
| Environment | Indoors | Indoors | — |
| Operating humidity | — | 20 to 80% | 20 to 80% |
| Storage temperature | — | -10°C to +70°C | -10°C to +60°C |
| Storage humidity | — | 20 to 95% | 20 to 95% |
| Mechanical | |||
| Dimensions | 78 x 78 x 154.5 mm | 170 x 170 x 180 mm | — |
| Weight | 686.7 g | 1.26 kg | 2.97 kg (net) |
| Installation | Landscape & Portrait | — | — |
| Pan/Tilt range | — | Pan -170° to +170°, Tilt -30° to +90° | Pan ±175°, Tilt -30° to +90° |
| Pan speed | — | 0.1 to 100°/s | 0.1 to 100°/s |
| Tilt speed | — | 0.1 to 45°/s | 0.1 to 80°/s |
| Preset speed | — | Pan 100°/s, Tilt 45°/s | — |
| Presets | — | 255 (10 via IR remote control) | 255 |
| Imaging | |||
| Sensor | 1/2.8 inch 8MP CMOS | 1/2.8 inch HD CMOS | 1/1.8 inch CMOS |
| Effective pixels | 8.29 megapixels | 2.07 megapixels, 16:9 | 8.3 megapixels |
| Optical zoom | 10x (f=4.32 to 40.9 mm) | 20x (f=5.1 to 94.49 mm) | 20x (f=7.1 to 141.3 mm) |
| Aperture | F1.76 to F3.0 | — | — |
| Viewing angle | 75.4° (max wide) | D: 67.45° to 3.94°, H: 60.04° to 3.45°, V: 35.31° to 1.97° | — |
| Minimum focus distance | Wide: 30 cm, Tele: 150 cm | — | — |
| Focus technology | ToF (Time of Flight) | — | — |
| Focus modes | AF, AF Lock, Manual | Auto, Manual, One-push | Manual, Auto, Z-Trigger |
| White balance | AWB, AWB Lock, Custom, VAR | Auto, Manual, One Touch White Balance, 2400K to 7100K (100K steps) | Manual, Auto, Indoor, Outdoor, One Push, 3000K, 4000K, 5000K, 6500K, ATW |
| Exposure modes | AE, AE Lock, Custom | — | — |
| Preset image styles | Meeting, Beauty, Jewel, Fashion, Custom | — | — |
| Noise reduction | 2D NR and 3D NR | 2D, 3D | 2D and 3D |
| Anti-flicker | 50 Hz / 60 Hz | — | — |
| Backlight compensation | Yes | — | — |
| Image flip | H Flip, V Flip, H&V Flip | — | — |
| Video adjustment | Sharpness, Contrast, Saturation, Brightness, Hue, Colour Temp, Gamma | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | — |
| Digital zoom | — | 16x | 12x |
| Minimum illumination | — | 0.5 Lux (F1.8, AGC ON) | 0.05 Lux (F1.61) |
| Iris | — | Auto, Manual | F1.61 to F5.19 |
| Electronic shutter | — | Auto, Manual | — |
| BLC | — | On, Off | — |
| Dynamic range | — | Off, Dynamic level adjustment | — |
| SNR | — | ≥50 dB | — |
| HFOV | — | — | 3.6°(T) to 59.2°(W) |
