HDMI 2.0 to NDI®|HX bi-directional encoder. Encode HDMI sources to NDI®|HX or decode NDI® to HDMI for on-set monitoring without a PC. 1x HDMI input, 1x HDMI loop out, 1x HDMI output, 1x NDI®|HX/PoE+ RJ45, 3.5 mm line in and out. NDI®|HX, NDI®|HX2, and NDI®|HX3 to 2160p 30; up to 50 Mbps. 2160p 60 HDMI input with 2160p 60 HDR passthrough on loop out. USB UVC capture and LAN streaming. Flexible audio mixing, PTZ control, tally. Record to SD card, USB disk, or NAS. DC 6 to 20V (12V adapter included) or PoE+, DC passthrough output and USB 5 V. 104 x 125.5 x 24.5 mm, 501 g.
HDMI 2.0 to NDI®|HX bi-directional encoder. Encode HDMI sources to NDI®|HX or decode NDI® to HDMI for on-set monitoring without a PC. 1x HDMI input, 1x HDMI loop out, 1x HDMI output, 1x NDI®|HX/PoE+ RJ45, 3.5 mm line in and out. NDI®|HX, NDI®|HX2, and NDI®|HX3 to 2160p 30; up to 50 Mbps. 2160p 60 HDMI input with 2160p 60 HDR passthrough on loop out. USB UVC capture and LAN streaming. Flexible audio mixing, PTZ control, tally. Record to SD card, USB disk, or NAS. DC 6 to 20V (12V adapter included) or PoE+, DC passthrough output and USB 5 V. 104 x 125.5 x 24.5 mm, 501 g.
Key Features

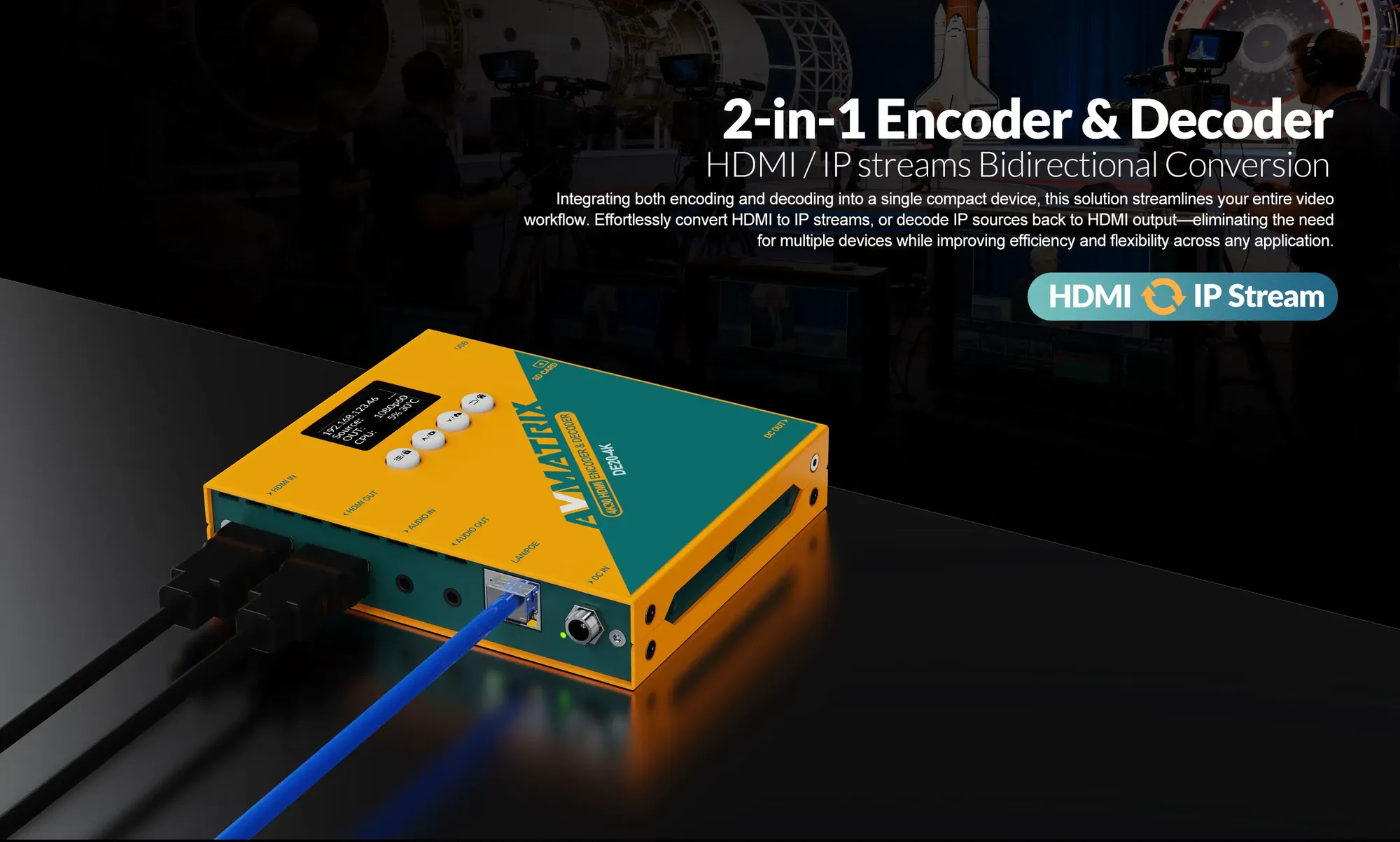

- HDMI 2.0 to NDI®|HX bi-directional encoder

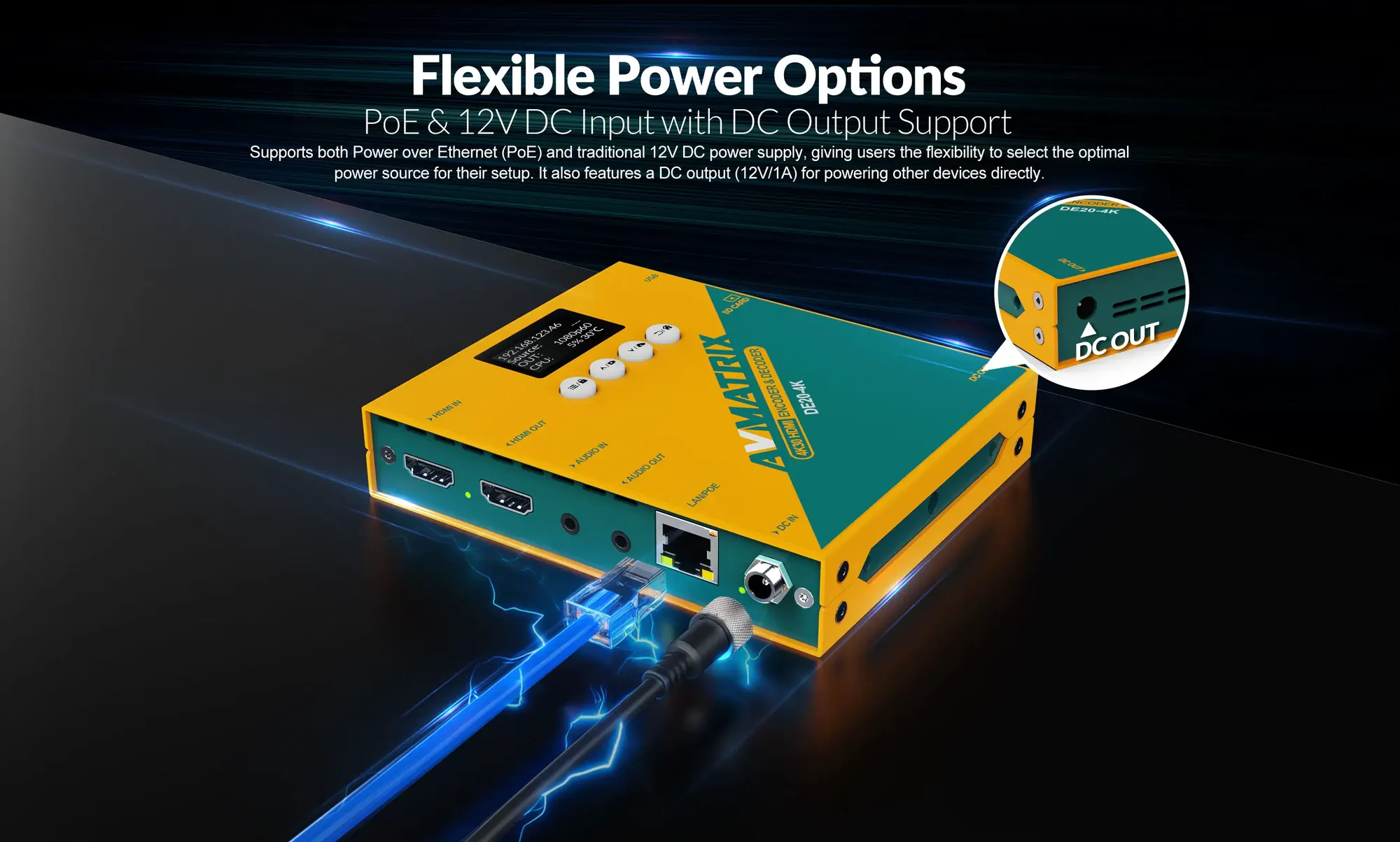

- NDI®|HX, NDI®|HX2, and NDI®|HX3 up to 2160p 30 at up to 50 Mbps over PoE+ Ethernet

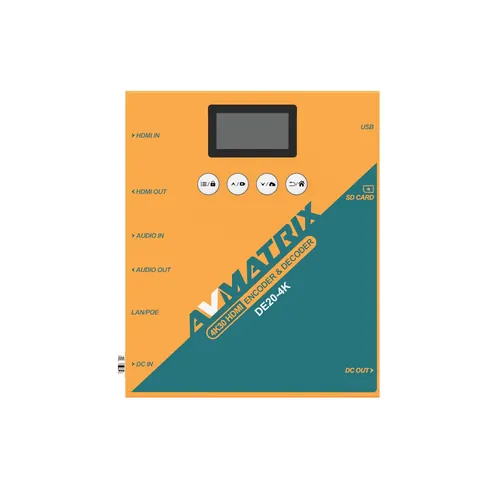

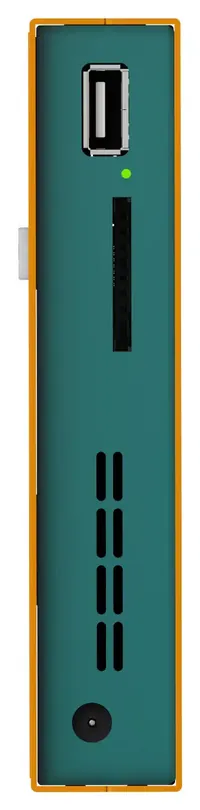

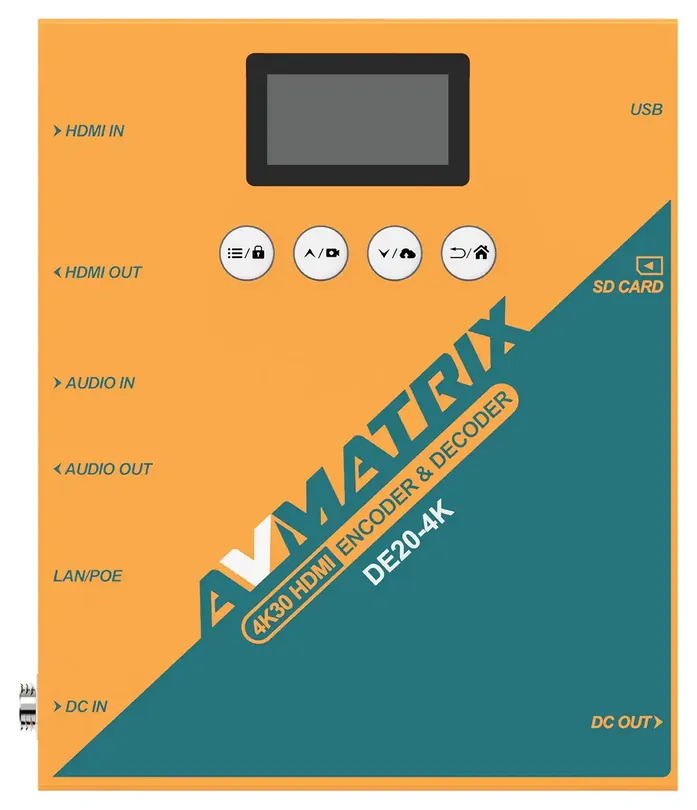

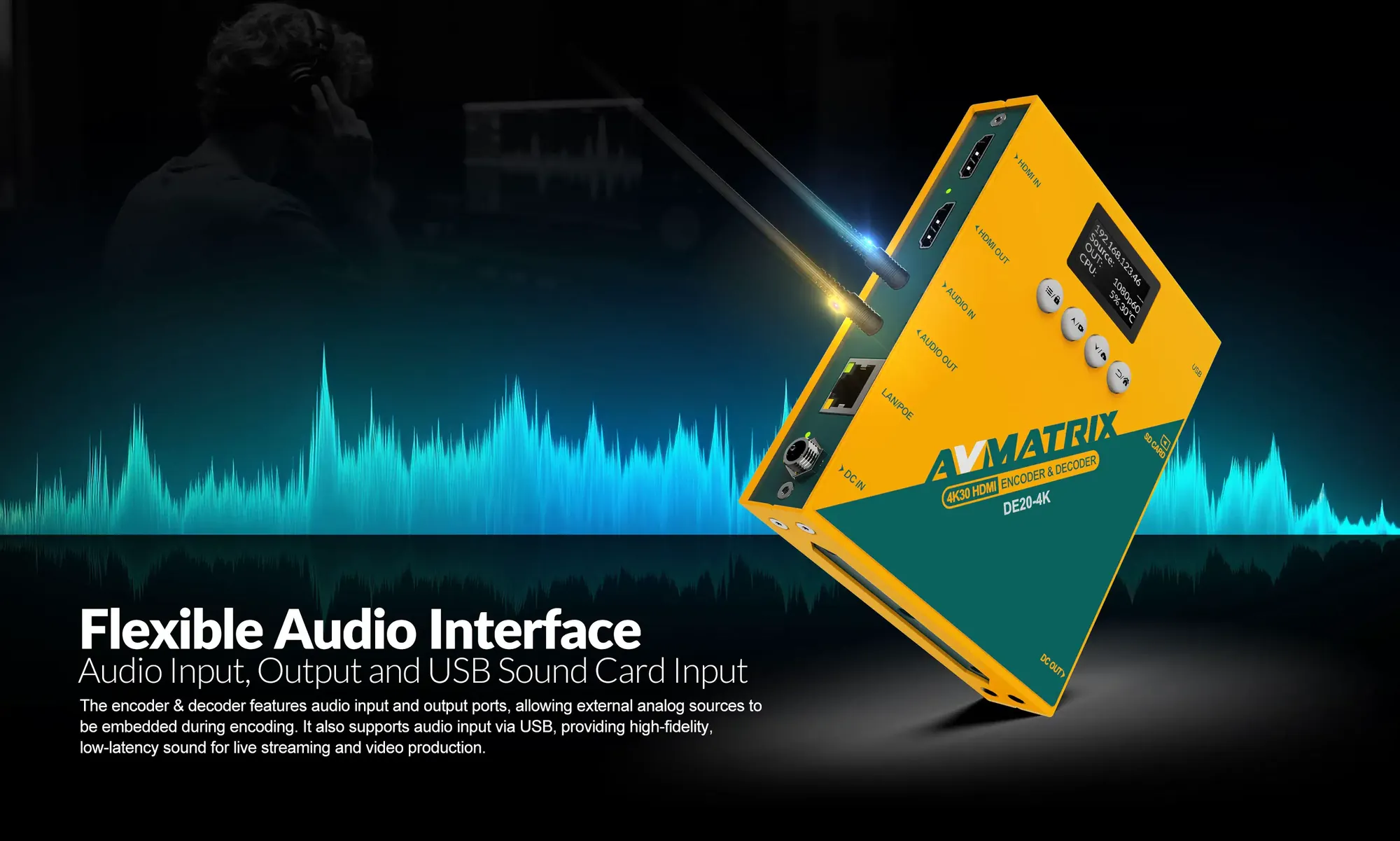

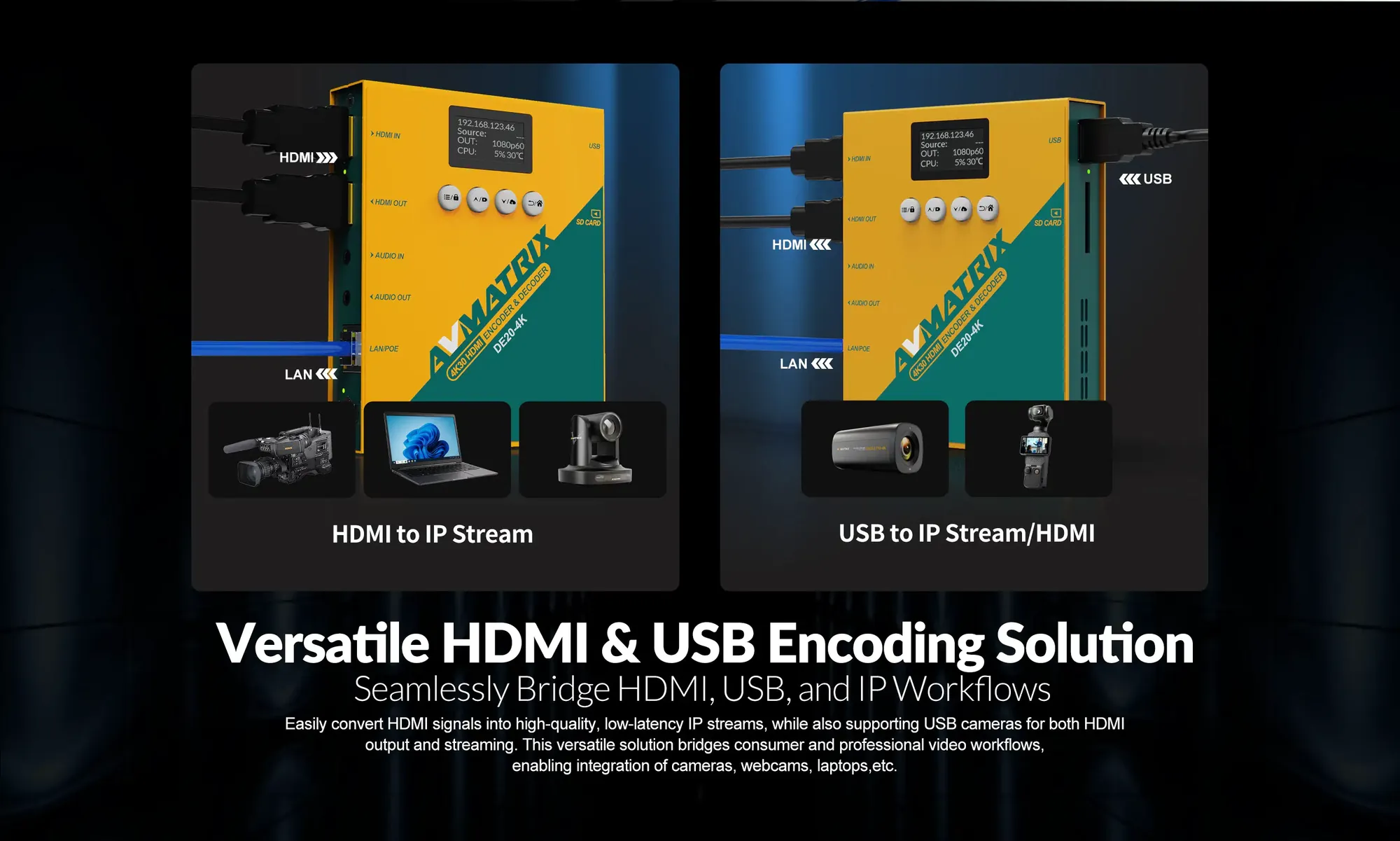

- 1x HDMI input, 1x HDMI loop out, 1x HDMI output; 1x NDI®|HX/PoE+ RJ45; 1x 3.5 mm line in and out; flexible audio mixing

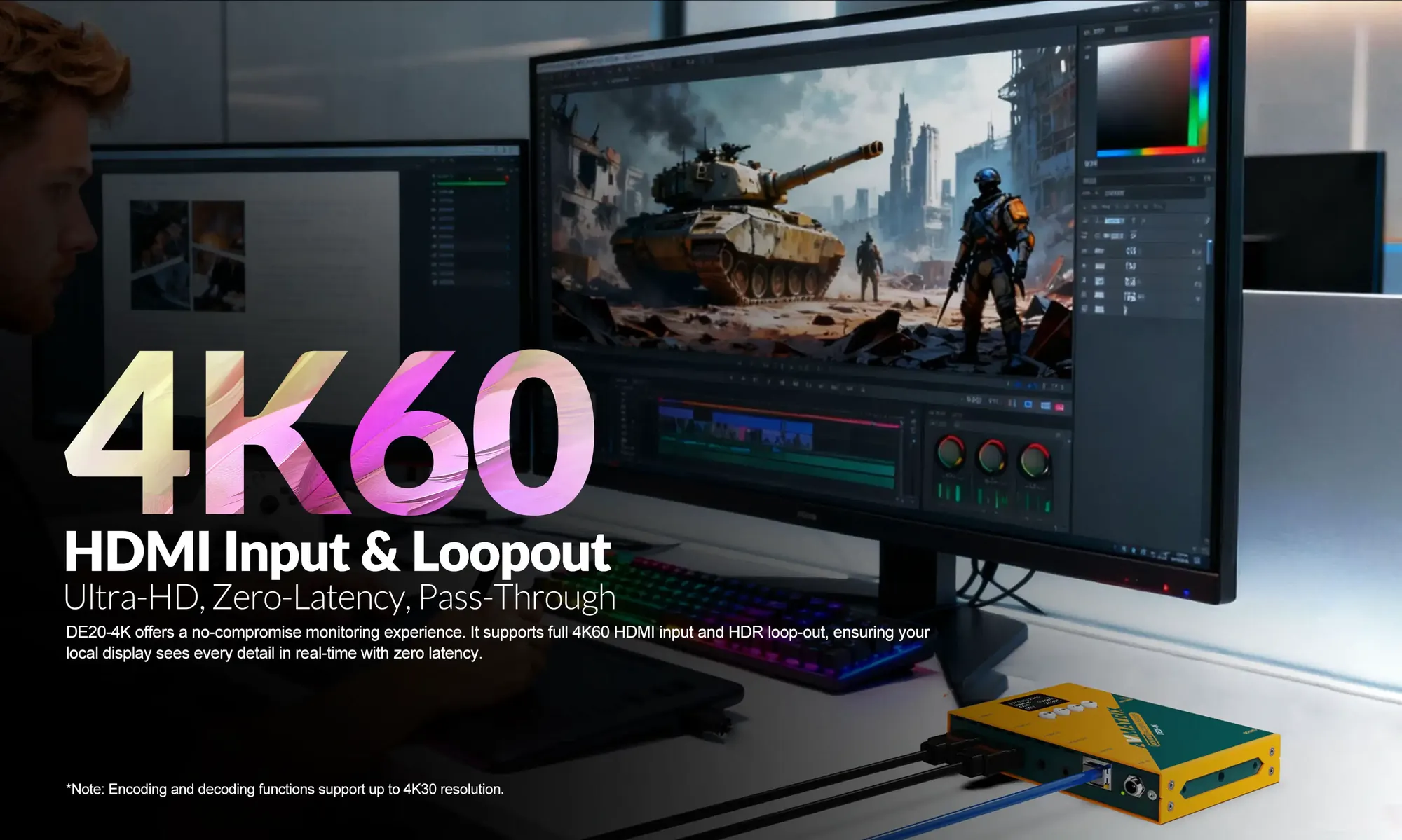

- 2160p 60 HDMI input; 2160p 60 HDR passthrough on HDMI loop out; 2160p 30/25/24 on HDMI decode output

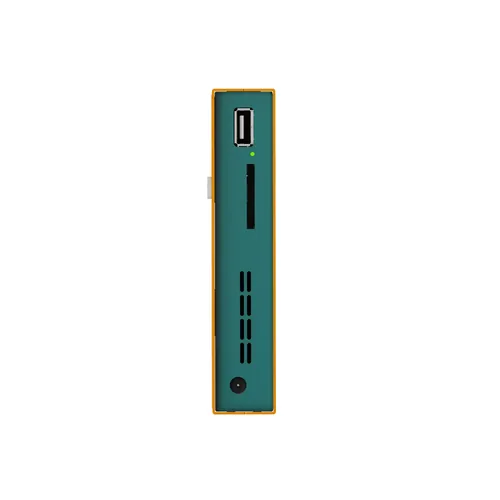

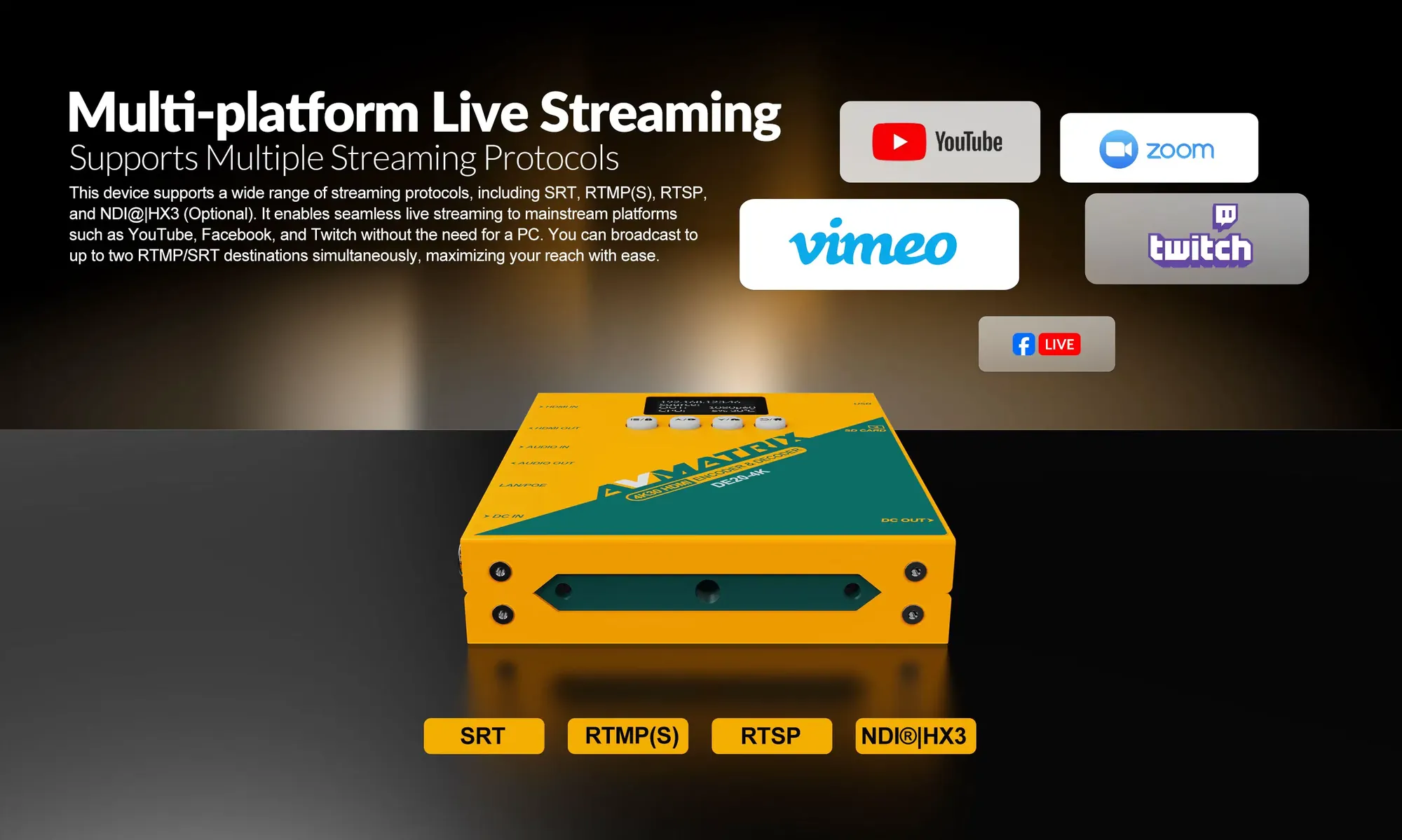

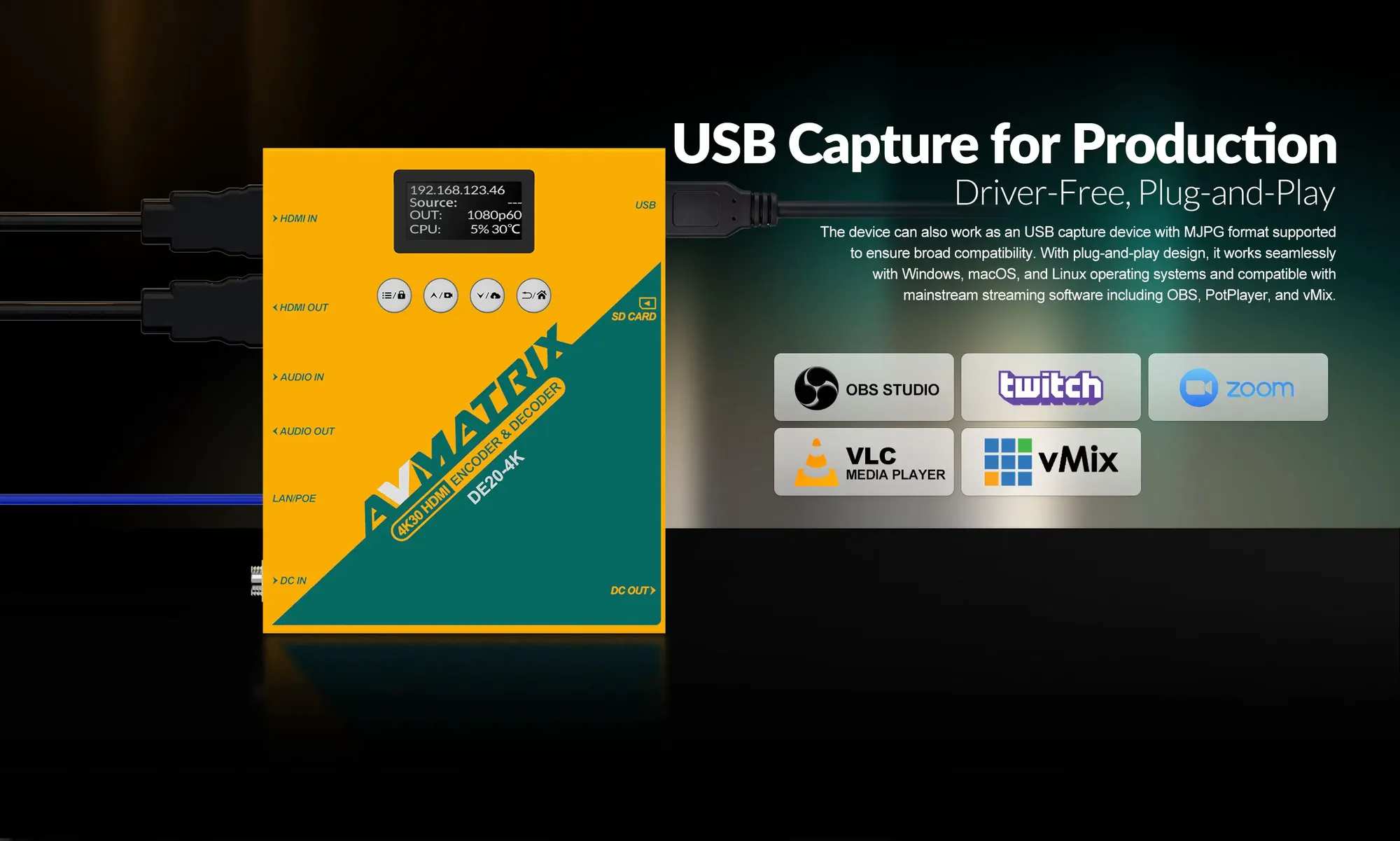

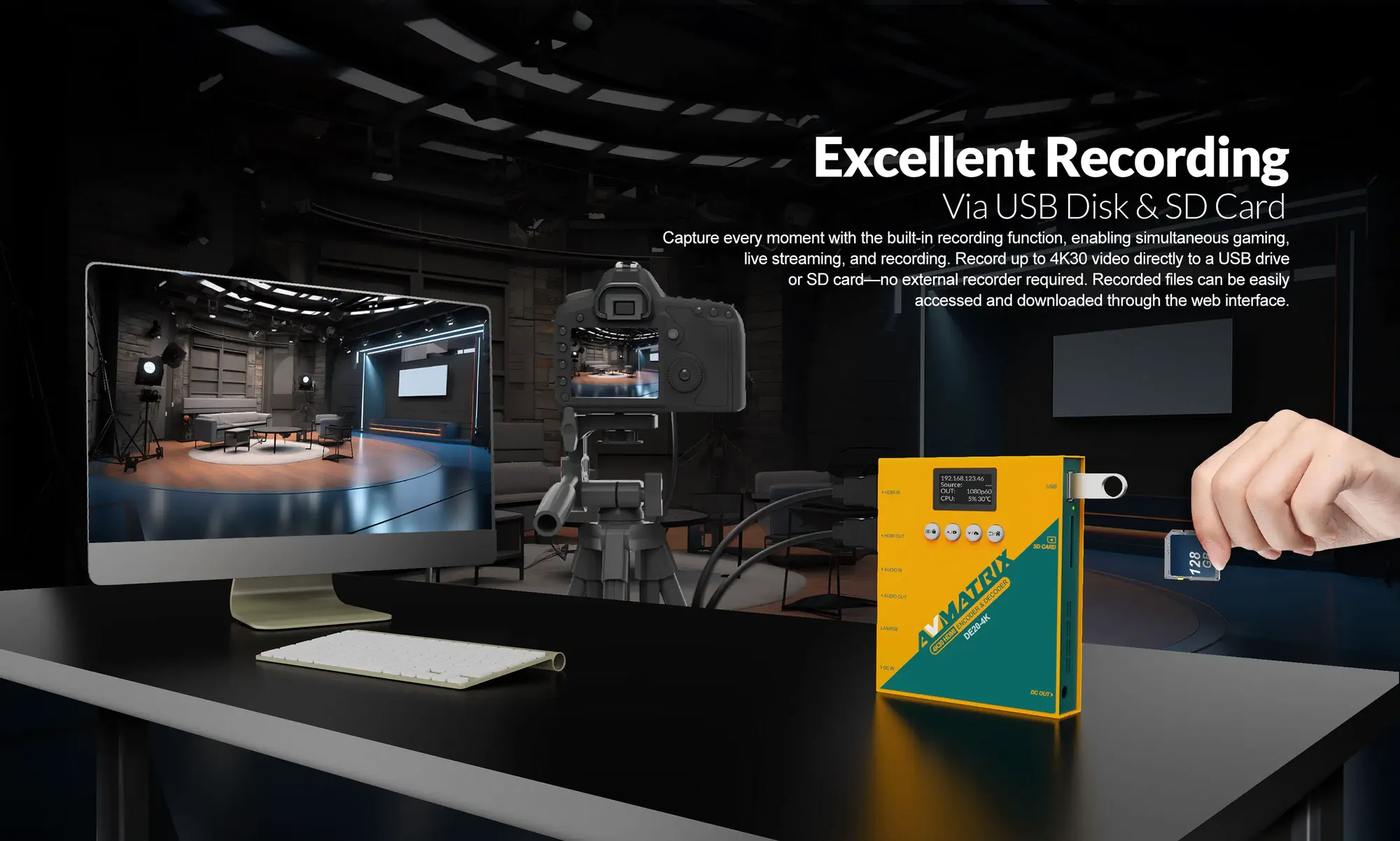

- USB UVC device capture; LAN streaming over RJ45; record to SD card, USB disk, or NAS (FAT32/exFAT)

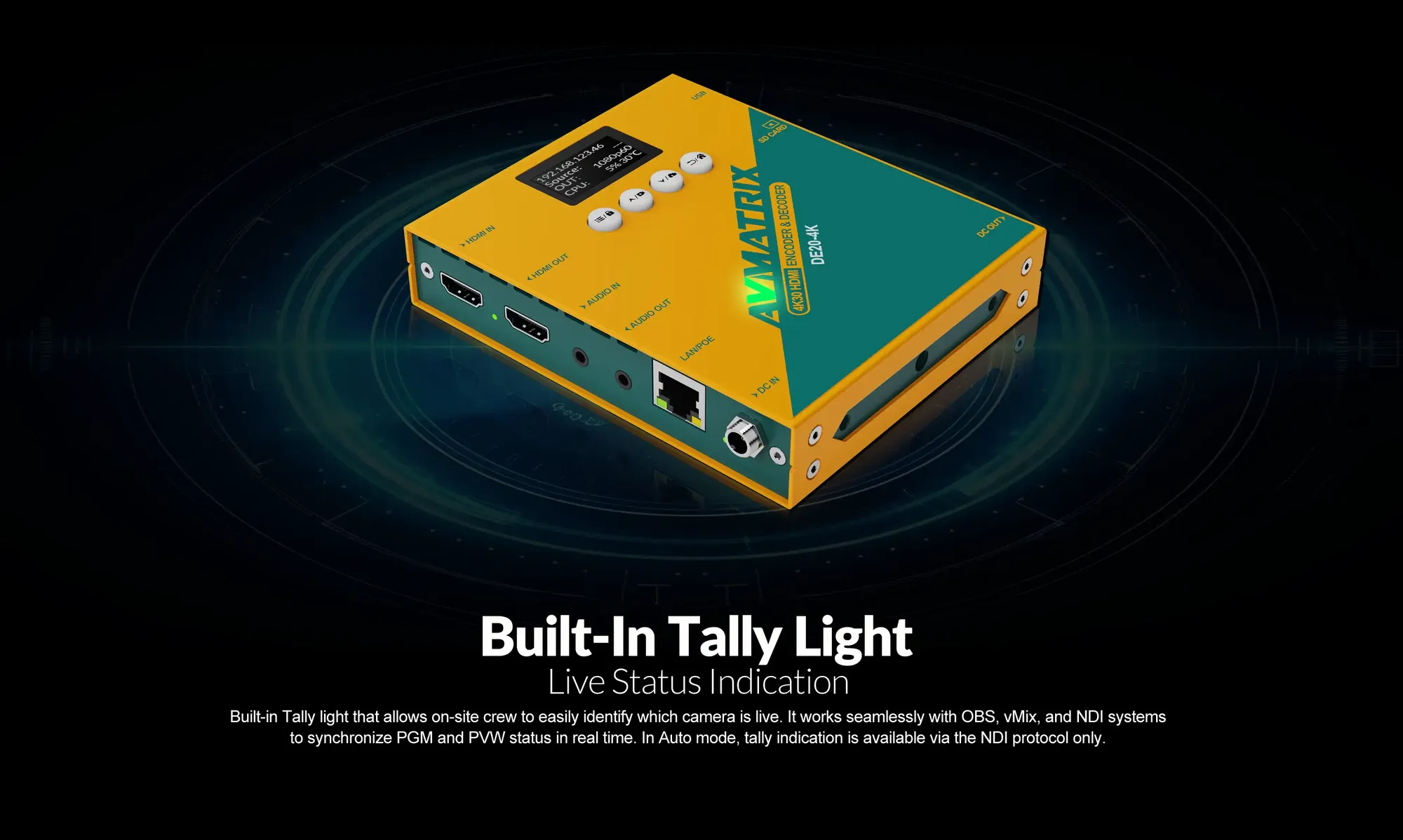

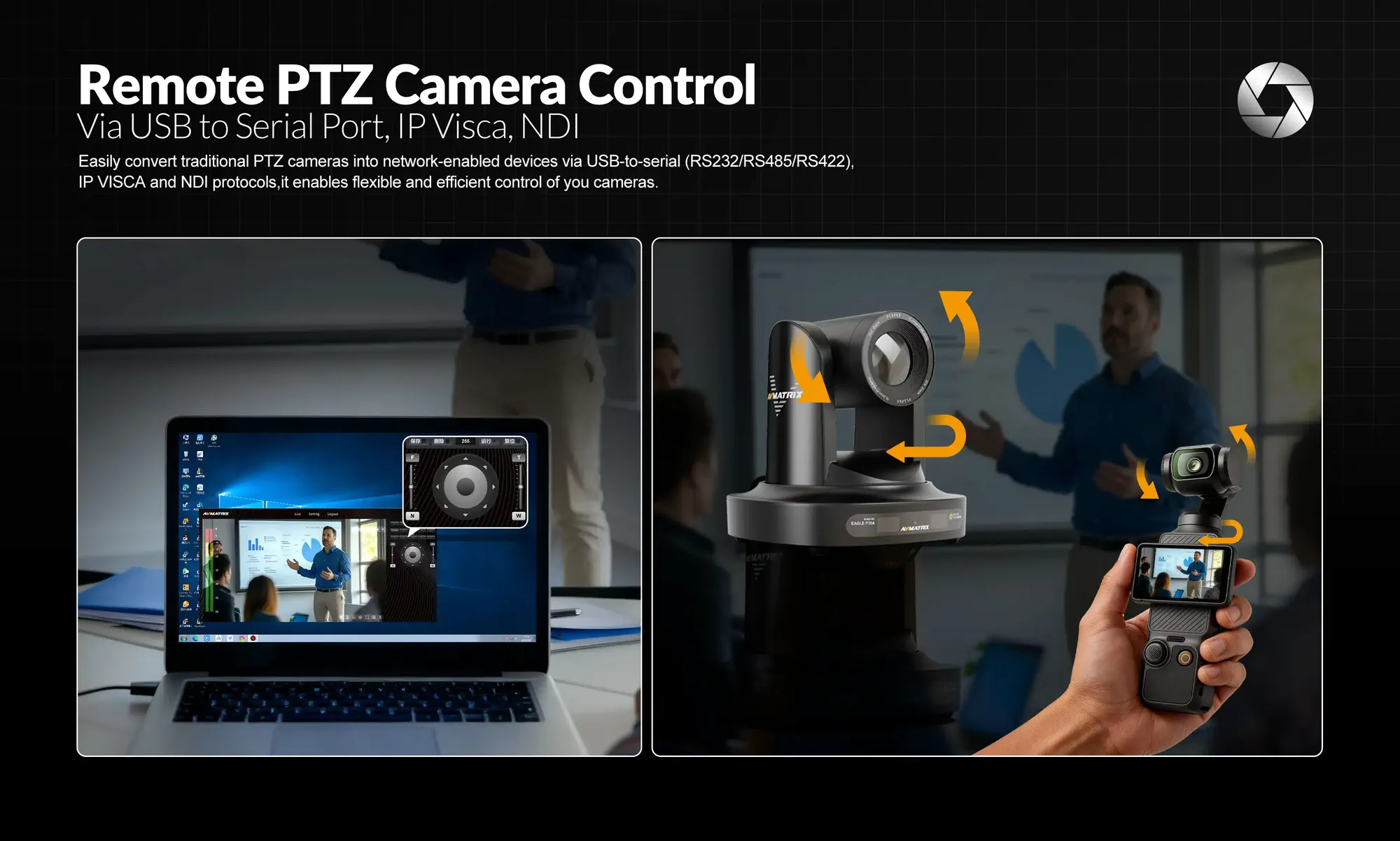

- PTZ camera control: PELCO-D, PELCO-P, VISCA, IP VISCA, NDI; program and preview tally indication; OSD overlay (text, logo, image)

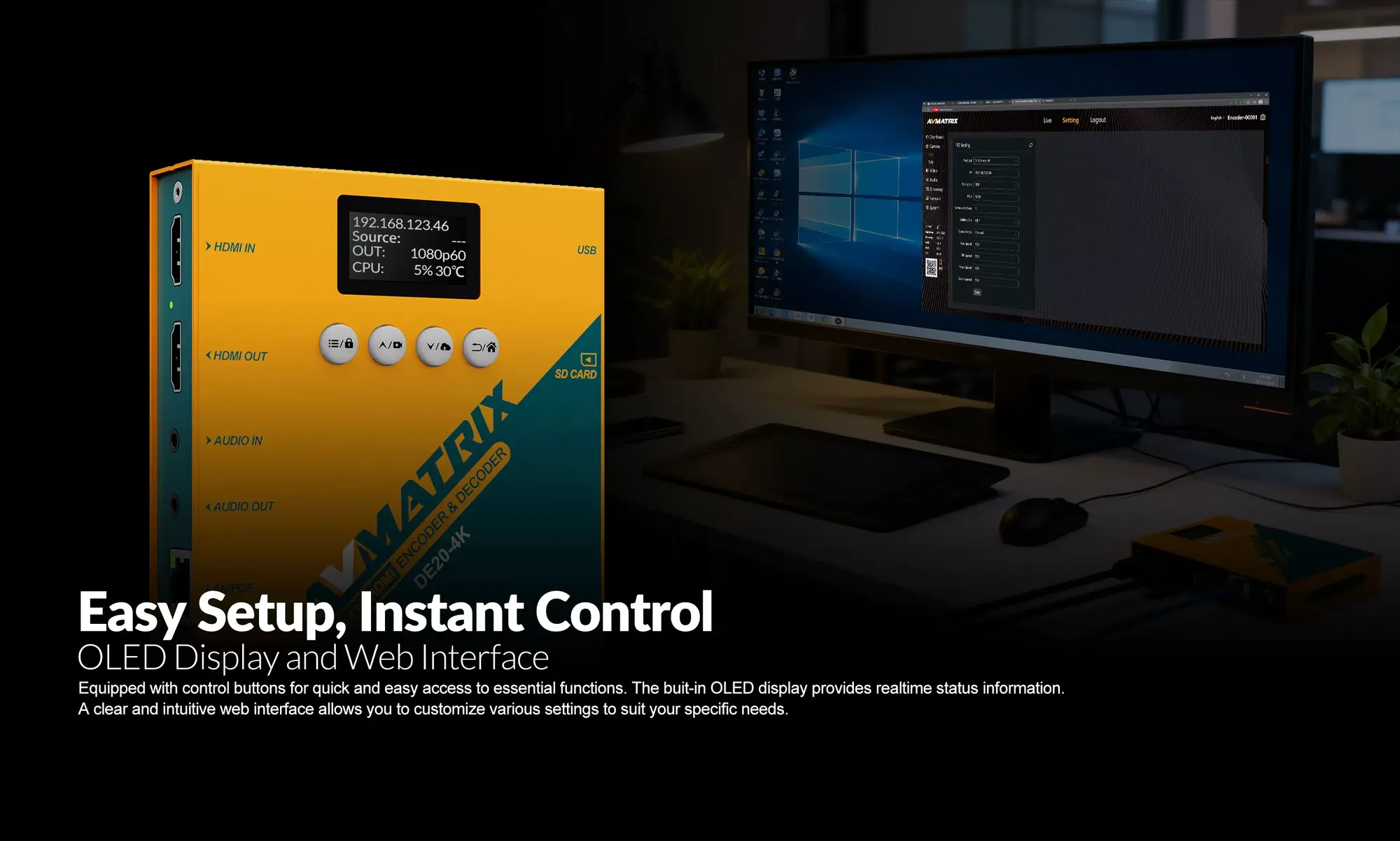

- Web configuration via browser; Wi-Fi client and hotspot for mobile control
