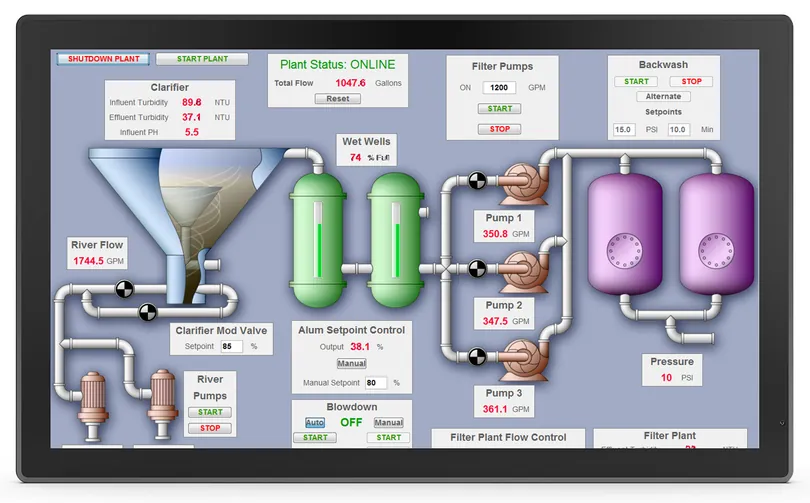

Key Features

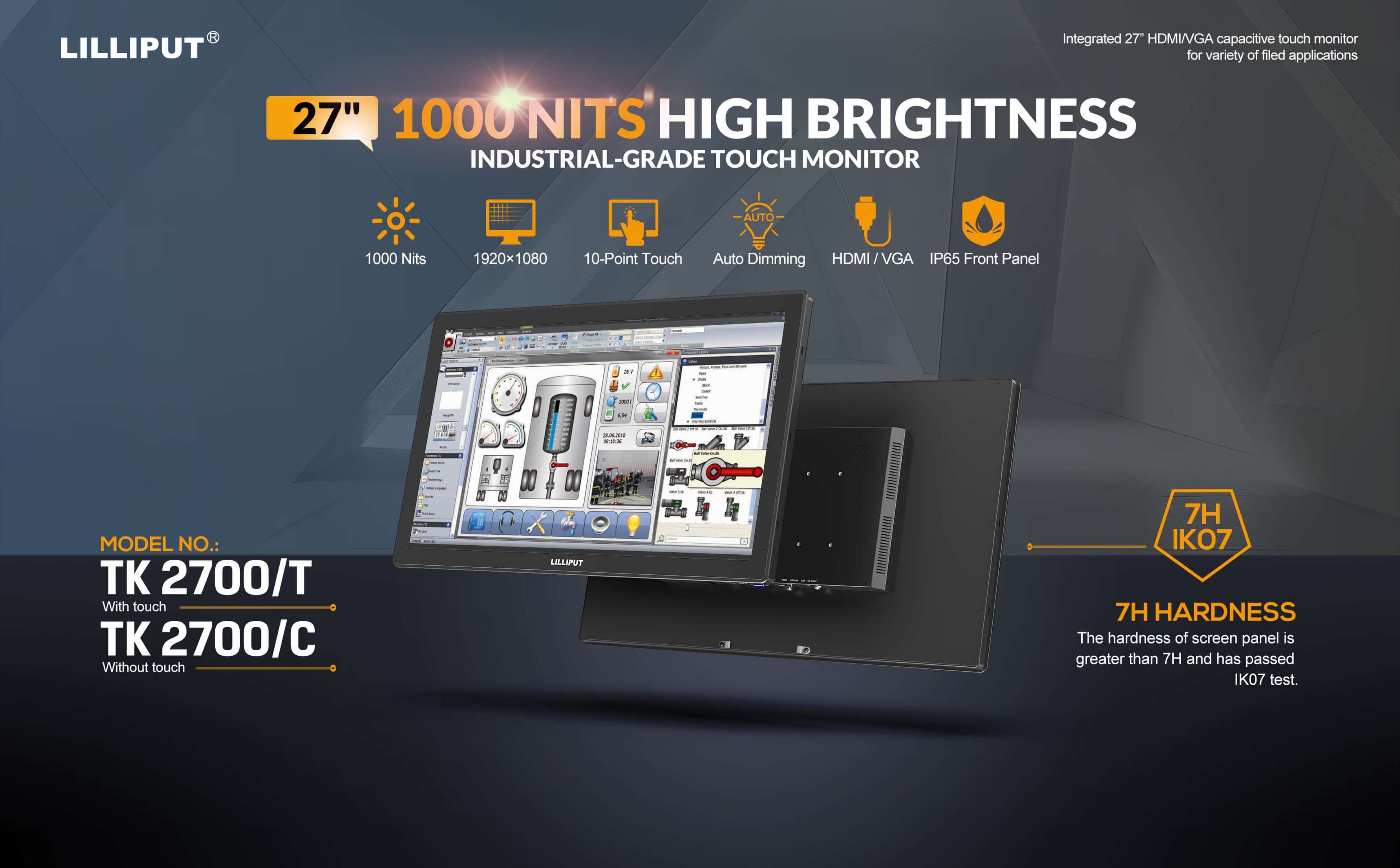

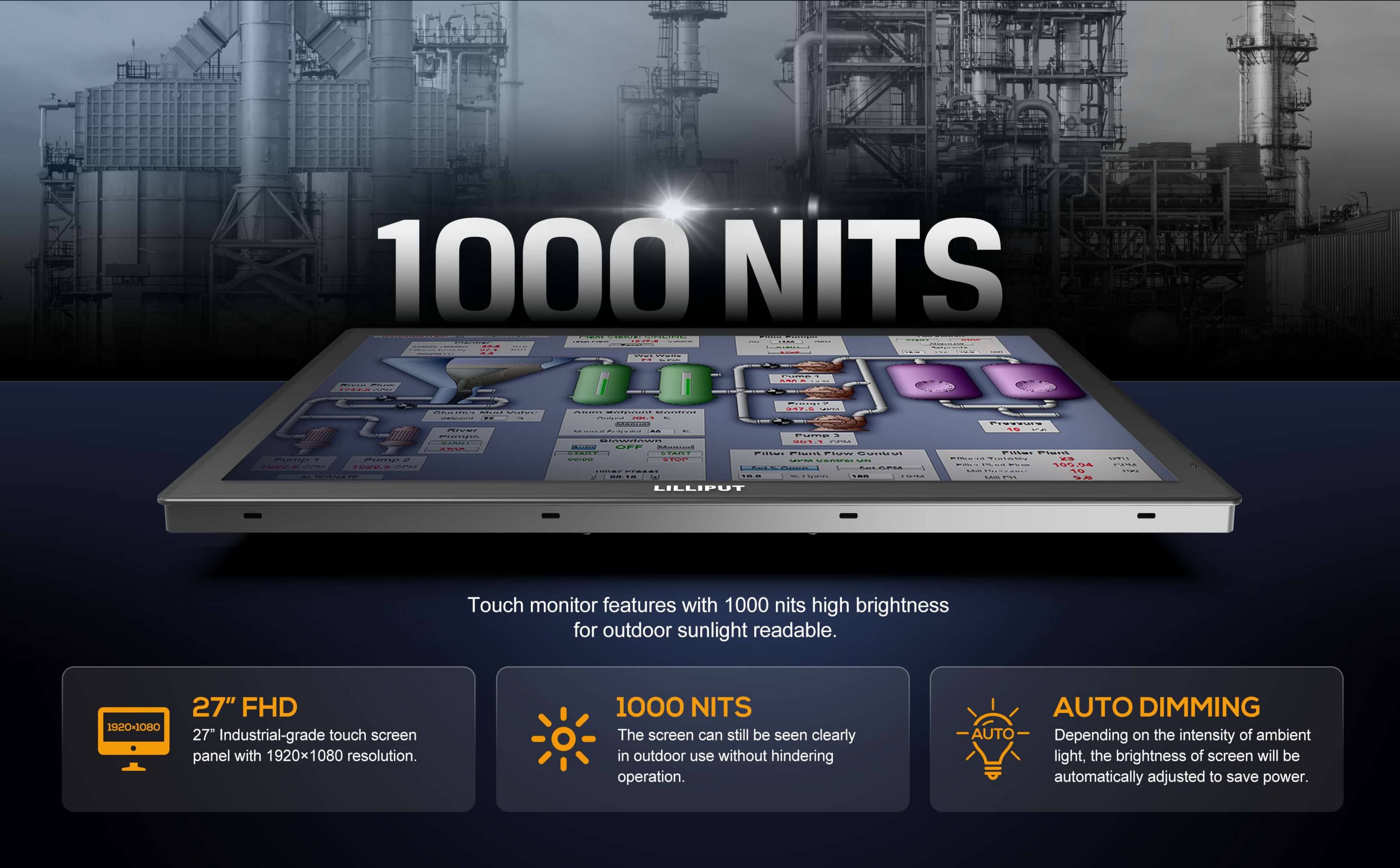

- 27 inch industrial open frame monitor, 1920 x 1080 LCD, 1000 cd/m², 1000:1 contrast, 16:9

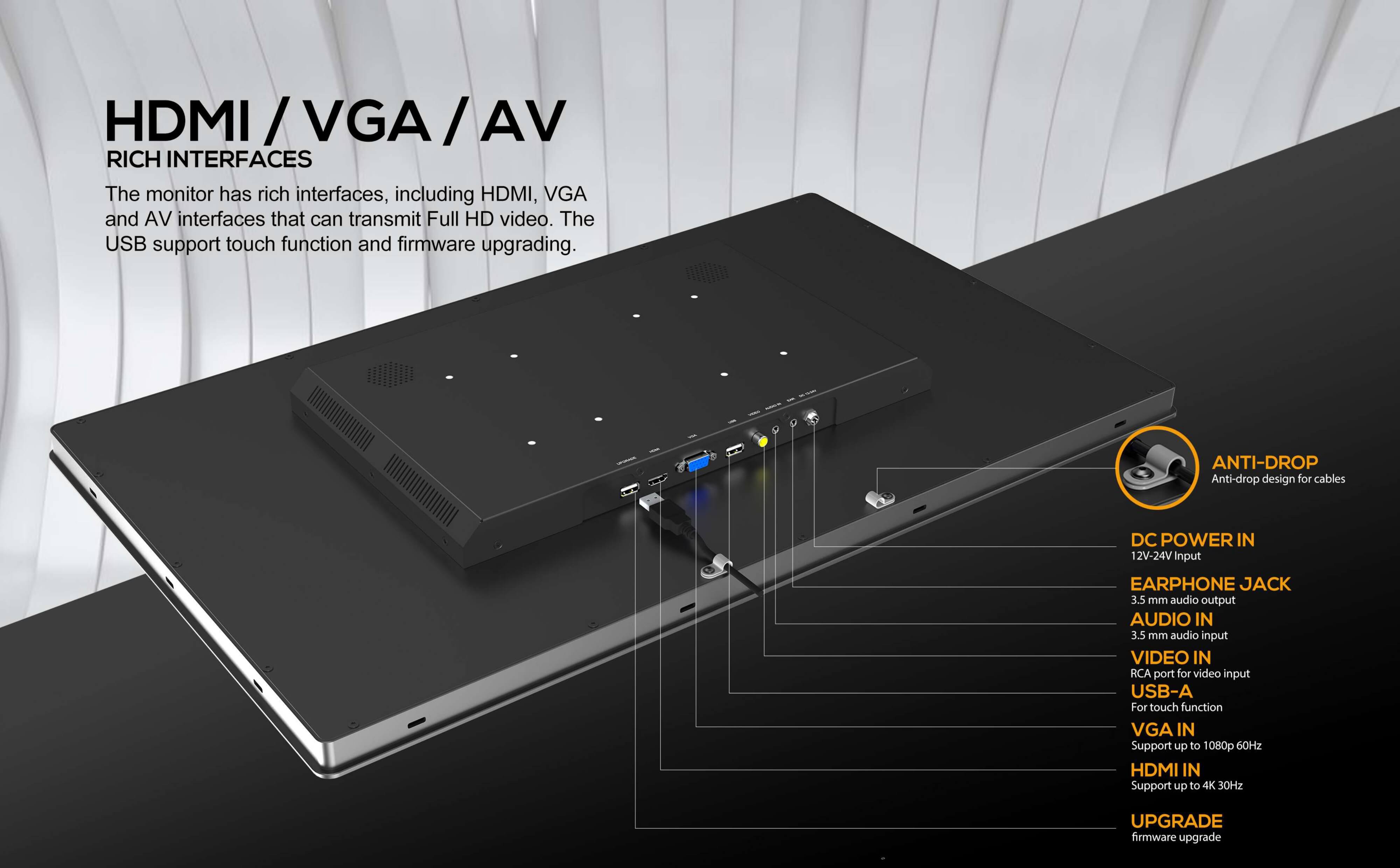

- 1x HDMI, 1x VGA, 1x AV, versatile inputs

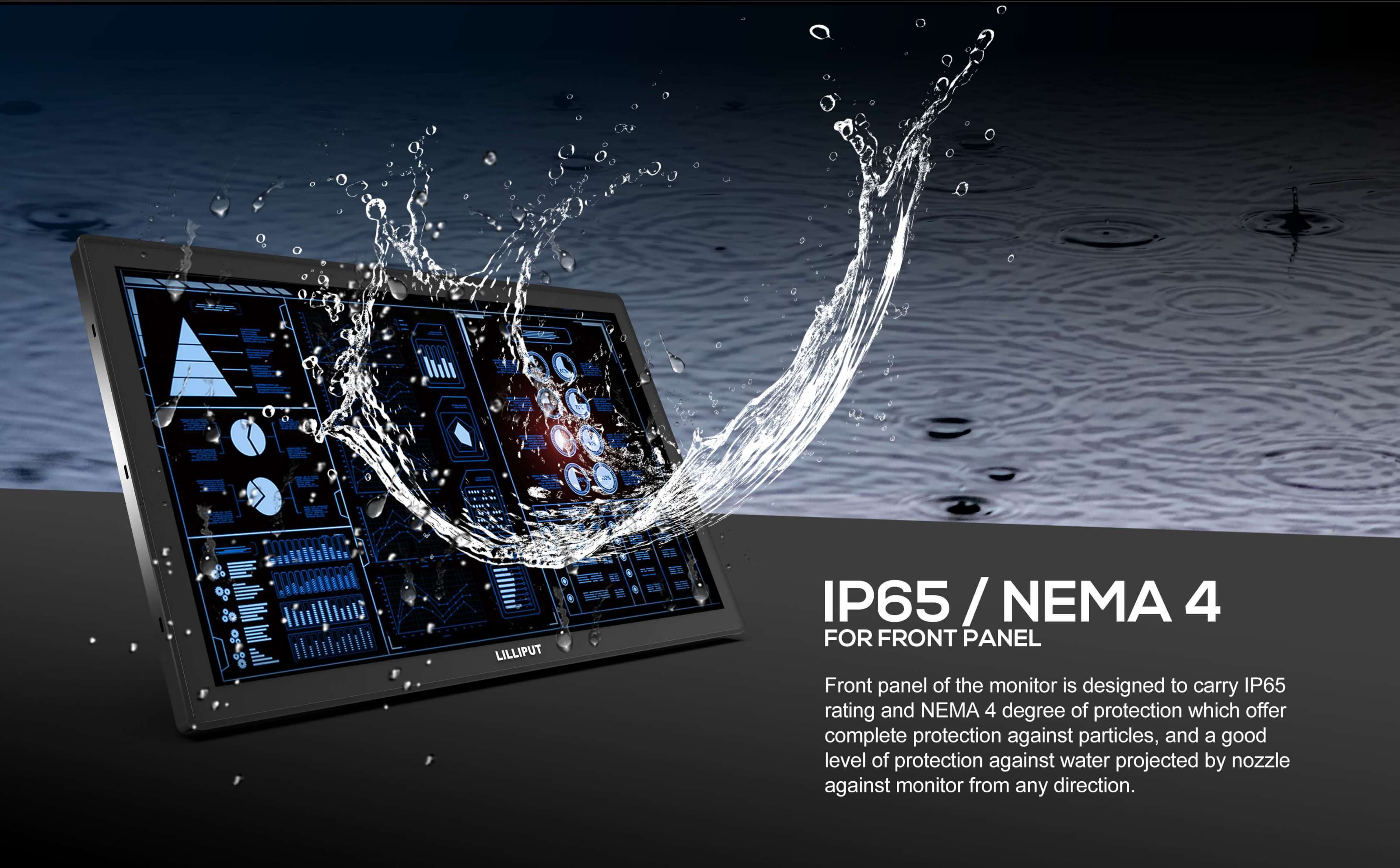

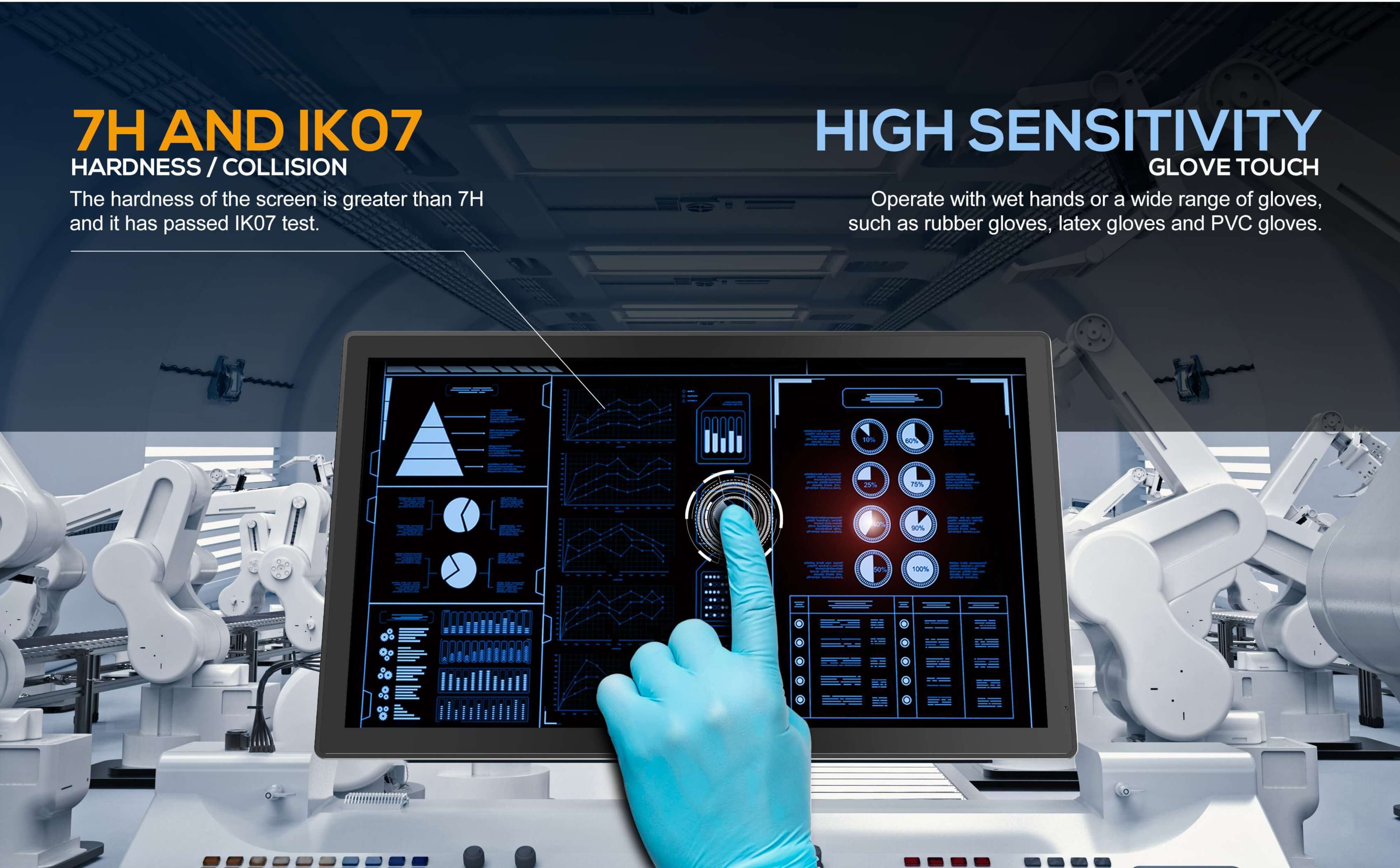

- IP65 front panel (NEMA 4); IK07 impact resistance; hardness 7H

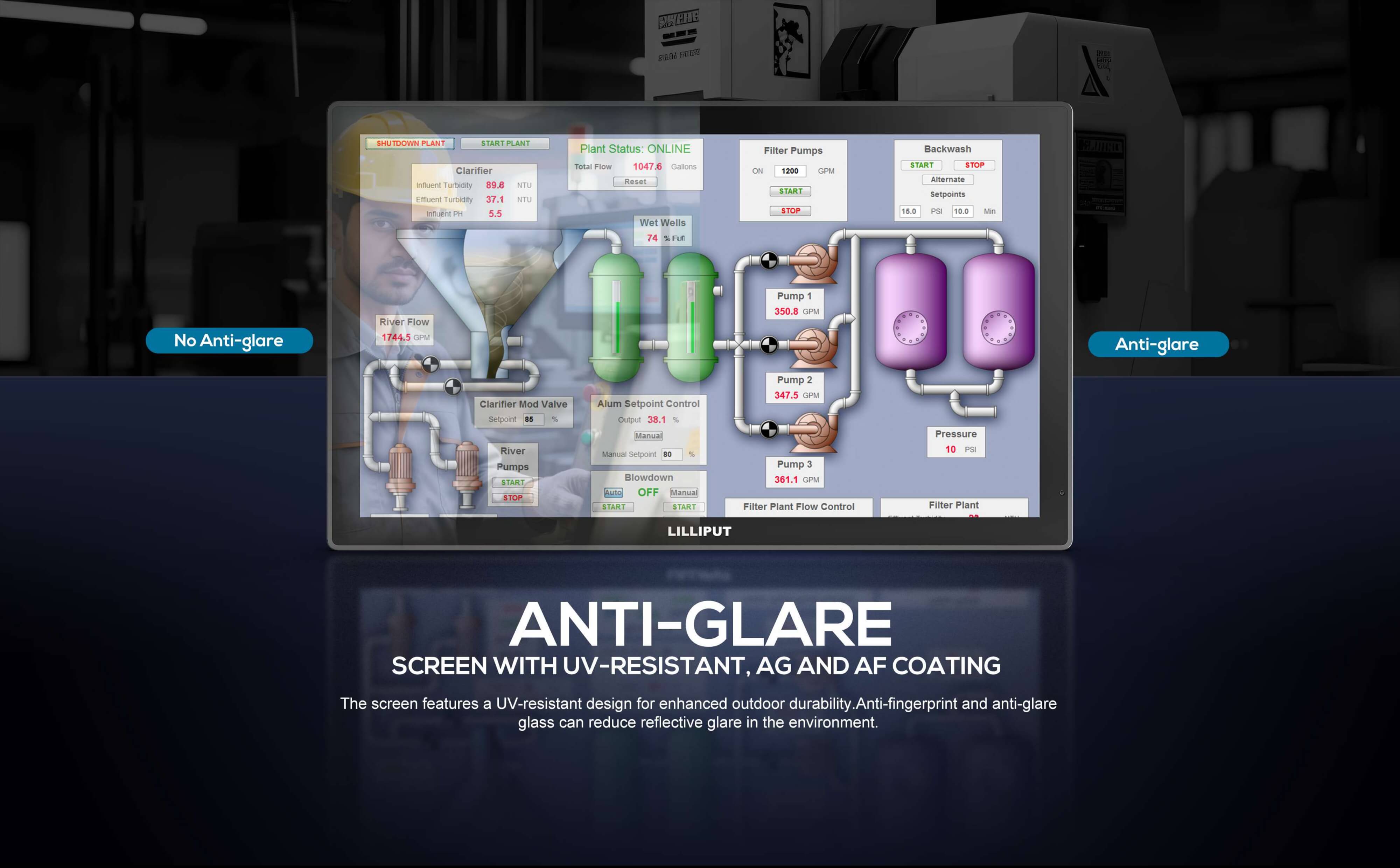

- UV-resistant, anti-glare, anti-fingerprint coating
- DC 12 to 24V, ≤41 W; -10°C to 50°C operating

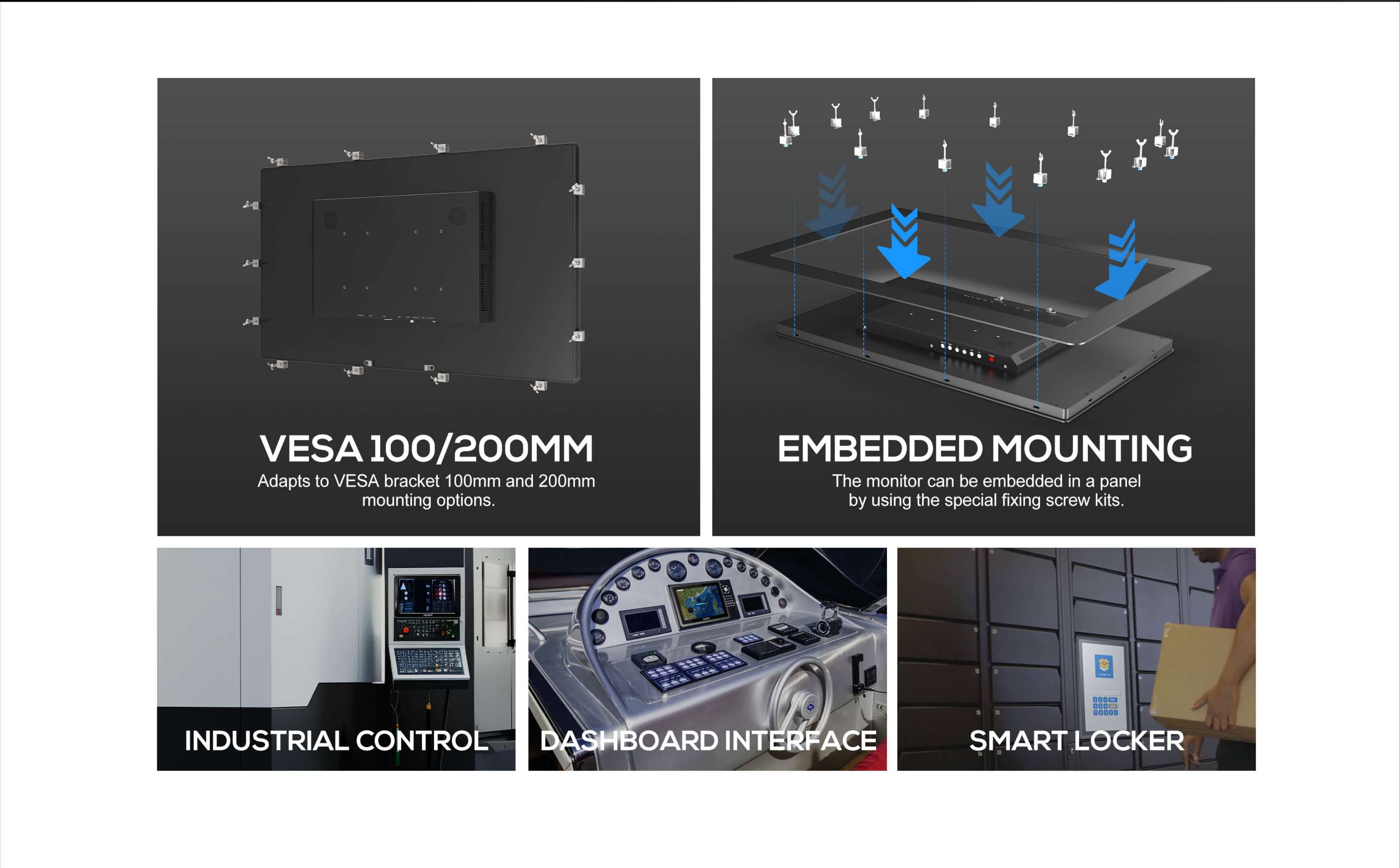

- Vibration and shock tested; VESA 100/200 mm wall mount
Product Enquiry
Request a quote or ask a question about the TK2700. Our UK team will respond promptly.
Technical Data
Display
- Screen size
- 27 inch
- Aspect ratio
- 16:9
- Native resolution
- 1920 x 1080
- Panel type
- LCD
- Brightness
- 1000 cd/m²
- Contrast
- 1000:1
- Viewing angle
- 178°/178° (H/V)
- Coating
- UV-resistant, anti-glare, anti-fingerprint
- Touch screen

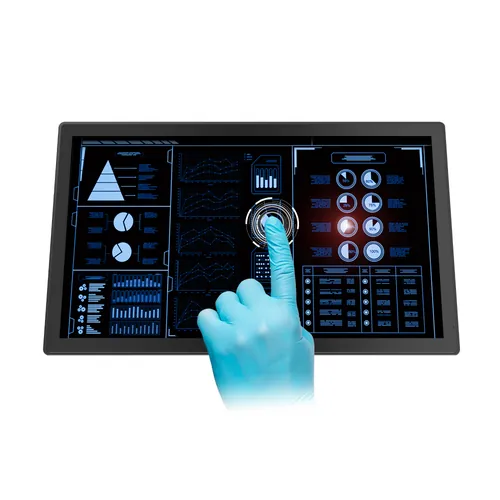

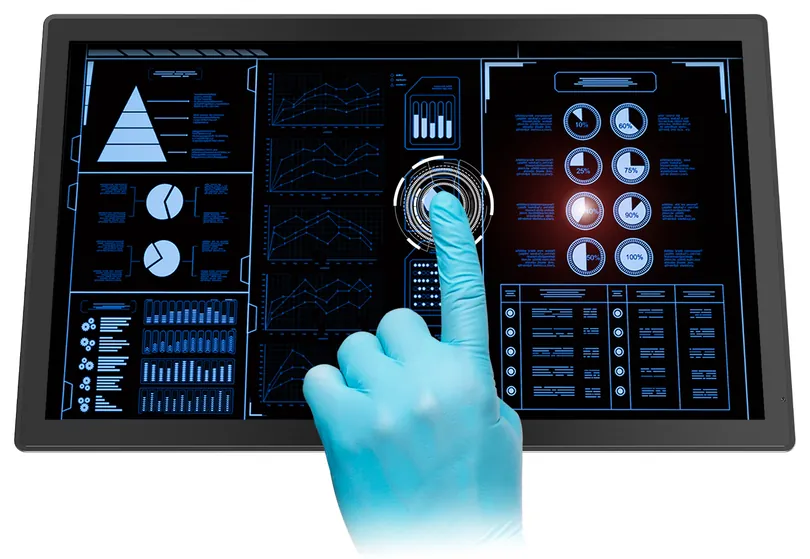

- 10-point PCAP (optional)
Connections
- Video inputs
- 1x HDMI, 1x VGA, 1x Audio & Video (RCA)
- Audio
- 2x Built-in speakers, HDMI 2ch, 3.5 mm ear jack
- Additional connections
- 2x USB-A (touch, upgrade) (optional)
Video Standards
- HDMI
- 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- VGA
- 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
- AV
- 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
Operational Features
- Markers
- Aspect markers: 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
Power
- Input voltage
- DC 12 to 24V
- Power consumption
- ≤41 W (12V)
Environmental
- IP rating
- IP65 front panel (IEC60529), NEMA 4 front
- IK rating
- IK07 (IEC62262/EN62262)
- Hardness
- ≥7H (ASTM D3363)
- Vibration
- 1.5 Grms, 5 to 500 Hz, 1 hr/axis (IEC6068-2-64)
- Shock
- 10G half-sine, 11 ms (IEC6068-2-27)
- Operating temperature
- -10°C to 50°C
- Storage temperature
- -20°C to 60°C
Mechanical
- Dimensions
- 658.4 x 396.6 x 51.8 mm
- Weight
- 9.5 kg
Mounting

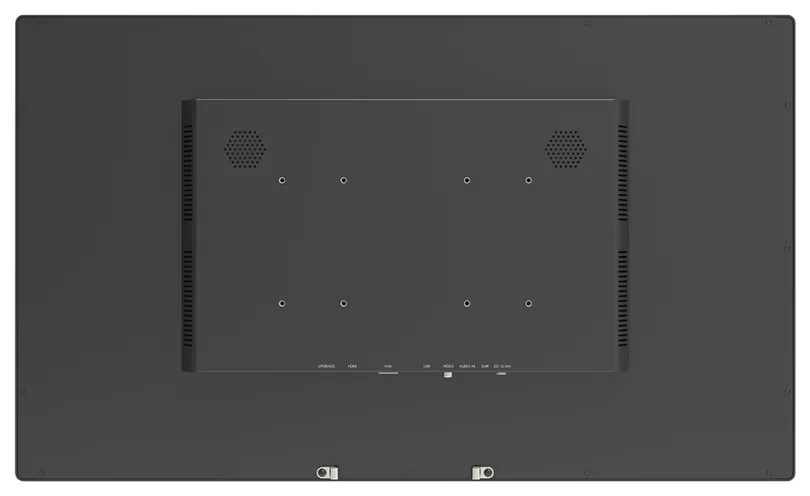

- VESA mount
- 100 x 100 mm, 200 x 200 mm
- Mounting Screws
- 14x Wall Mount Screws
Accessories
Included
- 15V 3A Power Adapter
- 0.8 m HDMI A-A Cable
- VGA Cable
- 14x Wall Mount Screws
- 4x Cable Clamps
- Audio / Video Cable
Optional
- Remote Control
Included (with Touch Screen)
- USB A to A Cable (for touch)
Product Downloads
Similar Products
Compare key technical data across similar products.
| Technical Data | TK2700 | TK1330 | TK1560 | TK1850 | TK2150 | TK1019 | 719 |
|---|---|---|---|---|---|---|---|
| Display | |||||||
| Screen size | 27 inch | 13.3 inch | 15.6 inch | 18.5 inch | 21.5 inch | 10.1 inch | 7 inch |
| Native resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1200 | 1280 x 800 |
| Touch screen | 10-point PCAP (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) |
| Aspect ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:10 | 16:10 |
| Brightness | 1000 cd/m² | 300 cd/m² | 1000 cd/m² | 1000 cd/m² | 1000 cd/m² | 1500 cd/m² | 1000 cd/m² |
| Coating | UV-resistant, anti-glare, anti-fingerprint | — | — | Anti-glare, anti-fingerprint | — | — | — |
| Contrast | 1000:1 | 800:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 800:1 |
| LED lifetime | — | — | — | — | — | 50,000 h | 50,000 h |
| Panel type | LCD | LCD | LCD | LCD | LCD | LCD | LCD |
| Viewing angle | 178°/178° (H/V) | 170°/170° (H/V) | 160°/160° (H/V) | 170°/170° (H/V) | 178°/178° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) |
| Mechanical | |||||||
| Dimensions | 658.4 x 396.6 x 51.8 mm | 333.5 x 220 x 34.5 mm | 408 x 259 x 36.5 mm | 475 x 296 x 45.7 mm | 556 x 344.5 x 48.2 mm | 264 x 183 x 35.6 mm | 184.5 x 118.8 x 32 mm |
| Weight | 9.5 kg | 1.9 kg | 2.9 kg | 4.6 kg | 5.99 kg | 1.31 kg | 410 g (560 g with IP65 frame, optional) |
| Connections | |||||||
| Video inputs | 1x HDMI, 1x VGA, 1x Audio & Video (RCA) | 1x HDMI, 1x DVI, 1x VGA, 1x Composite | 1x HDMI 1.4b, 1x VGA, 1x Audio & Video (RCA) | 1x HDMI 1.4b, 1x VGA, 1x Audio & Video (RCA) | 1x HDMI 1.4b, 1x VGA, 1x Audio & Video (RCA) | 1x HDMI 1.4b, 1x VGA | 1x HDMI, 1x VGA |
| Audio | 2x Built-in speakers, HDMI 2ch, 3.5 mm ear jack | 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker | 2x Built-in speakers, HDMI 2ch, 3.5 mm ear jack (2ch 48kHz 24-bit) | 2x Built-in speakers, HDMI 2ch, 3.5 mm ear jack (2ch 48kHz 24-bit) | 2x Built-in speakers, HDMI 2ch, 3.5 mm ear jack (2ch 48kHz 24-bit) | 1x Built-in speaker, HDMI audio, 3.5 mm ear jack (2ch 48kHz 24-bit) | 1x Built-in speaker, HDMI audio, 3.5 mm ear jack (2ch 48kHz 24-bit) |
| Additional connections | 2x USB-A (touch, upgrade) (optional) | — | 1x USB Type-A (touch, firmware upgrade) (optional) | 2x USB-A (touch, upgrade) (optional) | 1x USB-A (touch) (optional) | 1x USB-C (touch, video, power) (optional) | 1x USB-C (touch, video, power) (optional) |
| Video Standards | |||||||
| AV | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | — |
| HDMI | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 1080p 50/60, 1080i 50/60, 720p 50/60 | — | — | — | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| HDMI 1.4b | — | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — |
| VGA | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| Power | |||||||
| Power consumption | ≤41 W (12V) | ≤8 W | ≤24.5 W (15V) | ≤32 W (15V) | ≤37 W (15V) | ≤19 W (12V) | ≤8.5 W (12V) |
| Input voltage | DC 12 to 24V | DC 7 to 24V | DC 12 to 24V | DC 12 to 24V | DC 12 to 24V | DC 12 to 24V | DC 9 to 36V |
| Environmental | |||||||
| Operating temperature | -10°C to 50°C | -20°C to 60°C | -20°C to 60°C | -10°C to 60°C | 0°C to 50°C | -20°C to 70°C | -20°C to 60°C |
| Hardness | ≥7H (ASTM D3363) | — | — | — | — | — | — |
| IK rating | IK07 (IEC62262/EN62262) | — | — | IK07 (IEC62262/EN62262) | — | — | — |
| IP rating | IP65 front panel (IEC60529), NEMA 4 front | — | IP64 front panel (IEC60529) | IP65 front panel (IEC60529), NEMA 4 front | IP65 front panel (IEC60529) | IP65 front panel (IEC60529) | IP65 (with optional IP65 frame) |
| Shock | 10G half-sine, 11 ms (IEC6068-2-27) | — | — | — | — | — | — |
| Storage temperature | -20°C to 60°C | -20°C to 70°C | -30°C to 70°C | -20°C to 60°C | -20°C to 60°C | -30°C to 80°C | -30°C to 80°C |
| Vibration | 1.5 Grms, 5 to 500 Hz, 1 hr/axis (IEC6068-2-64) | — | — | — | — | — | — |
| Mounting | |||||||
| Mounting Screws | 14x Wall Mount Screws | 4x Wall Mount Screws | 4x Wall Mount Screws | — | 4x Wall Mount Screws | 4x Wall Mount Screws | — |
| Stand | — | Desktop Foldable Stand (optional) | Desktop Foldable Stand (optional) | — | — | Desktop Foldable Stand (optional) | — |
| VESA mount | 100 x 100 mm, 200 x 200 mm | 75 x 75 mm | 75 x 75 mm, 100 x 100 mm | 75 x 75 mm, 100 x 100 mm | 75 x 75 mm, 100 x 100 mm | 75 x 75 mm | 75 x 75 mm |
| Operational Features | |||||||
| Markers | Aspect markers: 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | — | Aspect markers: 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | — | — |
| Accessories | |||||||
| Included | 15V 3A Power Adapter, 0.8 m HDMI A-A Cable, VGA Cable, 14x Wall Mount Screws, 4x Cable Clamps, Audio / Video Cable | 12V DC adapter, HDMI A/A cable, VGA Cable, Manual, Screws for VESA mount, Audio BNC cable, Video BNC cable, Drive Disk, Open frame bracket, 4x Wall Mount Screws | 12V 3A DC Power Adapter, HDMI A to A Cable, VGA Cable, Audio & Video Input Cables, Fixed Screws & Gaskets, Cable Clamps, Manual, 4x Wall Mount Screws | 15V 3A Power Adapter, 0.8 m HDMI A-A Cable, VGA Cable, 14x Screw Kits, Cable Clamps, Foam Silicone, Audio / Video Cable, Manual | 15V 3A DC Power Adapter, HDMI A to A Cable, VGA Cable, Audio & Video Input Cables, Fixed Screws & Gaskets, Cable Clamps, Manual, 4x Wall Mount Screws | 12V 3A Power Adapter, HDMI A-A Cable, 4x Screw Kits, 4x Wall Mount Screws | 12V 2A Power Adapter, HDMI A-A Cable |
| Optional | Remote Control | Foldable Stand | Foldable Stand | VESA 75 mm / 100 mm Bracket, Remote Control | — | Foldable Stand, Remote Control, HDMI Cable Lock | Remote Control, Foldable Stand, HDMI Cable Lock |
