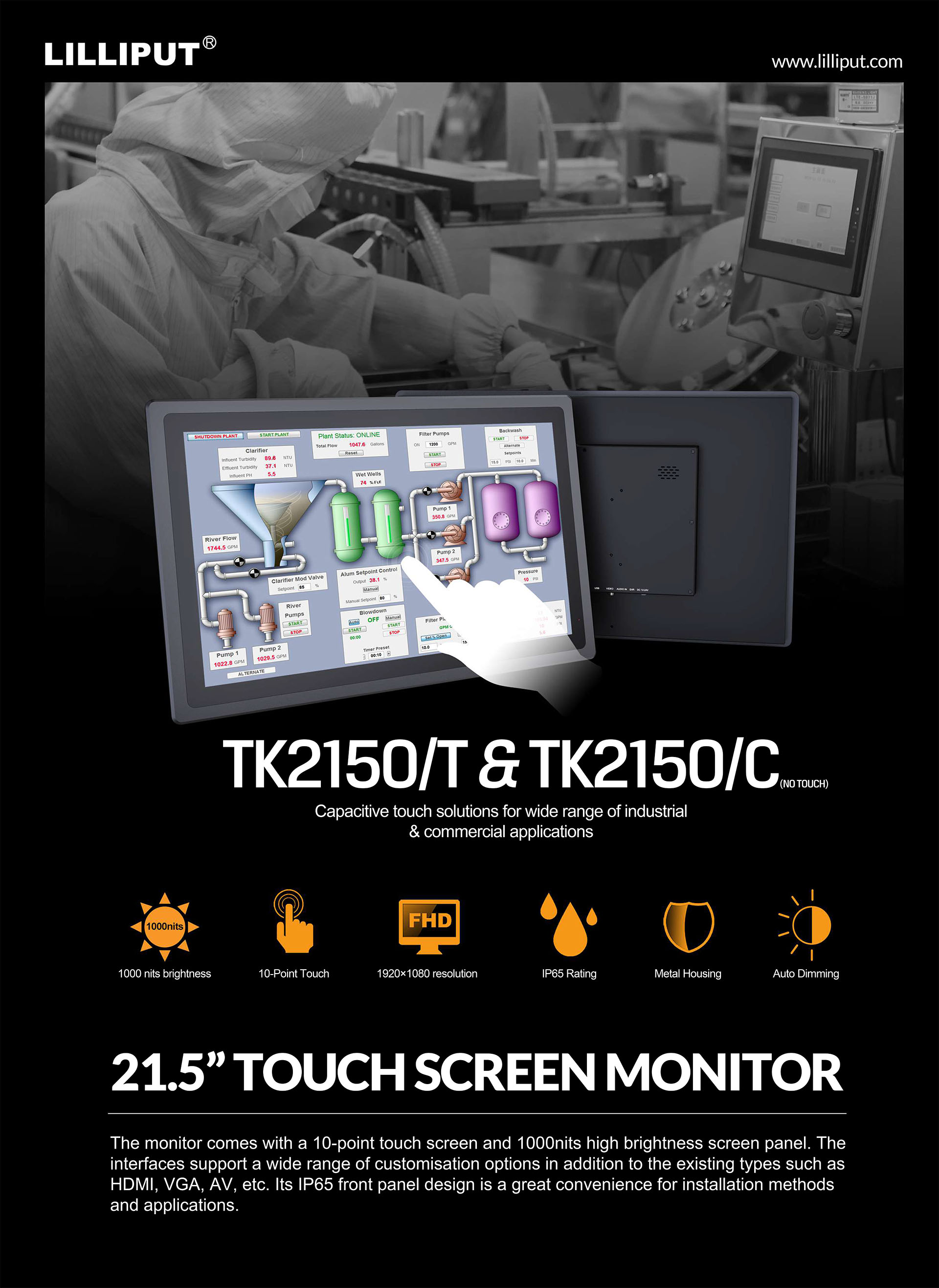

21.5 inch open frame monitor with IP65 protection. Available with touch screen. For kiosks and industrial applications.
21.5 inch open frame monitor with IP65 protection. Available with touch screen. For kiosks and industrial applications.
Key Specifications
- 21.5"
- 1920 x 1080
- PCAP
- HDMI 1.4
- VGA
- Composite
- IP65
- 6H hardness
- Markers
- VESA 75
- VESA 100
Discover TK2150
Key Features
- 21.5 inch open frame monitor with 10-point PCAP touch screen (optional)
- 1920 x 1080 LCD, 1000 cd/m², 1000:1 contrast, 16:9
- 1x HDMI 1.4b, 1x VGA, 1x AV, versatile inputs
- HDMI 4K 30Hz passthrough; HDR support (HDR10, HLG)

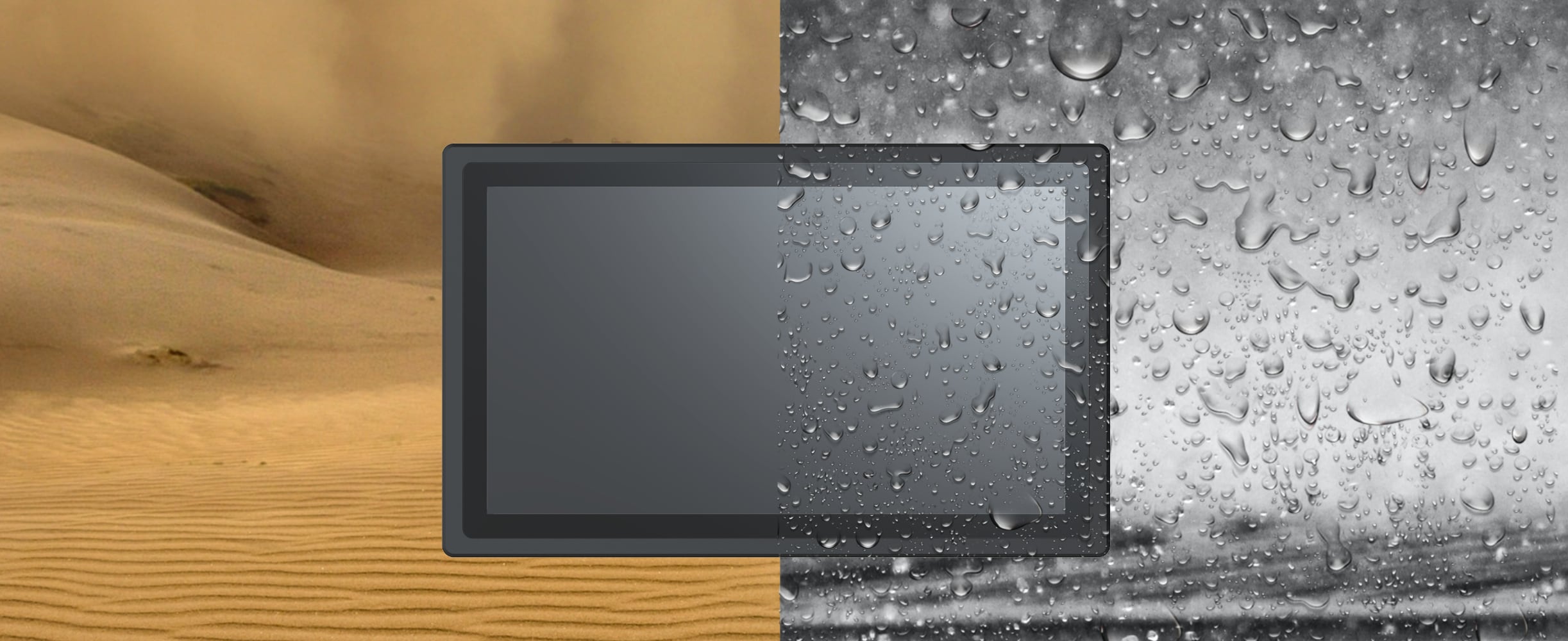

- IP65 front panel (water and dust resistant)
- DC 12 to 24V, ≤37 W; 0°C to 50°C operating
- 556 x 344.5 x 48.2 mm; 5.99 kg; VESA 75 mm / 100 mm
Product Enquiry
Request a quote or ask a question about the TK2150. Our UK team will respond promptly.
Technical Data
Display
- Screen size
- 21.5 inch
- Aspect ratio
- 16:9
- Native resolution
- 1920 x 1080
- Panel type
- LCD
- Brightness
- 1000 cd/m²
- Contrast
- 1000:1
- Viewing angle
- 178°/178° (H/V)
- Signal response time
- 20 ms
- Maximum refresh rate
- 60 Hz
- Touch screen
- 10-point PCAP (optional)
Connections

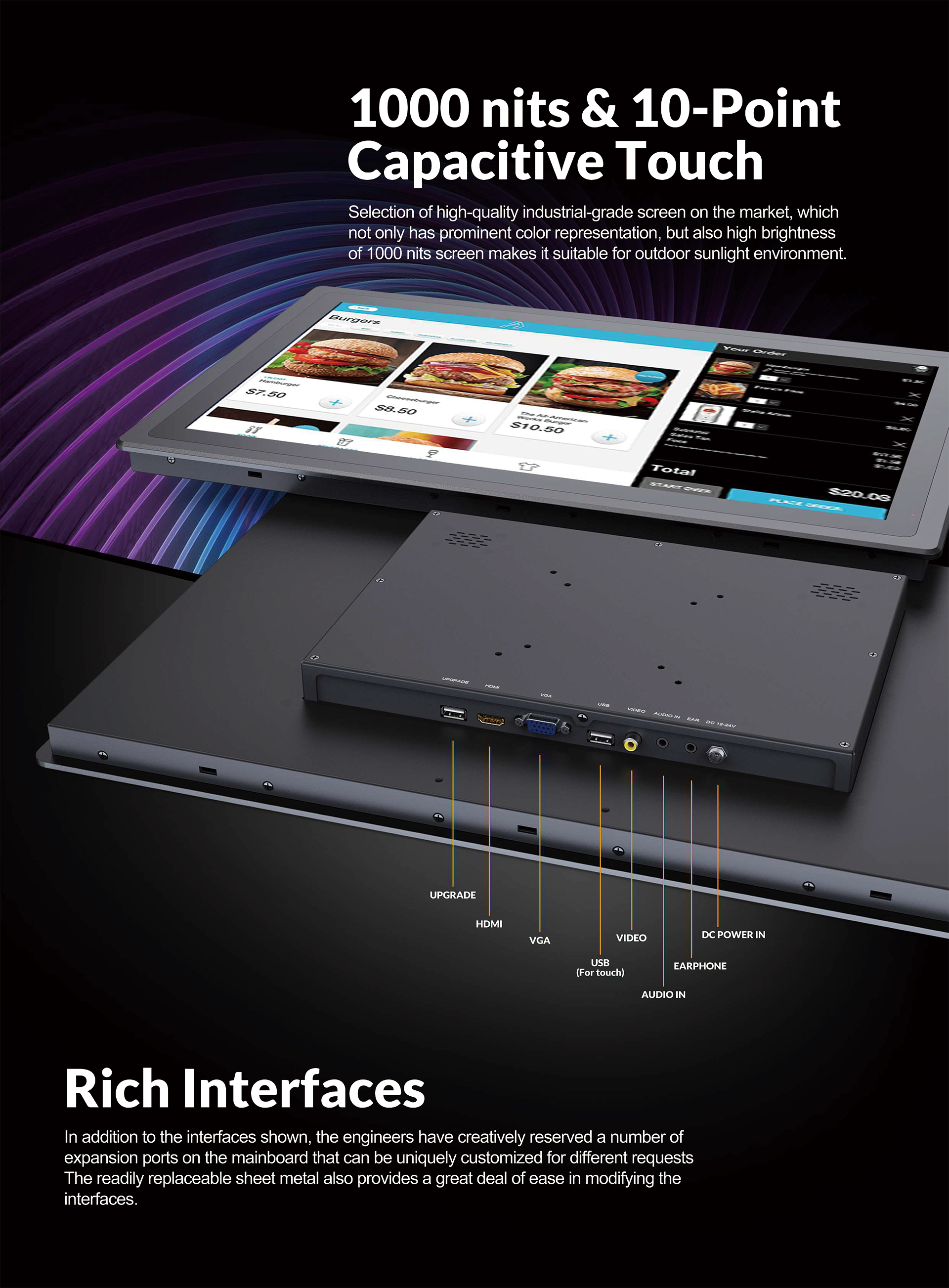

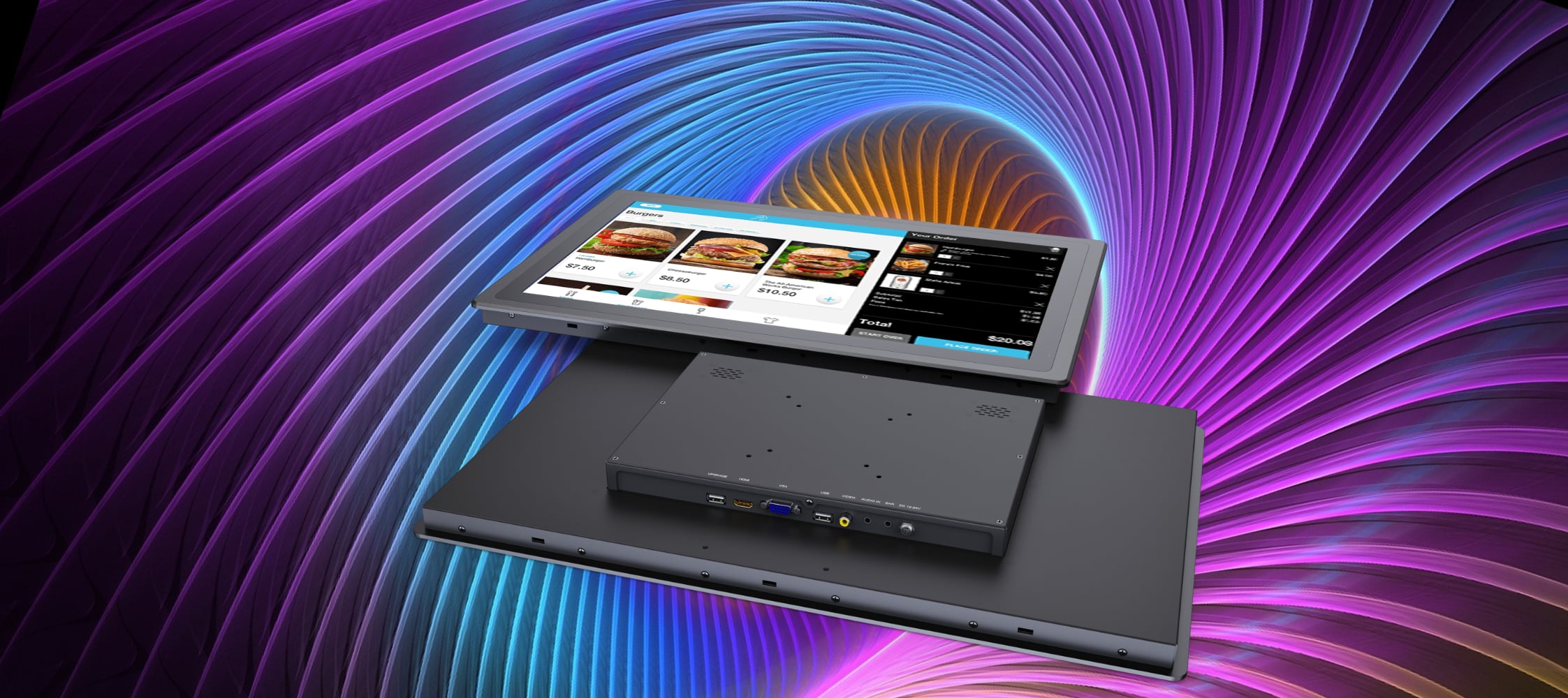

- Video inputs
- 1x HDMI 1.4b, 1x VGA, 1x Audio & Video (RCA)
- Audio
- 2x Built-in speakers, HDMI 2ch, 3.5 mm ear jack (2ch 48kHz 24-bit)
- Additional connections
- 1x USB-A (touch) (optional)
Video Standards
- HDMI 1.4b
- 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- VGA
- 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
- AV
- 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
Operational Features
- Markers
- Aspect markers: 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
- Image mirroring
- Vertical flip, Horizontal flip
Power
- Input voltage
- DC 12 to 24V
- Power consumption
- ≤37 W (15V)
Environmental

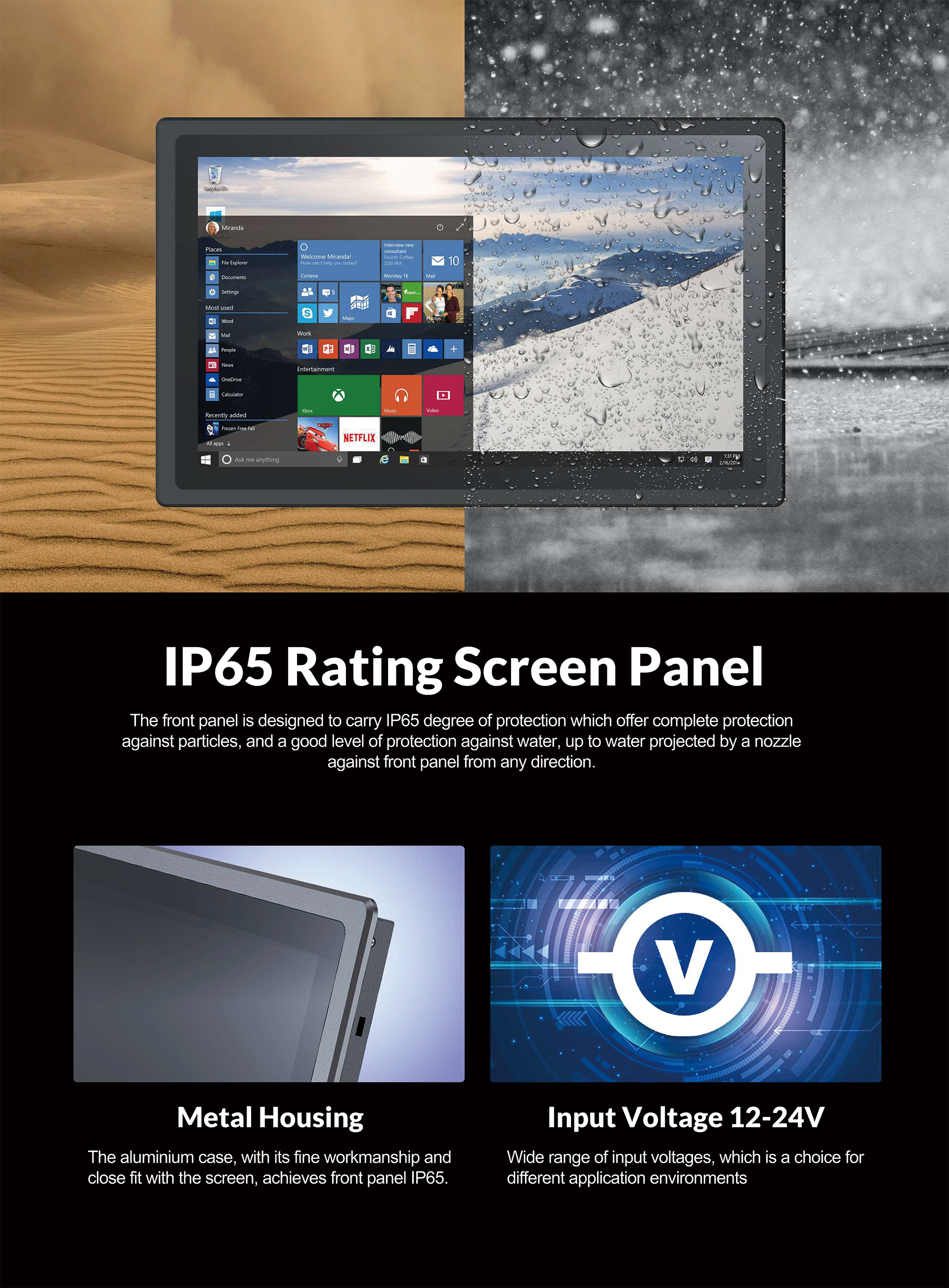

- IP rating
- IP65 front panel (IEC60529)
- Hardness
- 6H
- Operating temperature
- 0°C to 50°C
- Storage temperature
- -20°C to 60°C

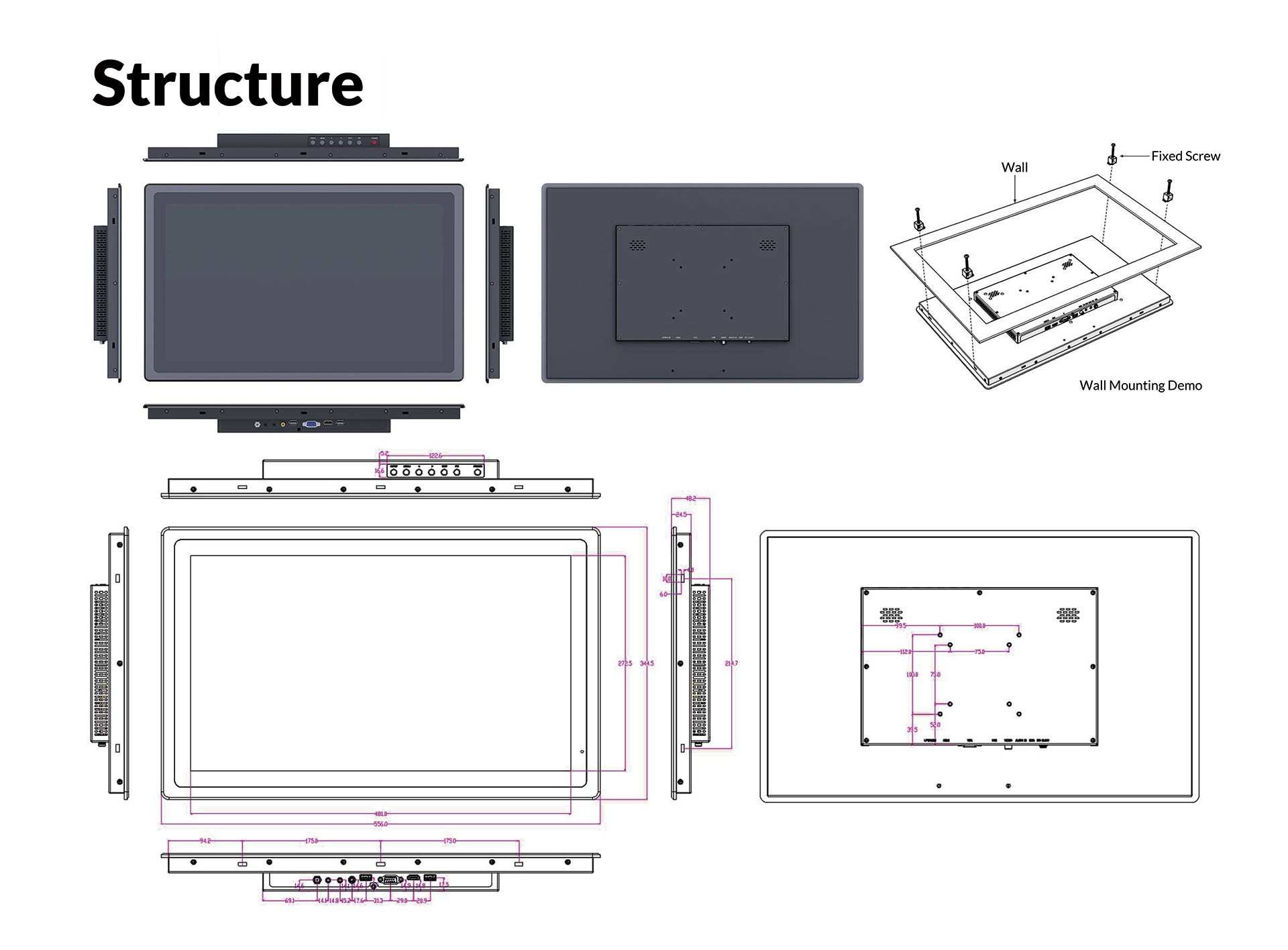

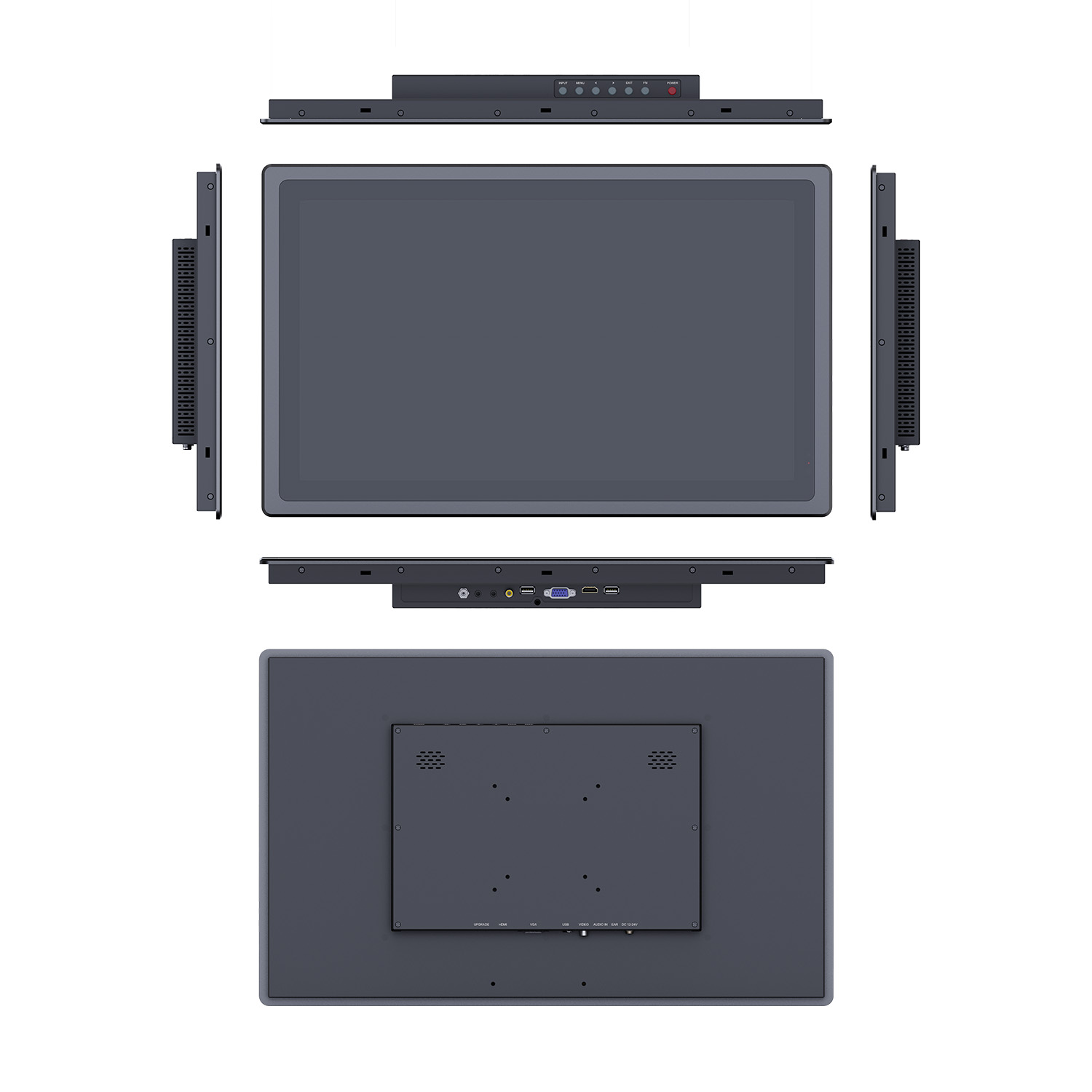

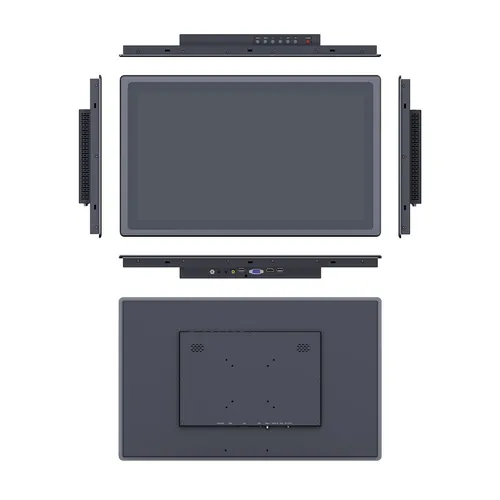

Mechanical
- Material
- Front panel: Glass; Rear panel: Metal
- Dimensions
- 556 x 344.5 x 48.2 mm
- Weight
- 5.99 kg

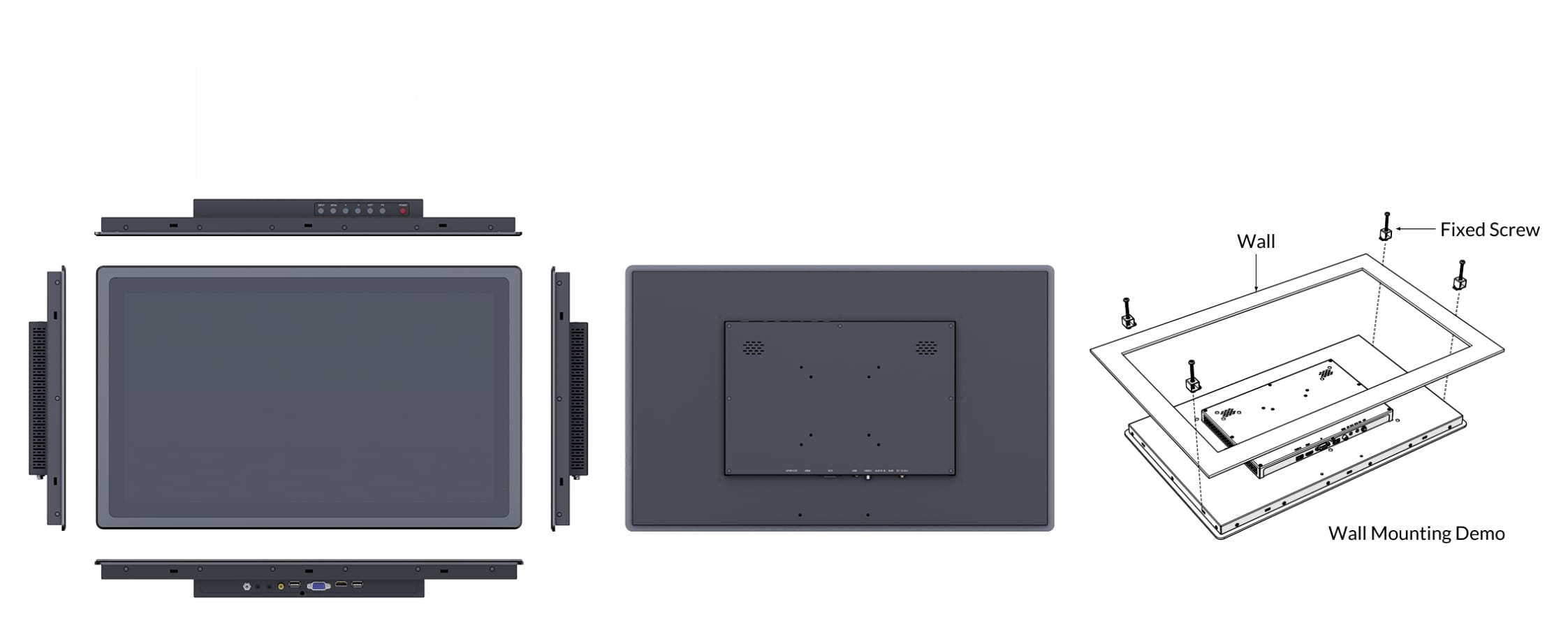

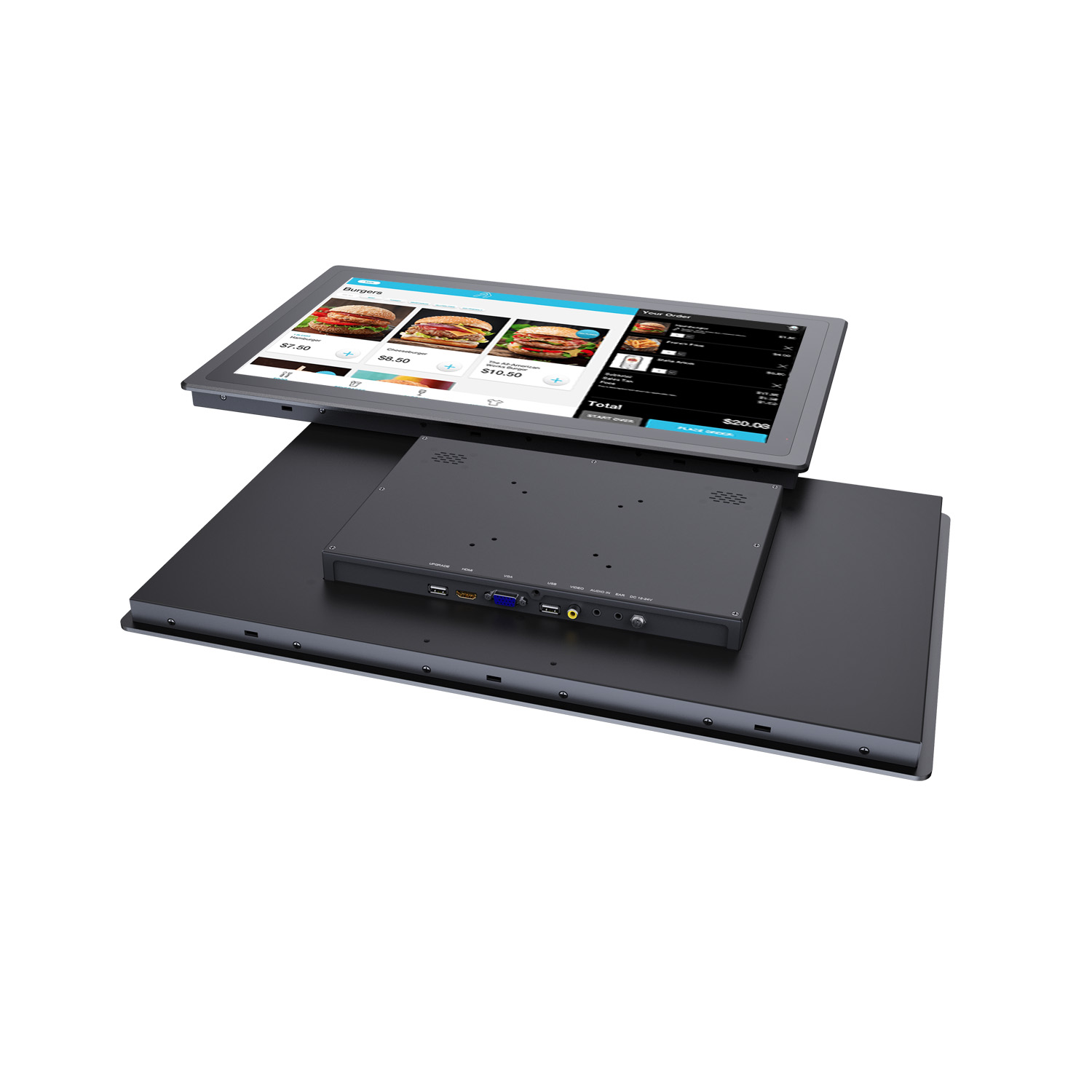

Mounting
- VESA mount
- 75 x 75 mm, 100 x 100 mm
- Mounting Screws
- 4x Wall Mount Screws
- Flush mount
- Flush panel clamps included
Accessories
Included
- 15V 3A DC Power Adapter
- HDMI A to A Cable
- VGA Cable
- Audio & Video Input Cables
- Fixed Screws & Gaskets
- Cable Clamps
- Manual
- 4x Wall Mount Screws
Included (with Touch Screen)
- USB A to A Cable (for touch)
Product Downloads
Similar Products
Compare key technical data across similar Lilliput products.
| Technical Data | TK2150 | TK2380 | TK2700 | TK1850 | TK1560 | TK1019 | 719 |
|---|---|---|---|---|---|---|---|
| Display | |||||||
| Screen size | 21.5 inch | 23.8 inch | 27 inch | 18.5 inch | 15.6 inch | 10.1 inch | 7 inch |
| Aspect ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:10 | 16:10 |
| Native resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1200 | 1280 x 800 |
| Panel type | LCD | LCD | LCD | LCD | LCD | LCD | LCD |
| Brightness | 1000 cd/m² | 1000 cd/m² | 1000 cd/m² | 1000 cd/m² | 1000 cd/m² | 1500 cd/m² | 1000 cd/m² |
| Contrast | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 800:1 |
| Viewing angle | 178°/178° (H/V) | 178°/178° (H/V) | 178°/178° (H/V) | 170°/170° (H/V) | 160°/160° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) |
| Signal response time | 20 ms | 20 ms | 20 ms | 20 ms | 20 ms | 20 ms | — |
| Maximum refresh rate | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz | — |
| Touch screen | 10-point PCAP (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) |
| Coating | — | Anti-glare | UV-resistant, anti-glare, anti-fingerprint | Anti-glare, anti-fingerprint | — | — | — |
| LED lifetime | — | — | — | — | — | 50,000 h | 50,000 h |
| Connections | |||||||
| Video inputs | 1x HDMI 1.4b, 1x VGA, 1x Audio & Video (RCA) | 1x HDMI 1.4b, 1x VGA, 1x DisplayPort, 1x USB Type-C (optional) | 1x HDMI 1.4b, 1x VGA, 1x Audio & Video (RCA) | 1x HDMI 1.4b, 1x VGA, 1x Audio & Video (RCA) | 1x HDMI 1.4b, 1x VGA, 1x Audio & Video (RCA) | 1x HDMI 1.4b, 1x VGA | 1x HDMI, 1x VGA, 1x USB-C |
| Audio | 2x Built-in speakers, HDMI 2ch, 3.5 mm ear jack (2ch 48kHz 24-bit) | 1x Built-in speaker, 3.5 mm audio in, 3.5 mm ear jack | 2x Built-in speakers, HDMI 2ch, 3.5 mm ear jack | 2x Built-in speakers, HDMI 2ch, 3.5 mm ear jack (2ch 48kHz 24-bit) | 2x Built-in speakers, HDMI 2ch, 3.5 mm ear jack (2ch 48kHz 24-bit) | 1x Built-in speaker, HDMI audio, 3.5 mm ear jack (2ch 48kHz 24-bit) | 1x Built-in speaker, HDMI audio, 3.5 mm ear jack (2ch 48kHz 24-bit) |
| Additional connections | 1x USB-A (touch) (optional) | — | 2x USB-A (touch, upgrade) (optional) | 2x USB-A (touch, upgrade) (optional) | 1x USB Type-A (touch, firmware upgrade) (optional) | 1x USB-C (touch, video, power) (optional) | 1x USB-C (touch, video, power) (optional) |
| Video Standards | |||||||
| HDMI 1.4b | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — |
| VGA | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| AV | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | — | — |
| DisplayPort | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | — | — | — | — |
| USB Type-C | — | — | — | — | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| HDMI | — | — | — | — | — | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| Operational Features | |||||||
| Markers | Aspect markers: 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 4:3, 3:2 | Aspect markers: 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | — | — |
| Image mirroring | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | — | — |
| Sensors | — | Ambient light auto-dimming | — | Ambient light auto-dimming | Ambient light auto-dimming | Ambient light auto-dimming | Ambient light auto-dimming |
| Power | |||||||
| Input voltage | DC 12 to 24V | DC 9 to 36V | DC 12 to 24V | DC 12 to 24V | DC 12 to 24V | DC 12 to 24V | DC 9 to 36V |
| Power consumption | ≤37 W (15V) | ≤55 W (12V) | ≤41 W (12V) | ≤32 W (15V) | ≤24.5 W (15V) | ≤19 W (12V) | ≤8.5 W (12V) |
| Environmental | |||||||
| IP rating | IP65 front panel (IEC60529) | IP65 front panel (IEC60529) | IP65 front panel (IEC60529), NEMA 4 front | IP65 front panel (IEC60529), NEMA 4 front | IP64 front panel (IEC60529) | IP65 front panel (IEC60529) | — |
| Hardness | 6H | 7H | 7H | 7H | 6H | 7H | — |
| Operating temperature | 0°C to 50°C | -20°C to 60°C | -10°C to 50°C | -10°C to 60°C | -20°C to 60°C | -20°C to 70°C | -20°C to 60°C |
| Storage temperature | -20°C to 60°C | -30°C to 70°C | -20°C to 60°C | -20°C to 60°C | -30°C to 70°C | -30°C to 80°C | -30°C to 80°C |
| IK rating | — | IK07 (IEC62262/EN62262) | IK07 (IEC62262/EN62262) | IK07 (IEC62262/EN62262) | — | IK07 (IEC62262/EN62262) | — |
| Vibration | — | — | IEC6068-2-64 | IEC6068-2-64 | — | — | — |
| Shock | — | — | IEC6068-2-27 | IEC6068-2-27 | — | — | — |
| Mechanical | |||||||
| Material | Front panel: Glass; Rear panel: Metal | Front panel: Glass; Rear panel: Metal | Front panel: Glass; Rear panel: Metal | Front panel: Glass; Rear panel: Metal | Front panel: Glass; Rear panel: Metal | Front panel: Glass; Rear panel: Metal | — |
| Dimensions | 556 x 344.5 x 48.2 mm | 587.4 x 356.8 x 54.9 mm | 658.4 x 396.6 x 51.8 mm | 475 x 296 x 45.7 mm | 408 x 259 x 36.5 mm | 264 x 183 x 35.6 mm | 184.5 x 118.8 x 32 mm |
| Weight | 5.99 kg | 7.6 kg | 9.5 kg | 4.6 kg | 2.9 kg | 1.31 kg | 410 g |
| Mounting | |||||||
| VESA mount | 75 x 75 mm, 100 x 100 mm | 100 x 100 mm | 100 x 100 mm, 200 x 200 mm | 75 x 75 mm, 100 x 100 mm | 75 x 75 mm, 100 x 100 mm | 75 x 75 mm | 75 x 75 mm |
| Mounting Screws | 4x Wall Mount Screws | 12x Wall Mount Screws | 14x Wall Mount Screws | — | 4x Wall Mount Screws | 4x Wall Mount Screws | — |
| Flush mount | Flush panel clamps included | Flush panel clamps included | Flush panel clamps included | Flush panel mount bracket included | Flush panel clamps included | Flush panel clamps included | — |
| Stand | — | — | — | — | Folding VESA 100 Desktop Stand (optional) | Foldable VESA 75 Stand (optional) | — |
