RM-1731S-12G, product overview RM-1731S-12G, view 2 RM-1731S-12G, view 3 RM-1731S-12G, view 4 RM-1731S-12G, view 5 RM-1731S-12G, view 6

Key Features

  • 17.3 inch 1920 x 1080 IPS display, 300 cd/m², 1200:1 contrast

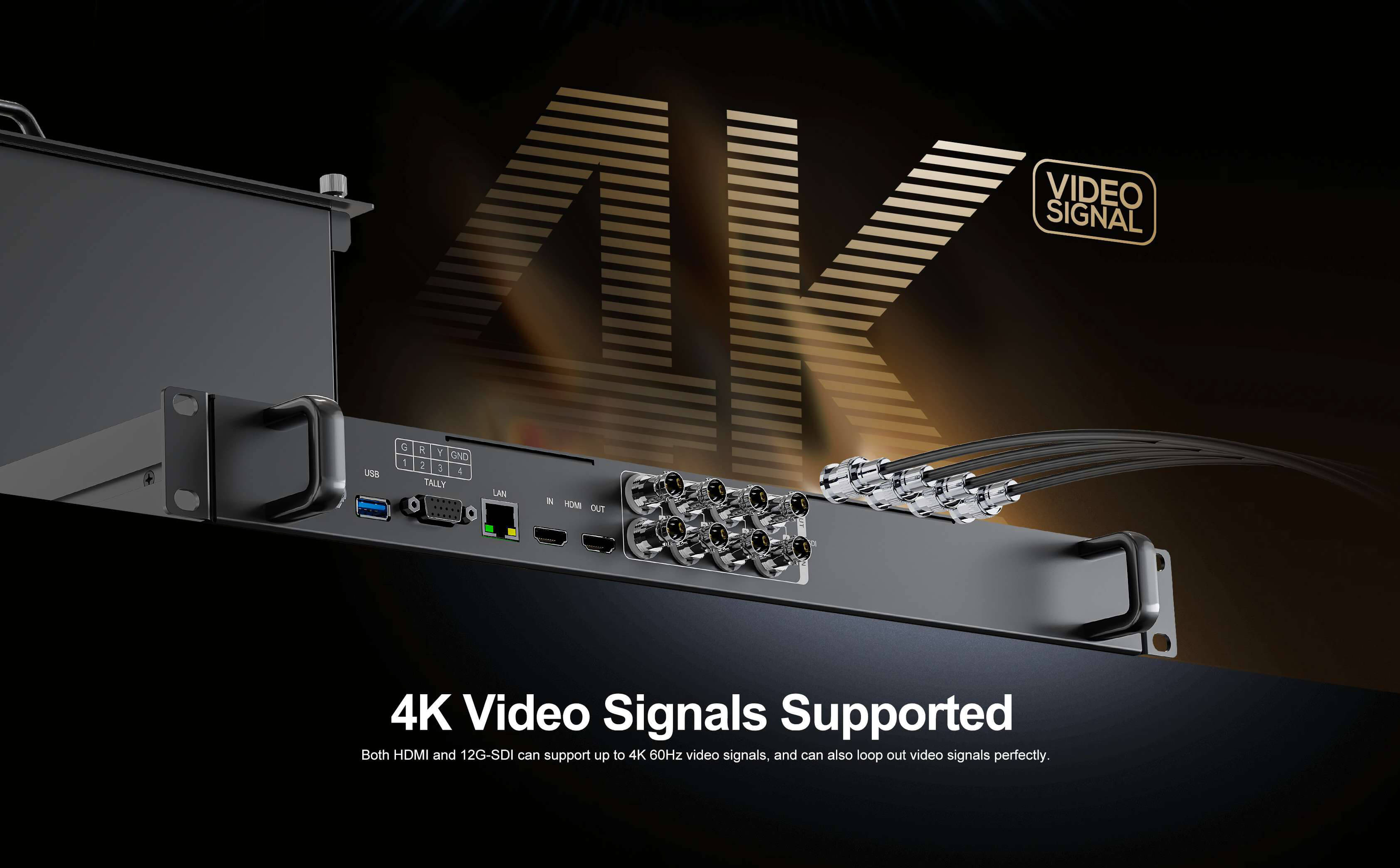

  • 4x 12G-SDI, 1x HDMI 2.0, up to 2160p 60Hz on all inputs

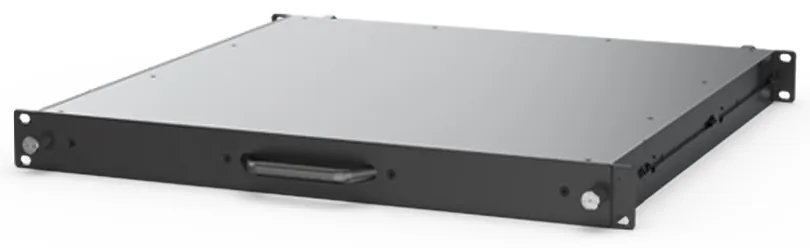

  • 1U rack height (44 mm), 19 inch standard rack mounting

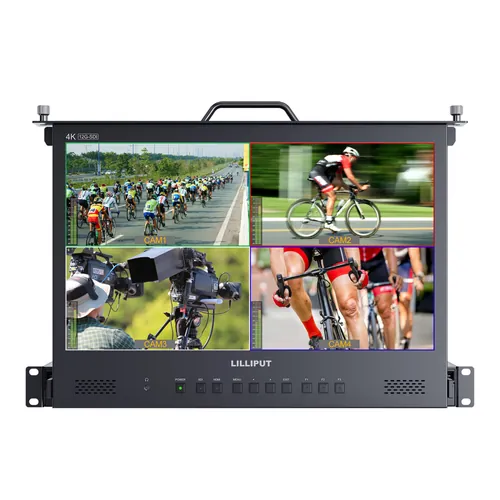

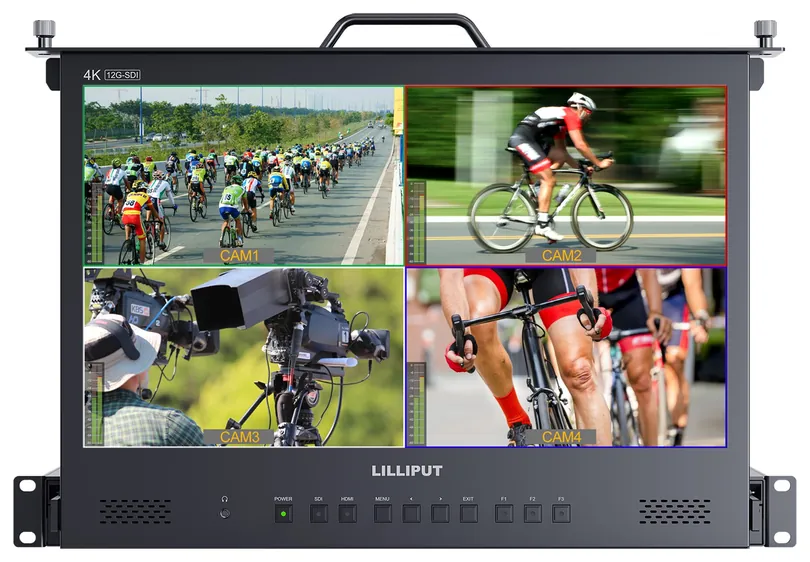

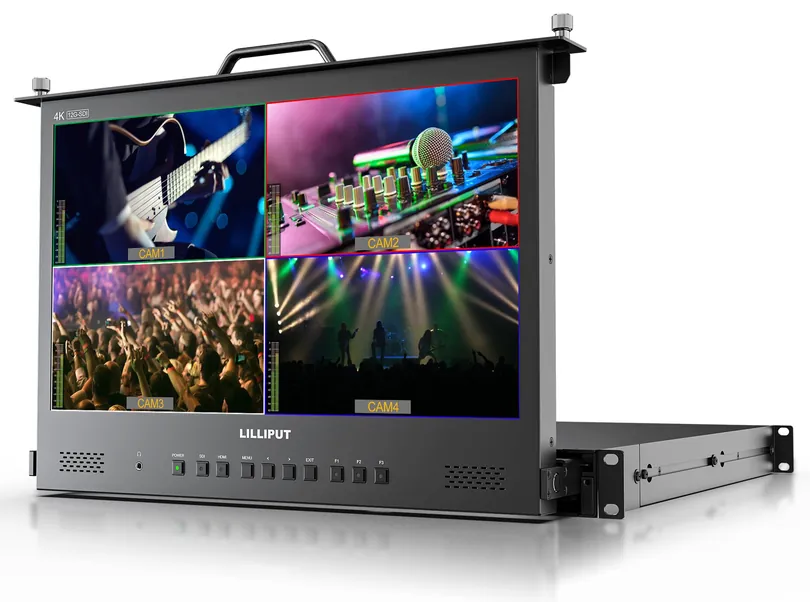

  • Quad-View MV mode: monitor 4 sources (SDI1 to 4 or HDMI) simultaneously
  • TALLY connector; HDR (ST2084, HLG); 3D LUT (.cube); Rec.709 calibration
  • Waveform, Vectorscope, Histogram, Level Meter; LAN for remote control

Buy the RM-1731S-12G From an Authorised Reseller

Lilliput's authorised resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the RM-1731S-12G now, or if your country is not listed, browse all authorised resellers here.

Technical Data

Display

Screen size
17.3 inch
Aspect ratio
16:9
Native resolution
1920 x 1080
Panel type
IPS
Brightness
300 cd/m²
Contrast
1200:1
Viewing angle
170°/170° (H/V)

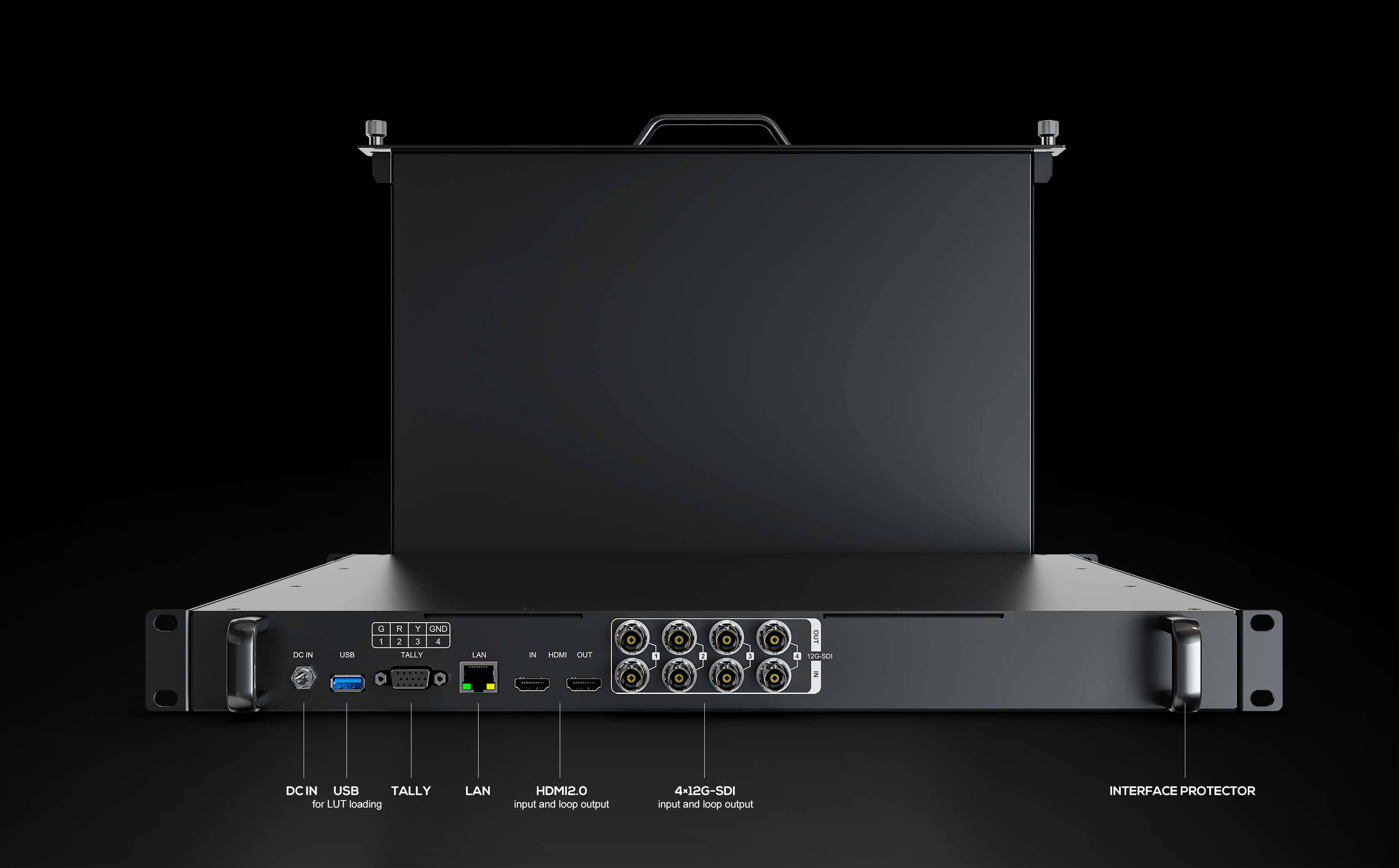

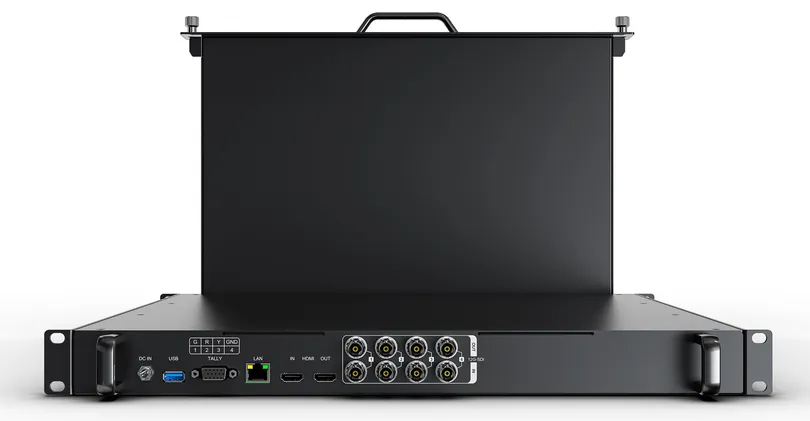

Connections

Video inputs
4x 12G-SDI, 1x HDMI 2.0
Video outputs
4x 12G-SDI, 1x HDMI 2.0
Audio
3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 2x Built-in speakers

Video Standards

HDMI 2.0
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
12G-SDI
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60

Scopes

Video analysis
Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Time code (LTC, VITC), Check field, Freeze, Colour bar
Audio analysis
Level meter

Operational Features

Remote control
GPI, LAN, RS422 In/Out
Tally
TALLY connector
View modes
Quad-View
Markers
Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 1.5X, 2.0X, 2.0X MAG, Grid; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off

Power

Input voltage
DC 12 to 24V
Power consumption
≤19 W (12V)

Environmental

Operating temperature
0°C to 50°C
Storage temperature
-20°C to 60°C

Mechanical

Dimensions
482.5 x 44 x 507.5 mm
Weight
10.1 kg
Rack height
1U

Mounting

Rack mount

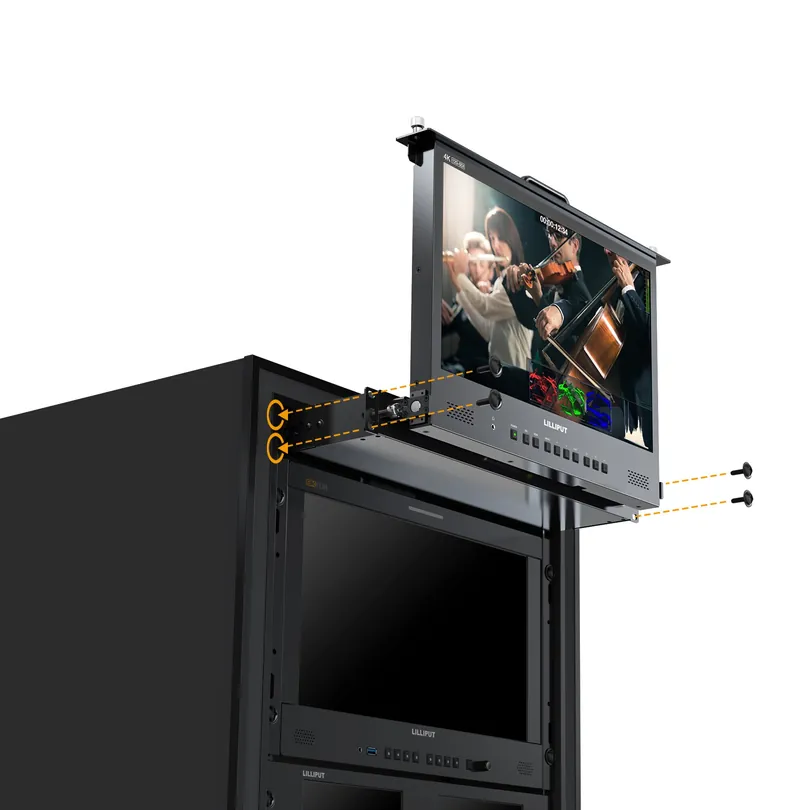

1U rack height (44 mm), 19 inch standard rack mounting

Accessories

Included

  • 12V 3A DC Power Adapter
  • TALLY Connector
  • E-User Manual

Product Downloads

Similar Products

Compare key technical data across similar products.

Technical Data RM-1731S-12G RM-1731 RM-1731S RM-7026-12G
Display
Screen size 17.3 inch 17.3 inch 17.3 inch 7 inch
Native resolution 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1200
Aspect ratio 16:9 16:9 16:9 16:10
Brightness 300 cd/m² 300 cd/m² 300 cd/m² 1000 cd/m²
Contrast 1200:1 800:1 800:1 1200:1
HDR — — — HLG, ST2084 300/1000/10000 cd/m²
Panel type IPS IPS IPS —
Panels — — — 2x
Viewing angle 170°/170° (H/V) 170°/170° (H/V) 170°/170° (H/V) 160°/160° (H/V)
Mechanical
Dimensions 482.5 x 44 x 507.5 mm 482.5 x 44 x 507.5 mm 482.5 x 44 x 507.5 mm 480 x 131.6 x 32.5 mm
Weight 10.1 kg 8.9 kg 8.9 kg 1.83 kg
Rack height 1U 1U 1U 3U
Connections
Video inputs 4x 12G-SDI, 1x HDMI 2.0 1x HDMI 2.0 1x 3G-SDI, 1x HDMI 2.0 2x 12G-SDI, 2x HDMI 2.0
Video outputs 4x 12G-SDI, 1x HDMI 2.0 1x HDMI 2.0 1x 3G-SDI, 1x HDMI 2.0 2x 12G-SDI, 2x HDMI 2.0
Audio 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 2x Built-in speakers HDMI 8ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 2x Built-in speakers 3G-SDI 12ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 2x Built-in speakers 3.5 mm ear jack
Video Standards
12G-SDI 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 — — 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50
3G-SDI — — 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 —
HDMI 2.0 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50
Power
Power consumption ≤19 W (12V) ≤14 W (12V) ≤14 W (12V) ≤21 W (12V)
Input voltage DC 12 to 24V DC 10 to 24V DC 10 to 24V DC 12 to 24V
Environmental
Operating temperature 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C
Storage temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C
Scopes
Audio analysis Level meter Level meter Level meter Level meter
Video analysis Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Time code (LTC, VITC), Check field, Freeze, Colour bar Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Check field, Freeze, Colour bar Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Time code (LTC, VITC), Check field, Freeze, Colour bar Waveform (Y, YCbCr, RGB), Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Time code (LTC, VITC), Check field, Freeze, Colour bar
Operational Features
Markers Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 1.5X, 2.0X, 2.0X MAG, Grid; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 1.5X, 2.0X, 2.0X MAG, Grid; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
Remote control GPI, LAN, RS422 In/Out LAN LAN LAN
Tally TALLY connector TALLY connector TALLY connector TALLY connector
View modes Quad-View — — —
Accessories
Included 12V 3A DC Power Adapter, TALLY Connector, E-User Manual 12V 2A DC Power Adapter, TALLY Connector, E-User Manual 12V 2A DC Power Adapter, TALLY Connector, E-User Manual 12V 3A Power Adapter, TALLY Connector, E-User Manual
Mounting
Rack mount 1U rack height (44 mm), 19 inch standard rack mounting 1U rack height (44 mm), 19 inch standard rack mounting 1U rack height (44 mm), 19 inch standard rack mounting 3U rack height (131.6 mm), 19 inch standard rack mounting
