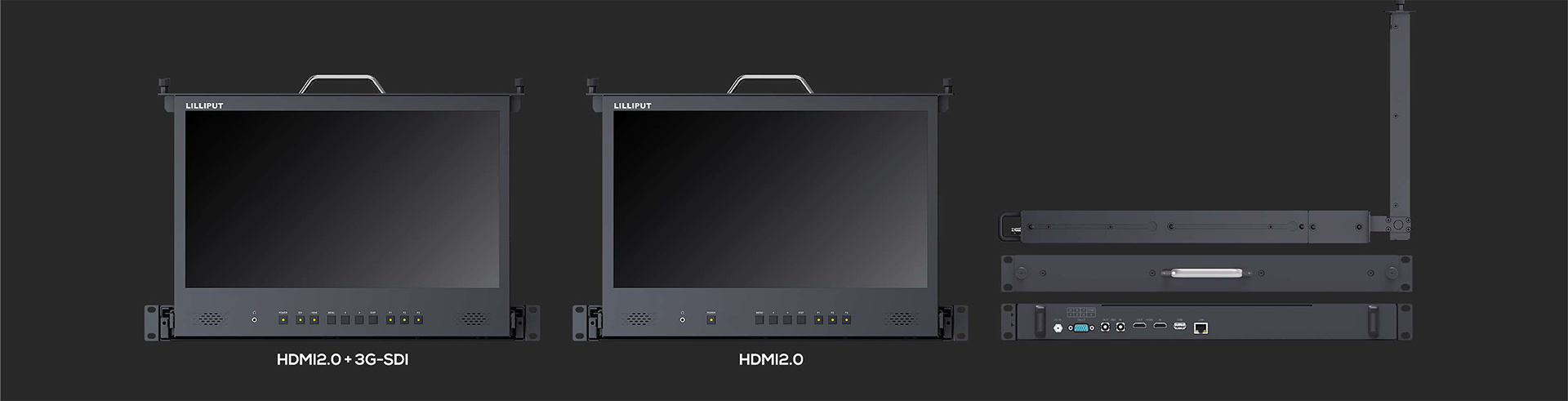

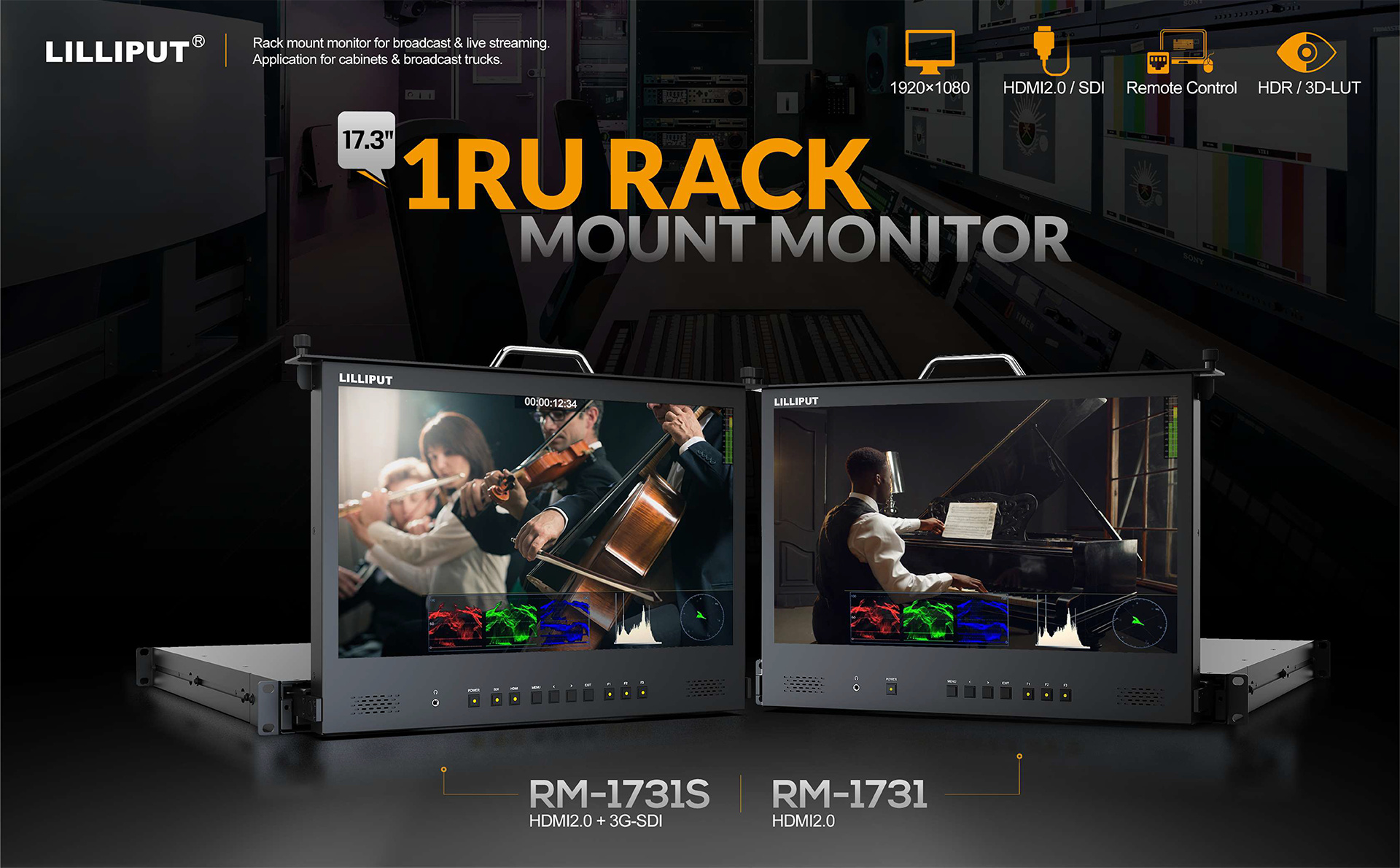

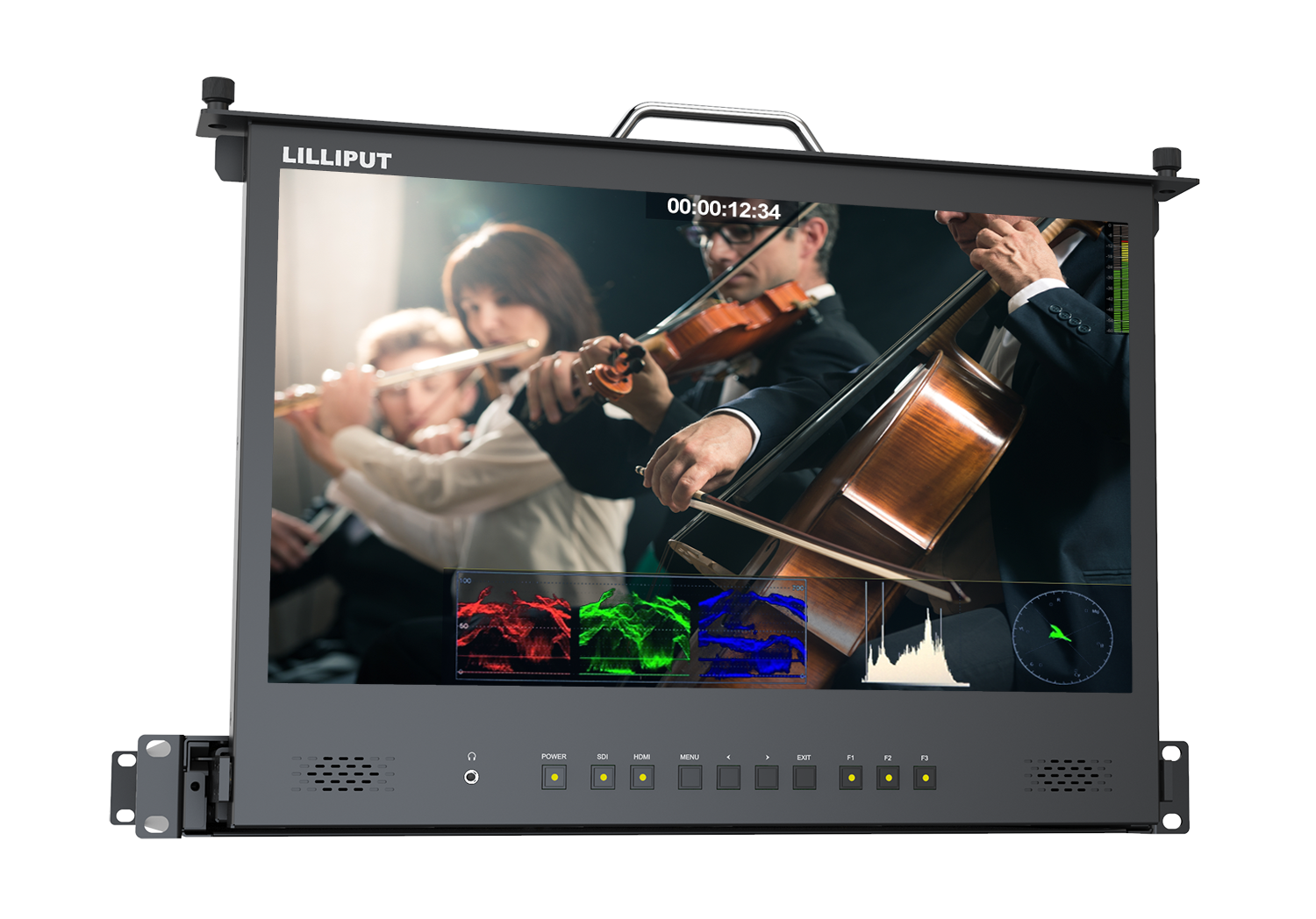

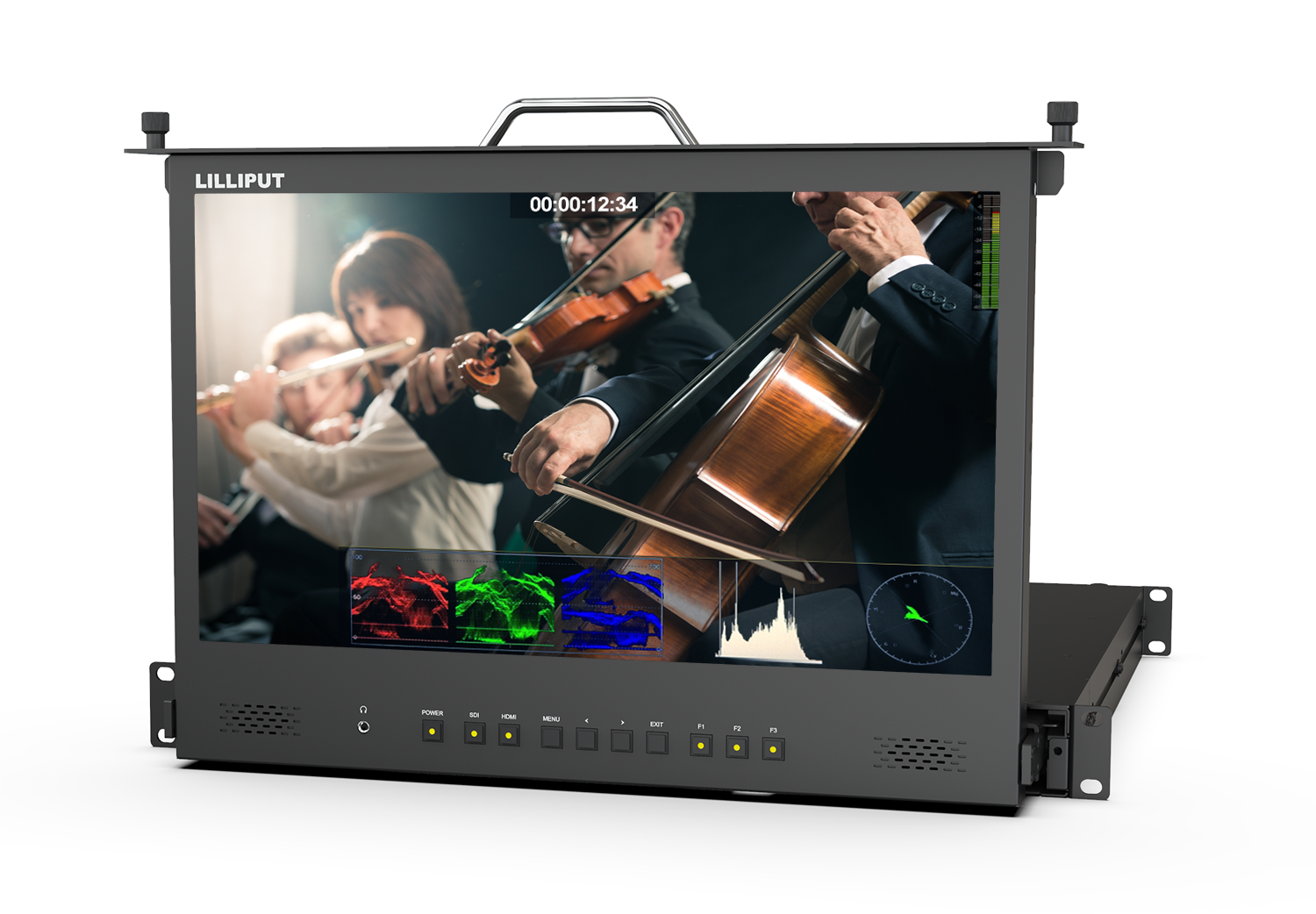

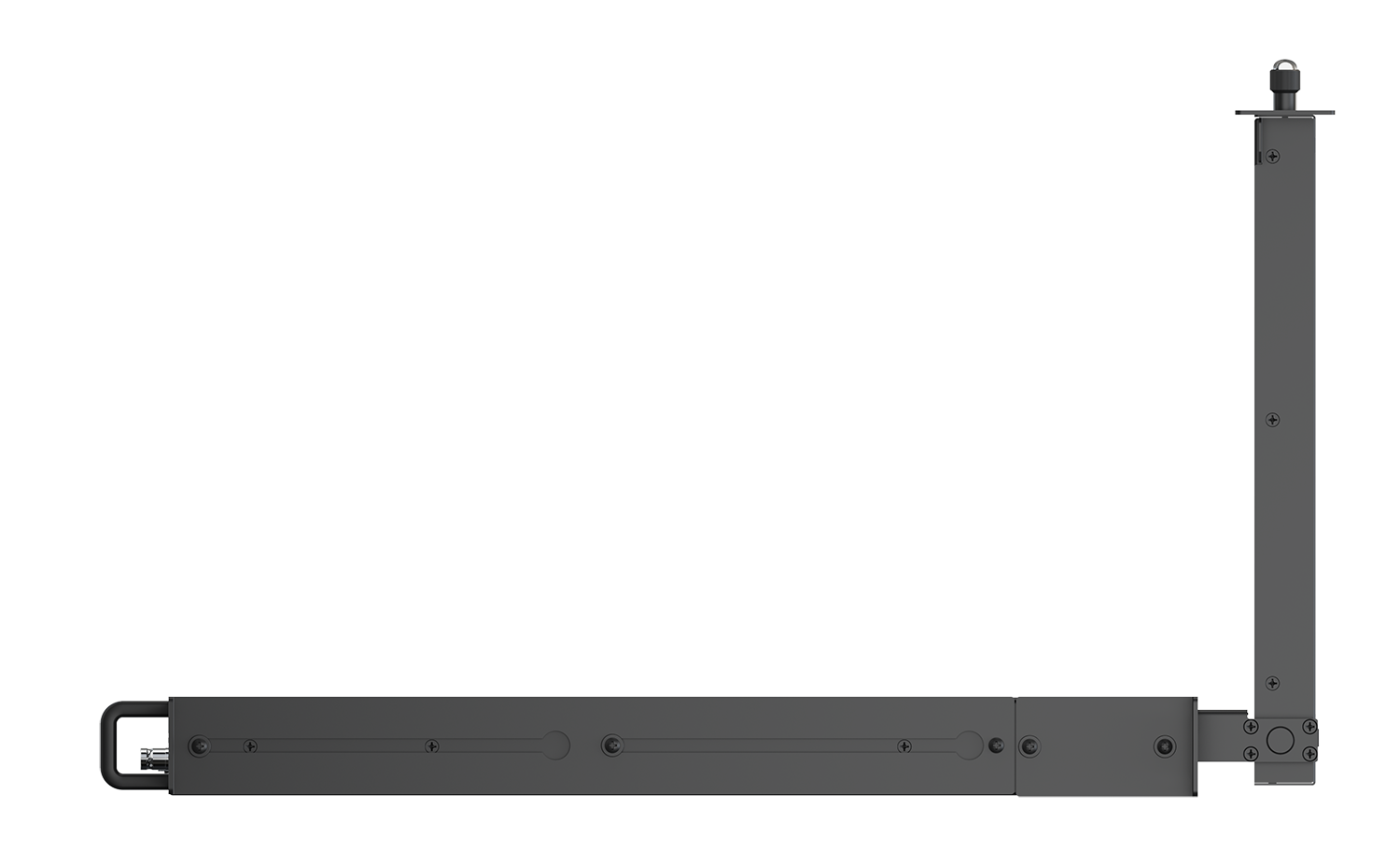

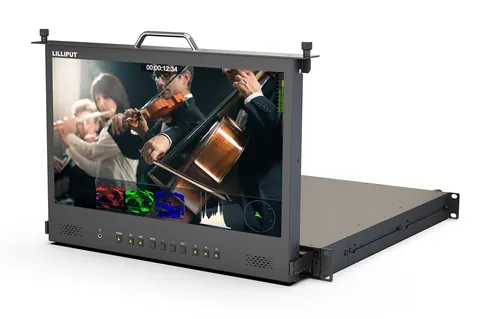

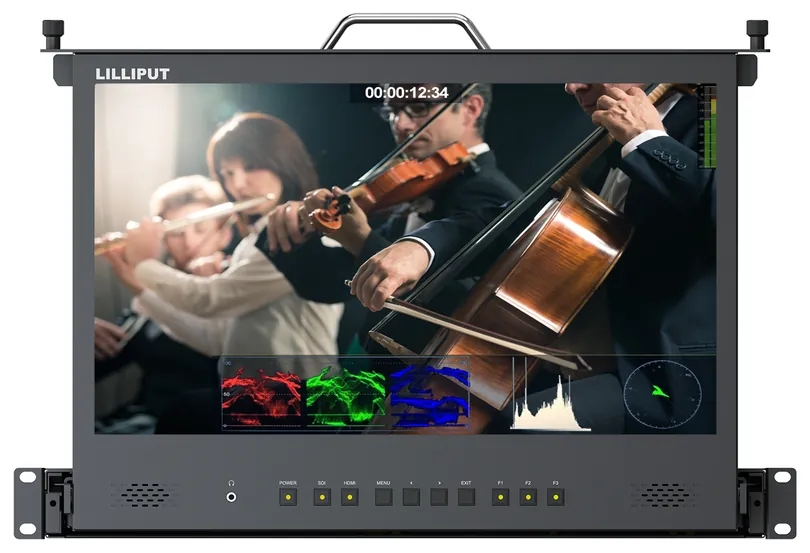

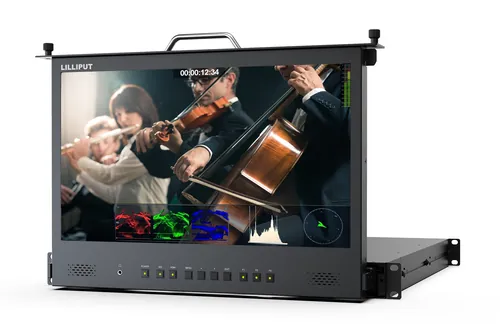

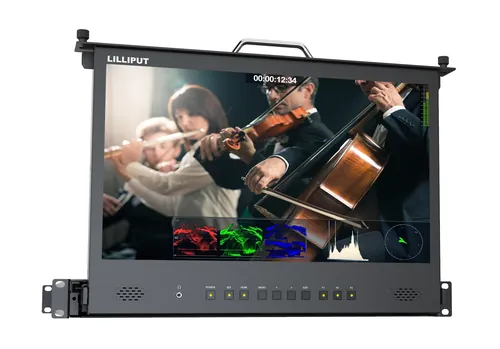

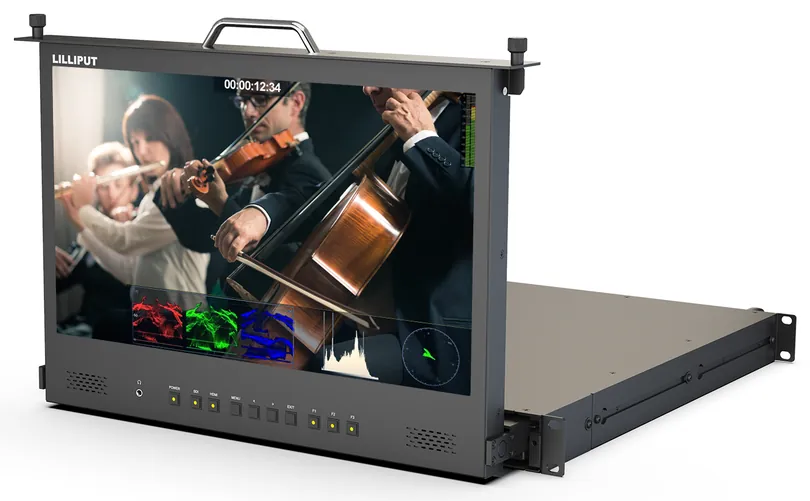

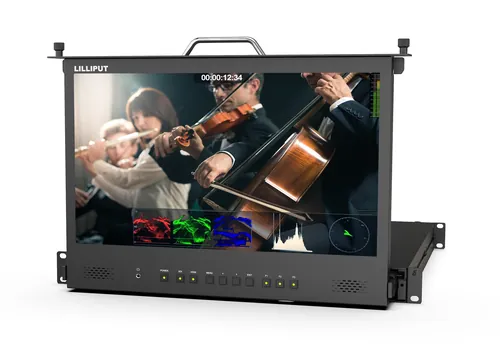

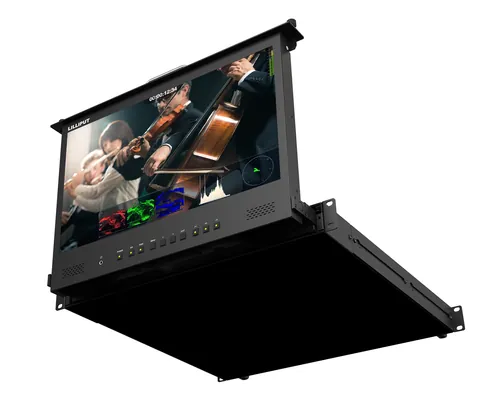

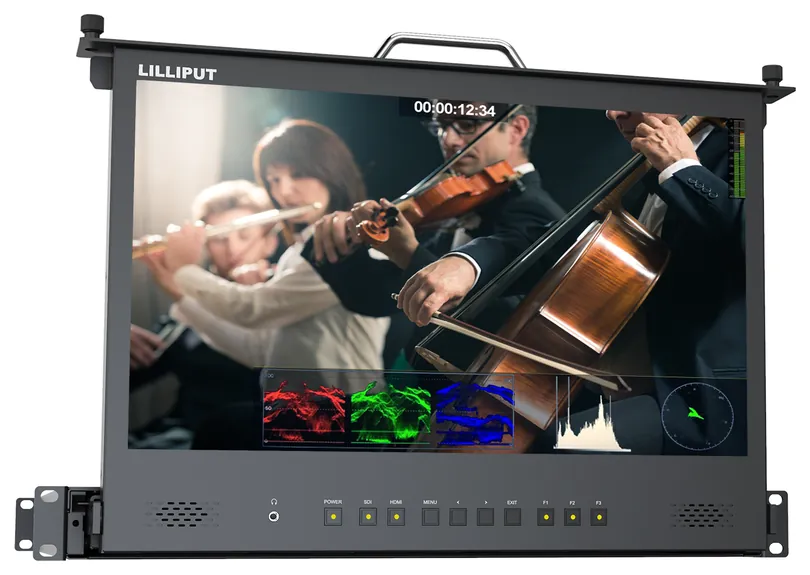

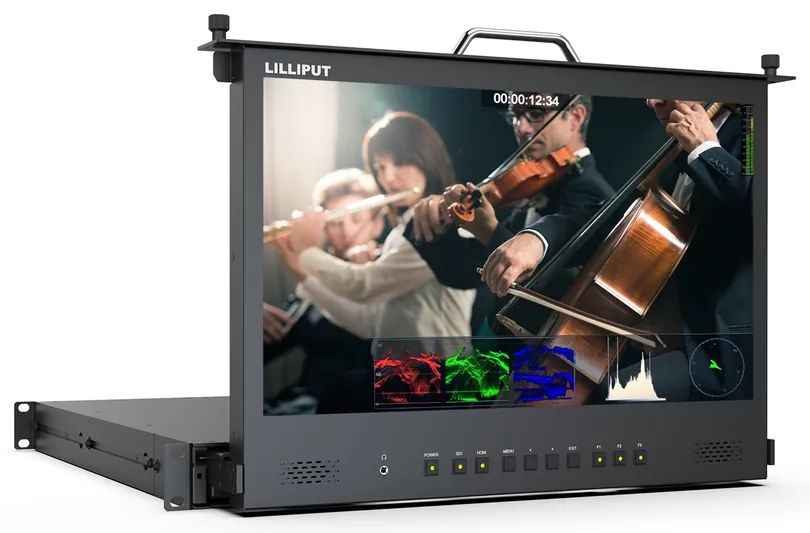

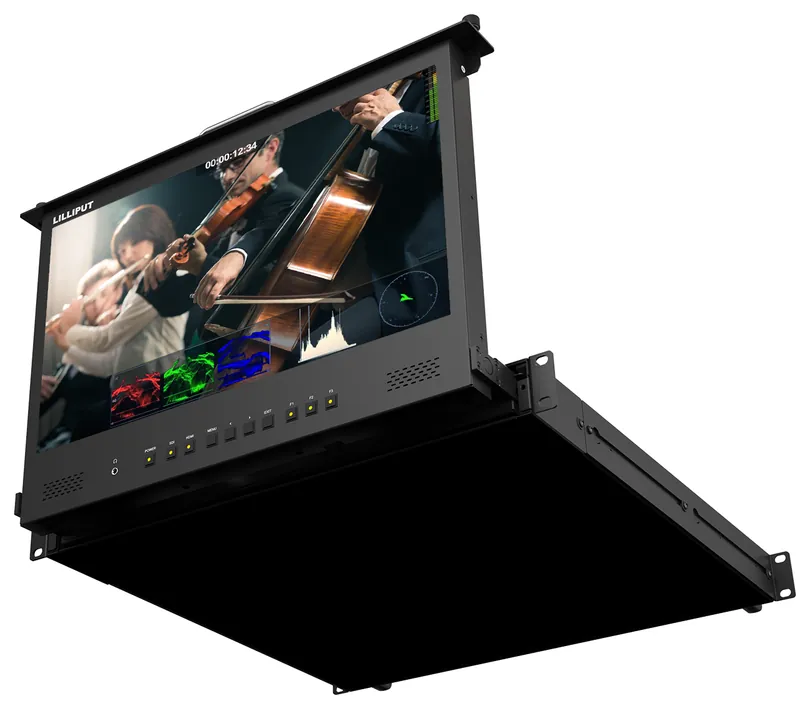

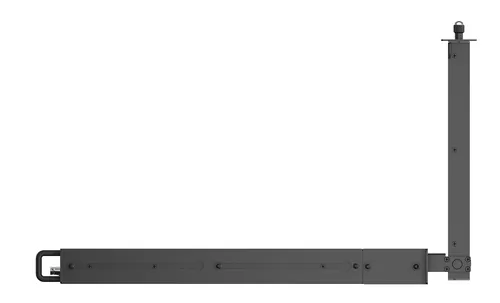

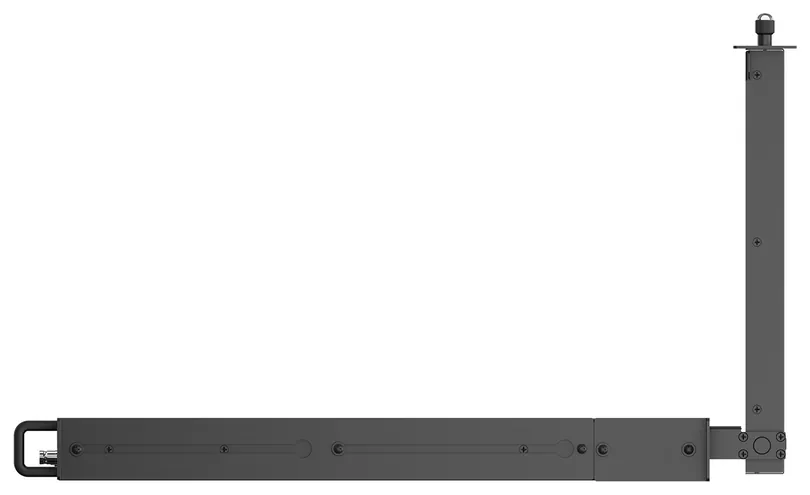

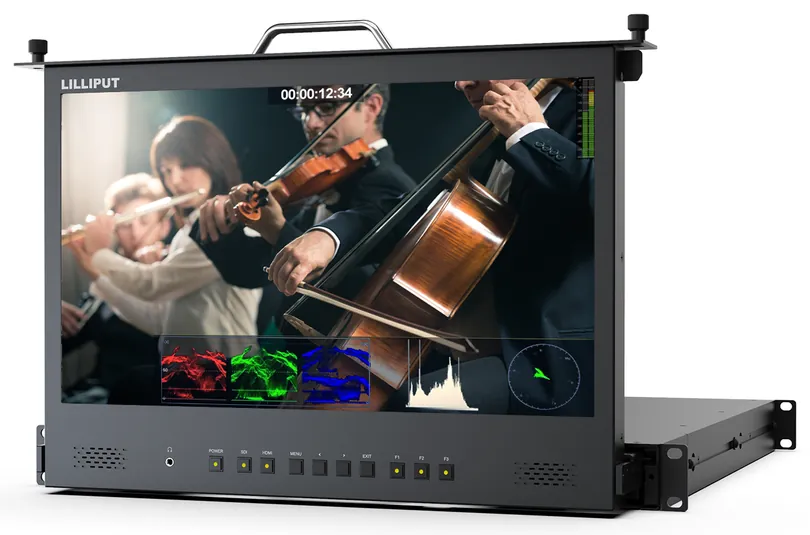

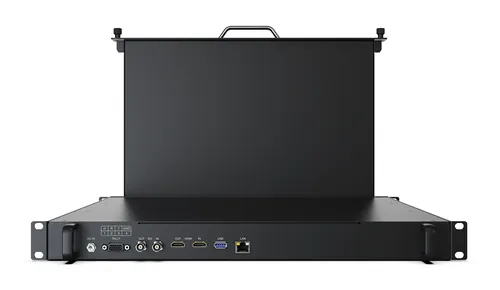

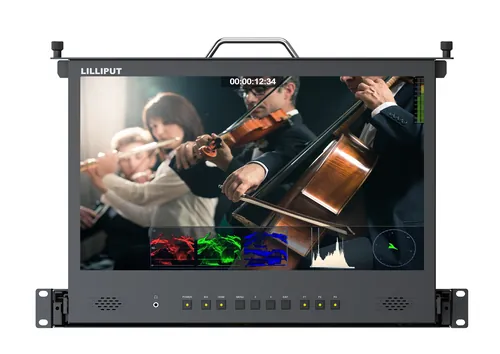

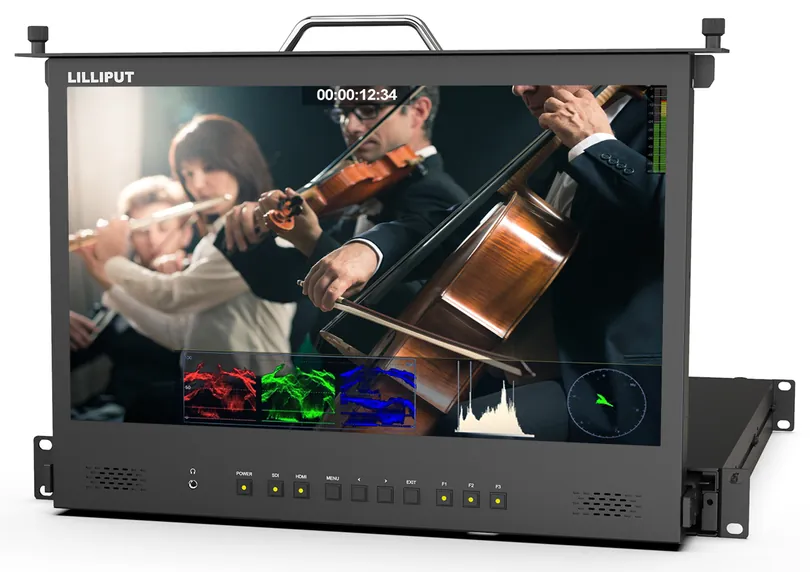

RM-1731S, product overview RM-1731S, view 2 RM-1731S, view 3 RM-1731S, view 4 RM-1731S, view 5 RM-1731S, view 6 RM-1731S, view 7

Key Features

  • 17.3 inch 1920 x 1080 display, 300 cd/m², 800:1 contrast
  • 1x 3G-SDI, 1x HDMI 2.0, up to 2160p 60Hz via HDMI

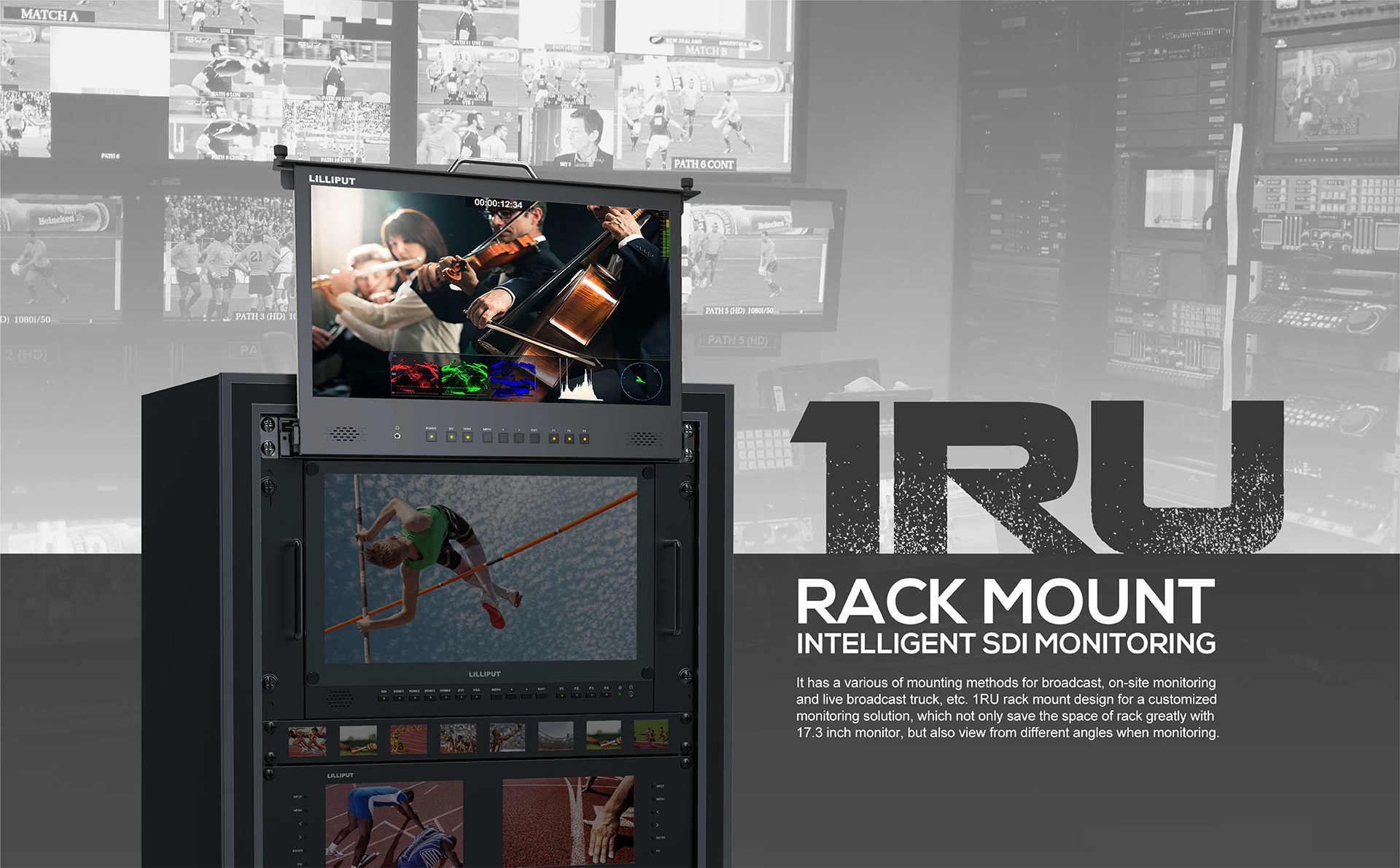

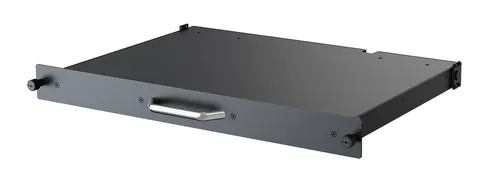

  • 1U rack height (44 mm), 19 inch standard rack mounting
  • TALLY connector; LAN for remote control
  • 3G-SDI and HDMI audio: 12ch/8ch 48kHz 24-bit; built-in speakers

Buy the RM-1731S From an Authorised Reseller

Lilliput's authorised resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the RM-1731S now, or if your country is not listed, browse all authorised resellers here.

Technical Data

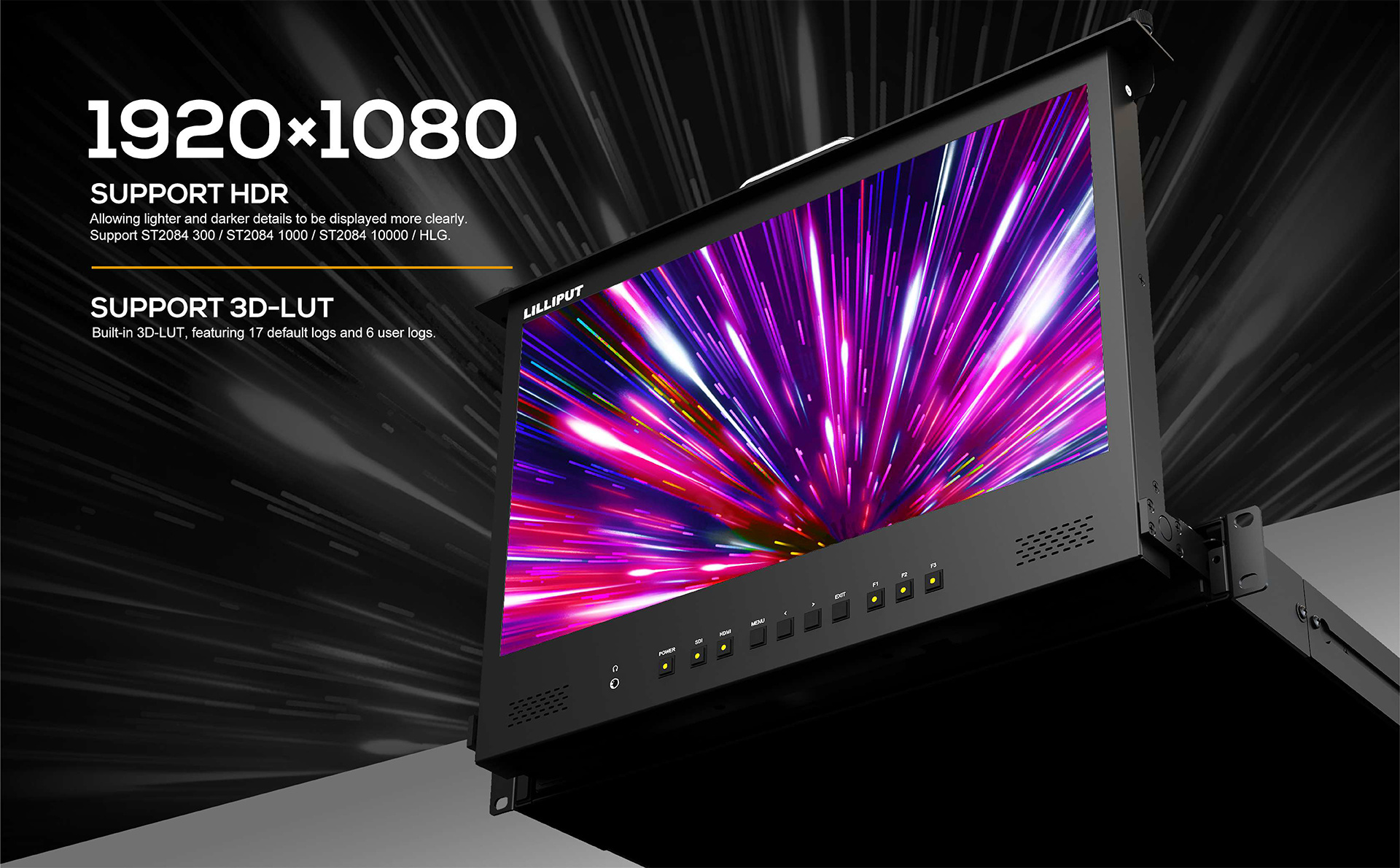

Display

Screen size
17.3 inch
Aspect ratio
16:9
Native resolution
1920 x 1080
Panel type
IPS
Brightness
300 cd/m²
Contrast
800:1
Viewing angle
170°/170° (H/V)

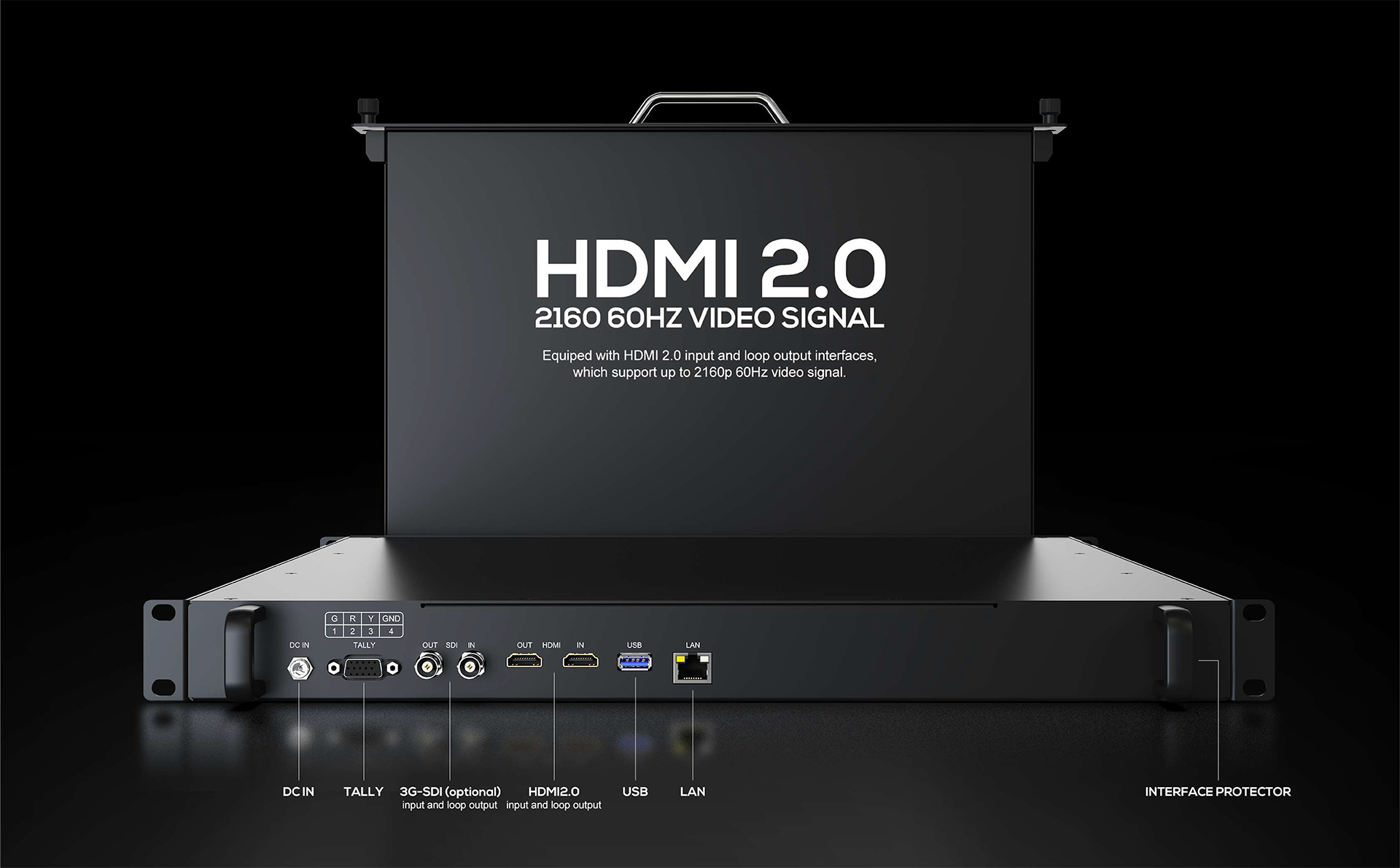

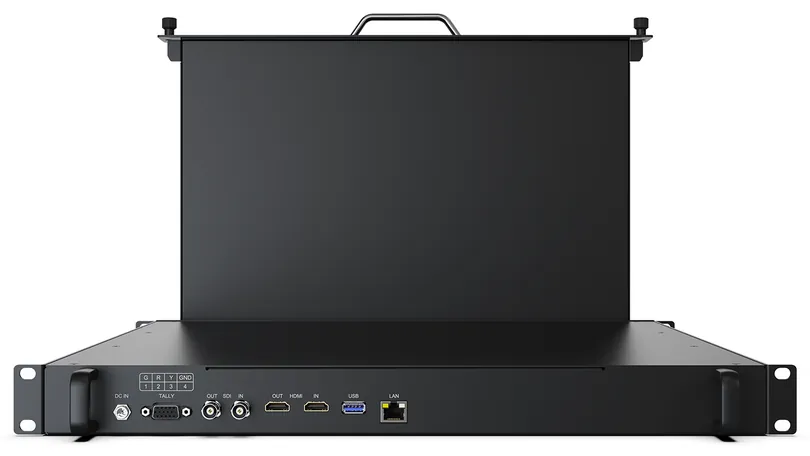

Connections

Video inputs
1x 3G-SDI, 1x HDMI 2.0
Video outputs
1x 3G-SDI, 1x HDMI 2.0
Audio
3G-SDI 12ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 2x Built-in speakers

Video Standards

3G-SDI
1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 2.0
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60

Scopes

Video analysis
Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Time code (LTC, VITC), Check field, Freeze, Colour bar
Audio analysis
Level meter

Operational Features

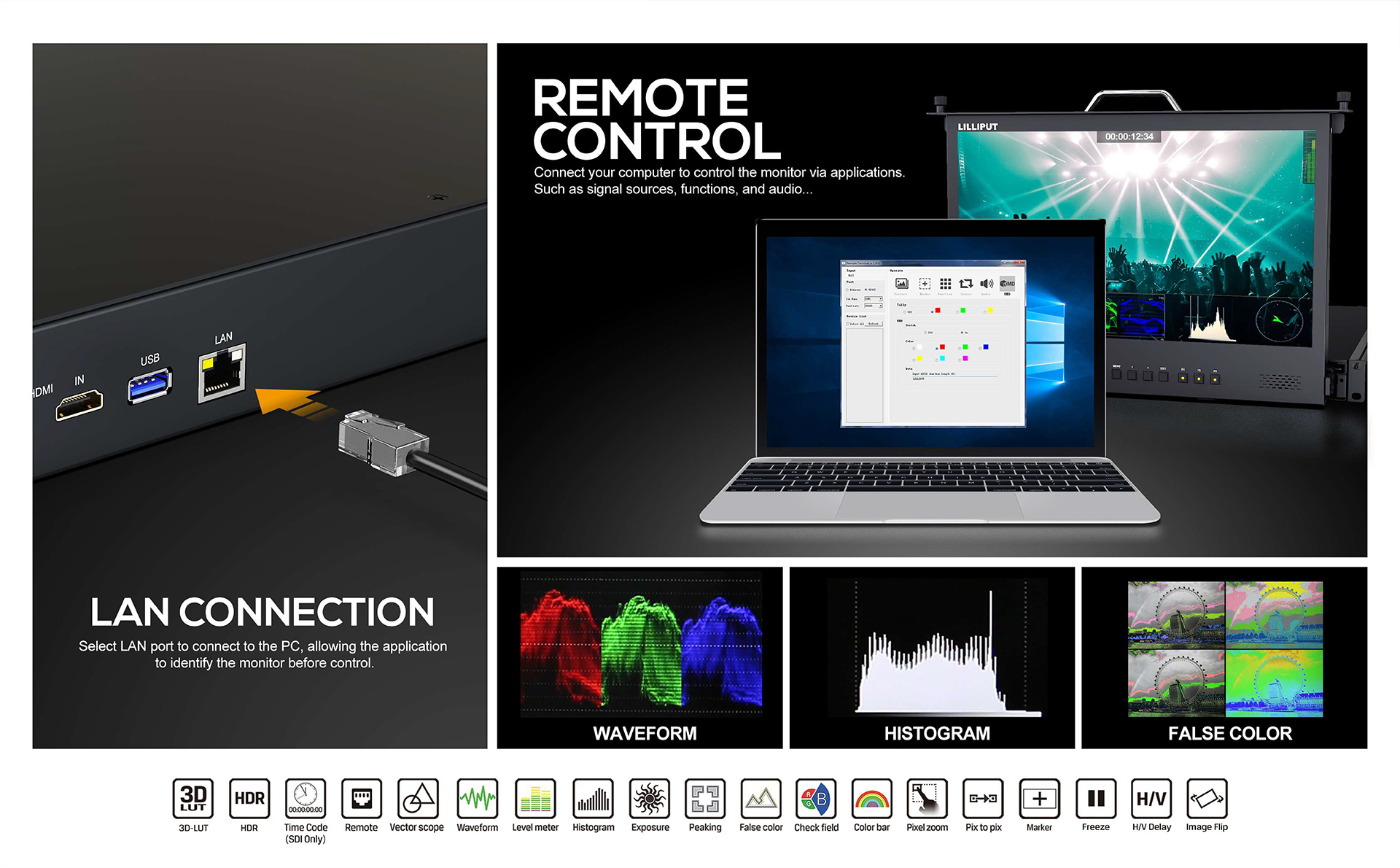

Remote control
LAN
Tally
TALLY connector
Markers
Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off

Power

Input voltage
DC 10 to 24V
Power consumption
≤14 W (12V)

Environmental

Operating temperature
0°C to 50°C
Storage temperature
-20°C to 60°C

Mechanical

Dimensions
482.5 x 44 x 507.5 mm
Weight
8.9 kg
Rack height
1U

Mounting

Rack mount

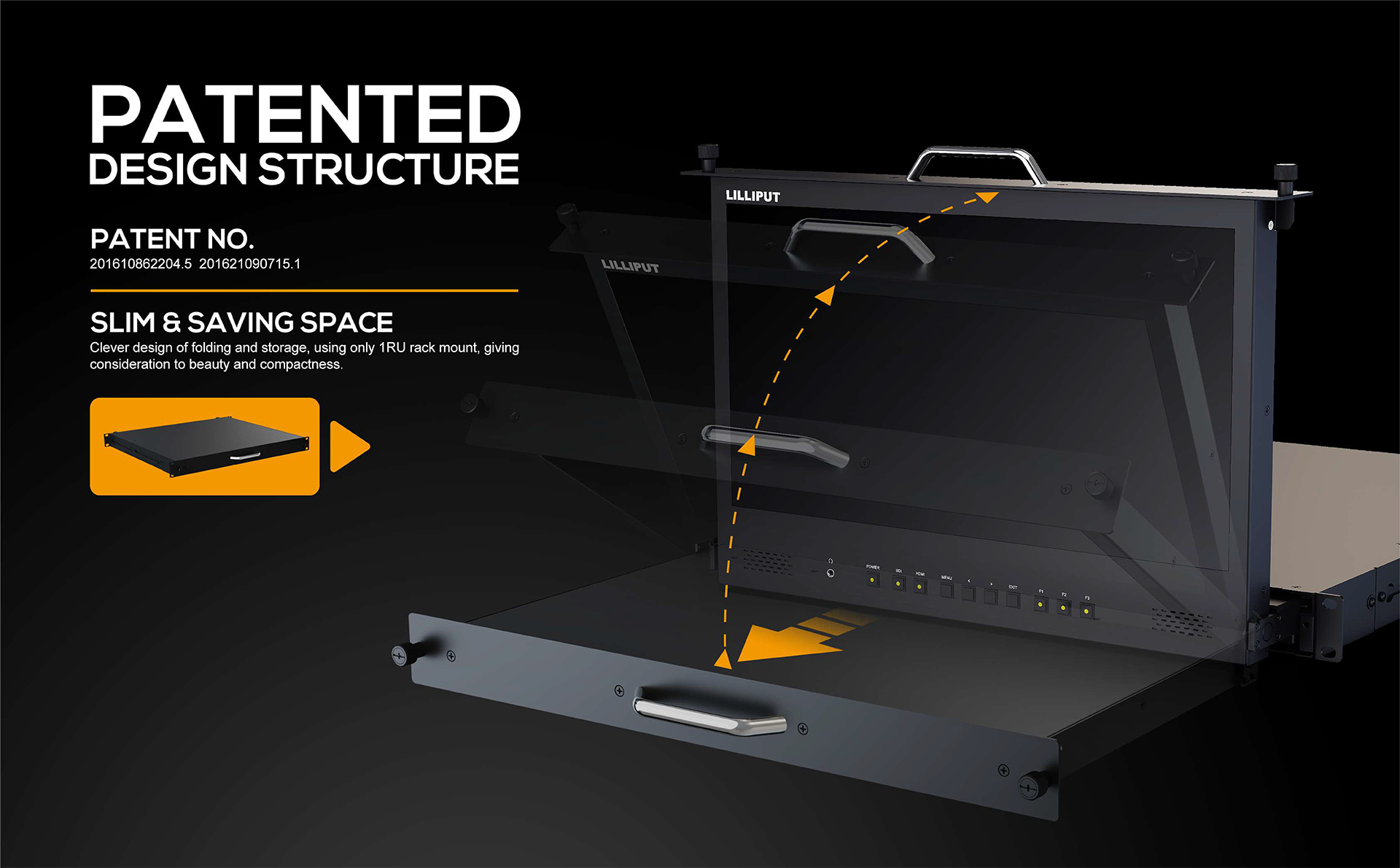

1U rack height (44 mm), 19 inch standard rack mounting

Accessories

Included

  • 12V 2A DC Power Adapter
  • TALLY Connector
  • E-User Manual

Product Downloads

Similar Products

Compare key technical data across similar products.

Technical Data RM-1731S RM-1731 RM-1731S-12G
Display
Screen size 17.3 inch 17.3 inch 17.3 inch
Native resolution 1920 x 1080 1920 x 1080 1920 x 1080
Aspect ratio 16:9 16:9 16:9
Brightness 300 cd/m² 300 cd/m² 300 cd/m²
Contrast 800:1 800:1 1200:1
Panel type IPS IPS IPS
Viewing angle 170°/170° (H/V) 170°/170° (H/V) 170°/170° (H/V)
Mechanical
Dimensions 482.5 x 44 x 507.5 mm 482.5 x 44 x 507.5 mm 482.5 x 44 x 507.5 mm
Weight 8.9 kg 8.9 kg 10.1 kg
Rack height 1U 1U 1U
Connections
Video inputs 1x 3G-SDI, 1x HDMI 2.0 1x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.0
Video outputs 1x 3G-SDI, 1x HDMI 2.0 1x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.0
Audio 3G-SDI 12ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 2x Built-in speakers HDMI 8ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 2x Built-in speakers 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 2x Built-in speakers
Video Standards
12G-SDI — — 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
3G-SDI 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 — —
HDMI 2.0 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
Power
Power consumption ≤14 W (12V) ≤14 W (12V) ≤19 W (12V)
Input voltage DC 10 to 24V DC 10 to 24V DC 12 to 24V
Environmental
Operating temperature 0°C to 50°C 0°C to 50°C 0°C to 50°C
Storage temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C
Operational Features
Markers Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 1.5X, 2.0X, 2.0X MAG, Grid; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
Remote control LAN LAN GPI, LAN, RS422 In/Out
Tally TALLY connector TALLY connector TALLY connector
View modes — — Quad-View
Scopes
Audio analysis Level meter Level meter Level meter
Video analysis Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Time code (LTC, VITC), Check field, Freeze, Colour bar Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Check field, Freeze, Colour bar Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Time code (LTC, VITC), Check field, Freeze, Colour bar
Accessories
Included 12V 2A DC Power Adapter, TALLY Connector, E-User Manual 12V 2A DC Power Adapter, TALLY Connector, E-User Manual 12V 3A DC Power Adapter, TALLY Connector, E-User Manual
Mounting
Rack mount 1U rack height (44 mm), 19 inch standard rack mounting 1U rack height (44 mm), 19 inch standard rack mounting 1U rack height (44 mm), 19 inch standard rack mounting
