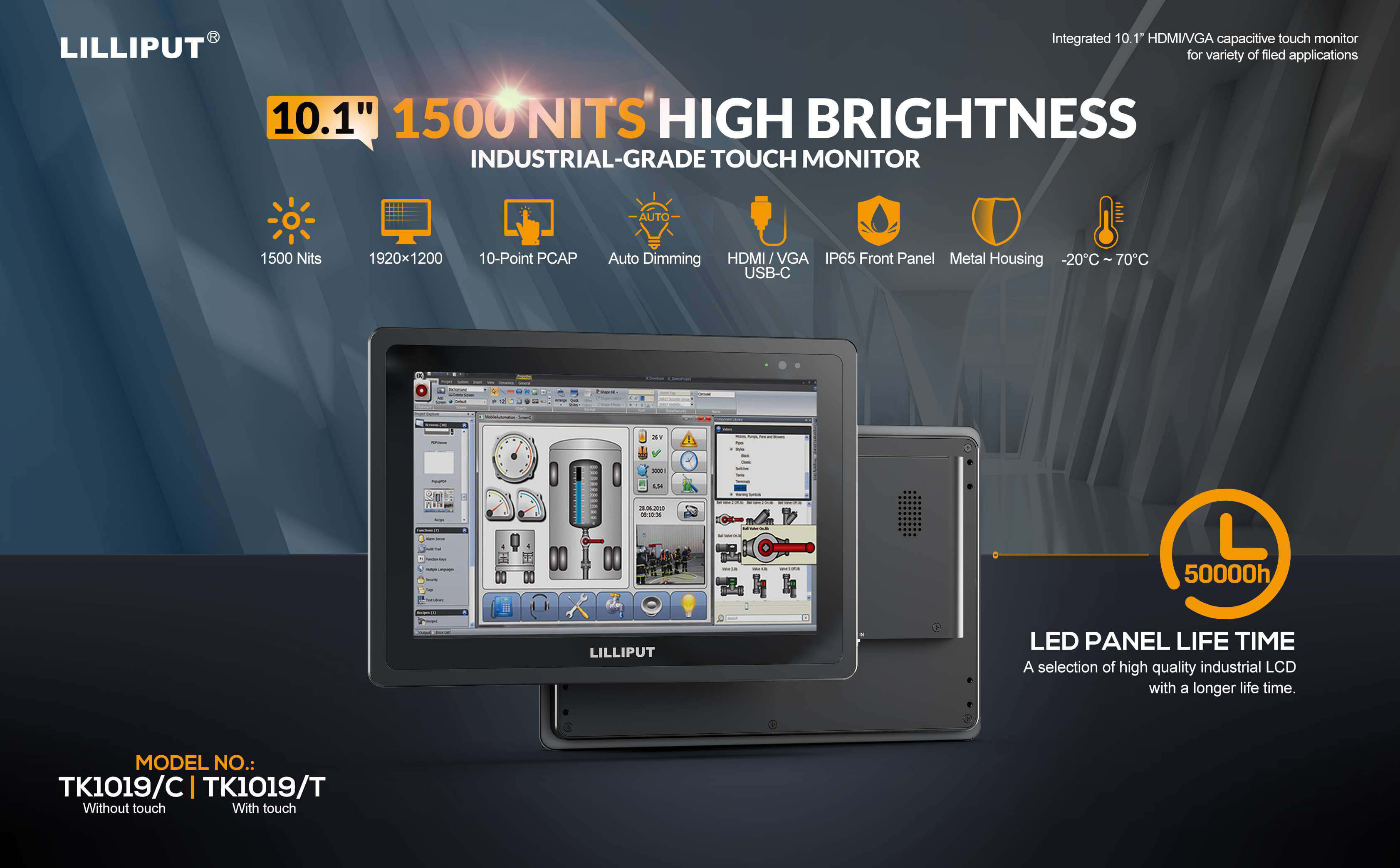

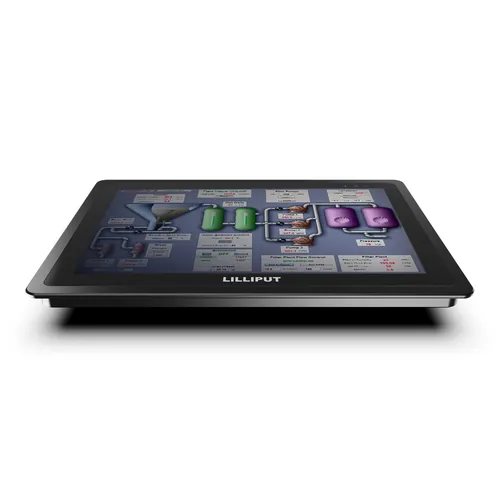

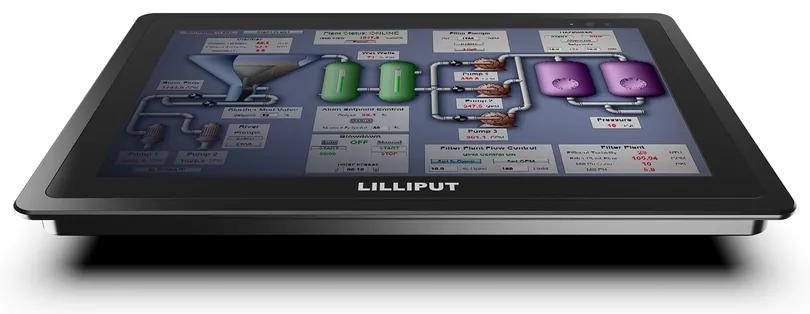

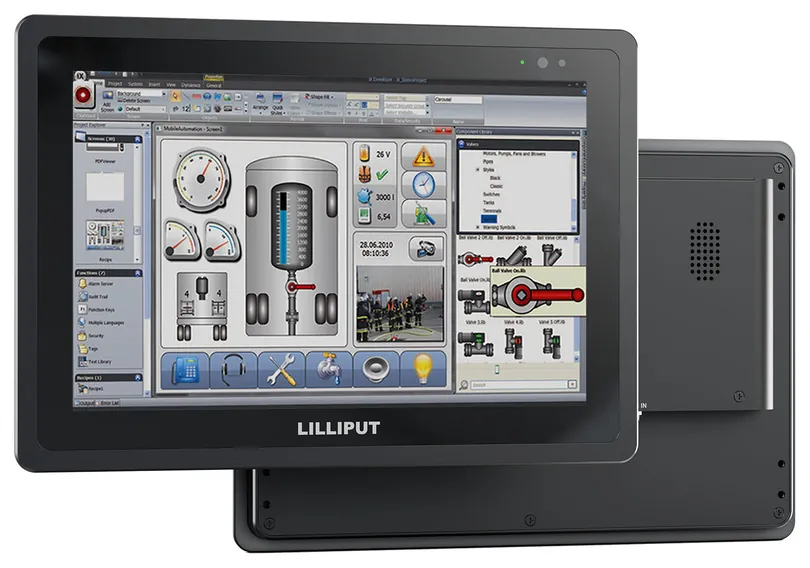

10.1 inch open frame monitor with IP65 and IK07 protection. Available with touch screen. For kiosks and industrial applications.
10.1 inch open frame monitor with IP65 and IK07 protection. Available with touch screen. For kiosks and industrial applications.
Key Specifications
- 10.1"
- 1920 x 1200
- PCAP
- HDMI 1.4
- VGA
- IP65
- IK07
- 7H hardness
- VESA 75
Discover TK1019
Key Features
- 10.1 inch open frame monitor with 10-point PCAP touch screen (optional)
- 1920 x 1200 LCD, 1500 cd/m², 1000:1 contrast, 16:10
- 1x HDMI 1.4b, 1x VGA, USB-C (touch, video, power) on touch variant
- HDMI 4K 30Hz passthrough
- IP65 front panel (water and dust resistant)
- DC 12 to 24V, ≤19 W; -20°C to 70°C operating
- 264 x 183 x 35.6 mm; 1.31 kg; VESA 75 mm
Product Enquiry
Request a quote or ask a question about the TK1019. Our UK team will respond promptly.
Technical Data
Display
- Screen size
- 10.1 inch
- Aspect ratio
- 16:10
- Native resolution
- 1920 x 1200
- Panel type
- LCD

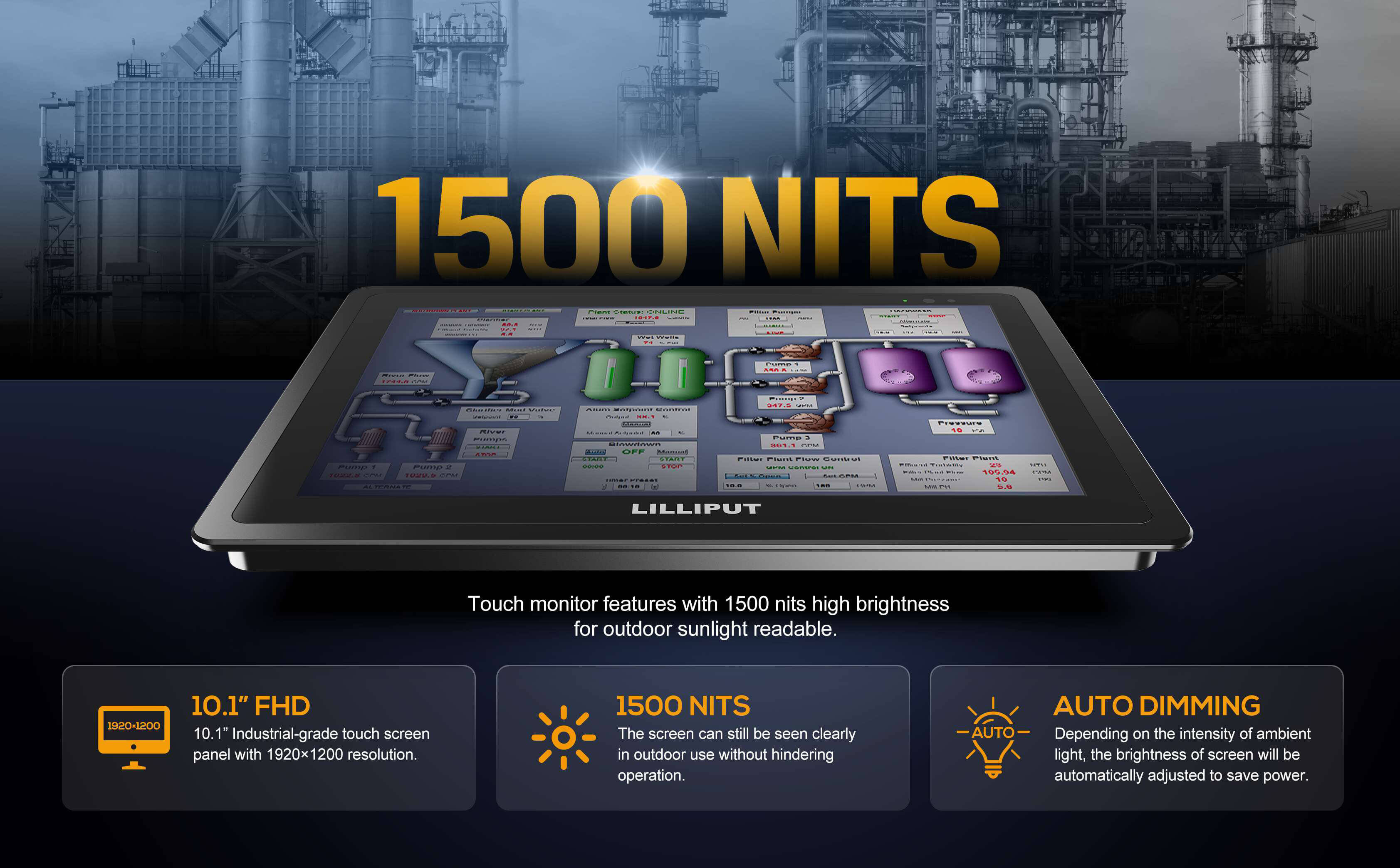

- Brightness
- 1500 cd/m²
- Contrast
- 1000:1
- Viewing angle
- 170°/170° (H/V)
- Signal response time
- 20 ms
- Maximum refresh rate
- 60 Hz

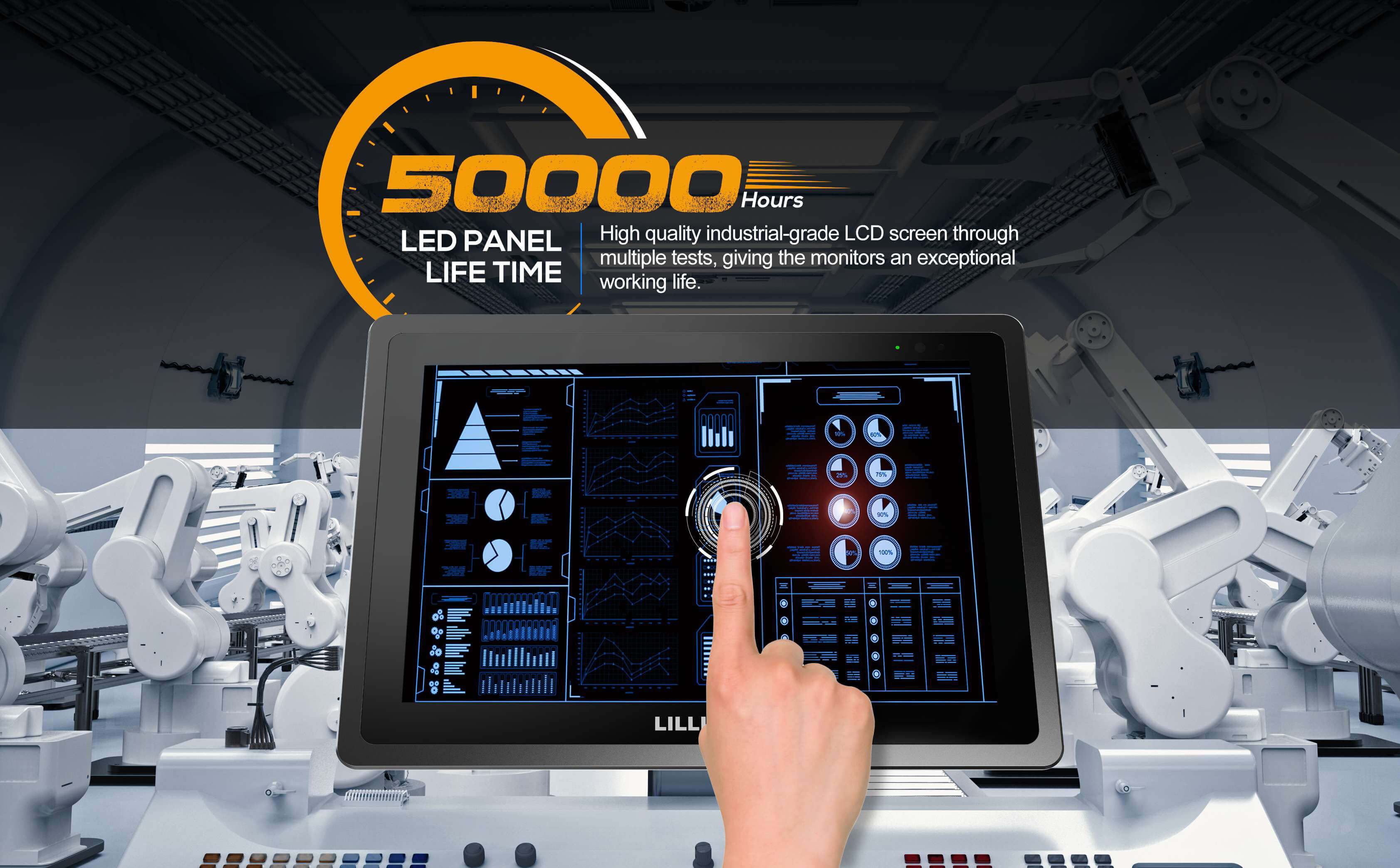

- LED lifetime
- 50,000 h
- Touch screen
- 10-point PCAP (optional)

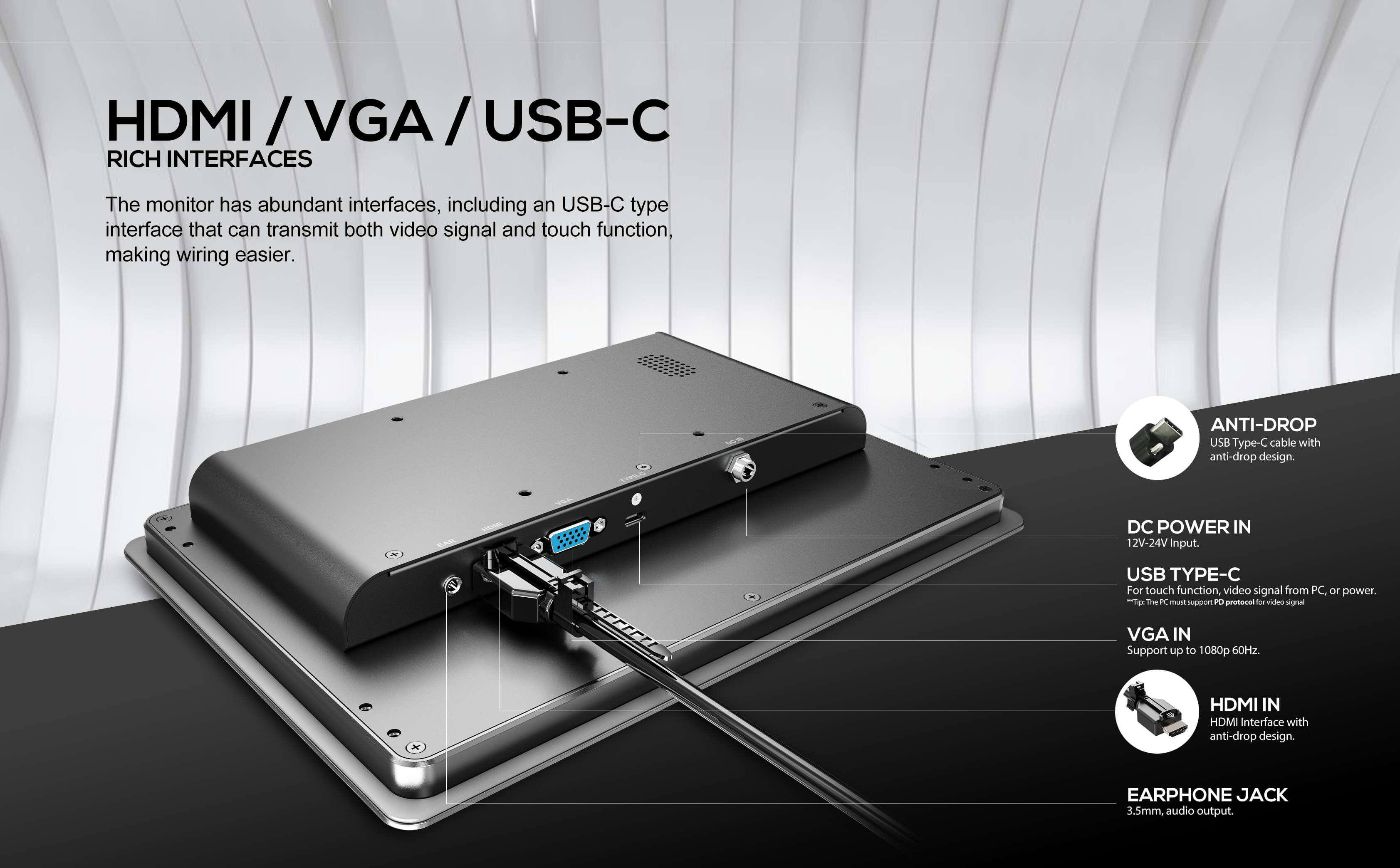

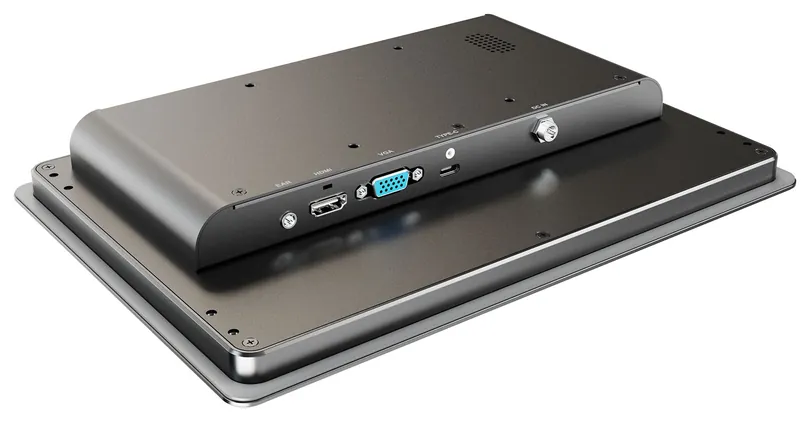

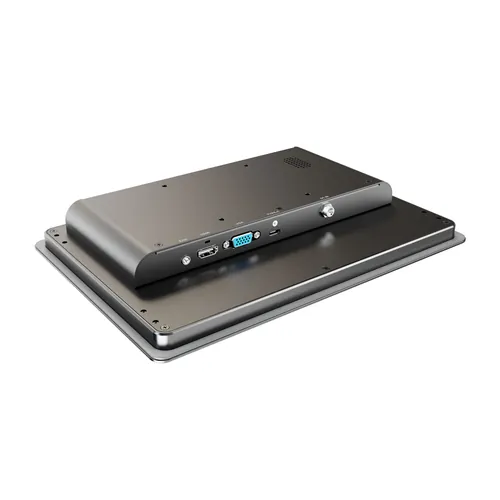

Connections
- Video inputs
- 1x HDMI 1.4b, 1x VGA
- Audio
- 1x Built-in speaker, HDMI audio, 3.5 mm ear jack (2ch 48kHz 24-bit)
- Additional connections
- 1x USB-C (touch, video, power) (optional)
Video Standards
- HDMI 1.4b
- 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- VGA
- 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
- USB Type-C
- 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
Operational Features
- Sensors
- Ambient light auto-dimming
Power
- Input voltage
- DC 12 to 24V
- Power consumption
- ≤19 W (12V)
Environmental

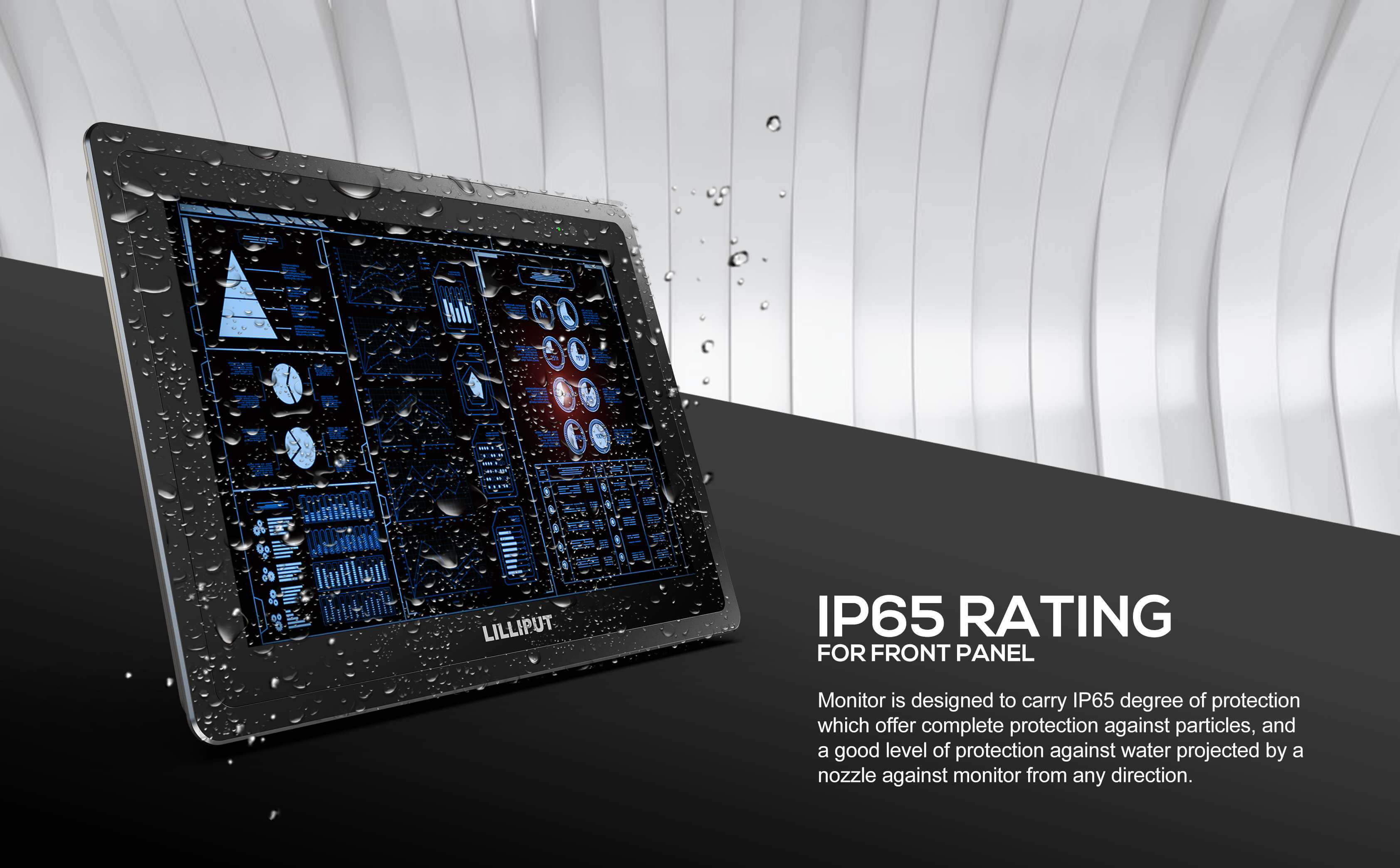

- IP rating
- IP65 front panel (IEC60529)
- IK rating
- IK07 (IEC62262/EN62262)
- Hardness
- 7H
- Operating temperature
- -20°C to 70°C
- Storage temperature
- -30°C to 80°C
Mechanical
- Material
- Front panel: Glass; Rear panel: Metal
- Dimensions
- 264 x 183 x 35.6 mm
- Weight
- 1.31 kg

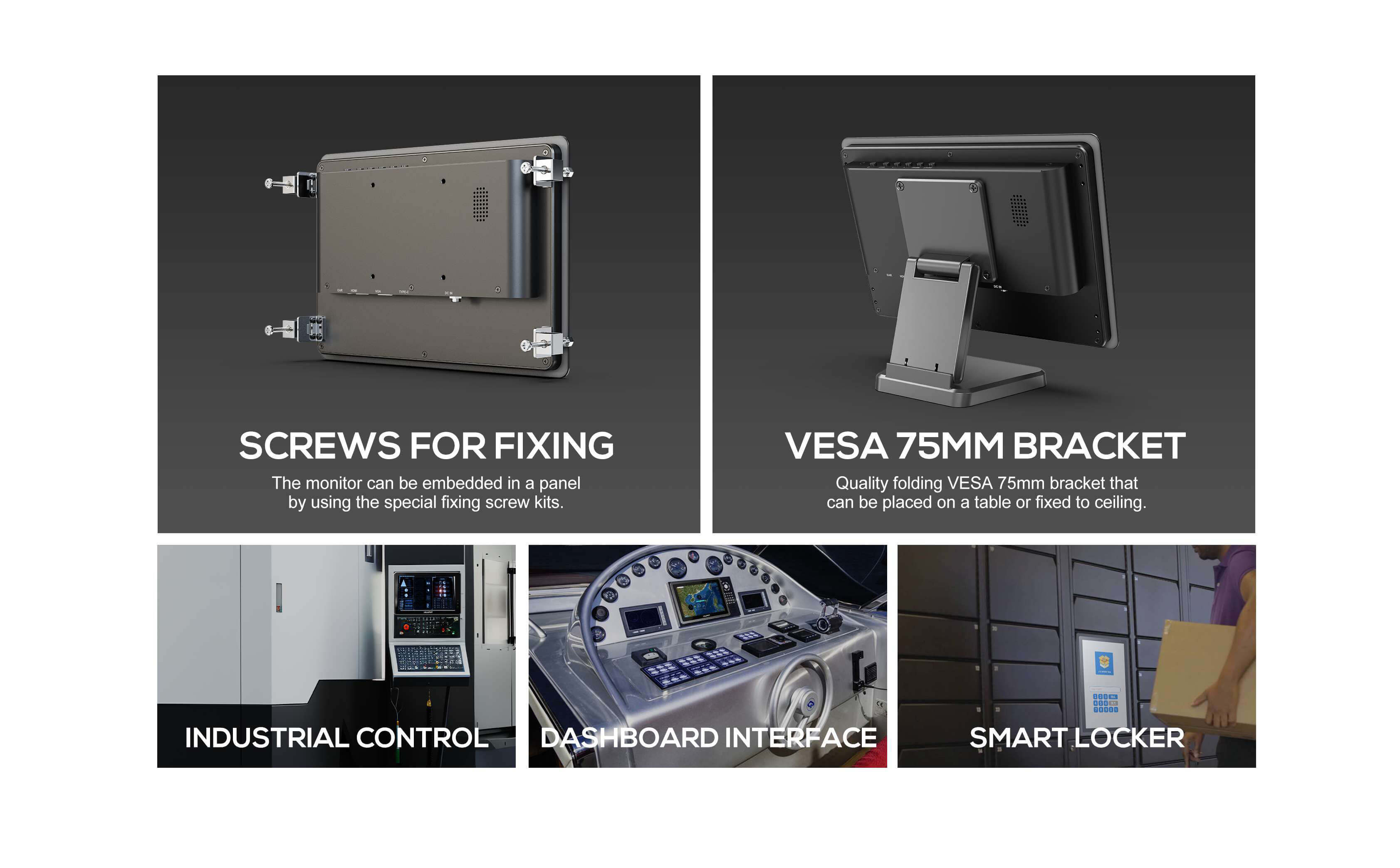

Mounting
- VESA mount
- 75 x 75 mm
- Mounting Screws
- 4x Wall Mount Screws

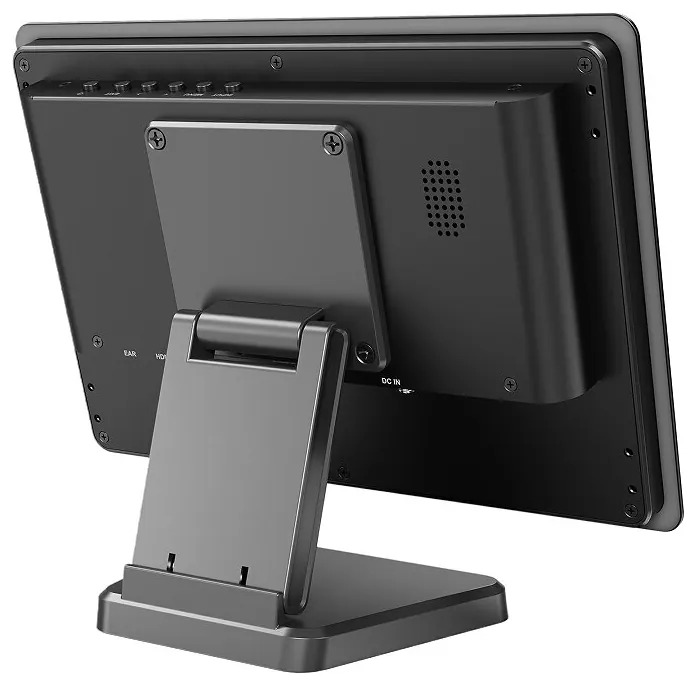

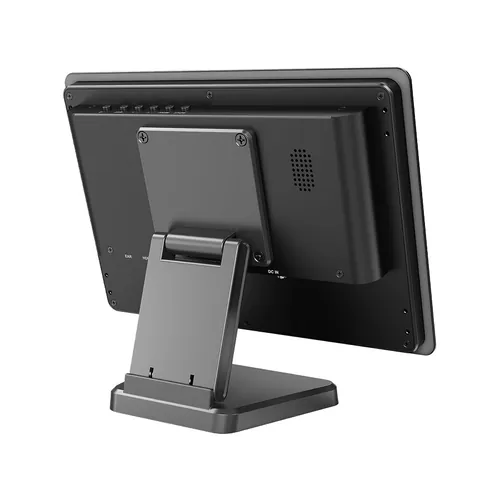

- Stand
- Foldable VESA 75 Stand (optional)

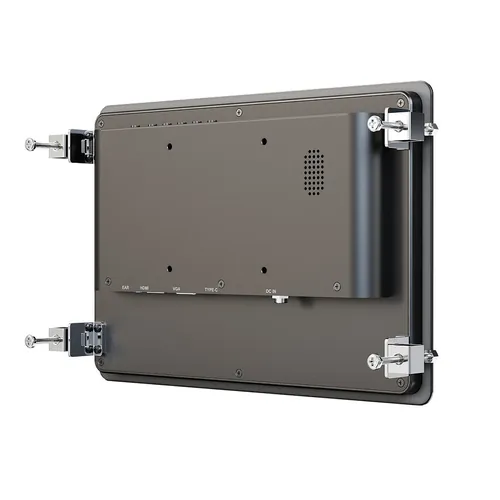

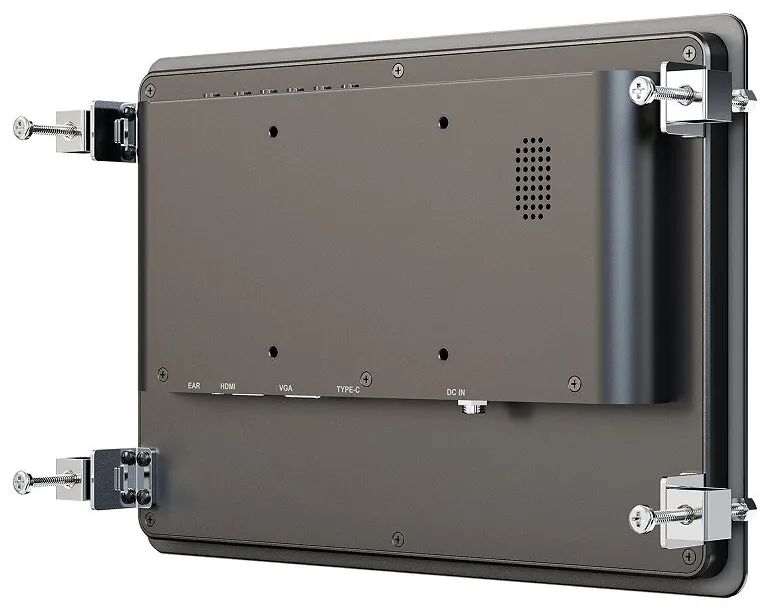

- Flush mount
- Flush panel clamps included
Accessories
Included
- 12V 3A Power Adapter
- HDMI A-A Cable
- 4x Screw Kits
- 4x Wall Mount Screws
Optional
- Foldable VESA 75 Stand
- Remote Control
- HDMI Cable Lock
Included (with Touch Screen)
- USB A-C Cable (for touch)
- USB C-C Cable (With Screw)
Product Downloads
Similar Products
Compare key technical data across similar Lilliput products.
| Technical Data | TK1019 | FA1019 | FA1019H | TK719 | TK1331 |
|---|---|---|---|---|---|
| Display | |||||
| Screen size | 10.1 inch | 10.1 inch | 10.1 inch | 7 inch | 13.3 inch |
| Aspect ratio | 16:10 | 16:10 | 16:10 | 16:10 | 16:9 |
| Native resolution | 1920 x 1200 | 1920 x 1200 | 1920 x 1200 | 1280 x 800 | 1920 x 1080 |
| Panel type | LCD | LCD | LCD | LCD | LCD |
| Brightness | 1500 cd/m² | 1500 cd/m² | 1500 cd/m² | 1000 cd/m² | 1000 cd/m² |
| Contrast | 1000:1 | 1000:1 | 1000:1 | 800:1 | 1000:1 |
| Viewing angle | 170°/170° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) | 160°/160° (H/V) |
| Signal response time | 20 ms | 20 ms | 20 ms | — | 20 ms |
| Maximum refresh rate | 60 Hz | 60 Hz | 60 Hz | — | 60 Hz |
| LED lifetime | 50,000 h | 50,000 h | 50,000 h | 50,000 h | — |
| Touch screen | 10-point PCAP (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) |
| Coating | — | — | — | UV-resistant | UV-resistant, anti-glare, anti-fingerprint |
| Optical bonding | — | — | — | OCA | OCA |
| Light transmittance | — | — | — | — | ≥85% |
| Touchscreen thickness | — | — | — | — | 2.5 mm |
| Connections | |||||
| Video inputs | 1x HDMI 1.4b, 1x VGA | 1x HDMI, 1x VGA, 1x USB Type-C | 1x HDMI | 1x HDMI 1.4b, 1x VGA, 1x USB-C | 1x HDMI 1.4b, 1x VGA, 1x Audio & Video (RCA) |
| Audio | 1x Built-in speaker, HDMI audio, 3.5 mm ear jack (2ch 48kHz 24-bit) | 1x Built-in speaker, HDMI 8ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit) | 1x Built-in speaker, HDMI 8ch 24-bit | 1x Built-in speaker, HDMI 2ch, 3.5 mm ear jack (2ch 48kHz 24-bit) | 2x Built-in speakers, 3.5 mm audio in, 3.5 mm ear jack |
| Additional connections | 1x USB-C (touch, video, power) (optional) | 1x USB Type-C (touch, video, power) (optional) | 1x USB-A (for touch) (optional) | 1x USB-C (touch, video, power) (optional) | 1x USB Type-A (touch, firmware upgrade) (optional) |
| Video Standards | |||||
| HDMI 1.4b | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| VGA | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — |
| USB Type-C | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — |
| HDMI | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | — |
| Operational Features | |||||
| Sensors | Ambient light auto-dimming | — | — | Ambient light auto-dimming | Ambient light auto-dimming |
| Image mirroring | — | — | — | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip |
| Markers | — | — | — | — | Aspect markers: 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off |
| Power | |||||
| Input voltage | DC 12 to 24V | DC 12 to 24V | DC 12 to 24V | DC 9 to 36V | DC 12 to 24V |
| Power consumption | ≤19 W (12V) | ≤19 W (12V) | ≤19 W (12V) | ≤8.5 W (12V) | ≤13 W (12V) |
| Environmental | |||||
| IP rating | IP65 front panel (IEC60529) | — | IP65 rated front panel | IP65 front panel (IEC60529), NEMA 4 front | IP65 front panel (IEC60529) |
| IK rating | IK07 (IEC62262/EN62262) | — | — | IK07 (IEC62262/EN62262) | IK07 (IEC62262/EN62262) |
| Hardness | 7H | — | — | 7H | 7H |
| Operating temperature | -20°C to 70°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C |
| Storage temperature | -30°C to 80°C | -30°C to 80°C | -30°C to 80°C | -30°C to 70°C | -30°C to 70°C |
| Vibration | — | — | — | 1.5Grms, 5 to 500 Hz, 1 hr/axis (IEC6068-2-64) | — |
| Shock | — | — | — | 10G, half-sine wave, 11 ms (IEC6068-2-27) | — |
| Mechanical | |||||
| Material | Front panel: Glass; Rear panel: Metal | — | — | Front panel: Glass; Rear panel: Metal | Front panel: Glass; Rear panel: Metal |
| Dimensions | 264 x 183 x 35.6 mm | 251 x 170 x 33 mm | 251 x 170 x 33 mm | 196.9 x 131.2 x 31.5 mm | 339.5 x 211 x 35.5 mm |
| Weight | 1.31 kg | 820 g | 820 g | 750 g | 1.8 kg |
| Mounting | |||||
| VESA mount | 75 x 75 mm | 75 x 75 mm | 75 x 75 mm | 75 x 75 mm | 75 x 75 mm |
| Mounting Screws | 4x Wall Mount Screws | — | — | 4x Wall Mount Screws | 6x Wall Mount Screws |
| Stand | Foldable VESA 75 Stand (optional) | — | — | — | — |
| Flush mount | Flush panel clamps included | — | — | — | Flush panel clamps included |
