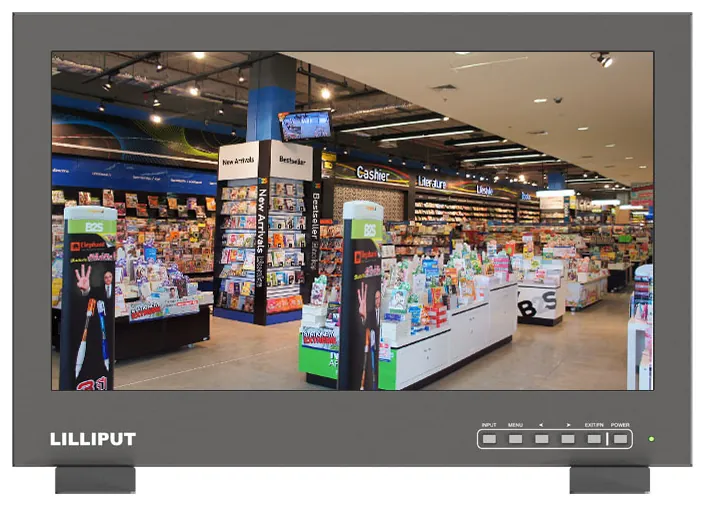

Key Features
- 15.6 inch 1920 x 1080 display, 1000 cd/m², 1000:1 contrast
- 1x 3G-SDI, 1x HDMI 1.4, VGA, Composite, versatile input options

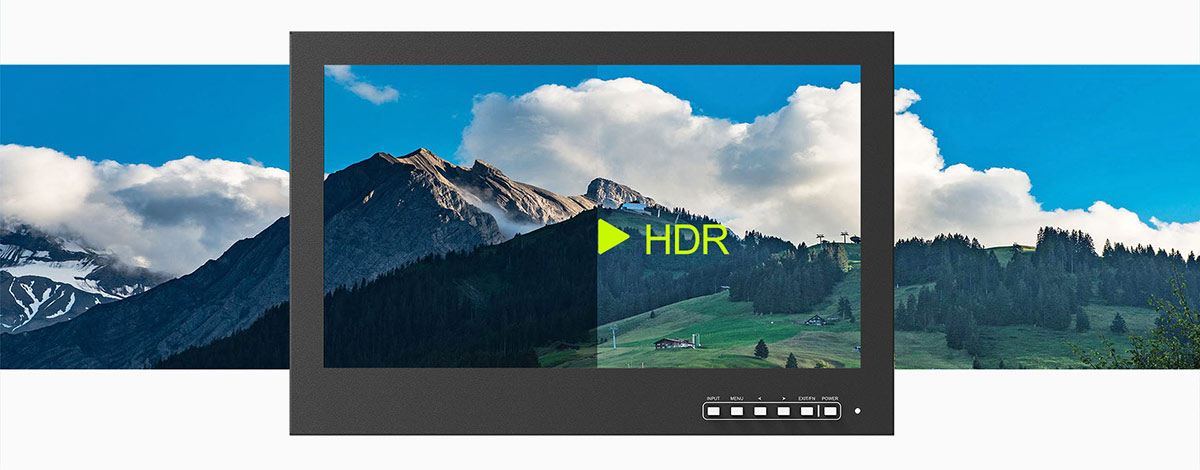

- HDMI 4K passthrough (2160p 24/25/30); HDR support (ST2084, HLG)

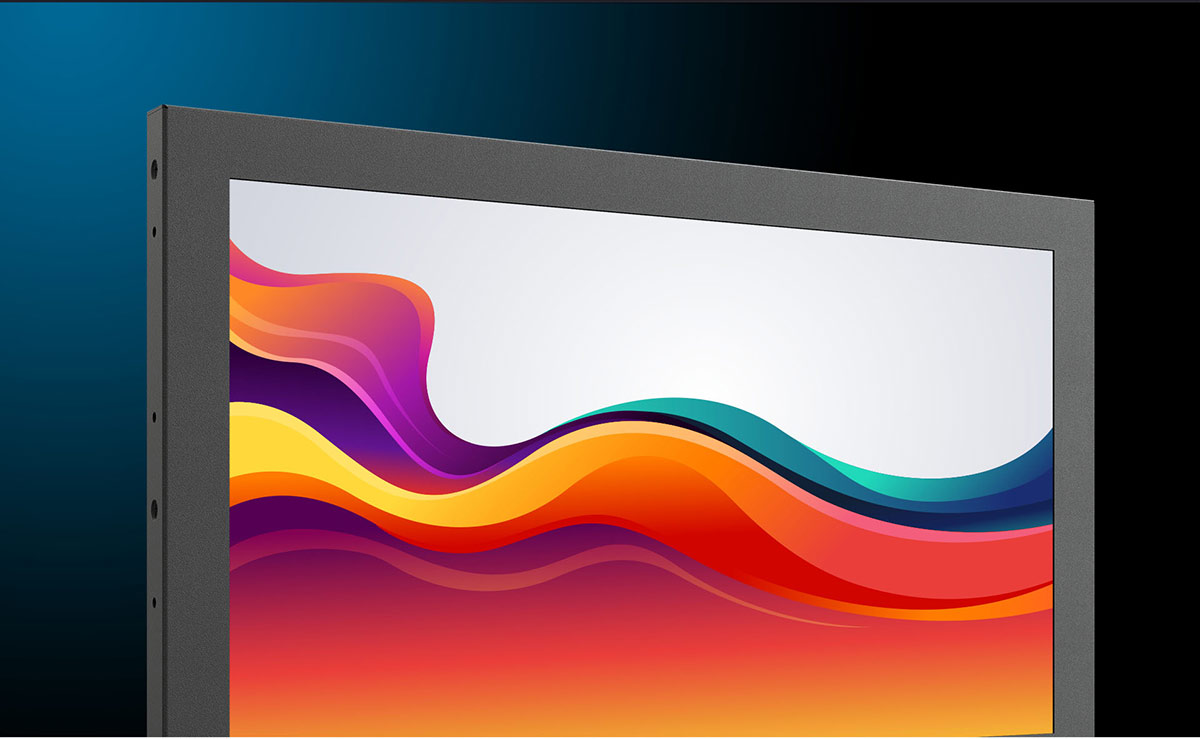

- Sturdy metal frame, well-built for reliable field use
- 12ch 3G-SDI audio, 2ch HDMI audio

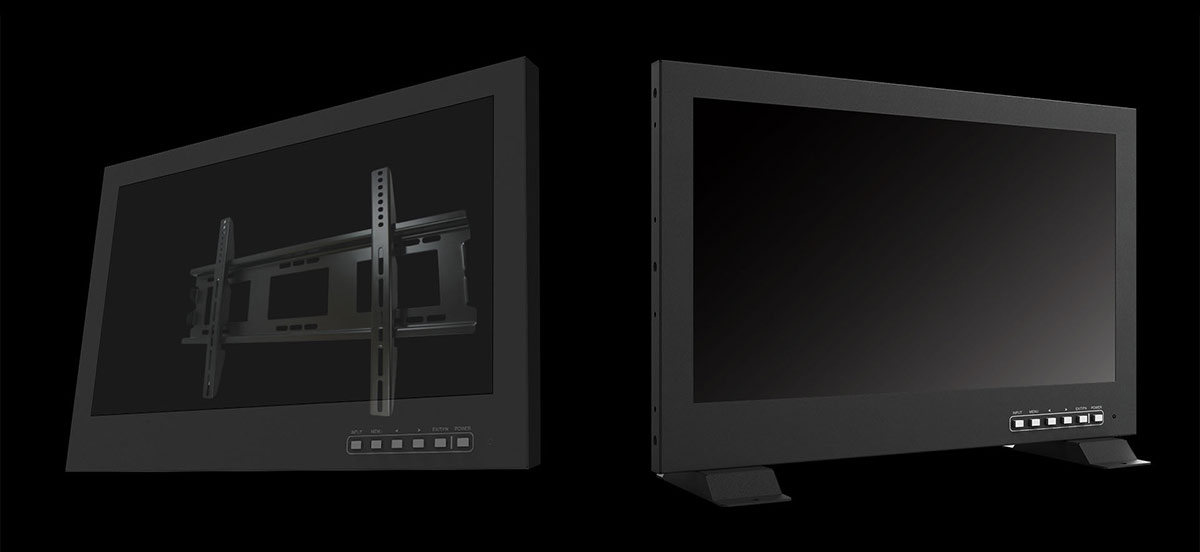

- Versatile mounting: VESA 75 x 75 mm, base brackets included, optional 6U rack mount brackets
Buy the PVM150S From an Authorised Reseller
Lilliput's authorised broadcast resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the PVM150S now, or if your country is not listed, browse all authorised resellers here.
- 3D Broadcast Ltd Opens in a new tab.
- APODAX SL Opens in a new tab.
- Broadcast & Production Services (UK) Limited Opens in a new tab.
- Camera World Limited Opens in a new tab.
- DigiBroadcast Co. Ltd Opens in a new tab.
- E-MOTION CREATIONS di Pierfrancesco Armati Opens in a new tab.
- Eastwood (Sound and Vision) Ltd Opens in a new tab.
- Proactive UK Ltd Opens in a new tab.
- RCB Logic Limited Opens in a new tab.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data
Display
- Screen size
- 15.6 inch
- Aspect ratio
- 16:9
- Native resolution
- 1920 x 1080
- Panel type
- LED
- Brightness
- 1000 cd/m²
- Contrast
- 1000:1
- Viewing angle
- 178°/178° (H/V)
- HDR
- ST2084 300/1000/10000, HLG

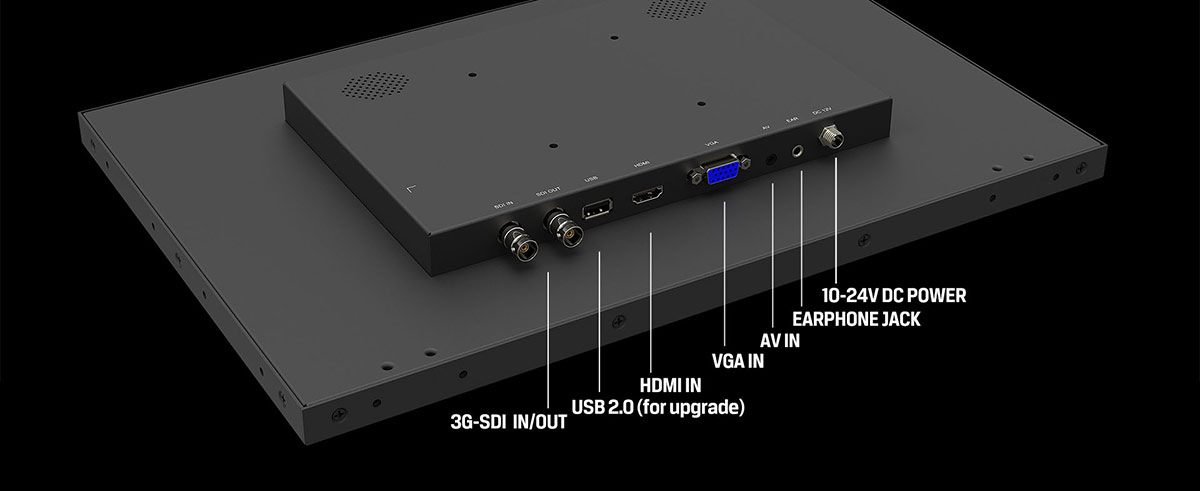

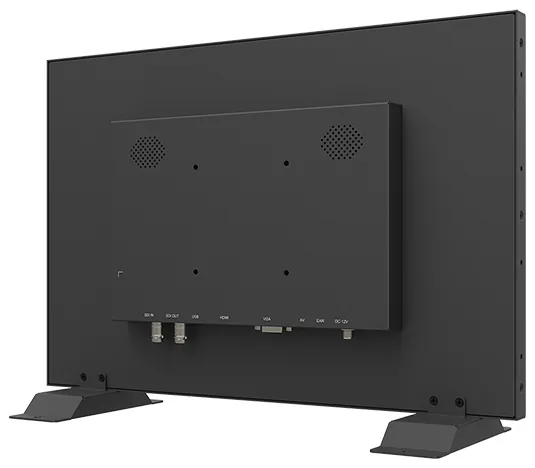

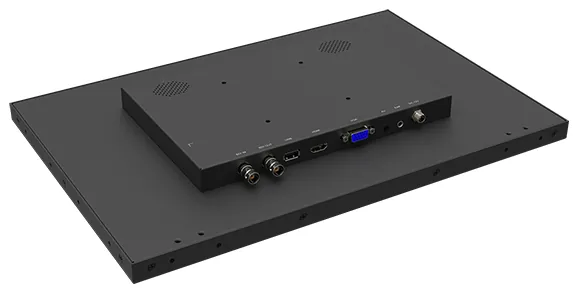

Connections
- Video inputs
- 1x 3G-SDI, 1x HDMI 1.4, 1x VGA, 1x Composite
- Video outputs
- 1x 3G-SDI
- Audio
- 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers
Video Standards
- 3G-SDI
- 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
- HDMI 1.4
- 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
Power
- Input voltage
- DC 10 to 24V
- Power consumption
- ≤24 W
- Compatible batteries
- V-Lock or Anton Bauer mount (optional)
- Input voltage (battery)
- 14.4V nominal
Environmental
- Operating temperature
- -20°C to 60°C
- Storage temperature
- -30°C to 70°C
Mechanical

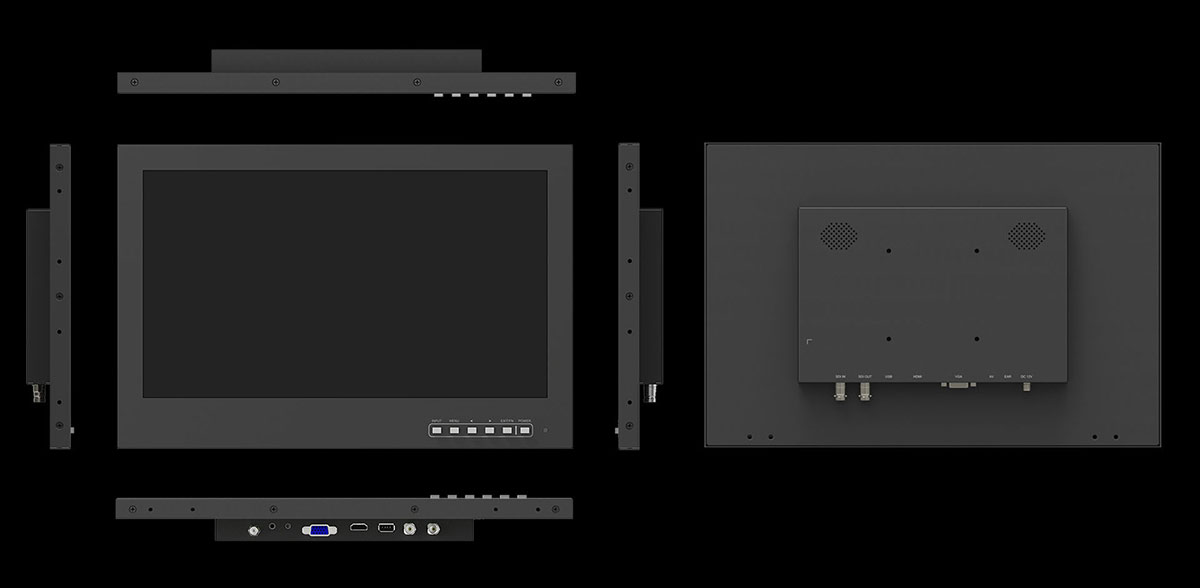

- Dimensions
- 389 x 260 x 37.6 mm
- Weight
- 2.87 kg
Mounting
- VESA mount
- 75 x 75 mm
- Base brackets

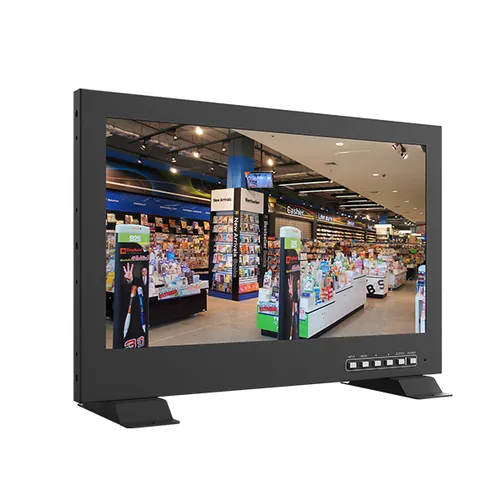

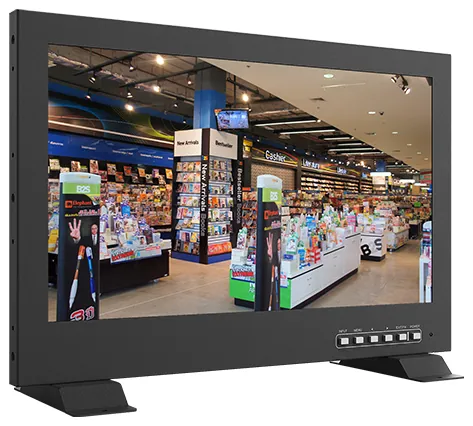

- Base brackets included

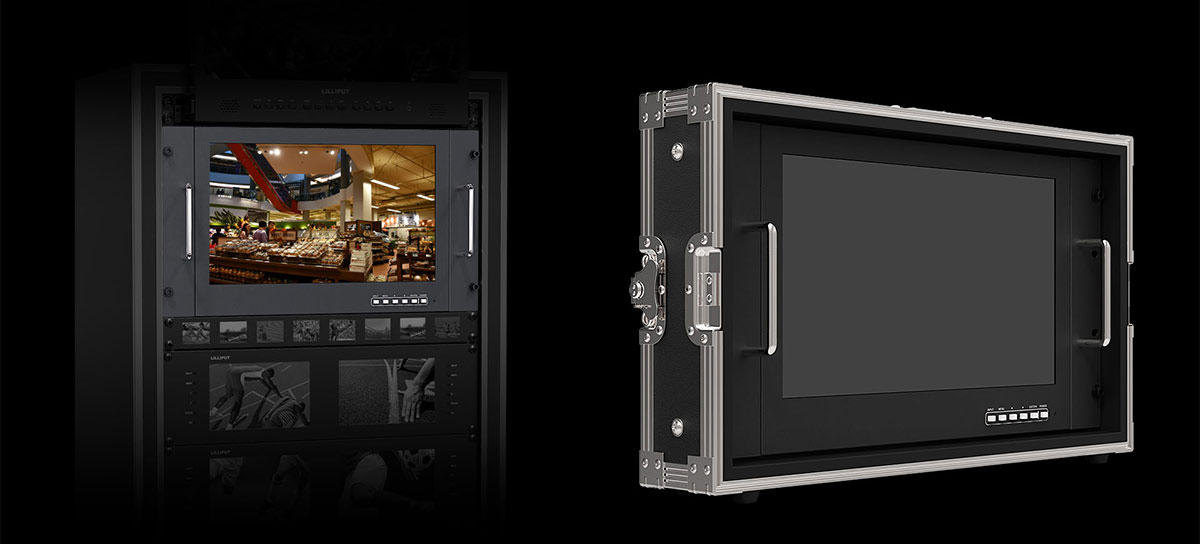

- Rack mount

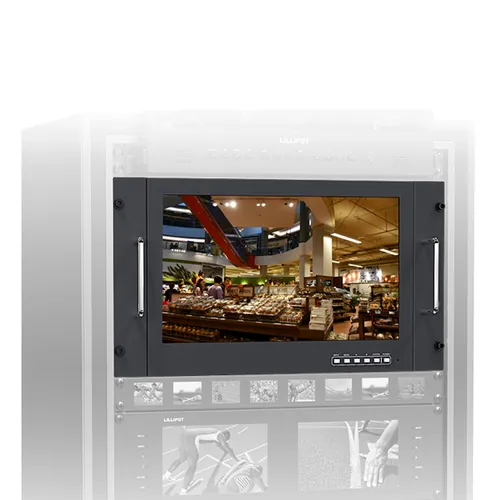

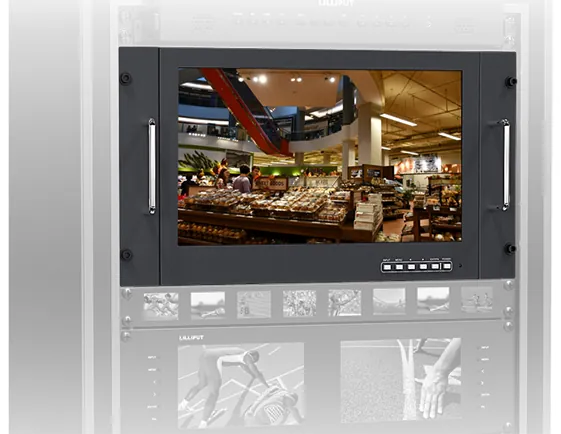

- 6U rack mount brackets (optional)
Operational Features
- Markers
- Aspect markers: 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
Accessories
Included
- 12V DC Adapter
- HDMI A/A Cable
- VGA Cable
- AV Input Cable
- Base Bracket
- User manual
Optional
- Rack mount brackets

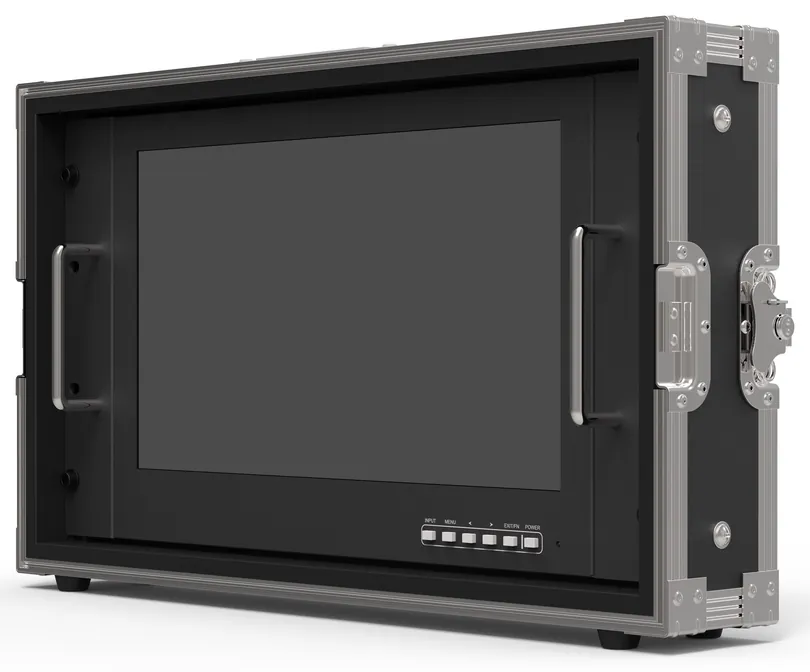

- Carry case
- VESA Mount Plate
- V-Lock / Anton Bauer Mount
Product Downloads
Similar Products
Compare key technical data across similar products.
| Technical Data | PVM150S | PVM160S-H | PVM160S-E | BM150-12G | Q15-8K |
|---|---|---|---|---|---|
| Display | |||||
| Screen size | 15.6 inch | 15.6 inch | 15.6 inch | 15.6 inch | 15.6 inch |
| Aspect ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Native resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 3840 x 2160 | 3840 x 2160 |
| Panel type | LED | — | LCD | LED | LED |
| Brightness | 1000 cd/m² | 1200 cd/m² | 1200 cd/m² | 330 cd/m² | 600 cd/m² |
| Contrast | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1700:1 |
| Viewing angle | 178°/178° (H/V) | 160°/160° (H/V) | 160°/160° (H/V) | 176°/176° (H/V) | 170°/170° (H/V) |
| HDR | ST2084 300/1000/10000, HLG | ST2084 300/1000/10000, HLG | ST2084 300/1000/10000, HLG | — | HLG, ST 2084 300/1000/10000 |
| Colour space | — | Native, SMPTE-C, Rec.709, EBU (selectable) | Calibration to Rec.709 (optional calibration unit) | — | Calibration to Rec.709 (optional calibration unit) |
| Supported log formats | — | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | — | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined |
| LUT support | — | 3D-LUT (.cube format) | 3D-LUT (.cube format) | — | 3D-LUT (.cube format) |
| Connections | |||||
| Video inputs | 1x 3G-SDI, 1x HDMI 1.4, 1x VGA, 1x Composite | 1x 3G-SDI, 1x HDMI 2.0 | 1x 3G-SDI, 1x HDMI 2.0, 1x LAN 1000M | 2x 12G-SDI, 2x 3G-SDI (4K single/dual/quad link), 1x HDMI 2.0, 3x HDMI 1.4 | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 |
| Video outputs | 1x 3G-SDI | 1x 3G-SDI, 1x HDMI 2.0 | 1x 3G-SDI, 1x HDMI 2.0 | 2x 12G-SDI, 2x 3G-SDI (uncompressed 10-bit or 8-bit 4:2:2) | 4x 12G-SDI, 1x HDMI 2.0 |
| Audio | 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers | 3G-SDI 2ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker | 3G-SDI 2ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker | 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers |
| USB | — | LUT load and firmware update | — | — | — |
| Video Standards | |||||
| 3G-SDI | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — |
| HDMI 1.4 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — |
| HDMI 2.0 | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| NDI® | — | — | NDI®|HX, NDI®|HX2, NDI®|HX3 | — | — |
| 12G-SDI | — | — | — | — | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| SFP | — | — | — | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| Scopes | |||||
| Video analysis | — | Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Check field, Freeze, Colour bar | Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Check field, Freeze, Colour bar | — | Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom |
| Audio analysis | — | Level meter | Audio vector, Level meter | — | Audio vector, Level meter |
| Power | |||||
| Input voltage | DC 10 to 24V | DC 9 to 24V | DC 9 to 24V | DC 12 to 24V | DC 12 to 24V |
| Power consumption | ≤24 W | ≤39 W (15V) | ≤39 W (15V) | ≤32 W | ≤37 W (15V) |
| Compatible batteries | V-Lock or Anton Bauer mount (optional) | V-Lock or Anton Bauer mount (optional) | V-Lock or Anton Bauer mount (optional) | V-Lock or Anton Bauer mount | V-Lock or Anton Bauer mount |
| Input voltage (battery) | 14.4V nominal | — | 14.8V nominal | 14.4V nominal | 14.8V nominal |
| PoE | — | — | PoE++ IEEE 802.3bt | — | — |
| Environmental | |||||
| Operating temperature | -20°C to 60°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C |
| Storage temperature | -30°C to 70°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C |
| Mechanical | |||||
| Dimensions | 389 x 260 x 37.6 mm | 376 x 247.7 x 49.3 mm | 376 x 247.7 x 49.3 mm | 389 x 267 x 38 mm | 393 x 267 x 41.4 mm |
| Weight | 2.87 kg | — | 3.15 kg | 3.4 kg | 2.9 kg |
| Dimensions (with case) | — | — | — | 524 x 305 x 170 mm | — |
| Weight (with case) | — | — | — | 12 kg | — |
| Mounting | |||||
| VESA mount | 75 x 75 mm | 75 x 75 mm | 75 x 75 mm; 75 x 75 mm (V-mount/Anton Bauer battery) | VESA mount plate included | 75 x 75 mm, 100 x 100 mm (plate included) |
| Base brackets | Base brackets included | Base brackets included | Base brackets included | Base brackets included | Base brackets included |
| Rack mount | 6U rack mount brackets (optional) | 6U rack mount brackets (optional) | 6U rack mount brackets (optional) | 6U rack mount brackets (optional) | 6U rack mount brackets (optional) |
| Operational Features | |||||
| Markers | Aspect markers: 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.3X, 1.5X, 1.8X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 17:9; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off |
| Function buttons | — | F1, F2 user-definable | F1, F2 user-definable | — | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) |
| Colour temperature | — | 5500K, 6500K, 7500K, 9300K, User | 5500K, 6500K, 7500K, 9300K, User | — | 3200K, 5500K, 6500K, 7500K, 9300K, User |
| Gamma | — | 1.8 to 2.8 | 1.8 to 2.8 | — | 1.8 to 2.8 |
| Comparison | — | Gamma/HDR, Colour space, Camera LUT | Gamma/HDR, Colour space, Camera LUT | — | Colour space, HDR, Gamma, Camera Log (side-by-side with original) |
| Peaking | — | Red, Green, Blue, White, Black | Red, Green, Blue, White, Black | — | Red, Green, Blue, White, Black |
| Time code | — | LTC, VITC | LTC, VITC | — | LTC, VITC |
| View modes | — | — | — | Picture-by-Picture, Picture-in-Picture, Quad-View | Quad-View |
| Menu control | — | — | — | — | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) |
| Remote control | — | — | — | — | GPI, LAN, RS422 In/Out |
| Tally | — | — | — | — | Red, Green, Yellow |
| UMD | — | — | — | — | User-defined text (7 colours) |
| Image mirroring | — | — | — | — | Vertical flip, Horizontal flip |
| Recording | |||||
| Storage | — | — | SD card | — | — |
| File segment | — | — | 1/5/10/20/30/60 min | — | — |
| Record file format | — | — | H.264 | — | — |
| Video resolution | — | — | 1920 x 1080, 1280 x 720, 720 x 480 | — | — |
| Frame rates | — | — | 60/50/30/25/24 fps | — | — |
| Audio sample rate | — | — | 44.1 kHz / 48 kHz | — | — |
| Streaming | |||||
| IP streaming | — | — | Push/Pull: YCbCr 4:2:2 (up to 32 Mbps @ 1080p60) | — | — |
| Streaming protocols | — | — | Push: SRT, RTMP; Pull: RTMP, RTSP, HTTP, HTTPS, NDI®|HX, NDI®|HX2, NDI®|HX3 | — | — |
