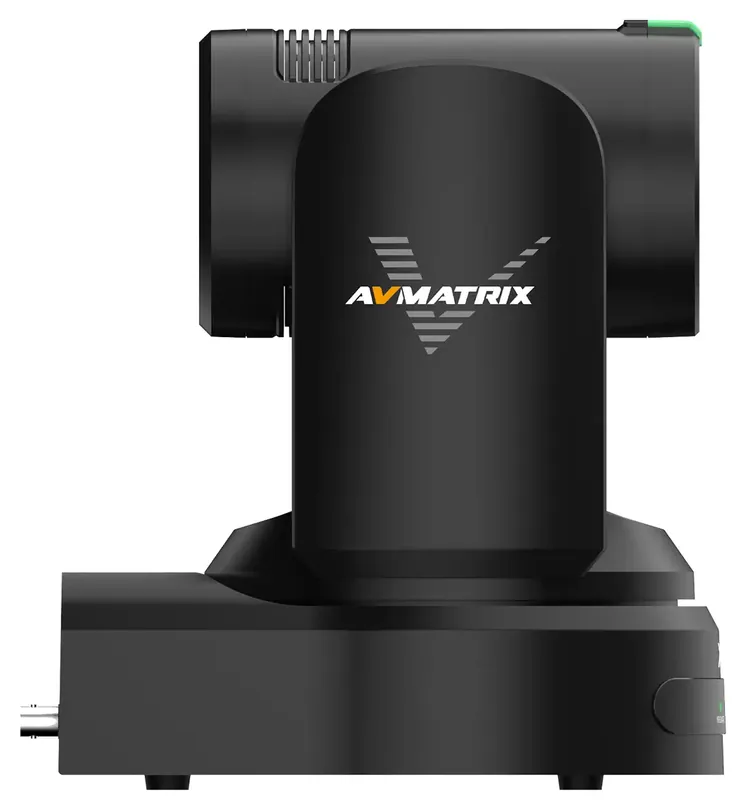

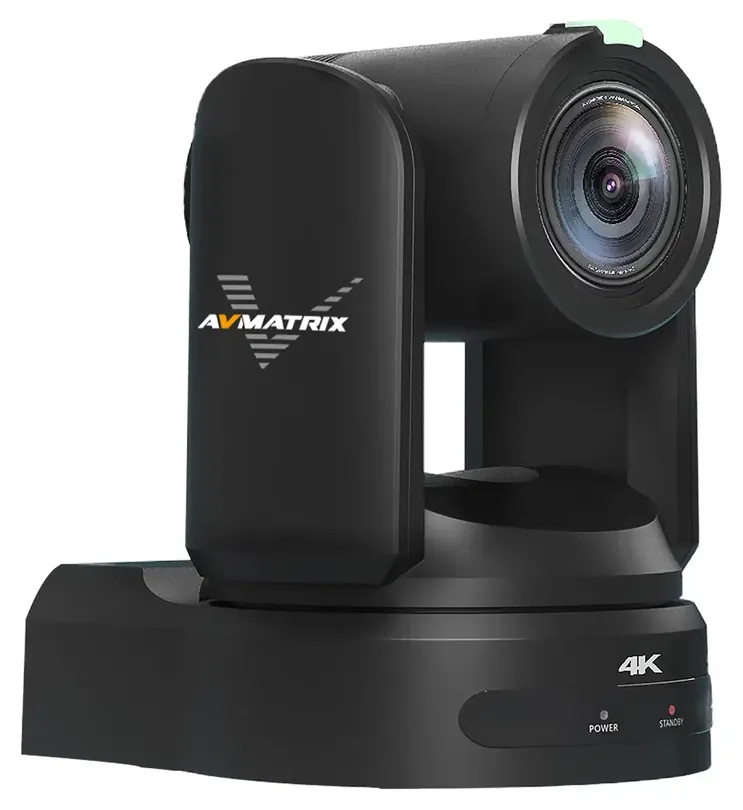

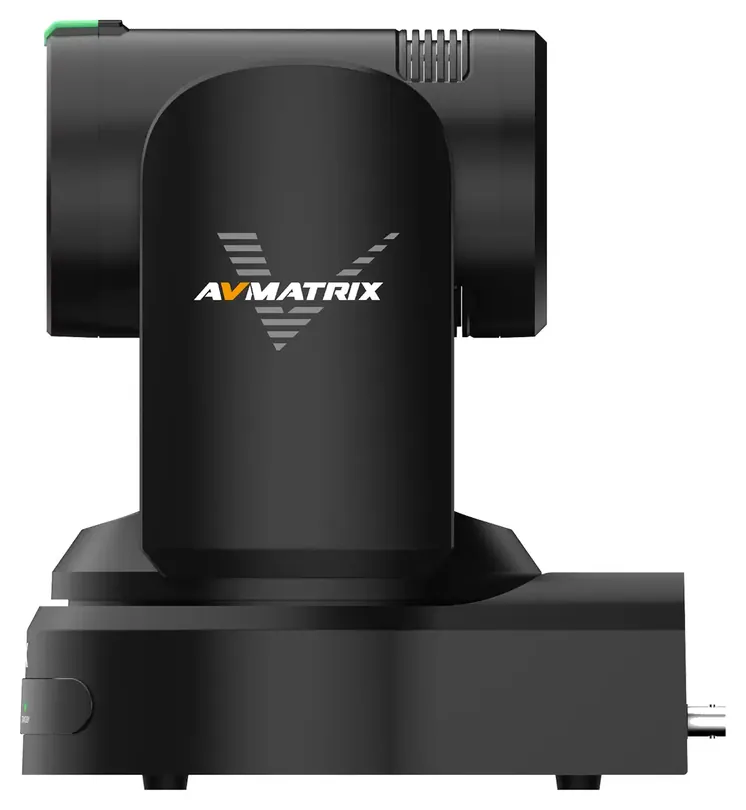

P20-12G, product overview P20-12G, view 2 P20-12G, view 3 P20-12G, view 4 P20-12G, view 5

Key Features

  • 1/1.8" CMOS sensor, 8.3 megapixels, up to 2160P60
  • 20x optical zoom (f=7.1 to 141.3 mm), 12x digital zoom
  • HDMI 2.0 + dual 12G-SDI synchronous output for live and recording
  • USB 3.0 uncompressed UVC output, 1000M Ethernet (PoE+)
  • VISCA, PELCO-D/P, ONVIF, RTSP, RTMP, SRT; 0.05 Lux (F1.61)
  • RS232 IN/OUT, RS422 IN/OUT, IP control; 255 presets

Buy the P20-12G From an Authorised Reseller

Lilliput's authorised resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the P20-12G now, or if your country is not listed, browse all authorised resellers here.

Technical Data

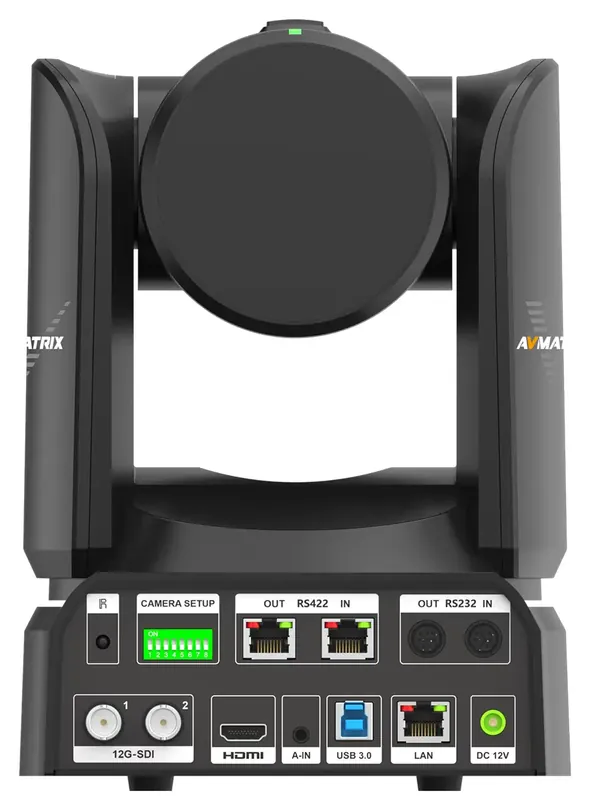

Connections

Video outputs
1x HDMI 2.0, 2x 12G-SDI, 1x USB 3.0, LAN (RJ45)
Audio in
Dual channel 3.5 mm line input
Audio output
HDMI, 3G-SDI, LAN, USB 3.0
Audio compression
AAC, G.711A, G.711U
Video compression
MJPEG
Network
1000M Ethernet (10/100BASE-TX)
Network protocol
RTSP, RTMP, ONVIF, SRT, GB28181, VPN
IP protocol
VISCA over IP, ONVIF, UVC (USB only), NDI®|HX3 (optional)
Serial protocol
VISCA, PELCO-D, PELCO-P (2400/4800/9600/19200/38400 bps)

Video Standards

HDMI 2.0
2160p 60/59.94/50/30/29.97/25, 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50
12G-SDI
2160p 60/59.94/50/30/29.97/25, 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50

Operational Features

Remote control
1x RS232-IN, 1x RS232-OUT, 1x RS422-IN, 1x RS422-OUT, 1x RJ45

Power

Power interface
DC-038 (DC 12V)
Power adapter
AC 100 to 240V input, DC 12V/2A output
Input voltage
DC 12V
Power consumption
15 W (max)
PoE
PoE+ IEEE 802.3at (optional)

Environmental

Operating temperature
-10°C to +50°C
Operating humidity
20 to 80%
Storage temperature
-10°C to +60°C
Storage humidity
20 to 95%

Mechanical

Pan/Tilt range
Pan ±175°, Tilt -30° to +90°
Pan speed
0.1 to 100°/s
Tilt speed
0.1 to 80°/s
Presets
255
Weight
2.97 kg (net)

Imaging

Sensor
1/1.8 inch CMOS
Effective pixels
8.3 megapixels
Optical zoom
20x (f=7.1 to 141.3 mm)
Digital zoom
12x
HFOV
3.6°(T) to 59.2°(W)
Iris
F1.61 to F5.19
Minimum illumination
0.05 Lux (F1.61)
Noise reduction
2D and 3D
White balance
Manual, Auto, Indoor, Outdoor, One Push, 3000K, 4000K, 5000K, 6500K, ATW
Focus modes
Manual, Auto, Z-Trigger

Accessories

Included

  • 12V 2A Power Adapter
  • USB 3.0 Type-C Cable
  • RS232 Serial Cable
  • Remote Controller

Optional

  • Ceiling Mount Bracket
  • Wall Mount Bracket

Product Downloads

Similar Products

Compare key technical data across similar products.

Technical Data P20-12G P30-12G P20A P30A T10-4K
Mechanical
Dimensions — — 170 x 170 x 180 mm 170 x 170 x 180 mm 78 x 78 x 154.5 mm
Weight 2.97 kg (net) 2.97 kg (net) 1.26 kg 1.26 kg 686.7 g
Installation — — — — Landscape & Portrait
Pan speed 0.1 to 100°/s 0.1 to 100°/s 0.1 to 100°/s 0.1 to 100°/s —
Pan/Tilt range Pan ±175°, Tilt -30° to +90° Pan ±175°, Tilt -30° to +90° Pan -170° to +170°, Tilt -30° to +90° Pan -170° to +170°, Tilt -30° to +90° —
Preset speed — — Pan 100°/s, Tilt 45°/s Pan 100°/s, Tilt 45°/s —
Presets 255 255 255 (10 via IR remote control) 255 (10 via IR remote control) —
Tilt speed 0.1 to 80°/s 0.1 to 80°/s 0.1 to 45°/s 0.1 to 45°/s —
Connections
Video outputs 1x HDMI 2.0, 2x 12G-SDI, 1x USB 3.0, LAN (RJ45) 1x HDMI 2.0, 2x 12G-SDI, 1x USB 3.0, LAN (RJ45) 1x HDMI, 1x 3G-SDI, 1x USB 3.0 (UVC), LAN (RJ45) 1x HDMI, 1x 3G-SDI, 1x USB 3.0 (UVC), LAN (RJ45) HDMI, USB-C (UVC)
Audio bitrate — — 96 Kbps, 128 Kbps 96 Kbps, 128 Kbps —
Audio compression AAC, G.711A, G.711U AAC, G.711A, G.711U AAC, G.711A AAC, G.711A —
Audio in Dual channel 3.5 mm line input Dual channel 3.5 mm line input 3.5 mm dual-channel linear input 3.5 mm dual-channel linear input 3.5 mm stereo
Audio output HDMI, 3G-SDI, LAN, USB 3.0 HDMI, 3G-SDI, LAN, USB 3.0 HDMI, 3G-SDI, LAN, USB 3.0 HDMI, 3G-SDI, LAN, USB 3.0 —
Bitrate control — — Fixed bitrate, Variable bitrate Fixed bitrate, Variable bitrate —
Frequency — — 50 Hz: 1 to 50 fps; 60 Hz: 1 to 60 fps 50 Hz: 1 to 50 fps; 60 Hz: 1 to 60 fps —
IP protocol VISCA over IP, ONVIF, UVC (USB only), NDI®|HX3 (optional) VISCA over IP, ONVIF, UVC (USB only), NDI®|HX3 (optional) VISCA over IP, ONVIF, UVC (USB only), NDI®|HX3 (optional) VISCA over IP, ONVIF, UVC (USB only), NDI®|HX3 (optional) —
Network 1000M Ethernet (10/100BASE-TX) 1000M Ethernet (10/100BASE-TX) 100M Ethernet; optional PoE+ IEEE 802.3at; audio and video output; remote upgrade, reboot, and reset 100M Ethernet; optional PoE+ IEEE 802.3at; audio and video output; remote upgrade, reboot, and reset —
Network protocol RTSP, RTMP, ONVIF, SRT, GB28181, VPN RTSP, RTMP, ONVIF, SRT, GB28181, VPN RTSP, RTMP, ONVIF, GB/T28181, SRT, IP VISCA RTSP, RTMP, ONVIF, GB/T28181, SRT, IP VISCA —
Serial protocol VISCA, PELCO-D, PELCO-P (2400/4800/9600/19200/38400 bps) VISCA, PELCO-D, PELCO-P (2400/4800/9600/19200/38400 bps) VISCA, PELCO-D, PELCO-P (2400/4800/9600/38400/115200 bps) VISCA, PELCO-D, PELCO-P (2400/4800/9600/38400/115200 bps) VISCA
USB protocol — — UVC, UAC UVC, UAC —
Video bitrate — — 64 to 40960 64 to 40960 —
Video compression MJPEG MJPEG MJPEG, YUY2, NV12 MJPEG, YUY2, NV12 —
Video Standards
12G-SDI 2160p 60/59.94/50/30/29.97/25, 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 2160p 60/59.94/50/30/29.97/25, 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 — — —
3G-SDI — — 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 —
HDMI — — 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 2160p30, 1080p 60/50/30/25, 720p 60/50/30/25
HDMI 2.0 2160p 60/59.94/50/30/29.97/25, 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 2160p 60/59.94/50/30/29.97/25, 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50 — — —
LAN (main stream MJPEG) — — 1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps 1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps —
LAN (sub-stream MJPEG) — — 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 320 x 240 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 320 x 240 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps —
USB capture (MJPG) — — 1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 320 x 240 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps 1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 320 x 240 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps 3840 x 2160 @ 30fps, 1920 x 1080 @ 60fps, 1280 x 960 @ 60fps, 1024 x 768 @ 60fps, 1280 x 720 @ 60fps, 800 x 600 @ 60fps, 720 x 576 @ 60fps, 640 x 480 @ 60fps
USB capture (YUY2) — — — — 1920 x 1080 @ 60fps, 1280 x 960 @ 60fps, 1024 x 768 @ 60fps, 1280 x 720 @ 60fps, 800 x 600 @ 60fps, 720 x 576 @ 60fps, 640 x 480 @ 60fps
USB capture (YUY2/NV12) — — 1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 1024 x 576 @ 60/30/25/20/15/10/5 fps, 800 x 600 @ 60/30/25/20/15/10/5 fps, 800 x 448 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 480 x 270 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps 1920 x 1080 @ 60/30/25/20/15/10/5 fps, 1280 x 720 @ 60/30/25/20/15/10/5 fps, 1024 x 576 @ 60/30/25/20/15/10/5 fps, 800 x 600 @ 60/30/25/20/15/10/5 fps, 800 x 448 @ 60/30/25/20/15/10/5 fps, 640 x 480 @ 60/30/25/20/15/10/5 fps, 640 x 360 @ 60/30/25/20/15/10/5 fps, 480 x 270 @ 60/30/25/20/15/10/5 fps, 320 x 180 @ 60/30/25/20/15/10/5 fps —
Power
Power consumption 15 W (max) 15 W (max) ≤13.8 W ≤13.8 W <5 W
Input current — — ≤1.2 A ≤1.2 A —
Input voltage DC 12V DC 12V DC 12V ±10% DC 12V ±10% 5 V ±5% via USB-C (4.75 to 5.25 V)
PoE PoE+ IEEE 802.3at (optional) PoE+ IEEE 802.3at (optional) PoE+ IEEE 802.3at (optional) PoE+ IEEE 802.3at (optional) —
Power adapter AC 100 to 240V input, DC 12V/2A output AC 100 to 240V input, DC 12V/2A output AC 110 to 220V input, DC 12V/1.5A output AC 110 to 220V input, DC 12V/1.5A output —
Power interface DC-038 (DC 12V) DC-038 (DC 12V) HEC3800 (DC 12V) HEC3800 (DC 12V) —
Environmental
Operating temperature -10°C to +50°C -10°C to +50°C -10°C to +50°C -10°C to +50°C 0°C to 40°C
Environment — — Indoors Indoors Indoors
Operating humidity 20 to 80% 20 to 80% 20 to 80% 20 to 80% —
Storage humidity 20 to 95% 20 to 95% 20 to 95% 20 to 95% —
Storage temperature -10°C to +60°C -10°C to +60°C -10°C to +70°C -10°C to +70°C —
Imaging
Sensor 1/1.8 inch CMOS 1/1.8 inch CMOS 1/2.8 inch HD CMOS 1/2.8 inch HD CMOS 1/2.8 inch 8MP CMOS
Effective pixels 8.3 megapixels 8.3 megapixels 2.07 megapixels, 16:9 2.07 megapixels, 16:9 8.29 megapixels
Optical zoom 20x (f=7.1 to 141.3 mm) 30x (f=7.1 to 211.95 mm) 20x (f=5.1 to 94.49 mm) 30x (f=5.2 to 148.4 mm) 10x (f=4.32 to 40.9 mm)
Viewing angle — — D: 67.45° to 3.94°, H: 60.04° to 3.45°, V: 35.31° to 1.97° D: 65.4° to 2.48°, H: 58.1° to 2.14°, V: 33.8° to 1.2° 75.4° (max wide)
Anti-flicker — — — — 50 Hz / 60 Hz
Aperture — — — — F1.76 to F3.0
BLC — — On, Off On, Off —
Backlight compensation — — — — Yes
Digital zoom 12x 12x 16x 16x —
Dynamic range — — Off, Dynamic level adjustment Off, Dynamic level adjustment —
Electronic shutter — — Auto, Manual Auto, Manual —
Exposure modes — — — — AE, AE Lock, Custom
Focus modes Manual, Auto, Z-Trigger Manual, Auto, Z-Trigger Auto, Manual, One-push Auto, Manual, One-push AF, AF Lock, Manual
Focus technology — — — — ToF (Time of Flight)
HFOV 3.6°(T) to 59.2°(W) 2.5°(T) to 59.2°(W) — — —
Image flip — — — — H Flip, V Flip, H&V Flip
Iris F1.61 to F5.19 F1.61 to F5.19 Auto, Manual Auto, Manual —
Minimum focus distance — — — — Wide: 30 cm, Tele: 150 cm
Minimum illumination 0.05 Lux (F1.61) 0.05 Lux (F1.61) 0.5 Lux (F1.8, AGC ON) 0.5 Lux (F1.8, AGC ON) —
Noise reduction 2D and 3D 2D and 3D 2D, 3D 2D, 3D 2D NR and 3D NR
Preset image styles — — — — Meeting, Beauty, Jewel, Fashion, Custom
SNR — — ≥50 dB ≥50 dB —
Video adjustment — — Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve Sharpness, Contrast, Saturation, Brightness, Hue, Colour Temp, Gamma
White balance Manual, Auto, Indoor, Outdoor, One Push, 3000K, 4000K, 5000K, 6500K, ATW Manual, Auto, Indoor, Outdoor, One Push, 3000K, 4000K, 5000K, 6500K, ATW Auto, Manual, One Touch White Balance, 2400K to 7100K (100K steps) Auto, Manual, One Touch White Balance, 2400K to 7100K (100K steps) AWB, AWB Lock, Custom, VAR
Operational Features
Remote control 1x RS232-IN, 1x RS232-OUT, 1x RS422-IN, 1x RS422-OUT, 1x RJ45 1x RS232-IN, 1x RS232-OUT, 1x RS422-IN, 1x RS422-OUT, 1x RJ45 1x RS232-IN, 1x RS232-OUT, 1x RS485 1x RS232-IN, 1x RS232-OUT, 1x RS485 RS485
Tracking distance — — Up to 18 m Up to 18 m —
Tracking modes — — Off, Real-time tracking, Stage tracking, Area tracking, Intelligent framing Off, Real-time tracking, Stage tracking, Area tracking, Intelligent framing —
Accessories
Included 12V 2A Power Adapter, USB 3.0 Type-C Cable, RS232 Serial Cable, Remote Controller 12V 2A Power Adapter, USB 3.0 Type-C Cable, RS232 Serial Cable, Remote Controller 12V 2A Power Adapter, USB 3.0 A-A Cable, RS232 Serial Cable, RS485 PIN Connector, Remote Control 12V 2A Power Adapter, USB 3.0 A-A Cable, RS232 Serial Cable, RS485 PIN Connector, Remote Control IR Remote Control, Lens Cap, USB3.0 A-C Cable (Locker), HDMI Cable, 5V 2A Power Adapter
Optional Ceiling Mount Bracket, Wall Mount Bracket Ceiling Mount Bracket, Wall Mount Bracket PoE Module PoE Module —
