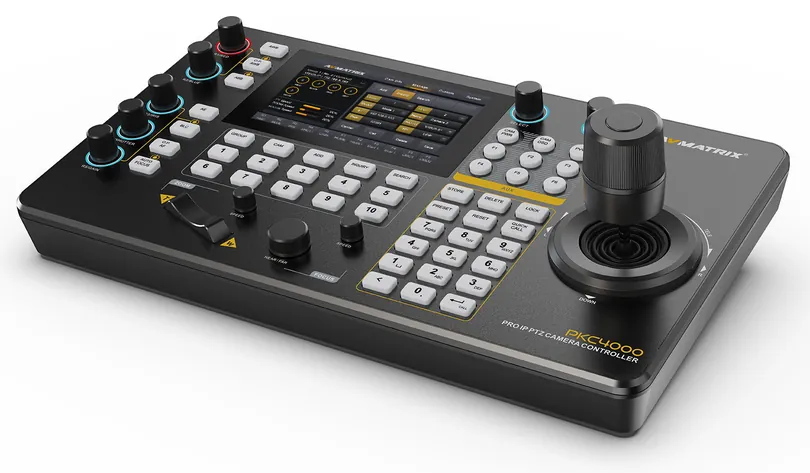

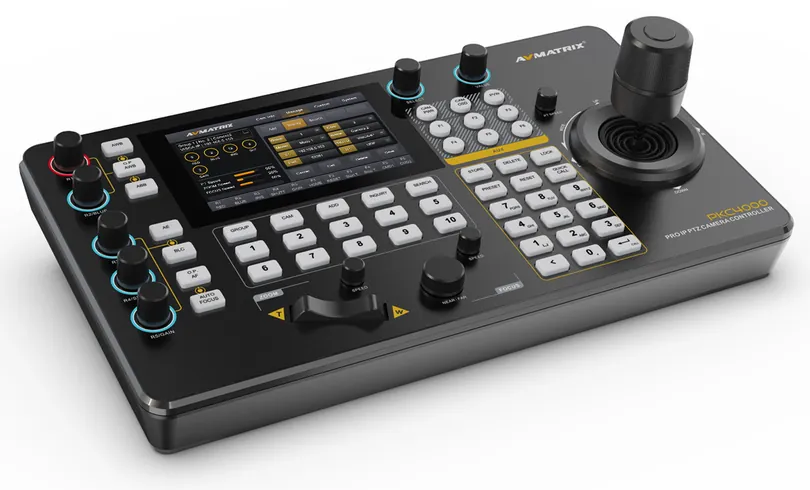

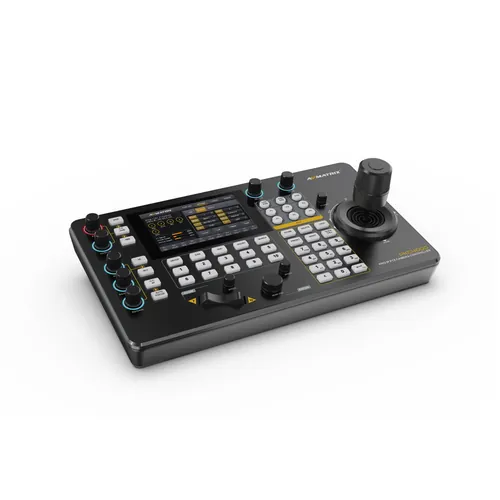

Key Features
- 5-inch touch screen with joystick and knob for PTZ, iris, shutter, gain, AE, WB
- ONVIF, VISCA-IP, NDI®|HX2, PELCO-D, PELCO-P. 10 camera groups (10 cameras each), 100 addresses, 255 presets
- 1x IP(RJ45), 1x RS-232, 4x RS-485/RS-422, 1x TALLY, USB 2.0 (for upgrade)
- 1000M LAN with PoE/PoE+ (IEEE802.3af/at). Serial baud 2400 to 115200 bps
- PoE+/DC 7 to 24V, <8 W. -20°C to 60°C operating, -20°C to 70°C storage
- 340 x 195 x 49.5 mm (without joystick), 340 x 195 x 110.2 mm (with joystick), 1730 g
Buy the PKC4000 From an Authorised Reseller
Lilliput's authorised broadcast resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the PKC4000 now, or if your country is not listed, browse all authorised resellers here.
- 3D Broadcast Ltd Opens in a new tab.
- Fotospecialisti d.o.o. Opens in a new tab.
- RCB Logic Limited Opens in a new tab.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data
Note: the specifications listed are for the NDI and POE variant, which is the default unit stocked by Lilliput UK. If you do not require NDI or POE, please contact us directly.
Display
- Screen size
- 5 inch
Connections

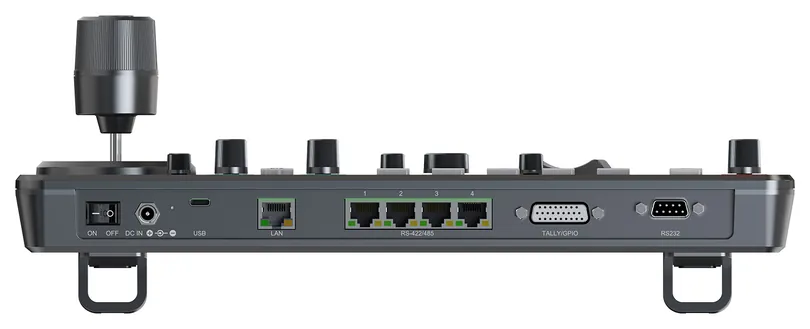

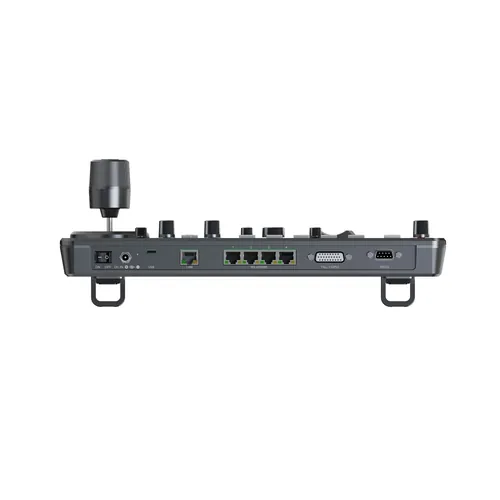

- Interfaces
- 1x IP (RJ45), 1x RS-232, 4x RS-485/RS-422, 1x TALLY, 1x USB 2.0 (for upgrade)
- IP protocol
- ONVIF, VISCA-IP, NDI®|HX, NDI®|HX2
- Video inputs
- IP (ONVIF, VISCA-IP), NDI®|HX2
- Serial protocol
- PELCO-D, PELCO-P, VISCA
- Serial baud rate
- 2400, 4800, 9600, 19200, 38400, 115200 bps
- LAN port
- 1x 1000M (PoE/PoE+: IEEE802.3af/at)
Power
- Power input
- PoE+/DC 7 to 24V
- Power consumption
- PoE+: <8 W, DC: <8 W
- PoE
- PoE+ IEEE 802.3at
Environmental
- Operating temperature
- -20°C to 60°C
- Storage temperature
- -20°C to 70°C

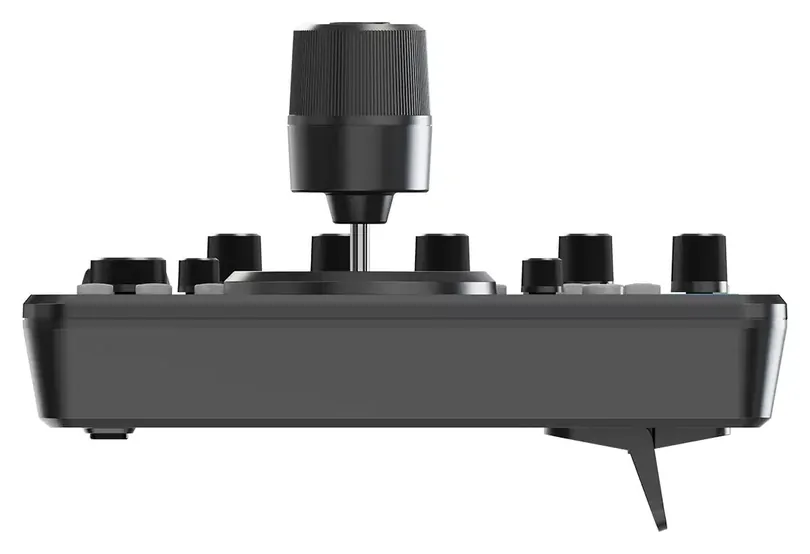

Mechanical
- Dimensions
- 340 x 195 x 49.5 mm (without joystick), 340 x 195 x 110.2 mm (with joystick)
- Weight
- 1730 g

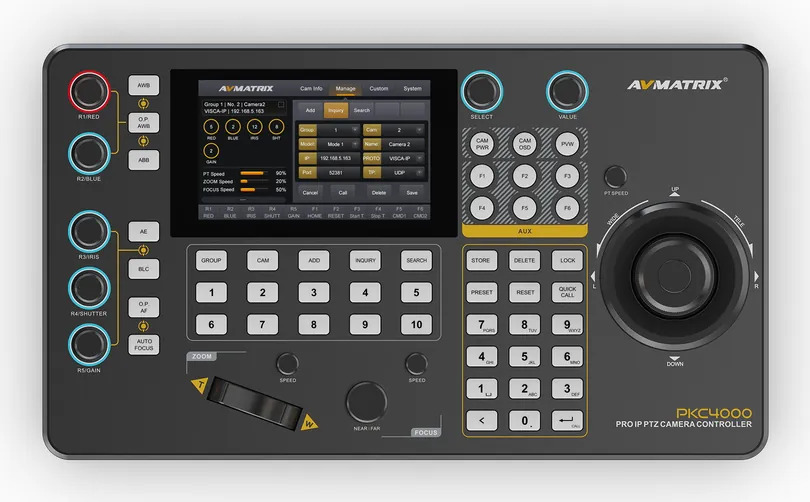

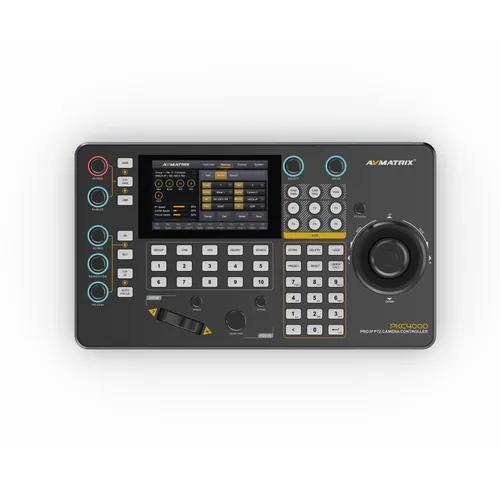

User Interfaces
- Touch screen
- Yes
- Knob
- Iris, shutter speed, gain, auto exposure, white balance
- Joystick
- Pan, Tilt, Zoom
- Camera group
- 10 groups, 10 cameras per group
- Camera address
- Up to 100
- Camera preset
- Up to 255
Accessories
Included
- 12V 2A Power Adapter
- Tally Connector
Product Downloads
Similar Products
Compare key technical data across similar products.
| Technical Data | PKC4000 | PKC3500 |
|---|---|---|
| Display | ||
| Screen size | 5 inch | 5 inch |
| Mechanical | ||
| Dimensions | 340 x 195 x 49.5 mm (without joystick), 340 x 195 x 110.2 mm (with joystick) | 282 x 158 x 47 mm (without joystick), 282 x 158 x 100.5 mm (with joystick) |
| Weight | 1730 g | 1089 g |
| Connections | ||
| Video inputs | IP (ONVIF, VISCA-IP), NDI®|HX2 | IP (ONVIF, VISCA), NDI®|HX2 |
| IP protocol | ONVIF, VISCA-IP, NDI®|HX, NDI®|HX2 | ONVIF, VISCA, NDI®|HX2 |
| Interfaces | 1x IP (RJ45), 1x RS-232, 4x RS-485/RS-422, 1x TALLY, 1x USB 2.0 (for upgrade) | 1x IP (RJ45), 1x RS-232, 1x RS-485/RS-422, 1x TALLY, 1x USB 2.0 (for upgrade) |
| LAN port | 1x 1000M (PoE/PoE+: IEEE802.3af/at) | 1x 1000M (PoE/PoE+: IEEE802.3af/at) |
| Serial baud rate | 2400, 4800, 9600, 19200, 38400, 115200 bps | 2400, 4800, 9600, 19200, 38400, 115200 bps |
| Serial protocol | PELCO-D, PELCO-P, VISCA | PELCO-D, PELCO-P, VISCA |
| Power | ||
| Power consumption | PoE+: <8 W, DC: <8 W | PoE+: <8 W, DC: <8 W |
| PoE | PoE+ IEEE 802.3at | PoE+ IEEE 802.3at |
| Power input | PoE+/DC 7 to 24V | PoE+/DC 7 to 24V |
| Environmental | ||
| Operating temperature | -20°C to 60°C | -20°C to 60°C |
| Storage temperature | -20°C to 70°C | -20°C to 70°C |
| User Interfaces | ||
| Touch screen | Yes | — |
| Camera address | Up to 100 | Up to 255 |
| Camera group | 10 groups, 10 cameras per group | — |
| Camera preset | Up to 255 | Up to 255 |
| Joystick | Pan, Tilt, Zoom | Pan, Tilt, Zoom |
| Knob | Iris, shutter speed, gain, auto exposure, white balance | Iris, shutter speed, gain, auto exposure, white balance |
| Accessories | ||
| Included | 12V 2A Power Adapter, Tally Connector | 12V 2A Power Adapter |
