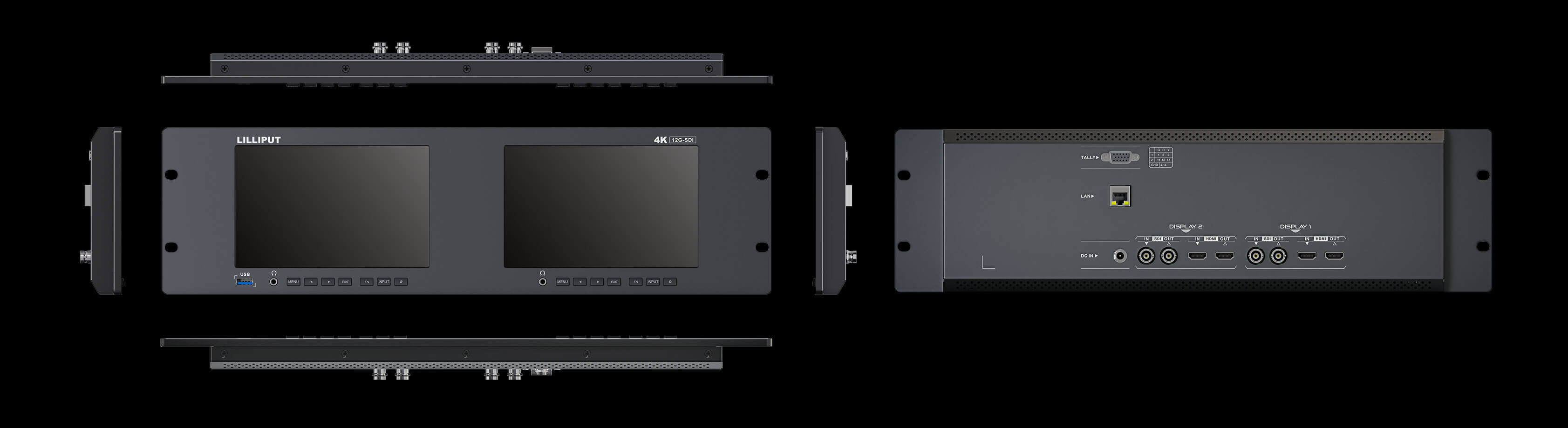

RM-7026-12G, product overview RM-7026-12G, view 2 RM-7026-12G, view 3 RM-7026-12G, view 4 RM-7026-12G, view 5 RM-7026-12G, view 6 RM-7026-12G, view 7

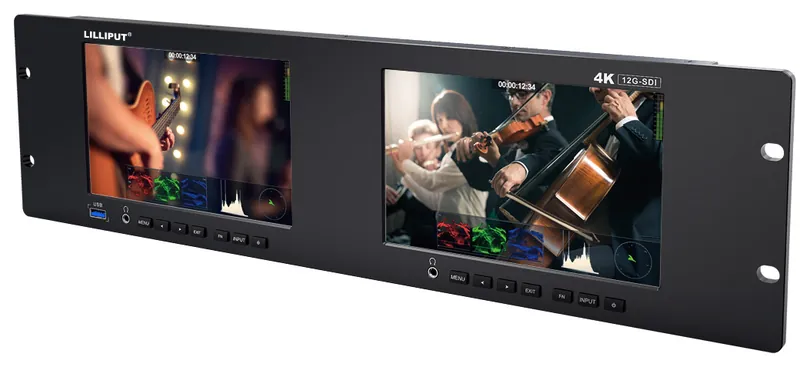

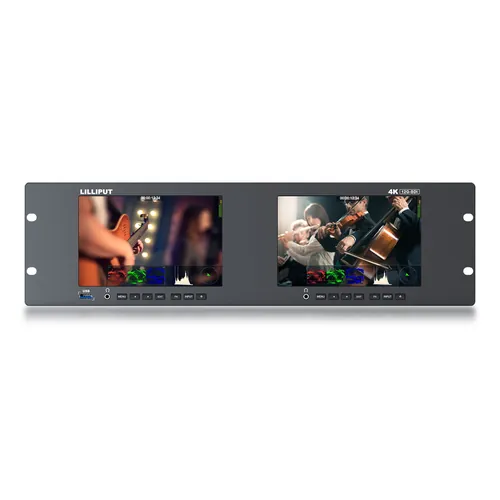

Key Features

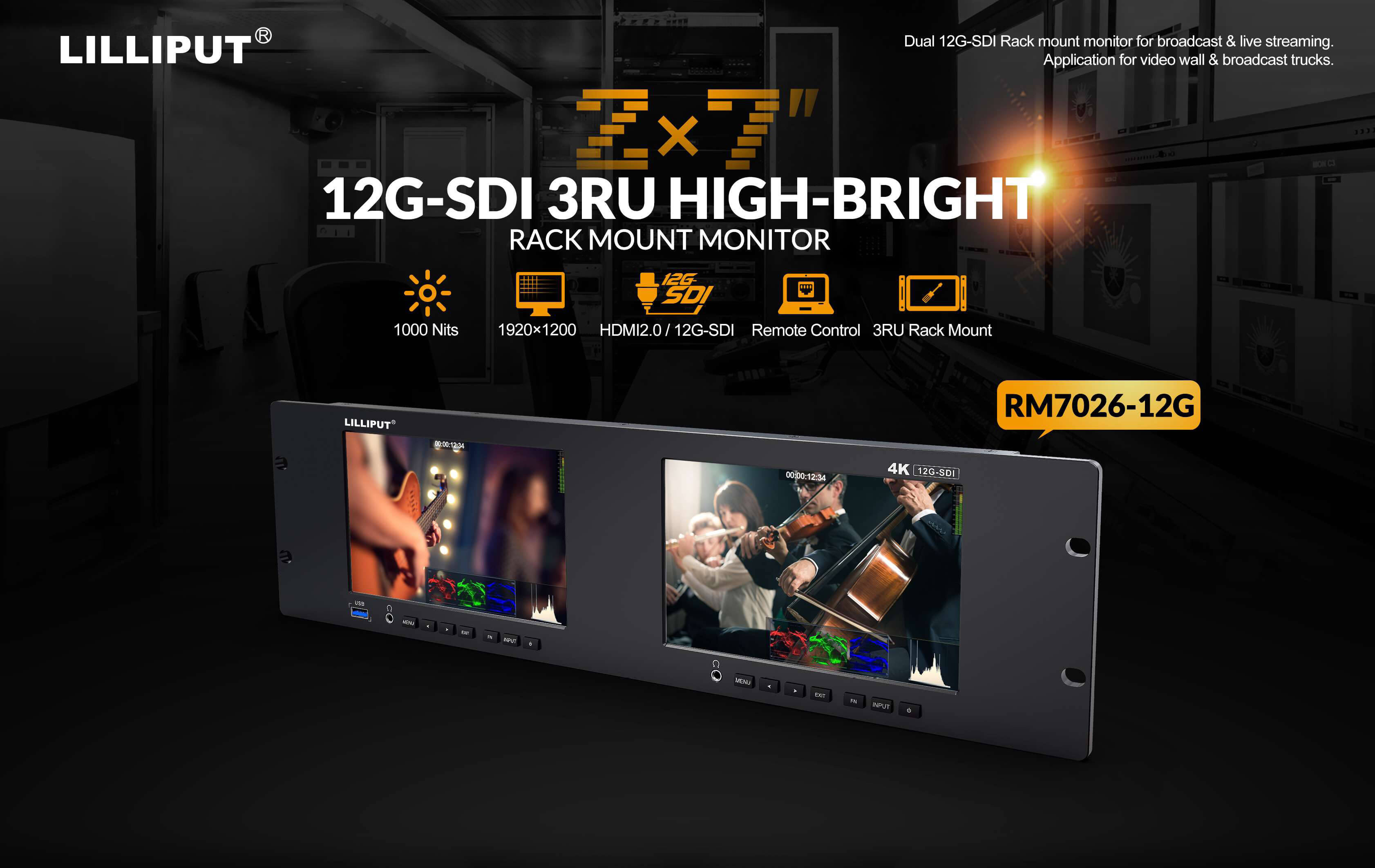

  • Dual 7 inch 1920 x 1200 displays, 1000 cd/m², 1200:1 contrast

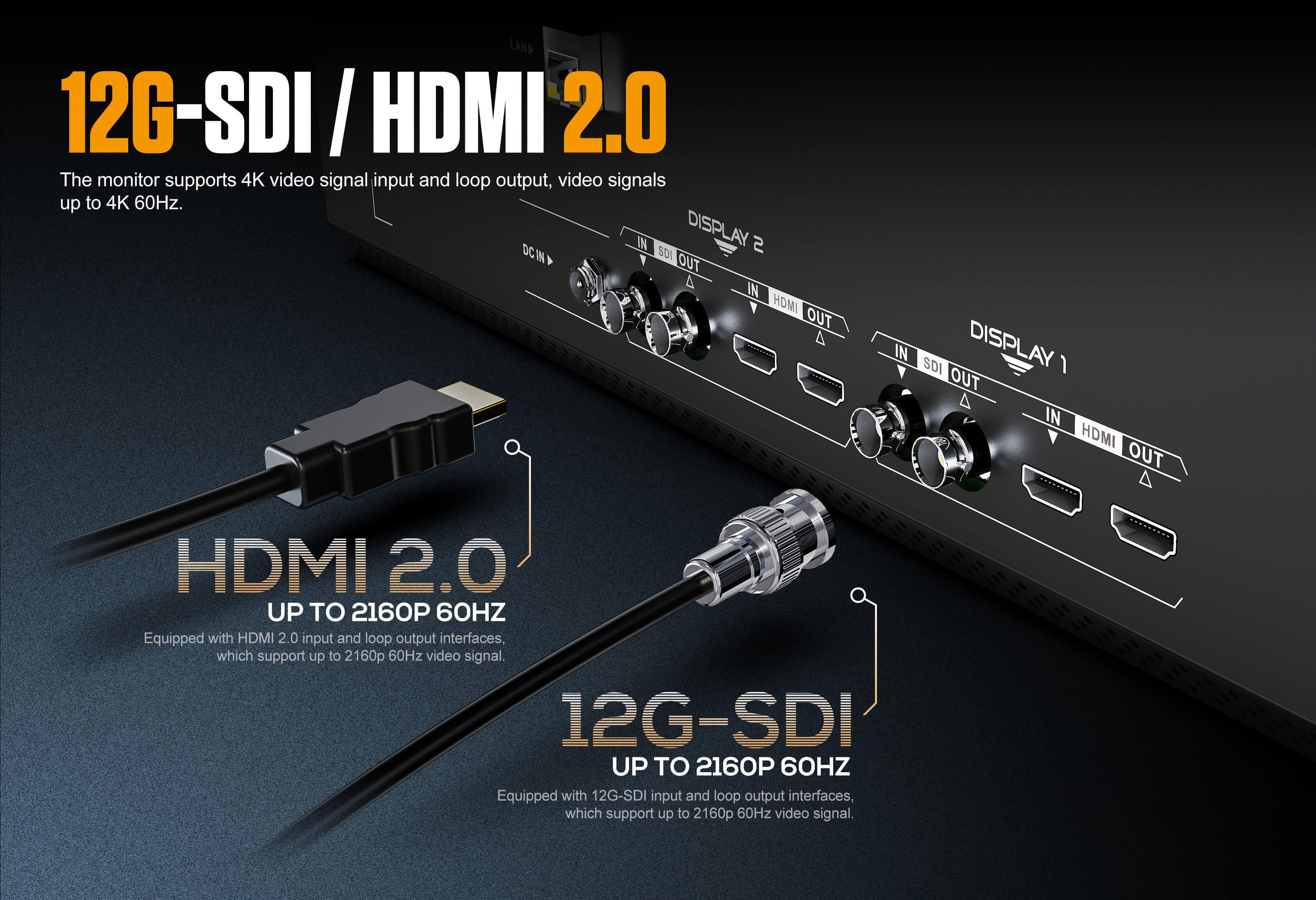

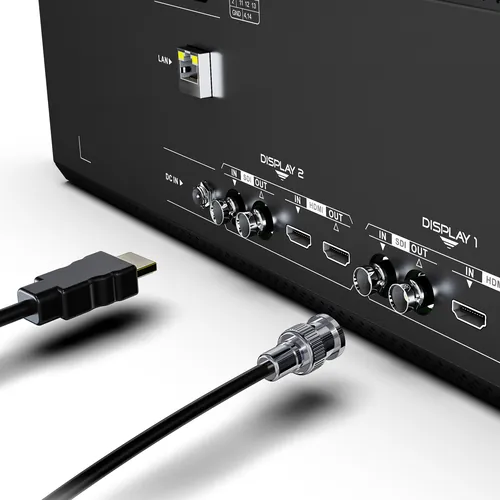

  • 2x 12G-SDI, 2x HDMI 2.0, up to 2160p 60Hz on all inputs
  • 3U rack height (131.6 mm), 19 inch standard rack mounting
  • HDR: HLG, ST2084 (300/1000/10000 cd/m²)

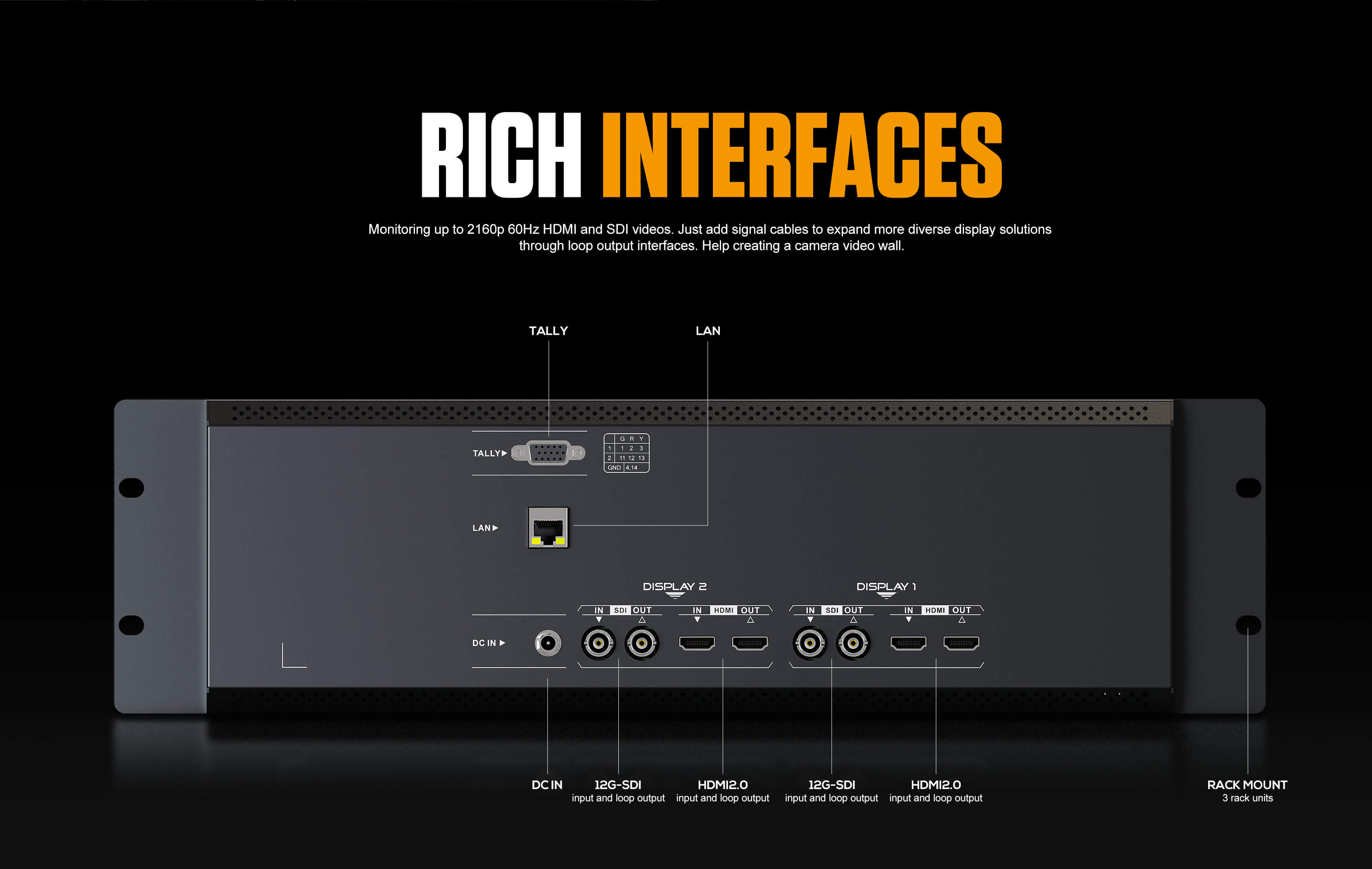

  • TALLY connector; LAN for remote control; 3.5 mm ear jack

Buy the RM-7026-12G From an Authorised Reseller

Lilliput's authorised broadcast resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the RM-7026-12G now, or if your country is not listed, browse all authorised resellers here.

Technical Data

Display

Screen size
7 inch
Aspect ratio
16:10
Native resolution
1920 x 1200
Brightness
1000 cd/m²
Contrast
1200:1
Viewing angle
160°/160° (H/V)
HDR
HLG, ST2084 300/1000/10000 cd/m²
Panels
2x

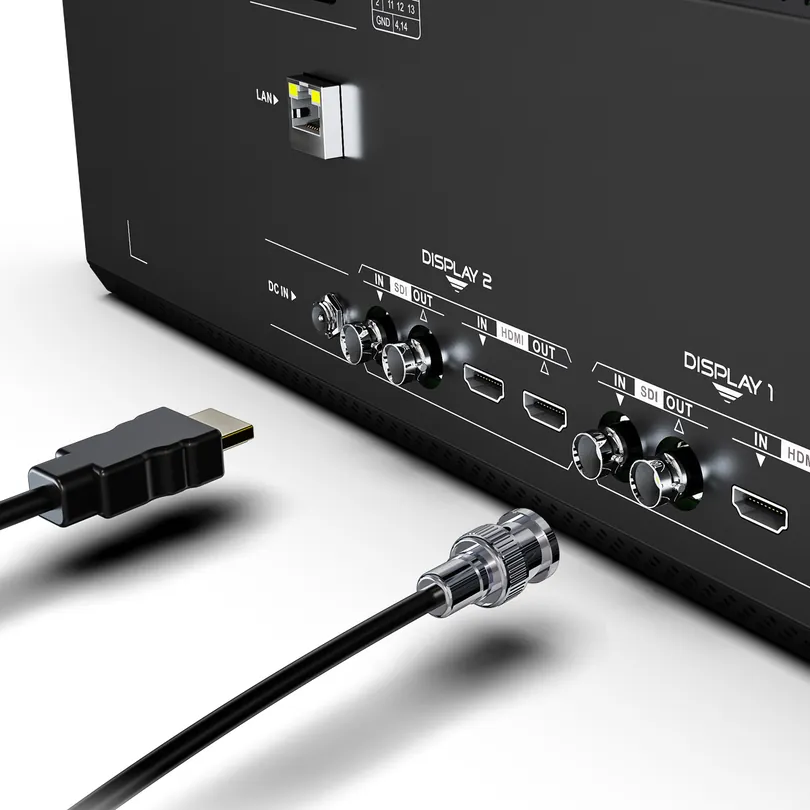

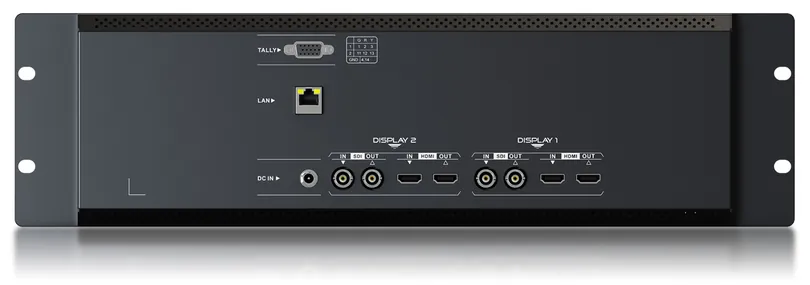

Connections

Video inputs
2x 12G-SDI, 2x HDMI 2.0
Video outputs
2x 12G-SDI, 2x HDMI 2.0
Audio
3.5 mm ear jack

Video Standards

12G-SDI
2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50
HDMI 2.0
2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50

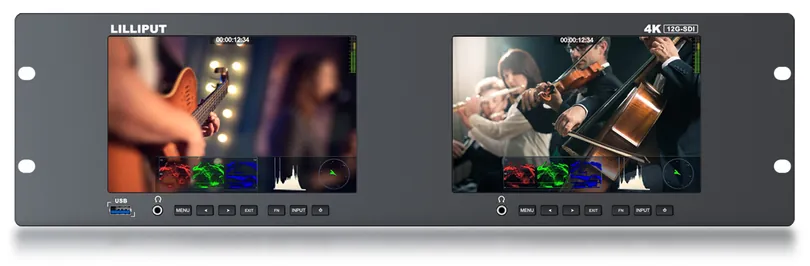

Scopes

Video analysis
Waveform (Y, YCbCr, RGB), Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Time code (LTC, VITC), Check field, Freeze, Colour bar
Audio analysis
Level meter

Power

Input voltage
DC 12 to 24V
Power consumption
≤21 W (12V)

Environmental

Operating temperature
0°C to 50°C
Storage temperature
-20°C to 60°C

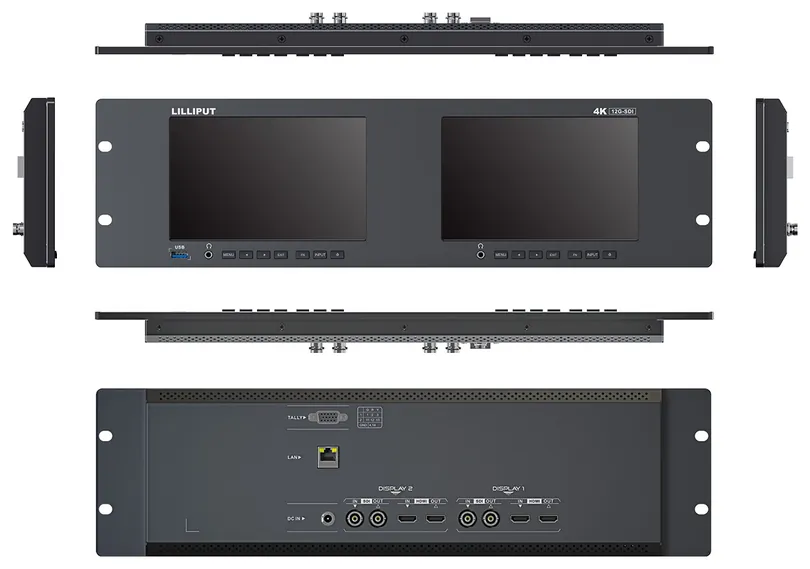

Mechanical

Dimensions
480 x 131.6 x 32.5 mm
Weight
1.83 kg
Rack height
3U

Mounting

Rack mount

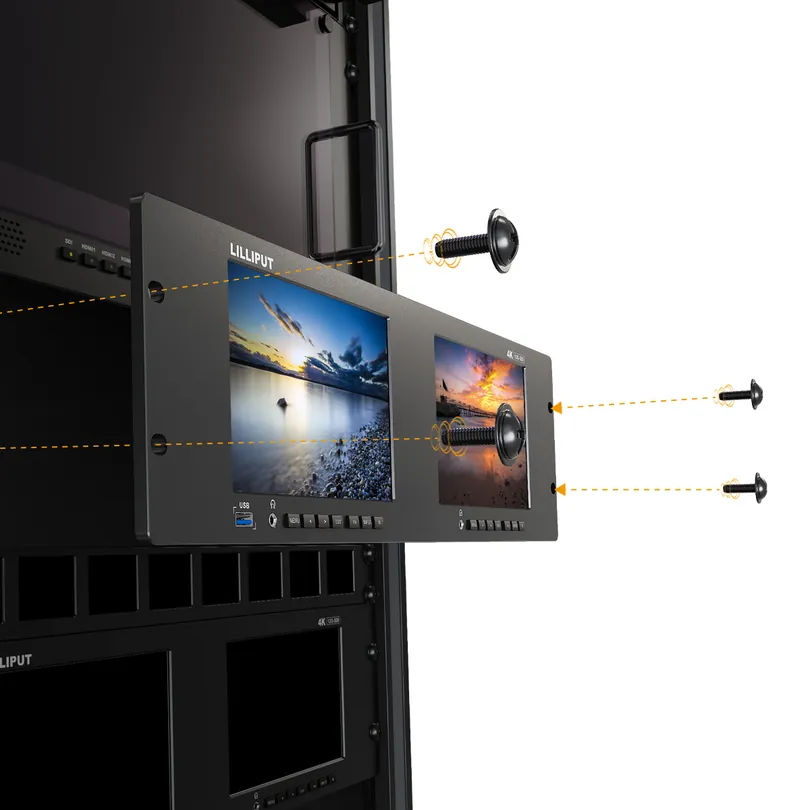

3U rack height (131.6 mm), 19 inch standard rack mounting

Operational Features

Remote control
LAN
Tally
TALLY connector
Function buttons
User-definable (peaking, waveform, histogram, false colour, exposure, time code, etc.)
Markers
Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 1.5X, 2.0X, 2.0X MAG, Grid; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off

Accessories

Included

  • 12V 3A Power Adapter
  • TALLY Connector
  • E-User Manual

Product Downloads

Similar Products

Compare key technical data across similar products.

Technical Data RM-7026-12G RM-7028S RM-7029S RM-1731S-12G RM-503S RM-0208S
Display
Screen size 7 inch 7 inch 7 inch 17.3 inch 5 inch 2 inch
Aspect ratio 16:10 16:10 16:10 16:9 16:9 4:3
Native resolution 1920 x 1200 1280 x 800 1920 x 1200 1920 x 1080 1920 x 1080 640 x 240
Brightness 1000 cd/m² 400 cd/m² 400 cd/m² 300 cd/m² 450 cd/m² 250 cd/m²
Contrast 1200:1 800:1 2000:1 1200:1 1000:1 300:1
Viewing angle 160°/160° (H/V) 178°/178° (H/V) 160°/160° (H/V) 170°/170° (H/V) 160°/160° (H/V) 80°/70° (H/V)
HDR HLG, ST2084 300/1000/10000 cd/m² — — — — —
Panels 2x 2x 2x — 3x 8x
Supported log formats — — SLog2, SLog3, ArriLog, CLog, JLog, VLog, NLog, User defined — — —
LUT support — — 3D-LUT (.cube format) — 3D-LUT (.cube format) —
Panel type — — — IPS — —
Colour space — — — — 98% DCI-P3 —
Connections
Video inputs 2x 12G-SDI, 2x HDMI 2.0 2x 3G-SDI, 2x HDMI 1.4, 2x YPbPr (3 BNC), 2x Composite 2x 3G-SDI, 2x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.0 3x 3G-SDI, 3x HDMI 2.0 8x 3G-SDI
Video outputs 2x 12G-SDI, 2x HDMI 2.0 2x 3G-SDI, 2x HDMI 1.4, 2x YPbPr (3 BNC), 2x Composite 2x 3G-SDI, 2x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.0 3x 3G-SDI, 3x HDMI 2.0 8x 3G-SDI
Audio 3.5 mm ear jack — 2x 3.5 mm ear jack 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 2x Built-in speakers 3x 3.5 mm ear jack 3G-SDI 12ch 48kHz 24-bit
USB — — LUT load — — —
Video Standards
12G-SDI 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 — — 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 — —
HDMI 2.0 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 — 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 —
3G-SDI — 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 — 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 1.4 — 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 — — — —
Scopes
Video analysis Waveform (Y, YCbCr, RGB), Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Time code (LTC, VITC), Check field, Freeze, Colour bar Check field, Colour bar, Freeze Waveform, Histogram, False colour, Exposure, Time code (LTC, VITC) Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Time code (LTC, VITC), Check field, Freeze, Colour bar Waveform (Multi, Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Time code (LTC, VITC), Check field, Freeze, Colour bar —
Audio analysis Level meter — Level meter Level meter Audio vector, Level meter —
Power
Input voltage DC 12 to 24V DC 7 to 24V DC 10 to 24V DC 12 to 24V DC 12 to 24V DC 12 to 24V
Power consumption ≤21 W (12V) ≤18 W ≤18 W ≤19 W (12V) ≤27 W (12V) ≤23 W
Environmental
Operating temperature 0°C to 50°C -20°C to 60°C -20°C to 60°C 0°C to 50°C 0°C to 50°C -20°C to 60°C
Storage temperature -20°C to 60°C -30°C to 70°C -30°C to 70°C -20°C to 60°C -20°C to 60°C -30°C to 70°C
Mechanical
Dimensions 480 x 131.6 x 32.5 mm 482.5 x 133.5 x 25.3 mm 480 x 131.6 x 29.3 mm 482.5 x 44 x 507.5 mm 480 x 88 x 88 mm 482.5 x 105 x 44 mm
Weight 1.83 kg 2.885 kg 2.2 kg 10.1 kg 2.1 kg 1.555 kg
Rack height 3U 3U 3U 1U 2U 1U
Mounting
Rack mount 3U rack height (131.6 mm), 19 inch standard rack mounting 3U rack height (133.5 mm), 19 inch standard rack mounting 3U rack height (131.6 mm), 19 inch standard rack mounting 1U rack height (44 mm), 19 inch standard rack mounting 2U rack height (88 mm), 19 inch standard rack mounting 1U rack height (44.45 mm), 19 inch standard rack mounting
Operational Features
Remote control LAN LAN LAN GPI, LAN, RS422 In/Out LAN RS422 In
Tally TALLY connector TALLY connector TALLY connector (indicating light) TALLY connector TALLY connector —
Function buttons User-definable (peaking, waveform, histogram, false colour, exposure, time code, etc.) User-definable (centre marker, safety marker, check field, colour bar, aspect ratio, camera, PIP, image flip, zoom, pixel-to-pixel, freeze, underscan, H/V delay, etc.) User-definable (peaking, waveform, histogram, false colour, exposure, time code, etc.) — — —
Markers Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 1.5X, 2.0X, 2.0X MAG, Grid; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: Full screen, 16:9, 4:3, 1.85:1, 2.35:1; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 1.5X, 2.0X, 2.0X MAG; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 1.5X, 2.0X, 2.0X MAG, Grid; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 1.5X, 2.0X, 2.0X MAG; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off —
View modes — — — Quad-View — —
PC software — — — — — Brightness, contrast, time code switch, level meter, UMD (32 characters)
