Key Features
- Dual 7 inch 1280 x 800 displays, 400 cd/m², 800:1 contrast
- 2x 3G-SDI, 2x HDMI 1.4, 2x YPbPr (3 BNC), 2x Composite, versatile inputs
- 3U rack height (133.5 mm), 19 inch standard rack mounting
- 178°/178° viewing angle; up to 1080p 60Hz
- TALLY connector; LAN for remote control
Buy the RM-7028S From an Authorised Reseller
Lilliput's authorised broadcast resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the RM-7028S now, or if your country is not listed, browse all authorised resellers here.
- 3D Broadcast Ltd Opens in a new tab.
- APODAX SL Opens in a new tab.
- AVNed B.V. Opens in a new tab.
- Broadcast & Production Services (UK) Limited Opens in a new tab.
- CineGearPro Ltd Opens in a new tab.
- E-MOTION CREATIONS di Pierfrancesco Armati Opens in a new tab.
- Eastwood (Sound and Vision) Ltd Opens in a new tab.
- Proactive UK Ltd Opens in a new tab.
- RCB Logic Limited Opens in a new tab.
- Voosestore AB Opens in a new tab.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data

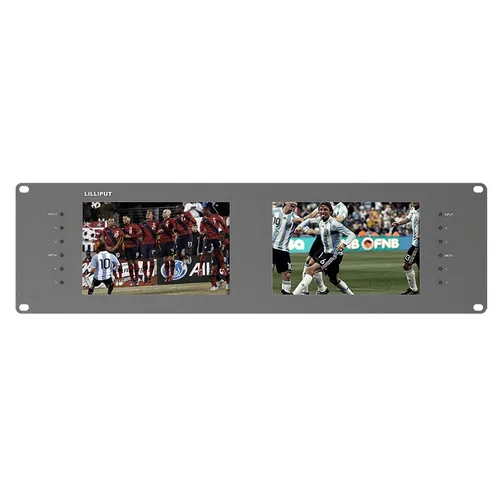

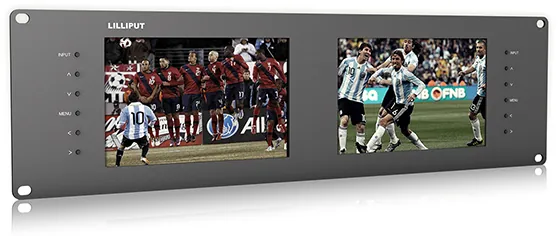

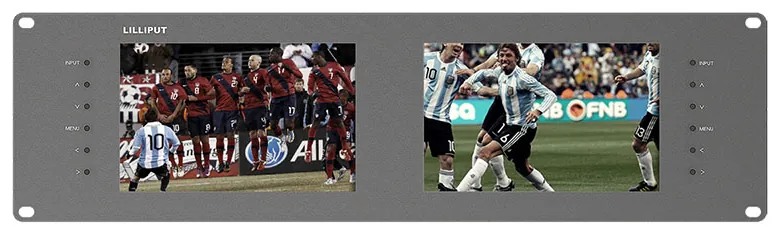

Display
- Screen size
- 7 inch
- Aspect ratio
- 16:10
- Native resolution
- 1280 x 800
- Brightness
- 400 cd/m²
- Contrast
- 800:1
- Viewing angle
- 178°/178° (H/V)
- Panels
- 2x

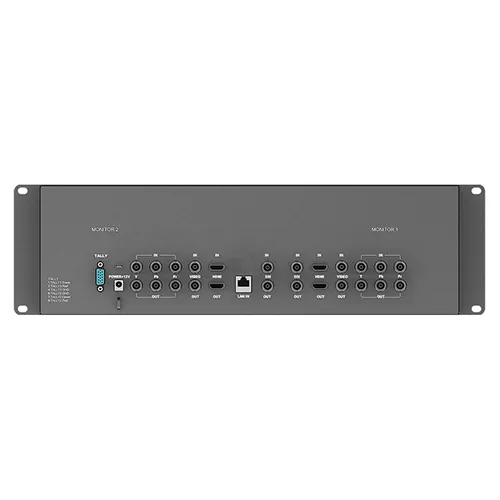

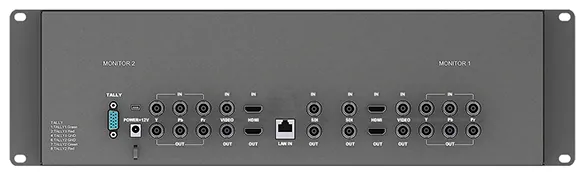

Connections
- Video inputs
- 2x 3G-SDI, 2x HDMI 1.4, 2x YPbPr (3 BNC), 2x Composite
- Video outputs
- 2x 3G-SDI, 2x HDMI 1.4, 2x YPbPr (3 BNC), 2x Composite
Video Standards
- 3G-SDI
- 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
- HDMI 1.4
- 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
Scopes
- Video analysis
- Check field, Colour bar, Freeze
Power
- Input voltage
- DC 7 to 24V
- Power consumption
- ≤18 W
Environmental
- Operating temperature
- -20°C to 60°C
- Storage temperature
- -30°C to 70°C
Mechanical
- Dimensions
- 482.5 x 133.5 x 25.3 mm
- Weight
- 2.885 kg
- Rack height
- 3U
Mounting
- Rack mount
- 3U rack height (133.5 mm), 19 inch standard rack mounting
Operational Features
- Remote control
- LAN
- Tally
- TALLY connector
- Function buttons
- User-definable (centre marker, safety marker, check field, colour bar, aspect ratio, camera, PIP, image flip, zoom, pixel-to-pixel, freeze, underscan, H/V delay, etc.)
- Markers
- Aspect markers: Full screen, 16:9, 4:3, 1.85:1, 2.35:1; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
Accessories
Included
- 15V DC Adapter
- TALLY Connector
- User Manual (CD)
Product Downloads
Similar Products
Compare key technical data across similar products.
| Technical Data | RM-7028S | RM-7029S | RM-7026-12G | RM-503S | RM-0208S |
|---|---|---|---|---|---|
| Display | |||||
| Screen size | 7 inch | 7 inch | 7 inch | 5 inch | 2 inch |
| Aspect ratio | 16:10 | 16:10 | 16:10 | 16:9 | 4:3 |
| Native resolution | 1280 x 800 | 1920 x 1200 | 1920 x 1200 | 1920 x 1080 | 640 x 240 |
| Brightness | 400 cd/m² | 400 cd/m² | 1000 cd/m² | 450 cd/m² | 250 cd/m² |
| Contrast | 800:1 | 2000:1 | 1200:1 | 1000:1 | 300:1 |
| Viewing angle | 178°/178° (H/V) | 160°/160° (H/V) | 160°/160° (H/V) | 160°/160° (H/V) | 80°/70° (H/V) |
| Panels | 2x | 2x | 2x | 3x | 8x |
| Supported log formats | — | SLog2, SLog3, ArriLog, CLog, JLog, VLog, NLog, User defined | — | — | — |
| LUT support | — | 3D-LUT (.cube format) | — | 3D-LUT (.cube format) | — |
| HDR | — | — | HLG, ST2084 300/1000/10000 cd/m² | — | — |
| Colour space | — | — | — | 98% DCI-P3 | — |
| Connections | |||||
| Video inputs | 2x 3G-SDI, 2x HDMI 1.4, 2x YPbPr (3 BNC), 2x Composite | 2x 3G-SDI, 2x HDMI 2.0 | 2x 12G-SDI, 2x HDMI 2.0 | 3x 3G-SDI, 3x HDMI 2.0 | 8x 3G-SDI |
| Video outputs | 2x 3G-SDI, 2x HDMI 1.4, 2x YPbPr (3 BNC), 2x Composite | 2x 3G-SDI, 2x HDMI 2.0 | 2x 12G-SDI, 2x HDMI 2.0 | 3x 3G-SDI, 3x HDMI 2.0 | 8x 3G-SDI |
| USB | — | LUT load | — | — | — |
| Audio | — | 2x 3.5 mm ear jack | 3.5 mm ear jack | 3x 3.5 mm ear jack | 3G-SDI 12ch 48kHz 24-bit |
| Video Standards | |||||
| 3G-SDI | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 | — | 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| HDMI 1.4 | 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | — | — | — |
| HDMI 2.0 | — | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 | — |
| 12G-SDI | — | — | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 | — | — |
| Scopes | |||||
| Video analysis | Check field, Colour bar, Freeze | Waveform, Histogram, False colour, Exposure, Time code (LTC, VITC) | Waveform (Y, YCbCr, RGB), Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Time code (LTC, VITC), Check field, Freeze, Colour bar | Waveform (Multi, Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Time code (LTC, VITC), Check field, Freeze, Colour bar | — |
| Audio analysis | — | Level meter | Level meter | Audio vector, Level meter | — |
| Power | |||||
| Input voltage | DC 7 to 24V | DC 10 to 24V | DC 12 to 24V | DC 12 to 24V | DC 12 to 24V |
| Power consumption | ≤18 W | ≤18 W | ≤21 W (12V) | ≤27 W (12V) | ≤23 W |
| Environmental | |||||
| Operating temperature | -20°C to 60°C | -20°C to 60°C | 0°C to 50°C | 0°C to 50°C | -20°C to 60°C |
| Storage temperature | -30°C to 70°C | -30°C to 70°C | -20°C to 60°C | -20°C to 60°C | -30°C to 70°C |
| Mechanical | |||||
| Dimensions | 482.5 x 133.5 x 25.3 mm | 480 x 131.6 x 29.3 mm | 480 x 131.6 x 32.5 mm | 480 x 88 x 88 mm | 482.5 x 105 x 44 mm |
| Weight | 2.885 kg | 2.2 kg | 1.83 kg | 2.1 kg | 1.555 kg |
| Rack height | 3U | 3U | 3U | 2U | 1U |
| Mounting | |||||
| Rack mount | 3U rack height (133.5 mm), 19 inch standard rack mounting | 3U rack height (131.6 mm), 19 inch standard rack mounting | 3U rack height (131.6 mm), 19 inch standard rack mounting | 2U rack height (88 mm), 19 inch standard rack mounting | 1U rack height (44.45 mm), 19 inch standard rack mounting |
| Operational Features | |||||
| Remote control | LAN | LAN | LAN | LAN | RS422 In |
| Tally | TALLY connector | TALLY connector (indicating light) | TALLY connector | TALLY connector | — |
| Function buttons | User-definable (centre marker, safety marker, check field, colour bar, aspect ratio, camera, PIP, image flip, zoom, pixel-to-pixel, freeze, underscan, H/V delay, etc.) | User-definable (peaking, waveform, histogram, false colour, exposure, time code, etc.) | User-definable (peaking, waveform, histogram, false colour, exposure, time code, etc.) | — | — |
| Markers | Aspect markers: Full screen, 16:9, 4:3, 1.85:1, 2.35:1; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 1.5X, 2.0X, 2.0X MAG; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 1.5X, 2.0X, 2.0X MAG, Grid; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 1.5X, 2.0X, 2.0X MAG; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | — |
| PC software | — | — | — | — | Brightness, contrast, time code switch, level meter, UMD (32 characters) |
