Key Features

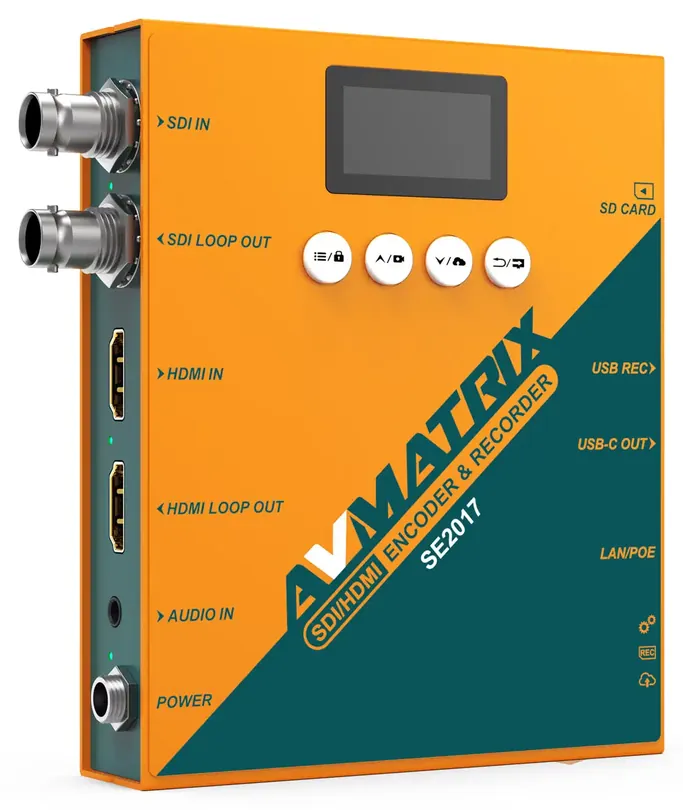

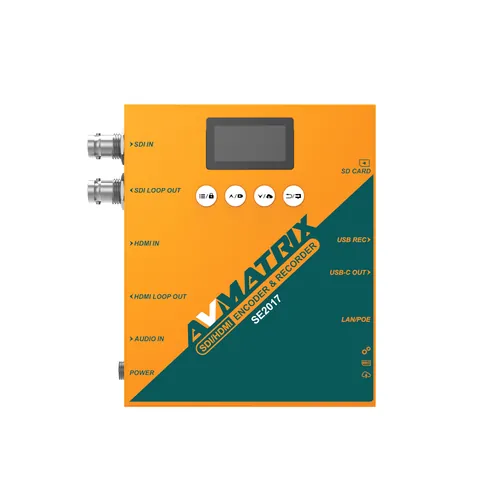

- 3G-SDI/HDMI encoder and recorder, 1x HDMI in/loop out, 1x 3G-SDI in/loop out, 3.5 mm line in, RJ45 100/1000 Mbps
- Record to SD card or USB disk (FAT32/exFAT/NTFS). File segments 1 to 120 mins
- HDMI and 3G-SDI input: 1080p 24 to 60, 1080i 50/60, 720p 24 to 60, 576i/p 50, 480i/p 60
- Video bitrate 2 to 32 Mbps; audio AAC 64 to 320 Kbps. USB capture out up to 1080p 60 Hz
- Protocols: RTSP, RTMP, SRT. Web configuration, remote upgrade
- DC 12V, 4.5 W. 104 x 125.5 x 24.5 mm, 550 g. -20°C to 60°C operating
Product Enquiry
Request a quote or ask a question about the SE2017. Our UK team will respond promptly.
Technical Data

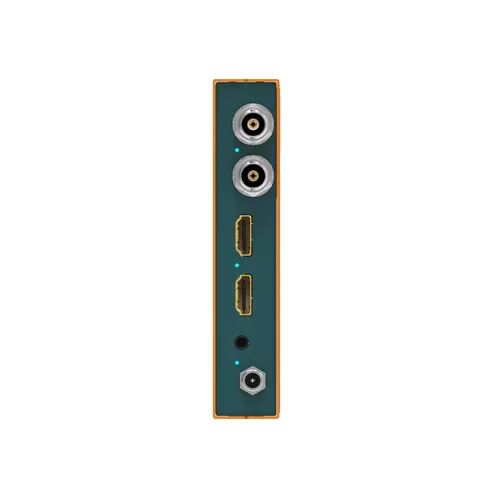

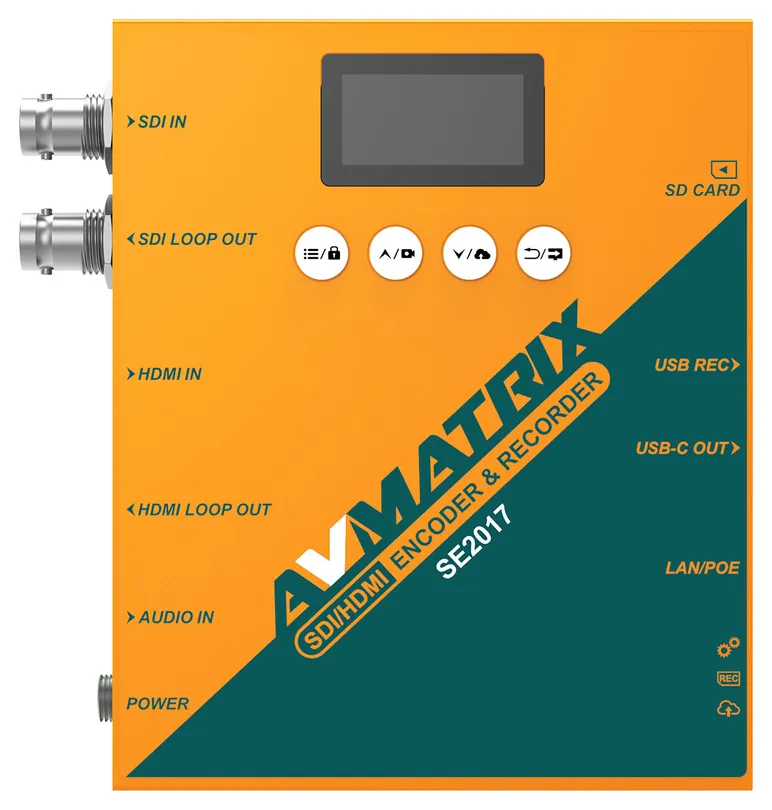

Connections
- Video interfaces
- 1x HDMI input, 1x HDMI loop out, 1x 3G-SDI input, 1x 3G-SDI loop out
- Audio
- 1x 3.5 mm line in
- Network
- 1x RJ45 100/1000 Mbps
- Power input
- 1x DC 12V 2A
Video Standards
- HDMI
- 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60, 576p 50, 576i 50, 480p 60, 480i 60
- 3G-SDI
- 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60, 576p 50, 576i 50, 480p 60, 480i 60
- Video encoding
- Bitrate 2 to 32 Mbps, Resolutions 1920x1080, 1280x720, 720x480, Frame rate 24/25/30/50/60 fps
- Audio encoding
- AAC, 64 to 320 Kbps
Power
- Input voltage
- DC 12V
- Power consumption
- 4.5 W
Environmental
- Operating temperature
- -20°C to 60°C
- Storage temperature
- -30°C to 70°C
Mechanical
- Dimensions
- 104 x 125.5 x 24.5 mm
- Weight
- 550 g (net) / 905 g (gross)
Other
- Configuration
- Web configuration, remote upgrade
Recording
- SD card format
- FAT32, exFAT, NTFS
- USB disk format
- FAT32, exFAT, NTFS
- File segment
- 1/5/10/20/30/60/90/120 mins
- Storage
- SD card, USB disk
Streaming
- Streaming protocols
- RTSP, RTMP, SRT
Product Downloads
Similar Products
Compare key technical data across similar AV Matrix products.
| Technical Data | SE2017 | DE21-4K PRO | DE20-4K | SE1117 | SE1217 | VP51 |
|---|---|---|---|---|---|---|
| Connections | ||||||
| Video interfaces | 1x HDMI input, 1x HDMI loop out, 1x 3G-SDI input, 1x 3G-SDI loop out | 1x HDMI input, 1x HDMI output | 1x HDMI input, 1x HDMI loop out, 1x HDMI output | 1x 3G-SDI input, 1x 3G-SDI loop out | 1x HDMI input, 1x HDMI loop out | 1x 3G-SDI input, 1x 3G-SDI output, 3x 3G-SDI I/O (bidirectional) |
| Audio | 1x 3.5 mm line in | 1x 3.5 mm line in and out | 1x 3.5 mm line in and out | 1x 3.5 mm line in | 1x 3.5 mm line in | — |
| Network | 1x RJ45 100/1000 Mbps | 1x NDI®/PoE RJ45 | 1x NDI®|HX/PoE+ RJ45 | 1x RJ45 100/1000 Mbps | 1x RJ45 100/1000 Mbps | — |
| Power input | 1x DC 12V 2A | 1x DC 5 to 18V USB-C | 1x DC 6 to 20V | 1x DC 12V 2A | 1x DC 12V 2A | — |
| USB | — | — | 1x USB Type-A (host); USB UVC device capture | — | — | — |
| Host interface | — | — | — | — | — | PCIe x4 Gen3 |
| Video Standards | ||||||
| HDMI | 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60, 576p 50, 576i 50, 480p 60, 480i 60 | 2160p 24/25/30/50/60, 2560x1080 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60, 576p 50, 576i 50, 480p 60, 480i 60 | — |
| 3G-SDI | 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60, 576p 50, 576i 50, 480p 60, 480i 60 | — | — | 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60, 576p 50, 576i 50, 480p 60, 480i 60 | — | 1080p 24/25/30/50/60, 1080PsF 24/25/30, 1080i 50/60, 625i 50, 525i 60 |
| Video encoding | Bitrate 2 to 32 Mbps, Resolutions 1920x1080, 1280x720, 720x480, Frame rate 24/25/30/50/60 fps | NDI® High Bandwidth HD, YCbCr 4:2:2 8bit, 250 Mbps @ 4K60, 125 Mbps @ 1080p60, Up to 2160p 24/25/30/50/60 | NDI®|HX, NDI®|HX2, and NDI®|HX3, H.264 (default), H.265, MJPEG; 64 Kbps to 51.2 Mbps (streaming), Up to 50 Mbps, 2160p 60 on HDMI input; 2160p 60 HDR passthrough on HDMI loop out; 2160p 30/25/24 on HDMI decode output, 2160p 30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 encode and decode, USB UVC capture (MJPEG up to 1080p); LAN streaming over RJ45 | Bitrate 16 Kbps to 12 Mbps, Resolutions 1920x1080 down to 640x360, Frame rate 5 to 60 fps | Bitrate 16 Kbps to 12 Mbps, Resolutions 1920x1080 down to 640x360, Frame rate 5 to 60 fps | — |
| Audio encoding | AAC, 64 to 320 Kbps | — | AAC (default), MP3; 32/44.1/48 kHz; 64 to 256 Kbps | AAC/MP3/MP2/G711, 24 to 320 Kbps | AAC/MP3/MP2/G711, 24 to 320 Kbps | — |
| Color precision | — | — | — | — | — | YUV 4:2:2 8bit |
| Color space | — | — | — | — | — | REC 601, REC 709 |
| 3G-SDI compliance | — | — | — | — | — | SMPTE 259M, 292M, 296M, 372M, 425M; ITU-R BT.656, BT.601 |
| Audio sampling | — | — | — | — | — | 48 kHz 24 bit |
| Operational Features | ||||||
| Tally | — | — | Program and preview tally indication | — | — | — |
| PTZ control | — | — | PELCO-D, PELCO-P, VISCA, IP VISCA, NDI | — | — | — |
| Audio mixing | — | — | Flexible audio mixing | — | — | — |
| OSD | — | — | Text, logo, and image overlay | — | — | — |
| Power | ||||||
| Input voltage | DC 12V | DC 5 to 18V (USB-C) | DC 6 to 20V (12V 2A adapter included); PoE+ IEEE 802.3at on RJ45 | DC 12V | DC 12V | — |
| Power consumption | 4.5 W | 5 W ±10% | 8 W maximum | 5 W | 5 W | 12 W (from PCIe slot) |
| Power output | — | — | DC 6 to 20V passthrough output (max 1 A); USB 5 V 1 A | — | — | — |
| Environmental | ||||||
| Operating temperature | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | 0°C to 40°C | 0°C to 40°C | 5°C to 40°C |
| Storage temperature | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -20°C to 70°C | -20°C to 70°C | -20°C to 70°C |
| Relative humidity | — | — | — | — | — | 0 to 90% non-condensing |
| Mechanical | ||||||
| Dimensions | 104 x 125.5 x 24.5 mm | 104 x 125.5 x 24.5 mm | 104 x 125.5 x 24.5 mm | 104 x 75.5 x 24.5 mm | 104 x 75.5 x 24.5 mm | 102.21 x 89.51 mm (PCB) |
| Weight | 550 g (net) / 905 g (gross) | 501 g (net) / 750 g (gross) | 501 g (net) / 820 g (gross) | 340 g (net) / 730 g (gross) | 310 g (net) / 690 g (gross) | 120 g |
| Recording | ||||||
| SD card format | FAT32, exFAT, NTFS | — | FAT32, exFAT | — | — | — |
| USB disk format | FAT32, exFAT, NTFS | — | FAT32, exFAT | — | — | — |
| File segment | 1/5/10/20/30/60/90/120 mins | — | By file size or duration | — | — | — |
| Storage | SD card, USB disk | — | SD card, USB disk, NAS | — | — | — |
| Support | ||||||
| System | — | — | — | — | — | Windows 7/8/10/11, Linux 64-bit |
| Software | — | — | — | — | — | OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2 |
| Other | ||||||
| Configuration | Web configuration, remote upgrade | — | Web configuration; Wi-Fi client and hotspot | Web configuration, remote upgrade | Web configuration, remote upgrade | — |
| Warranty | — | 3 years | 3 years | — | — | — |
| Streaming | ||||||
| Streaming protocols | RTSP, RTMP, SRT | — | RTSP, RTMP, RTMPS, SRT, NDI®|HX, NDI®|HX2, NDI®|HX3 | HTTP, RTSP, RTMPS, RTMP, RTP, UDP, Multicast, Unicast, SRT | HTTP, RTSP, RTMPS, RTMP, RTP, UDP, Multicast, Unicast, SRT | — |
| NDI® | — | 1x NDI® encoding or 1x NDI® decoding, YCbCr 4:2:2 8bit NDI® High Bandwidth HD, 250 Mbps @ 4K60, 125 Mbps @ 1080p60 | 1x NDI®|HX encoding or 1x NDI®|HX decoding, NDI®|HX, NDI®|HX2, and NDI®|HX3, Up to 50 Mbps, Encode and decode to 2160p 30/25/24 | — | — | — |
