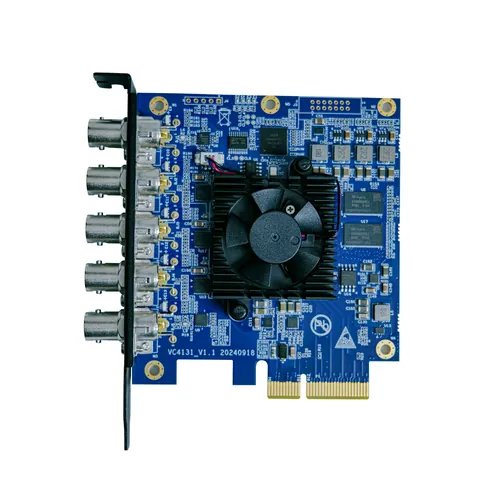

VP51, product overview VP51, view 2 VP51, view 3 VP51, view 4 VP51, view 5 VP51, view 6 VP51, view 7 VP51, view 8

Key Features

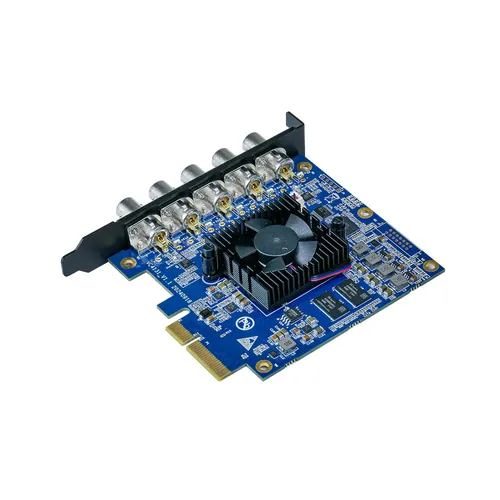

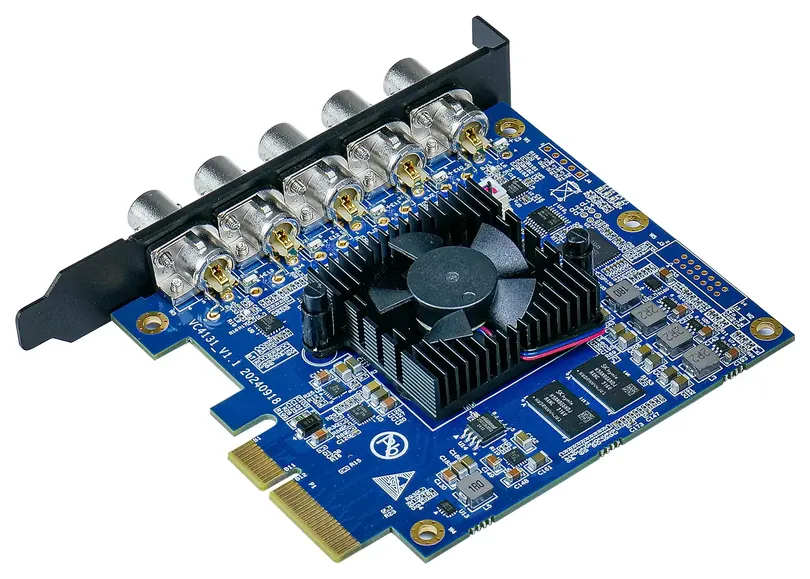

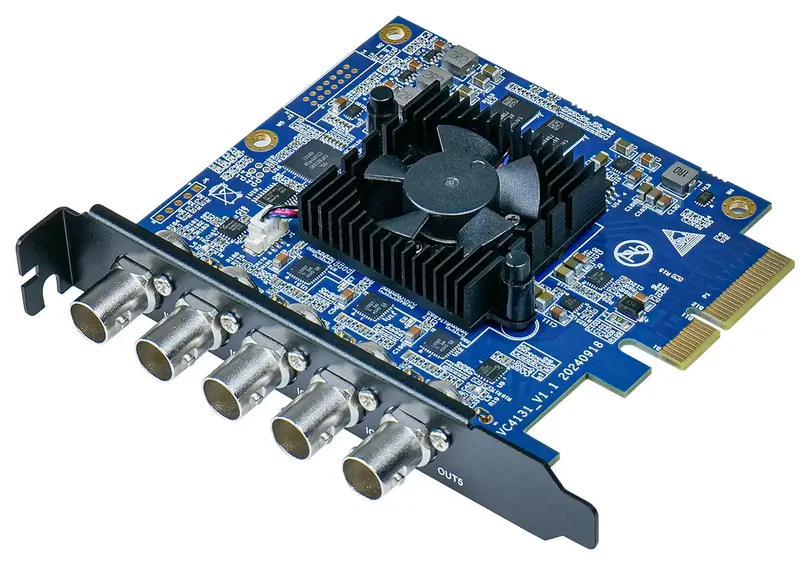

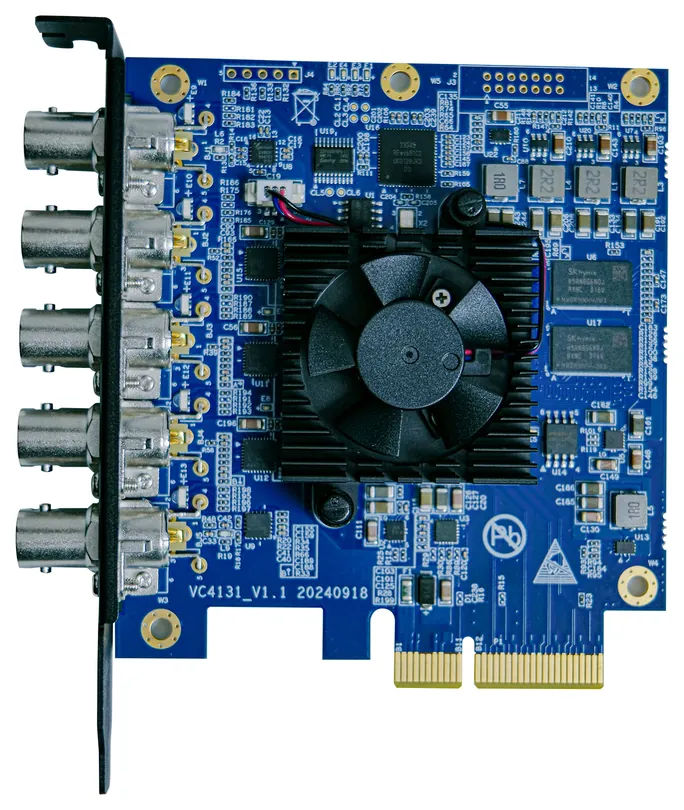

  • 3G-SDI video capture and playback PCI-E card, PCIe x4 Gen3
  • 1x 3G-SDI input, 1x 3G-SDI output, 3x 3G-SDI I/O (bidirectional)
  • 3G: 1080p 50/60. HD: 1080p 24 to 30, 1080PsF, 1080i 50/60. SD: 525i, 625i
  • YUV 4:2:2 8bit, REC 601, REC 709. Audio 48 kHz 24 bit embedded
  • SMPTE 259M, 292M, 296M, 372M, 425M; ITU-R BT.656, BT.601
  • Windows 7/8/10/11, Linux 64-bit. OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast

Buy the VP51 From an Authorised Reseller

Lilliput's authorised resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the VP51 now, or if your country is not listed, browse all authorised resellers here.

Technical Data

Connections

Host interface
PCIe x4 Gen3
Video interfaces
1x 3G-SDI input, 1x 3G-SDI output, 3x 3G-SDI I/O (bidirectional)

Video Standards

3G-SDI
1080p 24/25/30/50/60, 1080PsF 24/25/30, 1080i 50/60, 625i 50, 525i 60
Color precision
YUV 4:2:2 8bit
Color space
REC 601, REC 709
3G-SDI compliance
SMPTE 259M, 292M, 296M, 372M, 425M; ITU-R BT.656, BT.601
Audio sampling
48 kHz 24 bit

Power

Power consumption
12 W (from PCIe slot)

Environmental

Operating temperature
5°C to 40°C
Storage temperature
-20°C to 70°C
Relative humidity
0 to 90% non-condensing

Mechanical

Dimensions
102.21 x 89.51 mm (PCB)
Weight
120 g

Support

System
Windows 7/8/10/11, Linux 64-bit
Software
OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2

Product Downloads

Similar Products

Compare key technical data across similar products.

Technical Data VP51 SE2017 VP30 VC42 VC41
Mechanical
Dimensions 102.21 x 89.51 mm (PCB) 104 x 125.5 x 24.5 mm 102.21 x 89.51 mm (PCB) 120.1 x 88.4 x 21.6 mm 120.1 x 88.4 x 21.6 mm
Weight 120 g 550 g (net) / 905 g (gross) 80 g 150 g 150 g
Connections
Audio — 1x 3.5 mm line in — — —
Host interface PCIe x4 Gen3 — PCIe x1 Gen2 PCIe x4 Gen2 (2.5 GB/s) PCIe x4 Gen2 (2.5 GB/s)
Network — 1x RJ-45 100/1000 Mbps — — —
Power input — 1x DC 12V 2A — — —
Video interfaces 1x 3G-SDI input, 1x 3G-SDI output, 3x 3G-SDI I/O (bidirectional) 1x HDMI input, 1x HDMI loop out, 1x 3G-SDI input, 1x 3G-SDI loop out 2x 3G-SDI, 1x HDMI 1.4 4x HDMI 1.4 input 4x SD/HD/3G-SDI input
Video Standards
3G-SDI 1080p 24/25/30/50/60, 1080PsF 24/25/30, 1080i 50/60, 625i 50, 525i 60 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60, 576p 50, 576i 50, 480p 60, 480i 60 1080p 24/25/30/50/60, 1080PsF 24/25/30, 1080i 50/60, 720p 50/60, 625i 50, 525i 60 — 1080p 25/30/50/60, 1080i 50/60, 720p 25/30/50/60, 720x576 25/30/60, 720x480 30/60
3G-SDI compliance SMPTE 259M, 292M, 296M, 372M, 425M; ITU-R BT.656, BT.601 — SMPTE 259M, 292M, 296M, 372M, 425M; ITU-R BT.656, BT.601 — —
3G-SDI standard — — — — HD, 3G, 3Gb, 3Gb-DL, 3Gb-DS (3Gb-DS captures first stream only)
Audio capture — — — 4x HDMI embedded audio 4x 3G-SDI embedded audio
Audio encoding — AAC, 64 to 320 Kbps — — —
Audio sampling 48 kHz 24 bit — 48 kHz 24 bit 48 kHz 16 bit 48 kHz 16 bit
Capture format — — — YUY2, uncompressed YUY2, uncompressed
Color precision YUV 4:2:2 8bit — YUV 4:2:2 8bit (HDMI and 3G-SDI) YUY2 4:2:2 8bit YUY2 4:2:2 8bit
Color sampling — — — — YCbCr 4:4:4, YCbCr 4:2:2
Color space REC 601, REC 709 — REC 601, REC 709 — —
HDMI — 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60, 576p 50, 576i 50, 480p 60, 480i 60 — — —
HDMI 1.4 — — 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 1080p 25/30/50/60, 1080i 50/60, 720p 25/30/50/60, 720x576 25/30/60, 720x480 30/60 —
Streaming protocols — RTSP, RTMP, SRT — — —
Video encoding — Bitrate 2 to 32 Mbps, Resolutions 1920x1080, 1280x720, 720x480, Frame rate 24/25/30/50/60 fps — — —
Power
Power consumption 12 W (from PCIe slot) 4.5 W 8 W (from PCIe slot) ≤2 W (from PCIe slot) ≤2 W (from PCIe slot)
Input voltage — DC 12V — — —
Environmental
Operating temperature 5°C to 40°C -20°C to 60°C 5°C to 40°C 0°C to 60°C 0°C to 60°C
Relative humidity 0 to 90% non-condensing — 0 to 90% non-condensing 5 to 90% non-condensing 5 to 90% non-condensing
Storage temperature -20°C to 70°C -30°C to 70°C -20°C to 70°C -20°C to 70°C -20°C to 70°C
Record
Storage — SD card, USB disk — — —
File segment — 1/5/10/20/30/60/90/120 mins — — —
SD card format — FAT32, exFAT, NTFS — — —
USB disk format — FAT32, exFAT, NTFS — — —
Other
Configuration — Web configuration, remote upgrade — — —
Features — — — 1080i hardware de-interlacing, 3D noise reduction 1080i hardware de-interlacing, 3D noise reduction
Support
APIs — — — Windows: DirectShow, DirectSound/WASAPI; Linux: V4L2, ALSA Windows: DirectShow, DirectSound/WASAPI; Linux: V4L2, ALSA
Software OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2 — OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2 OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2/AVCaptureSession OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2/AVCaptureSession
System Windows 7/8/10/11, Linux 64-bit — Windows 7/8/10/11, Linux 64-bit Windows 7 and above, Linux 18.04 and above Windows 7 and above, Linux 18.04 and above
