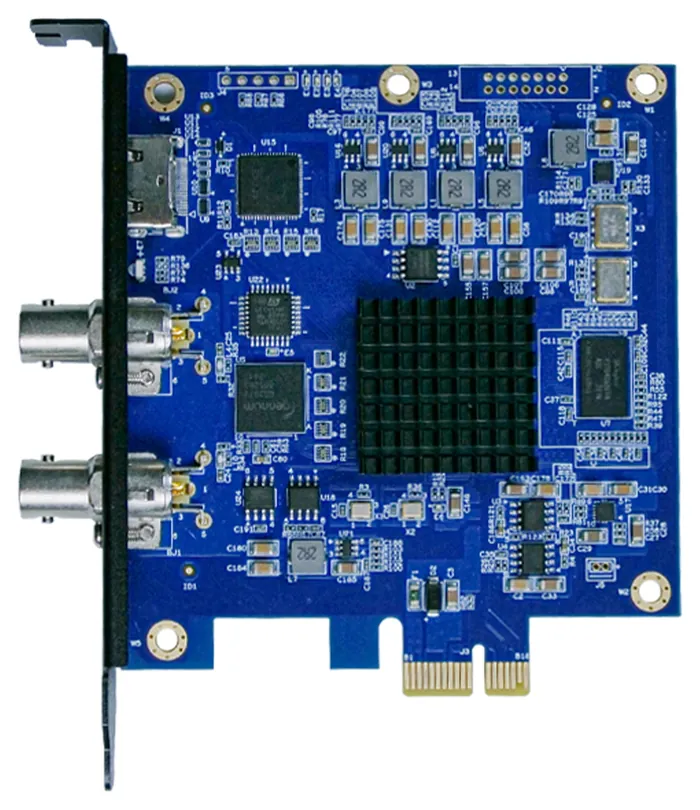

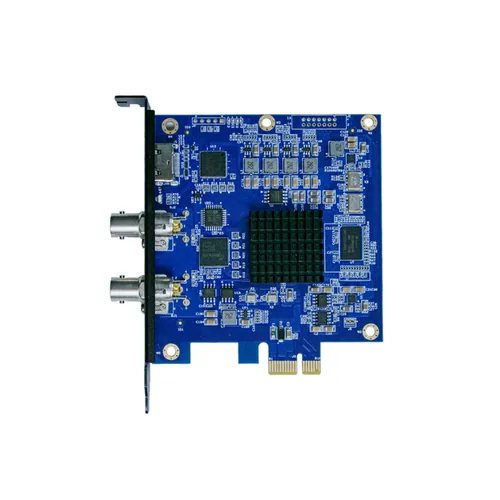

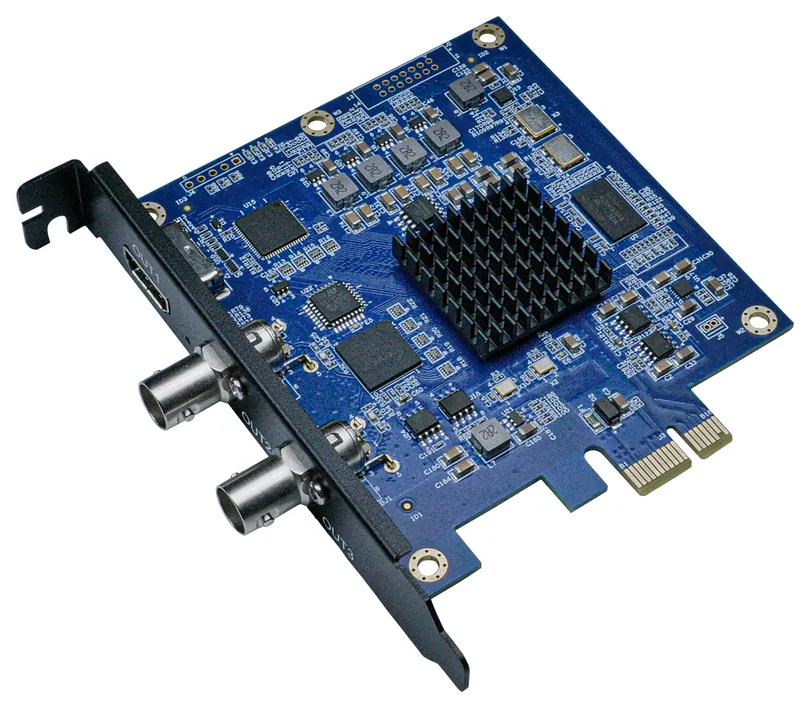

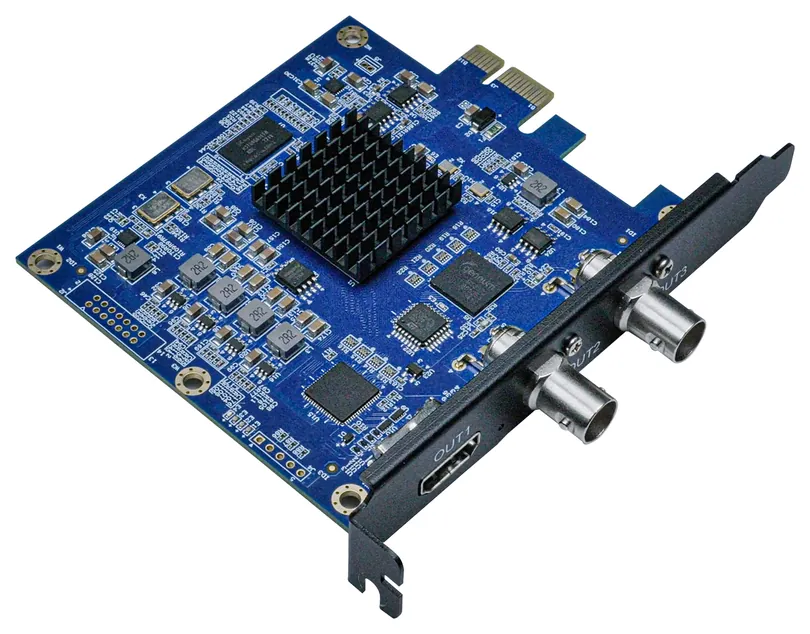

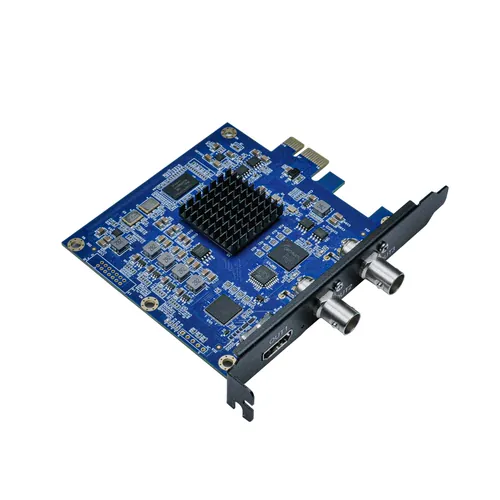

VP30, product overview VP30, view 2 VP30, view 3 VP30, view 4 VP30, view 5 VP30, view 6 VP30, view 7 VP30, view 8

Key Features

  • 3G-SDI and HDMI video capture PCI-E card, PCIe x1 Gen2
  • 2x 3G-SDI, 1x HDMI 1.4
  • 3G: 1080p 50/60. HD: 1080p 24 to 30, 720p 50/60, 1080i 50/60
  • YUV 4:2:2 8bit (HDMI and 3G-SDI), REC 601, REC 709. Audio 48 kHz 24 bit embedded
  • SMPTE 259M, 292M, 296M, 372M, 425M; ITU-R BT.656, BT.601
  • Windows 7/8/10/11, Linux 64-bit. OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast

Buy the VP30 From an Authorised Reseller

Lilliput's authorised resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the VP30 now, or if your country is not listed, browse all authorised resellers here.

Technical Data

Connections

Host interface
PCIe x1 Gen2
Video interfaces
2x 3G-SDI, 1x HDMI 1.4

Video Standards

3G-SDI
1080p 24/25/30/50/60, 1080PsF 24/25/30, 1080i 50/60, 720p 50/60, 625i 50, 525i 60
HDMI 1.4
1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
Color precision
YUV 4:2:2 8bit (HDMI and 3G-SDI)
Color space
REC 601, REC 709
3G-SDI compliance
SMPTE 259M, 292M, 296M, 372M, 425M; ITU-R BT.656, BT.601
Audio sampling
48 kHz 24 bit

Power

Power consumption
8 W (from PCIe slot)

Environmental

Operating temperature
5°C to 40°C
Storage temperature
-20°C to 70°C
Relative humidity
0 to 90% non-condensing

Mechanical

Dimensions
102.21 x 89.51 mm (PCB)
Weight
80 g

Support

System
Windows 7/8/10/11, Linux 64-bit
Software
OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2

Product Downloads

Similar Products

Compare key technical data across similar products.

Technical Data VP30 VP51 VC42 VC41 UC7018
Mechanical
Dimensions 102.21 x 89.51 mm (PCB) 102.21 x 89.51 mm (PCB) 120.1 x 88.4 x 21.6 mm 120.1 x 88.4 x 21.6 mm 104 x 125.5 x 24.5 mm
Weight 80 g 120 g 150 g 150 g 473 g
Connections
Audio input — — — — 1x 3.5 mm analog
Host interface PCIe x1 Gen2 PCIe x4 Gen3 PCIe x4 Gen2 (2.5 GB/s) PCIe x4 Gen2 (2.5 GB/s) USB 3.0 Type C (USB 3.1 Gen1, up to 200 MB/s)
Video interfaces 2x 3G-SDI, 1x HDMI 1.4 1x 3G-SDI input, 1x 3G-SDI output, 3x 3G-SDI I/O (bidirectional) 4x HDMI 1.4 input 4x SD/HD/3G-SDI input 1x 3G-SDI input, 1x HDMI input, 1x DVI-I/VGA input, 1x S-Video/CVBS/YPbPr input
Video Standards
3G-SDI 1080p 24/25/30/50/60, 1080PsF 24/25/30, 1080i 50/60, 720p 50/60, 625i 50, 525i 60 1080p 24/25/30/50/60, 1080PsF 24/25/30, 1080i 50/60, 625i 50, 525i 60 — 1080p 25/30/50/60, 1080i 50/60, 720p 25/30/50/60, 720x576 25/30/60, 720x480 30/60 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 24/25/30/50/60
3G-SDI compliance SMPTE 259M, 292M, 296M, 372M, 425M; ITU-R BT.656, BT.601 SMPTE 259M, 292M, 296M, 372M, 425M; ITU-R BT.656, BT.601 — — —
3G-SDI standard — — — HD, 3G, 3Gb, 3Gb-DL, 3Gb-DS (3Gb-DS captures first stream only) —
Audio capture — — 4x HDMI embedded audio 4x 3G-SDI embedded audio —
Audio sampling 48 kHz 24 bit 48 kHz 24 bit 48 kHz 16 bit 48 kHz 16 bit 48 kHz 16 bit
Capture format — — YUY2, uncompressed YUY2, uncompressed —
Capture standard — — — — UVC (USB Video Class), UAC (USB Audio Class)
Color precision YUV 4:2:2 8bit (HDMI and 3G-SDI) YUV 4:2:2 8bit YUY2 4:2:2 8bit YUY2 4:2:2 8bit —
Color sampling — — — YCbCr 4:4:4, YCbCr 4:2:2 —
Color space REC 601, REC 709 REC 601, REC 709 — — —
DVI/VGA — — — — 1920 x 1080 down to 640 x 400
HDMI — — — — 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60
HDMI 1.4 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 — 1080p 25/30/50/60, 1080i 50/60, 720p 25/30/50/60, 720x576 25/30/60, 720x480 30/60 — —
S-Video/CVBS — — — — 710 x 484i, 702 x 576i
Video color space — — — — RGB, YUY2, NV12
YPbPr — — — — 1920 x 1080p, 1280 x 720p, 720 x 576p, 720 x 483p, 710 x 484i, 702 x 576i
Power
Power consumption 8 W (from PCIe slot) 12 W (from PCIe slot) ≤2 W (from PCIe slot) ≤2 W (from PCIe slot) ≤5 W (5V, 1A via USB Type-C)
Environmental
Operating temperature 5°C to 40°C 5°C to 40°C 0°C to 60°C 0°C to 60°C -20°C to 60°C
Relative humidity 0 to 90% non-condensing 0 to 90% non-condensing 5 to 90% non-condensing 5 to 90% non-condensing 20 to 90% non-condensing
Storage temperature -20°C to 70°C -20°C to 70°C -20°C to 70°C -20°C to 70°C -30°C to 70°C
Other
Features — — 1080i hardware de-interlacing, 3D noise reduction 1080i hardware de-interlacing, 3D noise reduction —
Support
APIs — — Windows: DirectShow, DirectSound/WASAPI; Linux: V4L2, ALSA Windows: DirectShow, DirectSound/WASAPI; Linux: V4L2, ALSA Windows: DirectShow, DirectSound
Software OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2 OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2 OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2/AVCaptureSession OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2/AVCaptureSession OBS Studio, Skype, Zoom, Teams, Google Meet, YouTube Live, QuickTime Player, FaceTime
System Windows 7/8/10/11, Linux 64-bit Windows 7/8/10/11, Linux 64-bit Windows 7 and above, Linux 18.04 and above Windows 7 and above, Linux 18.04 and above Windows 7/8/10/11, Linux (kernel 2.6.38+), macOS 10.8+
