Key Features
- Multi-signal to USB 3.0 capture, 1x 3G-SDI, 1x HDMI, 1x DVI-I/VGA, 1x S-Video/CVBS/YPbPr
- USB 3.0 Type C output (USB 3.1 Gen1, up to 200 MB/s)

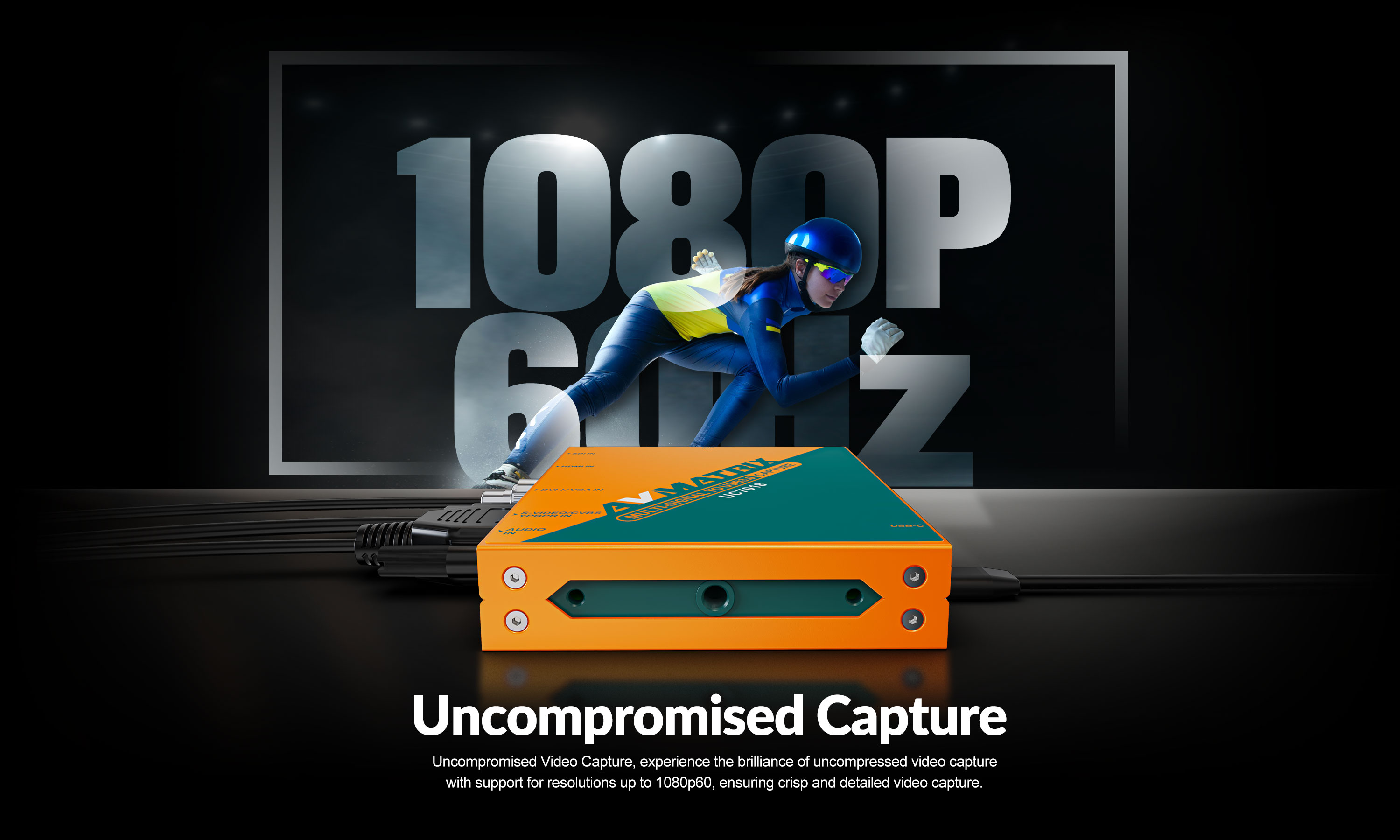

- 3G-SDI/HDMI: 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60
- DVI/VGA: 1920 x 1080 down to 640 x 400. YPbPr, S-Video, CVBS
- RGB, YUY2, NV12. UVC/UAC. 2ch 16 bit PCM 48 kHz. 1x 3.5 mm analog audio
- Windows 7+, Linux 2.6.38+, macOS 10.8+. OBS, Zoom, Teams, QuickTime. 5V USB, ≤5 W
Buy the UC7018 From an Authorised Reseller
Lilliput's authorised broadcast resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the UC7018 now, or if your country is not listed, browse all authorised resellers here.
- 3D Broadcast Ltd Opens in a new tab.
- Camera World Limited Opens in a new tab.
- E-MOTION CREATIONS di Pierfrancesco Armati Opens in a new tab.
- RCB Logic Limited Opens in a new tab.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data

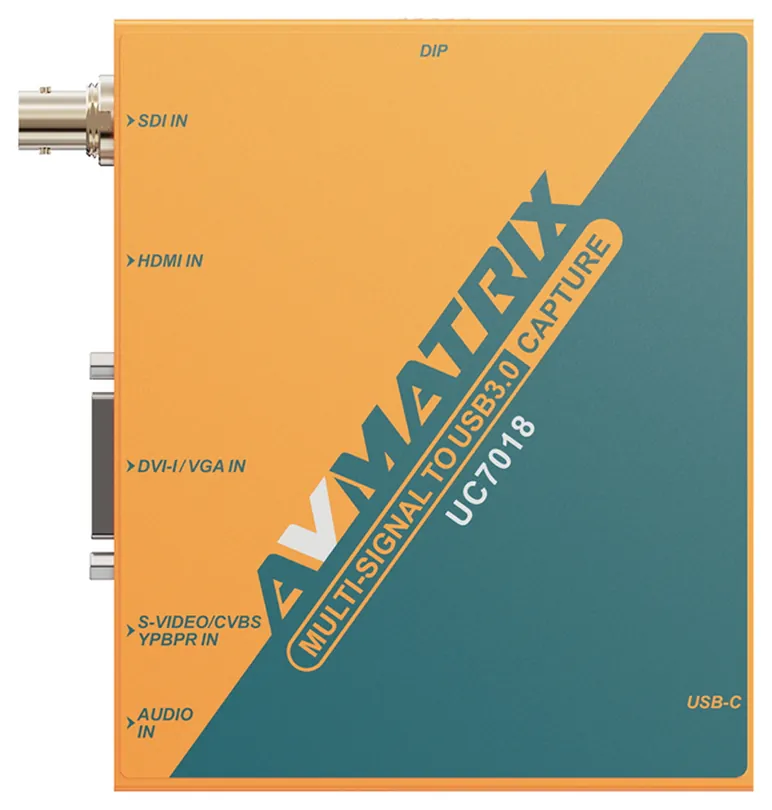

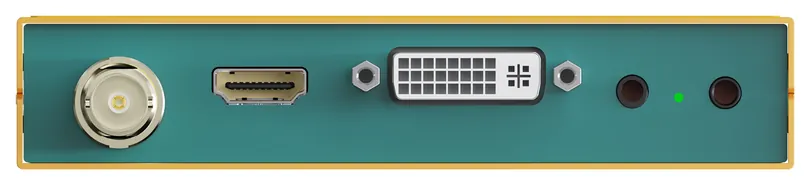

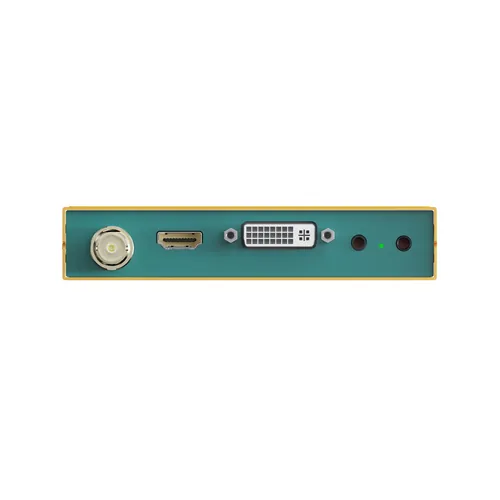

Connections
- Host interface

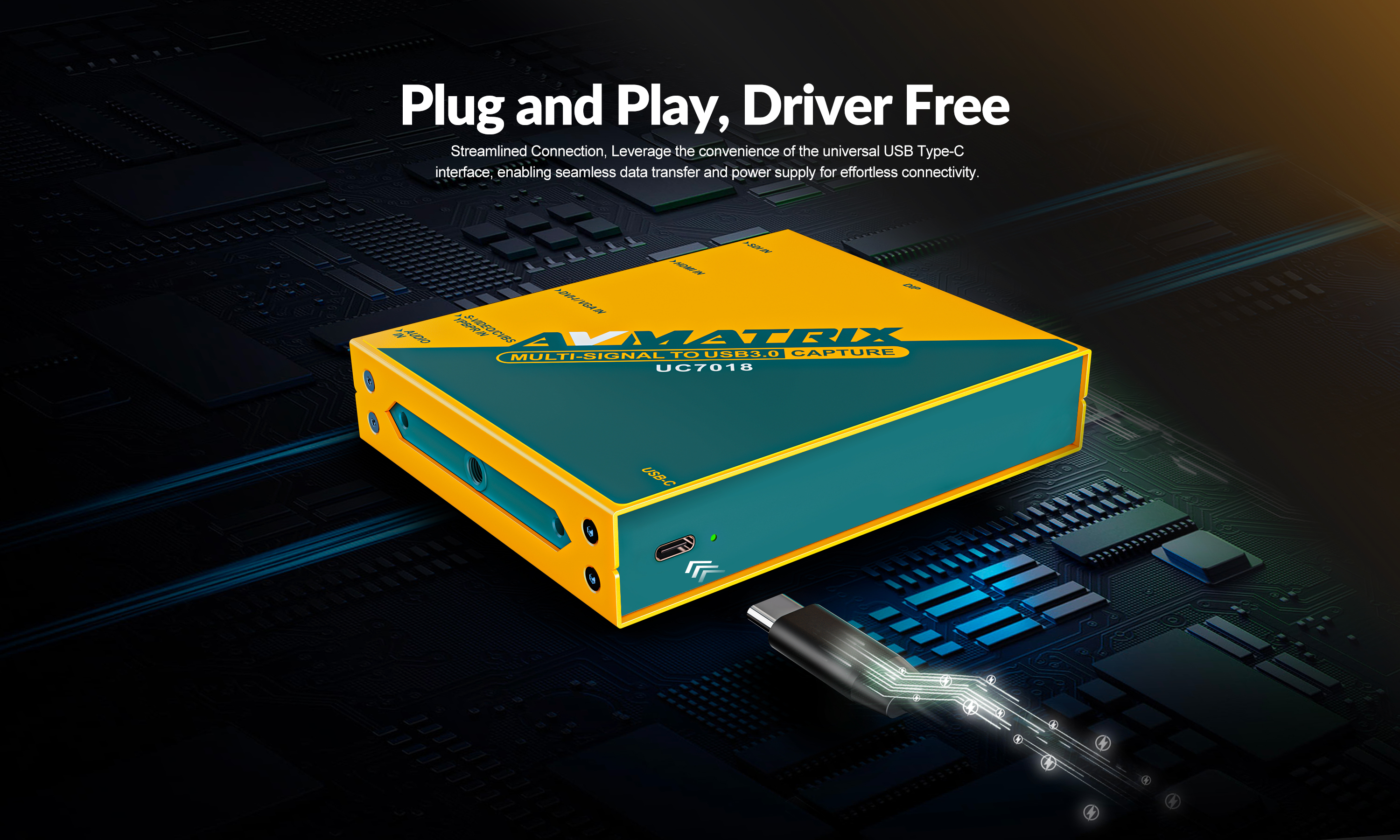

- USB 3.0 Type C (USB 3.1 Gen1, up to 200 MB/s)
- Video interfaces

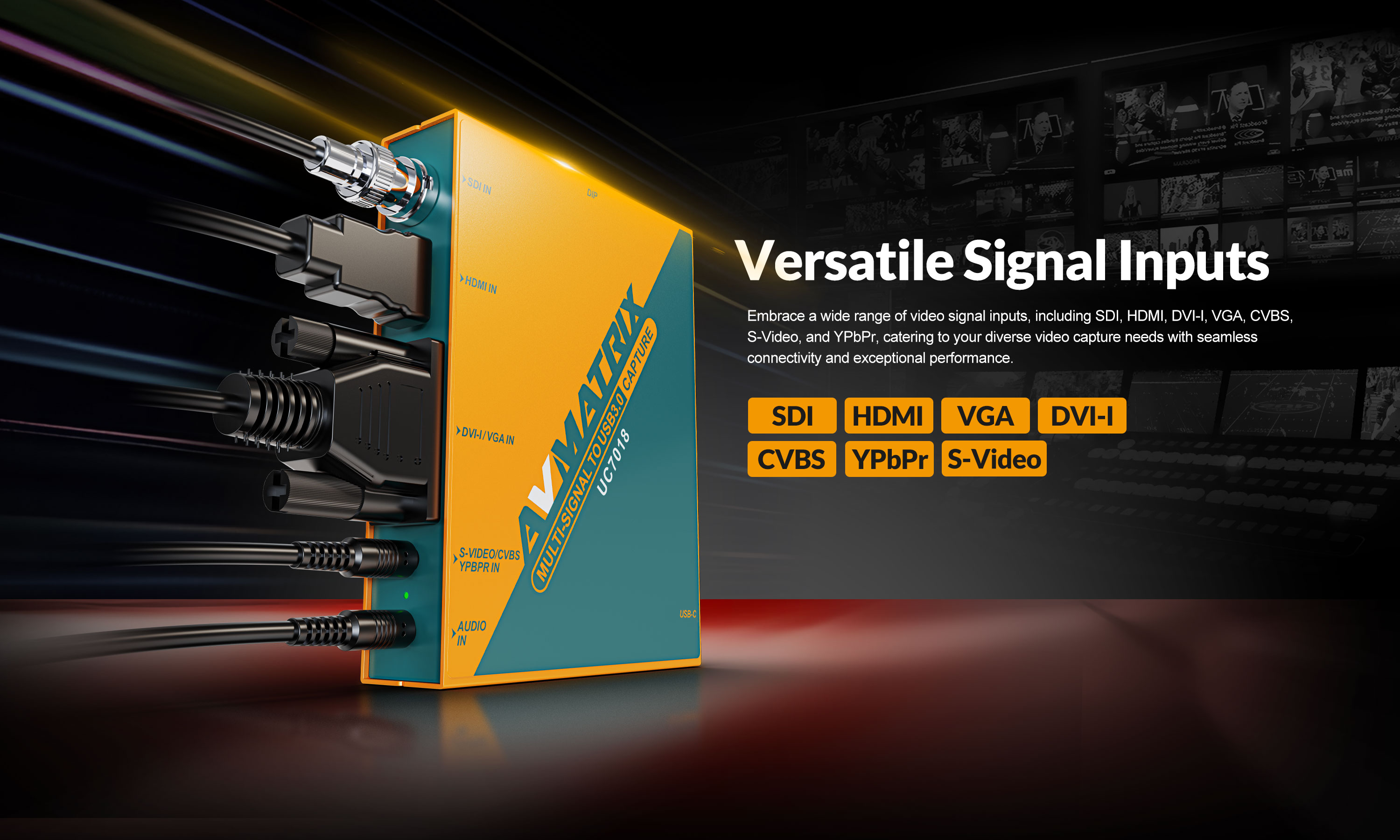

- 1x 3G-SDI input, 1x HDMI input, 1x DVI-I/VGA input, 1x S-Video/CVBS/YPbPr input
- Audio input

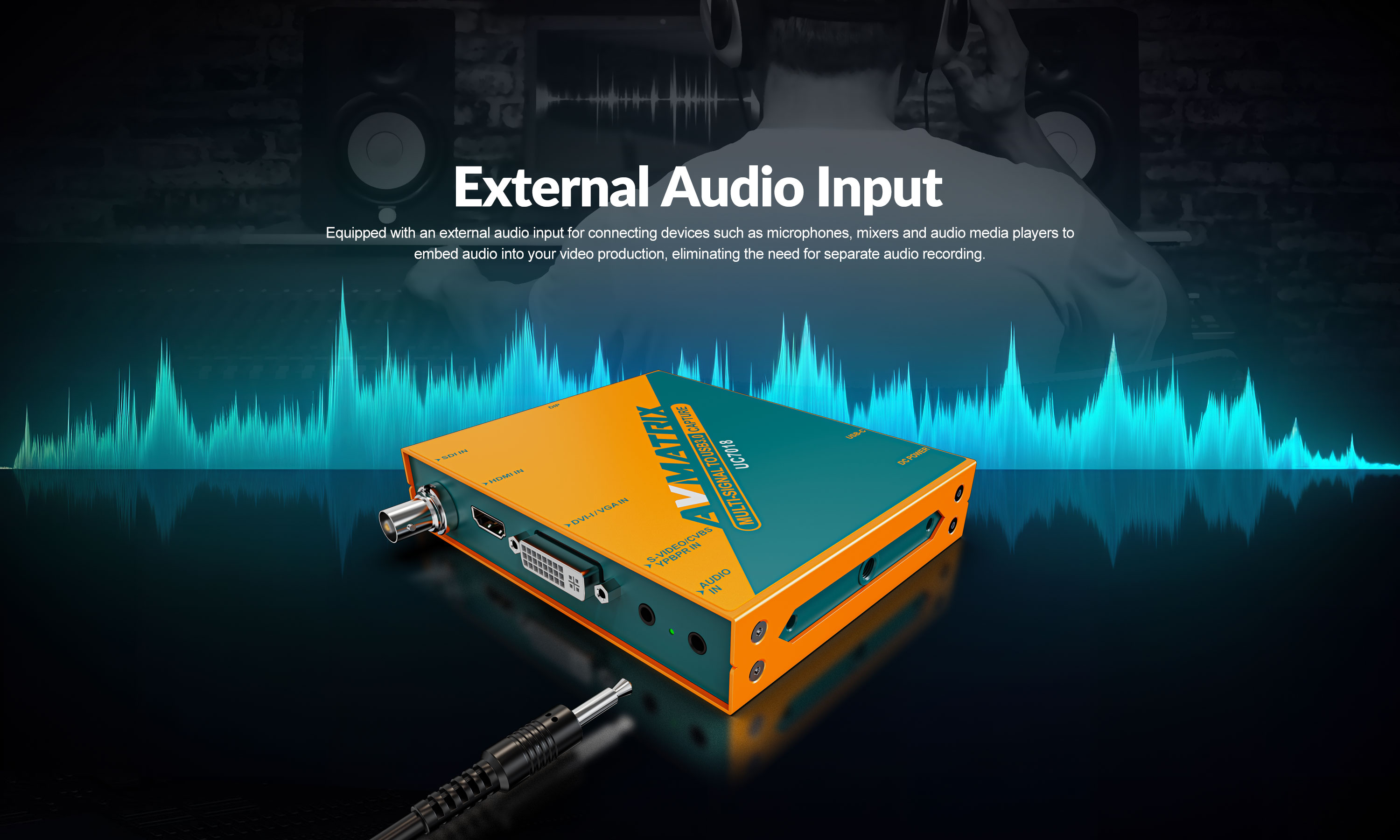

- 1x 3.5 mm analog
Video Standards
- 3G-SDI
- 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 24/25/30/50/60
- HDMI
- 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60
- DVI/VGA
- 1920 x 1080 down to 640 x 400
- S-Video/CVBS
- 710 x 484i, 702 x 576i
- YPbPr
- 1920 x 1080p, 1280 x 720p, 720 x 576p, 720 x 483p, 710 x 484i, 702 x 576i
- Video color space
- RGB, YUY2, NV12
- Capture standard
- UVC (USB Video Class), UAC (USB Audio Class)
- Audio sampling
- 48 kHz 16 bit
Power
- Power consumption
- ≤5 W (5V, 1A via USB Type-C)
Environmental
- Operating temperature
- -20°C to 60°C
- Storage temperature
- -30°C to 70°C
- Relative humidity
- 20 to 90% non-condensing
Mechanical
- Dimensions
- 104 x 125.5 x 24.5 mm
- Weight
- 473 g
Support
- System
- Windows 7/8/10/11, Linux (kernel 2.6.38+), macOS 10.8+
- Software
- OBS Studio, Skype, Zoom, Teams, Google Meet, YouTube Live, QuickTime Player, FaceTime
- APIs
- Windows: DirectShow, DirectSound
Product Downloads
Similar Products
Compare key technical data across similar AV Matrix products.
| Technical Data | UC7018 | SC7030 | VC42 | VC41 | VC12-4K | VP51 | VP30 | UC2018 |
|---|---|---|---|---|---|---|---|---|
| Connections | ||||||||
| Host interface | USB 3.0 Type C (USB 3.1 Gen1, up to 200 MB/s) | — | PCIe x4 Gen2 (2.5 GB/s) | PCIe x4 Gen2 (2.5 GB/s) | PCIe x4 Gen2 (2.5 GB/s) | PCIe x4 Gen3 | PCIe x1 Gen2 | USB 3.0 Type C (USB 3.1 Gen1, up to 200 MB/s) |
| Video interfaces | 1x 3G-SDI input, 1x HDMI input, 1x DVI-I/VGA input, 1x S-Video/CVBS/YPbPr input | 1x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A, 1x DVI-I/VGA, 1x S-Video/CVBS/YPbPr | 4x HDMI 1.4 input | 4x SD/HD/3G-SDI input | 1x HDMI 2.0 input, 1x HDMI 2.0 loop-out | 1x 3G-SDI input, 1x 3G-SDI output, 3x 3G-SDI I/O (bidirectional) | 2x 3G-SDI, 1x HDMI 1.4 | 1x SD/HD/3G-SDI input, 1x HDMI 1.4a input |
| Audio input | 1x 3.5 mm analog | — | — | — | — | — | — | 1x 3.5 mm stereo (line in) |
| Video inputs | — | 1x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A, 1x DVI-I/VGA, 1x S-Video/CVBS/YPbPr | — | — | — | — | — | — |
| Video outputs | — | 2x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A | — | — | — | — | — | — |
| Audio | — | 1x 3.5 mm analog audio in | — | — | — | — | — | — |
| Power input | — | 1x DC threaded locking connector (6 to 24 V), 1x USB Type-C (5 V; firmware update, power and control) | — | — | — | — | — | — |
| Video Standards | ||||||||
| 3G-SDI | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 24/25/30/50/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | — | HD / 3G / 3Gb / 3Gb-DL / 3Gb-DS (3Gb-DS first stream only), 1080p 25/30/50/60, 1080i 50/60, 720p 25/30/50/60, 720x576 25/30/60, 720x480 30/60 | — | 1080p 24/25/30/50/60, 1080PsF 24/25/30, 1080i 50/60, 625i 50, 525i 60 | 1080p 24/25/30/50/60, 1080PsF 24/25/30, 1080i 50/60, 720p 50/60, 625i 50, 525i 60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 24/25/30/50/60, 625i 50, 525i 59.94 |
| HDMI | 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 1280x768p 60, 720p 23.98/24/25/29.97/30/50/59.94/60 | — | — | — | — | — | 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60, 576p 50, 576i 50, 480p 59.94/60, 480i 59.94/60 |
| HDMI 2.0 | — | — | — | — | 4K 25/30/50/60, 1440p 60/120/144, 1080p 25/30/50/60/120/240, 1080i 50/60, 720p 50/60, 720x576 25/30/60, 720x480 30/60 | — | — | — |
| HDMI 1.4 | — | — | 1080p 25/30/50/60, 1080i 50/60, 720p 25/30/50/60, 720x576 25/30/60, 720x480 30/60 | — | — | — | 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — |
| DVI/VGA | 1920 x 1080 down to 640 x 400 | VGA: 1920 x 1080, 1680 x 1050, 1600 x 1200, 1600 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 768, 1280 x 720, 1280 x 600, 1152 x 864, 1024 x 768, 800 x 600, 640 x 480, 720 x 400 (up to 60 Hz); DVI: 1920 x 1080, 1280 x 720 (up to 60 Hz) | — | — | — | — | — | — |
| S-Video/CVBS | 710 x 484i, 702 x 576i | NTSC, PAL, SECAM | — | — | — | — | — | — |
| YPbPr | 1920 x 1080p, 1280 x 720p, 720 x 576p, 720 x 483p, 710 x 484i, 702 x 576i | 1080p, 1080i, 720p, 576p, 480p, 576i, 480i | — | — | — | — | — | — |
| Video color space | RGB, YUY2, NV12 | — | — | — | — | — | — | YUY2 |
| Capture standard | UVC (USB Video Class), UAC (USB Audio Class) | — | — | — | — | — | — | UVC (USB Video Class), UAC (USB Audio Class) |
| Audio sampling | 48 kHz 16 bit | — | 48 kHz 16 bit | 48 kHz 16 bit | 48 kHz 16 bit | 48 kHz 24 bit | 48 kHz 24 bit | 48 kHz 16 bit |
| 3G-SDI compliance | — | 3G Level A and Level B | — | — | — | SMPTE 259M, 292M, 296M, 372M, 425M; ITU-R BT.656, BT.601 | SMPTE 259M, 292M, 296M, 372M, 425M; ITU-R BT.656, BT.601 | — |
| Colour space | — | SDI: YUV 4:2:2 10-bit in/out; HDMI in: RGB 4:4:4 8/10/12-bit, YUV 4:2:2 8/10/12-bit, YUV 4:4:4 8/10/12-bit; HDMI out: RGB 4:4:4 8-bit (Full or Limited) | — | — | — | — | — | — |
| SDI output rate | — | SD/HD/3G-SDI | — | — | — | — | — | — |
| Deinterlacing | — | 1080i hardware deinterlacing | — | — | — | — | — | — |
| Capture format | — | — | YUY2, uncompressed | YUY2, uncompressed | YUY2, uncompressed | — | — | — |
| Color precision | — | — | YUY2 4:2:2 8bit | YUY2 4:2:2 8bit | YUY2 4:2:2 8bit | YUV 4:2:2 8bit | YUV 4:2:2 8bit (HDMI and 3G-SDI) | — |
| Audio capture | — | — | 4x HDMI embedded audio | 4x 3G-SDI embedded audio | 1x HDMI embedded audio | — | — | — |
| Color sampling | — | — | — | YCbCr 4:4:4, YCbCr 4:2:2 | — | — | — | — |
| Color space | — | — | — | — | — | REC 601, REC 709 | REC 601, REC 709 | — |
| USB output resolution | — | — | — | — | — | — | — | 1920 x 1200 down to 640 x 360 (1920 x 1080, 1680 x 1050, 1600 x 1200, 1440 x 900, 1368 x 768, 1280 x 1024/960/800/720, 1024 x 768/576, 960 x 540, 856 x 480, 800 x 600, 768 x 576, 720 x 576/480, 640 x 480/360) |
| Operational Features | ||||||||
| Cross conversion | — | SDI, HDMI, DVI-I/VGA, CVBS, S-Video, or YPbPr → 2x SDI and 1x HDMI; up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60 | — | — | — | — | — | — |
| Scaler | — | Up/down scaling with selectable SDI/HDMI output formats through 1080p60 | — | — | — | — | — | — |
| Frame rate conversion | — | Yes — via selectable output format (up/down scaling and frame rate conversion) | — | — | — | — | — | — |
| Aspect ratio conversion | — | 4:3 or 16:9 via DIP switches | — | — | — | — | — | — |
| SDI distribution | — | 1 in, 2 out | — | — | — | — | — | — |
| Audio embedding | — | 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio | — | — | — | — | — | — |
| DIP switches | — | 12x for output format, input select, analog vs embedded audio, 16:9/4:3 aspect, HDMI Full/Limited RGB, 3G Level A/B, and DIP vs PC control | — | — | — | — | — | — |
| Selectable colour spaces | — | Full RGB, Limited RGB | — | — | — | — | — | — |
| Remote control | — | PC software via USB Type-C | — | — | — | — | — | — |
| Front panel control | — | 12x DIP switches; PC software via USB Type-C | — | — | — | — | — | — |
| Power | ||||||||
| Power consumption | ≤5 W (5V, 1A via USB Type-C) | ≤5.5 W | ≤2 W (from PCIe slot) | ≤2 W (from PCIe slot) | ≤2 W (from PCIe slot) | 12 W (from PCIe slot) | 8 W (from PCIe slot) | 3.5 W max (USB bus-powered) |
| Input voltage | — | USB-C 5 V; DC 6 to 24 V | — | — | — | — | — | — |
| Environmental | ||||||||
| Operating temperature | -20°C to 60°C | -20°C to 60°C | 0°C to 60°C | 0°C to 60°C | 0°C to 60°C | 5°C to 40°C | 5°C to 40°C | -20°C to 60°C |
| Storage temperature | -30°C to 70°C | -30°C to 70°C | -20°C to 70°C | -20°C to 70°C | -20°C to 70°C | -20°C to 70°C | -20°C to 70°C | -30°C to 70°C |
| Relative humidity | 20 to 90% non-condensing | 20% to 90% non-condensing | 5 to 90% non-condensing | 5 to 90% non-condensing | 5 to 90% non-condensing | 0 to 90% non-condensing | 0 to 90% non-condensing | 20 to 90% non-condensing |
| Mechanical | ||||||||
| Dimensions | 104 x 125.5 x 24.5 mm | 104 x 125.5 x 24.5 mm | 120.1 x 88.4 x 21.6 mm | 120.1 x 88.4 x 21.6 mm | 120.1 x 95.7 x 21.6 mm | 102.21 x 89.51 mm (PCB) | 102.21 x 89.51 mm (PCB) | 92 x 58 x 19 mm |
| Weight | 473 g | 496 g | 150 g | 150 g | 100 g | 120 g | 80 g | 205 g |
| Support | ||||||||
| System | Windows 7/8/10/11, Linux (kernel 2.6.38+), macOS 10.8+ | — | Windows 7 and above, Linux 18.04 and above | Windows 7 and above, Linux 18.04 and above | Windows 7 and above, Linux 18.04 and above | Windows 7/8/10/11, Linux 64-bit | Windows 7/8/10/11, Linux 64-bit | Windows 7/8/10, Linux (kernel 2.6.38+), macOS 10.8+ |
| Software | OBS Studio, Skype, Zoom, Teams, Google Meet, YouTube Live, QuickTime Player, FaceTime | — | OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2/AVCaptureSession | OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2/AVCaptureSession | OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2/AVCaptureSession | OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2 | OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, DirectShow/V4L2 | OBS Studio, Skype, Zoom, Teams, Google Meet, YouTube Live, QuickTime Player, FaceTime, Wirecast, Camtasia, Ecamm.live, Twitch |
| APIs | Windows: DirectShow, DirectSound | — | Windows: DirectShow, DirectSound/WASAPI; Linux: V4L2, ALSA | Windows: DirectShow, DirectSound/WASAPI; Linux: V4L2, ALSA | Windows: DirectShow, DirectSound/WASAPI; Linux: V4L2, ALSA | — | — | Windows: DirectShow, DirectSound |
| Devices | — | — | — | — | XBOX, PS4, SWITCH, video player, TV box, media box | — | — | — |
| Other | ||||||||
| Warranty | — | 3 years limited | — | — | — | — | — | — |
| Features | — | — | 1080i hardware de-interlacing, 3D noise reduction | 1080i hardware de-interlacing, 3D noise reduction | 1080i hardware de-interlacing, 3D noise reduction | — | — | — |
| Mounting | ||||||||
| Wall mount | — | Mounting bracket (optional) | — | — | — | — | — | — |
