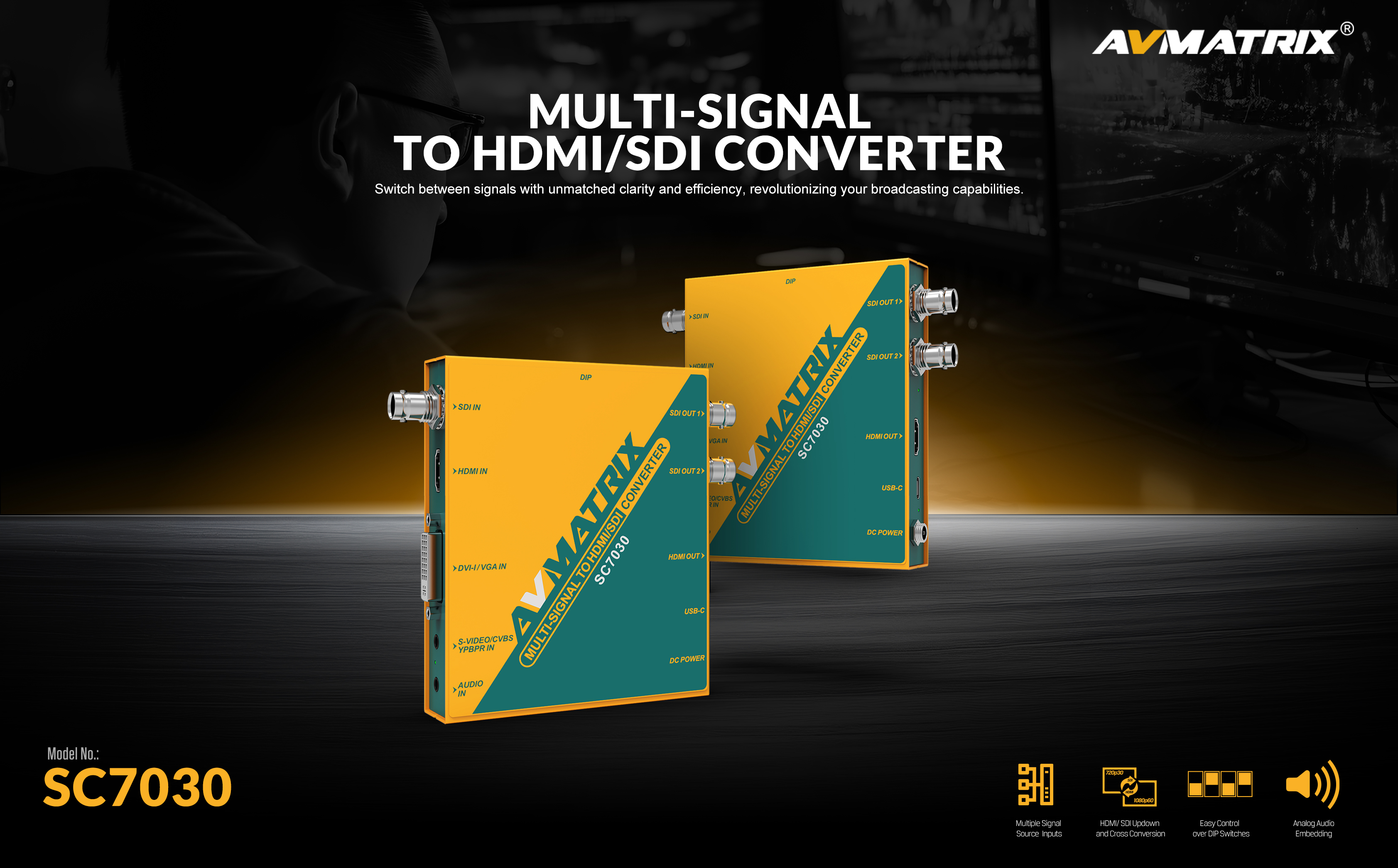

Multi-signal to HDMI/SDI cross converter. 1x SD/HD/3G-SDI, 1x HDMI, 1x DVI-I/VGA, and 1x S-Video/CVBS/YPbPr in, 2x SDI and 1x HDMI out, with analog audio embedding. Up/down scaling and frame rate conversion via DIP switches or PC software. DC 6 to 24 V plus USB-C 5 V, ≤5.5 W. 104 x 125.5 x 24.5 mm, 496 g.
Multi-signal to HDMI/SDI cross converter. 1x SD/HD/3G-SDI, 1x HDMI, 1x DVI-I/VGA, and 1x S-Video/CVBS/YPbPr in, 2x SDI and 1x HDMI out, with analog audio embedding. Up/down scaling and frame rate conversion via DIP switches or PC software. DC 6 to 24 V plus USB-C 5 V, ≤5.5 W. 104 x 125.5 x 24.5 mm, 496 g.

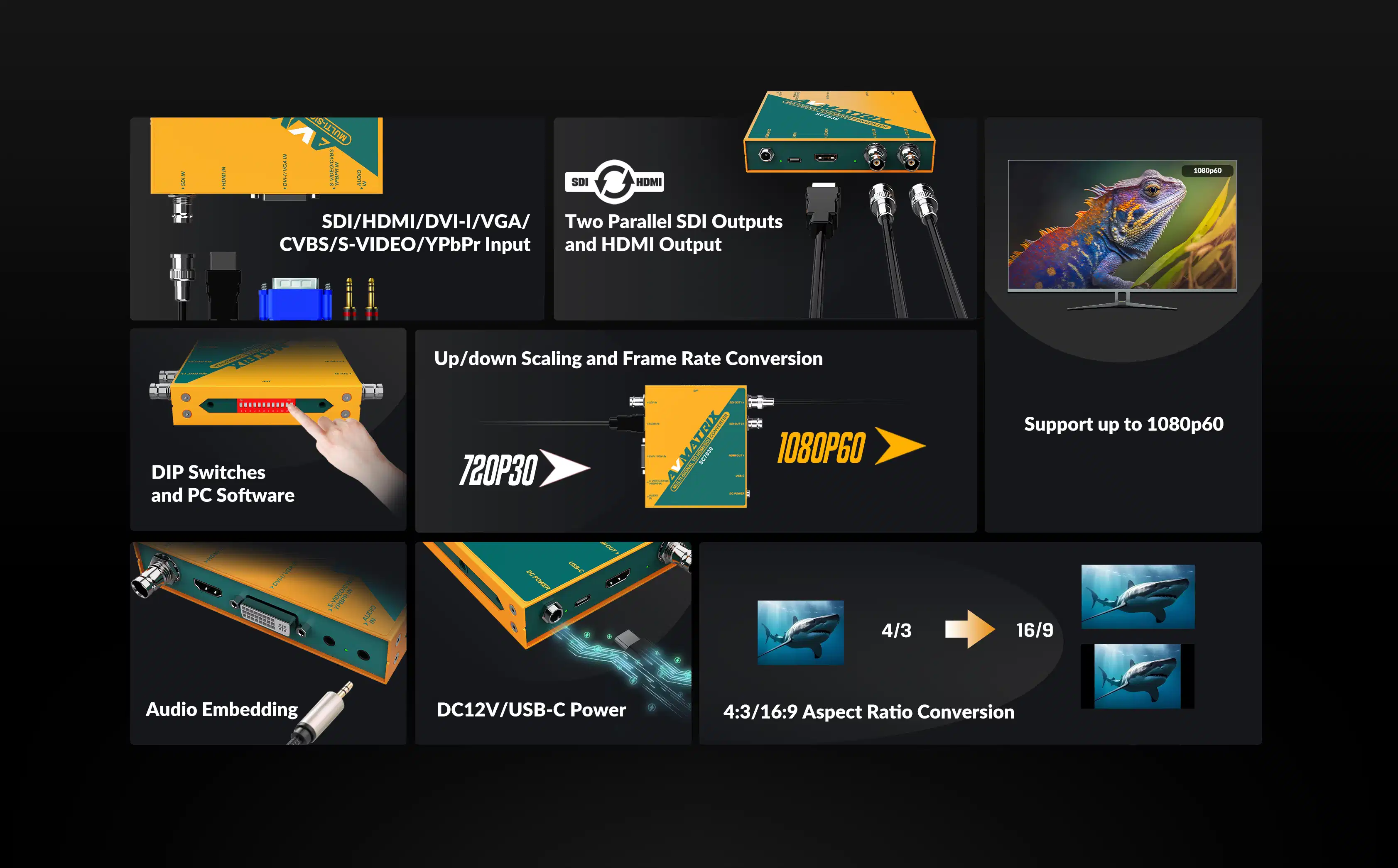

Key Features
- Multi-signal to HDMI/SDI cross converter: 1x SD/HD/3G-SDI in, 1x HDMI type A in, 1x DVI-I/VGA in, 1x S-Video/CVBS/YPbPr in, 2x SDI out, 1x HDMI out

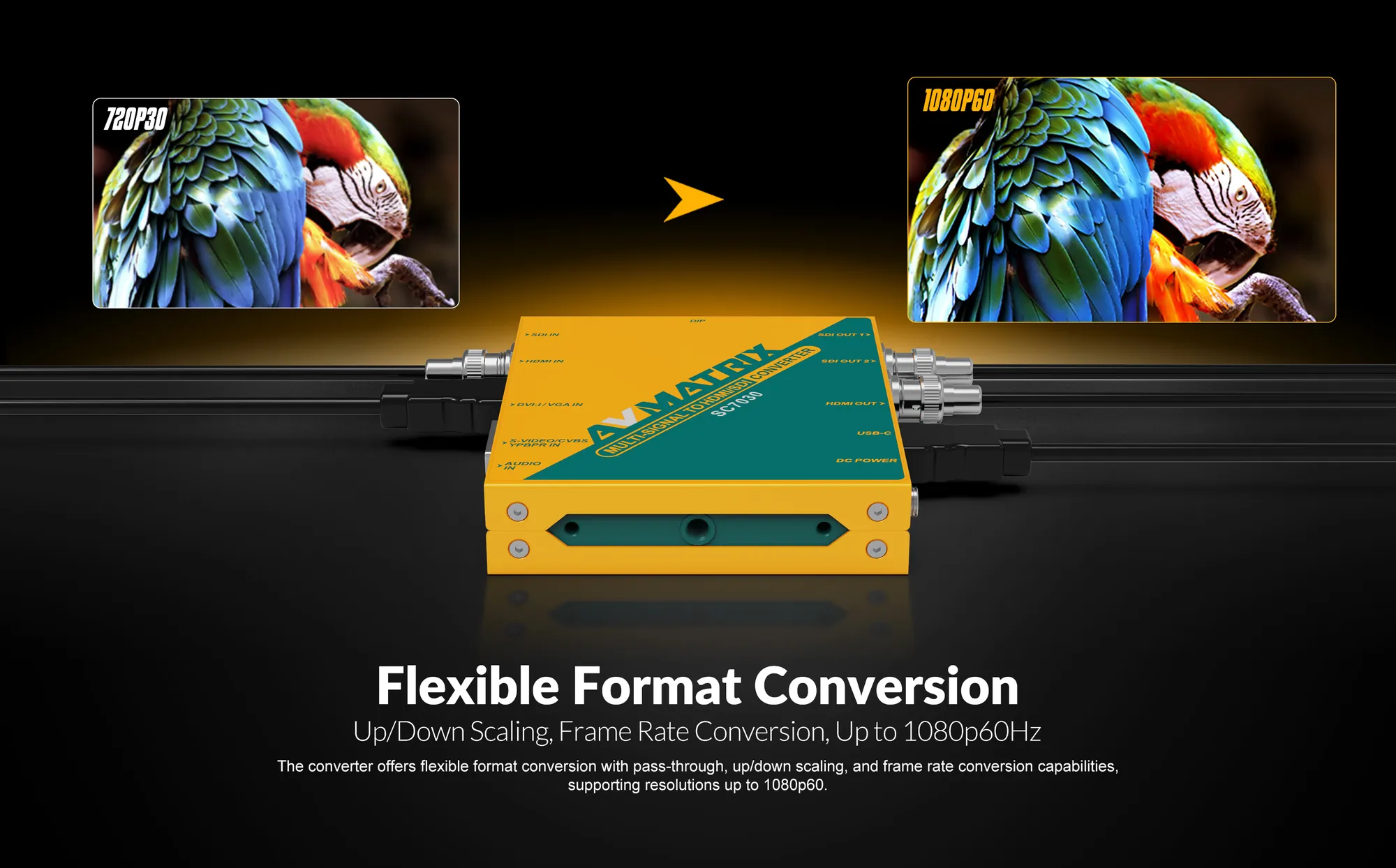

- Up/down scaling and frame rate conversion with selectable SDI/HDMI output formats through 1080p60; 4:3 or 16:9 aspect conversion

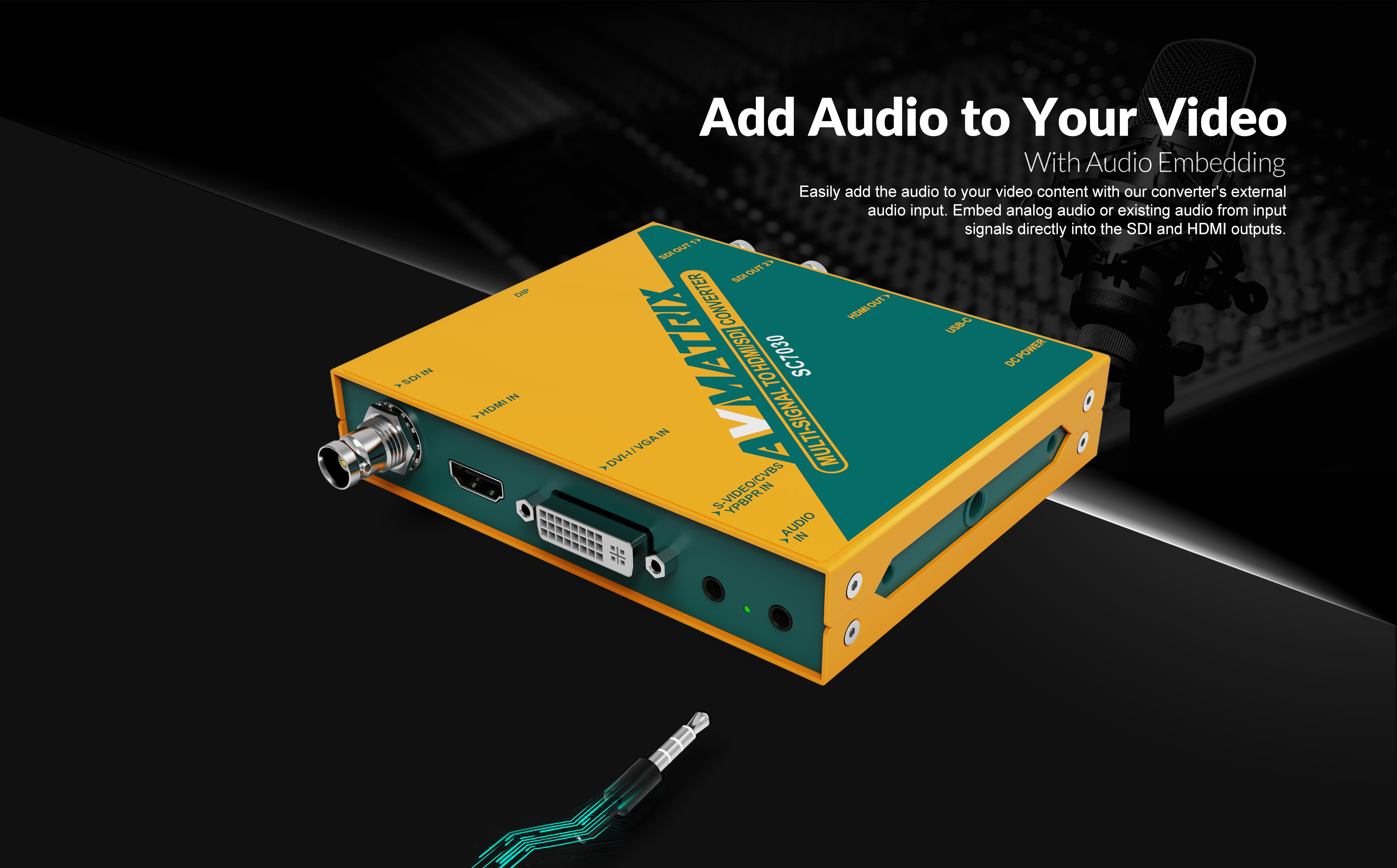

- Analog audio embedding from 3.5 mm input, or pass-through from SDI/HDMI embedded audio
- 1080i hardware deinterlacing; HDMI output Full or Limited RGB; 3G-SDI Level A or Level B output
- Configuration via 12x DIP switches or PC software over USB Type-C; DC 6 to 24 V and USB-C 5 V, ≤5.5 W; 12V 2A power supply included
- 104 x 125.5 x 24.5 mm, 496 g; DVI to VGA connector and S-Video/CVBS/YPbPr 3-in-1 cable included; mounting bracket optional; -20°C to 60°C operating, 3 year limited warranty
Buy the SC7030 From an Authorised Reseller
Lilliput's authorised broadcast resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the SC7030 now, or if your country is not listed, browse all authorised resellers here.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data

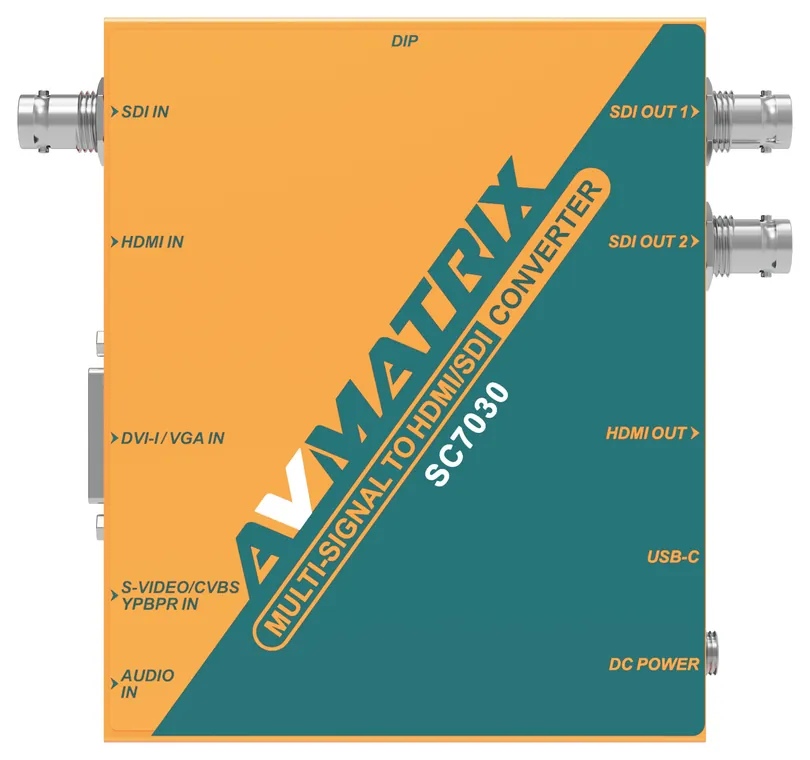

Connections

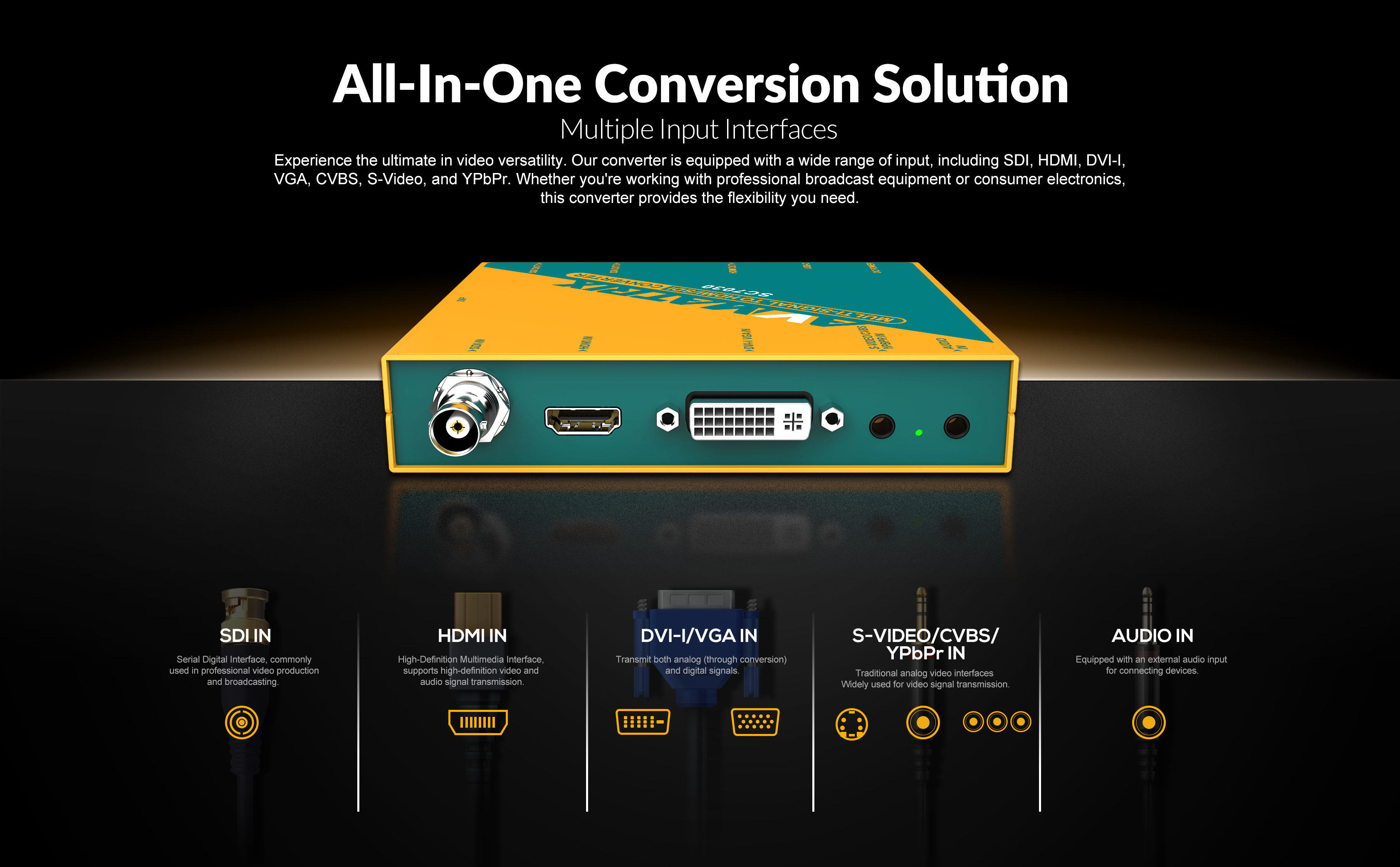

- Video inputs

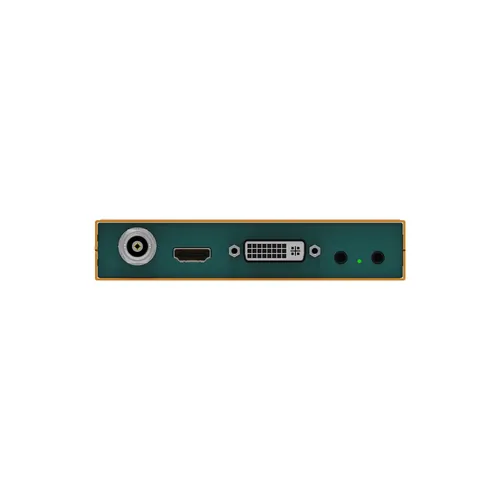

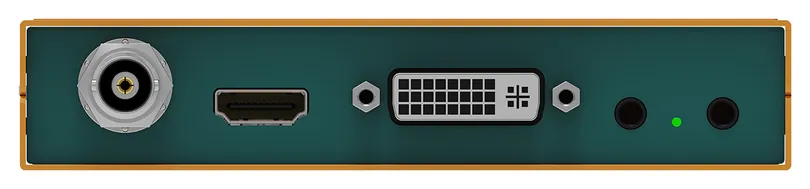

- 1x SD/HD/3G-SDI, 1x HDMI type A, 1x DVI-I/VGA, 1x S-Video/CVBS/YPbPr

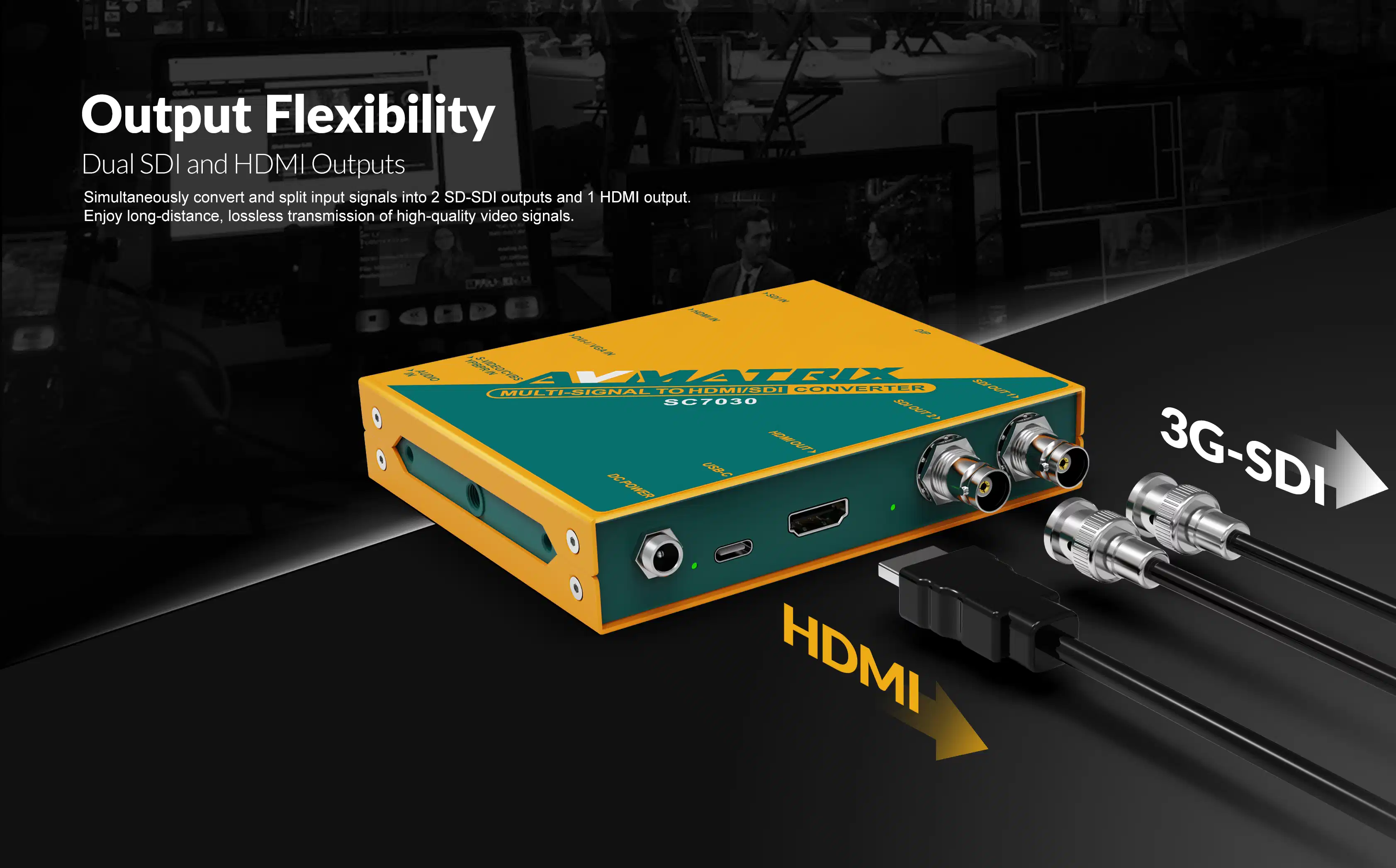

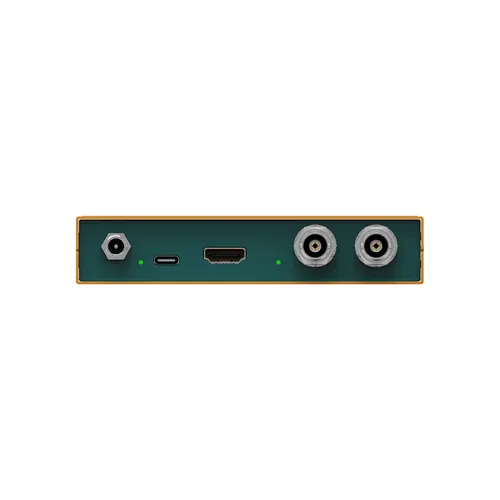

- Video outputs

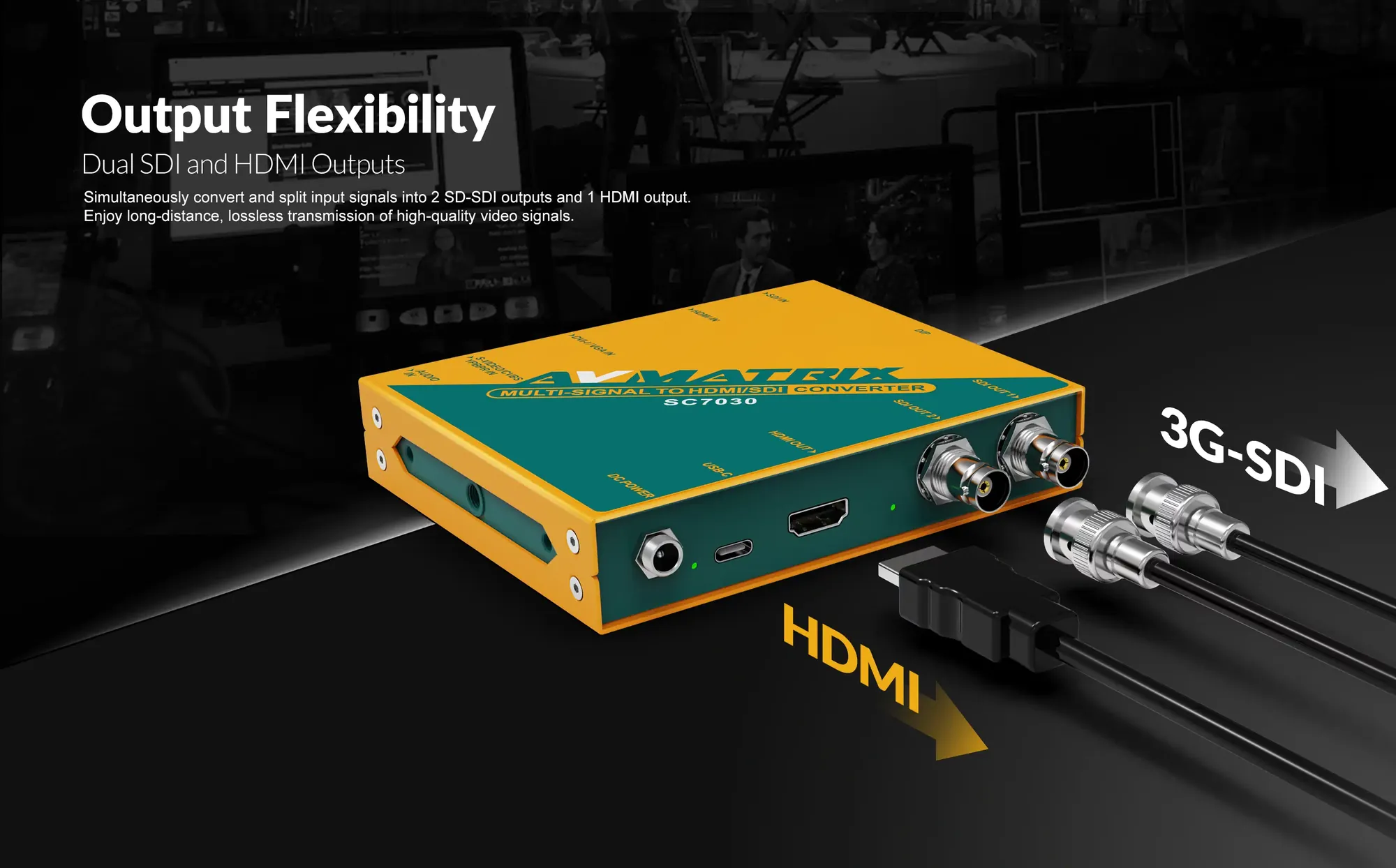

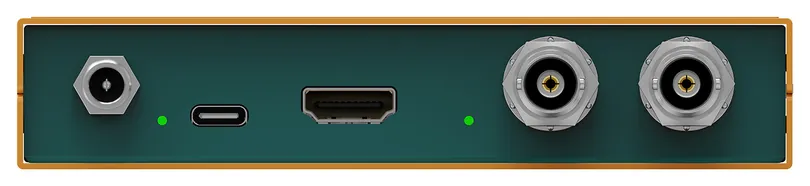

- 2x SD/HD/3G-SDI, 1x HDMI type A
- Audio
- 1x 3.5 mm analog audio in
- Power input
- 1x DC threaded locking connector (6 to 24 V), 1x USB Type-C (5 V; firmware update, power and control)
Video Standards
- 3G-SDI
- 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94
- HDMI
- 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 1280x768p 60, 720p 23.98/24/25/29.97/30/50/59.94/60
- DVI/VGA
- VGA: 1920 x 1080, 1680 x 1050, 1600 x 1200, 1600 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 768, 1280 x 720, 1280 x 600, 1152 x 864, 1024 x 768, 800 x 600, 640 x 480, 720 x 400 (up to 60 Hz); DVI: 1920 x 1080, 1280 x 720 (up to 60 Hz)
- YPbPr
- 1080p, 1080i, 720p, 576p, 480p, 576i, 480i
- S-Video/CVBS
- NTSC, PAL, SECAM
- 3G-SDI compliance
- 3G Level A and Level B
- Colour space
- SDI: YUV 4:2:2 10-bit in/out; HDMI in: RGB 4:4:4 8/10/12-bit, YUV 4:2:2 8/10/12-bit, YUV 4:4:4 8/10/12-bit; HDMI out: RGB 4:4:4 8-bit (Full or Limited)
- SDI output rate
- SD/HD/3G-SDI
- Deinterlacing
- 1080i hardware deinterlacing
Operational Features
- Cross conversion
- SDI, HDMI, DVI-I/VGA, CVBS, S-Video, or YPbPr → 2x SDI and 1x HDMI; up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60
- Scaler

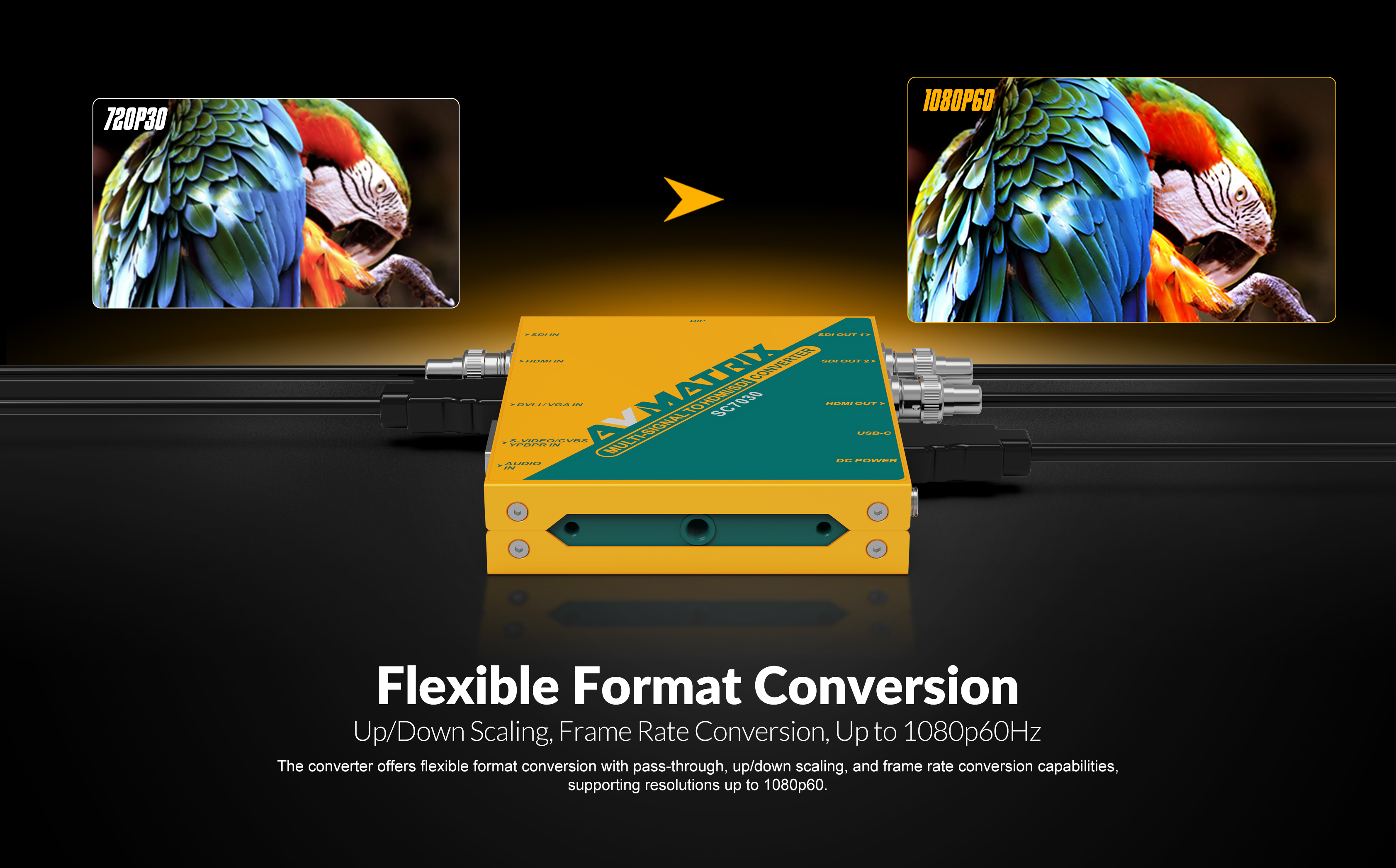

- Up/down scaling with selectable SDI/HDMI output formats through 1080p60
- Frame rate conversion
- Yes — via selectable output format (up/down scaling and frame rate conversion)

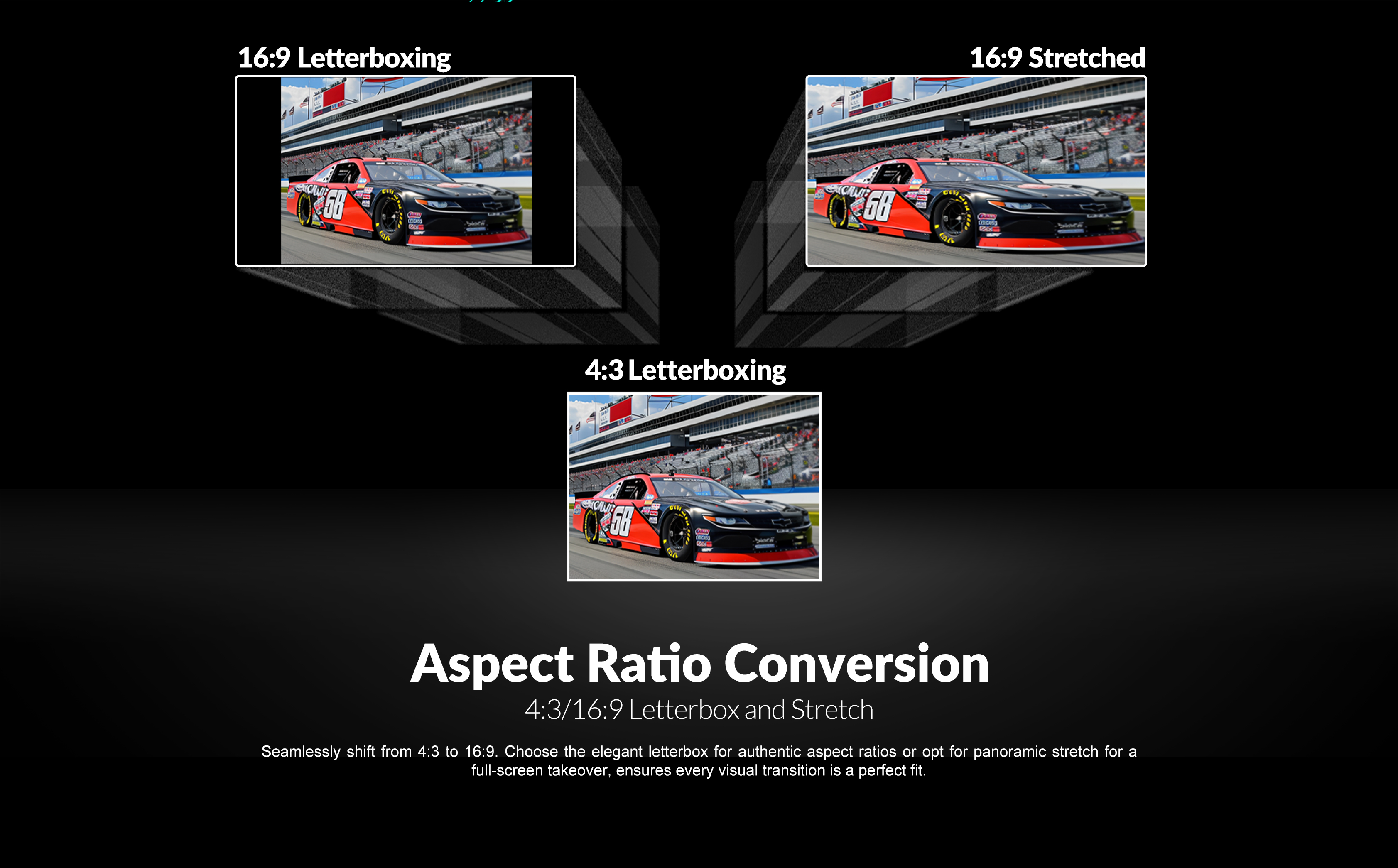

- Aspect ratio conversion
- 4:3 or 16:9 via DIP switches
- SDI distribution
- 1 in, 2 out
- Audio embedding
- 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio

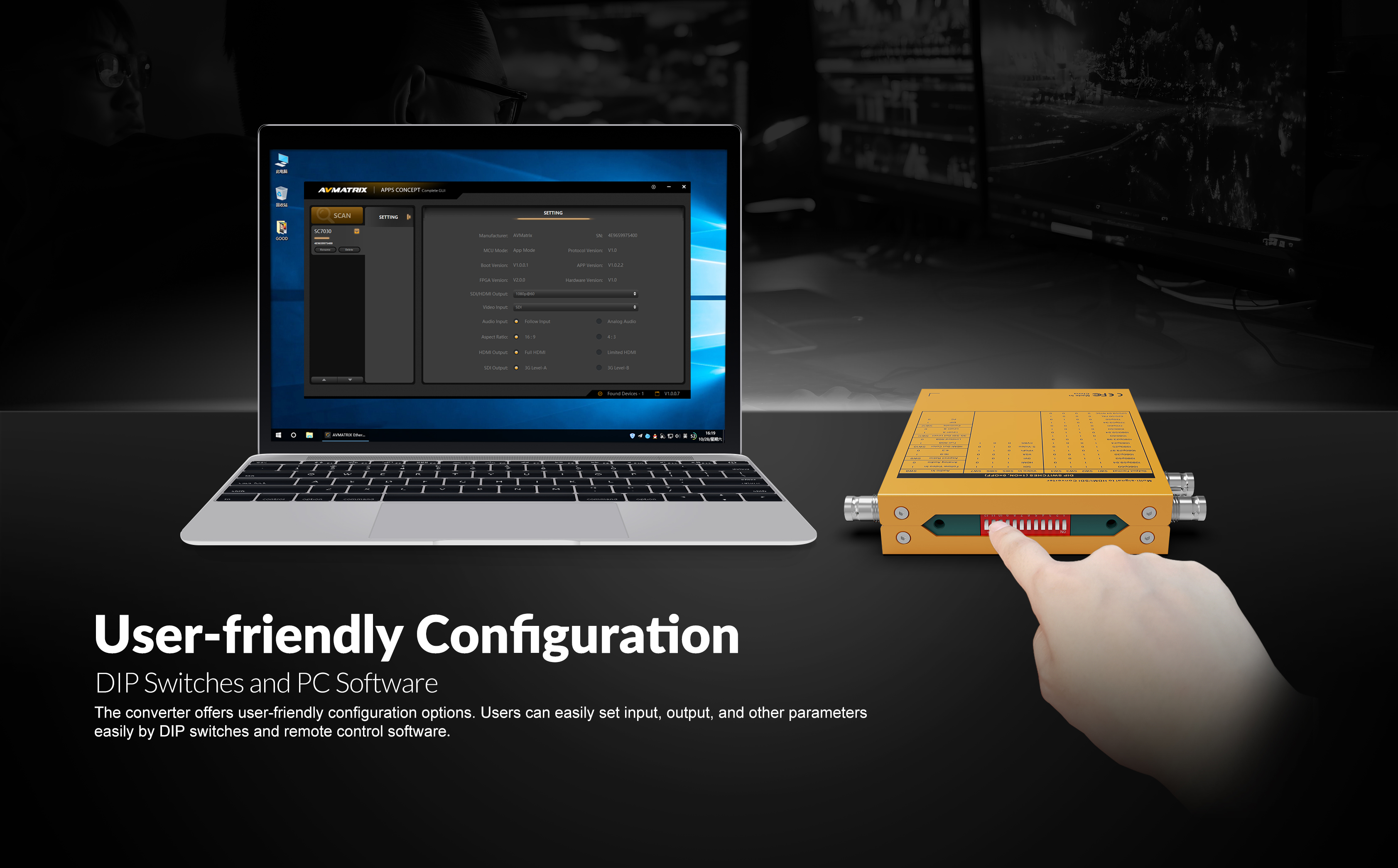

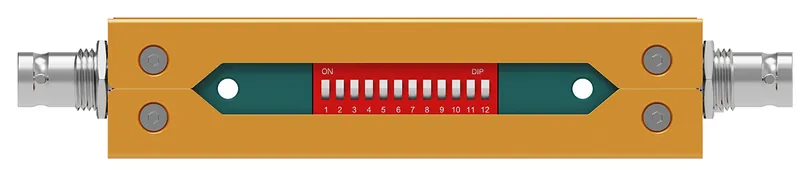

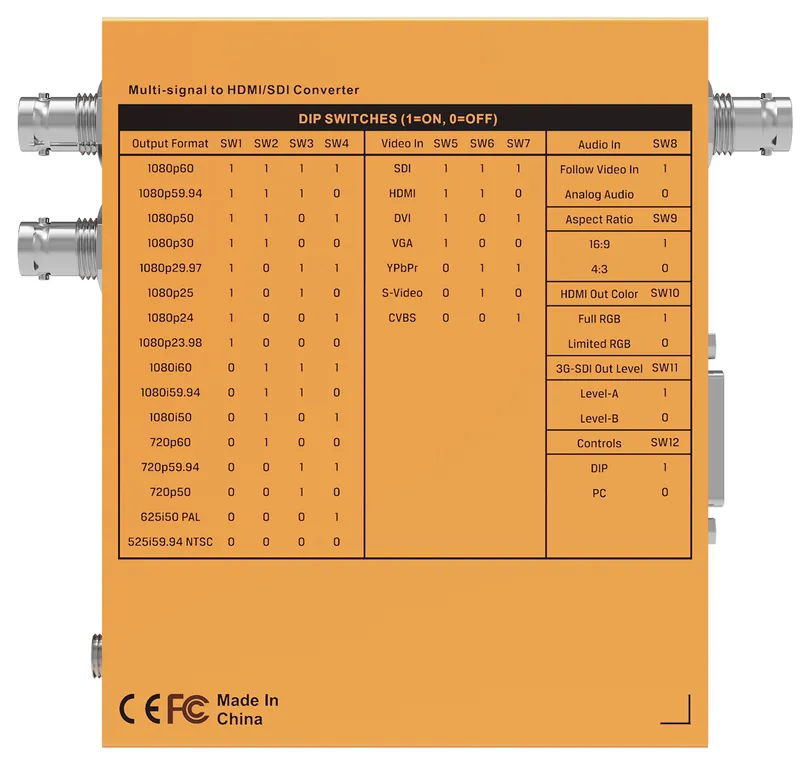

- DIP switches

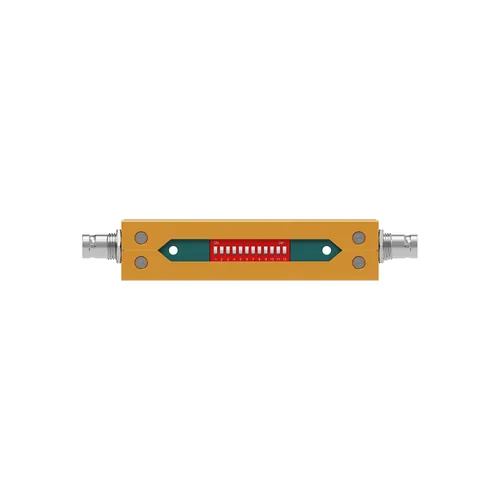

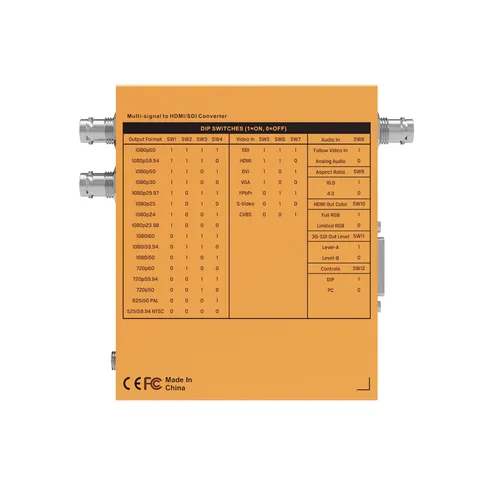

- 12x for output format, input select, analog vs embedded audio, 16:9/4:3 aspect, HDMI Full/Limited RGB, 3G Level A/B, and DIP vs PC control
- Selectable colour spaces
- Full RGB, Limited RGB
- Remote control
- PC software via USB Type-C
- Front panel control
- 12x DIP switches; PC software via USB Type-C
Power
- Input voltage
- USB-C 5 V; DC 6 to 24 V
- Power consumption
- ≤5.5 W
Environmental
- Operating temperature
- -20°C to 60°C
- Storage temperature
- -30°C to 70°C
- Relative humidity
- 20% to 90% non-condensing
Mechanical
- Dimensions
- 104 x 125.5 x 24.5 mm
- Weight
- 496 g
Mounting
- Wall mount
- Mounting bracket (optional)
Other
- Warranty
- 3 years limited
Accessories
Included
- DC 12V 2A Universal Power Supply with International Socket Adapters
- DVI to VGA Connector
- S-Video/CVBS/YPbPr 3-in-1 Cable
Optional
- Mounting Bracket
Product Downloads
Similar Products
Compare key technical data across similar AV Matrix products.
| Technical Data | SC7030 | SC2030 | SC2040 | SC2020-12G | SC1120 | SC1112 | UC7018 | SC1221 | SD2080 |
|---|---|---|---|---|---|---|---|---|---|
| Connections | |||||||||
| Video inputs | 1x SD/HD/3G-SDI, 1x HDMI type A, 1x DVI-I/VGA, 1x S-Video/CVBS/YPbPr | 1x SD/HD/3G-SDI, 1x HDMI type A | 1x HDMI type A, 1x SD/HD/3G-SDI or 1x SFP fiber (select 1 of 2) | 1x HDMI 2.0 type A, 1x 12G-SDI or 1x 12G SFP fiber (select 1 of 2) | 1x SD/HD/3G-SDI, 1x SD/HD/3G-SDI alt/redundant | 1x SD/HD/3G-SDI | — | 1x HDMI type A | 1x HDMI type A, 1x SD/HD/3G-SDI |
| Video outputs | 2x SD/HD/3G-SDI, 1x HDMI type A | 2x SD/HD/3G-SDI, 1x HDMI type A | 1x HDMI loop out, 1x HDMI type A, 1x SD/HD/3G-SDI loop out, 2x SD/HD/3G-SDI, 1x SFP fiber | 1x HDMI 2.0 loop out, 2x HDMI 2.0 type A, 1x 12G-SDI loop out, 2x 12G-SDI, 1x 12G SFP fiber | 1x SD/HD/3G-SDI loop out, 1x HDMI type A, 1x 3.5 mm AV out | 1x SD/HD/3G-SDI loop out, 1x HDMI type A | — | 2x SD/HD/3G-SDI | 4x HDMI type A, 4x SD/HD/3G-SDI |
| Audio | 1x 3.5 mm analog audio in | 1x 3.5 mm analog audio in | 1x 3.5 mm analog audio in, 1x 3.5 mm analog audio out | — | 1x 6.35 mm AES/EBU digital audio in, 1x 6.35 mm AES/EBU digital audio out, 1x 3.5 mm analog audio in, 1x 3.5 mm analog audio out | — | — | — | — |
| Power input | 1x DC threaded locking connector (6 to 24 V), 1x USB Type-C (5 V; firmware update, power and control) | 2x DC threaded locking connector (6 to 23 V), 1x Micro USB (3.3 to 5 V) | 1x DC threaded locking connector (9 to 24 V), 1x USB Type-C (5 V; upgrade, power and control) | 1x DC threaded locking connector (5 to 24 V) | 1x DC threaded locking connector | 1x USB Type-C (3.3 to 5 V) | — | 1x USB Type-C (3.3 to 5 V) | 1x DC threaded locking connector (6 to 28 V), 1x USB Type-C (5 V) |
| Fiber interface | — | — | 1x SFP module slot (optional 3G video SFP, MSA Type), Bidirectional fiber I/O; up to 20 km | 1x SFP module slot (optional 12G video SFP), Bidirectional fiber I/O; up to 10 km | — | — | — | — | — |
| Other interfaces | — | — | — | 1x USB Type-C (upgrade and PC software control) | 1x Micro USB (updates and configuration) | — | — | — | — |
| Host interface | — | — | — | — | — | — | USB 3.0 Type C (USB 3.1 Gen1, up to 200 MB/s) | — | — |
| Video interfaces | 1x SD/HD/3G-SDI, 1x HDMI type A, 1x DVI-I/VGA, 1x S-Video/CVBS/YPbPr | 1x SD/HD/3G-SDI, 1x HDMI type A | 1x HDMI type A, 1x SD/HD/3G-SDI or 1x SFP fiber (select 1 of 2) | 1x HDMI 2.0 type A, 1x 12G-SDI or 1x 12G SFP fiber (select 1 of 2) | 1x SD/HD/3G-SDI, 1x SD/HD/3G-SDI alt/redundant | 1x SD/HD/3G-SDI | 1x 3G-SDI input, 1x HDMI input, 1x DVI-I/VGA input, 1x S-Video/CVBS/YPbPr input | 1x HDMI type A | 1x HDMI type A, 1x SD/HD/3G-SDI |
| Audio input | — | — | — | — | — | — | 1x 3.5 mm analog | — | — |
| Video Standards | |||||||||
| 3G-SDI | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94 | 1080p 50/59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 24/25/30/50/60 | 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 |
| HDMI | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 1280x768p 60, 720p 23.98/24/25/29.97/30/50/59.94/60 | 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576p 50, 576i 50, 480i 59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94 | — | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 576i 50, 480i 59.94 | 1080p 24/25/30/50/60, 1080i 50/60, 720p 24/25/30/50/60 | 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60, 576i 50, 480i 59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 576i 50, 480i 59.94 |
| HDMI 2.0 | — | — | — | 2160p up to 60, 1080p, 1080i, 720p | — | — | — | — | — |
| DVI/VGA | VGA: 1920 x 1080, 1680 x 1050, 1600 x 1200, 1600 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 768, 1280 x 720, 1280 x 600, 1152 x 864, 1024 x 768, 800 x 600, 640 x 480, 720 x 400 (up to 60 Hz); DVI: 1920 x 1080, 1280 x 720 (up to 60 Hz) | — | — | — | — | — | 1920 x 1080 down to 640 x 400 | — | — |
| YPbPr | 1080p, 1080i, 720p, 576p, 480p, 576i, 480i | — | — | — | — | — | 1920 x 1080p, 1280 x 720p, 720 x 576p, 720 x 483p, 710 x 484i, 702 x 576i | — | — |
| S-Video/CVBS | NTSC, PAL, SECAM | — | — | — | NTSC, PAL | — | 710 x 484i, 702 x 576i | — | — |
| 3G-SDI compliance | 3G Level A and Level B | 3G Level A and Level B; SMPTE 259M, SMPTE 292M, SMPTE 424M | 3G Level A and Level B | 3G Level A and Level B | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 352M, SMPTE 424M | SMPTE 259M, SMPTE 292M, SMPTE 424M | — | SMPTE 259M, SMPTE 292M, SMPTE 424M | SMPTE 292M, SMPTE 259M, SMPTE 424M |
| Colour space | SDI: YUV 4:2:2 10-bit in/out; HDMI in: RGB 4:4:4 8/10/12-bit, YUV 4:2:2 8/10/12-bit, YUV 4:4:4 8/10/12-bit; HDMI out: RGB 4:4:4 8-bit (Full or Limited) | YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI input) | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2 (HDMI output) | Full RGB 4:4:4, Limited RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 (HDMI) | YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI) | YUV 4:2:2 (SDI and HDMI) | — | YUV 4:2:2/4:4:4 and RGB 4:4:4 (HDMI input); YUV 4:2:2 (SDI output) | YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI) |
| SDI output rate | SD/HD/3G-SDI | SD/HD/3G-SDI | SD/HD/3G-SDI | HD/3G/6G/12G-SDI; SFP 12G or 6G selectable | SD/HD/3G-SDI (loop) | — | — | SD/HD/3G-SDI selectable | SD/HD/3G-SDI |
| Deinterlacing | 1080i hardware deinterlacing | — | — | — | Yes | — | — | — | — |
| SFP | — | — | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94 | 2160p up to 60, 1080p, 1080i, 720p | — | — | — | — | — |
| Max fiber distance | — | — | 20 km (optional SFP) | 10 km (optional SFP) | — | — | — | — | — |
| 12G-SDI | — | — | — | 2160p up to 60, 1080p, 1080i, 720p | — | — | — | — | — |
| Format auto-detection | — | — | — | Auto-detects HD, 3G, 6G, and 12G input (LED: green HD, blue 3G, yellow 6G, purple 12G) | Auto-detects SD, HD, and 3G-SDI on input | Auto-detects SD, HD, and 3G-SDI Level A/B on input | — | — | Auto-detects HDMI and SD/HD/3G-SDI input |
| Video color space | — | — | — | — | — | — | RGB, YUY2, NV12 | — | — |
| Capture standard | — | — | — | — | — | — | UVC (USB Video Class), UAC (USB Audio Class) | — | — |
| Audio sampling | — | — | — | — | — | — | 48 kHz 16 bit | — | — |
| Switching | |||||||||
| 3G-SDI auto switching | — | — | — | — | Auto-detects SD, HD, and 3G-SDI on input; alt SDI input switches over if main is lost | — | — | — | — |
| Seamless switching | — | — | — | — | Seamless conversion to avoid jitter | — | — | — | — |
| Operational Features | |||||||||
| Cross conversion | SDI, HDMI, DVI-I/VGA, CVBS, S-Video, or YPbPr → 2x SDI and 1x HDMI; up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60 | SDI → HDMI or HDMI → SDI (selectable input); up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60 | Bidirectional SDI ↔ HDMI ↔ fiber (selectable sources); up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60 | Bidirectional 12G-SDI ↔ HDMI 2.0 ↔ fiber (SDI/SFP select 1 of 2); selectable HDMI and SDI/SFP output sources | SDI → HDMI and AV; pass-through or up/down scaling and frame rate conversion; selectable HDMI output through 1080p60 | — | — | — | SDI → HDMI or HDMI → SDI (DIP-selectable input); selected input is distributed to 4x SDI and 4x HDMI simultaneously |
| Scaler | Up/down scaling with selectable SDI/HDMI output formats through 1080p60 | Up/down scaling with selectable SDI/HDMI output formats through 1080p60 | Up/down scaling with selectable SDI/HDMI output formats through 1080p60 | 4K60 to 4K30 conversion via DIP | Up/down scaling with selectable HDMI output formats through 1080p60 | — | — | — | — |
| Frame rate conversion | Yes — via selectable output format (up/down scaling and frame rate conversion) | Yes — via selectable output format (up/down scaling and frame rate conversion) | Yes — via selectable output format (up/down scaling and frame rate conversion) | 4K60 to 4K30 via DIP | Yes — via DIP switches (pass-through or selectable HDMI output format) | — | — | — | — |
| Aspect ratio conversion | 4:3 or 16:9 via DIP switches | SD up-conversion aspect via DIP switches | SD/HD aspect conversion (anamorphic, letterbox, pillarbox, zoom) | — | — | — | — | — | — |
| SDI distribution | 1 in, 2 out | 1 in, 2 out | 1 in, 3 out (loop + 2x SDI out) | 1 in, 3 out (loop + 2x 12G-SDI out) | — | — | — | — | 1 in, 4 out (plus 4x HDMI converted) |
| Audio embedding | 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio | 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio | 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio | — | SDI CH1-8, SDI CH9-16, AES/EBU, or analog audio to HDMI | — | — | — | — |
| DIP switches | 12x for output format, input select, analog vs embedded audio, 16:9/4:3 aspect, HDMI Full/Limited RGB, 3G Level A/B, and DIP vs PC control | 4x for output control | — | 10x for SDI/HDMI source, SDI/SFP in, 4K60 to 4K30, SFP direction, SFP 12G/6G, HDMI colour space, 3G Level A/B, and DIP vs PC control | DIP1 (scaling, audio embed/de-embed, HDMI colour space) and DIP2 (AV NTSC/PAL, status overlay, PC custom settings) | — | — | — | 4x; SW1 selects HDMI or SDI input; SW2–SW4 reserved |
| Selectable colour spaces | Full RGB, Limited RGB | — | — | Rec.709, Rec.2020 | — | — | — | — | — |
| Remote control | PC software via USB Type-C | PC software via Micro USB | PC software via USB Type-C | PC software via USB Type-C | PC software via Micro USB | — | — | — | — |
| Front panel control | 12x DIP switches; PC software via USB Type-C | 4x DIP switches; PC software via Micro USB | LCD status display with 4 buttons; PC software via USB Type-C | DIP switches; PC software via USB Type-C | DIP switches; PC software via Micro USB | — | — | — | 4x DIP switches |
| Image mirroring | — | — | Horizontal, vertical, and horizontal+vertical flip on SDI and HDMI outputs | — | — | — | — | — | — |
| HDMI fibre extender | — | — | TX and RX (SFP optional) | TX and RX (SFP optional) | — | — | — | — | — |
| SDI fibre extender | — | — | TX and RX (SFP optional) | TX and RX (SFP optional) | — | — | — | — | — |
| Audio de-embedding | — | — | 1x 3.5 mm analog audio out | — | Any pair of SDI 16-channel audio to AES/EBU and analog out | — | — | — | — |
| Audio pair rearrangement | — | — | Yes — HDMI (4 stereo pairs) and SDI (8 stereo pairs) output remapping | — | — | — | — | — | — |
| Test pattern generator | — | — | 23 professional test patterns and audio tones | — | — | — | — | — | — |
| Frame counter and circle overlay | — | — | Dynamic circle and frame-count overlays on test pattern output | — | — | — | — | — | — |
| Menu control | — | — | LCD status display with 4 buttons | — | — | — | — | — | — |
| OSD | — | — | — | — | Input/output format and audio embed/de-embed status overlay (DIP selectable) | — | — | — | — |
| Power | |||||||||
| Input voltage | USB-C 5 V; DC 6 to 24 V | USB 3.3 to 5 V; DC 6 to 23 V | USB-C 5 V; DC 9 to 24 V | DC 5 to 24 V | DC 6 to 24 V | DC 3.3 to 5 V USB Type-C | — | DC 3.3 to 5 V USB Type-C | USB 5 V; DC 6 to 28 V |
| Power consumption | ≤5.5 W | 4 W | 7 W | 15 W | 6 W | 1.5 W | ≤5 W (5V, 1A via USB Type-C) | 2 W | 6.6 W (DC); 7.5 W (USB) |
| Environmental | |||||||||
| Operating temperature | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C |
| Storage temperature | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C |
| Relative humidity | 20% to 90% non-condensing | 0% to 90% non-condensing | — | — | 0% to 90% non-condensing | 0% to 90% non-condensing | 20 to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing |
| Mechanical | |||||||||
| Dimensions | 104 x 125.5 x 24.5 mm | 125.5 x 104 x 24.5 mm | 104 x 125.5 x 24.5 mm | 104 x 125.5 x 24.5 mm | 125.5 x 104 x 24.5 mm | 71 x 41 x 23 mm | 104 x 125.5 x 24.5 mm | 71 x 41 x 23 mm | 125.5 x 104 x 24.5 mm |
| Weight | 496 g | 485 g | 517 g | 590 g | 465 g | 168 g | 473 g | 168 g | 485 g |
| Support | |||||||||
| System | — | — | — | — | — | — | Windows 7/8/10/11, Linux (kernel 2.6.38+), macOS 10.8+ | — | — |
| Software | — | — | — | — | — | — | OBS Studio, Skype, Zoom, Teams, Google Meet, YouTube Live, QuickTime Player, FaceTime | — | — |
| APIs | — | — | — | — | — | — | Windows: DirectShow, DirectSound | — | — |
| Mounting | |||||||||
| Wall mount | Mounting bracket (optional) | Detachable mounting brackets included | Mounting bracket (optional) | Mounting bracket (optional) | Detachable mounting brackets included | Detachable mounting bracket included | — | Detachable mounting bracket included | Detachable mounting brackets included |
| Other | |||||||||
| Warranty | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited | — | 3 years limited | — |
