Key Features

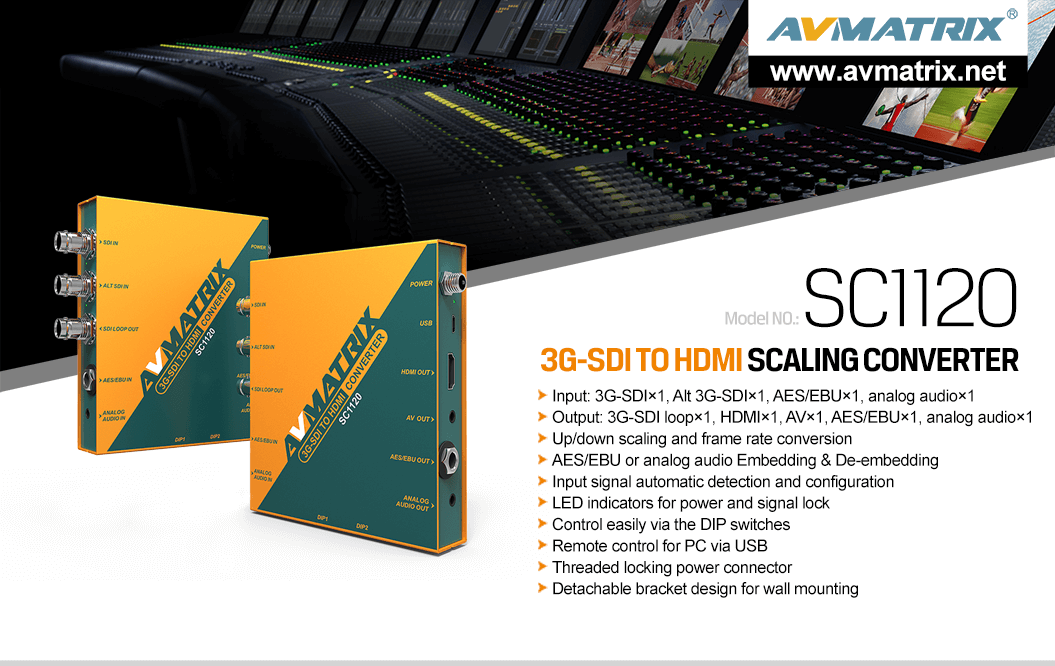

- 3G-SDI to HDMI scaling converter: 1x SD/HD/3G-SDI BNC in, 1x alt/redundant SDI in, 1x SDI loop out, 1x HDMI type A out, 1x 3.5 mm AV out

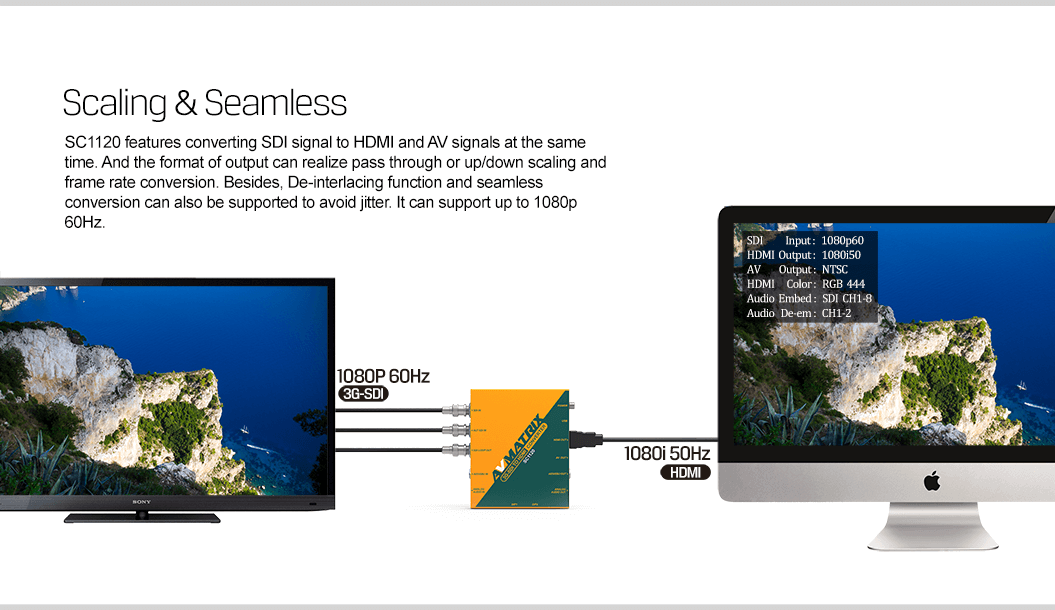

- Pass-through or up/down scaling and frame rate conversion on HDMI; de-interlacing and seamless conversion

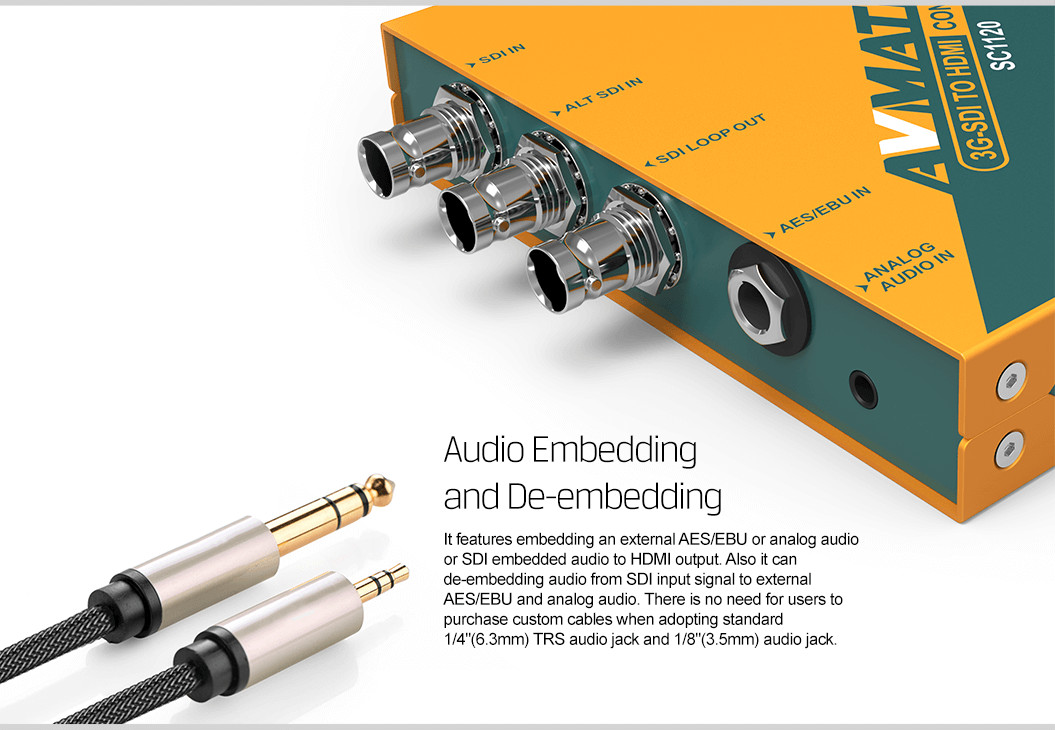

- AES/EBU and analog audio embedding to HDMI, and de-embedding of any SDI audio pair to AES/EBU and analog out
- Configuration via DIP switches or PC software over Micro USB; HDMI colour space RGB 4:4:4, YUV 4:2:2, YUV 4:4:4
- DC threaded locking power (6 to 24 V), 6 W; DC 12V universal power supply, USB cable, AV cable, and mounting brackets included
- 125.5 x 104 x 24.5 mm, 465 g; -20°C to 60°C operating, 3 year limited warranty
Buy the SC1120 From an Authorised Reseller
Lilliput's authorised broadcast resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the SC1120 now, or if your country is not listed, browse all authorised resellers here.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data

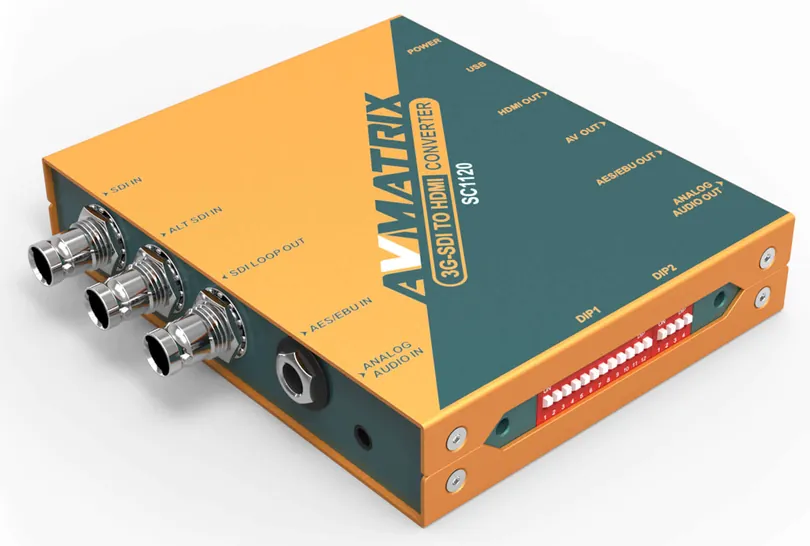

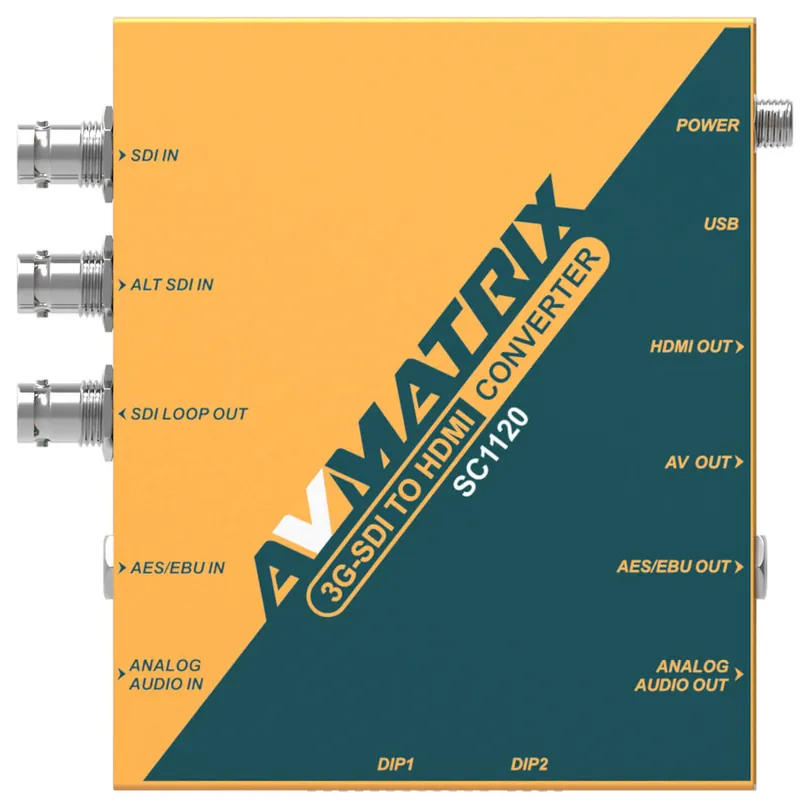

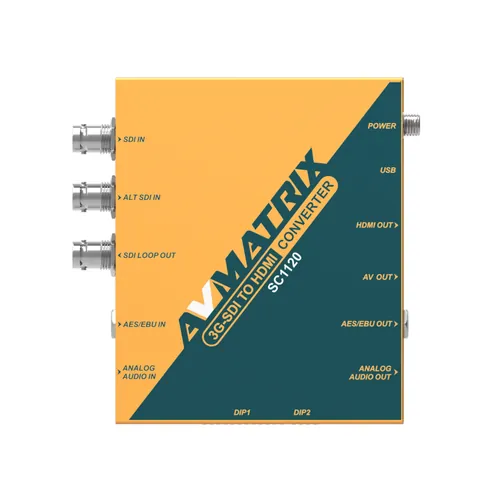

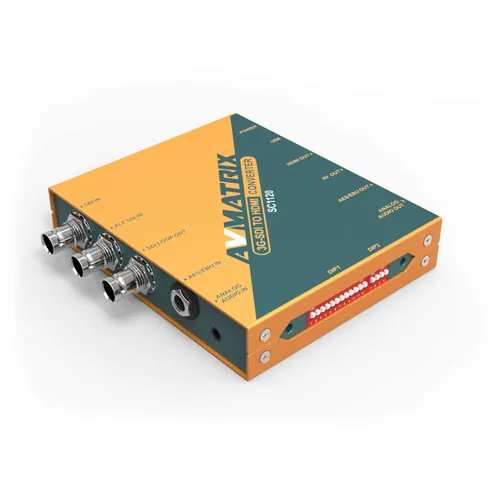

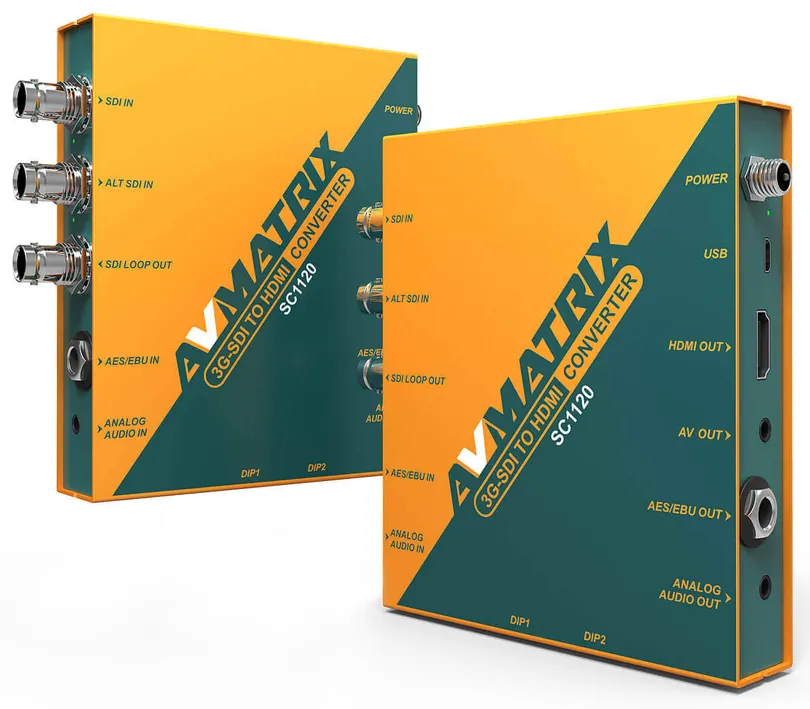

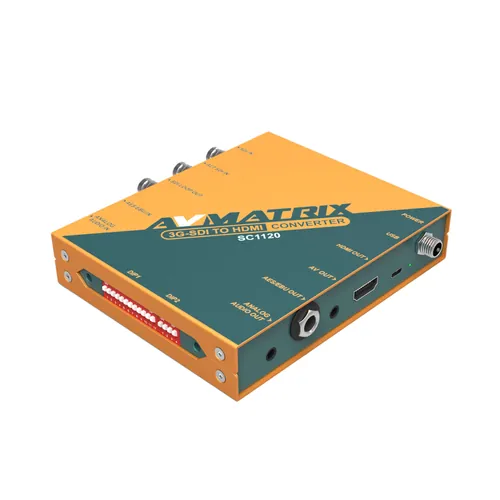

Connections

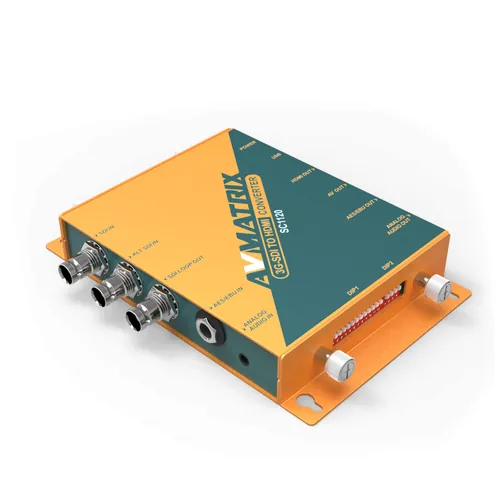

- Video inputs

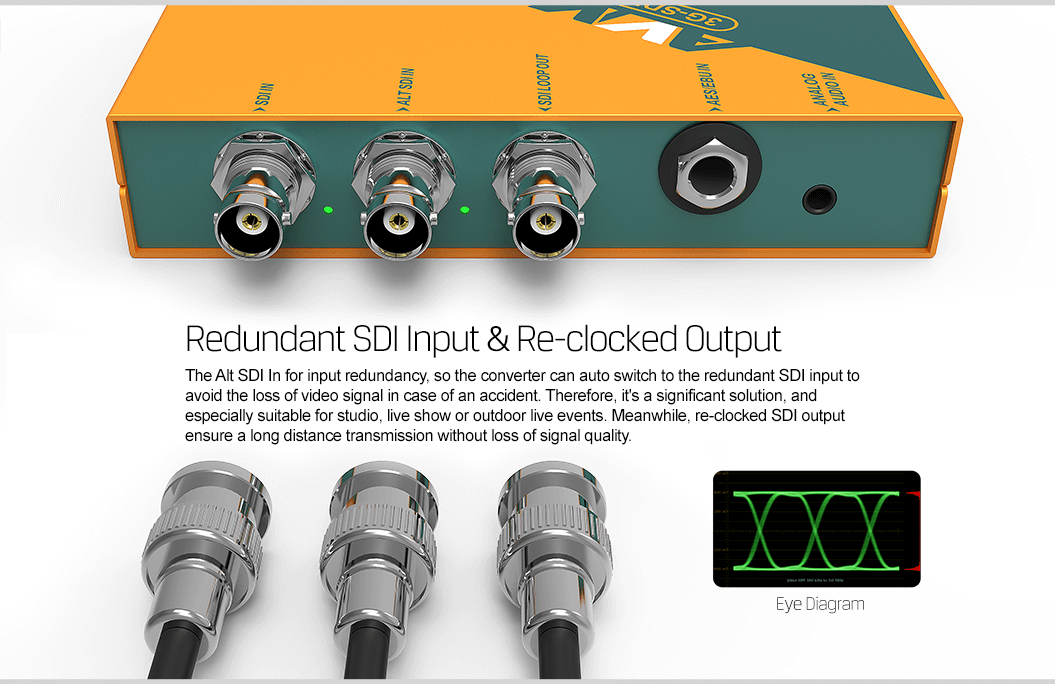

- 1x SD/HD/3G-SDI (75Ω BNC), 1x SD/HD/3G-SDI alt/redundant (75Ω BNC)
- Video outputs
- 1x SD/HD/3G-SDI loop out (75Ω BNC), 1x HDMI type A, 1x 3.5 mm AV out
- Audio
- 1x 6.35 mm AES/EBU digital audio in, 1x 6.35 mm AES/EBU digital audio out, 1x 3.5 mm analog audio in, 1x 3.5 mm analog audio out
- Power input
- 1x DC threaded locking connector
- Other interfaces
- 1x Micro USB (updates and configuration)
Video Standards
- 3G-SDI
- 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94
- HDMI
- 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94/60
- S-Video/CVBS
- NTSC, PAL
- 3G-SDI compliance
- SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 352M, SMPTE 424M
- Colour space
- YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI)
- Format auto-detection
- Auto-detects SD, HD, and 3G-SDI on input
- SDI output rate
- SD/HD/3G-SDI (loop)
- Deinterlacing
- Yes
Switching
- 3G-SDI auto switching
- Auto-detects SD, HD, and 3G-SDI on input; alt SDI input switches over if main is lost
- Seamless switching
- Seamless conversion to avoid jitter
Operational Features
- Cross conversion
- SDI → HDMI and AV; pass-through or up/down scaling and frame rate conversion; selectable HDMI output through 1080p60
- Scaler
- Up/down scaling with selectable HDMI output formats through 1080p60
- Frame rate conversion
- Yes — via DIP switches (pass-through or selectable HDMI output format)
- Audio embedding
- SDI CH1-8, SDI CH9-16, AES/EBU, or analog audio to HDMI
- Audio de-embedding
- Any pair of SDI 16-channel audio to AES/EBU and analog out

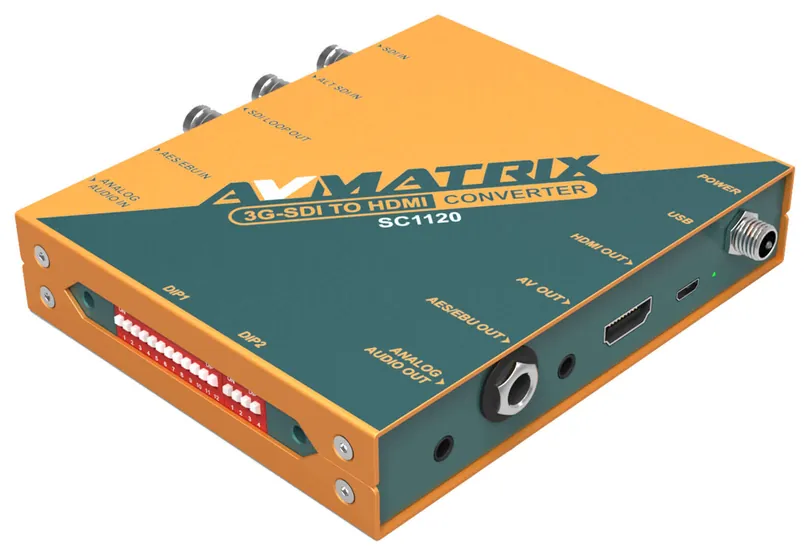

- DIP switches

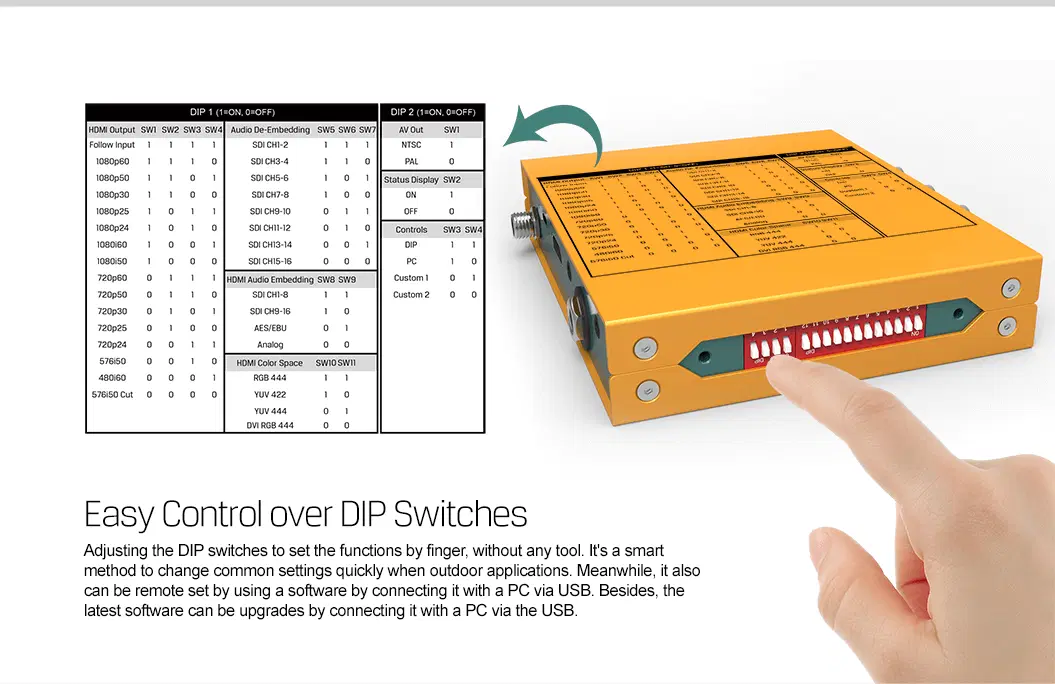

- DIP1 (scaling, audio embed/de-embed, HDMI colour space) and DIP2 (AV NTSC/PAL, status overlay, PC custom settings)
- OSD
- Input/output format and audio embed/de-embed status overlay (DIP selectable)
- Remote control
- PC software via Micro USB
- Front panel control
- DIP switches; PC software via Micro USB
Power
- Input voltage
- DC 6 to 24 V
- Power consumption
- 6 W
Environmental
- Operating temperature
- -20°C to 60°C
- Storage temperature
- -30°C to 70°C
- Relative humidity
- 0% to 90% non-condensing
Mechanical
- Dimensions
- 125.5 x 104 x 24.5 mm
- Weight
- 465 g
Mounting
- Wall mount

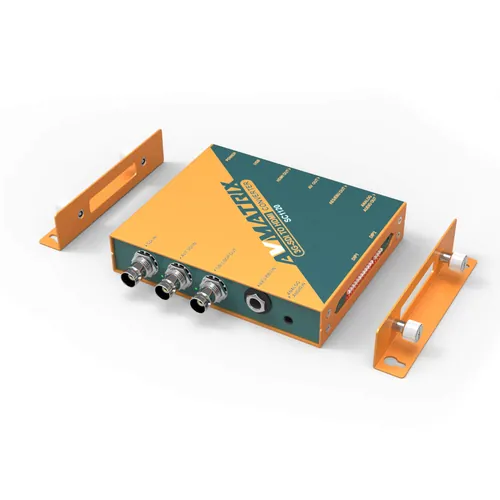

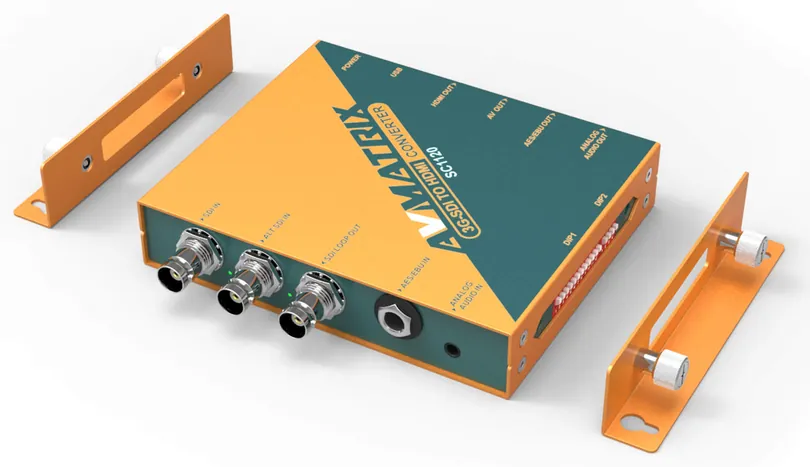

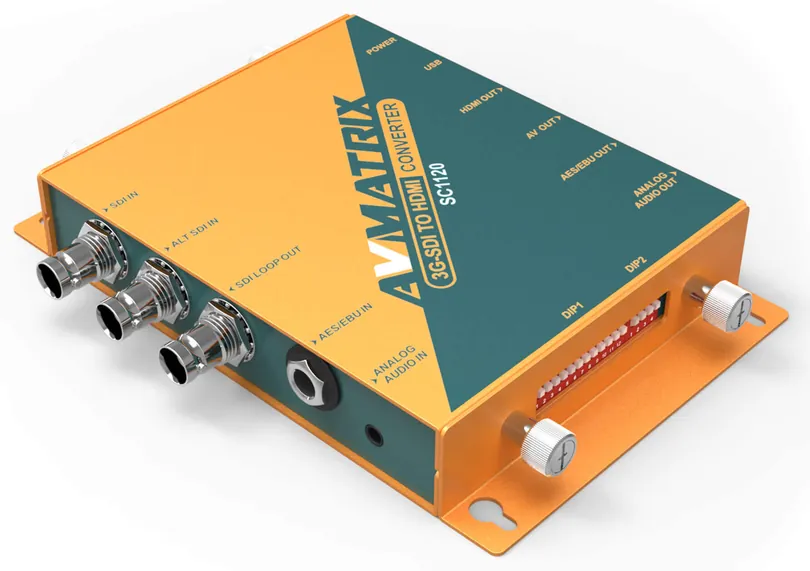

- Detachable mounting brackets included
Other
- Warranty
- 3 years limited
Accessories
Included
- DC 12V Universal Power Supply with International Socket Adapters
- USB Cable
- AV Cable (RCA)
- 2x Mounting Brackets
Product Downloads
Similar Products
Compare key technical data across similar AV Matrix products.
| Technical Data | SC1120 | SC7030 | SC1112 | SC2030 | SC2040 | SC2020-12G | SC1112-12G | SC1221 | FE1121 | SD2080 | MV0430 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Connections | |||||||||||
| Video inputs | 1x SD/HD/3G-SDI (75Ω BNC), 1x SD/HD/3G-SDI alt/redundant (75Ω BNC) | 1x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A, 1x DVI-I/VGA, 1x S-Video/CVBS/YPbPr | 1x SD/HD/3G-SDI (75Ω BNC) | 1x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A | 1x HDMI type A, 1x SD/HD/3G-SDI (75Ω BNC) or 1x SFP fiber (select 1 of 2) | 1x HDMI 2.0 type A, 1x 12G-SDI (75Ω BNC) or 1x 12G SFP fiber (select 1 of 2) | 1x HD/3G/6G/12G-SDI (75Ω BNC) | 1x HDMI type A | 1x SD/HD/3G-SDI (75Ω BNC, transmitter) | 1x HDMI type A, 1x SD/HD/3G-SDI (BNC) | 4x SD/HD/3G-SDI (75Ω BNC) |
| Video outputs | 1x SD/HD/3G-SDI loop out (75Ω BNC), 1x HDMI type A, 1x 3.5 mm AV out | 2x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A | 1x SD/HD/3G-SDI loop out (75Ω BNC), 1x HDMI type A | 2x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A | 1x HDMI loop out, 1x HDMI type A, 1x SD/HD/3G-SDI loop out, 2x SD/HD/3G-SDI (75Ω BNC), 1x SFP fiber | 1x HDMI 2.0 loop out, 2x HDMI 2.0 type A, 1x 12G-SDI loop out, 2x 12G-SDI (75Ω BNC), 1x 12G SFP fiber | 1x HD/3G/6G/12G-SDI loop out (75Ω BNC), 1x HDMI 2.0 type A | 2x SD/HD/3G-SDI (75Ω BNC) | 1x SD/HD/3G-SDI loop out (transmitter); 2x SD/HD/3G-SDI (75Ω BNC, receiver) | 4x HDMI type A, 4x SD/HD/3G-SDI (BNC) | 2x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A |
| Audio | 1x 6.35 mm AES/EBU digital audio in, 1x 6.35 mm AES/EBU digital audio out, 1x 3.5 mm analog audio in, 1x 3.5 mm analog audio out | 1x 3.5 mm analog audio in | — | 1x 3.5 mm analog audio in | 1x 3.5 mm analog audio in, 1x 3.5 mm analog audio out | — | — | — | SDI embedded audio pass-through (16 channels) | — | 3G-SDI embedded; 2-channel audio meter selectable from 16 pairs |
| Power input | 1x DC threaded locking connector | 1x DC threaded locking connector (6 to 24 V), 1x USB Type-C (5 V; firmware update, power and control) | 1x USB Type-C (3.3 to 5 V) | 2x DC threaded locking connector (6 to 23 V), 1x Micro USB (3.3 to 5 V) | 1x DC threaded locking connector (9 to 24 V), 1x USB Type-C (5 V; upgrade, power and control) | 1x DC threaded locking connector (5 to 24 V) | 1x USB Type-C (5 V) | 1x USB Type-C (3.3 to 5 V) | 1x USB Type-C per unit (transmitter and receiver) | 1x DC threaded locking connector (6 to 28 V), 1x USB Type-C (5 V) | — |
| Other interfaces | 1x Micro USB (updates and configuration) | — | — | — | — | 1x USB Type-C (upgrade and PC software control) | — | — | — | — | USB keyboard |
| Fiber interface | — | — | — | — | 1x SFP module slot (optional 3G video SFP, MSA Type), Bidirectional fiber I/O; up to 20 km | 1x SFP module slot (optional 12G video SFP), Bidirectional fiber I/O; up to 10 km | — | — | Transmitter: 1x SFP module (LC, single-mode fiber out), Receiver: 1x SFP module (LC, single-mode fiber in), Hot-pluggable SFP module, LC connector, Single-mode fiber, 1310 nm wavelength, Max. bandwidth 3 Gbps, Optical transmit power -6 to 0 dBm; receiver sensitivity -22 dBm | — | — |
| Multiview outputs | — | — | — | — | — | — | — | — | — | — | 2x 3G-SDI (75Ω BNC), 1x HDMI type A |
| Network | — | — | — | — | — | — | — | — | — | — | 1x LAN (RJ45; configuration, firmware updates, and PC software) |
| Video Standards | |||||||||||
| 3G-SDI | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94 | 1080p 50/59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60 | 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 2048 x 1080p 23.98/24/25/29.97/30, 2048 x 1080pSF 23.98/24/25/29.97/30, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 2048 x 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | — |
| HDMI | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 1280x768p 60, 720p 23.98/24/25/29.97/30/50/59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 576i 50, 480i 59.94 | 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576p 50, 576i 50, 480i 59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94 | — | 2160p 23.98/24/25/29.97/30/50/59.94/60, 4096 x 2160 23.98/24/25/29.97/30/50/59.94/60, 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 47.95/48/50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60 | 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60, 576i 50, 480i 59.94/60 | — | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 576i 50, 480i 59.94 | — |
| HDMI 2.0 | — | — | — | — | — | 2160p up to 60, 1080p, 1080i, 720p | — | — | — | — | — |
| S-Video/CVBS | NTSC, PAL | NTSC, PAL, SECAM | — | — | — | — | — | — | — | — | — |
| 3G-SDI compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 352M, SMPTE 424M | 3G Level A and Level B | SMPTE 259M, SMPTE 292M, SMPTE 424M | 3G Level A and Level B; SMPTE 259M, SMPTE 292M, SMPTE 424M | 3G Level A and Level B | 3G Level A and Level B | SMPTE ST-2081, SMPTE ST-2082, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 274M, SMPTE 425M | SMPTE 259M, SMPTE 292M, SMPTE 424M | 3G Level A and Level B; SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 274M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601 | SMPTE 292M, SMPTE 259M, SMPTE 424M | — |
| Colour space | YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI) | SDI: YUV 4:2:2 10-bit in/out; HDMI in: RGB 4:4:4 8/10/12-bit, YUV 4:2:2 8/10/12-bit, YUV 4:4:4 8/10/12-bit; HDMI out: RGB 4:4:4 8-bit (Full or Limited) | YUV 4:2:2 (SDI and HDMI) | YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI input) | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2 (HDMI output) | Full RGB 4:4:4, Limited RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 (HDMI) | YCbCr 4:2:2 10-bit (SDI); RGB 4:4:4 8-bit, YCbCr 4:2:2 8/10/12-bit, YCbCr 4:4:4 8-bit (HDMI) | YUV 4:2:2/4:4:4 and RGB 4:4:4 (HDMI input); YUV 4:2:2 (SDI output) | YUV; RGB | YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI) | — |
| Format auto-detection | Auto-detects SD, HD, and 3G-SDI on input | — | Auto-detects SD, HD, and 3G-SDI Level A/B on input | — | — | Auto-detects HD, 3G, 6G, and 12G input (LED: green HD, blue 3G, yellow 6G, purple 12G) | Auto-detects HD, 3G, 6G, and 12G-SDI Level A/B on input | — | Auto-detects SD, HD, and 3G-SDI Level A/B on input | Auto-detects HDMI and SD/HD/3G-SDI input | — |
| SDI output rate | SD/HD/3G-SDI (loop) | SD/HD/3G-SDI | — | SD/HD/3G-SDI | SD/HD/3G-SDI | HD/3G/6G/12G-SDI; SFP 12G or 6G selectable | — | SD/HD/3G-SDI selectable | — | SD/HD/3G-SDI | — |
| Deinterlacing | Yes | 1080i hardware deinterlacing | — | — | — | — | — | — | — | — | — |
| DVI/VGA | — | VGA: 1920 x 1080, 1680 x 1050, 1600 x 1200, 1600 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 768, 1280 x 720, 1280 x 600, 1152 x 864, 1024 x 768, 800 x 600, 640 x 480, 720 x 400 (up to 60 Hz); DVI: 1920 x 1080, 1280 x 720 (up to 60 Hz) | — | — | — | — | — | — | — | — | — |
| YPbPr | — | 1080p, 1080i, 720p, 576p, 480p, 576i, 480i | — | — | — | — | — | — | — | — | — |
| SFP | — | — | — | — | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94 | 2160p up to 60, 1080p, 1080i, 720p | — | — | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 2048 x 1080p 23.98/24/25/29.97/30, 2048 x 1080pSF 23.98/24/25/29.97/30, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 2048 x 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | — | — |
| Max fiber distance | — | — | — | — | 20 km (optional SFP) | 10 km (optional SFP) | — | — | 20 km (12.5 miles) at 3G (1080p), single-mode | — | — |
| 12G-SDI | — | — | — | — | — | 2160p up to 60, 1080p, 1080i, 720p | 2160p 23.98/24/25/29.97/30, 4096 x 2160 23.98/24/25/29.97/30, 2160p 50/59.94/60, 4096 x 2160 50/59.94/60 | — | — | — | — |
| HDMI compliance | — | — | — | — | — | — | CTA-861-G | — | — | — | — |
| Optical fiber compliance | — | — | — | — | — | — | — | — | SMPTE 297M | — | — |
| Cable equalization (max cable) | — | — | — | — | — | — | — | — | 3G-SDI up to 120 m per SDI input/output link | — | — |
| 3G-SDI input (multiviewer) | — | — | — | — | — | — | — | — | — | — | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 |
| 3G-SDI/HDMI output | — | — | — | — | — | — | — | — | — | — | 1080p 24/25/30/50/60, 1080i 50/60, 720p 25/30/50/60 |
| 3G-SDI compliance (multiviewer) | — | — | — | — | — | — | — | — | — | — | SMPTE 292M, SMPTE 259M, SMPTE 424M, SMPTE 352M, SMPTE 296M |
| Colour space (multiviewer) | — | — | — | — | — | — | — | — | — | — | Input: YUV or RGB; Output: YUV |
| Switching | |||||||||||
| 3G-SDI auto switching | Auto-detects SD, HD, and 3G-SDI on input; alt SDI input switches over if main is lost | — | — | — | — | — | — | — | — | — | — |
| Seamless switching | Seamless conversion to avoid jitter | — | — | — | — | — | — | — | — | — | — |
| Operational Features | |||||||||||
| Cross conversion | SDI → HDMI and AV; pass-through or up/down scaling and frame rate conversion; selectable HDMI output through 1080p60 | SDI, HDMI, DVI-I/VGA, CVBS, S-Video, or YPbPr → 2x SDI and 1x HDMI; up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60 | — | SDI → HDMI or HDMI → SDI (selectable input); up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60 | Bidirectional SDI ↔ HDMI ↔ fiber (selectable sources); up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60 | Bidirectional 12G-SDI ↔ HDMI 2.0 ↔ fiber (SDI/SFP select 1 of 2); selectable HDMI and SDI/SFP output sources | — | — | — | SDI → HDMI or HDMI → SDI (DIP-selectable input); selected input is distributed to 4x SDI and 4x HDMI simultaneously | — |
| Scaler | Up/down scaling with selectable HDMI output formats through 1080p60 | Up/down scaling with selectable SDI/HDMI output formats through 1080p60 | — | Up/down scaling with selectable SDI/HDMI output formats through 1080p60 | Up/down scaling with selectable SDI/HDMI output formats through 1080p60 | 4K60 to 4K30 conversion via DIP | — | — | — | — | Output scaling and frame rate conversion via DIP (SDI and HDMI) |
| Frame rate conversion | Yes — via DIP switches (pass-through or selectable HDMI output format) | Yes — via selectable output format (up/down scaling and frame rate conversion) | — | Yes — via selectable output format (up/down scaling and frame rate conversion) | Yes — via selectable output format (up/down scaling and frame rate conversion) | 4K60 to 4K30 via DIP | — | — | — | — | Yes — selectable SDI and HDMI output format via DIP |
| Audio embedding | SDI CH1-8, SDI CH9-16, AES/EBU, or analog audio to HDMI | 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio | — | 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio | 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio | — | — | — | — | — | — |
| Audio de-embedding | Any pair of SDI 16-channel audio to AES/EBU and analog out | — | — | — | 1x 3.5 mm analog audio out | — | — | — | — | — | — |
| DIP switches | DIP1 (scaling, audio embed/de-embed, HDMI colour space) and DIP2 (AV NTSC/PAL, status overlay, PC custom settings) | 12x for output format, input select, analog vs embedded audio, 16:9/4:3 aspect, HDMI Full/Limited RGB, 3G Level A/B, and DIP vs PC control | — | 4x for output control | — | 10x for SDI/HDMI source, SDI/SFP in, 4K60 to 4K30, SFP direction, SFP 12G/6G, HDMI colour space, 3G Level A/B, and DIP vs PC control | — | — | — | 4x; SW1 selects HDMI or SDI input; SW2–SW4 reserved | Output format and scaling, 16 layouts (quad, PIP, POP, full screen), audio meter pair and overlay, UMD, status overlay, and custom presets |
| OSD | Input/output format and audio embed/de-embed status overlay (DIP selectable) | — | — | — | — | — | — | — | — | — | — |
| Remote control | PC software via Micro USB | PC software via USB Type-C | — | PC software via Micro USB | PC software via USB Type-C | PC software via USB Type-C | — | — | — | — | PC software via LAN |
| Front panel control | DIP switches; PC software via Micro USB | 12x DIP switches; PC software via USB Type-C | — | 4x DIP switches; PC software via Micro USB | LCD status display with 4 buttons; PC software via USB Type-C | DIP switches; PC software via USB Type-C | — | — | — | 4x DIP switches | — |
| Aspect ratio conversion | — | 4:3 or 16:9 via DIP switches | — | SD up-conversion aspect via DIP switches | SD/HD aspect conversion (anamorphic, letterbox, pillarbox, zoom) | — | — | — | — | — | — |
| SDI distribution | — | 1 in, 2 out | — | 1 in, 2 out | 1 in, 3 out (loop + 2x SDI out) | 1 in, 3 out (loop + 2x 12G-SDI out) | — | — | — | 1 in, 4 out (plus 4x HDMI converted) | — |
| Selectable colour spaces | — | Full RGB, Limited RGB | — | — | — | Rec.709, Rec.2020 | — | — | — | — | — |
| Image mirroring | — | — | — | — | Horizontal, vertical, and horizontal+vertical flip on SDI and HDMI outputs | — | — | — | — | — | — |
| HDMI fibre extender | — | — | — | — | TX and RX (SFP optional) | TX and RX (SFP optional) | — | — | — | — | — |
| SDI fibre extender | — | — | — | — | TX and RX (SFP optional) | TX and RX (SFP optional) | — | — | — | — | — |
| Audio pair rearrangement | — | — | — | — | Yes — HDMI (4 stereo pairs) and SDI (8 stereo pairs) output remapping | — | — | — | — | — | — |
| Test pattern generator | — | — | — | — | 23 professional test patterns and audio tones | — | — | — | — | — | — |
| Frame counter and circle overlay | — | — | — | — | Dynamic circle and frame-count overlays on test pattern output | — | — | — | — | — | — |
| Menu control | — | — | — | — | LCD status display with 4 buttons | — | — | — | — | — | — |
| Multi Viewer | — | — | — | — | — | — | — | — | — | — | Picture-by-Picture, Picture-in-Picture, Three-Way Split, Quad-View |
| Front panel | — | — | — | — | — | — | — | — | — | — | DIP switches; USB keyboard |
| Control interfaces | — | — | — | — | — | — | — | — | — | — | LAN (RJ45), UDP, port 7000, USB keyboard |
| Custom presets | — | — | — | — | — | — | — | — | — | — | 2 user-defined configurations (Custom1, Custom2) |
| Power | |||||||||||
| Input voltage | DC 6 to 24 V | USB-C 5 V; DC 6 to 24 V | DC 3.3 to 5 V USB Type-C | USB 3.3 to 5 V; DC 6 to 23 V | USB-C 5 V; DC 9 to 24 V | DC 5 to 24 V | 5 V USB Type-C | DC 3.3 to 5 V USB Type-C | DC 3.3 to 5 V USB Type-C (per unit) | USB 5 V; DC 6 to 28 V | DC 6 to 24 V |
| Power consumption | 6 W | ≤5.5 W | 1.5 W | 4 W | 7 W | 15 W | 4.5 W (5 V, 0.9 A) | 2 W | 1.5 W (transmitter), 1.5 W (receiver) | 6.6 W (DC); 7.5 W (USB) | 6 W |
| Environmental | |||||||||||
| Operating temperature | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | 0°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C (HDMI output 0°C to 60°C) |
| Storage temperature | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -20°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C |
| Relative humidity | 0% to 90% non-condensing | 20% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | — | — | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing |
| Mechanical | |||||||||||
| Dimensions | 125.5 x 104 x 24.5 mm | 104 x 125.5 x 24.5 mm | 71 x 41 x 23 mm | 125.5 x 104 x 24.5 mm | 104 x 125.5 x 24.5 mm | 104 x 125.5 x 24.5 mm | 107.6 x 58 x 19 mm | 71 x 41 x 23 mm | 71 x 41 x 23 mm (per unit) | 125.5 x 104 x 24.5 mm | 125.5 x 104 x 24.5 mm |
| Weight | 465 g | 496 g | 168 g | 485 g | 517 g | 590 g | 235 g | 168 g | 200 g (transmitter) / 200 g (receiver) | 485 g | 512 g |
| Mounting | |||||||||||
| Wall mount | Detachable mounting brackets included | Mounting bracket (optional) | Detachable mounting bracket included | Detachable mounting brackets included | Mounting bracket (optional) | Mounting bracket (optional) | — | Detachable mounting bracket included | — | Detachable mounting brackets included | Detachable mounting brackets included |
| Other | |||||||||||
| Warranty | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited | — | 3 years limited |
| Multiviewer | |||||||||||
| Layouts | — | — | — | — | — | — | — | — | — | — | 16 presets including quad split, full screen, triple windows, PIP, and POP |
| Full screen | — | — | — | — | — | — | — | — | — | — | Full screen any input, or quad view, via USB keyboard |
| Overlays | — | — | — | — | — | — | — | — | — | — | UMD (11 characters), Audio meter, Input information (OSD), Border |
