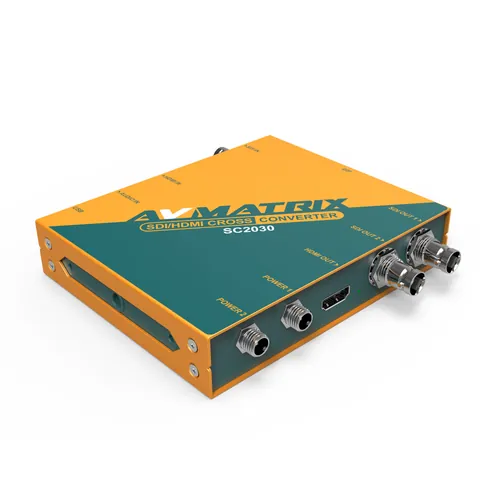

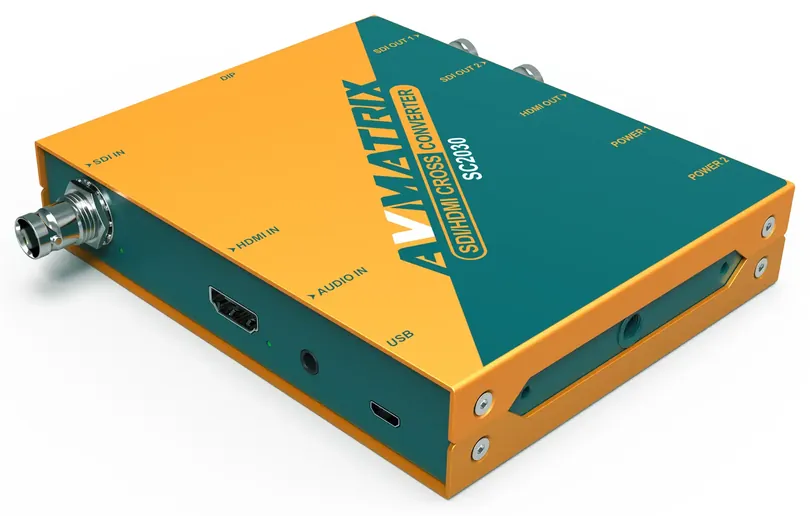

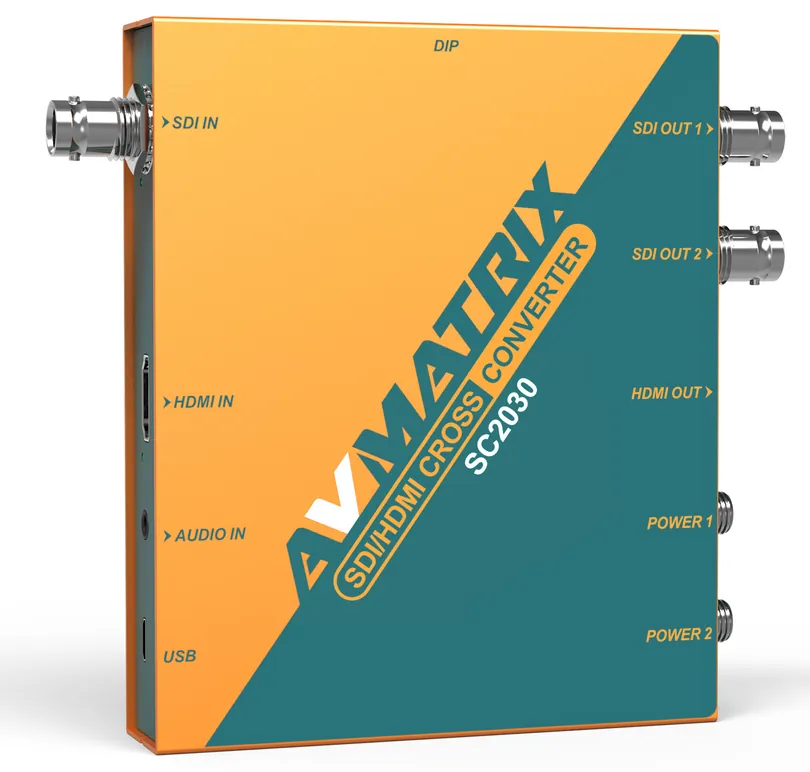

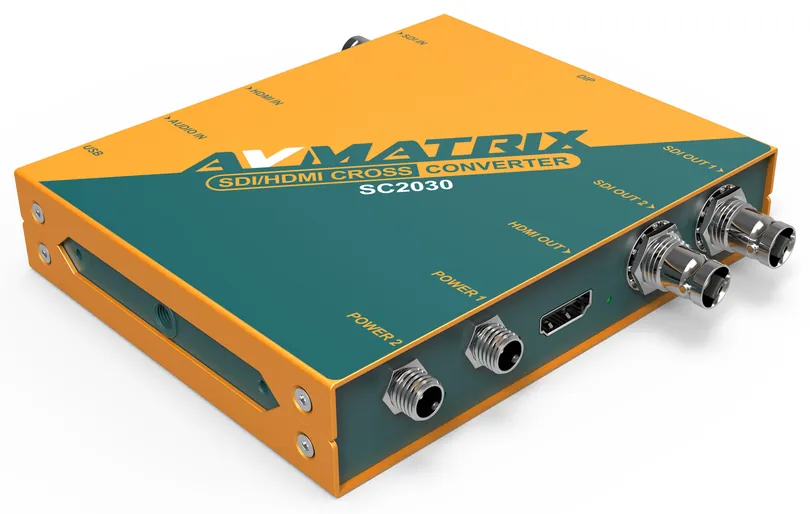

Key Features
- SDI/HDMI up/down cross converter: 1x SD/HD/3G-SDI BNC in, 1x HDMI type A in, 2x SDI out, 1x HDMI out
- Up/down scaling and frame rate conversion with selectable SDI/HDMI output formats through 1080p60
- Analog audio embedding from 3.5 mm input, or pass-through from SDI/HDMI embedded audio
- Configuration via DIP switches or PC software over Micro USB
- Dual DC threaded locking power inputs (6 to 23 V) with Micro USB power (3.3 to 5 V), 4 W; DC 12V power supply and USB cable included
- 125.5 x 104 x 24.5 mm, 485 g; detachable mounting brackets included; -20°C to 60°C operating, 3 year limited warranty
Product Enquiry
Request a quote or ask a question about the SC2030. Our UK team will respond promptly.
Technical Data

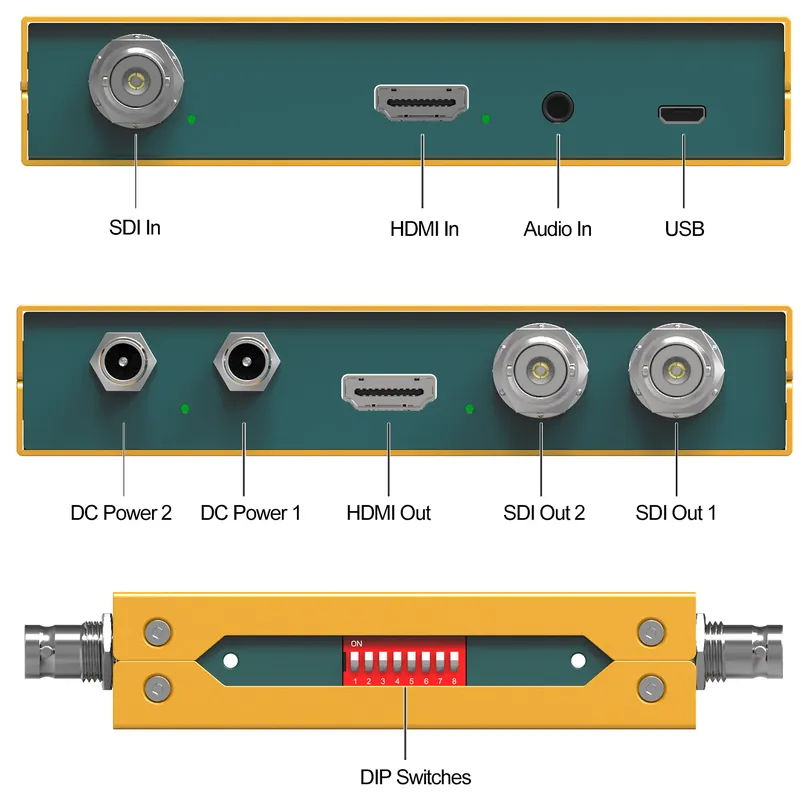

Connections
- Video inputs
- 1x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A
- Video outputs
- 2x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A
- Audio
- 1x 3.5 mm analog audio in
- Power input
- 2x DC threaded locking connector (6 to 23 V), 1x Micro USB (3.3 to 5 V)
Video Standards
- 3G-SDI
- 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94
- HDMI
- 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576p 50, 576i 50, 480i 59.94/60
- 3G-SDI compliance
- 3G Level A and Level B; SMPTE 259M, SMPTE 292M, SMPTE 424M
- Colour space
- YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI input)
- SDI output rate
- SD/HD/3G-SDI
Operational Features
- Cross conversion
- SDI → HDMI or HDMI → SDI (selectable input); up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60
- Scaler
- Up/down scaling with selectable SDI/HDMI output formats through 1080p60
- Frame rate conversion
- Yes — via selectable output format (up/down scaling and frame rate conversion)
- Aspect ratio conversion
- SD up-conversion aspect via DIP switches
- SDI distribution
- 1 in, 2 out
- Audio embedding
- 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio

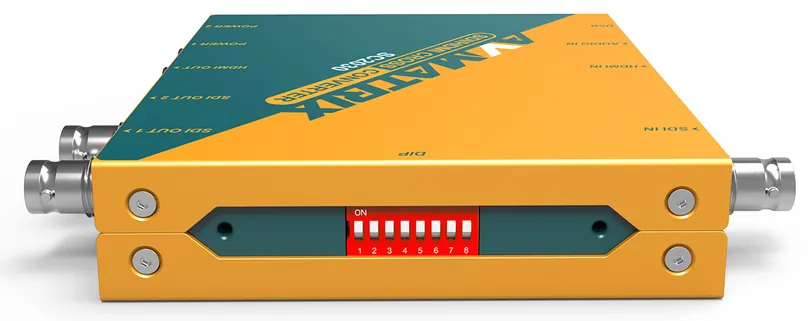

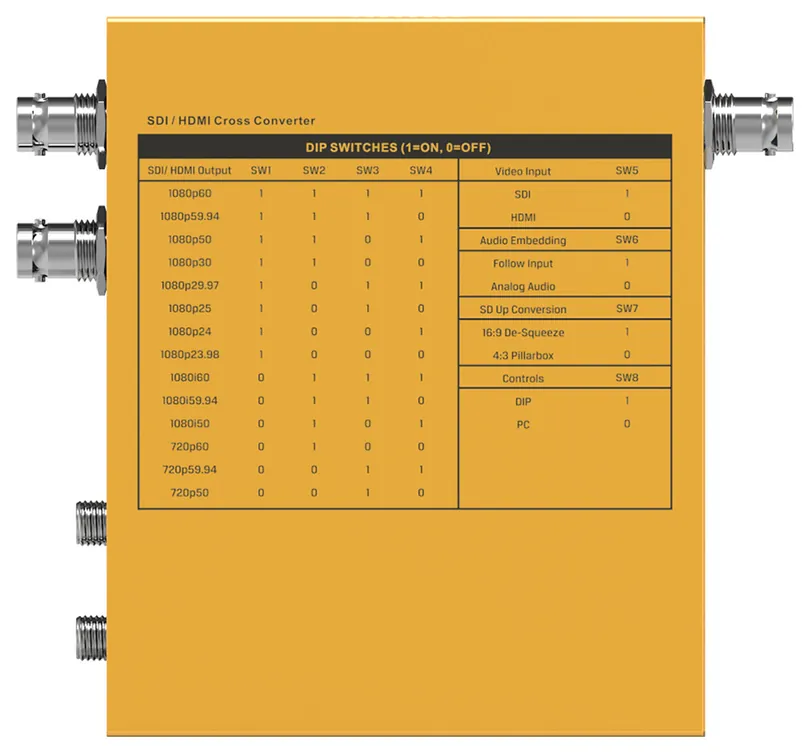

- DIP switches
- 4x for output control
- Remote control
- PC software via Micro USB
- Front panel control
- 4x DIP switches; PC software via Micro USB
Power
- Input voltage
- USB 3.3 to 5 V; DC 6 to 23 V
- Power consumption
- 4 W
Environmental
- Operating temperature
- -20°C to 60°C
- Storage temperature
- -30°C to 70°C
- Relative humidity
- 0% to 90% non-condensing
Mechanical
- Dimensions
- 125.5 x 104 x 24.5 mm
- Weight
- 485 g
Mounting
- Wall mount
- Detachable mounting brackets included
Other
- Warranty
- 3 years limited
Accessories
Included
- DC 12V Universal Power Supply with International Socket Adapters
- USB Cable
- 2x Mounting Brackets
Product Downloads
Similar Products
Compare key technical data across similar AV Matrix products.
| Technical Data | SC2030 | SC7030 | SC2040 | SC2020-12G | SC1120 | SC1112 | SC1221 | SC1112-12G | SC1221-12G | SD2080 | SD1242-4K | MV0430 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Connections | ||||||||||||
| Video inputs | 1x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A | 1x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A, 1x DVI-I/VGA, 1x S-Video/CVBS/YPbPr | 1x HDMI type A, 1x SD/HD/3G-SDI (75Ω BNC) or 1x SFP fiber (select 1 of 2) | 1x HDMI 2.0 type A, 1x 12G-SDI (75Ω BNC) or 1x 12G SFP fiber (select 1 of 2) | 1x SD/HD/3G-SDI (75Ω BNC), 1x SD/HD/3G-SDI alt/redundant (75Ω BNC) | 1x SD/HD/3G-SDI (75Ω BNC) | 1x HDMI type A | 1x HD/3G/6G/12G-SDI (75Ω BNC) | 1x HDMI 2.0 type A | 1x HDMI type A, 1x SD/HD/3G-SDI (BNC) | 1x HDMI 2.0 type A | 4x SD/HD/3G-SDI (75Ω BNC) |
| Video outputs | 2x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A | 2x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A | 1x HDMI loop out, 1x HDMI type A, 1x SD/HD/3G-SDI loop out, 2x SD/HD/3G-SDI (75Ω BNC), 1x SFP fiber | 1x HDMI 2.0 loop out, 2x HDMI 2.0 type A, 1x 12G-SDI loop out, 2x 12G-SDI (75Ω BNC), 1x 12G SFP fiber | 1x SD/HD/3G-SDI loop out (75Ω BNC), 1x HDMI type A, 1x 3.5 mm AV out | 1x SD/HD/3G-SDI loop out (75Ω BNC), 1x HDMI type A | 2x SD/HD/3G-SDI (75Ω BNC) | 1x HD/3G/6G/12G-SDI loop out (75Ω BNC), 1x HDMI 2.0 type A | 2x HD/3G/6G/12G-SDI (75Ω BNC), 1x HDMI 2.0 type A loop out | 4x HDMI type A, 4x SD/HD/3G-SDI (BNC) | 4x HDMI 2.0 type A | 2x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A |
| Audio | 1x 3.5 mm analog audio in | 1x 3.5 mm analog audio in | 1x 3.5 mm analog audio in, 1x 3.5 mm analog audio out | — | 1x 6.35 mm AES/EBU digital audio in, 1x 6.35 mm AES/EBU digital audio out, 1x 3.5 mm analog audio in, 1x 3.5 mm analog audio out | — | — | — | — | — | — | 3G-SDI embedded; 2-channel audio meter selectable from 16 pairs |
| Power input | 2x DC threaded locking connector (6 to 23 V), 1x Micro USB (3.3 to 5 V) | 1x DC threaded locking connector (6 to 24 V), 1x USB Type-C (5 V; firmware update, power and control) | 1x DC threaded locking connector (9 to 24 V), 1x USB Type-C (5 V; upgrade, power and control) | 1x DC threaded locking connector (5 to 24 V) | 1x DC threaded locking connector | 1x USB Type-C (3.3 to 5 V) | 1x USB Type-C (3.3 to 5 V) | 1x USB Type-C (5 V) | 1x USB Type-C (5 V) | 1x DC threaded locking connector (6 to 28 V), 1x USB Type-C (5 V) | 1x DC threaded locking connector (5.5 to 24 V), 1x USB Type-C (5 to 5.5 V; power, update, and PC software) | — |
| Fiber interface | — | — | 1x SFP module slot (optional 3G video SFP, MSA Type), Bidirectional fiber I/O; up to 20 km | 1x SFP module slot (optional 12G video SFP), Bidirectional fiber I/O; up to 10 km | — | — | — | — | — | — | — | — |
| Other interfaces | — | — | — | 1x USB Type-C (upgrade and PC software control) | 1x Micro USB (updates and configuration) | — | — | — | — | — | — | USB keyboard |
| Multiview outputs | — | — | — | — | — | — | — | — | — | — | — | 2x 3G-SDI (75Ω BNC), 1x HDMI type A |
| Network | — | — | — | — | — | — | — | — | — | — | — | 1x LAN (RJ45; configuration, firmware updates, and PC software) |
| Video Standards | ||||||||||||
| 3G-SDI | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94 | 1080p 50/59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60 | 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | — | — |
| HDMI | 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576p 50, 576i 50, 480i 59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 1280x768p 60, 720p 23.98/24/25/29.97/30/50/59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94 | — | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 576i 50, 480i 59.94 | 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60, 576i 50, 480i 59.94/60 | 2160p 23.98/24/25/29.97/30/50/59.94/60, 4096 x 2160 23.98/24/25/29.97/30/50/59.94/60, 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 47.95/48/50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60 | 2160p 23.98/24/25/29.97/30/50/59.94/60, 4096 x 2160 23.98/24/25/29.97/30/50/59.94/60, 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 576i 50, 480i 59.94 | — | — |
| HDMI 2.0 | — | — | — | 2160p up to 60, 1080p, 1080i, 720p | — | — | — | — | — | — | 4096 x 2160p 23.98/24/25/29.97/30/50/59.94/60, 3840 x 2160p 23.98/24/25/29.97/30/50/59.94/60, 2560 x 1080p 23.98/24/25/29.97/30/50/59.94/60, 1920 x 1080p 23.98/24/25/29.97/30/50/59.94/60, 1920 x 1080i 50/59.94/60, 1280 x 720p 23.98/24/25/29.97/30/50/59.94/60, 1440 x 576i 50, 1440 x 480i 59.94/60, 720 x 576p 50, 640 x 480p 59.94/60 | — |
| 3G-SDI compliance | 3G Level A and Level B; SMPTE 259M, SMPTE 292M, SMPTE 424M | 3G Level A and Level B | 3G Level A and Level B | 3G Level A and Level B | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 352M, SMPTE 424M | SMPTE 259M, SMPTE 292M, SMPTE 424M | SMPTE 259M, SMPTE 292M, SMPTE 424M | SMPTE ST-2081, SMPTE ST-2082, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 274M, SMPTE 425M | SMPTE ST-2081, SMPTE ST-2082, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 274M, SMPTE 425M | SMPTE 292M, SMPTE 259M, SMPTE 424M | — | — |
| Colour space | YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI input) | SDI: YUV 4:2:2 10-bit in/out; HDMI in: RGB 4:4:4 8/10/12-bit, YUV 4:2:2 8/10/12-bit, YUV 4:4:4 8/10/12-bit; HDMI out: RGB 4:4:4 8-bit (Full or Limited) | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2 (HDMI output) | Full RGB 4:4:4, Limited RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 (HDMI) | YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI) | YUV 4:2:2 (SDI and HDMI) | YUV 4:2:2/4:4:4 and RGB 4:4:4 (HDMI input); YUV 4:2:2 (SDI output) | YCbCr 4:2:2 10-bit (SDI); RGB 4:4:4 8-bit, YCbCr 4:2:2 8/10/12-bit, YCbCr 4:4:4 8-bit (HDMI) | RGB 4:4:4 8-bit, YCbCr 4:2:2 8/10/12-bit, YCbCr 4:4:4 8-bit, YCbCr 4:2:0 8/10/12-bit (HDMI input); YCbCr 4:2:2 10-bit (SDI output) | YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI) | RGB 4:4:4 8-bit, YUV 4:2:2 8-bit, YUV 4:4:4 8-bit | — |
| SDI output rate | SD/HD/3G-SDI | SD/HD/3G-SDI | SD/HD/3G-SDI | HD/3G/6G/12G-SDI; SFP 12G or 6G selectable | SD/HD/3G-SDI (loop) | — | SD/HD/3G-SDI selectable | — | HD/3G/6G/12G-SDI selectable | SD/HD/3G-SDI | — | — |
| DVI/VGA | — | VGA: 1920 x 1080, 1680 x 1050, 1600 x 1200, 1600 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 768, 1280 x 720, 1280 x 600, 1152 x 864, 1024 x 768, 800 x 600, 640 x 480, 720 x 400 (up to 60 Hz); DVI: 1920 x 1080, 1280 x 720 (up to 60 Hz) | — | — | — | — | — | — | — | — | — | — |
| YPbPr | — | 1080p, 1080i, 720p, 576p, 480p, 576i, 480i | — | — | — | — | — | — | — | — | — | — |
| S-Video/CVBS | — | NTSC, PAL, SECAM | — | — | NTSC, PAL | — | — | — | — | — | — | — |
| Deinterlacing | — | 1080i hardware deinterlacing | — | — | Yes | — | — | — | — | — | — | — |
| SFP | — | — | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94 | 2160p up to 60, 1080p, 1080i, 720p | — | — | — | — | — | — | — | — |
| Max fiber distance | — | — | 20 km (optional SFP) | 10 km (optional SFP) | — | — | — | — | — | — | — | — |
| 12G-SDI | — | — | — | 2160p up to 60, 1080p, 1080i, 720p | — | — | — | 2160p 23.98/24/25/29.97/30, 4096 x 2160 23.98/24/25/29.97/30, 2160p 50/59.94/60, 4096 x 2160 50/59.94/60 | 2160p 23.98/24/25/29.97/30, 4096 x 2160 23.98/24/25/29.97/30, 2160p 50/59.94/60, 4096 x 2160 50/59.94/60 | — | — | — |
| Format auto-detection | — | — | — | Auto-detects HD, 3G, 6G, and 12G input (LED: green HD, blue 3G, yellow 6G, purple 12G) | Auto-detects SD, HD, and 3G-SDI on input | Auto-detects SD, HD, and 3G-SDI Level A/B on input | — | Auto-detects HD, 3G, 6G, and 12G-SDI Level A/B on input | — | Auto-detects HDMI and SD/HD/3G-SDI input | — | — |
| HDMI compliance | — | — | — | — | — | — | — | CTA-861-G | CTA-861-G | — | HDMI 2.0 | — |
| 3G-SDI input (multiviewer) | — | — | — | — | — | — | — | — | — | — | — | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 |
| 3G-SDI/HDMI output | — | — | — | — | — | — | — | — | — | — | — | 1080p 24/25/30/50/60, 1080i 50/60, 720p 25/30/50/60 |
| 3G-SDI compliance (multiviewer) | — | — | — | — | — | — | — | — | — | — | — | SMPTE 292M, SMPTE 259M, SMPTE 424M, SMPTE 352M, SMPTE 296M |
| Colour space (multiviewer) | — | — | — | — | — | — | — | — | — | — | — | Input: YUV or RGB; Output: YUV |
| Switching | ||||||||||||
| 3G-SDI auto switching | — | — | — | — | Auto-detects SD, HD, and 3G-SDI on input; alt SDI input switches over if main is lost | — | — | — | — | — | — | — |
| Seamless switching | — | — | — | — | Seamless conversion to avoid jitter | — | — | — | — | — | — | — |
| Operational Features | ||||||||||||
| Cross conversion | SDI → HDMI or HDMI → SDI (selectable input); up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60 | SDI, HDMI, DVI-I/VGA, CVBS, S-Video, or YPbPr → 2x SDI and 1x HDMI; up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60 | Bidirectional SDI ↔ HDMI ↔ fiber (selectable sources); up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60 | Bidirectional 12G-SDI ↔ HDMI 2.0 ↔ fiber (SDI/SFP select 1 of 2); selectable HDMI and SDI/SFP output sources | SDI → HDMI and AV; pass-through or up/down scaling and frame rate conversion; selectable HDMI output through 1080p60 | — | — | — | — | SDI → HDMI or HDMI → SDI (DIP-selectable input); selected input is distributed to 4x SDI and 4x HDMI simultaneously | — | — |
| Scaler | Up/down scaling with selectable SDI/HDMI output formats through 1080p60 | Up/down scaling with selectable SDI/HDMI output formats through 1080p60 | Up/down scaling with selectable SDI/HDMI output formats through 1080p60 | 4K60 to 4K30 conversion via DIP | Up/down scaling with selectable HDMI output formats through 1080p60 | — | — | — | — | — | — | Output scaling and frame rate conversion via DIP (SDI and HDMI) |
| Frame rate conversion | Yes — via selectable output format (up/down scaling and frame rate conversion) | Yes — via selectable output format (up/down scaling and frame rate conversion) | Yes — via selectable output format (up/down scaling and frame rate conversion) | 4K60 to 4K30 via DIP | Yes — via DIP switches (pass-through or selectable HDMI output format) | — | — | — | — | — | — | Yes — selectable SDI and HDMI output format via DIP |
| Aspect ratio conversion | SD up-conversion aspect via DIP switches | 4:3 or 16:9 via DIP switches | SD/HD aspect conversion (anamorphic, letterbox, pillarbox, zoom) | — | — | — | — | — | — | — | — | — |
| SDI distribution | 1 in, 2 out | 1 in, 2 out | 1 in, 3 out (loop + 2x SDI out) | 1 in, 3 out (loop + 2x 12G-SDI out) | — | — | — | — | — | 1 in, 4 out (plus 4x HDMI converted) | — | — |
| Audio embedding | 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio | 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio | 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio | — | SDI CH1-8, SDI CH9-16, AES/EBU, or analog audio to HDMI | — | — | — | — | — | — | — |
| DIP switches | 4x for output control | 12x for output format, input select, analog vs embedded audio, 16:9/4:3 aspect, HDMI Full/Limited RGB, 3G Level A/B, and DIP vs PC control | — | 10x for SDI/HDMI source, SDI/SFP in, 4K60 to 4K30, SFP direction, SFP 12G/6G, HDMI colour space, 3G Level A/B, and DIP vs PC control | DIP1 (scaling, audio embed/de-embed, HDMI colour space) and DIP2 (AV NTSC/PAL, status overlay, PC custom settings) | — | — | — | — | 4x; SW1 selects HDMI or SDI input; SW2–SW4 reserved | — | Output format and scaling, 16 layouts (quad, Picture-in-Picture, Picture-by-Picture, full screen), audio meter pair and overlay, UMD, status overlay, and custom presets |
| Remote control | PC software via Micro USB | PC software via USB Type-C | PC software via USB Type-C | PC software via USB Type-C | PC software via Micro USB | — | — | — | — | — | PC software via USB Type-C | PC software via LAN |
| Front panel control | 4x DIP switches; PC software via Micro USB | 12x DIP switches; PC software via USB Type-C | LCD status display with 4 buttons; PC software via USB Type-C | DIP switches; PC software via USB Type-C | DIP switches; PC software via Micro USB | — | — | — | — | 4x DIP switches | LCD status display with 4 buttons | — |
| Selectable colour spaces | — | Full RGB, Limited RGB | — | Rec.709, Rec.2020 | — | — | — | — | — | — | — | — |
| Image mirroring | — | — | Horizontal, vertical, and horizontal+vertical flip on SDI and HDMI outputs | — | — | — | — | — | — | — | — | — |
| HDMI fibre extender | — | — | TX and RX (SFP optional) | TX and RX (SFP optional) | — | — | — | — | — | — | — | — |
| SDI fibre extender | — | — | TX and RX (SFP optional) | TX and RX (SFP optional) | — | — | — | — | — | — | — | — |
| Audio de-embedding | — | — | 1x 3.5 mm analog audio out | — | Any pair of SDI 16-channel audio to AES/EBU and analog out | — | — | — | — | — | — | — |
| Audio pair rearrangement | — | — | Yes — HDMI (4 stereo pairs) and SDI (8 stereo pairs) output remapping | — | — | — | — | — | — | — | — | — |
| Test pattern generator | — | — | 23 professional test patterns and audio tones | — | — | — | — | — | — | — | — | — |
| Frame counter and circle overlay | — | — | Dynamic circle and frame-count overlays on test pattern output | — | — | — | — | — | — | — | — | — |
| Menu control | — | — | LCD status display with 4 buttons | — | — | — | — | — | — | — | LCD with 4 buttons; EDID Auto, Standard, Custom, Copy, and Pre-save; per-output enable | — |
| OSD | — | — | — | — | Input/output format and audio embed/de-embed status overlay (DIP selectable) | — | — | — | — | — | — | — |
| Function buttons | — | — | — | — | — | — | — | — | — | — | Menu/Confirm, Previous, Next, Back/Lock | — |
| Multi Viewer | — | — | — | — | — | — | — | — | — | — | — | Picture-by-Picture, Picture-in-Picture, Three-Way Split, Quad-View |
| Front panel | — | — | — | — | — | — | — | — | — | — | — | DIP switches; USB keyboard |
| Control interfaces | — | — | — | — | — | — | — | — | — | — | — | LAN (RJ45), UDP, port 7000, USB keyboard |
| Custom presets | — | — | — | — | — | — | — | — | — | — | — | 2 user-defined configurations (Custom1, Custom2) |
| Power | ||||||||||||
| Input voltage | USB 3.3 to 5 V; DC 6 to 23 V | USB-C 5 V; DC 6 to 24 V | USB-C 5 V; DC 9 to 24 V | DC 5 to 24 V | DC 6 to 24 V | DC 3.3 to 5 V USB Type-C | DC 3.3 to 5 V USB Type-C | 5 V USB Type-C | 5 V USB Type-C | USB 5 V; DC 6 to 28 V | USB 5 to 5.5 V; DC 5.5 to 24 V | DC 6 to 24 V |
| Power consumption | 4 W | ≤5.5 W | 7 W | 15 W | 6 W | 1.5 W | 2 W | 4.5 W (5 V, 0.9 A) | 6.5 W (5 V, 1.3 A) | 6.6 W (DC); 7.5 W (USB) | 6 W | 6 W |
| Environmental | ||||||||||||
| Operating temperature | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | 0°C to 60°C | 0°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C (HDMI output 0°C to 60°C) |
| Storage temperature | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -20°C to 70°C | -20°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C |
| Relative humidity | 0% to 90% non-condensing | 20% to 90% non-condensing | — | — | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing |
| Mechanical | ||||||||||||
| Dimensions | 125.5 x 104 x 24.5 mm | 104 x 125.5 x 24.5 mm | 104 x 125.5 x 24.5 mm | 104 x 125.5 x 24.5 mm | 125.5 x 104 x 24.5 mm | 71 x 41 x 23 mm | 71 x 41 x 23 mm | 107.6 x 58 x 19 mm | 107.6 x 58 x 19 mm | 125.5 x 104 x 24.5 mm | 125.5 x 104 x 24.5 mm | 125.5 x 104 x 24.5 mm |
| Weight | 485 g | 496 g | 517 g | 590 g | 465 g | 168 g | 168 g | 235 g | 235 g | 485 g | 471 g | 512 g |
| Mounting | ||||||||||||
| Wall mount | Detachable mounting brackets included | Mounting bracket (optional) | Mounting bracket (optional) | Mounting bracket (optional) | Detachable mounting brackets included | Detachable mounting bracket included | Detachable mounting bracket included | — | — | Detachable mounting brackets included | Mounting bracket (optional) | Detachable mounting brackets included |
| Other | ||||||||||||
| Warranty | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited | — | 3 years limited | 3 years limited |
| Multiviewer | ||||||||||||
| Layouts | — | — | — | — | — | — | — | — | — | — | — | 16 presets including quad split, full screen, triple windows, Picture-in-Picture, and Picture-by-Picture |
| Full screen | — | — | — | — | — | — | — | — | — | — | — | Full screen any input, or quad view, via USB keyboard |
| Overlays | — | — | — | — | — | — | — | — | — | — | — | UMD (11 characters), Audio meter, Input information (OSD), Border |
