Key Features

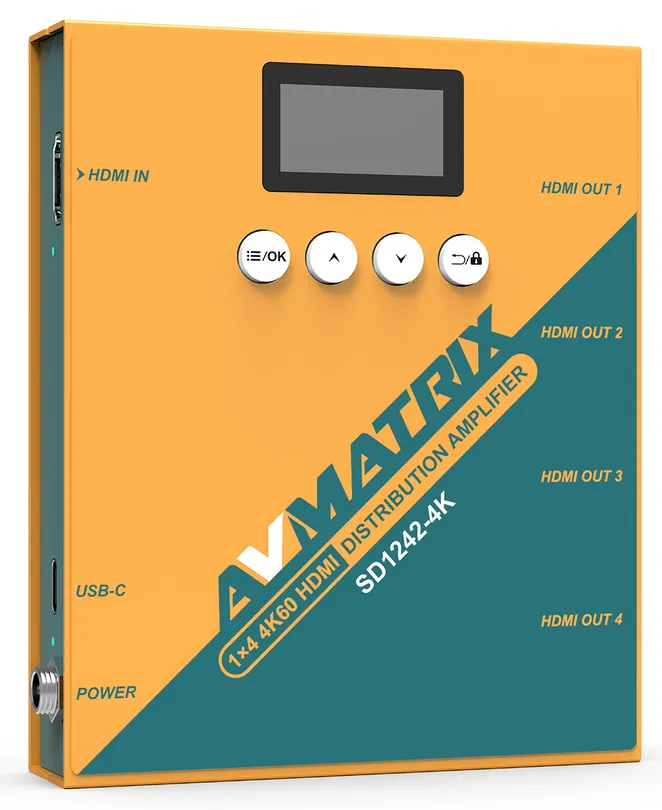

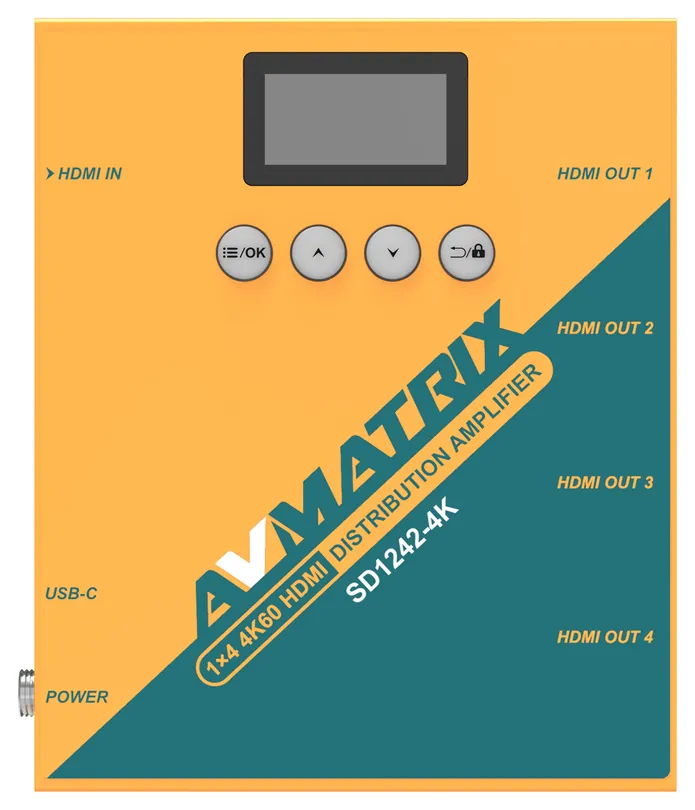

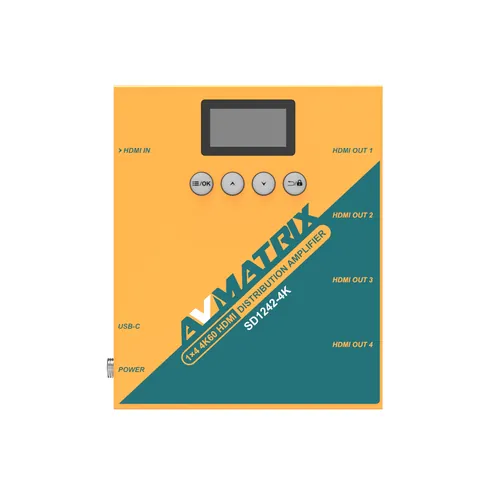

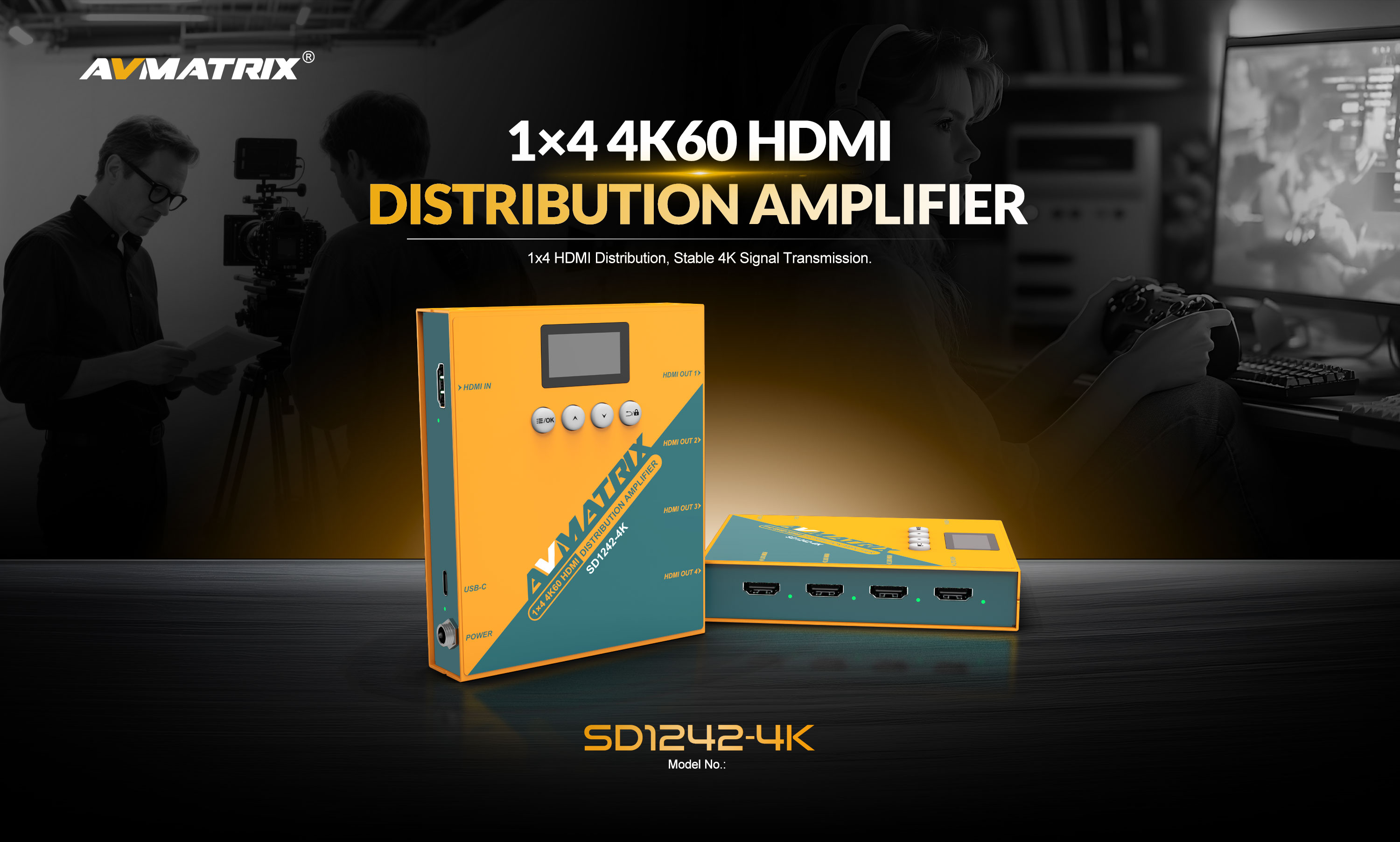

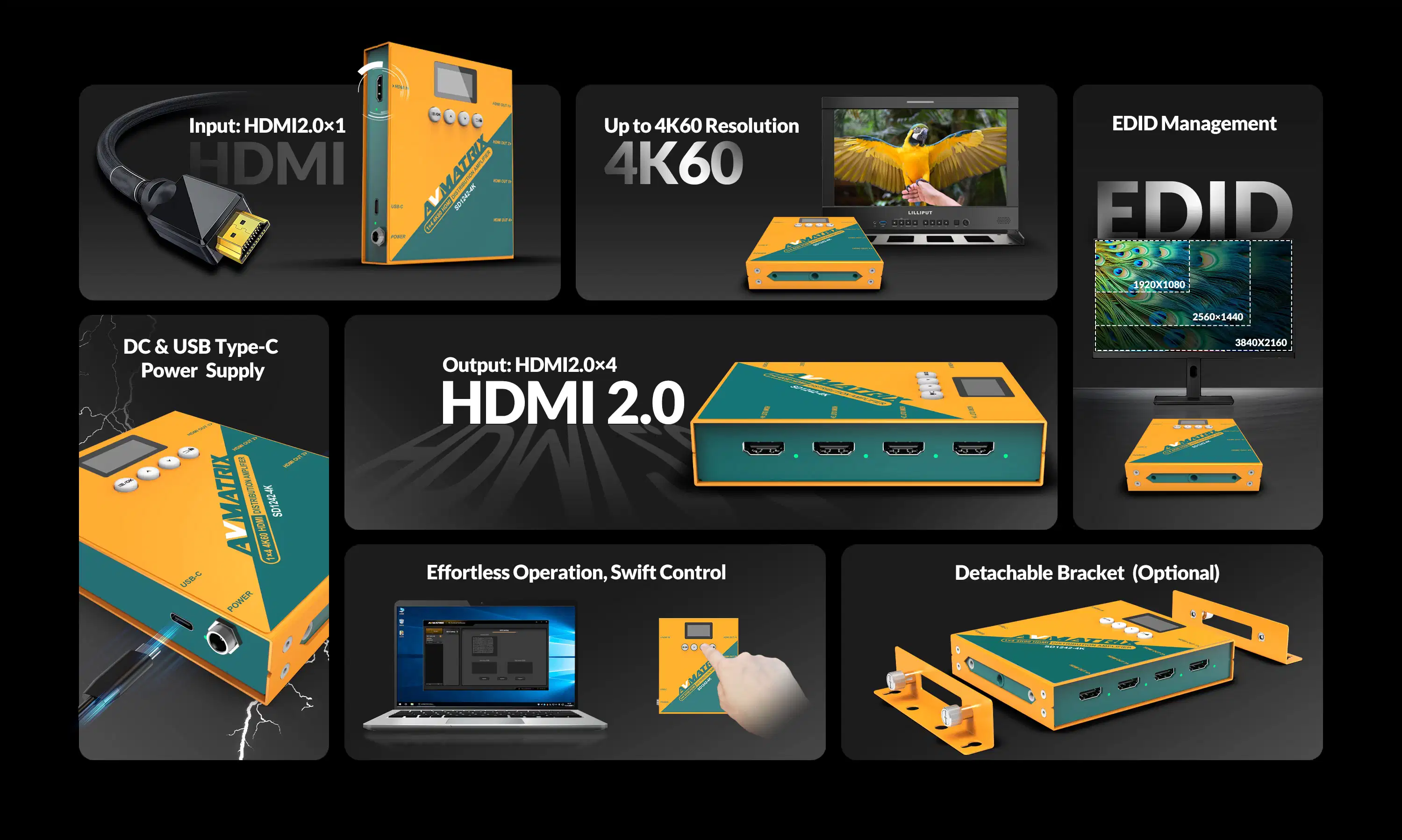

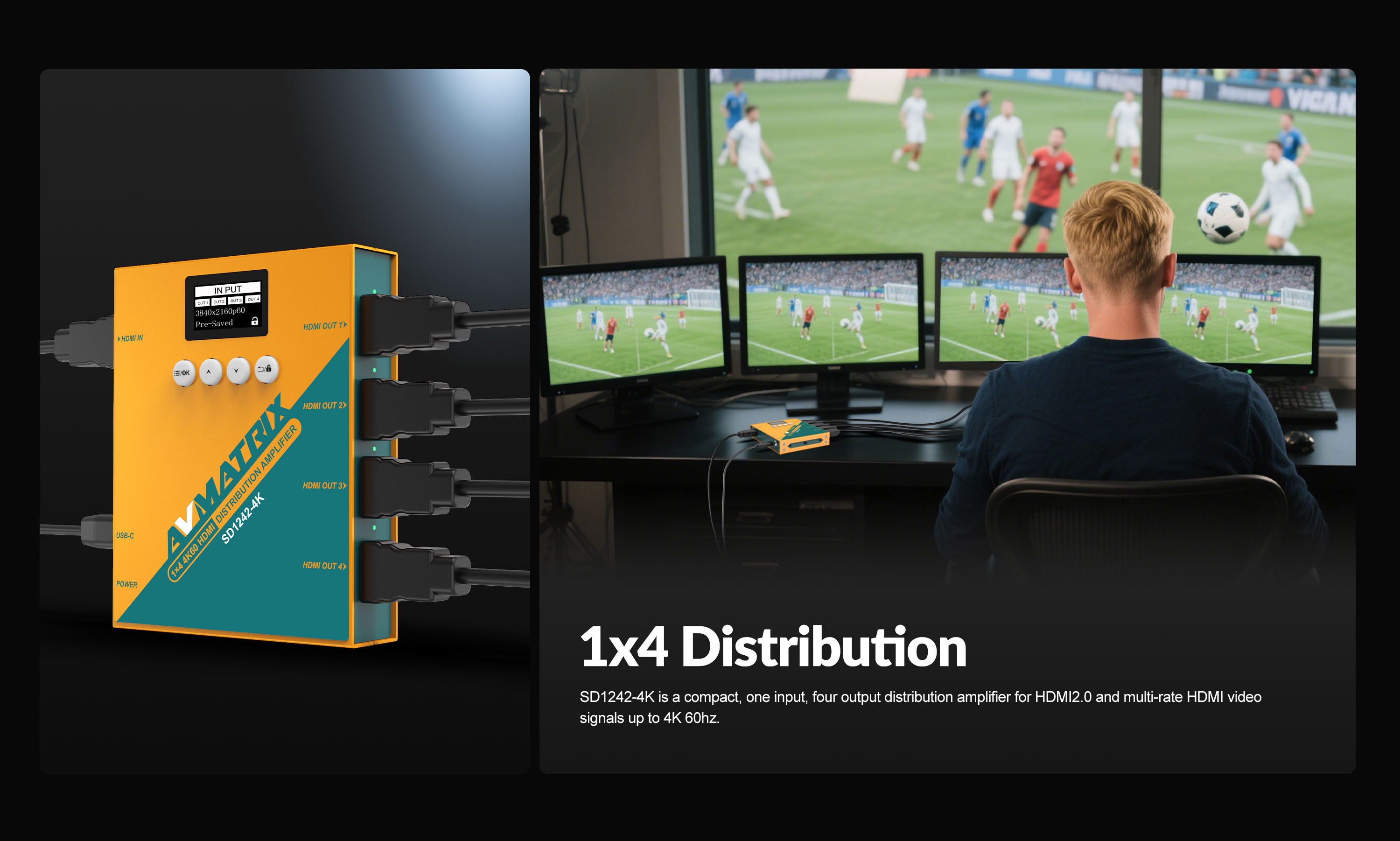

- 1x4 4K60 HDMI distribution amplifier: 1x HDMI 2.0 type A in, 4x HDMI 2.0 type A out
- HDMI 2.0 through 4096 x 2160p60 and 3840 x 2160p60; RGB 4:4:4, YUV 4:2:2, and YUV 4:4:4 8-bit

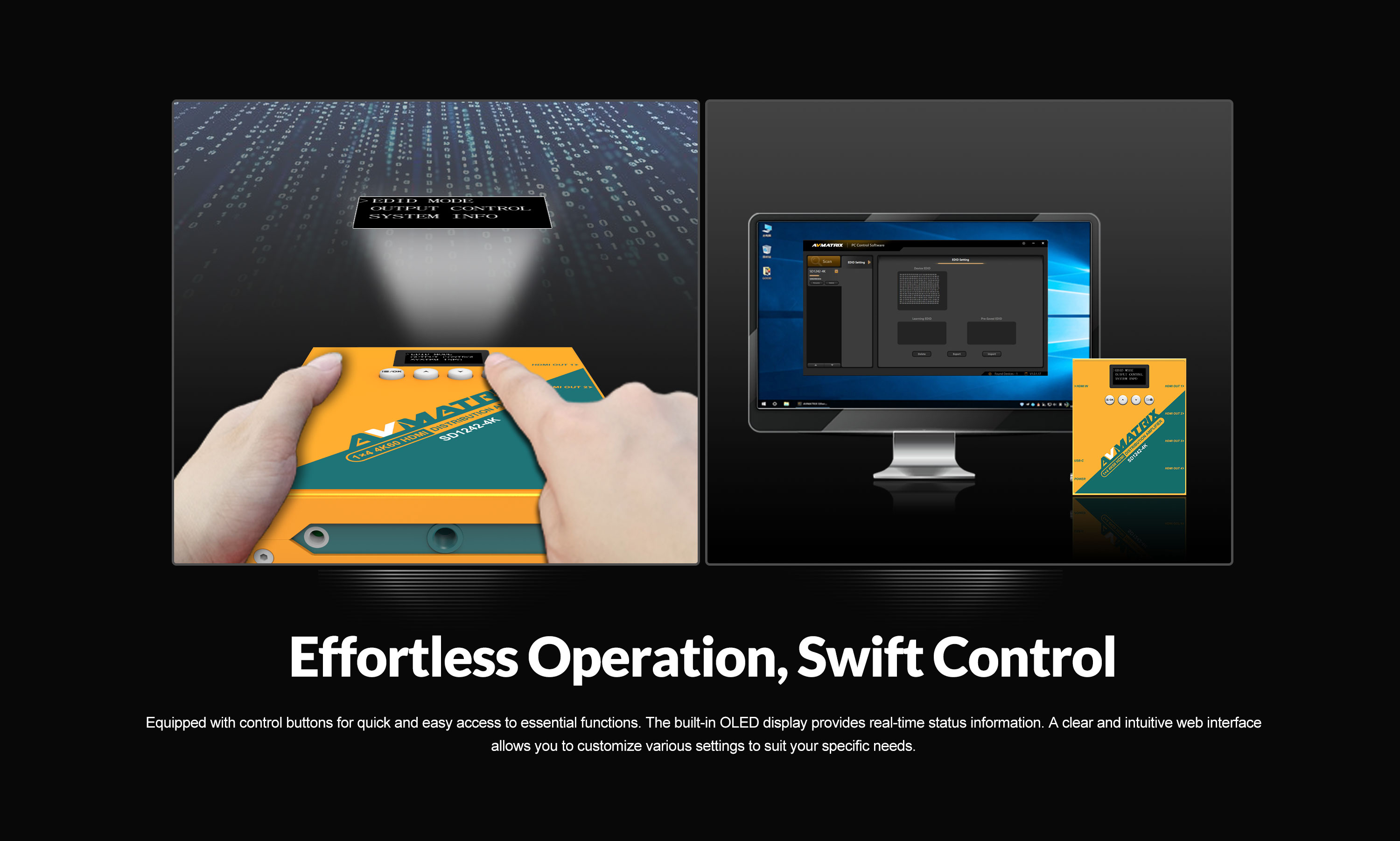

- EDID management via LCD: Auto, Standard, Custom, Copy, and Pre-save; per-output enable; lockable front-panel buttons

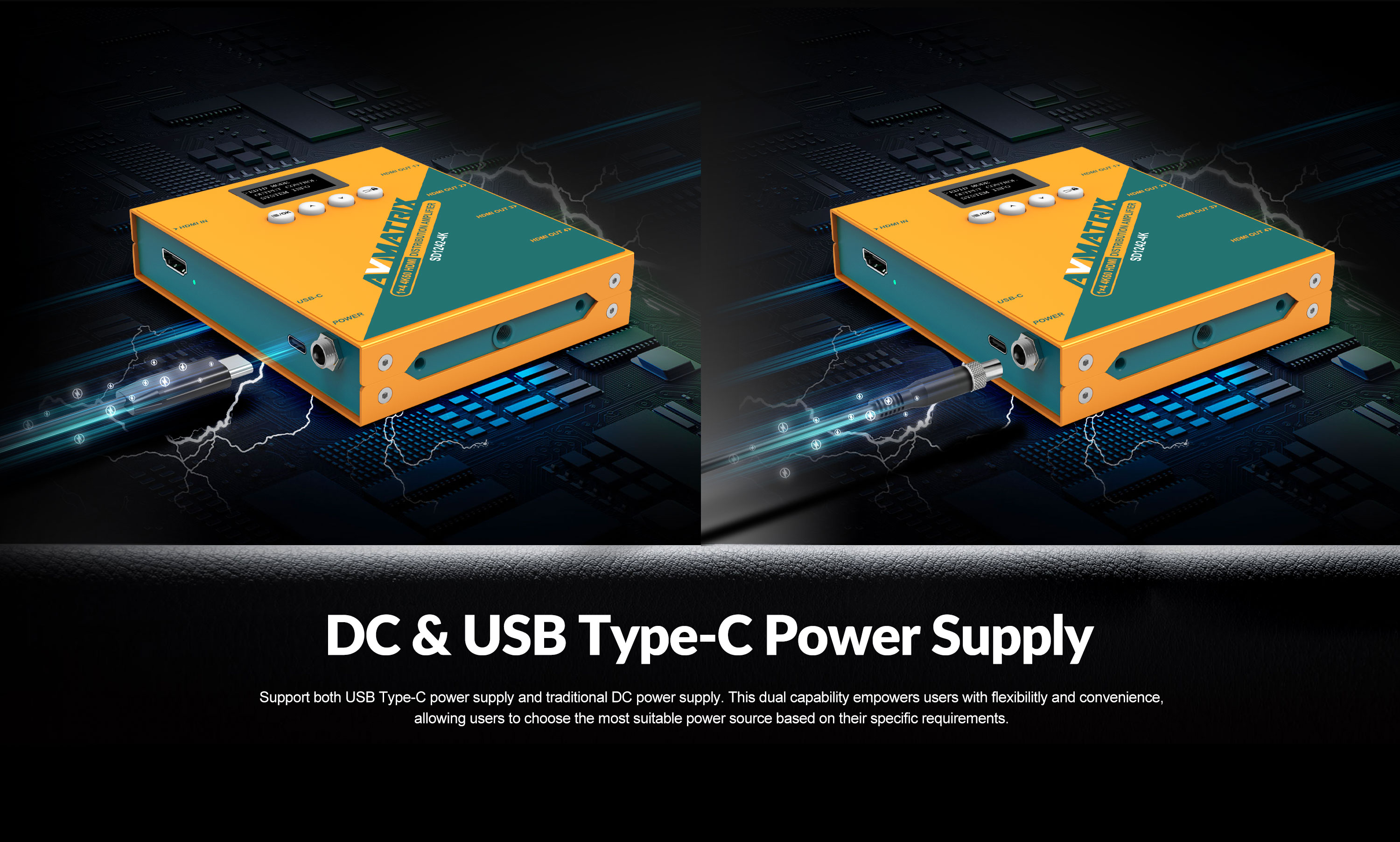

- USB Type-C 5 to 5.5 V or DC 5.5 to 24 V, 6 W; 12V 2A universal power adapter included; USB-C for updates and PC software
- 125.5 x 104 x 24.5 mm, 471 g; mounting bracket optional; -20°C to 60°C operating, 3 year limited warranty
Buy the SD1242-4K From an Authorised Reseller
Lilliput's authorised broadcast resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the SD1242-4K now, or if your country is not listed, browse all authorised resellers here.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data
Connections
- Video inputs

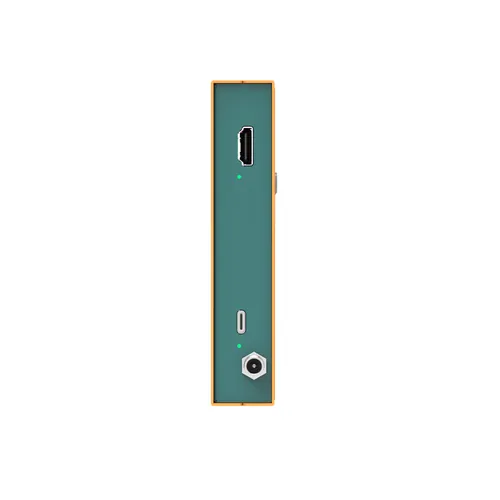

- 1x HDMI 2.0 type A
- Video outputs

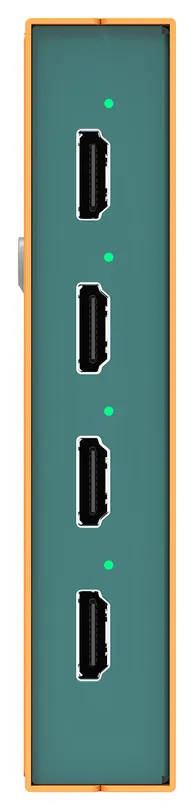

- 4x HDMI 2.0 type A
- Power input

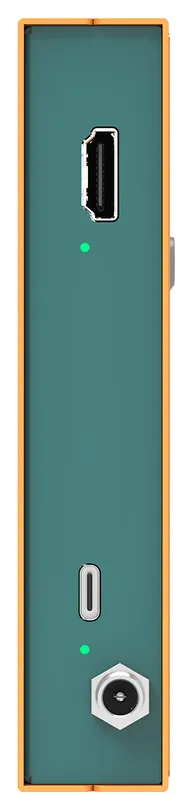

- 1x DC threaded locking connector (5.5 to 24 V), 1x USB Type-C (5 to 5.5 V; power, update, and PC software)
