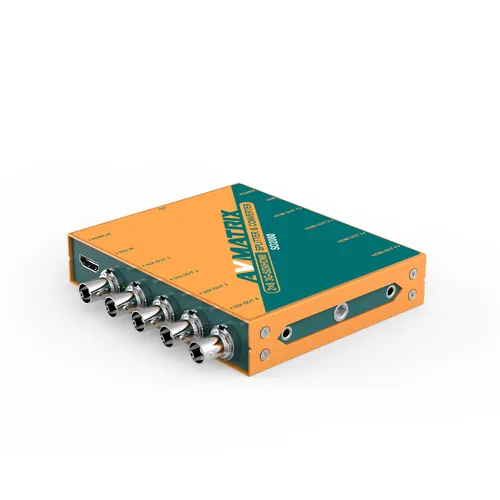

2x8 3G-SDI/HDMI splitter and converter. 1x HDMI type A and 1x SD/HD/3G-SDI in, 4x HDMI and 4x SDI out. DIP-selectable input; SDI equalization and re-clock. Dual power USB-C 5 V or DC 6 to 28 V, 6.6 W. 125.5 x 104 x 24.5 mm, 485 g.
2x8 3G-SDI/HDMI splitter and converter. 1x HDMI type A and 1x SD/HD/3G-SDI in, 4x HDMI and 4x SDI out. DIP-selectable input; SDI equalization and re-clock. Dual power USB-C 5 V or DC 6 to 28 V, 6.6 W. 125.5 x 104 x 24.5 mm, 485 g.
Key Features

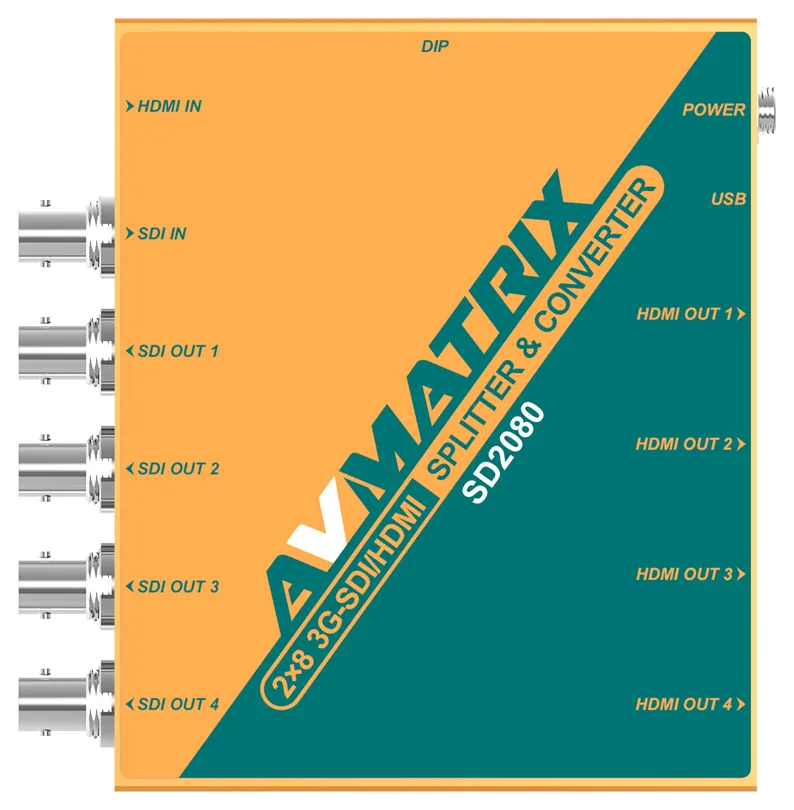

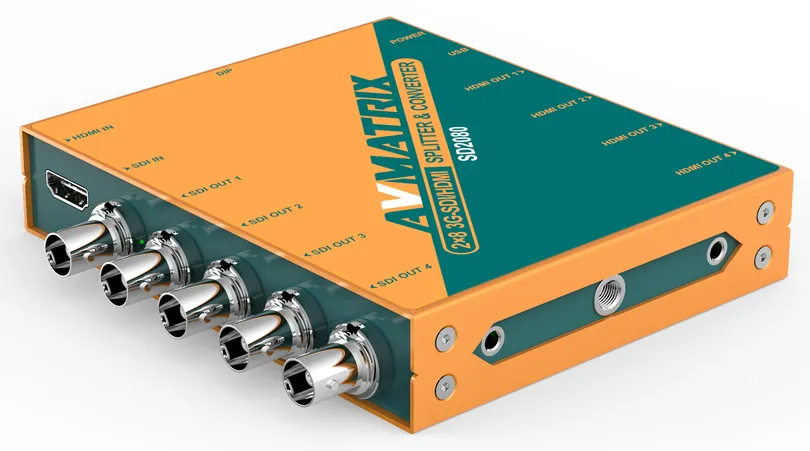

- 2x8 3G-SDI/HDMI splitter and converter: 1x HDMI type A in, 1x SD/HD/3G-SDI in, 4x HDMI out, 4x SDI out

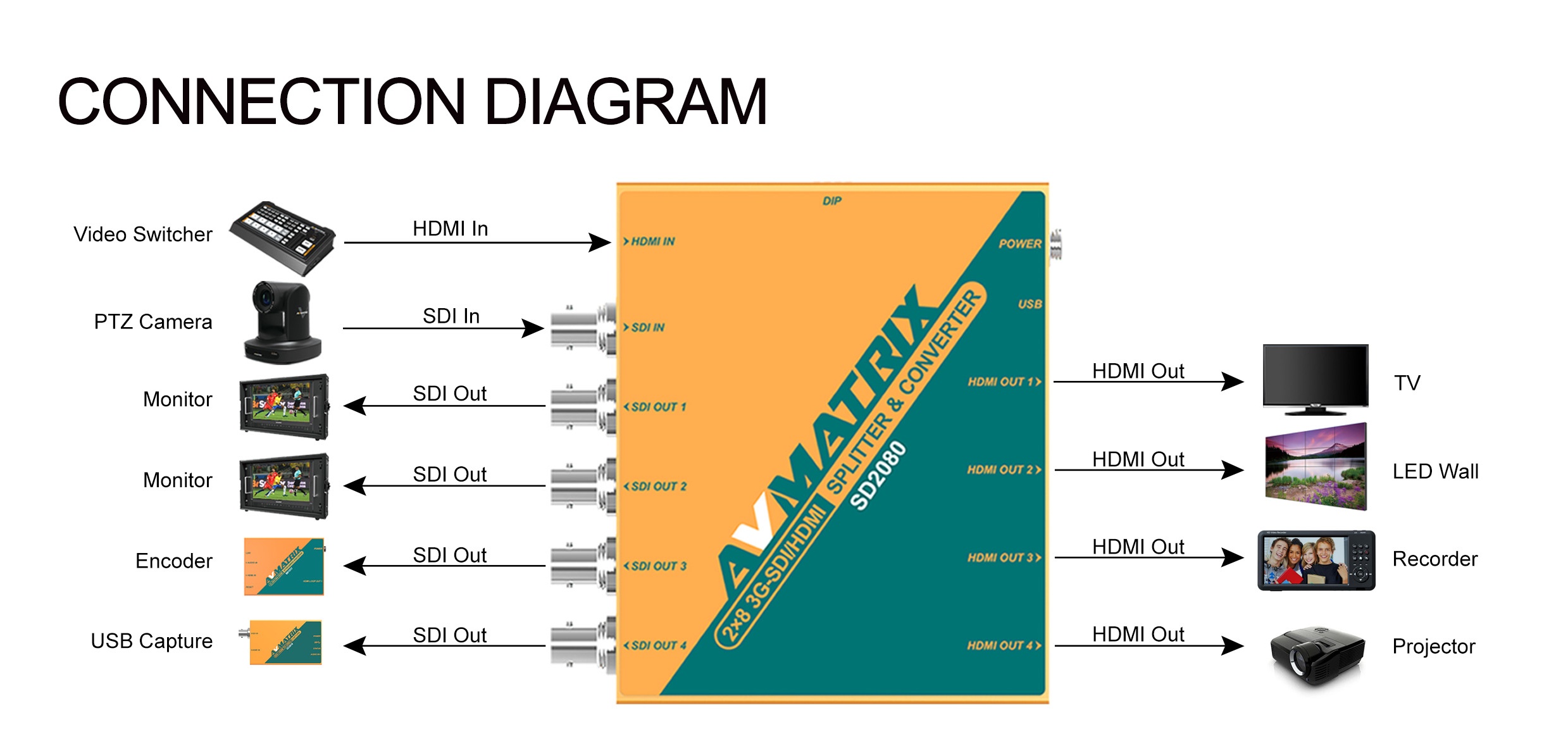

- Distribute and convert between SDI and HDMI; selected input is sent to all eight outputs simultaneously, up to 1080p60
- Auto-detects HDMI and SD/HD/3G-SDI input; SDI equalization and re-clock; DIP SW1 selects HDMI or SDI input
- USB Type-C 5 V or threaded locking DC 6 to 28 V; 6.6 W (DC) / 7.5 W (USB); 12V 2A power supply included
- 125.5 x 104 x 24.5 mm, 485 g; 2x detachable mounting brackets included; -20°C to 60°C operating
Buy the SD2080 From an Authorised Reseller
Lilliput's authorised broadcast resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the SD2080 now, or if your country is not listed, browse all authorised resellers here.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data
Connections
- Video inputs

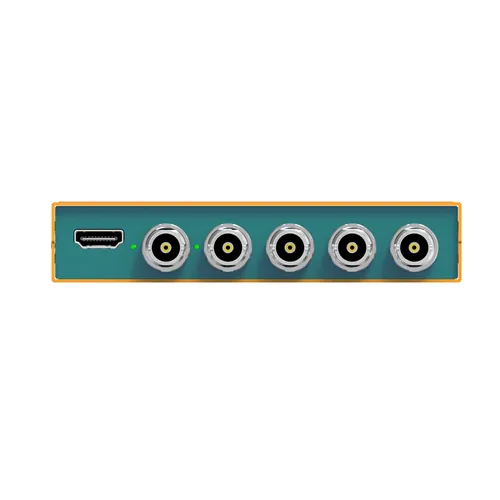

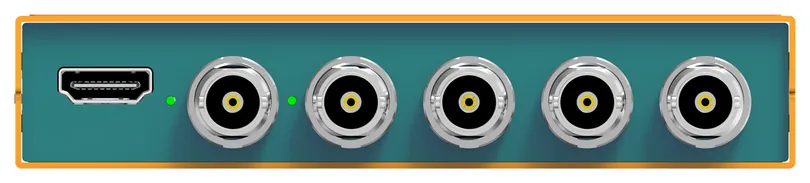

- 1x HDMI type A, 1x SD/HD/3G-SDI
- Video outputs

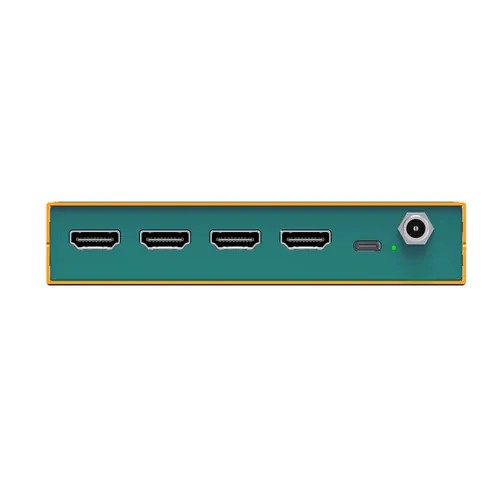

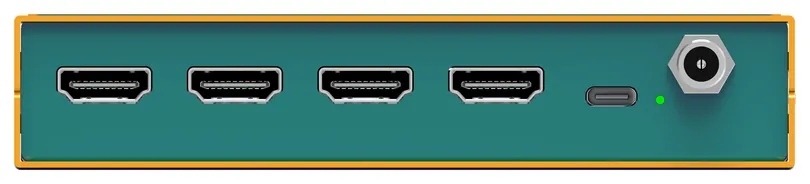

- 4x HDMI type A, 4x SD/HD/3G-SDI
- Power input
- 1x DC threaded locking connector (6 to 28 V), 1x USB Type-C (5 V)
Video Standards
- 3G-SDI
- 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 625i 50, 525i 59.94
- HDMI
- 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 576i 50, 480i 59.94
- 3G-SDI compliance
- SMPTE 292M, SMPTE 259M, SMPTE 424M
- Colour space
- YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI)
- SDI output rate
- SD/HD/3G-SDI
- Format auto-detection
- Auto-detects HDMI and SD/HD/3G-SDI input
Operational Features
- Cross conversion
- SDI → HDMI or HDMI → SDI (DIP-selectable input); selected input is distributed to 4x SDI and 4x HDMI simultaneously
- SDI distribution
- 1 in, 4 out (plus 4x HDMI converted)
- DIP switches

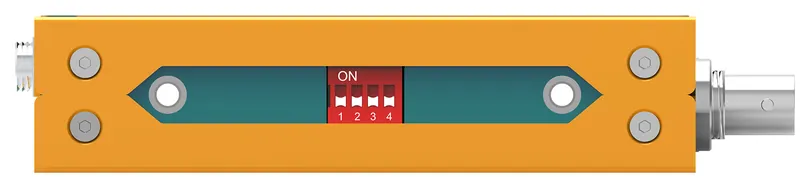

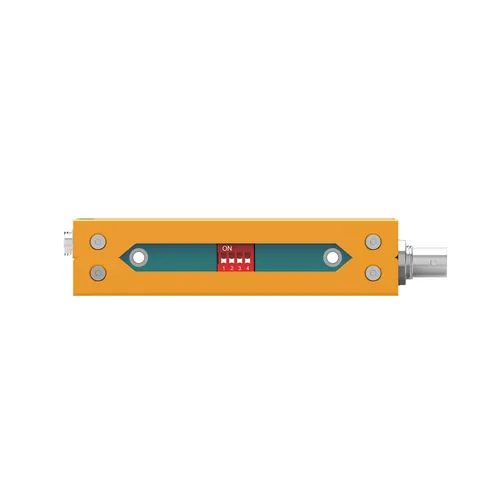

- 4x; SW1 selects HDMI or SDI input; SW2–SW4 reserved
- Front panel control
- 4x DIP switches
Power
- Input voltage
- USB 5 V; DC 6 to 28 V
- Power consumption
- 6.6 W (DC); 7.5 W (USB)
Environmental
- Operating temperature
- -20°C to 60°C
- Storage temperature
- -30°C to 70°C
- Relative humidity
- 0% to 90% non-condensing
Mechanical
- Dimensions
- 125.5 x 104 x 24.5 mm
- Weight
- 485 g
Mounting
- Wall mount

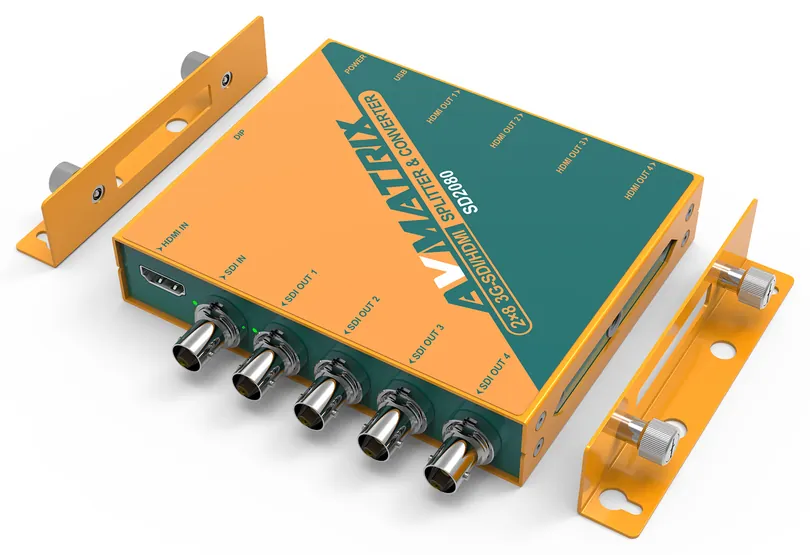

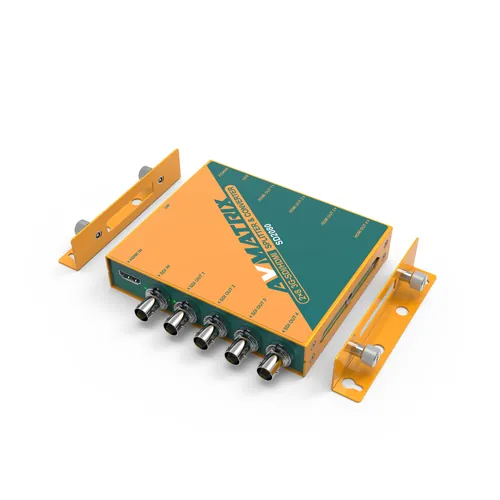

- Detachable mounting brackets included
Accessories
Included
- 12V 2A Power Supply
- 2x Mounting Brackets
Product Downloads
Similar Products
Compare key technical data across similar AV Matrix products.
| Technical Data | SD2080 | SC7030 | SC2030 | SC2040 | SC1120 | SC1112 | SC1221 | SD1121-12G | SD1242-4K | MV0430 |
|---|---|---|---|---|---|---|---|---|---|---|
| Connections | ||||||||||
| Video inputs | 1x HDMI type A, 1x SD/HD/3G-SDI | 1x SD/HD/3G-SDI, 1x HDMI type A, 1x DVI-I/VGA, 1x S-Video/CVBS/YPbPr | 1x SD/HD/3G-SDI, 1x HDMI type A | 1x HDMI type A, 1x SD/HD/3G-SDI or 1x SFP fiber (select 1 of 2) | 1x SD/HD/3G-SDI, 1x SD/HD/3G-SDI alt/redundant | 1x SD/HD/3G-SDI | 1x HDMI type A | 1x SD/HD/3G/6G/12G-SDI | 1x HDMI 2.0 type A | 4x SD/HD/3G-SDI |
| Video outputs | 4x HDMI type A, 4x SD/HD/3G-SDI | 2x SD/HD/3G-SDI, 1x HDMI type A | 2x SD/HD/3G-SDI, 1x HDMI type A | 1x HDMI loop out, 1x HDMI type A, 1x SD/HD/3G-SDI loop out, 2x SD/HD/3G-SDI, 1x SFP fiber | 1x SD/HD/3G-SDI loop out, 1x HDMI type A, 1x 3.5 mm AV out | 1x SD/HD/3G-SDI loop out, 1x HDMI type A | 2x SD/HD/3G-SDI | 2x SD/HD/3G/6G/12G-SDI/DVB-ASI | 4x HDMI 2.0 type A | 2x SD/HD/3G-SDI, 1x HDMI type A |
| Power input | 1x DC threaded locking connector (6 to 28 V), 1x USB Type-C (5 V) | 1x DC threaded locking connector (6 to 24 V), 1x USB Type-C (5 V; firmware update, power and control) | 2x DC threaded locking connector (6 to 23 V), 1x Micro USB (3.3 to 5 V) | 1x DC threaded locking connector (9 to 24 V), 1x USB Type-C (5 V; upgrade, power and control) | 1x DC threaded locking connector | 1x USB Type-C (3.3 to 5 V) | 1x USB Type-C (3.3 to 5 V) | 1x USB Type-C (5 V) | 1x DC threaded locking connector (5.5 to 24 V), 1x USB Type-C (5 to 5.5 V; power, update, and PC software) | — |
| Audio | — | 1x 3.5 mm analog audio in | 1x 3.5 mm analog audio in | 1x 3.5 mm analog audio in, 1x 3.5 mm analog audio out | 1x 6.35 mm AES/EBU digital audio in, 1x 6.35 mm AES/EBU digital audio out, 1x 3.5 mm analog audio in, 1x 3.5 mm analog audio out | — | — | SDI embedded audio and ancillary data pass-through | — | 3G-SDI embedded; 2-channel audio meter selectable from 16 pairs |
| Fiber interface | — | — | — | 1x SFP module slot (optional 3G video SFP, MSA Type), Bidirectional fiber I/O; up to 20 km | — | — | — | — | — | — |
| Other interfaces | — | — | — | — | 1x Micro USB (updates and configuration) | — | — | — | — | USB keyboard |
| Multiview outputs | — | — | — | — | — | — | — | — | — | 2x 3G-SDI, 1x HDMI type A |
| Network | — | — | — | — | — | — | — | — | — | 1x LAN (RJ45; configuration, firmware updates, and PC software) |
| Video Standards | ||||||||||
| 3G-SDI | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 2048 x 1080p 23.98/24/25/29.97/30, 2048 x 1080pSF 23.98/24/25/29.97/30, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 2048 x 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | — | — |
| HDMI | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 576i 50, 480i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 1280x768p 60, 720p 23.98/24/25/29.97/30/50/59.94/60 | 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576p 50, 576i 50, 480i 59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 576i 50, 480i 59.94 | 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60, 576i 50, 480i 59.94/60 | — | — | — |
| HDMI 2.0 | — | — | — | — | — | — | — | — | 4096 x 2160p 23.98/24/25/29.97/30/50/59.94/60, 3840 x 2160p 23.98/24/25/29.97/30/50/59.94/60, 2560 x 1080p 23.98/24/25/29.97/30/50/59.94/60, 1920 x 1080p 23.98/24/25/29.97/30/50/59.94/60, 1920 x 1080i 50/59.94/60, 1280 x 720p 23.98/24/25/29.97/30/50/59.94/60, 1440 x 576i 50, 1440 x 480i 59.94/60, 720 x 576p 50, 640 x 480p 59.94/60 | — |
| 3G-SDI compliance | SMPTE 292M, SMPTE 259M, SMPTE 424M | 3G Level A and Level B | 3G Level A and Level B; SMPTE 259M, SMPTE 292M, SMPTE 424M | 3G Level A and Level B | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 352M, SMPTE 424M | SMPTE 259M, SMPTE 292M, SMPTE 424M | SMPTE 259M, SMPTE 292M, SMPTE 424M | SMPTE ST-2081, SMPTE ST-2082, SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 274M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, DVB-ASI | — | — |
| Colour space | YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI) | SDI: YUV 4:2:2 10-bit in/out; HDMI in: RGB 4:4:4 8/10/12-bit, YUV 4:2:2 8/10/12-bit, YUV 4:4:4 8/10/12-bit; HDMI out: RGB 4:4:4 8-bit (Full or Limited) | YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI input) | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2 (HDMI output) | YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI) | YUV 4:2:2 (SDI and HDMI) | YUV 4:2:2/4:4:4 and RGB 4:4:4 (HDMI input); YUV 4:2:2 (SDI output) | RGB 4:4:4 10/12-bit; YUV 4:2:2/4:4:4 10/12-bit; XYZ 4:4:4 12-bit | RGB 4:4:4 8-bit, YUV 4:2:2 8-bit, YUV 4:4:4 8-bit | — |
| SDI output rate | SD/HD/3G-SDI | SD/HD/3G-SDI | SD/HD/3G-SDI | SD/HD/3G-SDI | SD/HD/3G-SDI (loop) | — | SD/HD/3G-SDI selectable | — | — | — |
| Format auto-detection | Auto-detects HDMI and SD/HD/3G-SDI input | — | — | — | Auto-detects SD, HD, and 3G-SDI on input | Auto-detects SD, HD, and 3G-SDI Level A/B on input | — | Auto-detects SD, HD, 3G, 6G, and 12G-SDI; DVB-ASI compatible | — | — |
| DVI/VGA | — | VGA: 1920 x 1080, 1680 x 1050, 1600 x 1200, 1600 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 768, 1280 x 720, 1280 x 600, 1152 x 864, 1024 x 768, 800 x 600, 640 x 480, 720 x 400 (up to 60 Hz); DVI: 1920 x 1080, 1280 x 720 (up to 60 Hz) | — | — | — | — | — | — | — | — |
| YPbPr | — | 1080p, 1080i, 720p, 576p, 480p, 576i, 480i | — | — | — | — | — | — | — | — |
| S-Video/CVBS | — | NTSC, PAL, SECAM | — | — | NTSC, PAL | — | — | — | — | — |
| Deinterlacing | — | 1080i hardware deinterlacing | — | — | Yes | — | — | — | — | — |
| SFP | — | — | — | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94 | — | — | — | — | — | — |
| Max fiber distance | — | — | — | 20 km (optional SFP) | — | — | — | — | — | — |
| 12G-SDI | — | — | — | — | — | — | — | 2160p 23.98/24/25/29.97/30, 4096 x 2160 23.98/24/25/29.97/30, 2160p 47.95/48/50/59.94/60, 4096 x 2160 47.95/48/50/59.94/60, 1080p 47.95/48/50/59.94/60, 2048 x 1080p 47.95/48/50/59.94/60 | — | — |
| Cable equalization (max cable) | — | — | — | — | — | — | — | SD 400 m, HD 200 m, 3G 120 m, 12G 60 m | — | — |
| HDMI compliance | — | — | — | — | — | — | — | — | HDMI 2.0 | — |
| 3G-SDI input (multiviewer) | — | — | — | — | — | — | — | — | — | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 |
| 3G-SDI/HDMI output | — | — | — | — | — | — | — | — | — | 1080p 24/25/30/50/60, 1080i 50/60, 720p 25/30/50/60 |
| 3G-SDI compliance (multiviewer) | — | — | — | — | — | — | — | — | — | SMPTE 292M, SMPTE 259M, SMPTE 424M, SMPTE 352M, SMPTE 296M |
| Colour space (multiviewer) | — | — | — | — | — | — | — | — | — | Input: YUV or RGB; Output: YUV |
| Switching | ||||||||||
| 3G-SDI auto switching | — | — | — | — | Auto-detects SD, HD, and 3G-SDI on input; alt SDI input switches over if main is lost | — | — | — | — | — |
| Seamless switching | — | — | — | — | Seamless conversion to avoid jitter | — | — | — | — | — |
| Operational Features | ||||||||||
| Cross conversion | SDI → HDMI or HDMI → SDI (DIP-selectable input); selected input is distributed to 4x SDI and 4x HDMI simultaneously | SDI, HDMI, DVI-I/VGA, CVBS, S-Video, or YPbPr → 2x SDI and 1x HDMI; up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60 | SDI → HDMI or HDMI → SDI (selectable input); up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60 | Bidirectional SDI ↔ HDMI ↔ fiber (selectable sources); up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60 | SDI → HDMI and AV; pass-through or up/down scaling and frame rate conversion; selectable HDMI output through 1080p60 | — | — | — | — | — |
| SDI distribution | 1 in, 4 out (plus 4x HDMI converted) | 1 in, 2 out | 1 in, 2 out | 1 in, 3 out (loop + 2x SDI out) | — | — | — | — | — | — |
| DIP switches | 4x; SW1 selects HDMI or SDI input; SW2–SW4 reserved | 12x for output format, input select, analog vs embedded audio, 16:9/4:3 aspect, HDMI Full/Limited RGB, 3G Level A/B, and DIP vs PC control | 4x for output control | — | DIP1 (scaling, audio embed/de-embed, HDMI colour space) and DIP2 (AV NTSC/PAL, status overlay, PC custom settings) | — | — | — | — | Output format and scaling, 16 layouts (quad, Picture-in-Picture, Picture-by-Picture, full screen), audio meter pair and overlay, UMD, status overlay, and custom presets |
| Front panel control | 4x DIP switches | 12x DIP switches; PC software via USB Type-C | 4x DIP switches; PC software via Micro USB | LCD status display with 4 buttons; PC software via USB Type-C | DIP switches; PC software via Micro USB | — | — | — | LCD status display with 4 buttons | — |
| Scaler | — | Up/down scaling with selectable SDI/HDMI output formats through 1080p60 | Up/down scaling with selectable SDI/HDMI output formats through 1080p60 | Up/down scaling with selectable SDI/HDMI output formats through 1080p60 | Up/down scaling with selectable HDMI output formats through 1080p60 | — | — | — | — | Output scaling and frame rate conversion via DIP (SDI and HDMI) |
| Frame rate conversion | — | Yes — via selectable output format (up/down scaling and frame rate conversion) | Yes — via selectable output format (up/down scaling and frame rate conversion) | Yes — via selectable output format (up/down scaling and frame rate conversion) | Yes — via DIP switches (pass-through or selectable HDMI output format) | — | — | — | — | Yes — selectable SDI and HDMI output format via DIP |
| Aspect ratio conversion | — | 4:3 or 16:9 via DIP switches | SD up-conversion aspect via DIP switches | SD/HD aspect conversion (anamorphic, letterbox, pillarbox, zoom) | — | — | — | — | — | — |
| Audio embedding | — | 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio | 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio | 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio | SDI CH1-8, SDI CH9-16, AES/EBU, or analog audio to HDMI | — | — | — | — | — |
| Selectable colour spaces | — | Full RGB, Limited RGB | — | — | — | — | — | — | — | — |
| Remote control | — | PC software via USB Type-C | PC software via Micro USB | PC software via USB Type-C | PC software via Micro USB | — | — | — | PC software via USB Type-C | PC software via LAN |
| Image mirroring | — | — | — | Horizontal, vertical, and horizontal+vertical flip on SDI and HDMI outputs | — | — | — | — | — | — |
| HDMI fibre extender | — | — | — | TX and RX (SFP optional) | — | — | — | — | — | — |
| SDI fibre extender | — | — | — | TX and RX (SFP optional) | — | — | — | — | — | — |
| Audio de-embedding | — | — | — | 1x 3.5 mm analog audio out | Any pair of SDI 16-channel audio to AES/EBU and analog out | — | — | — | — | — |
| Audio pair rearrangement | — | — | — | Yes — HDMI (4 stereo pairs) and SDI (8 stereo pairs) output remapping | — | — | — | — | — | — |
| Test pattern generator | — | — | — | 23 professional test patterns and audio tones | — | — | — | — | — | — |
| Frame counter and circle overlay | — | — | — | Dynamic circle and frame-count overlays on test pattern output | — | — | — | — | — | — |
| Menu control | — | — | — | LCD status display with 4 buttons | — | — | — | — | LCD with 4 buttons; EDID Auto, Standard, Custom, Copy, and Pre-save; per-output enable | — |
| OSD | — | — | — | — | Input/output format and audio embed/de-embed status overlay (DIP selectable) | — | — | — | — | — |
| Function buttons | — | — | — | — | — | — | — | — | Menu/Confirm, Previous, Next, Back/Lock | — |
| Multi Viewer | — | — | — | — | — | — | — | — | — | Picture-by-Picture, Picture-in-Picture, Three-Way Split, Quad-View |
| Front panel | — | — | — | — | — | — | — | — | — | DIP switches; USB keyboard |
| Control interfaces | — | — | — | — | — | — | — | — | — | LAN (RJ45), UDP, port 7000, USB keyboard |
| Custom presets | — | — | — | — | — | — | — | — | — | 2 user-defined configurations (Custom1, Custom2) |
| Power | ||||||||||
| Input voltage | USB 5 V; DC 6 to 28 V | USB-C 5 V; DC 6 to 24 V | USB 3.3 to 5 V; DC 6 to 23 V | USB-C 5 V; DC 9 to 24 V | DC 6 to 24 V | DC 3.3 to 5 V USB Type-C | DC 3.3 to 5 V USB Type-C | 5 V USB Type-C | USB 5 to 5.5 V; DC 5.5 to 24 V | DC 6 to 24 V |
| Power consumption | 6.6 W (DC); 7.5 W (USB) | ≤5.5 W | 4 W | 7 W | 6 W | 1.5 W | 2 W | 1 W | 6 W | 6 W |
| Environmental | ||||||||||
| Operating temperature | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C (HDMI output 0°C to 60°C) |
| Storage temperature | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C |
| Relative humidity | 0% to 90% non-condensing | 20% to 90% non-condensing | 0% to 90% non-condensing | — | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing |
| Mechanical | ||||||||||
| Dimensions | 125.5 x 104 x 24.5 mm | 104 x 125.5 x 24.5 mm | 125.5 x 104 x 24.5 mm | 104 x 125.5 x 24.5 mm | 125.5 x 104 x 24.5 mm | 71 x 41 x 23 mm | 71 x 41 x 23 mm | 105.5 x 41 x 23 mm | 125.5 x 104 x 24.5 mm | 125.5 x 104 x 24.5 mm |
| Weight | 485 g | 496 g | 485 g | 517 g | 465 g | 168 g | 168 g | 156 g | 471 g | 512 g |
| Mounting | ||||||||||
| Wall mount | Detachable mounting brackets included | Mounting bracket (optional) | Detachable mounting brackets included | Mounting bracket (optional) | Detachable mounting brackets included | Detachable mounting bracket included | Detachable mounting bracket included | Detachable wall mounting bracket included | Mounting bracket (optional) | Detachable mounting brackets included |
| Other | ||||||||||
| Warranty | — | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited |
| Multiviewer | ||||||||||
| Layouts | — | — | — | — | — | — | — | — | — | 16 presets including quad split, full screen, triple windows, Picture-in-Picture, and Picture-by-Picture |
| Full screen | — | — | — | — | — | — | — | — | — | Full screen any input, or quad view, via USB keyboard |
| Overlays | — | — | — | — | — | — | — | — | — | UMD (11 characters), Audio meter, Input information (OSD), Border |
