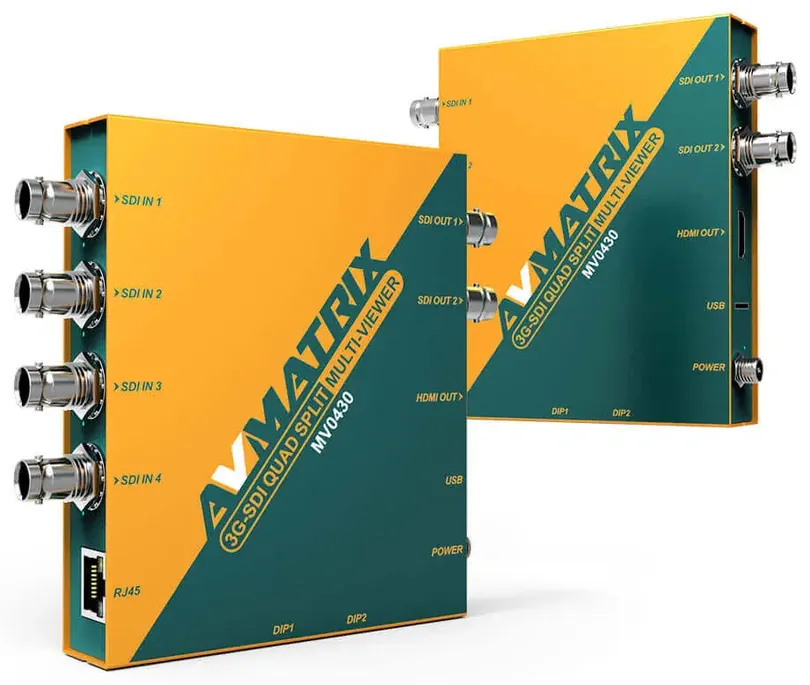

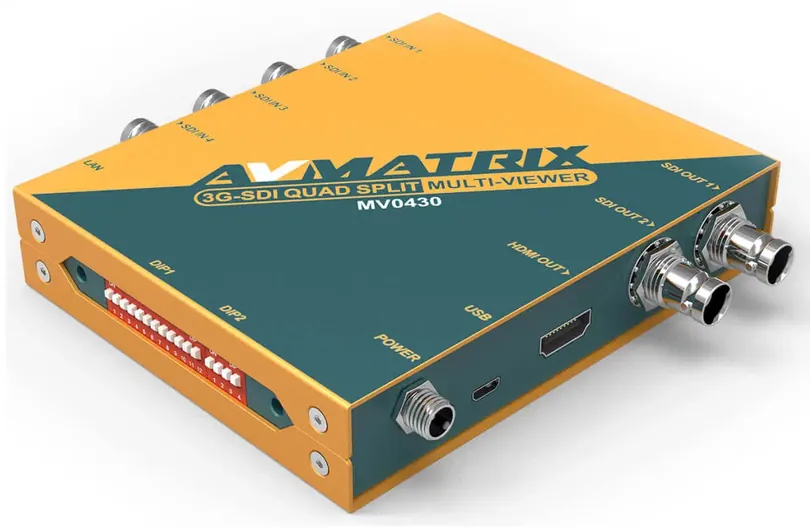

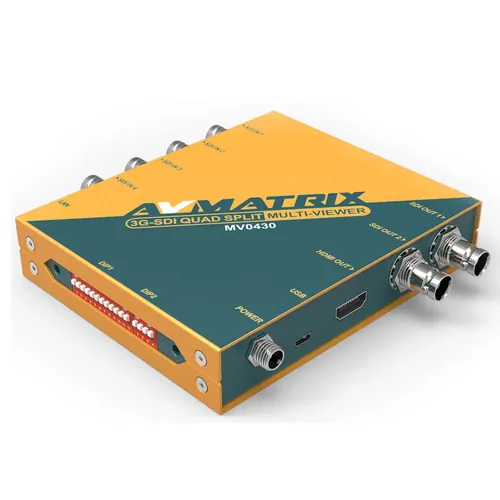

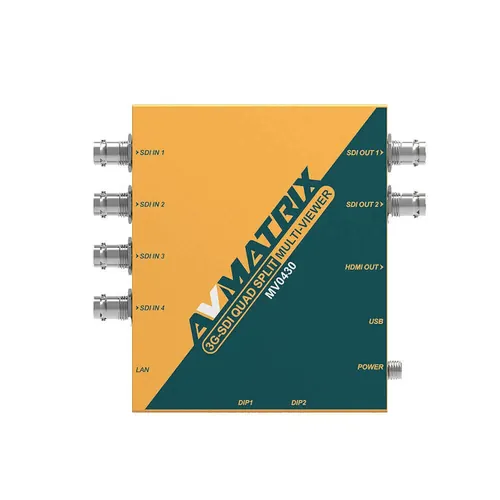

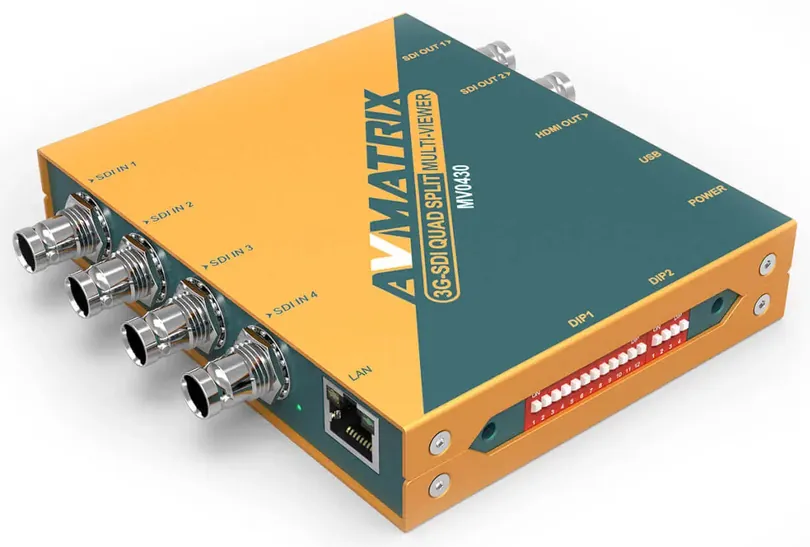

Key Features

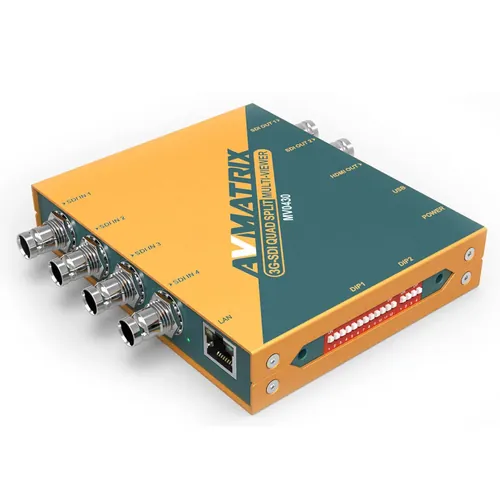

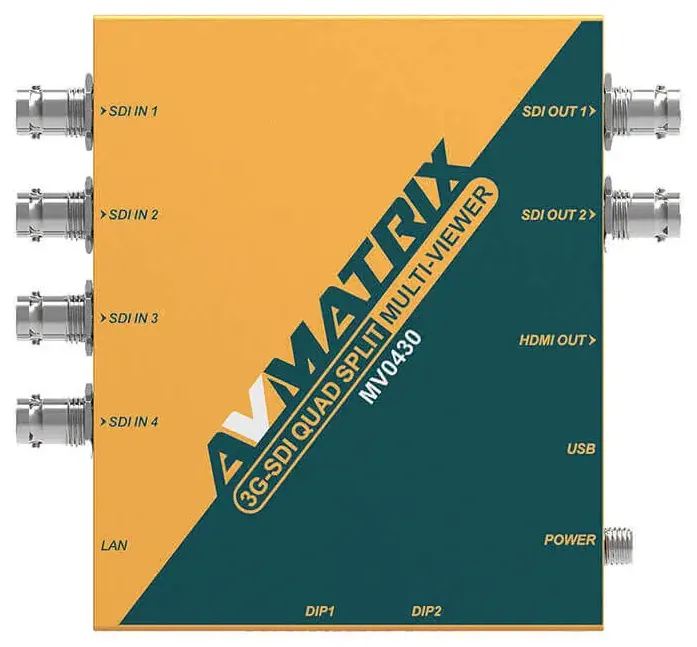

- 4-channel 3G-SDI multi-viewer: 4x SD/HD/3G-SDI in, 2x 3G-SDI out, 1x HDMI type A out
- 16 preset layouts including quad split, full screen, triple, PIP, and POP; output scaling and frame rate conversion via DIP
- 11-character UMD, 2-channel audio meter from 16 embedded SDI pairs, input info OSD, and coloured borders
- Control via DIP switches, USB keyboard, or PC software over LAN (UDP, port 7000) with API; 2 custom presets
- DC 6 to 24 V threaded locking power, 6 W; 12V universal PSU and 2x mounting brackets included
- 125.5 x 104 x 24.5 mm, 512 g; -20°C to 60°C operating (HDMI output 0°C to 60°C), 3 year limited warranty
Buy the MV0430 From an Authorised Reseller
Lilliput's authorised broadcast resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the MV0430 now, or if your country is not listed, browse all authorised resellers here.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data
Connections
- Video inputs
- 4x SD/HD/3G-SDI (75Ω BNC)
- Video outputs
- 2x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A
- Multiview outputs
- 2x 3G-SDI (75Ω BNC), 1x HDMI type A
- Audio
- 3G-SDI embedded; 2-channel audio meter selectable from 16 pairs
- Network
- 1x LAN (RJ45; configuration, firmware updates, and PC software)
- Other interfaces
- USB keyboard
Video Standards
- 3G-SDI input (multiviewer)
- 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94
- 3G-SDI/HDMI output
- 1080p 24/25/30/50/60, 1080i 50/60, 720p 25/30/50/60
- 3G-SDI compliance (multiviewer)
- SMPTE 292M, SMPTE 259M, SMPTE 424M, SMPTE 352M, SMPTE 296M
- Colour space (multiviewer)
- Input: YUV or RGB; Output: YUV
Operational Features
- Multi Viewer
- Picture-by-Picture, Picture-in-Picture, Three-Way Split, Quad-View
- DIP switches

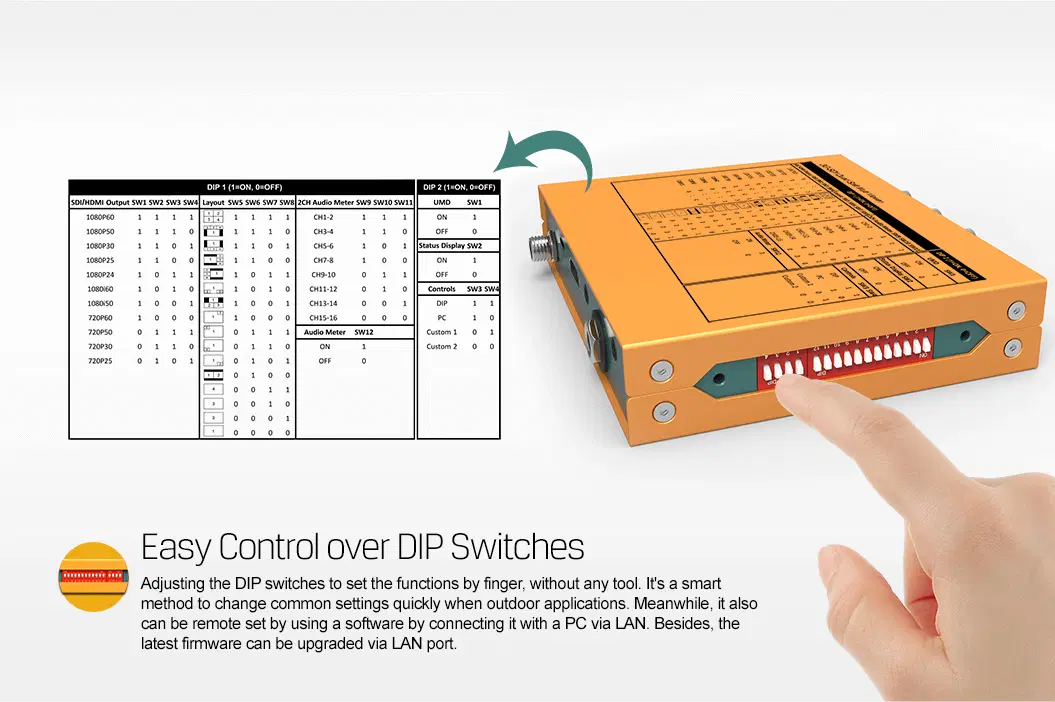

- Output format and scaling, 16 layouts (quad, PIP, POP, full screen), audio meter pair and overlay, UMD, status overlay, and custom presets
- Front panel
- DIP switches; USB keyboard
- Control interfaces
- LAN (RJ45), UDP, port 7000, USB keyboard
- Custom presets
- 2 user-defined configurations (Custom1, Custom2)
- Remote control

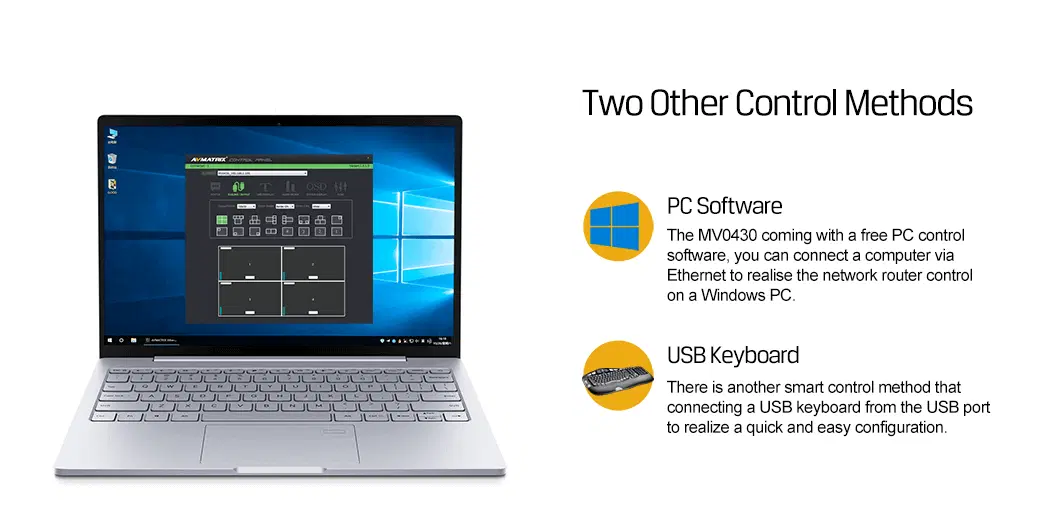

- PC software via LAN
- Scaler
- Output scaling and frame rate conversion via DIP (SDI and HDMI)
- Frame rate conversion
- Yes — selectable SDI and HDMI output format via DIP
Power
- Input voltage
- DC 6 to 24 V
- Power consumption
- 6 W
Environmental
- Operating temperature
- -20°C to 60°C (HDMI output 0°C to 60°C)
- Storage temperature
- -30°C to 70°C
- Relative humidity
- 0% to 90% non-condensing
Mechanical
- Dimensions
- 125.5 x 104 x 24.5 mm
- Weight
- 512 g
Mounting
- Wall mount
- Detachable mounting brackets included
Multiviewer
- Layouts

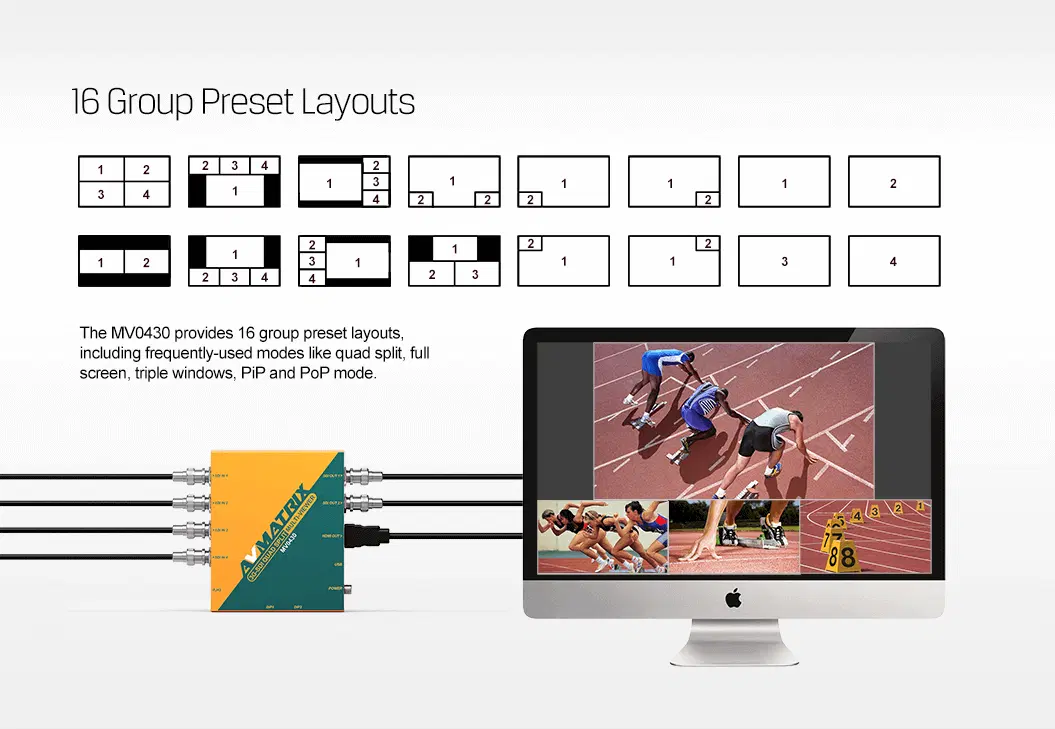

- 16 presets including quad split, full screen, triple windows, PIP, and POP
- Full screen
- Full screen any input, or quad view, via USB keyboard
- Overlays

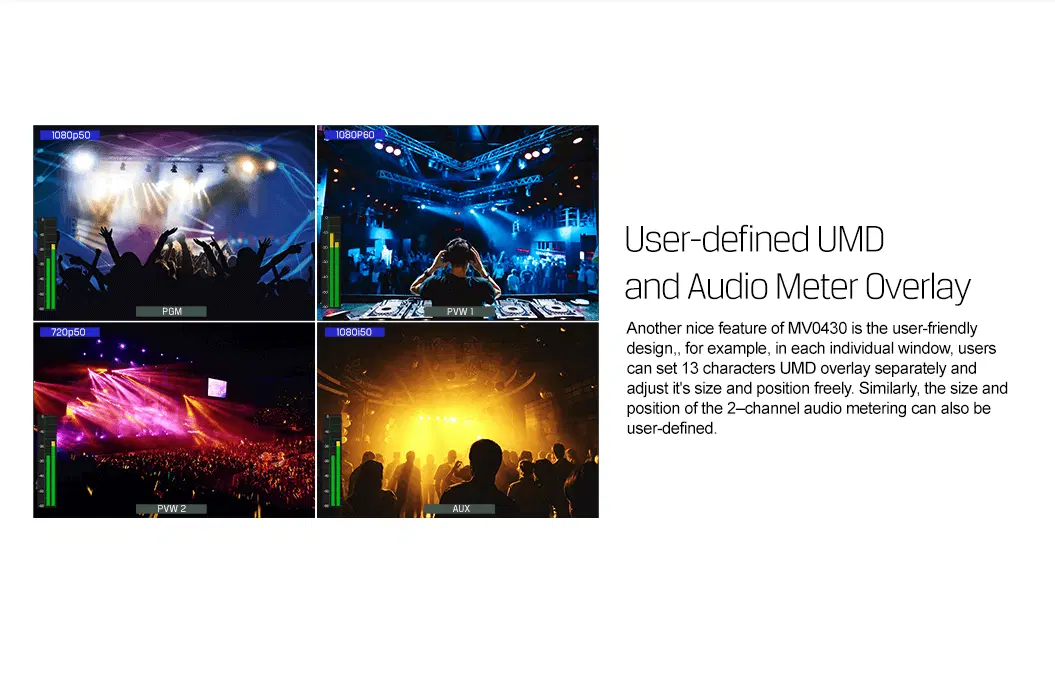

- UMD (11 characters), Audio meter, Input information (OSD), Border
Other
- Warranty
- 3 years limited
Accessories
Included
- DC 12V Universal Power Supply with International Socket Adapters
- 2x Mounting Brackets
Product Downloads
Similar Products
Compare key technical data across similar AV Matrix products.
| Technical Data | MV0430 | MMV1630 | MSS1611-S | MSS0811 | SC2030 | SD2080 | SC1120 |
|---|---|---|---|---|---|---|---|
| Connections | |||||||
| Video inputs | 4x SD/HD/3G-SDI (75Ω BNC) | 16x SD/HD/3G-SDI (BNC) | 16x SD/HD/3G-SDI (BNC) | 8x SD/HD/3G-SDI/DVB-ASI (BNC) | 1x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A | 1x HDMI type A, 1x SD/HD/3G-SDI (BNC) | 1x SD/HD/3G-SDI (75Ω BNC), 1x SD/HD/3G-SDI alt/redundant (75Ω BNC) |
| Video outputs | 2x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A | 16x SD/HD/3G-SDI (BNC) | 16x SD/HD/3G-SDI (BNC) | 8x SD/HD/3G-SDI/DVB-ASI (BNC) | 2x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A | 4x HDMI type A, 4x SD/HD/3G-SDI (BNC) | 1x SD/HD/3G-SDI loop out (75Ω BNC), 1x HDMI type A, 1x 3.5 mm AV out |
| Multiview outputs | 2x 3G-SDI (75Ω BNC), 1x HDMI type A | 2x 3G-SDI (BNC), 1x HDMI Type-A | — | — | — | — | — |
| Audio | 3G-SDI embedded; 2-channel audio meter selectable from 16 pairs | 3G-SDI embedded, selectable per window | — | — | 1x 3.5 mm analog audio in | — | 1x 6.35 mm AES/EBU digital audio in, 1x 6.35 mm AES/EBU digital audio out, 1x 3.5 mm analog audio in, 1x 3.5 mm analog audio out |
| Network | 1x LAN (RJ45; configuration, firmware updates, and PC software) | — | — | — | — | — | — |
| Other interfaces | USB keyboard | — | — | — | — | — | 1x Micro USB (updates and configuration) |
| Power input | — | — | — | — | 2x DC threaded locking connector (6 to 23 V), 1x Micro USB (3.3 to 5 V) | 1x DC threaded locking connector (6 to 28 V), 1x USB Type-C (5 V) | 1x DC threaded locking connector |
| Video Standards | |||||||
| 3G-SDI input (multiviewer) | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 60/59.94/50 (3G-SDI level-A), 1080p 30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94 | — | — | — | — | — |
| 3G-SDI/HDMI output | 1080p 24/25/30/50/60, 1080i 50/60, 720p 25/30/50/60 | 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 | — | — | — | — | — |
| 3G-SDI compliance (multiviewer) | SMPTE 292M, SMPTE 259M, SMPTE 424M, SMPTE 352M, SMPTE 296M | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 352M, SMPTE 424M | — | — | — | — | — |
| Colour space (multiviewer) | Input: YUV or RGB; Output: YUV | Input: YUV 4:2:2/4:4:4, RGB 4:4:4; Output: YUV 4:2:2 | — | — | — | — | — |
| 3G-SDI input (switcher) | — | 2048 x 1080p 30/29.97/25/24/23.98, 2048 x 1080psF 30/29.97/25/24/23.98, 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94 | — | — | — | — | — |
| 3G-SDI compliance (switcher) | — | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, DVB-ASI | — | — | — | — | — |
| Colour space (switcher) | — | YUV 4:2:2/4:4:4, RGB 4:4:4 10/12-bit, XYZ 4:4:4 12-bit | — | — | — | — | — |
| 3G-SDI input | — | — | 1080p 60/59.94/50 (3G-SDI level-A), 1080p 30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94 | 2048 x 1080p 30/29.97/25/24/23.98, 2048 x 1080psF 30/29.97/25/24/23.98, 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94 | — | — | — |
| 3G-SDI output | — | — | 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24, 576i 50, 480i 60/59.94 | — | — | — | — |
| 3G-SDI compliance | — | — | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, DVB-ASI | 3G Level A and Level B; SMPTE 259M, SMPTE 292M, SMPTE 424M | SMPTE 292M, SMPTE 259M, SMPTE 424M | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 352M, SMPTE 424M |
| Colour space | — | — | YUV 4:2:2 10/12-bit | RGB 4:4:4, YUV 4:2:2/4:4:4 10/12-bit, XYZ 4:4:4 12-bit | YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI input) | YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI) | YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI) |
| 3G-SDI | — | — | — | — | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 |
| HDMI | — | — | — | — | 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576p 50, 576i 50, 480i 59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 576i 50, 480i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94/60 |
| SDI output rate | — | — | — | — | SD/HD/3G-SDI | SD/HD/3G-SDI | SD/HD/3G-SDI (loop) |
| Format auto-detection | — | — | — | — | — | Auto-detects HDMI and SD/HD/3G-SDI input | Auto-detects SD, HD, and 3G-SDI on input |
| S-Video/CVBS | — | — | — | — | — | — | NTSC, PAL |
| Deinterlacing | — | — | — | — | — | — | Yes |
| Operational Features | |||||||
| Multi Viewer | Picture-by-Picture, Picture-in-Picture, Three-Way Split, Quad-View | Quad-View | — | — | — | — | — |
| DIP switches | Output format and scaling, 16 layouts (quad, PIP, POP, full screen), audio meter pair and overlay, UMD, status overlay, and custom presets | — | — | — | 4x for output control | 4x; SW1 selects HDMI or SDI input; SW2–SW4 reserved | DIP1 (scaling, audio embed/de-embed, HDMI colour space) and DIP2 (AV NTSC/PAL, status overlay, PC custom settings) |
| Front panel | DIP switches; USB keyboard | 2.2 inch LCD display, IN/OUT channel buttons (1 to 16), knob control | 2.2 inch LCD display, IN/OUT channel buttons (1 to 16), knob control | 2.2 inch LCD display, IN/OUT channel buttons (1 to 8), ALL button, lock button | — | — | — |
| Control interfaces | LAN (RJ45), UDP, port 7000, USB keyboard | LAN (RJ45), UDP, port 7000, RS-422, 9600 baud, 8N1 | LAN (RJ45), UDP, port 7000, RS-422, 9600 baud, 8N1 | LAN (RJ45), UDP, port 7000, RS232, 9600 baud, 8N1, USB Type-A (keyboard control) | — | — | — |
| Custom presets | 2 user-defined configurations (Custom1, Custom2) | 2 user-defined configurations (Custom1, Custom2) | — | — | — | — | — |
| Remote control | PC software via LAN | — | — | — | PC software via Micro USB | — | PC software via Micro USB |
| Scaler | Output scaling and frame rate conversion via DIP (SDI and HDMI) | — | — | — | Up/down scaling with selectable SDI/HDMI output formats through 1080p60 | — | Up/down scaling with selectable HDMI output formats through 1080p60 |
| Frame rate conversion | Yes — selectable SDI and HDMI output format via DIP | — | — | — | Yes — via selectable output format (up/down scaling and frame rate conversion) | — | Yes — via DIP switches (pass-through or selectable HDMI output format) |
| Cross conversion | — | — | — | — | SDI → HDMI or HDMI → SDI (selectable input); up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60 | SDI → HDMI or HDMI → SDI (DIP-selectable input); selected input is distributed to 4x SDI and 4x HDMI simultaneously | SDI → HDMI and AV; pass-through or up/down scaling and frame rate conversion; selectable HDMI output through 1080p60 |
| Aspect ratio conversion | — | — | — | — | SD up-conversion aspect via DIP switches | — | — |
| SDI distribution | — | — | — | — | 1 in, 2 out | 1 in, 4 out (plus 4x HDMI converted) | — |
| Audio embedding | — | — | — | — | 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio | — | SDI CH1-8, SDI CH9-16, AES/EBU, or analog audio to HDMI |
| Front panel control | — | — | — | — | 4x DIP switches; PC software via Micro USB | 4x DIP switches | DIP switches; PC software via Micro USB |
| Audio de-embedding | — | — | — | — | — | — | Any pair of SDI 16-channel audio to AES/EBU and analog out |
| OSD | — | — | — | — | — | — | Input/output format and audio embed/de-embed status overlay (DIP selectable) |
| Power | |||||||
| Input voltage | DC 6 to 24 V | DC 12 to 20V | DC 12 to 20V | DC 6 to 24V | USB 3.3 to 5 V; DC 6 to 23 V | USB 5 V; DC 6 to 28 V | DC 6 to 24 V |
| Power consumption | 6 W | ≤36 W | ≤14 W | ≤7 W | 4 W | 6.6 W (DC); 7.5 W (USB) | 6 W |
| Power supply | — | Dual redundant (PS-1, PS-2), threaded locking connectors | Dual redundant (PS-1, PS-2), threaded locking connectors | Dual redundant (PS-1, PS-2), threaded locking connectors | — | — | — |
| Environmental | |||||||
| Operating temperature | -20°C to 60°C (HDMI output 0°C to 60°C) | 0°C to 60°C | 0°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C |
| Storage temperature | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C |
| Relative humidity | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing |
| Mechanical | |||||||
| Dimensions | 125.5 x 104 x 24.5 mm | 482.5 x 44 x 148.6 mm | 482.5 x 44 x 148.6 mm | — | 125.5 x 104 x 24.5 mm | 125.5 x 104 x 24.5 mm | 125.5 x 104 x 24.5 mm |
| Weight | 512 g | 2000 g (net), 3800 g (gross) | 2000 g (net), 3800 g (gross) | 1100 g (net), 1700 g (gross) | 485 g | 485 g | 465 g |
| Rack height | — | 1U | 1U | 1U | — | — | — |
| Switching | |||||||
| Modes | — | Multiviewer, 16 x 16 Matrix Switcher | — | — | — | — | — |
| Matrix routing | — | Any input to any output (switcher mode) | — | — | — | — | — |
| 3G-SDI auto switching | — | Auto-detects SD, HD, and 3G-SDI on inputs | Auto-detects SD, HD, and 3G-SDI on inputs | Auto-detects SD, HD, and 3G-SDI on inputs | — | — | Auto-detects SD, HD, and 3G-SDI on input; alt SDI input switches over if main is lost |
| Routing | — | — | 16 x 16 matrix, any input to any output | 8 x 8 matrix, any input to any output | — | — | — |
| Seamless switching | — | — | Built-in frame synchronizer, glitch-free switching between different formats | — | — | — | Seamless conversion to avoid jitter |
| Presets | — | — | One-to-one, one-to-all routing | One-to-one, one-to-all routing | — | — | — |
| Data passthrough | — | — | — | 3G-SDI embedded audio and ancillary data preserved | — | — | — |
| Mounting | |||||||
| Wall mount | Detachable mounting brackets included | — | — | — | Detachable mounting brackets included | Detachable mounting brackets included | Detachable mounting brackets included |
| Rack mount | — | Standard 19 inch rack mounting | Standard 19 inch rack mounting | Standard 19 inch rack mounting | — | — | — |
| Multiviewer | |||||||
| Layouts | 16 presets including quad split, full screen, triple windows, PIP, and POP | 20 presets (16/12/11/10/9/8/6/4 windows) | — | — | — | — | — |
| Full screen | Full screen any input, or quad view, via USB keyboard | SOLO any input in full screen via shortcut key | — | — | — | — | — |
| Overlays | UMD (11 characters), Audio meter, Input information (OSD), Border | UMD, Audio meter, Timecode, Input resolution (OSD), Border, Audio alarm | — | — | — | — | — |
| Other | |||||||
| Warranty | 3 years limited | — | — | — | 3 years limited | — | 3 years limited |
