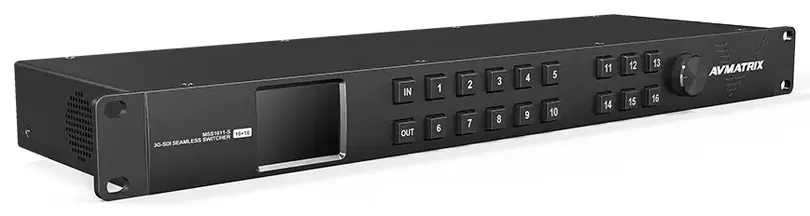

Key Features
- 16x SD/HD/3G-SDI inputs and 16x SD/HD/3G-SDI outputs, any-to-any matrix routing
- Seamless switching with built-in frame synchronizer, glitch-free transitions between different formats
- Auto-detects SD, HD, and 3G-SDI on all inputs
- Configurable output resolution from 480i to 1080p 60
- One-to-one and one-to-all routing presets
- 1U rack height (44 mm), compact 19 inch standard rack mounting

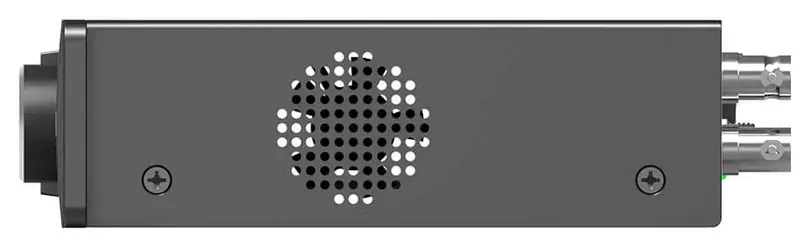

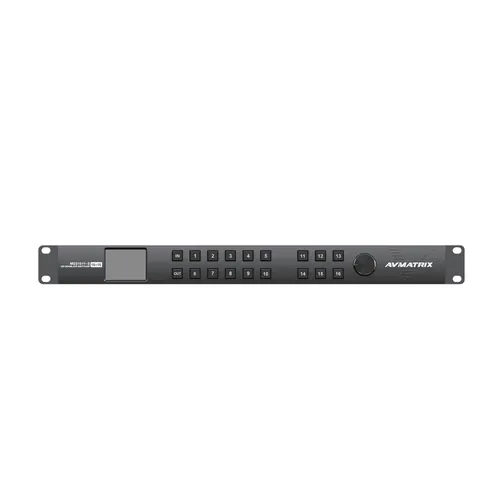

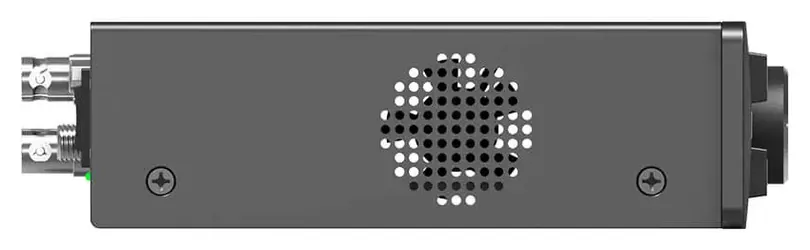

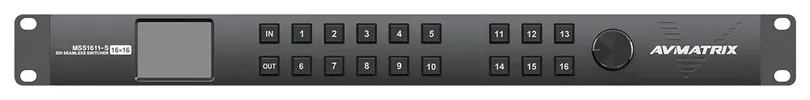

- 2.2 inch LCD display with front panel button and knob control
- LAN (UDP) and RS-422 remote control with ASCII and binary API
- Dual redundant power supply (PS-1 and PS-2) for mission-critical installations
Buy the MSS1611-S From an Authorised Reseller
Lilliput's authorised broadcast resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the MSS1611-S now, or if your country is not listed, browse all authorised resellers here.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data

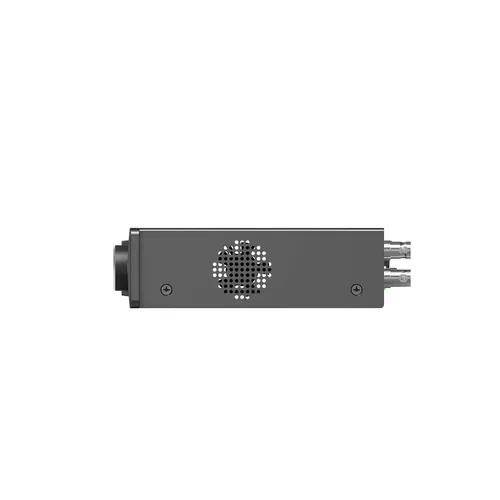

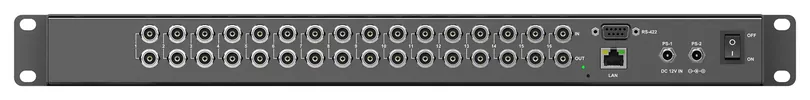

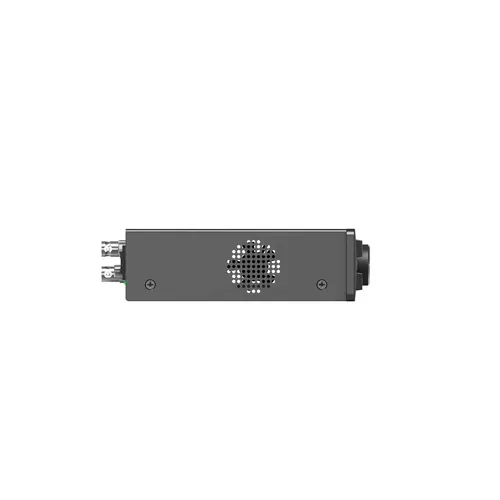

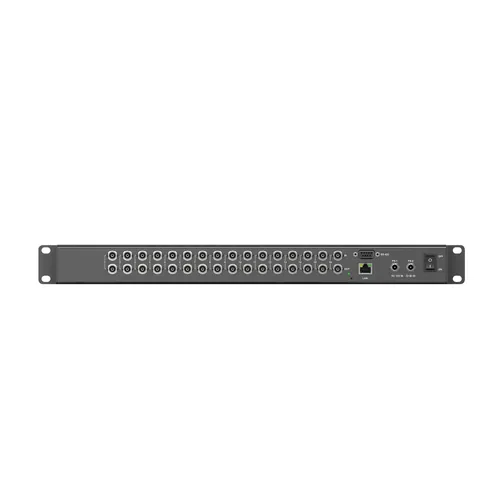

Connections
- Video inputs
- 16x SD/HD/3G-SDI (BNC)
- Video outputs
- 16x SD/HD/3G-SDI (BNC)
Video Standards
- 3G-SDI input
- 1080p 60/59.94/50 (3G-SDI level-A), 1080p 30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94
- 3G-SDI output
- 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24, 576i 50, 480i 60/59.94
- 3G-SDI compliance
- SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
- Colour space
- YUV 4:2:2 10/12-bit
Operational Features
- Front panel
- 2.2 inch LCD display, IN/OUT channel buttons (1 to 16), knob control
- Control interfaces
- LAN (RJ45), UDP, port 7000, RS-422, 9600 baud, 8N1
Power
- Input voltage
- DC 12 to 20V
- Power supply
- Dual redundant (PS-1, PS-2), threaded locking connectors
- Power consumption
- ≤14 W
Environmental
- Operating temperature
- 0°C to 60°C
- Storage temperature
- -30°C to 70°C
- Relative humidity
- 0% to 90% non-condensing
Mechanical
- Dimensions
- 482.5 x 44 x 148.6 mm
- Weight
- 2000 g (net), 3800 g (gross)
- Rack height
- 1U
Mounting
- Rack mount
- Standard 19 inch rack mounting
Switching
- Routing
- 16 x 16 matrix, any input to any output
- Seamless switching
- Built-in frame synchronizer, glitch-free switching between different formats
- 3G-SDI auto switching
- Auto-detects SD, HD, and 3G-SDI on inputs
- Presets
- One-to-one, one-to-all routing
Accessories
Included
- 2x DC 12V 5A Power Adapter
Product Downloads
Similar Products
Compare key technical data across similar AV Matrix products.
| Technical Data | MSS1611-S | MMV1630 | MSS0811 | MV0430 |
|---|---|---|---|---|
| Connections | ||||
| Video inputs | 16x SD/HD/3G-SDI (BNC) | 16x SD/HD/3G-SDI (BNC) | 8x SD/HD/3G-SDI/DVB-ASI (BNC) | 4x SD/HD/3G-SDI (75Ω BNC) |
| Video outputs | 16x SD/HD/3G-SDI (BNC) | 16x SD/HD/3G-SDI (BNC) | 8x SD/HD/3G-SDI/DVB-ASI (BNC) | 2x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A |
| Multiview outputs | — | 2x 3G-SDI (BNC), 1x HDMI Type-A | — | 2x 3G-SDI (75Ω BNC), 1x HDMI type A |
| Audio | — | 3G-SDI embedded, selectable per window | — | 3G-SDI embedded; 2-channel audio meter selectable from 16 pairs |
| Network | — | — | — | 1x LAN (RJ45; configuration, firmware updates, and PC software) |
| Other interfaces | — | — | — | USB keyboard |
| Video Standards | ||||
| 3G-SDI input | 1080p 60/59.94/50 (3G-SDI level-A), 1080p 30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94 | — | 2048 x 1080p 30/29.97/25/24/23.98, 2048 x 1080psF 30/29.97/25/24/23.98, 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94 | — |
| 3G-SDI output | 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24, 576i 50, 480i 60/59.94 | — | — | — |
| 3G-SDI compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M | — | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, DVB-ASI | — |
| Colour space | YUV 4:2:2 10/12-bit | — | RGB 4:4:4, YUV 4:2:2/4:4:4 10/12-bit, XYZ 4:4:4 12-bit | — |
| 3G-SDI input (multiviewer) | — | 1080p 60/59.94/50 (3G-SDI level-A), 1080p 30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94 | — | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 |
| 3G-SDI input (switcher) | — | 2048 x 1080p 30/29.97/25/24/23.98, 2048 x 1080psF 30/29.97/25/24/23.98, 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98, 625i 50, 525i 59.94 | — | — |
| 3G-SDI/HDMI output | — | 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 | — | 1080p 24/25/30/50/60, 1080i 50/60, 720p 25/30/50/60 |
| 3G-SDI compliance (multiviewer) | — | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 352M, SMPTE 424M | — | SMPTE 292M, SMPTE 259M, SMPTE 424M, SMPTE 352M, SMPTE 296M |
| 3G-SDI compliance (switcher) | — | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, DVB-ASI | — | — |
| Colour space (multiviewer) | — | Input: YUV 4:2:2/4:4:4, RGB 4:4:4; Output: YUV 4:2:2 | — | Input: YUV or RGB; Output: YUV |
| Colour space (switcher) | — | YUV 4:2:2/4:4:4, RGB 4:4:4 10/12-bit, XYZ 4:4:4 12-bit | — | — |
| Operational Features | ||||
| Front panel | 2.2 inch LCD display, IN/OUT channel buttons (1 to 16), knob control | 2.2 inch LCD display, IN/OUT channel buttons (1 to 16), knob control | 2.2 inch LCD display, IN/OUT channel buttons (1 to 8), ALL button, lock button | DIP switches; USB keyboard |
| Control interfaces | LAN (RJ45), UDP, port 7000, RS-422, 9600 baud, 8N1 | LAN (RJ45), UDP, port 7000, RS-422, 9600 baud, 8N1 | LAN (RJ45), UDP, port 7000, RS232, 9600 baud, 8N1, USB Type-A (keyboard control) | LAN (RJ45), UDP, port 7000, USB keyboard |
| Multi Viewer | — | Quad-View | — | Picture-by-Picture, Picture-in-Picture, Three-Way Split, Quad-View |
| Custom presets | — | 2 user-defined configurations (Custom1, Custom2) | — | 2 user-defined configurations (Custom1, Custom2) |
| DIP switches | — | — | — | Output format and scaling, 16 layouts (quad, Picture-in-Picture, Picture-by-Picture, full screen), audio meter pair and overlay, UMD, status overlay, and custom presets |
| Remote control | — | — | — | PC software via LAN |
| Scaler | — | — | — | Output scaling and frame rate conversion via DIP (SDI and HDMI) |
| Frame rate conversion | — | — | — | Yes — selectable SDI and HDMI output format via DIP |
| Power | ||||
| Input voltage | DC 12 to 20V | DC 12 to 20V | DC 6 to 24V | DC 6 to 24 V |
| Power supply | Dual redundant (PS-1, PS-2), threaded locking connectors | Dual redundant (PS-1, PS-2), threaded locking connectors | Dual redundant (PS-1, PS-2), threaded locking connectors | — |
| Power consumption | ≤14 W | ≤36 W | ≤7 W | 6 W |
| Environmental | ||||
| Operating temperature | 0°C to 60°C | 0°C to 60°C | -20°C to 60°C | -20°C to 60°C (HDMI output 0°C to 60°C) |
| Storage temperature | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C |
| Relative humidity | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing |
| Mechanical | ||||
| Dimensions | 482.5 x 44 x 148.6 mm | 482.5 x 44 x 148.6 mm | — | 125.5 x 104 x 24.5 mm |
| Weight | 2000 g (net), 3800 g (gross) | 2000 g (net), 3800 g (gross) | 1100 g (net), 1700 g (gross) | 512 g |
| Rack height | 1U | 1U | 1U | — |
| Mounting | ||||
| Rack mount | Standard 19 inch rack mounting | Standard 19 inch rack mounting | Standard 19 inch rack mounting | — |
| Wall mount | — | — | — | Detachable mounting brackets included |
| Switching | ||||
| Routing | 16 x 16 matrix, any input to any output | — | 8 x 8 matrix, any input to any output | — |
| Seamless switching | Built-in frame synchronizer, glitch-free switching between different formats | — | — | — |
| 3G-SDI auto switching | Auto-detects SD, HD, and 3G-SDI on inputs | Auto-detects SD, HD, and 3G-SDI on inputs | Auto-detects SD, HD, and 3G-SDI on inputs | — |
| Presets | One-to-one, one-to-all routing | — | One-to-one, one-to-all routing | — |
| Modes | — | Multiviewer, 16 x 16 Matrix Switcher | — | — |
| Matrix routing | — | Any input to any output (switcher mode) | — | — |
| Data passthrough | — | — | 3G-SDI embedded audio and ancillary data preserved | — |
| Multiviewer | ||||
| Layouts | — | 20 presets (16/12/11/10/9/8/6/4 windows) | — | 16 presets including quad split, full screen, triple windows, Picture-in-Picture, and Picture-by-Picture |
| Full screen | — | SOLO any input in full screen via shortcut key | — | Full screen any input, or quad view, via USB keyboard |
| Overlays | — | UMD, Audio meter, Timecode, Input resolution (OSD), Border, Audio alarm | — | UMD (11 characters), Audio meter, Input information (OSD), Border |
| Other | ||||
| Warranty | — | — | — | 3 years limited |
