Key Features

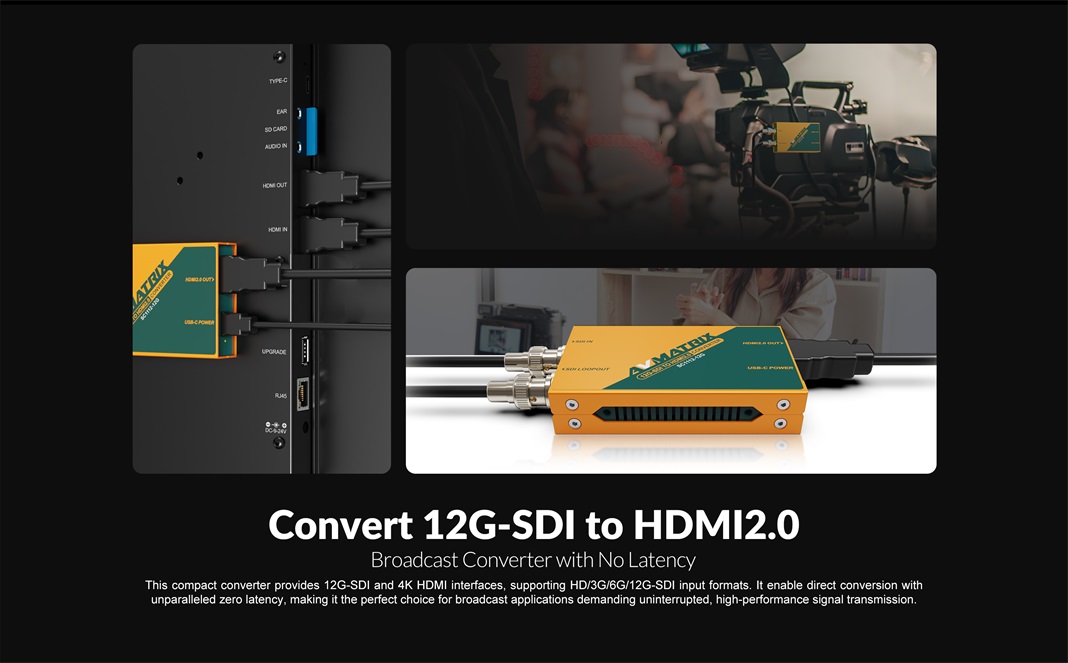

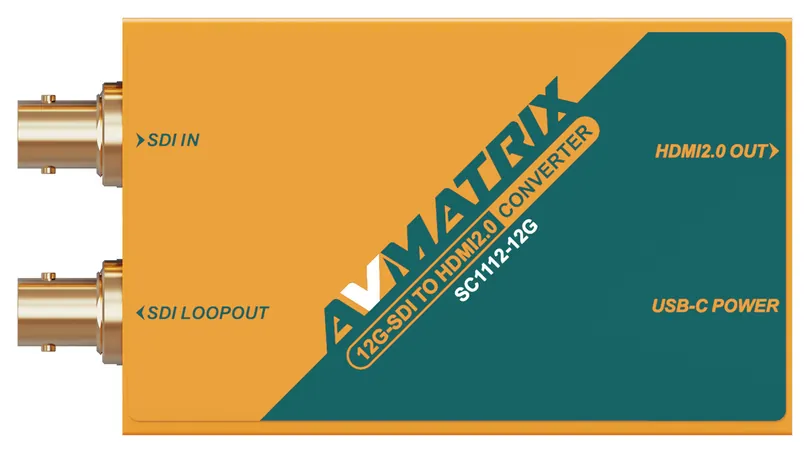

- 12G-SDI to HDMI 2.0 4K broadcast converter: 1x HD/3G/6G/12G-SDI BNC in, 1x SDI loop out, 1x HDMI 2.0 type A out
- Auto-detects HD, 3G, 6G, and 12G-SDI Level A/B on input up to 4K60
- SDI: YCbCr 4:2:2 10-bit; HDMI: RGB 4:4:4 8-bit, YCbCr 4:2:2 8/10/12-bit, YCbCr 4:4:4 8-bit; CTA-861-G compliant
- SDI formats through 12G 4K60 and 6G 4K30; HDMI output through 4K60 and HD 1080p/i and 720p

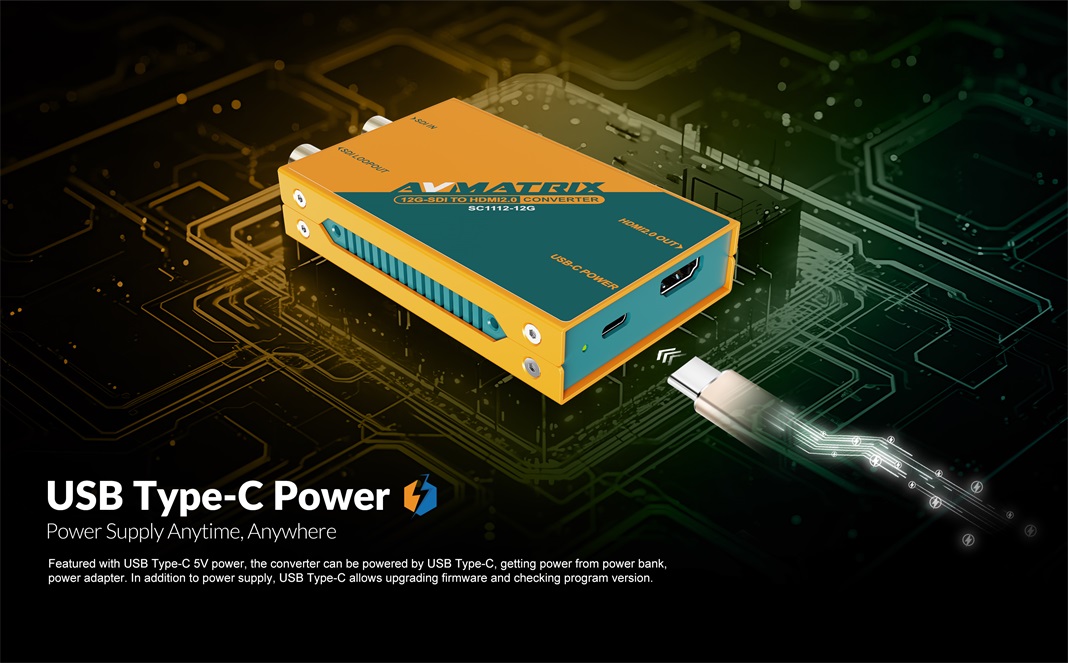

- USB Type-C power (5 V), 4.5 W; 5V 2A power adapter and USB 2.0 A-C cable included
- 107.6 x 58 x 19 mm, 235 g; 0°C to 60°C operating, 3 year limited warranty
Buy the SC1112-12G From an Authorised Reseller
Lilliput's authorised broadcast resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the SC1112-12G now, or if your country is not listed, browse all authorised resellers here.
- Camera World Limited Opens in a new tab.
- E-MOTION CREATIONS di Pierfrancesco Armati Opens in a new tab.
- RCB Logic Limited Opens in a new tab.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data

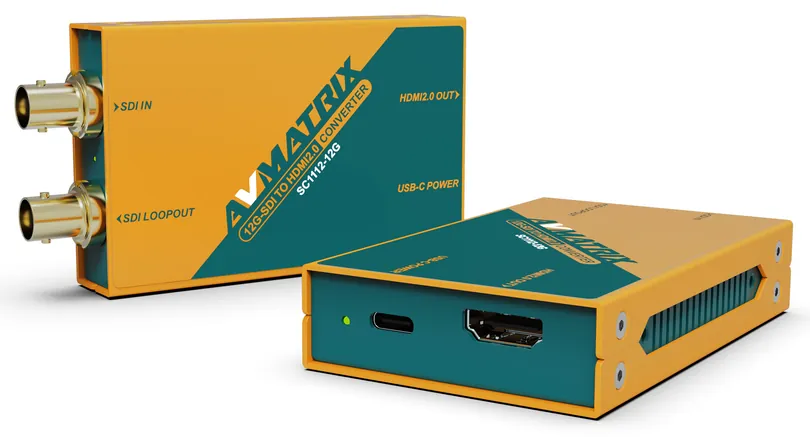

Connections

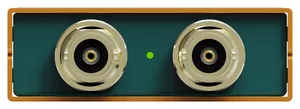

- Video inputs

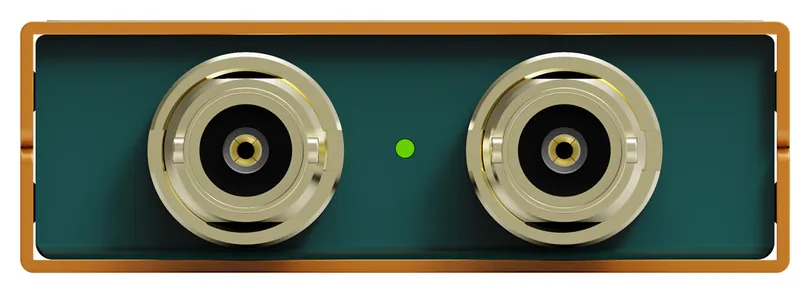

- 1x HD/3G/6G/12G-SDI (75Ω BNC)

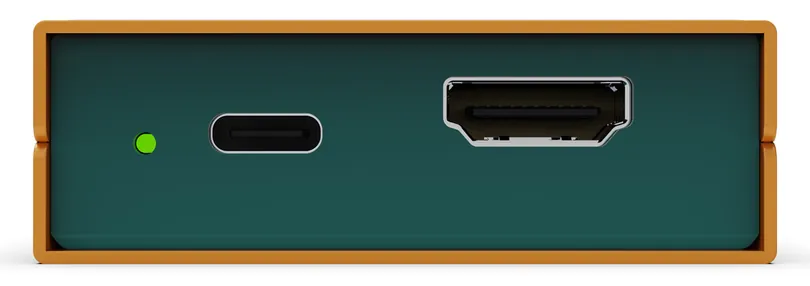

- Video outputs

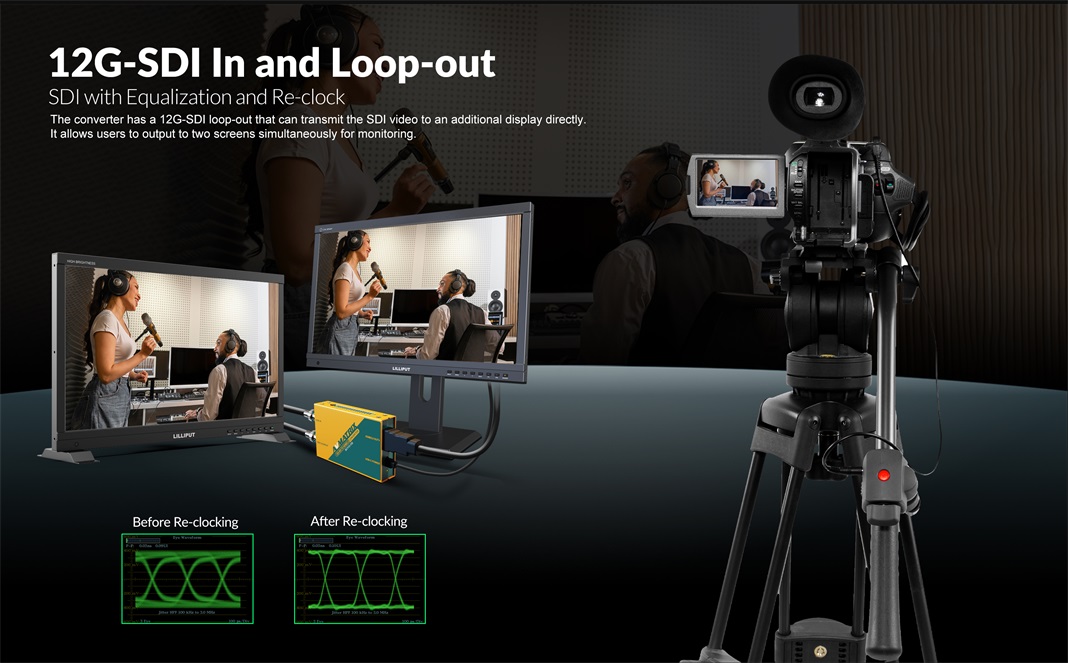

- 1x HD/3G/6G/12G-SDI loop out (75Ω BNC), 1x HDMI 2.0 type A
- Power input
- 1x USB Type-C (5 V)
Video Standards
- 12G-SDI
- 2160p 23.98/24/25/29.97/30, 4096 x 2160 23.98/24/25/29.97/30, 2160p 50/59.94/60, 4096 x 2160 50/59.94/60
- 3G-SDI
- 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60
- HDMI
- 2160p 23.98/24/25/29.97/30/50/59.94/60, 4096 x 2160 23.98/24/25/29.97/30/50/59.94/60, 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 47.95/48/50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60
- 3G-SDI compliance
- SMPTE ST-2081, SMPTE ST-2082, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 274M, SMPTE 425M
- HDMI compliance
- CTA-861-G
- Colour space
- YCbCr 4:2:2 10-bit (SDI); RGB 4:4:4 8-bit, YCbCr 4:2:2 8/10/12-bit, YCbCr 4:4:4 8-bit (HDMI)
- Format auto-detection
- Auto-detects HD, 3G, 6G, and 12G-SDI Level A/B on input
Power
- Input voltage
- 5 V USB Type-C
- Power consumption
- 4.5 W (5 V, 0.9 A)
Environmental
- Operating temperature
- 0°C to 60°C
- Storage temperature
- -20°C to 70°C
- Relative humidity
- 0% to 90% non-condensing
Mechanical
- Dimensions
- 107.6 x 58 x 19 mm
- Weight
- 235 g
Other
- Warranty
- 3 years limited
Accessories
Included
- 5V 2A Power Adapter
- USB 2.0 A-C Cable
Optional
- Detachable mounting bracket
Product Downloads
Similar Products
Compare key technical data across similar products.
| Technical Data | SC1112-12G | SC1221-12G | SC1112 | SC1221 | SC2030 | SC2040 | SD1121-12G | FE1121-12G |
|---|---|---|---|---|---|---|---|---|
| Connections | ||||||||
| Video inputs | 1x HD/3G/6G/12G-SDI (75Ω BNC) | 1x HDMI 2.0 type A | 1x SD/HD/3G-SDI (75Ω BNC) | 1x HDMI type A | 1x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A | 1x HDMI type A, 1x SD/HD/3G-SDI (75Ω BNC) or 1x SFP fiber (select 1 of 2) | 1x SD/HD/3G/6G/12G-SDI (BNC) | 1x SD/HD/3G/6G/12G-SDI/ASI (75Ω BNC, transmitter) |
| Video outputs | 1x HD/3G/6G/12G-SDI loop out (75Ω BNC), 1x HDMI 2.0 type A | 2x HD/3G/6G/12G-SDI (75Ω BNC), 1x HDMI 2.0 type A loop out | 1x SD/HD/3G-SDI loop out (75Ω BNC), 1x HDMI type A | 2x SD/HD/3G-SDI (75Ω BNC) | 2x SD/HD/3G-SDI (75Ω BNC), 1x HDMI type A | 1x HDMI loop out, 1x HDMI type A, 1x SD/HD/3G-SDI loop out, 2x SD/HD/3G-SDI (75Ω BNC), 1x SFP fiber | 2x SD/HD/3G/6G/12G-SDI/DVB-ASI (BNC) | 1x SD/HD/3G/6G/12G-SDI/ASI loop out (transmitter); 2x SD/HD/3G/6G/12G-SDI/ASI (75Ω BNC, receiver) |
| Power input | 1x USB Type-C (5 V) | 1x USB Type-C (5 V) | 1x USB Type-C (3.3 to 5 V) | 1x USB Type-C (3.3 to 5 V) | 2x DC threaded locking connector (6 to 23 V), 1x Micro USB (3.3 to 5 V) | 1x DC threaded locking connector (9 to 24 V), 1x USB Type-C (5 V; upgrade, power and control) | 1x USB Type-C (5 V) | 1x USB Type-C per unit (transmitter and receiver) |
| Audio | — | — | — | — | 1x 3.5 mm analog audio in | 1x 3.5 mm analog audio in, 1x 3.5 mm analog audio out | SDI embedded audio and ancillary data pass-through | SDI embedded audio and ancillary data pass-through (32/16 channels) |
| Fiber interface | — | — | — | — | — | 1x SFP module slot (optional 3G video SFP, MSA Type), Bidirectional fiber I/O; up to 20 km | — | Transmitter: 1x SFP module (LC, single-mode fiber out), Receiver: 1x SFP module (LC, single-mode fiber in), Hot-pluggable SFP module, LC connector, Single-mode fiber, 1310 nm wavelength, Max. bandwidth 12 Gbps, Optical transmit power -4 dBm; receiver sensitivity -12 dBm |
| Video Standards | ||||||||
| 12G-SDI | 2160p 23.98/24/25/29.97/30, 4096 x 2160 23.98/24/25/29.97/30, 2160p 50/59.94/60, 4096 x 2160 50/59.94/60 | 2160p 23.98/24/25/29.97/30, 4096 x 2160 23.98/24/25/29.97/30, 2160p 50/59.94/60, 4096 x 2160 50/59.94/60 | — | — | — | — | 2160p 23.98/24/25/29.97/30, 4096 x 2160 23.98/24/25/29.97/30, 2160p 47.95/48/50/59.94/60, 4096 x 2160 47.95/48/50/59.94/60, 1080p 47.95/48/50/59.94/60, 2048 x 1080p 47.95/48/50/59.94/60 | 2160p 23.98/24/25/29.97/30, 4096 x 2160 23.98/24/25/29.97/30, 2160p 47.95/48/50/59.94/60, 4096 x 2160 47.95/48/50/59.94/60, 1080p 47.95/48/50/59.94/60, 2048 x 1080p 47.95/48/50/59.94/60 |
| 3G-SDI | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60 | 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 2048 x 1080p 23.98/24/25/29.97/30, 2048 x 1080pSF 23.98/24/25/29.97/30, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 2048 x 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 2048 x 1080p 23.98/24/25/29.97/30, 2048 x 1080pSF 23.98/24/25/29.97/30, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 2048 x 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 |
| HDMI | 2160p 23.98/24/25/29.97/30/50/59.94/60, 4096 x 2160 23.98/24/25/29.97/30/50/59.94/60, 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 47.95/48/50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60 | 2160p 23.98/24/25/29.97/30/50/59.94/60, 4096 x 2160 23.98/24/25/29.97/30/50/59.94/60, 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 576i 50, 480i 59.94 | 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60, 576i 50, 480i 59.94/60 | 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576p 50, 576i 50, 480i 59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94 | — | — |
| 3G-SDI compliance | SMPTE ST-2081, SMPTE ST-2082, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 274M, SMPTE 425M | SMPTE ST-2081, SMPTE ST-2082, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 274M, SMPTE 425M | SMPTE 259M, SMPTE 292M, SMPTE 424M | SMPTE 259M, SMPTE 292M, SMPTE 424M | 3G Level A and Level B; SMPTE 259M, SMPTE 292M, SMPTE 424M | 3G Level A and Level B | SMPTE ST-2081, SMPTE ST-2082, SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 274M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, DVB-ASI | SMPTE ST-2081, SMPTE ST-2082, SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 274M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, DVB-ASI |
| HDMI compliance | CTA-861-G | CTA-861-G | — | — | — | — | — | — |
| Colour space | YCbCr 4:2:2 10-bit (SDI); RGB 4:4:4 8-bit, YCbCr 4:2:2 8/10/12-bit, YCbCr 4:4:4 8-bit (HDMI) | RGB 4:4:4 8-bit, YCbCr 4:2:2 8/10/12-bit, YCbCr 4:4:4 8-bit, YCbCr 4:2:0 8/10/12-bit (HDMI input); YCbCr 4:2:2 10-bit (SDI output) | YUV 4:2:2 (SDI and HDMI) | YUV 4:2:2/4:4:4 and RGB 4:4:4 (HDMI input); YUV 4:2:2 (SDI output) | YUV 4:2:2 (SDI); RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 (HDMI input) | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2 (HDMI output) | RGB 4:4:4 10/12-bit; YUV 4:2:2/4:4:4 10/12-bit; XYZ 4:4:4 12-bit | YUV; RGB |
| Format auto-detection | Auto-detects HD, 3G, 6G, and 12G-SDI Level A/B on input | — | Auto-detects SD, HD, and 3G-SDI Level A/B on input | — | — | — | Auto-detects SD, HD, 3G, 6G, and 12G-SDI; DVB-ASI compatible | Auto-detects SD, HD, 3G, 6G, and 12G-SDI/ASI on input |
| SDI output rate | — | HD/3G/6G/12G-SDI selectable | — | SD/HD/3G-SDI selectable | SD/HD/3G-SDI | SD/HD/3G-SDI | — | — |
| SFP | — | — | — | — | — | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 576i 50, 480i 59.94, 576p 50, 480p 59.94 | — | 2160p 23.98/24/25/29.97/30, 4096 x 2160 23.98/24/25/29.97/30, 2160p 47.95/48/50/59.94/60, 4096 x 2160 47.95/48/50/59.94/60, 1080p 47.95/48/50/59.94/60, 2048 x 1080p 47.95/48/50/59.94/60 |
| Max fiber distance | — | — | — | — | — | 20 km (optional SFP) | — | 10 km (6.2 miles) at 12G (4K60P), single-mode |
| Cable equalization (max cable) | — | — | — | — | — | — | SD 400 m, HD 200 m, 3G 120 m, 12G 60 m | 12G-SDI up to 60 m per SDI input/output link; 3G-SDI up to 100 m |
| Optical fiber compliance | — | — | — | — | — | — | — | SMPTE 297M |
| Operational Features | ||||||||
| Cross conversion | — | — | — | — | SDI → HDMI or HDMI → SDI (selectable input); up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60 | Bidirectional SDI ↔ HDMI ↔ fiber (selectable sources); up/down scaling and frame rate conversion; selectable output through 1080p60, 1080i60, and 720p60 | — | — |
| Scaler | — | — | — | — | Up/down scaling with selectable SDI/HDMI output formats through 1080p60 | Up/down scaling with selectable SDI/HDMI output formats through 1080p60 | — | — |
| Frame rate conversion | — | — | — | — | Yes — via selectable output format (up/down scaling and frame rate conversion) | Yes — via selectable output format (up/down scaling and frame rate conversion) | — | — |
| Aspect ratio conversion | — | — | — | — | SD up-conversion aspect via DIP switches | SD/HD aspect conversion (anamorphic, letterbox, pillarbox, zoom) | — | — |
| SDI distribution | — | — | — | — | 1 in, 2 out | 1 in, 3 out (loop + 2x SDI out) | — | — |
| Audio embedding | — | — | — | — | 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio | 1x 3.5 mm analog audio in, or pass-through from SDI/HDMI embedded audio | — | — |
| DIP switches | — | — | — | — | 4x for output control | — | — | — |
| Remote control | — | — | — | — | PC software via Micro USB | PC software via USB Type-C | — | — |
| Front panel control | — | — | — | — | 4x DIP switches; PC software via Micro USB | LCD status display with 4 buttons; PC software via USB Type-C | — | — |
| Image mirroring | — | — | — | — | — | Horizontal, vertical, and horizontal+vertical flip on SDI and HDMI outputs | — | — |
| HDMI fibre extender | — | — | — | — | — | TX and RX (SFP optional) | — | — |
| SDI fibre extender | — | — | — | — | — | TX and RX (SFP optional) | — | — |
| Audio de-embedding | — | — | — | — | — | 1x 3.5 mm analog audio out | — | — |
| Audio pair rearrangement | — | — | — | — | — | Yes — HDMI (4 stereo pairs) and SDI (8 stereo pairs) output remapping | — | — |
| Test pattern generator | — | — | — | — | — | 23 professional test patterns and audio tones | — | — |
| Frame counter and circle overlay | — | — | — | — | — | Dynamic circle and frame-count overlays on test pattern output | — | — |
| Menu control | — | — | — | — | — | LCD status display with 4 buttons | — | — |
| Power | ||||||||
| Input voltage | 5 V USB Type-C | 5 V USB Type-C | DC 3.3 to 5 V USB Type-C | DC 3.3 to 5 V USB Type-C | USB 3.3 to 5 V; DC 6 to 23 V | USB-C 5 V; DC 9 to 24 V | 5 V USB Type-C | DC 3.3 to 5 V USB Type-C (per unit) |
| Power consumption | 4.5 W (5 V, 0.9 A) | 6.5 W (5 V, 1.3 A) | 1.5 W | 2 W | 4 W | 7 W | 1 W | 1.5 W (transmitter), 1.5 W (receiver) |
| Environmental | ||||||||
| Operating temperature | 0°C to 60°C | 0°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | 0°C to 60°C |
| Storage temperature | -20°C to 70°C | -20°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -10°C to 70°C |
| Relative humidity | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | — | 0% to 90% non-condensing | 0% to 90% non-condensing |
| Mechanical | ||||||||
| Dimensions | 107.6 x 58 x 19 mm | 107.6 x 58 x 19 mm | 71 x 41 x 23 mm | 71 x 41 x 23 mm | 125.5 x 104 x 24.5 mm | 104 x 125.5 x 24.5 mm | 105.5 x 41 x 23 mm | 71 x 41 x 23 mm (per unit) |
| Weight | 235 g | 235 g | 168 g | 168 g | 485 g | 517 g | 156 g | 200 g (transmitter) / 200 g (receiver) |
| Mounting | ||||||||
| Wall mount | — | — | Detachable mounting bracket included | Detachable mounting bracket included | Detachable mounting brackets included | Mounting bracket (optional) | Detachable wall mounting bracket included | — |
| Other | ||||||||
| Warranty | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited |
