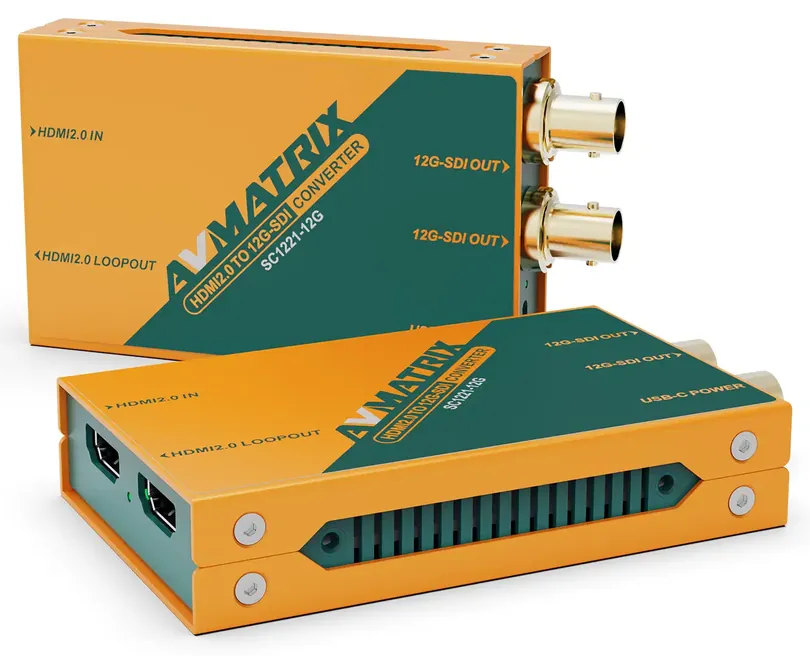

Key Features

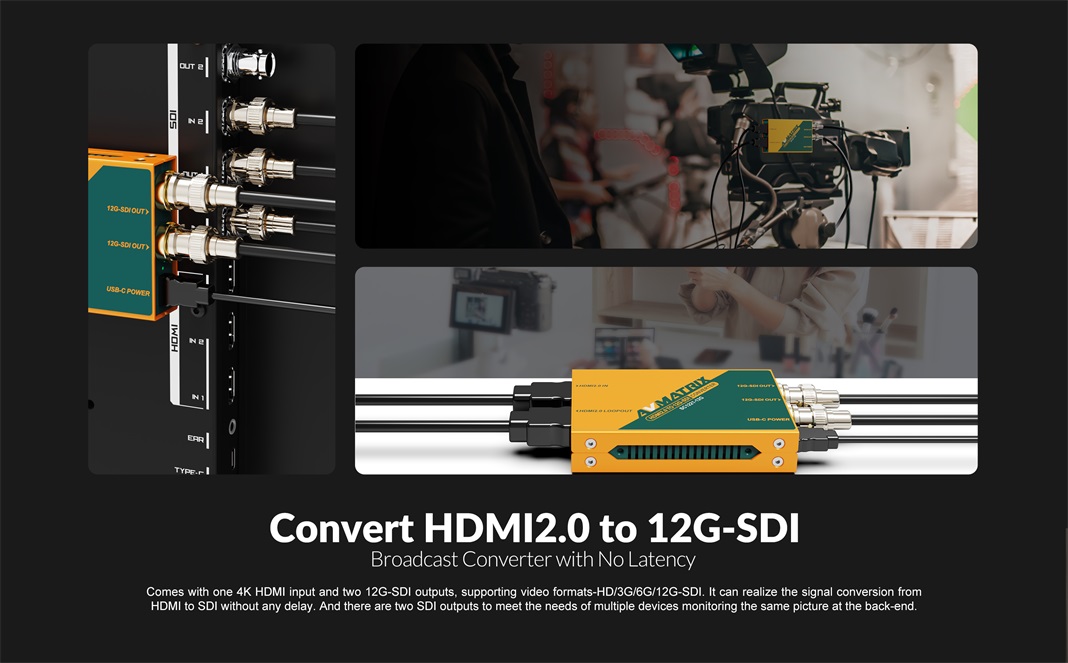

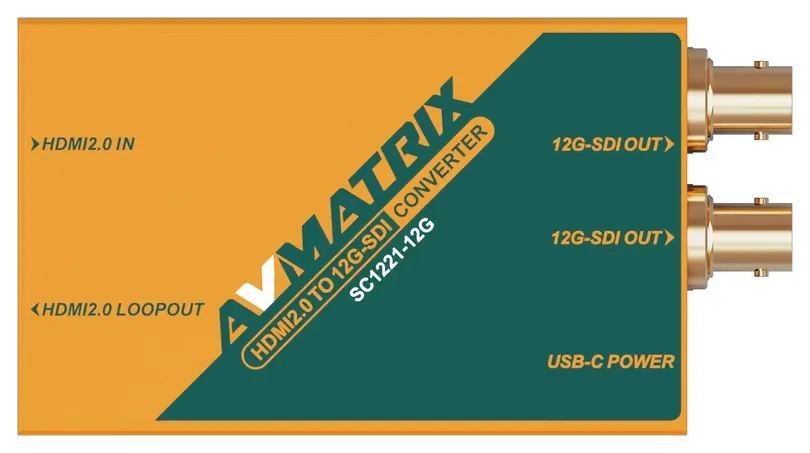

- HDMI 2.0 to 12G-SDI 4K broadcast converter: 1x HDMI 2.0 type A in, 1x HDMI 2.0 loop out, 2x HD/3G/6G/12G-SDI BNC out
- Converts 4K60 HDMI to professional 12G-SDI; selectable HD/3G/6G/12G-SDI output rate
- HDMI input: RGB 4:4:4 8-bit, YCbCr 4:2:2 8/10/12-bit, YCbCr 4:4:4 8-bit, YCbCr 4:2:0 8/10/12-bit (4K/HD); CTA-861-G compliant
- SDI output: YCbCr 4:2:2 10-bit; formats through 12G 4K60 and 6G 4K30, plus HD 1080p/i and 720p
- USB Type-C power (5 V), 6.5 W; 5V 2A power adapter and USB 2.0 A-C cable included
- 107.6 x 58 x 19 mm, 235 g; 0°C to 60°C operating, 3 year limited warranty
Buy the SC1221-12G From an Authorised Reseller
Lilliput's authorised broadcast resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the SC1221-12G now, or if your country is not listed, browse all authorised resellers here.
- Camera World Limited Opens in a new tab.
- E-MOTION CREATIONS di Pierfrancesco Armati Opens in a new tab.
- RCB Logic Limited Opens in a new tab.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data
Connections
- Video inputs

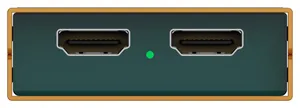

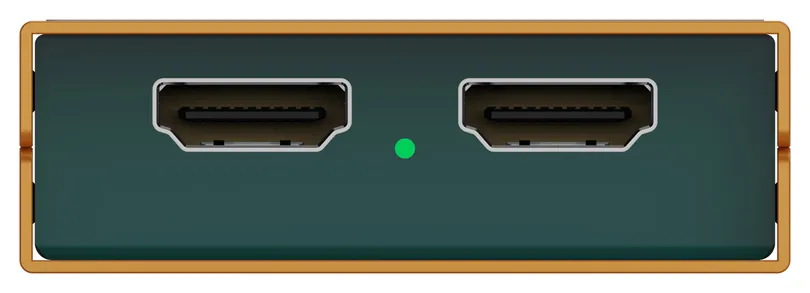

- 1x HDMI 2.0 type A
- Video outputs

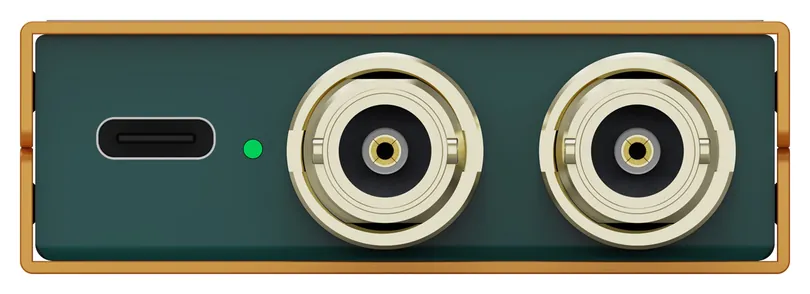

- 2x HD/3G/6G/12G-SDI (75Ω BNC), 1x HDMI 2.0 type A loop out
- Power input
- 1x USB Type-C (5 V)
Video Standards
- HDMI
- 2160p 23.98/24/25/29.97/30/50/59.94/60, 4096 x 2160 23.98/24/25/29.97/30/50/59.94/60, 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60
- 12G-SDI
- 2160p 23.98/24/25/29.97/30, 4096 x 2160 23.98/24/25/29.97/30, 2160p 50/59.94/60, 4096 x 2160 50/59.94/60
- 3G-SDI
- 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60
- 3G-SDI compliance
- SMPTE ST-2081, SMPTE ST-2082, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 274M, SMPTE 425M
- HDMI compliance
- CTA-861-G
- Colour space
- RGB 4:4:4 8-bit, YCbCr 4:2:2 8/10/12-bit, YCbCr 4:4:4 8-bit, YCbCr 4:2:0 8/10/12-bit (HDMI input); YCbCr 4:2:2 10-bit (SDI output)
- SDI output rate
- HD/3G/6G/12G-SDI selectable
Power
- Input voltage
- 5 V USB Type-C
- Power consumption
- 6.5 W (5 V, 1.3 A)
Environmental
- Operating temperature
- 0°C to 60°C
- Storage temperature
- -20°C to 70°C
- Relative humidity
- 0% to 90% non-condensing
Mechanical
- Dimensions
- 107.6 x 58 x 19 mm
- Weight
- 235 g
Other
- Warranty
- 3 years limited
Accessories
Included
- 5V 2A Power Adapter
- USB 2.0 A-C Cable
Optional
- Detachable mounting bracket
Product Downloads
Similar Products
Compare key technical data across similar products.
| Technical Data | SC1221-12G | SC1112-12G | SC1221 | SC1112 | SD1121-12G | FE1121-12G |
|---|---|---|---|---|---|---|
| Mechanical | ||||||
| Dimensions | 107.6 x 58 x 19 mm | 107.6 x 58 x 19 mm | 71 x 41 x 23 mm | 71 x 41 x 23 mm | 105.5 x 41 x 23 mm | 71 x 41 x 23 mm (per unit) |
| Weight | 235 g | 235 g | 168 g | 168 g | 156 g | 200 g (transmitter) / 200 g (receiver) |
| Connections | ||||||
| Video inputs | 1x HDMI 2.0 type A | 1x HD/3G/6G/12G-SDI (75Ω BNC) | 1x HDMI type A | 1x SD/HD/3G-SDI (75Ω BNC) | 1x SD/HD/3G/6G/12G-SDI (BNC) | 1x SD/HD/3G/6G/12G-SDI/ASI (75Ω BNC, transmitter) |
| Video outputs | 2x HD/3G/6G/12G-SDI (75Ω BNC), 1x HDMI 2.0 type A loop out | 1x HD/3G/6G/12G-SDI loop out (75Ω BNC), 1x HDMI 2.0 type A | 2x SD/HD/3G-SDI (75Ω BNC) | 1x SD/HD/3G-SDI loop out (75Ω BNC), 1x HDMI type A | 2x SD/HD/3G/6G/12G-SDI/DVB-ASI (BNC) | 1x SD/HD/3G/6G/12G-SDI/ASI loop out (transmitter); 2x SD/HD/3G/6G/12G-SDI/ASI (75Ω BNC, receiver) |
| Audio | — | — | — | — | SDI embedded audio and ancillary data pass-through | SDI embedded audio and ancillary data pass-through (32/16 channels) |
| Fiber interface | — | — | — | — | — | Transmitter: 1x SFP module (LC, single-mode fiber out), Receiver: 1x SFP module (LC, single-mode fiber in), Hot-pluggable SFP module, LC connector, Single-mode fiber, 1310 nm wavelength, Max. bandwidth 12 Gbps, Optical transmit power -4 dBm; receiver sensitivity -12 dBm |
| Power input | 1x USB Type-C (5 V) | 1x USB Type-C (5 V) | 1x USB Type-C (3.3 to 5 V) | 1x USB Type-C (3.3 to 5 V) | 1x USB Type-C (5 V) | 1x USB Type-C per unit (transmitter and receiver) |
| Video Standards | ||||||
| 12G-SDI | 2160p 23.98/24/25/29.97/30, 4096 x 2160 23.98/24/25/29.97/30, 2160p 50/59.94/60, 4096 x 2160 50/59.94/60 | 2160p 23.98/24/25/29.97/30, 4096 x 2160 23.98/24/25/29.97/30, 2160p 50/59.94/60, 4096 x 2160 50/59.94/60 | — | — | 2160p 23.98/24/25/29.97/30, 4096 x 2160 23.98/24/25/29.97/30, 2160p 47.95/48/50/59.94/60, 4096 x 2160 47.95/48/50/59.94/60, 1080p 47.95/48/50/59.94/60, 2048 x 1080p 47.95/48/50/59.94/60 | 2160p 23.98/24/25/29.97/30, 4096 x 2160 23.98/24/25/29.97/30, 2160p 47.95/48/50/59.94/60, 4096 x 2160 47.95/48/50/59.94/60, 1080p 47.95/48/50/59.94/60, 2048 x 1080p 47.95/48/50/59.94/60 |
| 3G-SDI | 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60 | 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 2048 x 1080p 23.98/24/25/29.97/30, 2048 x 1080pSF 23.98/24/25/29.97/30, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 2048 x 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 2048 x 1080p 23.98/24/25/29.97/30, 2048 x 1080pSF 23.98/24/25/29.97/30, 1080pSF 23.98/24/25/29.97/30, 1080i 50/59.94/60, 2048 x 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60, 625i 50, 525i 59.94 |
| 3G-SDI compliance | SMPTE ST-2081, SMPTE ST-2082, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 274M, SMPTE 425M | SMPTE ST-2081, SMPTE ST-2082, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 274M, SMPTE 425M | SMPTE 259M, SMPTE 292M, SMPTE 424M | SMPTE 259M, SMPTE 292M, SMPTE 424M | SMPTE ST-2081, SMPTE ST-2082, SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 274M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, DVB-ASI | SMPTE ST-2081, SMPTE ST-2082, SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 274M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, DVB-ASI |
| Cable equalization (max cable) | — | — | — | — | SD 400 m, HD 200 m, 3G 120 m, 12G 60 m | 12G-SDI up to 60 m per SDI input/output link; 3G-SDI up to 100 m |
| Colour space | RGB 4:4:4 8-bit, YCbCr 4:2:2 8/10/12-bit, YCbCr 4:4:4 8-bit, YCbCr 4:2:0 8/10/12-bit (HDMI input); YCbCr 4:2:2 10-bit (SDI output) | YCbCr 4:2:2 10-bit (SDI); RGB 4:4:4 8-bit, YCbCr 4:2:2 8/10/12-bit, YCbCr 4:4:4 8-bit (HDMI) | YUV 4:2:2/4:4:4 and RGB 4:4:4 (HDMI input); YUV 4:2:2 (SDI output) | YUV 4:2:2 (SDI and HDMI) | RGB 4:4:4 10/12-bit; YUV 4:2:2/4:4:4 10/12-bit; XYZ 4:4:4 12-bit | YUV; RGB |
| Format auto-detection | — | Auto-detects HD, 3G, 6G, and 12G-SDI Level A/B on input | — | Auto-detects SD, HD, and 3G-SDI Level A/B on input | Auto-detects SD, HD, 3G, 6G, and 12G-SDI; DVB-ASI compatible | Auto-detects SD, HD, 3G, 6G, and 12G-SDI/ASI on input |
| HDMI | 2160p 23.98/24/25/29.97/30/50/59.94/60, 4096 x 2160 23.98/24/25/29.97/30/50/59.94/60, 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60 | 2160p 23.98/24/25/29.97/30/50/59.94/60, 4096 x 2160 23.98/24/25/29.97/30/50/59.94/60, 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 47.95/48/50/59.94/60, 720p 23.98/24/25/29.97/30/50/59.94/60 | 1080p 23.976/23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60, 576i 50, 480i 59.94/60 | 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 25/29.97/30/50/59.94/60, 576i 50, 480i 59.94 | — | — |
| HDMI compliance | CTA-861-G | CTA-861-G | — | — | — | — |
| Max fiber distance | — | — | — | — | — | 10 km (6.2 miles) at 12G (4K60P), single-mode |
| Optical fiber compliance | — | — | — | — | — | SMPTE 297M |
| SDI output rate | HD/3G/6G/12G-SDI selectable | — | SD/HD/3G-SDI selectable | — | — | — |
| SFP | — | — | — | — | — | 2160p 23.98/24/25/29.97/30, 4096 x 2160 23.98/24/25/29.97/30, 2160p 47.95/48/50/59.94/60, 4096 x 2160 47.95/48/50/59.94/60, 1080p 47.95/48/50/59.94/60, 2048 x 1080p 47.95/48/50/59.94/60 |
| Power | ||||||
| Power consumption | 6.5 W (5 V, 1.3 A) | 4.5 W (5 V, 0.9 A) | 2 W | 1.5 W | 1 W | 1.5 W (transmitter), 1.5 W (receiver) |
| Input voltage | 5 V USB Type-C | 5 V USB Type-C | DC 3.3 to 5 V USB Type-C | DC 3.3 to 5 V USB Type-C | 5 V USB Type-C | DC 3.3 to 5 V USB Type-C (per unit) |
| Environmental | ||||||
| Operating temperature | 0°C to 60°C | 0°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | 0°C to 60°C |
| Relative humidity | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing | 0% to 90% non-condensing |
| Storage temperature | -20°C to 70°C | -20°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -10°C to 70°C |
| Accessories | ||||||
| Included | 5V 2A Power Adapter, USB 2.0 A-C Cable | 5V 2A Power Adapter, USB 2.0 A-C Cable | 5V Special Power Adapter, USB Cable, Mounting Bracket | 5V Special Power Adapter, USB Cable, Mounting Bracket | 5V USB Power Adapter, Detachable wall mounting bracket | — |
| Optional | Detachable mounting bracket | Detachable mounting bracket | — | — | — | — |
| Mounting | ||||||
| Wall mount | — | — | Detachable mounting bracket included | Detachable mounting bracket included | Detachable wall mounting bracket included | — |
| Other | ||||||
| Warranty | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited | 3 years limited |
