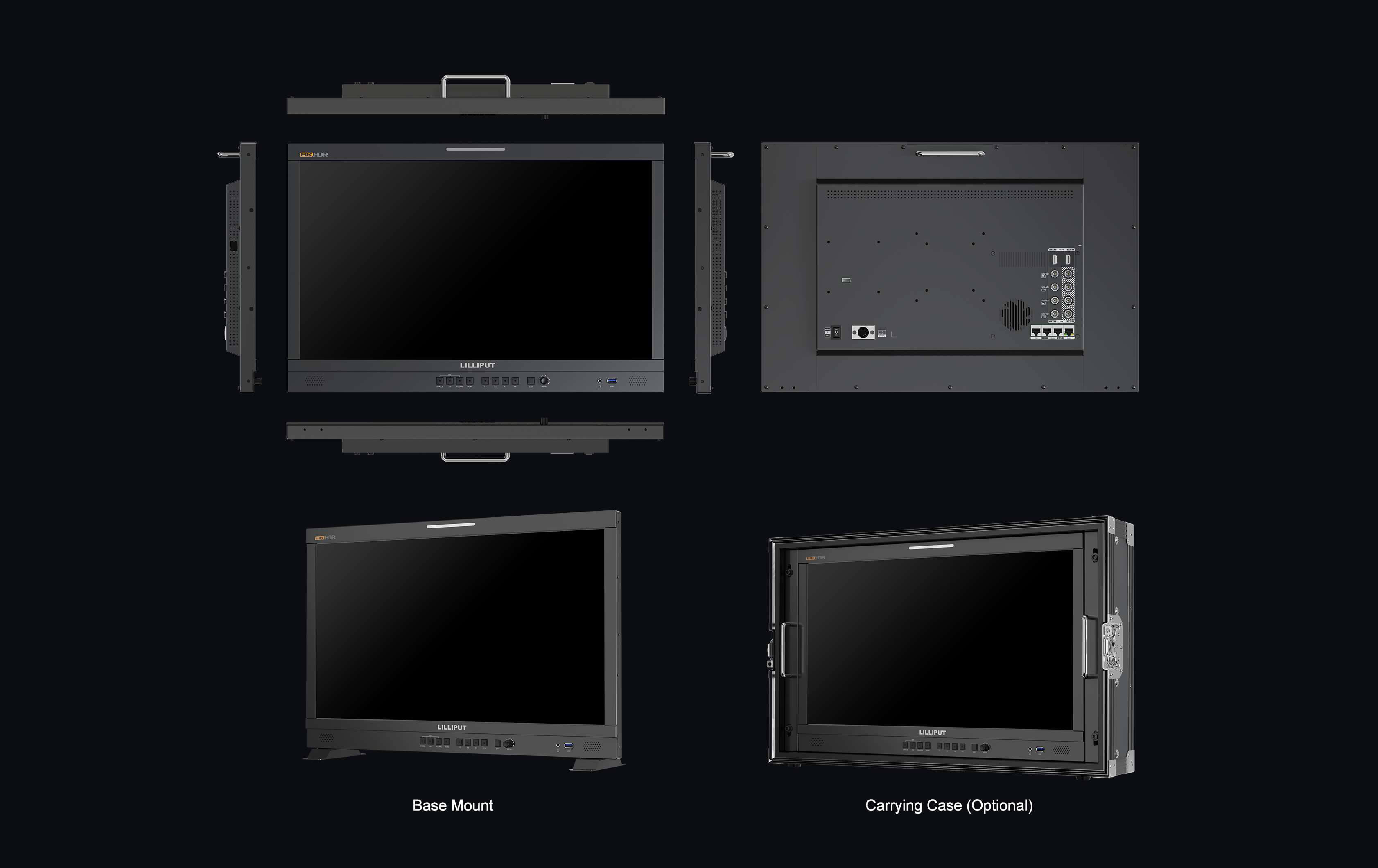

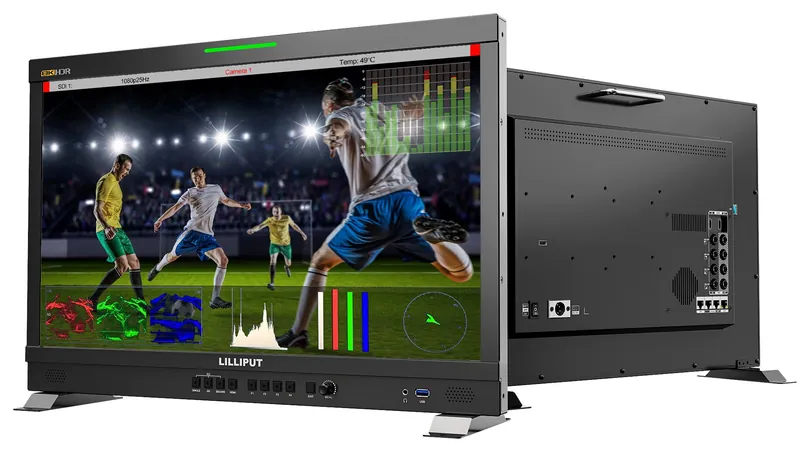

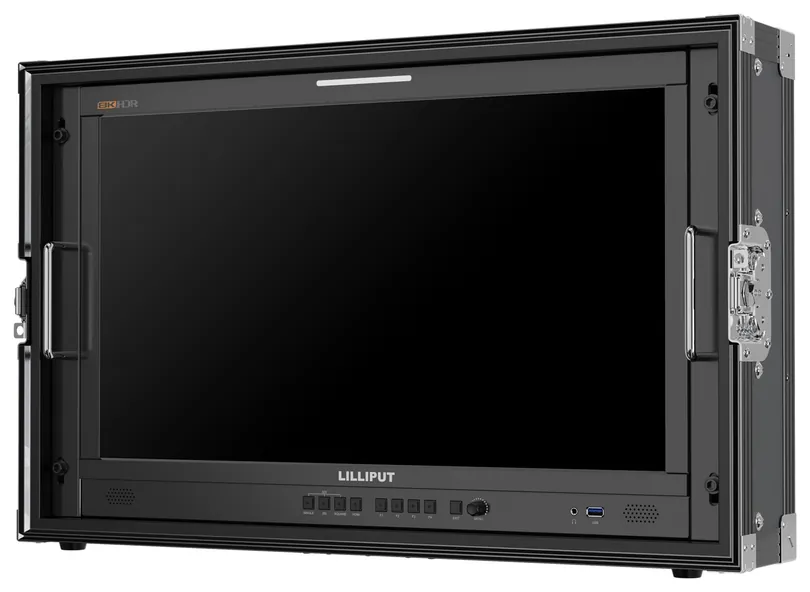

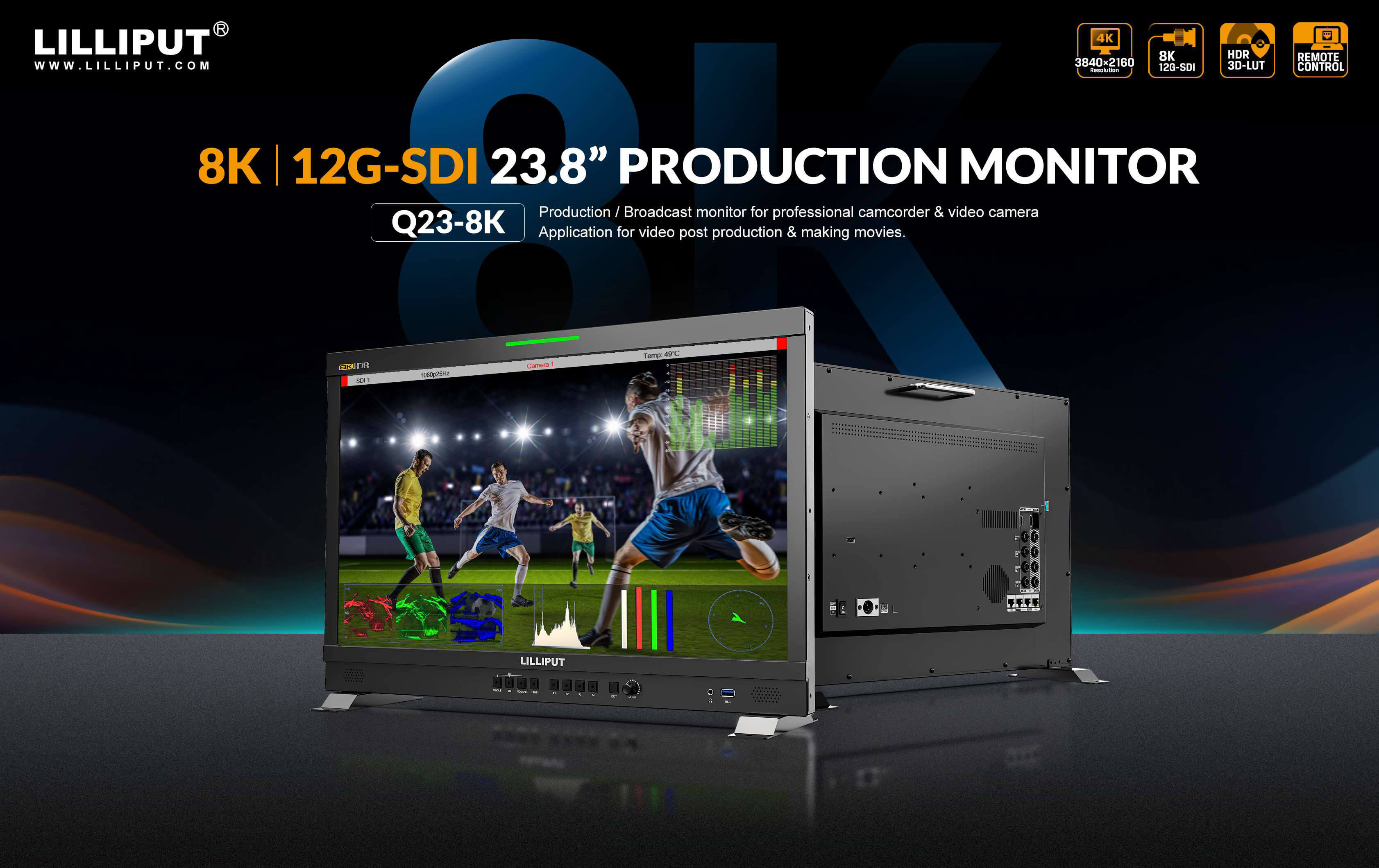

Key Features

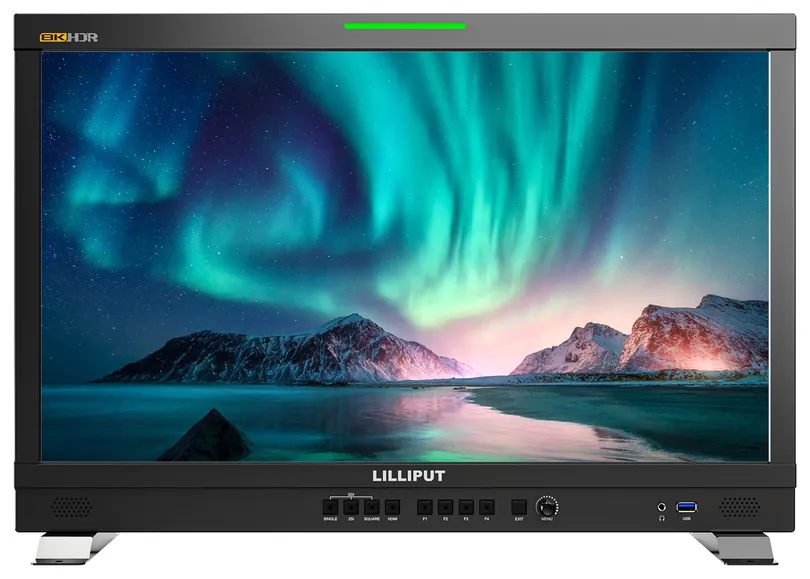

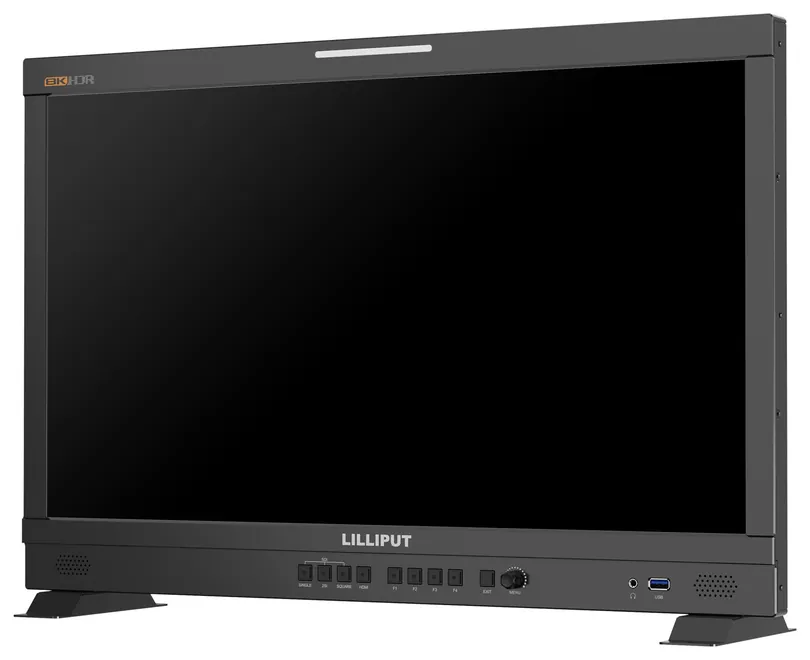

- 23.8 inch 4K display, 300 cd/m², 1000:1 contrast

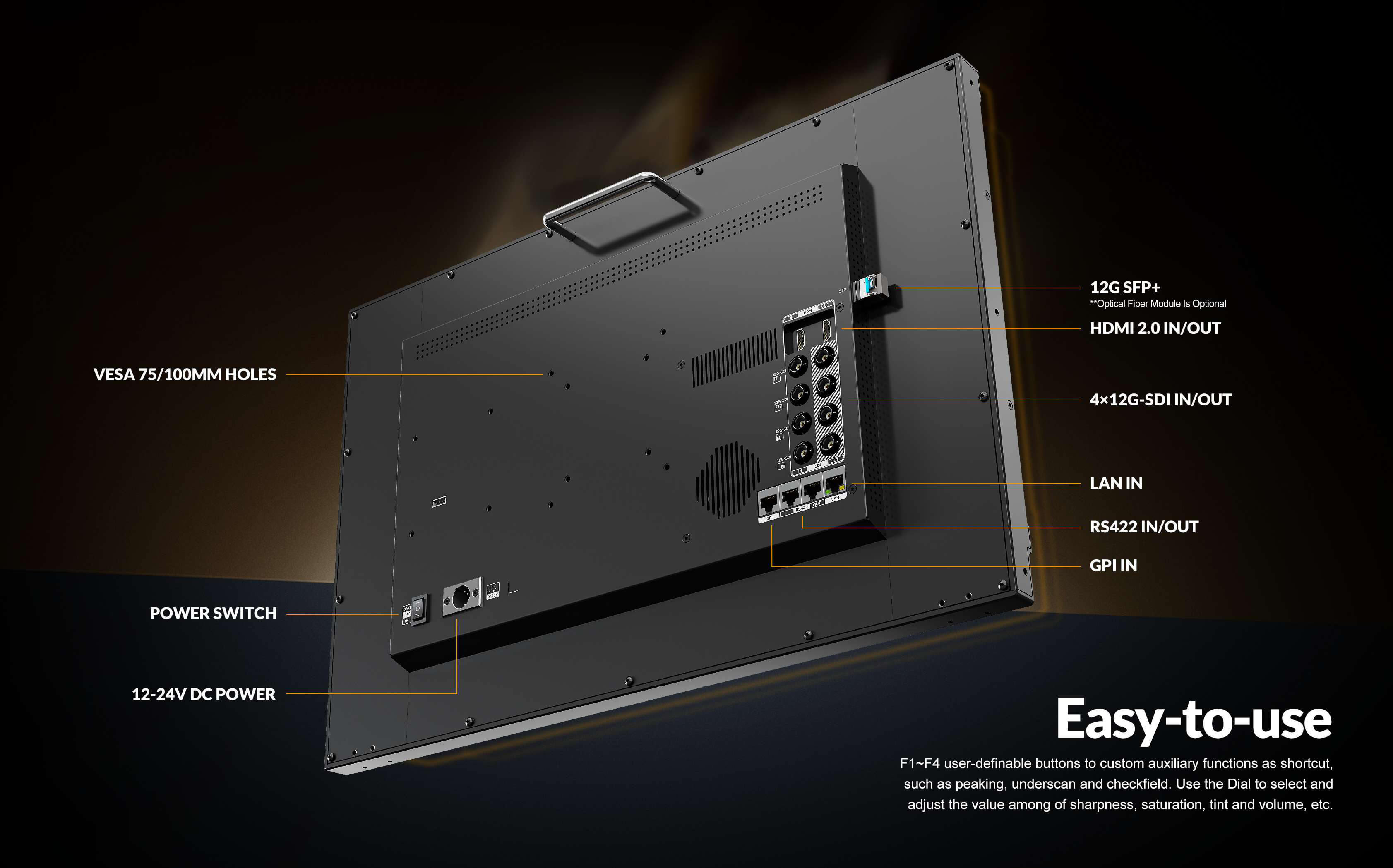

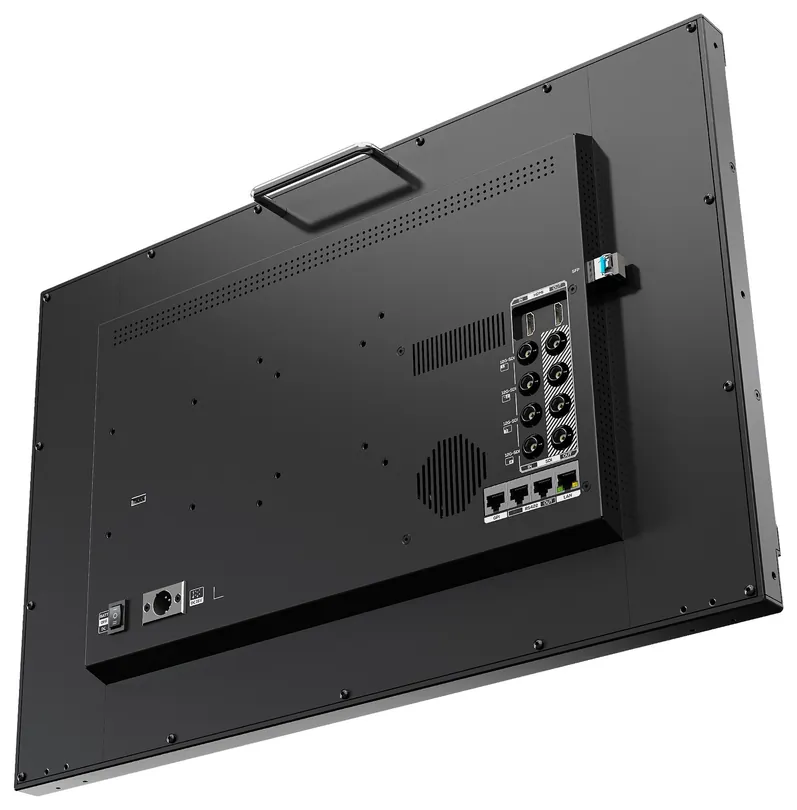

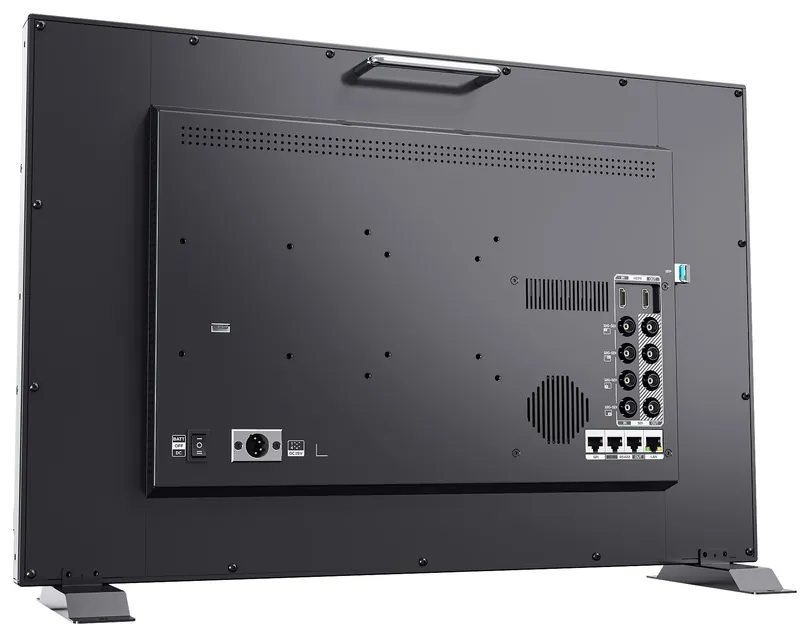

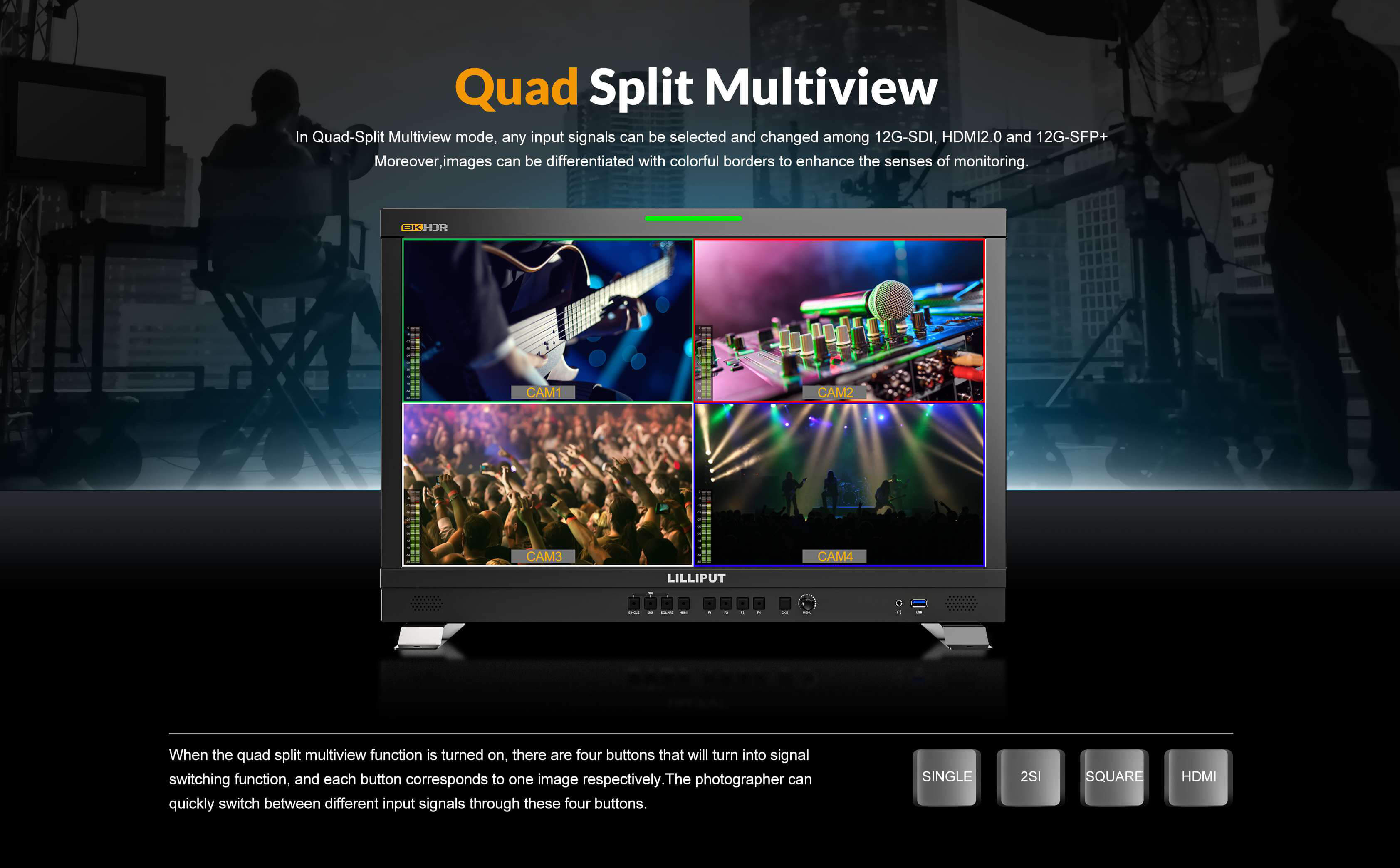

- 4x 12G-SDI (quad-link 8K), 1x 12G SFP+ (fiber optional), 1x HDMI 2.0

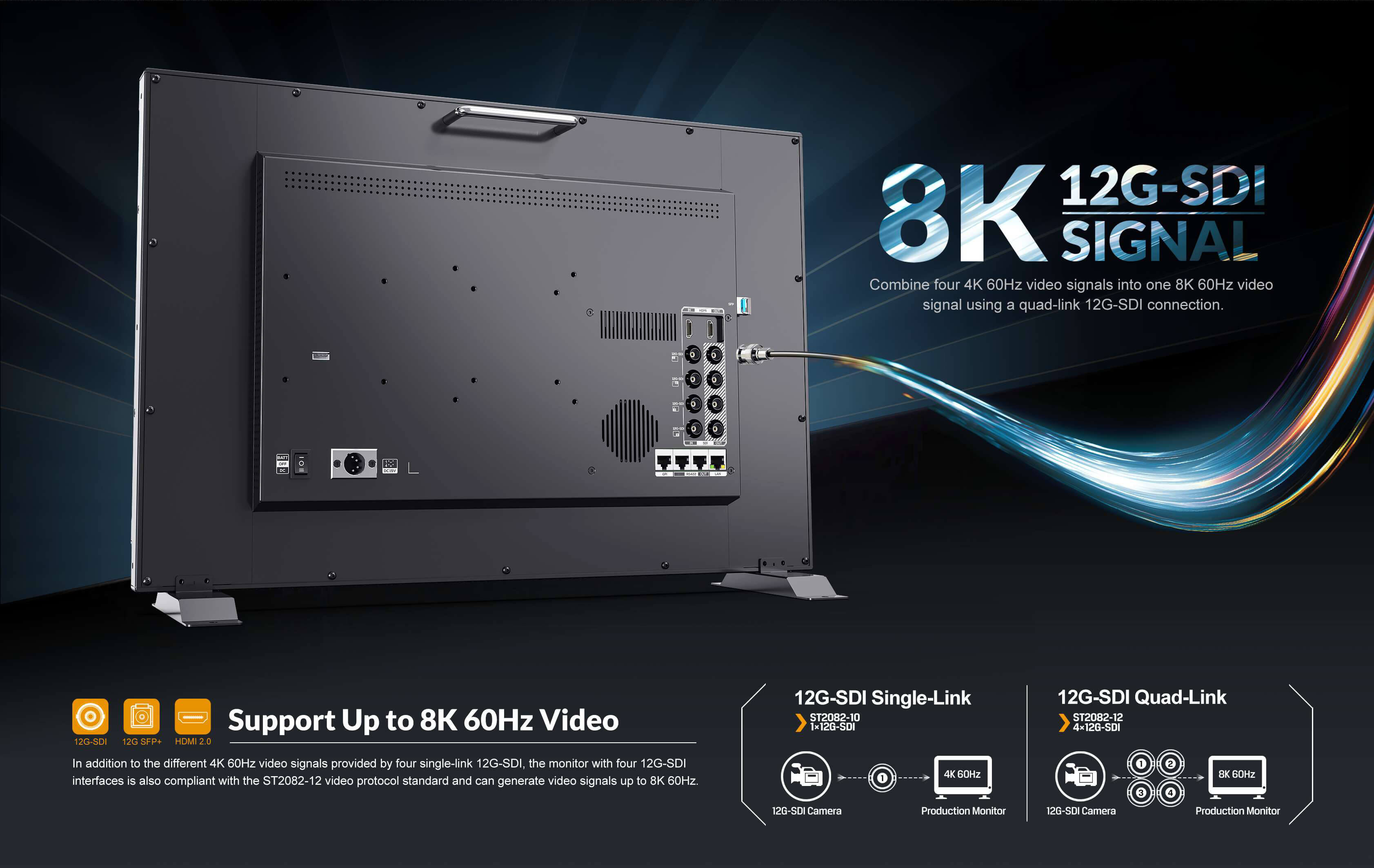

- Up to 8K 60Hz via quad-link 12G-SDI
- HDR: HLG, ST 2084 (300/1000/10000 cd/m²)
- Log formats: SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined

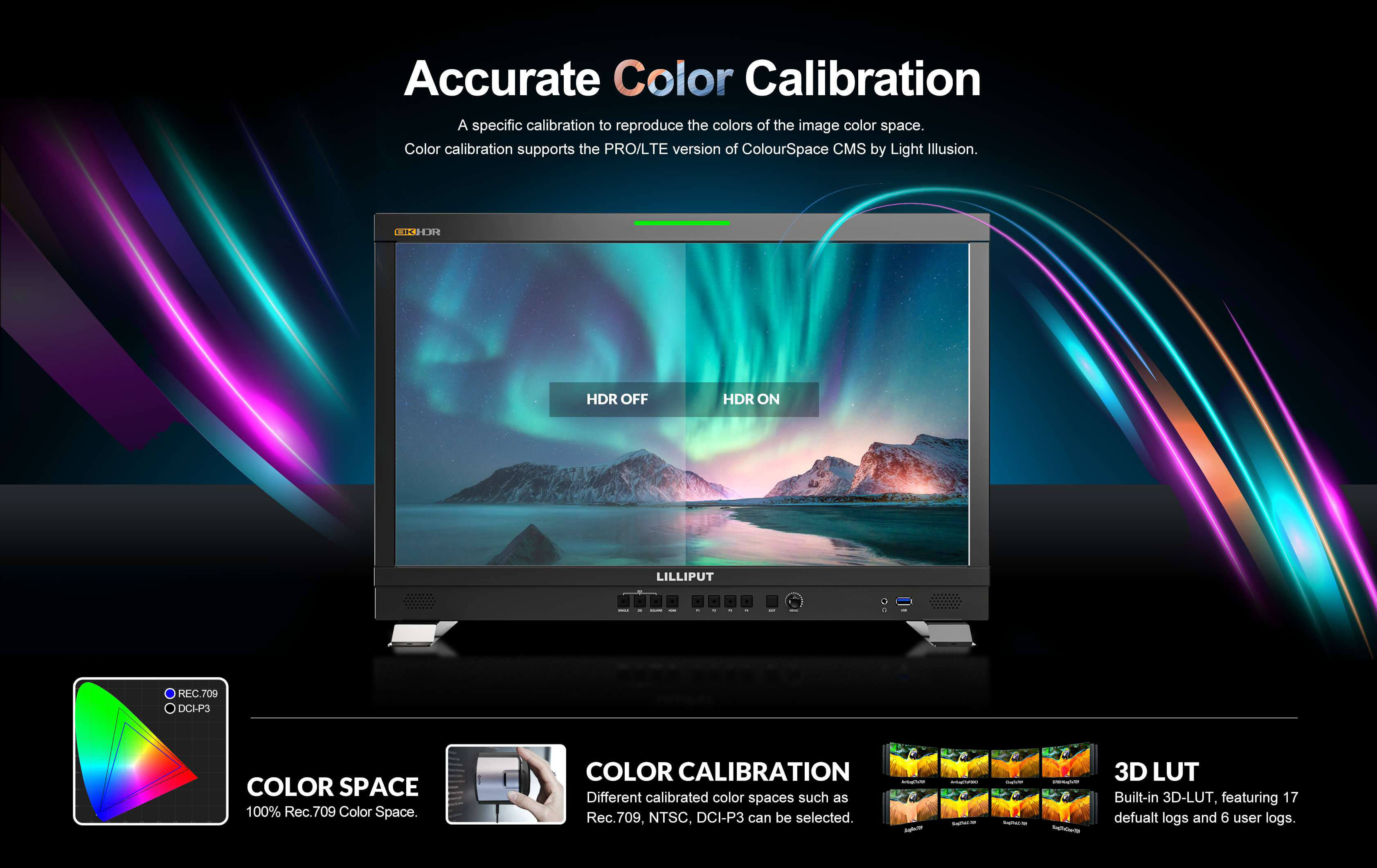

- 3D LUT (.cube format); calibration to Rec.709
- V-Lock or Anton Bauer battery compatible

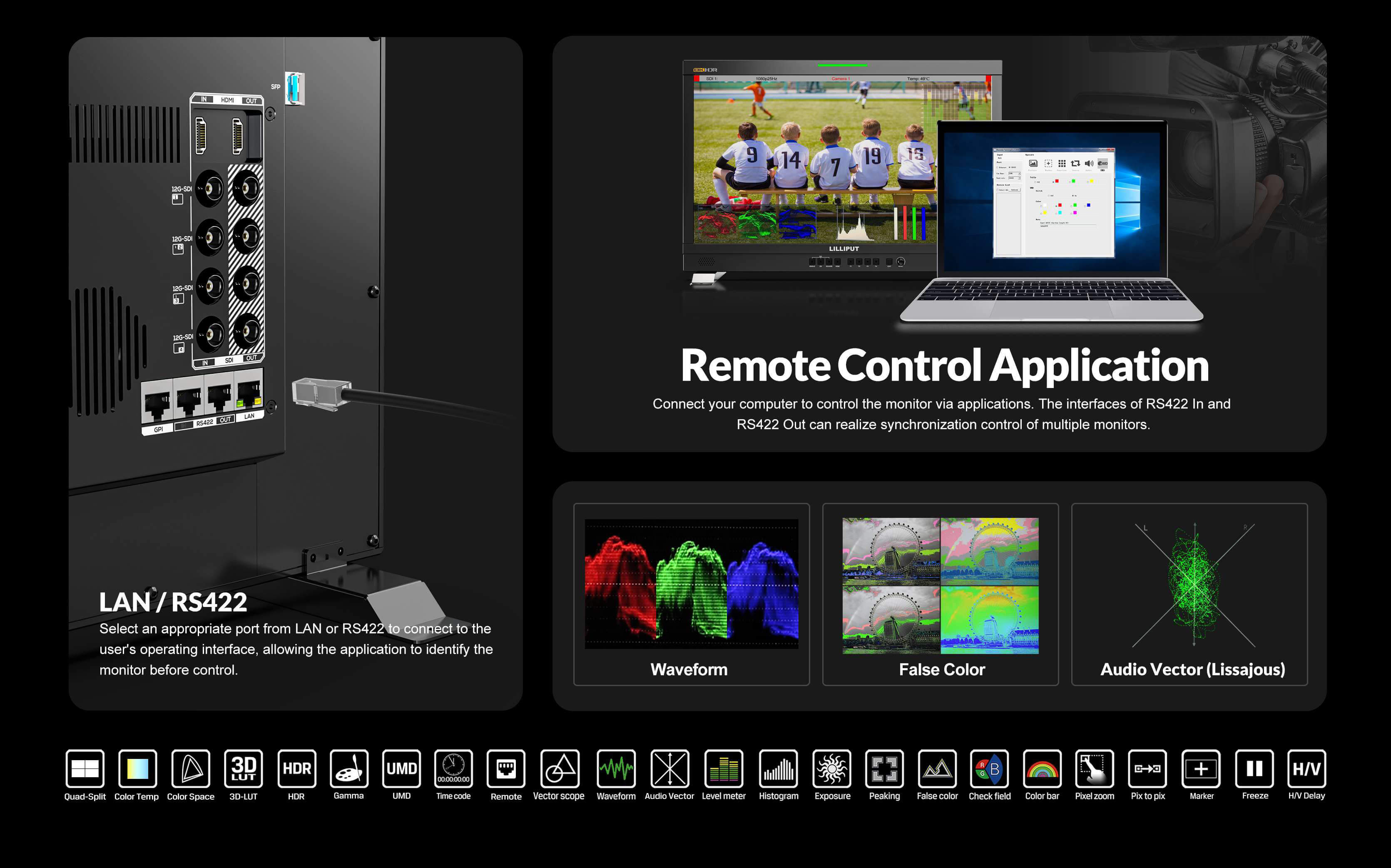

- GPI, LAN, RS422 remote control
