18.4 inch high-brightness studio 4K production monitor with quad-link 12G-SDI and HDMI 2.1 with Quad-View multi viewer. Built for 8K production workflows. DCI-P3 and Rec.2020 colour gamut. Lilliput's most portable and protected broadcast monitor for 8K production.

  • UQ19
  • UQ19, view 2
  • UQ19, view 3
  • UQ19, view 4
  • UQ19, view 5
  • UQ19, view 6
  • UQ19, view 7
  • UQ19, view 8

18.4 inch high-brightness studio 4K production monitor with quad-link 12G-SDI and HDMI 2.1 with Quad-View multi viewer. Built for 8K production workflows. DCI-P3 and Rec.2020 colour gamut. Lilliput's most portable and protected broadcast monitor for 8K production.

Buy Now Enquire View Brochure

Key Specifications

  • 18.4"
  • 3840 x 2160
  • 1000 cd/m²
  • 4x 12G-SDI
  • 1x HDMI 2.1
  • 12G SFP+
  • Quad-View
  • 3D LUT
  • 7U
All Technical Data

Discover UQ19

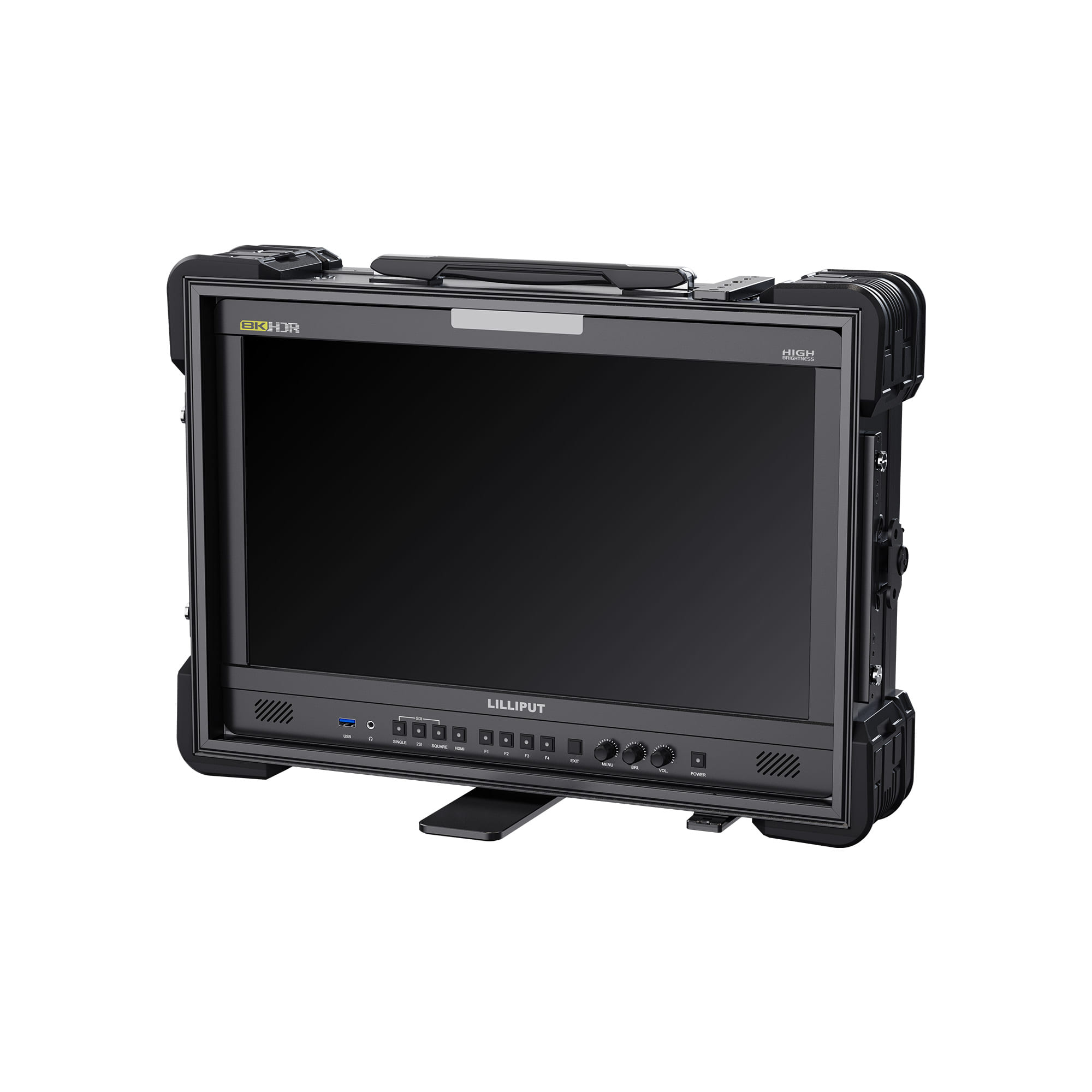

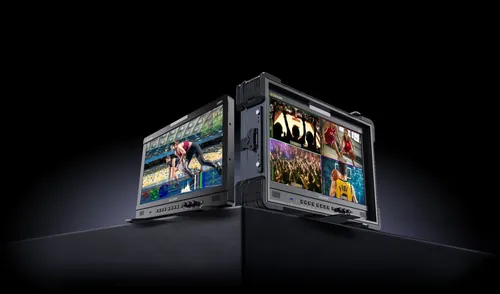

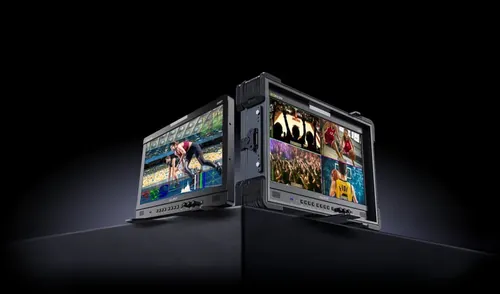

UQ19 18.4 inch high brightness production monitor on desktop feet and in a carry case, 12G-SDI and Quad-View

The frontier in broadcast and live events video monitoring.

Introducing Lilliput UQ19. Lilliput's most portable and protected broadcast monitor for 8K production.

UQ19 high brightness production monitor with a 1000 nits graphic beside a 4K colour chart

Premier panel performance for 8K production.

Lilliput has carefully selected the optimal 18.4" LCD panel for 8K production workflows that balances performance and price. Native 4K, 1000 cd/m2 brightness, 1000:1 contrast ratio, 170° viewing angles and 8+2 (FRC) bit depth.

UQ19 4K HDR production monitor showing a high-gamut still on an 18.4 inch panel

Production-grade colour confidence.

The LCD panel used in the UQ19 also meets the latest standards in colour accuracy, giving production crews confidence in the quality of the raw video source. 99% DCI-P3 coverage and 78% Rec.2020 coverage, selectable colour spaces, HLG HDR, 3D-LUT over USB and log format support ensures content looks consistent across the complete video production pipeline.

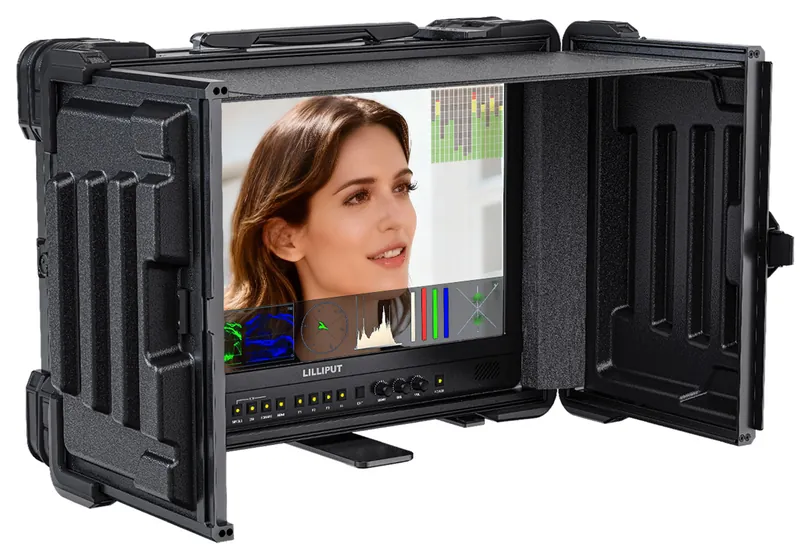

UQ19 portable 12G-SDI production monitor in an optional carry case on a camera set and in transit

On location.

The optional carry case provides both protection and a fold-out sunshade. Coupled with the high brightness panel, this offers better protection from bright ambient light, making the UQ19 a unique 12G-SDI production monitor designed for on-location productions. When the UQ19 needs to be mounted on a C-stand, it has a VESA 75 and 100 mounting points.

On the move.

The UQ19's carry case is thoughtfully designed for portability and durability on a busy set. Framed in rugged rubber corners, the carry case neatly folds away into a compact enclosure when not in use, with a comfortable handle for movement around a set. The UQ19's V-Lock or Anton Bauer mount battery plates provide swappable power from a standard stock of power batteries.

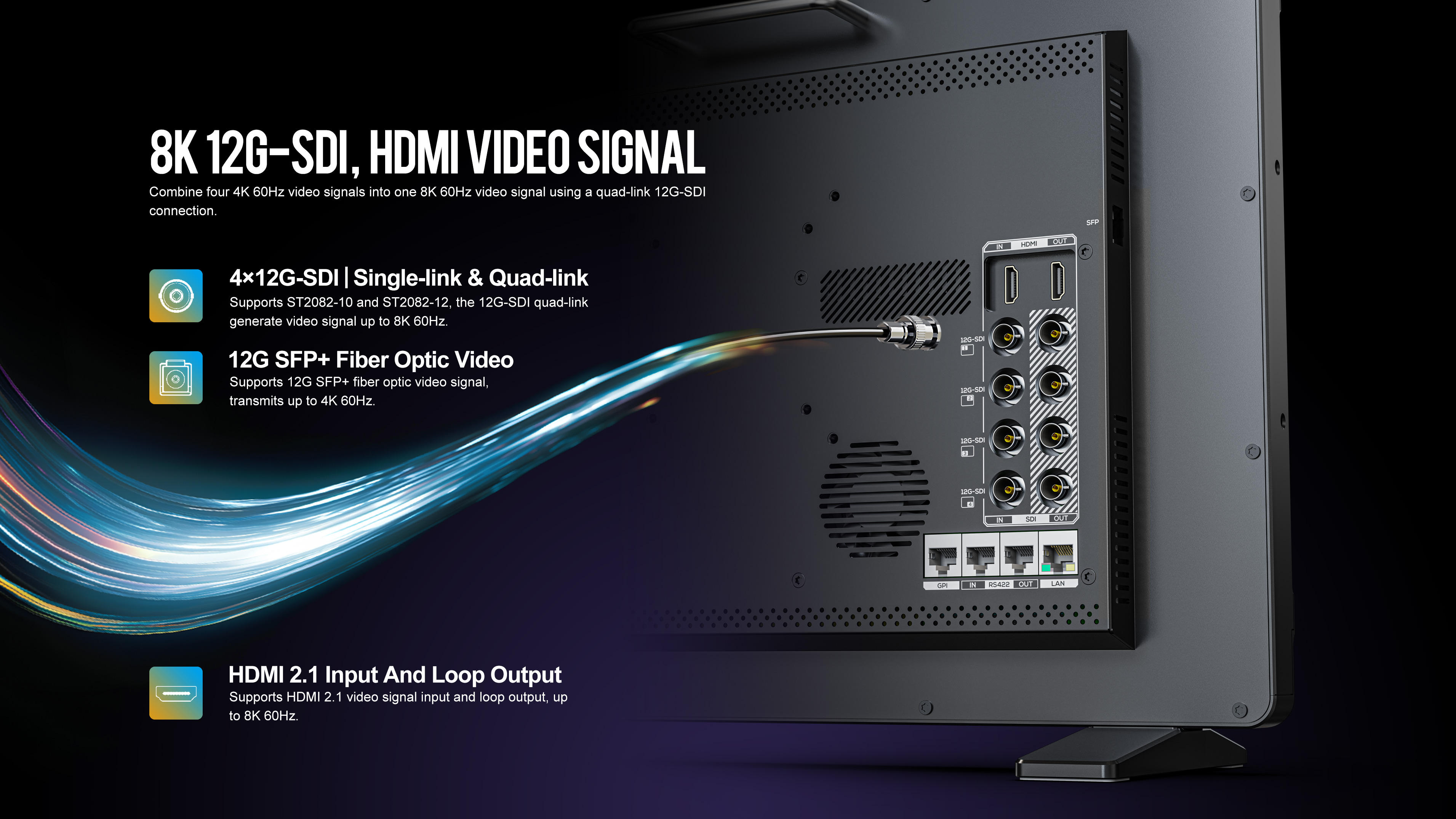

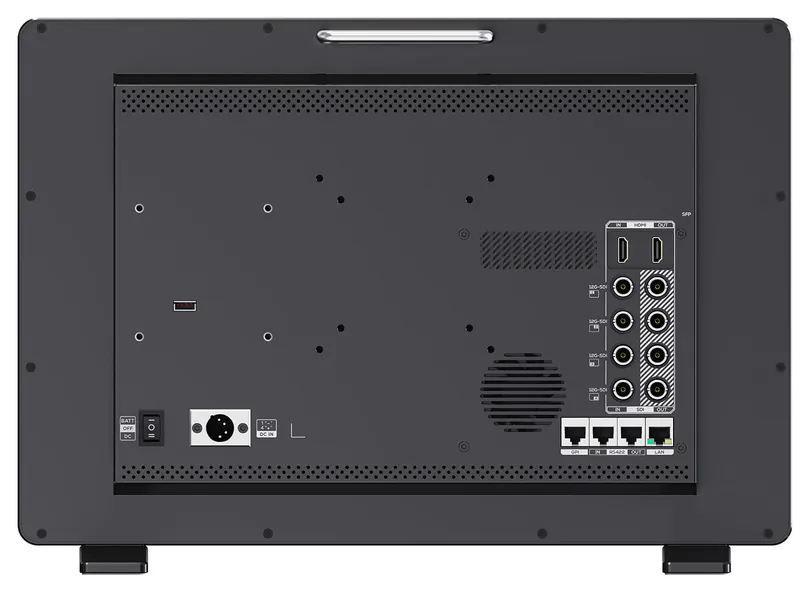

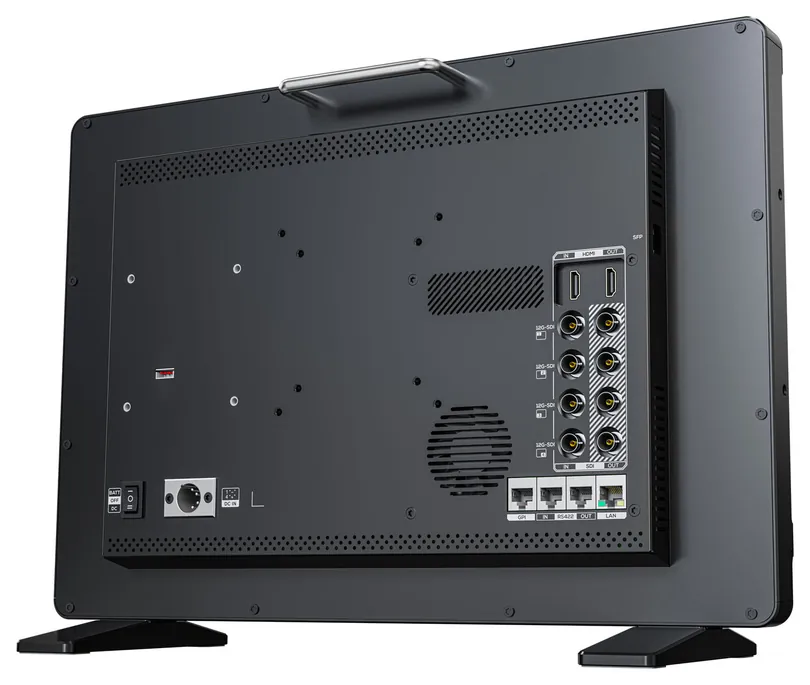

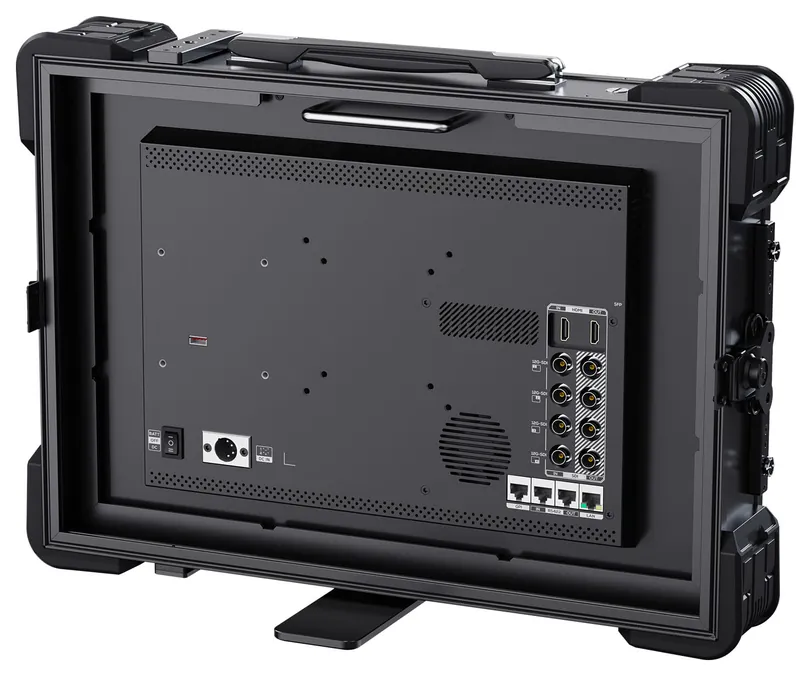

UQ19 rear panel with quad-link 12G-SDI, HDMI 2.1, and optional 12G SFP+ fibre

Critical connectivity standards covered.

Built for integration into modern broadcast and video production architectures, the UQ19 has four 12G-SDI inputs and one HDMI 2.1 (with loop-out) and 12G SFP+ fibre slot. The UQ19 contains all the critical connectivity needed for your 8K video productions.

UQ19 production monitor rear panel with Ethernet port for NDI and IP streaming workflows

Network native.

For LAN-based and IP streaming video production workflows, an optional network upgrade adds NDI®|HX decoding and RTMP, RTSP and HTTP push/pull streaming over the UQ19's built-in LAN port. Use 12G-SDI for established broadcast sets, or NDI® for modern workflows running over conventional computer networks.

NDI and streaming protocols are optional.

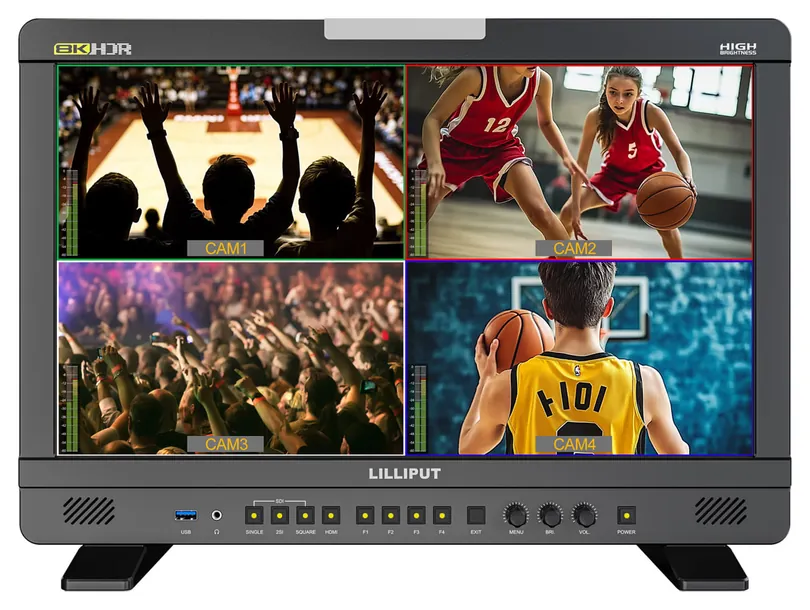

UQ19 Quad-View high brightness production monitor showing four 12G-SDI camera feeds on a live sports set

Quad-View for multi-camera productions.

The built-in multi-viewer enables Quad-View on any combination of 12G-SDI, HDMI or SFP channels. Video production teams can preview multiple camera sources at once without the need for external multi-viewer devices.

Multi-viewer not available on NDI model.

UQ19 12G-SDI production monitor with LAN remote control from a laptop

Remote control production monitor.

Monitor functionality, such as video analysis scopes, channel selection, UMD and Tally can be controlled remotely over standard LAN, GPI, and RS422 (TSL V3.1) interfaces. The UQ19 is designed to integrate seamlessly into multi-monitor broadcast architectures.

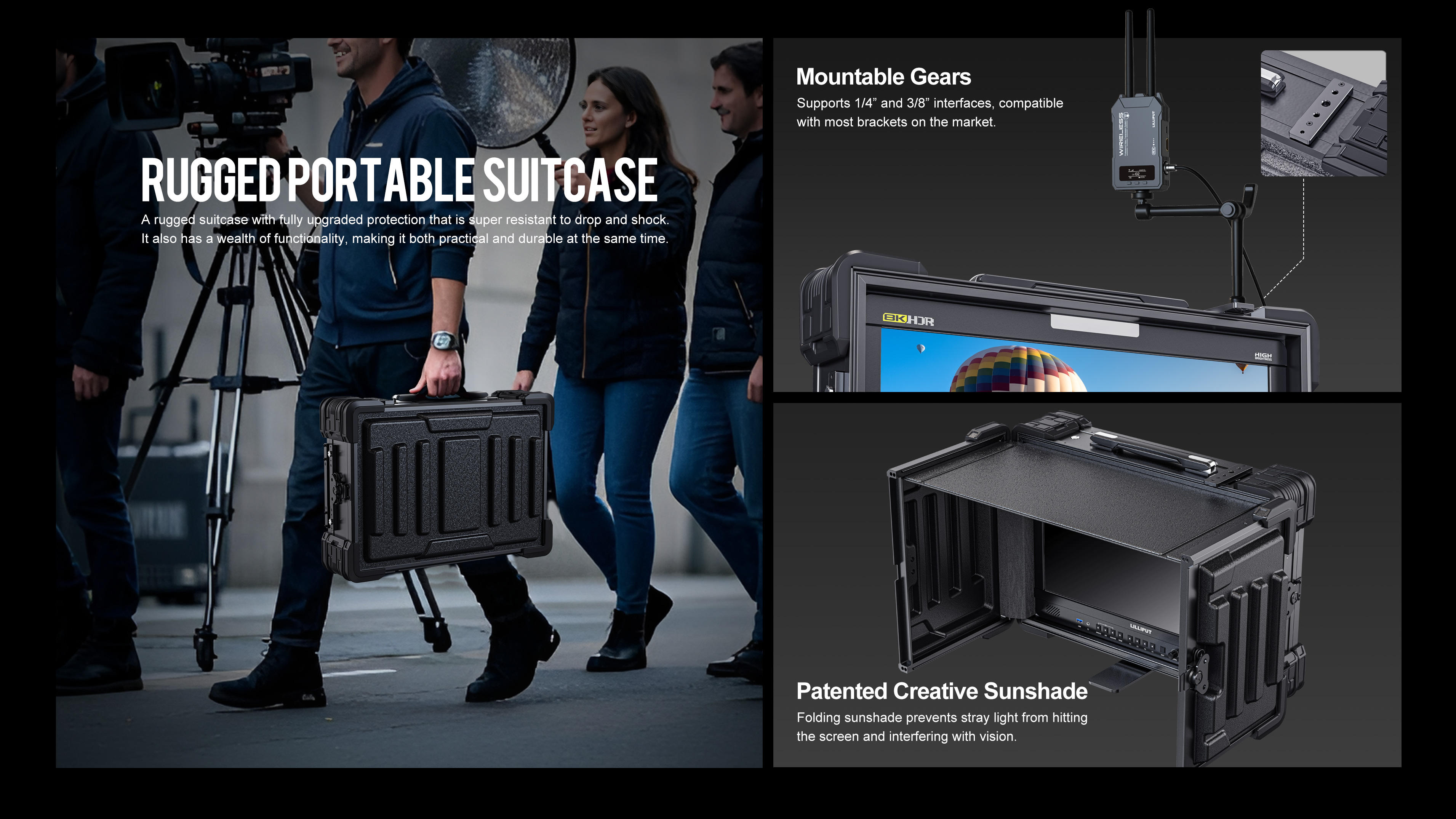

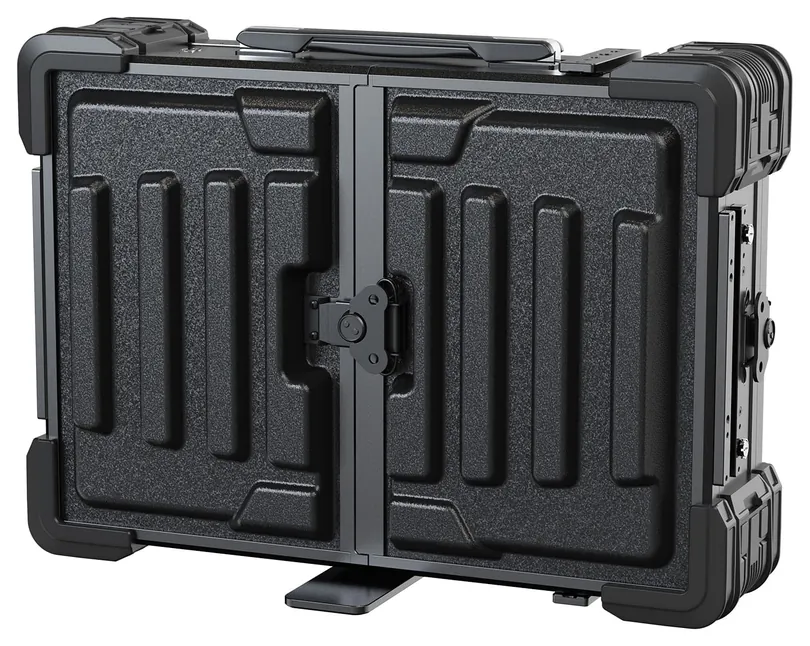

UQ19 optional carry case with rugged rubber corner protectors and 3/4 inch screw mounts for accessories

Protection and customisation.

The optional UQ19 carry case provides both unrivalled protection and customisation options for a 12G-SDI production monitor. The rugged rubber corners protect the monitor in transit, and the 3/4" screw mounts can mount cameras and wireless video transceivers.

Carry case is optional.

Lilliput UQ19 12G-SDI production monitor with optional brackets mounted in a 19 inch broadcast equipment rack

Ruggedised or rack-mounted.

For fixed installations in broadcast studios, outdoor broadcast trucks and portable production units, the Lilliput UQ19 can be mounted into a standard 19" rack in a 7U height.

Rack-mount brackets are optional.

Key Features

  • 4x 12G-SDI (quad-link 8K), 1x 12G SFP+ (fiber optional), 1x HDMI 2.1
  • 18.4 inch 4K display, 1000 cd/m², 1000:1 contrast, designed for on-location and outdoor use
  • 12-bit data processing and buffering for accurate colour
  • HDR: HLG, ST 2084 (300/1000/10000 cd/m²)
  • Log formats: SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
  • 3D LUT (.cube) load via USB; calibration to Rec.709, DCI-P3, NTSC, BT.2020
  • Quad-View multiview; waveform, vector, histogram, audio vector, level meter

Buy the UQ19 From an Authorised Reseller

Lilliput's authorised broadcast resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the UQ19 now, or if your country is not listed, browse all authorised resellers here.

Technical Data

Display

Screen size
18.4 inch
Aspect ratio
16:9
Native resolution
3840 x 2160
Panel type
LED
Brightness
1000 cd/m²
Contrast
1000:1
Viewing angle
170°/170° (H/V)
HDR
HLG, ST 2084 300/1000/10000
Colour space
DCI-P3: 99%; Rec.2020: 78%
Supported log formats
SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
LUT support
3D-LUT (.cube format)
Bit depth
8+2 (FRC) display; 12-bit processing

Connections

Video inputs
4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.1
Video outputs
4x 12G-SDI, 1x HDMI 2.1
USB
LUT load and firmware update
Audio
3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers

Video Standards

12G-SDI
4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 2.1
4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
SFP
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60

Scopes

Video analysis
Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom
Audio analysis
Audio vector, Level meter

Power

Input voltage
DC 15 to 24V
Power consumption
≤56 W (15V)
Compatible batteries
V-Lock or Anton Bauer mount
Input voltage (battery)
14.8V nominal

Environmental

Operating temperature
0°C to 50°C
Storage temperature
-20°C to 60°C

Mechanical

Material
Metal
Dimensions
452 x 308.3 x 50.5 mm (device only)
Weight
4.7 kg (device only)

Mounting

VESA mount
75 x 75 mm, 100 x 100 mm (plate included)
Base brackets
Base brackets included
Rack mount
7U rack mount brackets (optional)

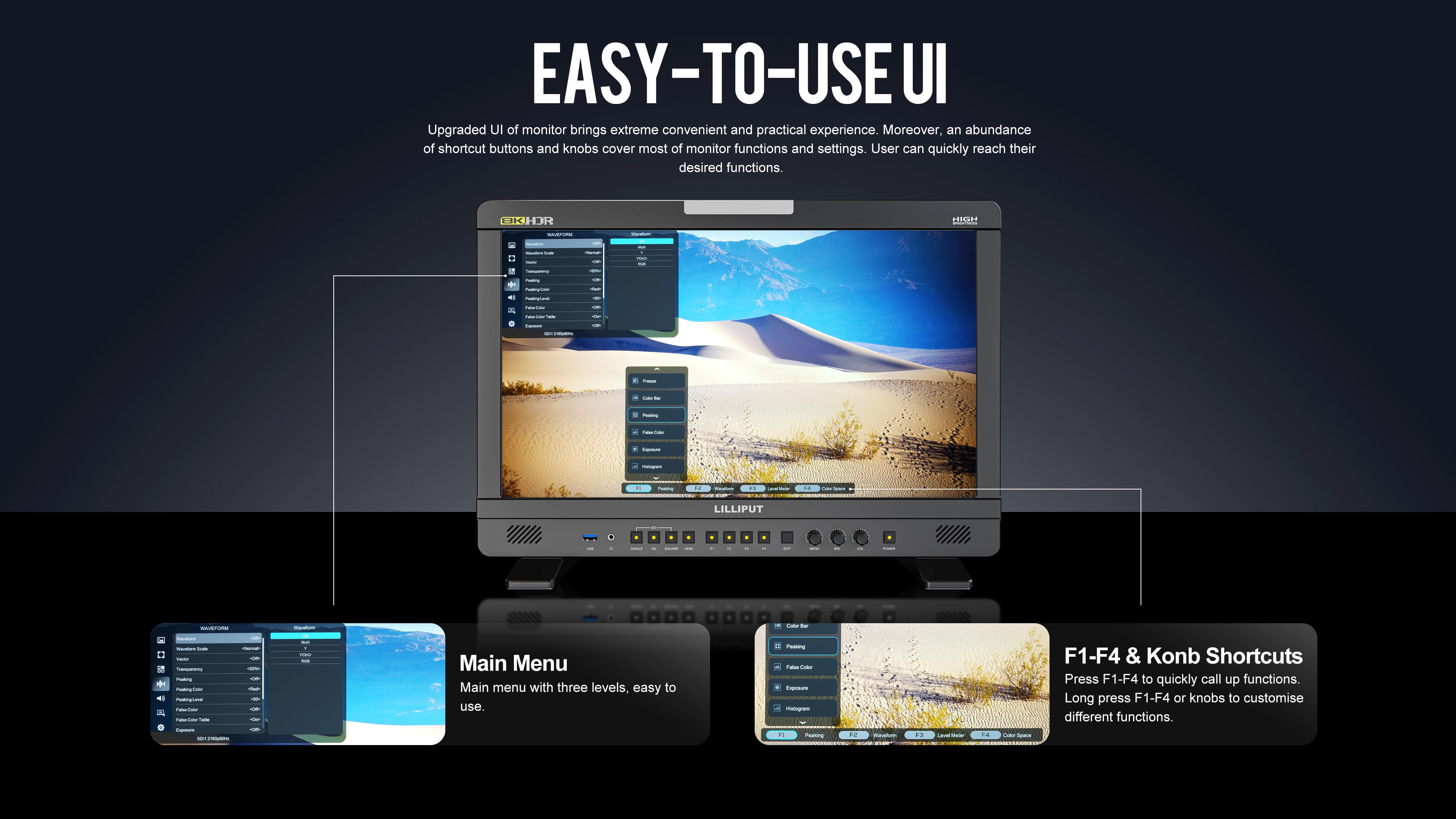

Operational Features

Menu control
Custom Menu Knob (brightness, contrast, volume, peaking, etc.)
Markers
Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 256:135, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
Function buttons
F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.)
Remote control
GPI, LAN, RS422 In/Out
Multi Viewer
Quad-View
Colour temperature
3200K, 5500K, 6500K, 7500K, 9300K, User
Gamma
1.8 to 2.8
Selectable colour spaces
Native, SMPTE-C, Rec.709, EBU, DCI-P3, Rec.2020
Comparison
Colour space, HDR, Gamma, Camera Log (side-by-side with original)
Peaking
Red, Green, Blue, White, Black
Tally
Red, Green, Yellow
Time code
LTC, VITC
UMD
User-defined text (7 colours)

Accessories

Included

  • 15V 4.8A Power Adapter
  • Base Brackets
  • USB Flash Disk
  • Battery Plate (V-mount or Anton Bauer)
  • VESA Mount Plate
  • D-Tap to XLR Connector

Optional

  • SFP Optical Fiber
  • Carry case & Sunshade
  • 19" rack mount brackets

Product Downloads

Similar Products

Compare key technical data across similar Lilliput products.

Technical Data UQ19 Q18-8K Q15-8K UQ23
Display
Screen size 18.4 inch 17.3 inch 15.6 inch 23.8 inch
Aspect ratio 16:9 16:9 16:9 16:9
Native resolution 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160
Panel type LED LED LED LED
Brightness 1000 cd/m² 400 cd/m² 600 cd/m² 1200 cd/m²
Contrast 1000:1 1200:1 1700:1 1000:1
Viewing angle 170°/170° (H/V) 170°/170° (H/V) 170°/170° (H/V) 178°/178° (H/V)
HDR HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000
Colour space DCI-P3: 99%; Rec.2020: 78% DCI-P3: 90%+ DCI-P3: 90%+ DCI-P3: 100%; Rec.2020: 86%
Supported log formats SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
LUT support 3D-LUT (.cube format) 3D-LUT (.cube format) 3D-LUT (.cube format) 3D-LUT (.cube format)
Bit depth 8+2 (FRC) display; 12-bit processing — — 8+2 (FRC) display; 12-bit processing
Connections
Video inputs 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.1 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.1
Video outputs 4x 12G-SDI, 1x HDMI 2.1 4x 12G-SDI, 1x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.1
USB LUT load and firmware update — — —
Audio 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers
Video Standards
12G-SDI 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 2.1 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 — — 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
SFP 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 2.0 — 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 —
Scopes
Video analysis Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom
Audio analysis Audio vector, Level meter Audio vector, Level meter Audio vector, Level meter Audio vector, Level meter
Power
Input voltage DC 15 to 24V DC 12 to 24V DC 12 to 24V DC 12 to 24V
Power consumption ≤56 W (15V) ≤40 W (15V) ≤37 W (15V) ≤90 W (at 19V)
Compatible batteries V-Lock or Anton Bauer mount V-Lock or Anton Bauer mount V-Lock or Anton Bauer mount V-Lock or Anton Bauer mount
Input voltage (battery) 14.8V nominal 14.8V nominal 14.8V nominal 14.8V nominal
Environmental
Operating temperature 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C
Storage temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C
Mechanical
Material Metal Metal Metal Metal
Dimensions 452 x 308.3 x 50.5 mm (device only) 433.9 x 294.2 x 45.7 mm 393 x 267 x 41.4 mm 576.6 x 375.5 x 53.5 mm (device only)
Weight 4.7 kg (device only) 3.9 kg 2.9 kg 7.7 kg (device only)
Mounting
VESA mount 75 x 75 mm, 100 x 100 mm (plate included) 75 x 75 mm, 100 x 100 mm (plate included) 75 x 75 mm, 100 x 100 mm (plate included) 75 x 75 mm, 100 x 100 mm (plate included)
Base brackets Base brackets included Base brackets included Base brackets included Base brackets included
Rack mount 7U rack mount brackets (optional) 6U rack mount brackets (optional) 6U rack mount brackets (optional) —
Operational Features
Menu control Custom Menu Knob (brightness, contrast, volume, peaking, etc.) Custom Menu Knob (brightness, contrast, volume, peaking, etc.) Custom Menu Knob (brightness, contrast, volume, peaking, etc.) Custom Menu Knob (brightness, contrast, volume, peaking, etc.)
Markers Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 256:135, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 256:135, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
Function buttons F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.)
Remote control GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out
Multi Viewer Quad-View Quad-View Quad-View Quad-View
Colour temperature 3200K, 5500K, 6500K, 7500K, 9300K, User 3200K, 5500K, 6500K, 7500K, 9300K, User 3200K, 5500K, 6500K, 7500K, 9300K, User 3200K, 5500K, 6500K, 7500K, 9300K, User
Gamma 1.8 to 2.8 1.8 to 2.8 1.8 to 2.8 1.8 to 2.8
Selectable colour spaces Native, SMPTE-C, Rec.709, EBU, DCI-P3, Rec.2020 Native, SMPTE-C, Rec.709, EBU, DCI-P3, Rec.2020 Native, SMPTE-C, Rec.709, EBU, DCI-P3, Rec.2020 Native, SMPTE-C, Rec.709, EBU, DCI-P3, Rec.2020
Comparison Colour space, HDR, Gamma, Camera Log (side-by-side with original) Colour space, HDR, Gamma, Camera Log (side-by-side with original) Colour space, HDR, Gamma, Camera Log (side-by-side with original) Colour space, HDR, Gamma, Camera Log (side-by-side with original)
Peaking Red, Green, Blue, White, Black Red, Green, Blue, White, Black Red, Green, Blue, White, Black Red, Green, Blue, White, Black
Tally Red, Green, Yellow Red, Green, Yellow Red, Green, Yellow Red, Green, Yellow
Time code LTC, VITC LTC, VITC LTC, VITC LTC, VITC
UMD User-defined text (7 colours) User-defined text (7 colours) User-defined text (7 colours) User-defined text (7 colours)
Image mirroring — Vertical flip, Horizontal flip Vertical flip, Horizontal flip —
