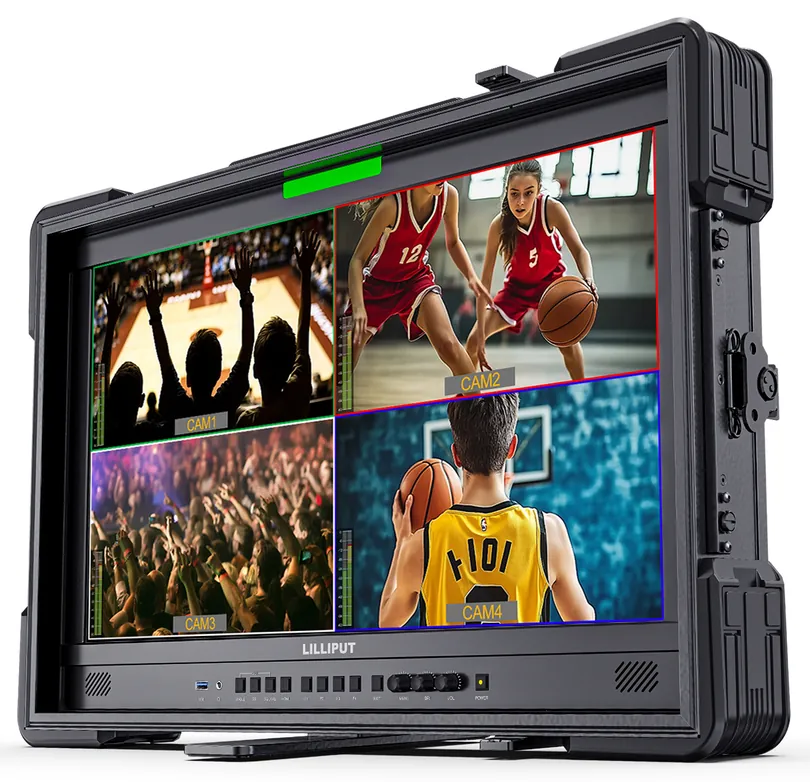

UQ23, product overview UQ23, view 2 UQ23, view 3 UQ23, view 4 UQ23, view 5 UQ23, view 6 UQ23, view 7 UQ23, view 8 UQ23, view 9 UQ23, view 10 UQ23, view 11

Key Features

  • 23.8 inch 4K display, 1200 cd/m², 1000:1 contrast, designed for outdoor use
  • 12-bit data processing and buffering for accurate colour
  • 4x 12G-SDI (quad-link 8K), 1x 12G SFP+ (fiber optional), 1x HDMI 2.1
  • Up to 8K 60Hz (7680x4320, 8192x4320) via quad-link 12G-SDI
  • HDR: HLG, ST 2084 (300/1000/10000 cd/m²)
  • Log formats: SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
  • 3D LUT (.cube) load via USB; calibration to Rec.709, DCI-P3, NTSC, BT.2020

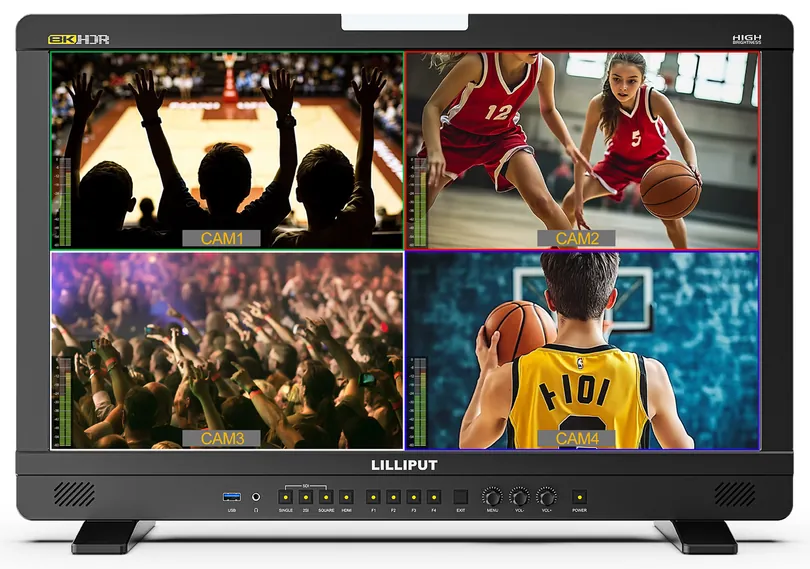

  • Quad-View multiview; waveform, vector, histogram, audio vector, level meter
  • F1 to F4 user-definable buttons; custom Menu Knob (brightness, peaking, volume, etc.)
  • Color Space/HDR/Gamma/Camera Log comparison (side-by-side with original)
  • False colour (ARRI, RED, Spectrum); peaking (5 colours); aspect markers (16:9, 1.85:1, 2.35:1, 4:3, 3:2)
  • Time code LTC/VITC; UMD display; tally (red/green/yellow)
  • V-Lock or Anton Bauer battery compatible
  • GPI, LAN, RS422 remote (TSL V3.1)

Buy the UQ23 From an Authorised Reseller

Lilliput's authorised resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the UQ23 now, or if your country is not listed, browse all authorised resellers here.

Technical Data

Display

Screen size
23.8 inch
Aspect ratio
16:9
Native resolution
3840 x 2160
Panel type
LED
Brightness
1200 cd/m²
Bit depth
8+2 (FRC) display; 12-bit processing
Contrast
1000:1
Viewing angle
178°/178° (H/V)
HDR
HLG, ST 2084 300/1000/10000
Supported log formats
SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
LUT support
3D-LUT (.cube format)
Colour space
Calibration to Rec.709, DCI-P3, NTSC, BT.2020

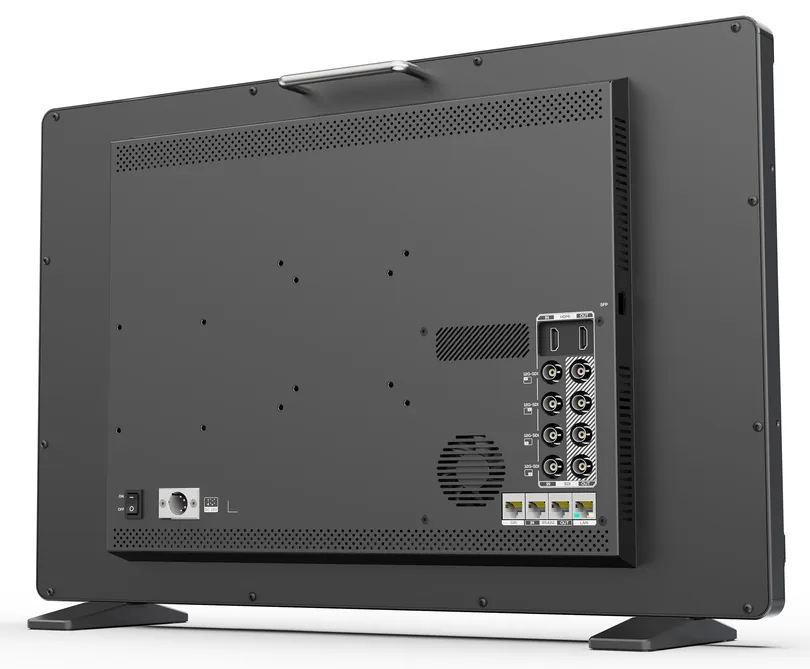

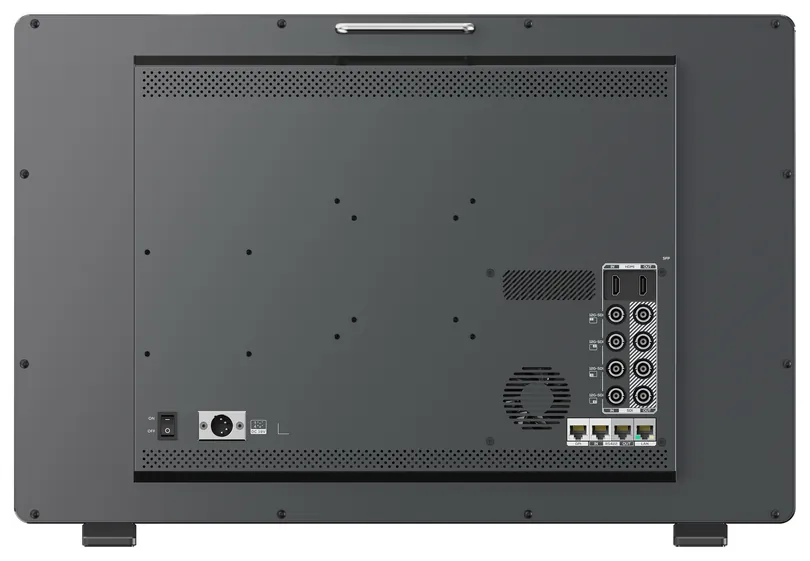

Connections

Video inputs

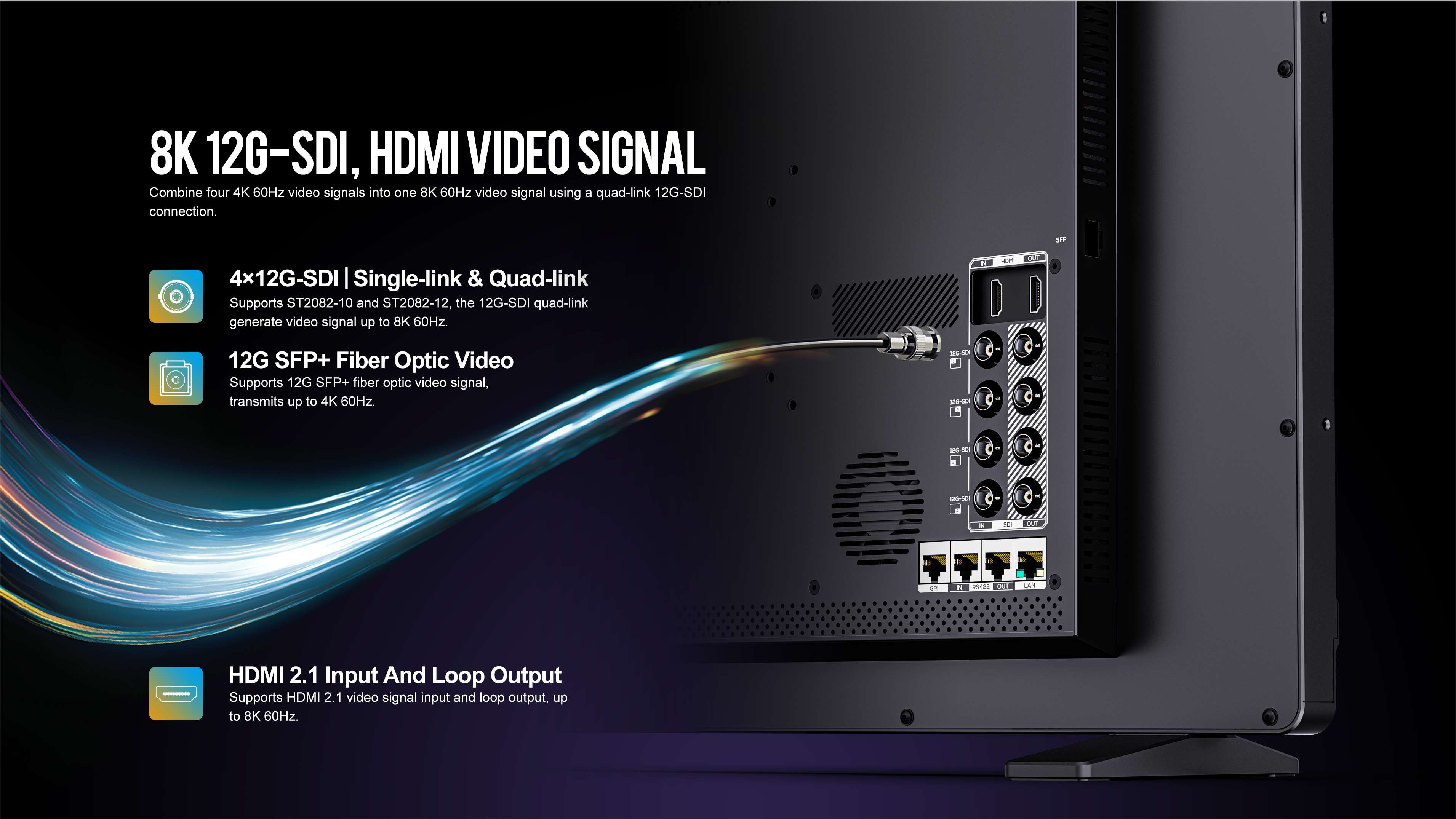

4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.1
Video outputs
4x 12G-SDI, 1x HDMI 2.1
Audio
3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers

Video Standards

SFP
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 2.1
4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
12G-SDI
4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60

Scopes

Video analysis
Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom
Audio analysis
Audio vector, Level meter

Operational Features

Menu control
Custom Menu Knob (brightness, contrast, volume, peaking, etc.)
Markers
Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 256:135, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
Function buttons
F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.)
Remote control
GPI, LAN, RS422 In/Out
View modes
Quad-View
Colour temperature
3200K, 5500K, 6500K, 7500K, 9300K, User
Gamma
1.8 to 2.8
Comparison
Colour space, HDR, Gamma, Camera Log (side-by-side with original)
Peaking
Red, Green, Blue, White, Black
Tally
Red, Green, Yellow
Time code
LTC, VITC
UMD
User-defined text (7 colours)

Power

Input voltage
DC 12 to 24V
Power consumption
≤90 W (at 19V)
Compatible batteries
V-Lock or Anton Bauer mount
Input voltage (battery)
14.8V nominal

Environmental

Operating temperature
0°C to 50°C
Storage temperature
-20°C to 60°C

Mechanical

Dimensions
576.6 x 375.5 x 53.5 mm (device only)
Weight
7.7 kg (device only)

Mounting

VESA mount
75 x 75 mm, 100 x 100 mm (plate included)
Base brackets
Base brackets included

Accessories

Included

  • 19V 6A Power Adapter
  • Base Brackets
  • USB Flash Disk
  • Battery Plate (V-mount or Anton Bauer)
  • VESA Mount Plate
  • D-Tap to XLR Connector

Optional

  • SFP Optical Fiber

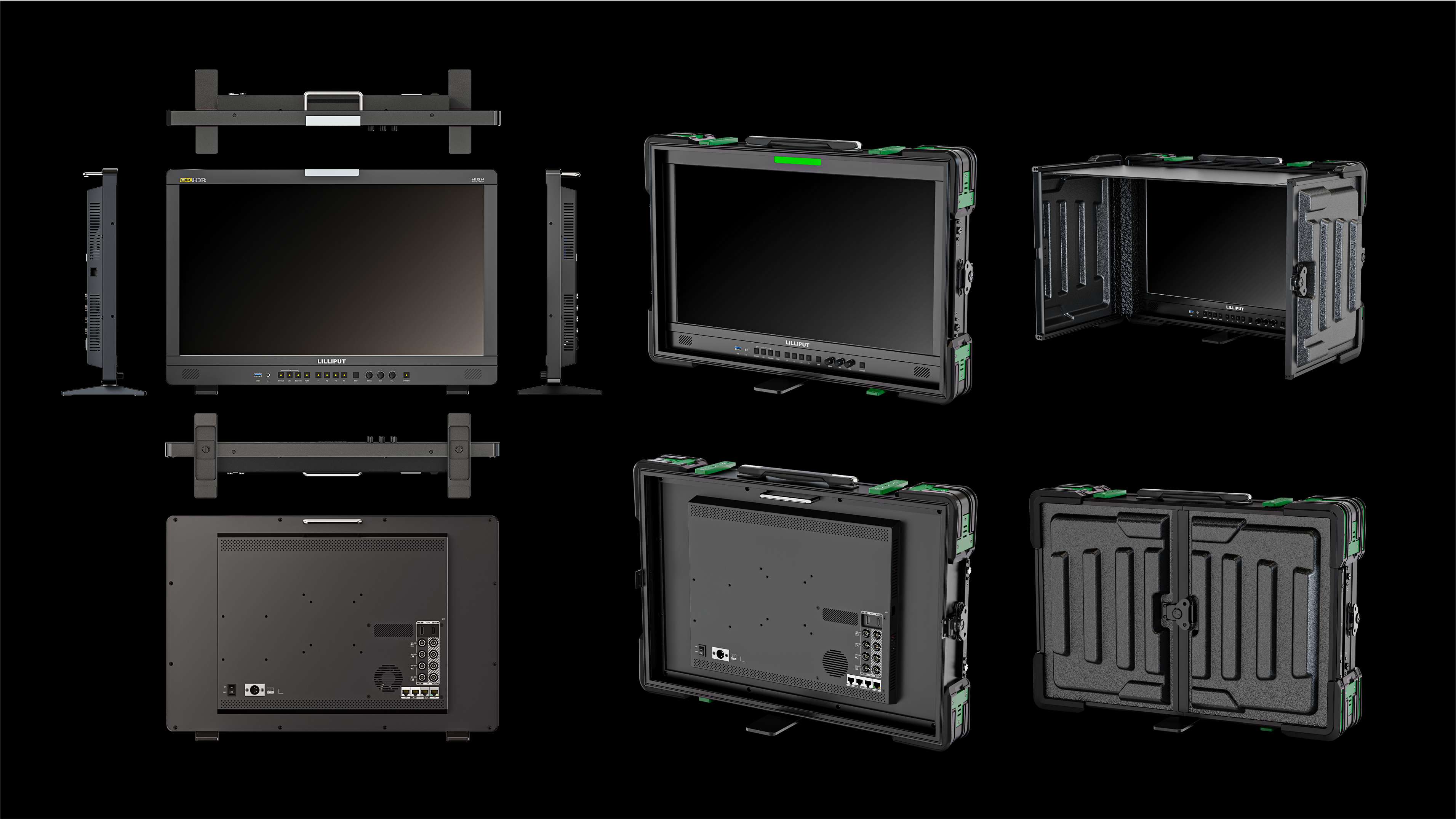

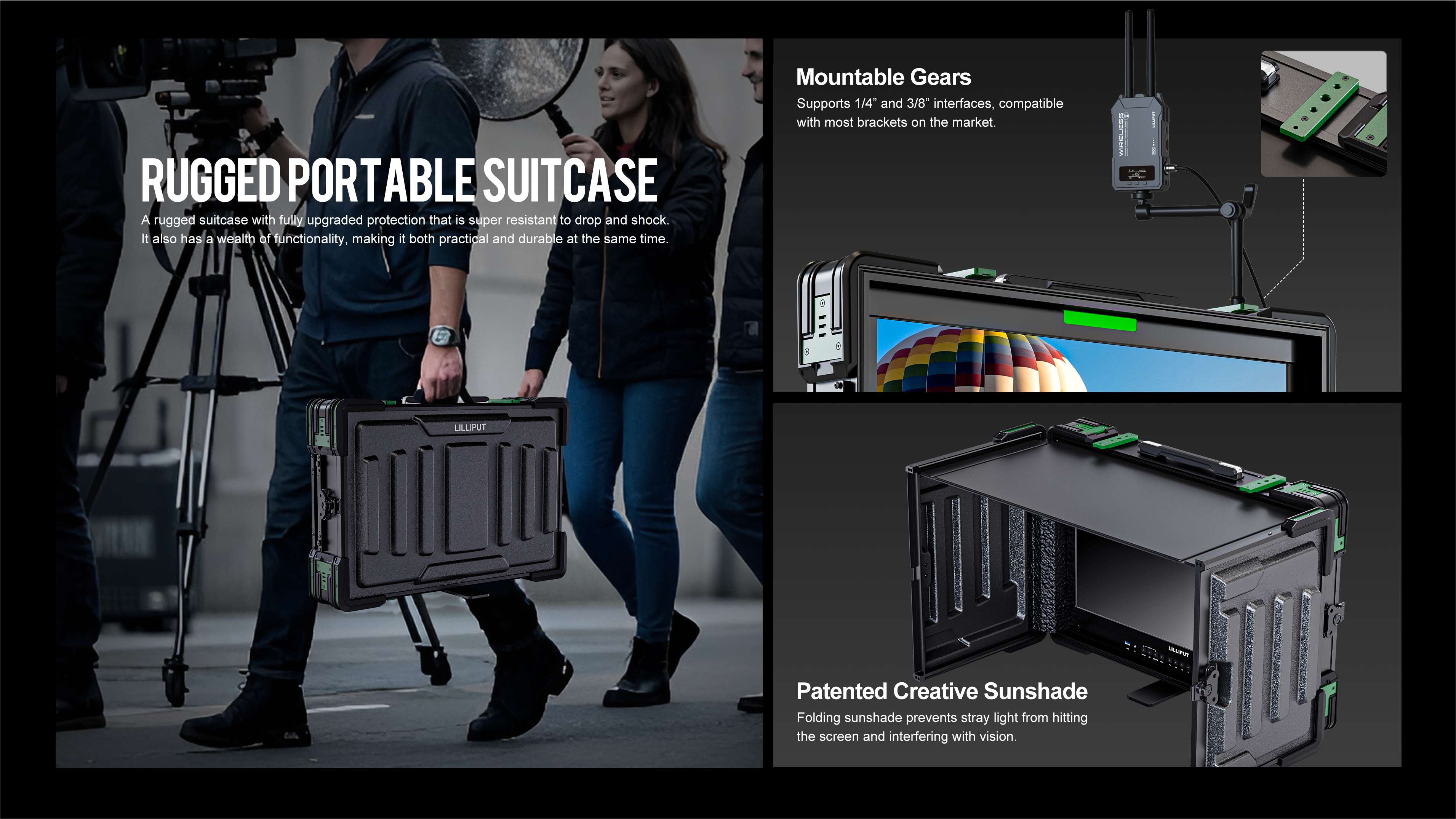

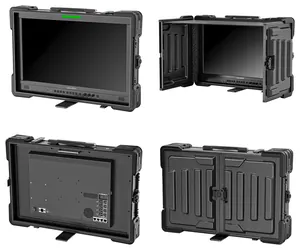

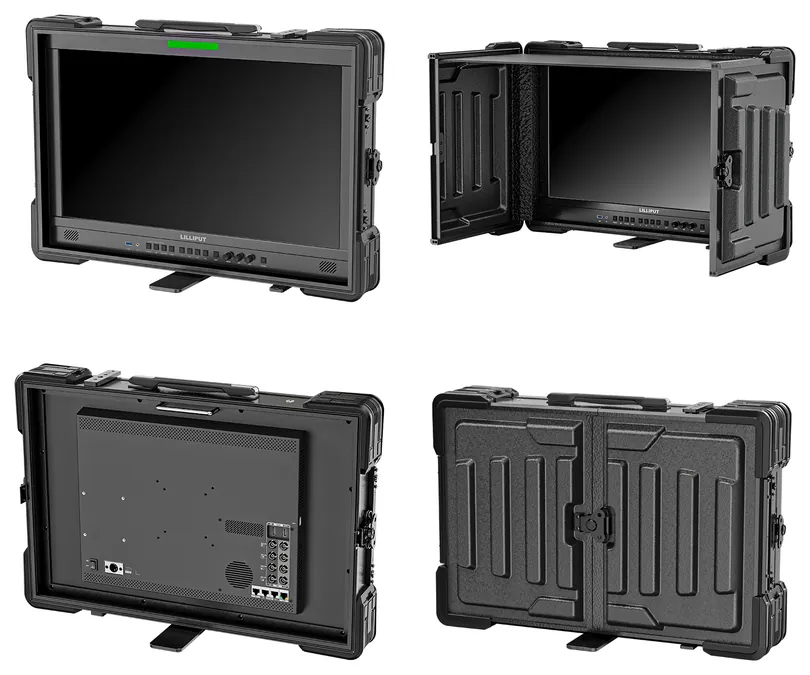

  • Carry case & Sunshade

Product Downloads

Similar Products

Compare key technical data across similar products.

Technical Data UQ23 Q23-8K UQ19 UQ31 Q18-8K Q28-8K Q31-8K Q43-8K
Display
Screen size 23.8 inch 23.8 inch 18.4 inch 31.5 inch 17.3 inch 28 inch 31.5 inch 43 inch
Native resolution 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160
Aspect ratio 16:9 16:9 16:9 16:9 16:9 16:9 16:9 16:9
Bit depth 8+2 (FRC) display; 12-bit processing — 8+2 (FRC) display; 12-bit processing 8+2 (FRC) display; 12-bit processing — — — —
Brightness 1200 cd/m² 300 cd/m² 1000 cd/m² 1000 cd/m² 400 cd/m² 300 cd/m² 350 cd/m² 400 cd/m²
Colour space Calibration to Rec.709, DCI-P3, NTSC, BT.2020 Calibration to Rec.709 (optional calibration unit) Calibration to Rec.709, DCI-P3, NTSC, BT.2020 Calibration to Rec.709, DCI-P3, NTSC, BT.2020 Calibration to Rec.709 (optional calibration unit) Calibration to Rec.709 (optional calibration unit) Calibration to Rec.709 (optional calibration unit) Calibration to Rec.709 (optional calibration unit)
Contrast 1000:1 1000:1 1000:1 1000:1 1200:1 1000:1 1300:1 1200:1
HDR HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000 HLG, ST 2084 300/1000/10000
LUT support 3D-LUT (.cube format) 3D-LUT (.cube format) 3D-LUT (.cube format) 3D-LUT (.cube format) 3D-LUT (.cube format) 3D-LUT (.cube format) 3D-LUT (.cube format) 3D-LUT (.cube format)
Panel type LED LED LED LED LED LED LED LED
Supported log formats SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
Viewing angle 178°/178° (H/V) 178°/178° (H/V) 170°/170° (H/V) 178°/178° (H/V) 170°/170° (H/V) 178°/178° (H/V) 178°/178° (H/V) 178°/178° (H/V)
Mechanical
Dimensions 576.6 x 375.5 x 53.5 mm (device only) 567 x 376.4 x 45.7 mm 452 x 308.3 x 50.5 mm (device only) 747 x 475.1 x 55 mm 433.9 x 294.2 x 45.7 mm 638 x 414.3 x 45.7 mm 717.5 x 461.7 x 47.4 mm 968.5 x 604.9 x 48.5 mm
Weight 7.7 kg (device only) 7.4 kg 4.7 kg (device only) 12.5 kg 3.9 kg 8.6 kg 13.0 kg 14.5 kg
Connections
Video inputs 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.1 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.1 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.1 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0
Video outputs 4x 12G-SDI, 1x HDMI 2.1 4x 12G-SDI, 1x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.1 4x 12G-SDI, 1x HDMI 2.1 4x 12G-SDI, 1x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.0 4x 12G-SDI, 1x HDMI 2.0
Audio 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers
USB — — LUT load and firmware update — — — — —
Video Standards
12G-SDI 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
HDMI 2.0 — 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 — — 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
HDMI 2.1 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 — 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 — — — —
SFP 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
Power
Power consumption ≤90 W (at 19V) ≤60 W (15V) ≤56 W (15V) ≤94 W (at 24V) ≤40 W (15V) ≤65 W (15V) ≤65 W (15V) ≤77 W (at 24V)
Compatible batteries V-Lock or Anton Bauer mount V-Lock or Anton Bauer mount V-Lock or Anton Bauer mount V-Lock or Anton Bauer mount V-Lock or Anton Bauer mount V-Lock or Anton Bauer mount V-Lock or Anton Bauer mount —
Input voltage DC 12 to 24V DC 12 to 24V DC 15 to 24V DC 12 to 24V DC 12 to 24V DC 12 to 24V DC 12 to 24V DC 24V
Input voltage (battery) 14.8V nominal 14.8V nominal 14.8V nominal 14.8V nominal 14.8V nominal 14.8V nominal 14.8V nominal —
Environmental
Operating temperature 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C
Storage temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C
Operational Features
Colour temperature 3200K, 5500K, 6500K, 7500K, 9300K, User 3200K, 5500K, 6500K, 7500K, 9300K, User 3200K, 5500K, 6500K, 7500K, 9300K, User 3200K, 5500K, 6500K, 7500K, 9300K, User 3200K, 5500K, 6500K, 7500K, 9300K, User 3200K, 5500K, 6500K, 7500K, 9300K, User 3200K, 5500K, 6500K, 7500K, 9300K, User 3200K, 5500K, 6500K, 7500K, 9300K, User
Comparison Colour space, HDR, Gamma, Camera Log (side-by-side with original) Colour space, HDR, Gamma, Camera Log (side-by-side with original) Colour space, HDR, Gamma, Camera Log (side-by-side with original) Colour space, HDR, Gamma, Camera Log (side-by-side with original) Colour space, HDR, Gamma, Camera Log (side-by-side with original) Colour space, HDR, Gamma, Camera Log (side-by-side with original) Colour space, HDR, Gamma, Camera Log (side-by-side with original) Colour space, HDR, Gamma, Camera Log (side-by-side with original)
Function buttons F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.)
Gamma 1.8 to 2.8 1.8 to 2.8 1.8 to 2.8 1.8 to 2.8 1.8 to 2.8 1.8 to 2.8 1.8 to 2.8 1.8 to 2.8
Image mirroring — Vertical flip, Horizontal flip — — Vertical flip, Horizontal flip Vertical flip, Horizontal flip Vertical flip, Horizontal flip Vertical flip, Horizontal flip
Markers Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 256:135, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 256:135, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 256:135, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
Menu control Custom Menu Knob (brightness, contrast, volume, peaking, etc.) Custom Menu Knob (brightness, contrast, volume, peaking, etc.) Custom Menu Knob (brightness, contrast, volume, peaking, etc.) Custom Menu Knob (brightness, contrast, volume, peaking, etc.) Custom Menu Knob (brightness, contrast, volume, peaking, etc.) Custom Menu Knob (brightness, contrast, volume, peaking, etc.) Custom Menu Knob (brightness, contrast, volume, peaking, etc.) Custom Menu Knob (brightness, contrast, volume, peaking, etc.)
Peaking Red, Green, Blue, White, Black Red, Green, Blue, White, Black Red, Green, Blue, White, Black Red, Green, Blue, White, Black Red, Green, Blue, White, Black Red, Green, Blue, White, Black Red, Green, Blue, White, Black Red, Green, Blue, White, Black
Remote control GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out GPI, LAN, RS422 In/Out
Tally Red, Green, Yellow Red, Green, Yellow Red, Green, Yellow Red, Green, Yellow Red, Green, Yellow Red, Green, Yellow Red, Green, Yellow Red, Green, Yellow
Time code LTC, VITC LTC, VITC LTC, VITC LTC, VITC LTC, VITC LTC, VITC LTC, VITC LTC, VITC
UMD User-defined text (7 colours) User-defined text (7 colours) User-defined text (7 colours) User-defined text (7 colours) User-defined text (7 colours) User-defined text (7 colours) User-defined text (7 colours) User-defined text (7 colours)
View modes Quad-View Quad-View Quad-View Quad-View Quad-View Quad-View Quad-View Quad-View
Mounting
Base brackets Base brackets included Base brackets included Base brackets included Base brackets included Base brackets included Base brackets included Base brackets included Base brackets included
Rack mount — — 6U rack mount brackets (optional) — 6U rack mount brackets (optional) — — —
VESA mount 75 x 75 mm, 100 x 100 mm (plate included) 75 x 75 mm, 100 x 100 mm (plate included) 75 x 75 mm, 100 x 100 mm (plate included) 75 x 75 mm, 100 x 100 mm (plate included) 75 x 75 mm, 100 x 100 mm (plate included) 75 x 75 mm, 100 x 100 mm (plate included) 75 x 75 mm, 100 x 100 mm (plate included) —
Wall mount — — — — — — — 400 x 400 mm (M6/30 mm screws)
Accessories
Included 19V 6A Power Adapter, Base Brackets, USB Flash Disk, Battery Plate (V-mount or Anton Bauer), VESA Mount Plate, D-Tap to XLR Connector 15V DC Adapter, VESA Mount Plate, Battery Plate (V-mount or Anton Bauer), Base Bracket, USB Flash Disk 15V 4.8A Power Adapter, Base Brackets, USB Flash Disk, Battery Plate (V-mount or Anton Bauer), VESA Mount Plate, D-Tap to XLR Connector 24V 7.5A Power Adapter, Base Brackets, USB Flash Disk, Battery Plate (V-mount or Anton Bauer), VESA Mount Plate, D-Tap to XLR Connector 15V DC Adapter, VESA Mount Plate, Base Bracket, Battery Plate (V-Lock or Anton Bauer), USB Flash Disk 15V DC Adapter, VESA Mount Plate, Battery Plate (V-mount or Anton Bauer), Base Bracket, USB Flash Disk 15V DC Adapter, VESA Mount Plate, Battery Plate (V-mount or Anton Bauer), Base Bracket, USB Flash Disk 24V 7.5A DC Adapter, Base Brackets, USB Flash Disk
Optional SFP Optical Fiber, Carry case & Sunshade Carry case & Sunshade, SFP Optical Fiber Module SFP Optical Fiber, Carry case & Sunshade, Rack mount brackets SFP Optical Fiber SFP Optical Fiber Module, Gimbal bracket, Carry case & Sunshade, Rack mount brackets Carry case & Sunshade, SFP Optical Fiber Module SFP Optical Fiber Module SFP Optical Fiber Module
Scopes
Audio analysis Audio vector, Level meter Audio vector, Level meter Audio vector, Level meter Audio vector, Level meter Audio vector, Level meter Audio vector, Level meter Audio vector, Level meter Audio vector, Level meter
Video analysis Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom Waveform, Vectorscope, False colour, Histogram, Exposure, Focus peaking, Check field, Colour bar, Pixel zoom, Pixel-to-pixel, Marker, Freeze, H/V delay
