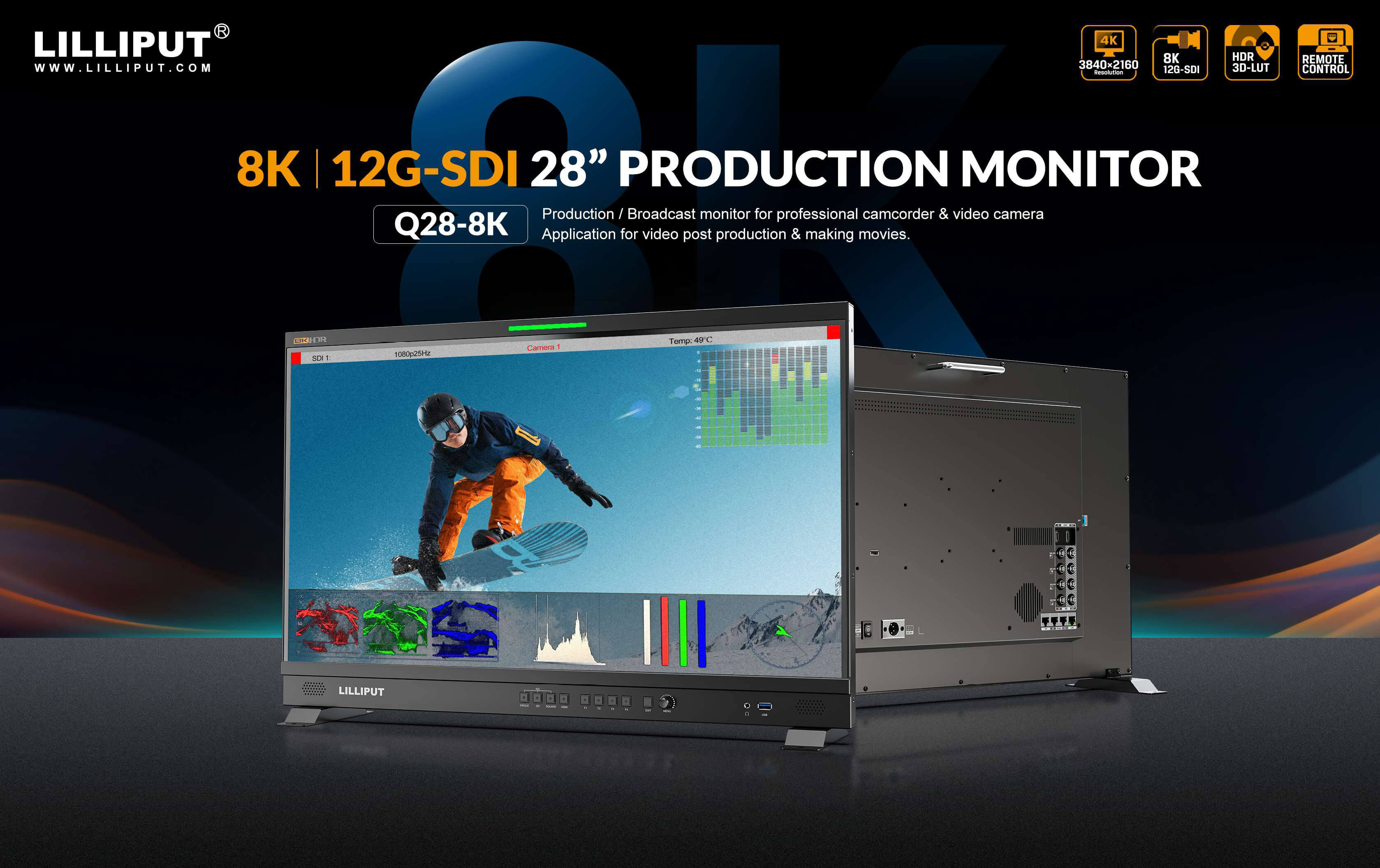

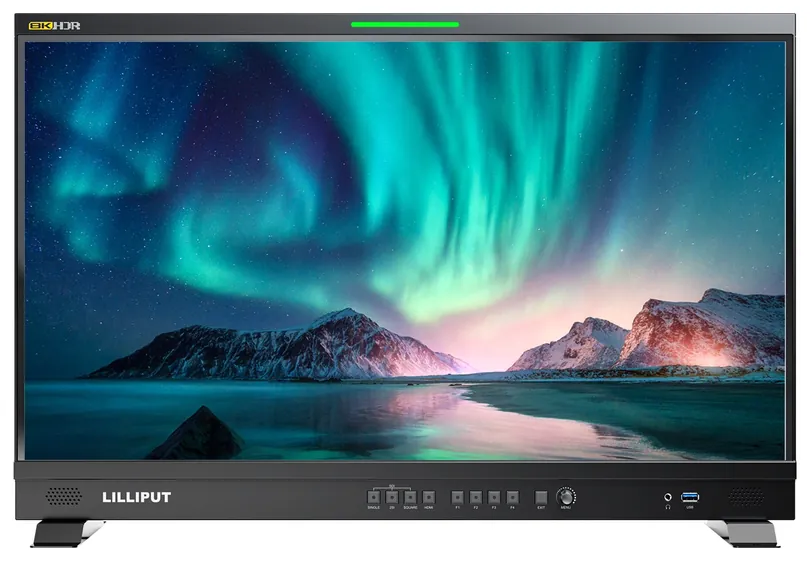

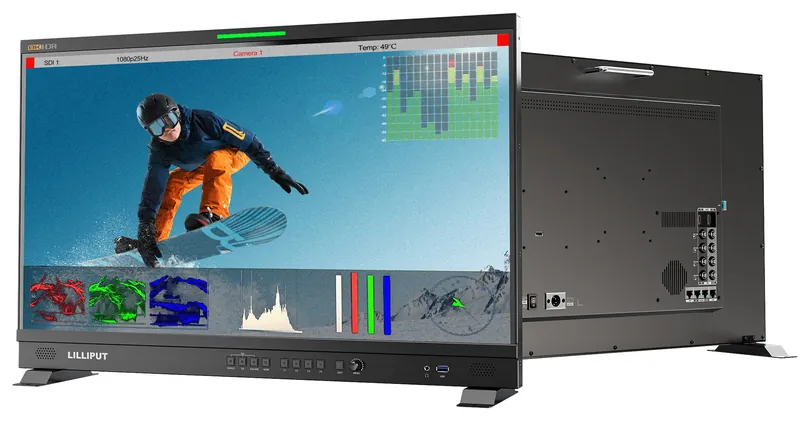

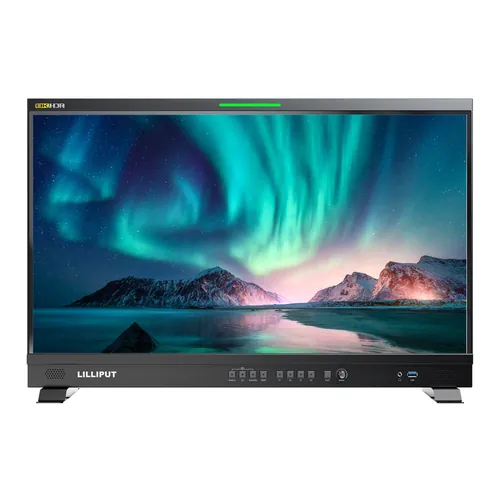

Key Features
- 28 inch 4K display, 300 cd/m², 1000:1 contrast
- 4x 12G-SDI (quad-link 8K), 1x 12G SFP+ (fiber optional), 1x HDMI 2.0

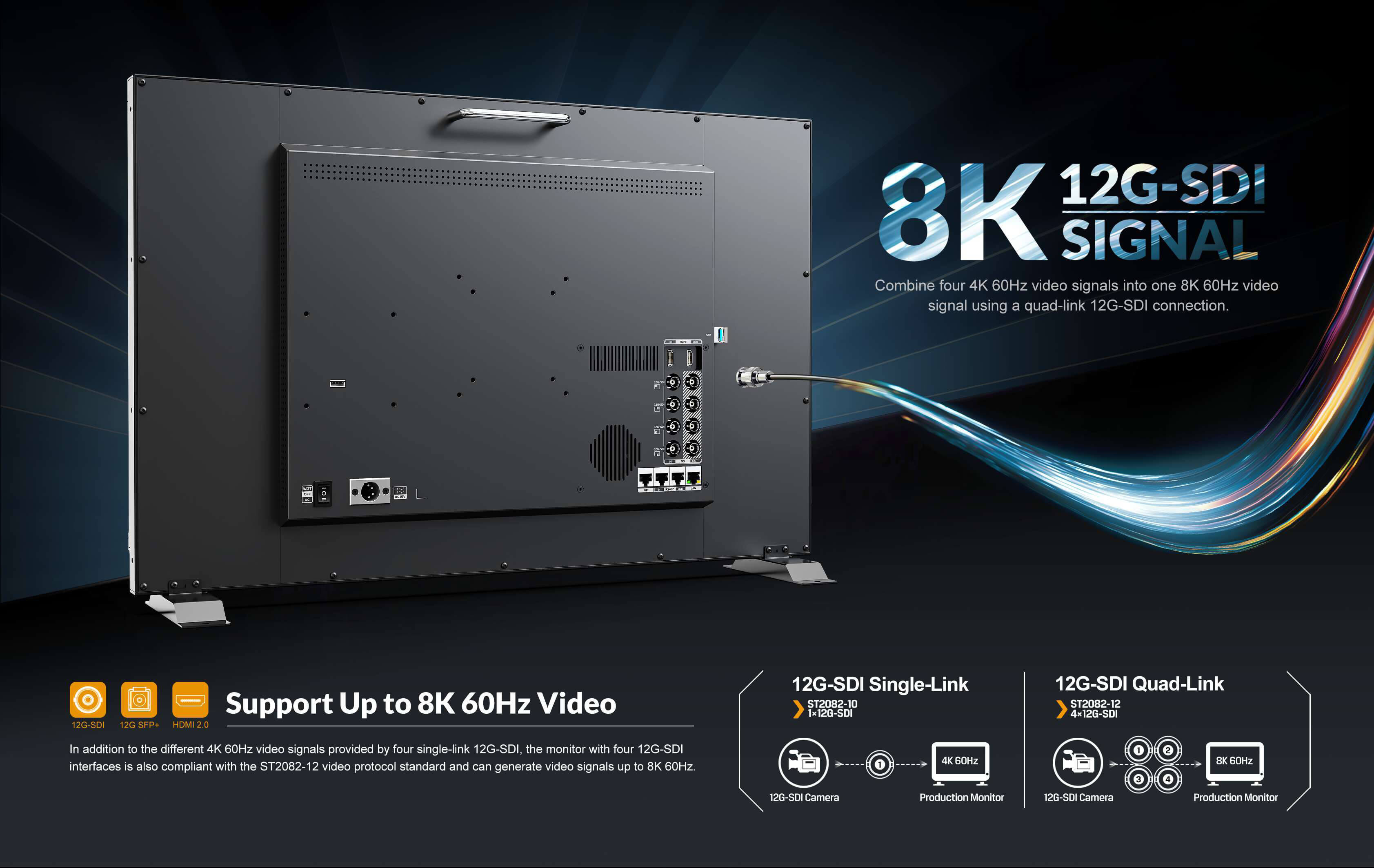

- Up to 8K 60Hz via quad-link 12G-SDI
- HDR: HLG, ST 2084 (300/1000/10000 cd/m²)
- Log formats: SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
- 3D LUT (.cube format); calibration to Rec.709
- V-Lock or Anton Bauer battery compatible
- GPI, LAN, RS422 remote control
Buy the Q28-8K From an Authorised Reseller
Lilliput's authorised resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the Q28-8K now, or if your country is not listed, browse all authorised resellers here.
- APODAX SL Opens in a new tab.
- AVNed B.V. Opens in a new tab.
- Camera World Limited Opens in a new tab.
- DigiBroadcast Co. Ltd Opens in a new tab.
- E-MOTION CREATIONS di Pierfrancesco Armati Opens in a new tab.
- Eastwood (Sound and Vision) Ltd Opens in a new tab.
- Fotospecialisti d.o.o. Opens in a new tab.
- HDEWCameras Opens in a new tab.
- Más Que Vídeo Profesional, SA Opens in a new tab.
- Proactive UK Ltd Opens in a new tab.
- RCB Logic Limited Opens in a new tab.
- Swiss Event Corporation AG Opens in a new tab.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data

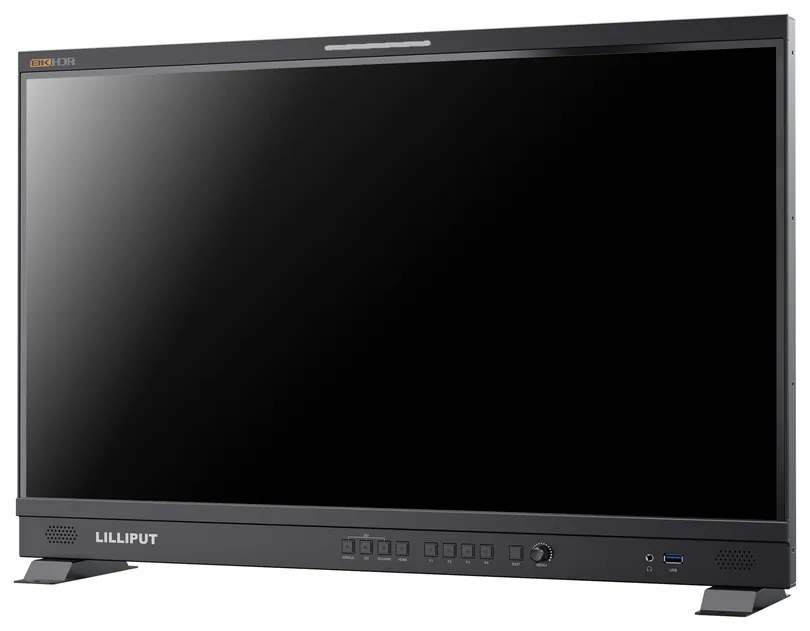

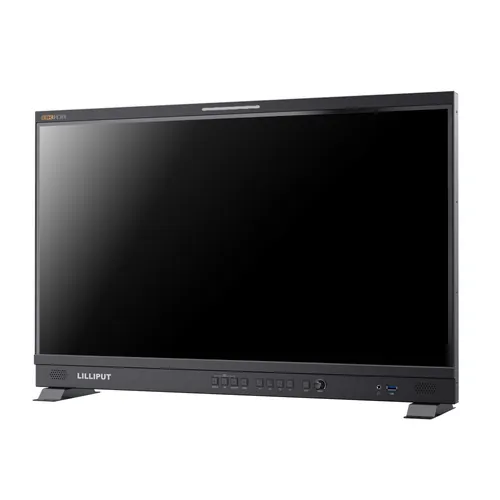

Display
- Screen size
- 28 inch
- Aspect ratio
- 16:9
- Native resolution
- 3840 x 2160
- Panel type
- LED
- Brightness
- 300 cd/m²
- Contrast
- 1000:1
- Viewing angle
- 178°/178° (H/V)
- HDR
- HLG, ST 2084 300/1000/10000
- Supported log formats
- SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined

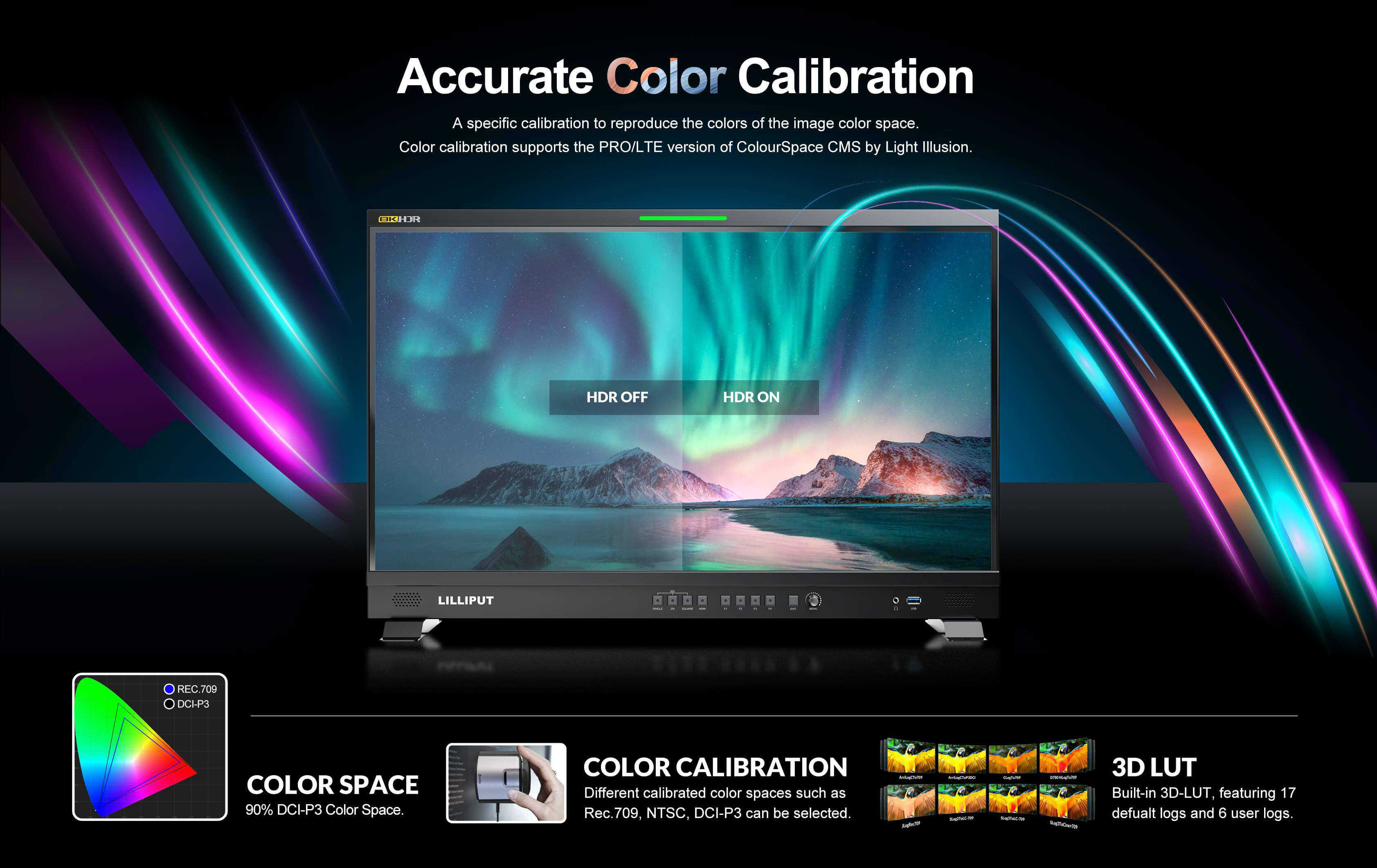

- LUT support
- 3D-LUT (.cube format)
- Colour space
- Calibration to Rec.709 (optional calibration unit)

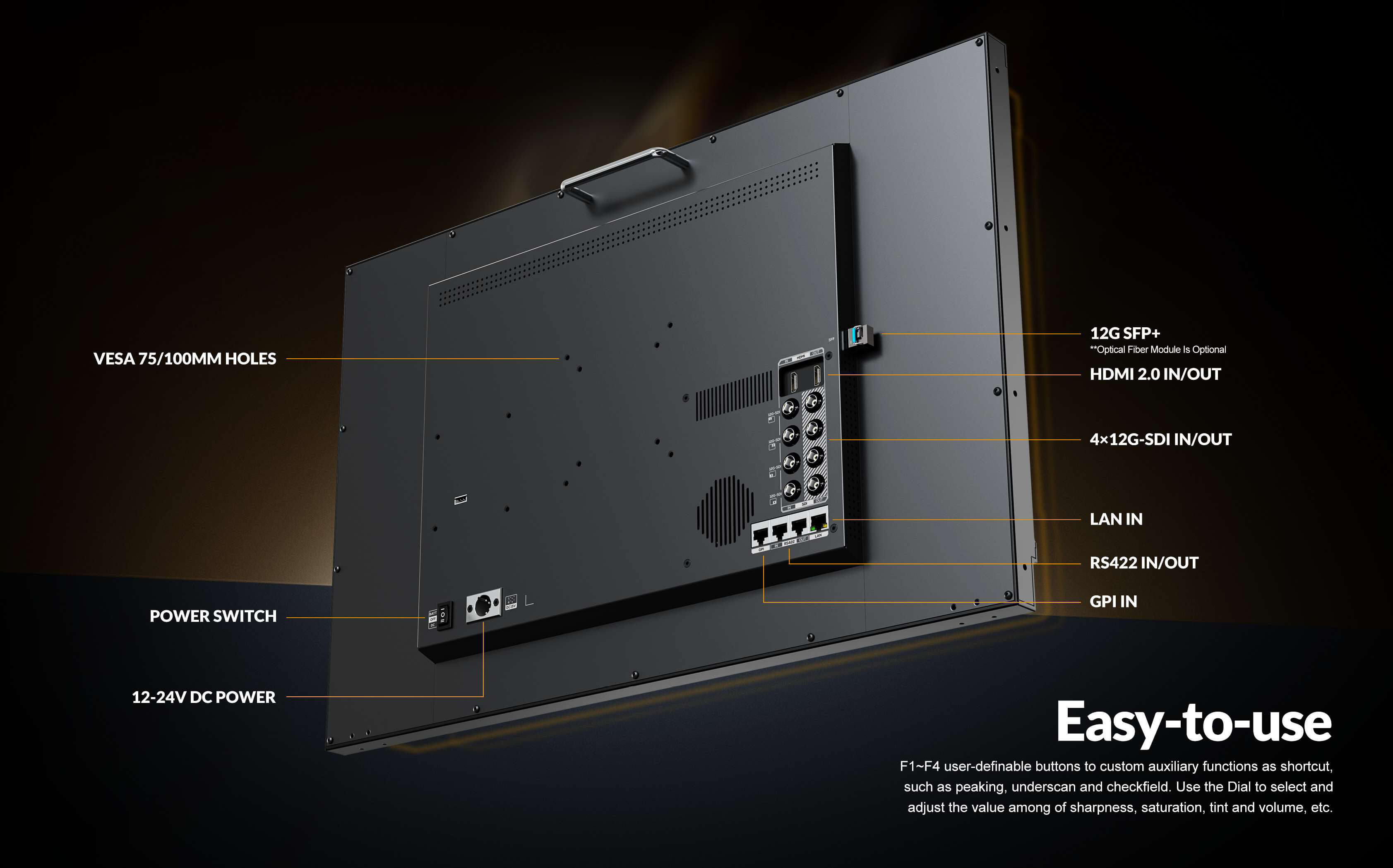

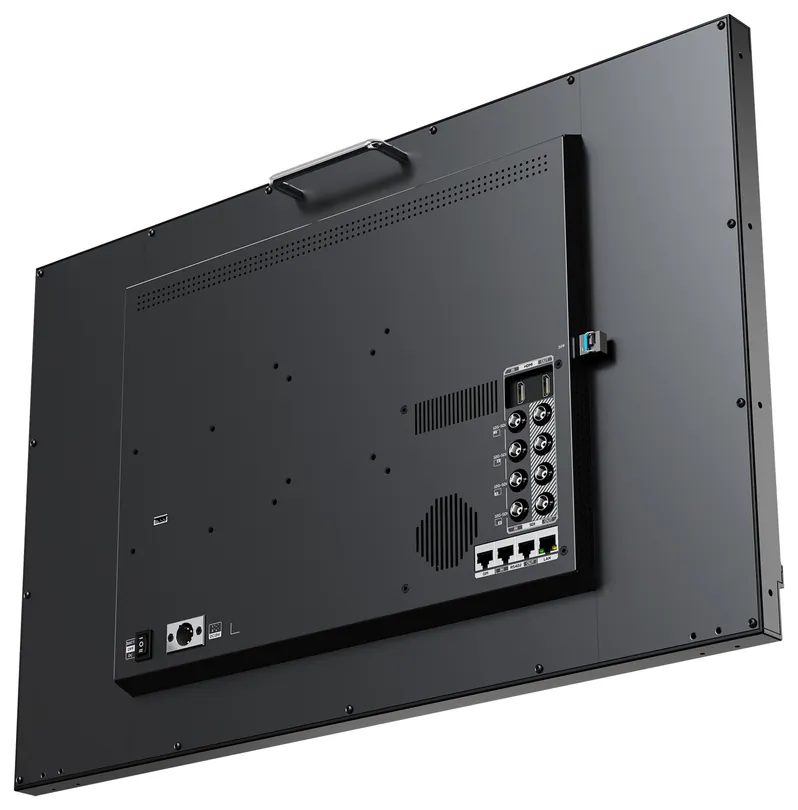

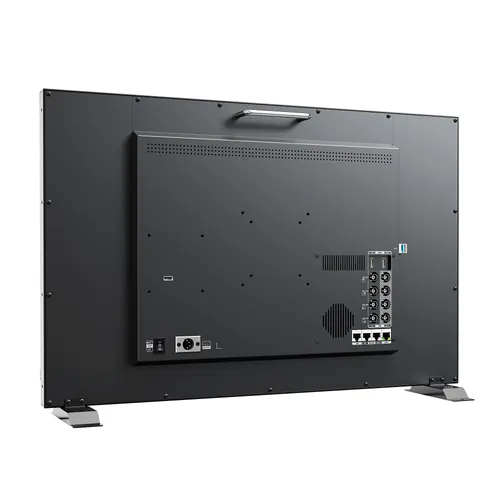

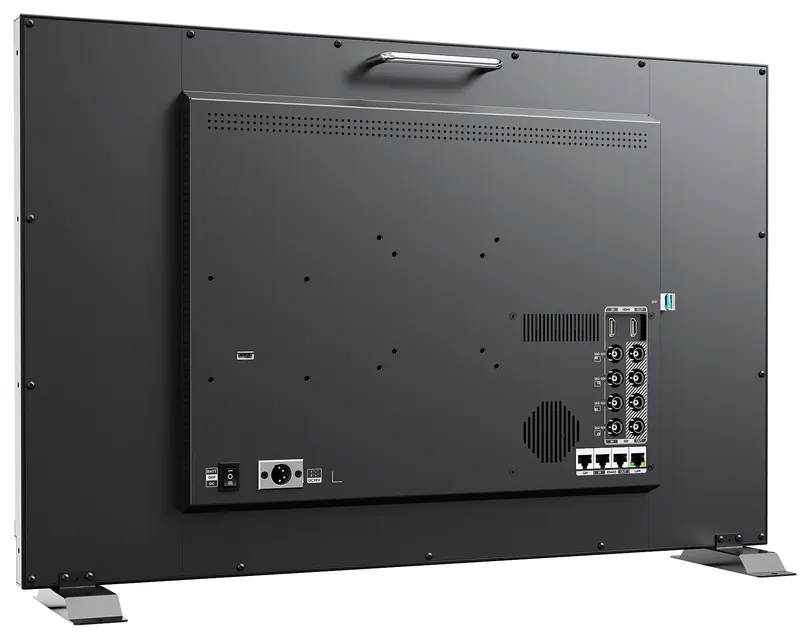

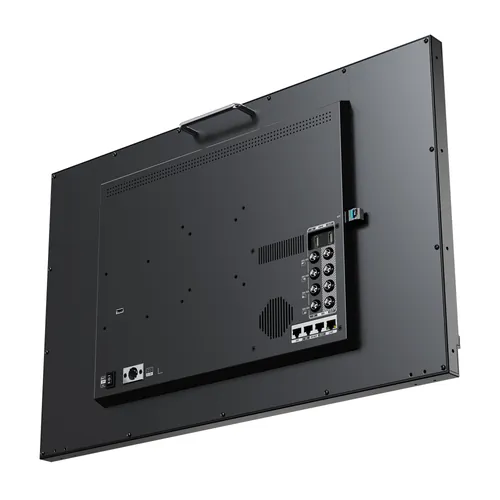

Connections
- Video inputs
- 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0
- Video outputs
- 4x 12G-SDI, 1x HDMI 2.0
- Audio
- 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers
Video Standards
- SFP
- 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
- HDMI 2.0
- 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- 12G-SDI
- 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
Scopes
- Video analysis
- Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom
- Audio analysis
- Audio vector, Level meter
Operational Features
- Menu control
- Custom Menu Knob (brightness, contrast, volume, peaking, etc.)
- Markers
- Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
- Function buttons
- F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.)

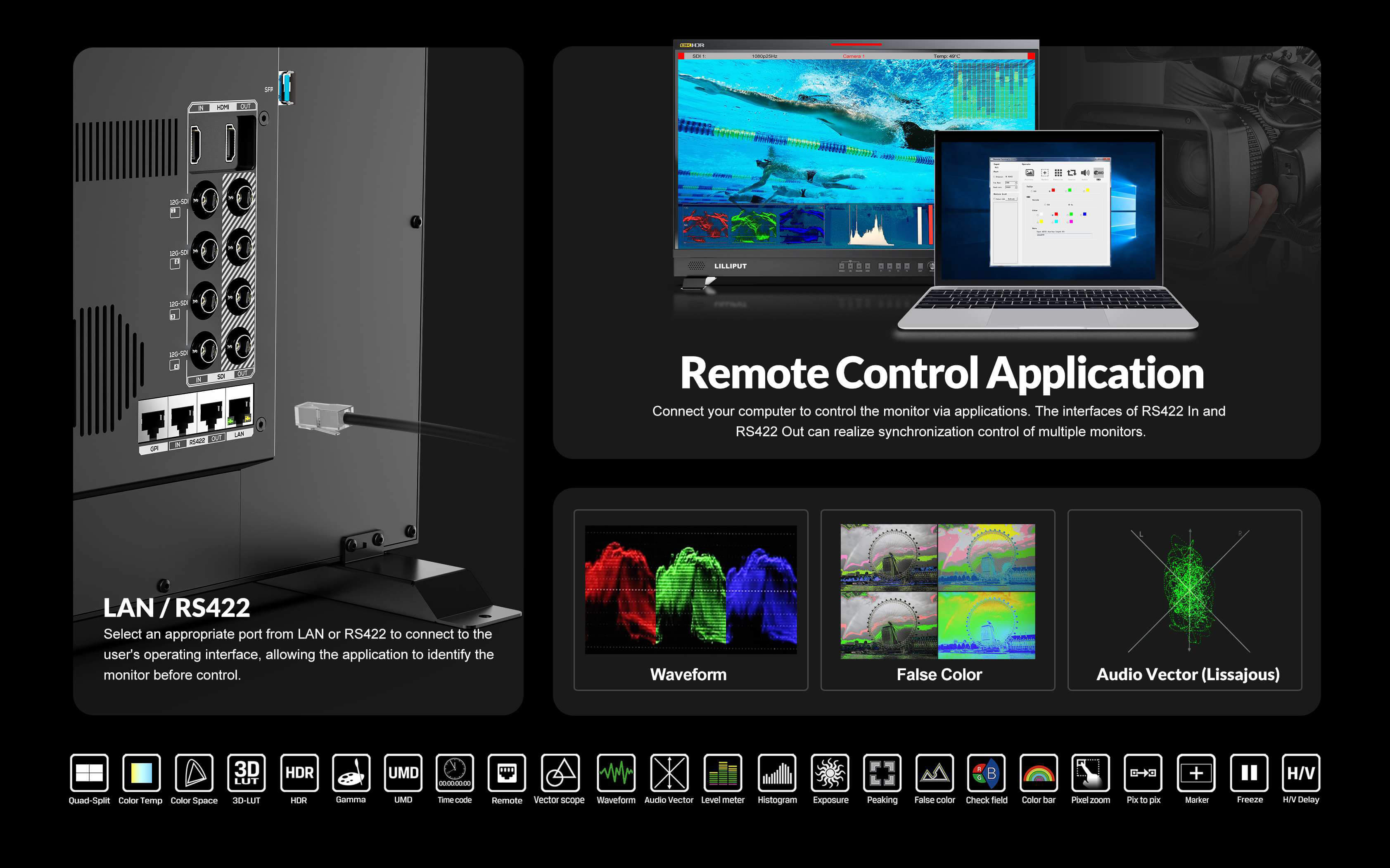

- Remote control
- GPI, LAN, RS422 In/Out

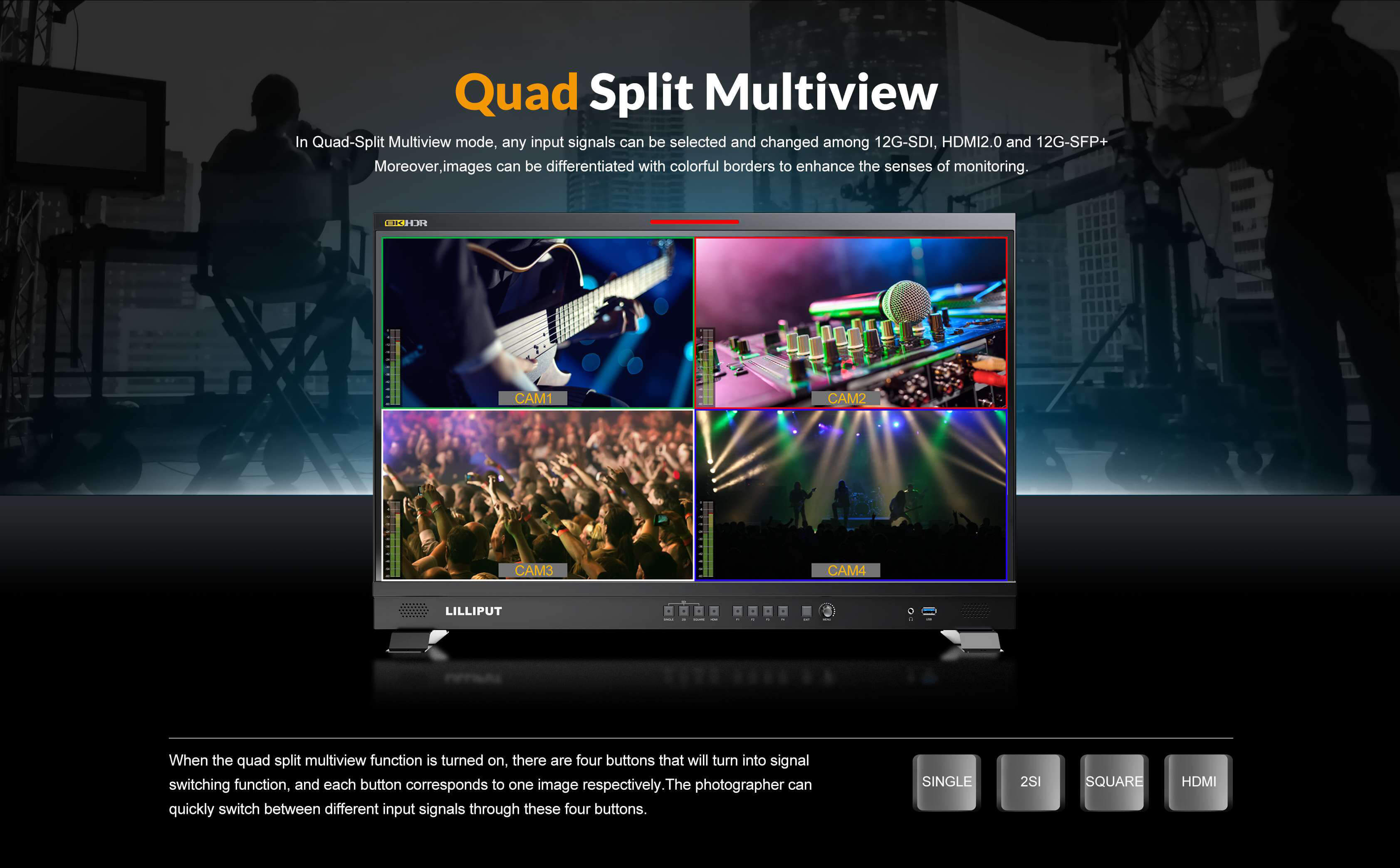

- View modes
- Quad-View
- Colour temperature
- 3200K, 5500K, 6500K, 7500K, 9300K, User
- Gamma
- 1.8 to 2.8
- Comparison
- Colour space, HDR, Gamma, Camera Log (side-by-side with original)
- Peaking
- Red, Green, Blue, White, Black
- Tally
- Red, Green, Yellow
- Time code
- LTC, VITC
- UMD
- User-defined text (7 colours)
- Image mirroring
- Vertical flip, Horizontal flip
Power
- Input voltage
- DC 12 to 24V
- Power consumption
- ≤65 W (15V)
- Compatible batteries
- V-Lock or Anton Bauer mount
- Input voltage (battery)
- 14.8V nominal
Environmental
- Operating temperature
- 0°C to 50°C
- Storage temperature
- -20°C to 60°C

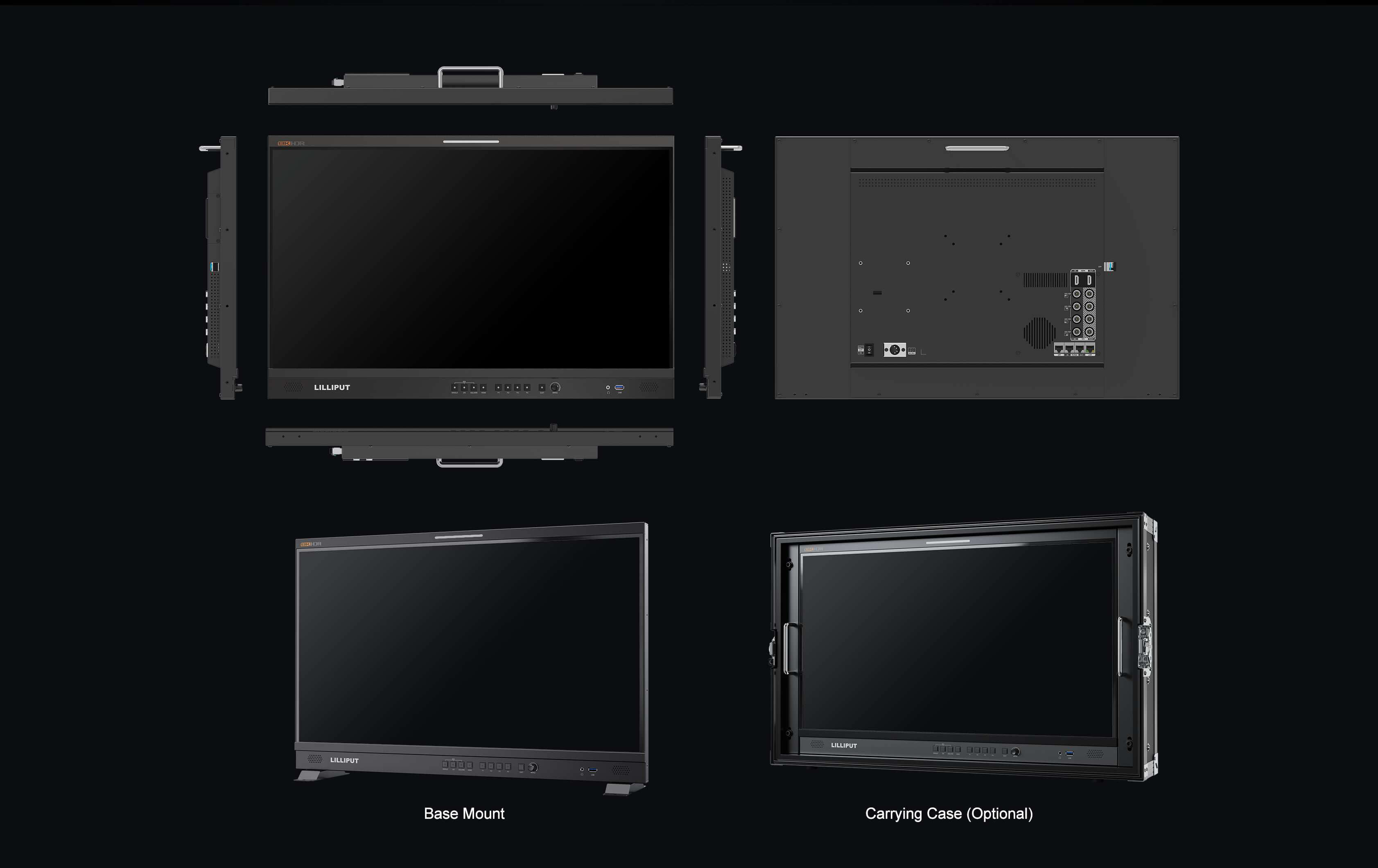

Mechanical
- Dimensions
- 638 x 414.3 x 45.7 mm
- Weight
- 8.6 kg
Mounting
- VESA mount
- 75 x 75 mm, 100 x 100 mm (plate included)
- Base brackets
- Base brackets included
Accessories
Included
- 15V DC Adapter
- VESA Mount Plate
- Battery Plate (V-mount or Anton Bauer)
- Base Bracket
- USB Flash Disk
Optional

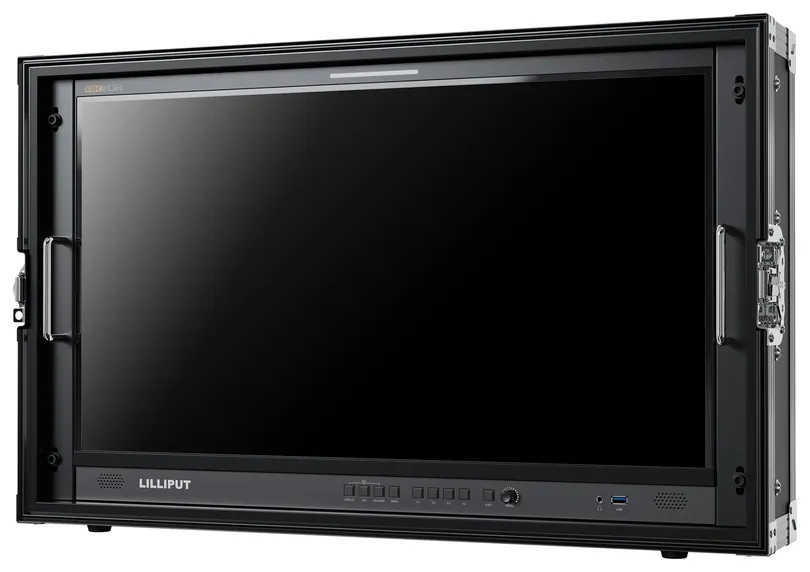

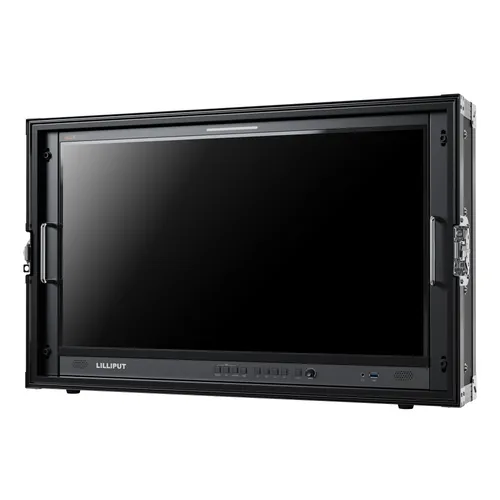

- Carry case & Sunshade
- SFP Optical Fiber Module
Product Downloads
Similar Products
Compare key technical data across similar products.
| Technical Data | Q28-8K | BM280-12G | UQ31 | Q13-8K | Q15-8K | Q18-8K | Q23-8K | Q31-8K | Q43-8K |
|---|---|---|---|---|---|---|---|---|---|
| Display | |||||||||
| Screen size | 28 inch | 28 inch | 31.5 inch | 13.3 inch | 15.6 inch | 17.3 inch | 23.8 inch | 31.5 inch | 43 inch |
| Native resolution | 3840 x 2160 | 3840 x 2160 | 3840 x 2160 | 3840 x 2160 | 3840 x 2160 | 3840 x 2160 | 3840 x 2160 | 3840 x 2160 | 3840 x 2160 |
| Aspect ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Bit depth | — | — | 8+2 (FRC) display; 12-bit processing | — | — | — | — | — | — |
| Brightness | 300 cd/m² | 300 cd/m² | 1000 cd/m² | 300 cd/m² | 600 cd/m² | 400 cd/m² | 300 cd/m² | 350 cd/m² | 400 cd/m² |
| Colour space | Calibration to Rec.709 (optional calibration unit) | — | Calibration to Rec.709, DCI-P3, NTSC, BT.2020 | Calibration to Rec.709 (optional calibration unit) | Calibration to Rec.709 (optional calibration unit) | Calibration to Rec.709 (optional calibration unit) | Calibration to Rec.709 (optional calibration unit) | Calibration to Rec.709 (optional calibration unit) | Calibration to Rec.709 (optional calibration unit) |
| Contrast | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1700:1 | 1200:1 | 1000:1 | 1300:1 | 1200:1 |
| HDR | HLG, ST 2084 300/1000/10000 | — | HLG, ST 2084 300/1000/10000 | HLG, ST 2084 300/1000/10000 | HLG, ST 2084 300/1000/10000 | HLG, ST 2084 300/1000/10000 | HLG, ST 2084 300/1000/10000 | HLG, ST 2084 300/1000/10000 | HLG, ST 2084 300/1000/10000 |
| LUT support | 3D-LUT (.cube format) | — | 3D-LUT (.cube format) | 3D-LUT (.cube format) | 3D-LUT (.cube format) | 3D-LUT (.cube format) | 3D-LUT (.cube format) | 3D-LUT (.cube format) | 3D-LUT (.cube format) |
| Panel type | LED | LED | LED | LED | LED | LED | LED | LED | LED |
| Supported log formats | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | — | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined |
| Viewing angle | 178°/178° (H/V) | 170°/160° (H/V) | 178°/178° (H/V) | 178°/178° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) | 178°/178° (H/V) | 178°/178° (H/V) | 178°/178° (H/V) |
| Mechanical | |||||||||
| Dimensions | 638 x 414.3 x 45.7 mm | 670 x 425 x 45 mm (device only) | 747 x 475.1 x 55 mm | 340 x 232.8 x 46 mm | 393 x 267 x 41.4 mm | 433.9 x 294.2 x 45.7 mm | 567 x 376.4 x 45.7 mm | 717.5 x 461.7 x 47.4 mm | 968.5 x 604.9 x 48.5 mm |
| Weight | 8.6 kg | 9.4 kg (device only) | 12.5 kg | 2.4 kg | 2.9 kg | 3.9 kg | 7.4 kg | 13.0 kg | 14.5 kg |
| Connections | |||||||||
| Video inputs | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 | 2x 12G-SDI, 2x 3G-SDI (4K single/dual/quad link), 1x HDMI 2.0, 3x HDMI 1.4 | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.1 | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 |
| Video outputs | 4x 12G-SDI, 1x HDMI 2.0 | 2x 12G-SDI, 2x 3G-SDI (uncompressed 10-bit or 8-bit 4:2:2) | 4x 12G-SDI, 1x HDMI 2.1 | 4x 12G-SDI, 1x HDMI 2.0 | 4x 12G-SDI, 1x HDMI 2.0 | 4x 12G-SDI, 1x HDMI 2.0 | 4x 12G-SDI, 1x HDMI 2.0 | 4x 12G-SDI, 1x HDMI 2.0 | 4x 12G-SDI, 1x HDMI 2.0 |
| Audio | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers | 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers |
| Video Standards | |||||||||
| 12G-SDI | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| 3G-SDI | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | — | — | — | — | — | — |
| HDMI 1.4 | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | — | — | — | — | — | — |
| HDMI 2.0 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| HDMI 2.1 | — | — | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | — | — | — | — | — |
| SFP | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| Power | |||||||||
| Power consumption | ≤65 W (15V) | ≤61.5 W | ≤94 W (at 24V) | ≤36 W (15V) | ≤37 W (15V) | ≤40 W (15V) | ≤60 W (15V) | ≤65 W (15V) | ≤77 W (at 24V) |
| Compatible batteries | V-Lock or Anton Bauer mount | V-Lock or Anton Bauer mount | V-Lock or Anton Bauer mount | V-Lock or Anton Bauer mount | V-Lock or Anton Bauer mount | V-Lock or Anton Bauer mount | V-Lock or Anton Bauer mount | V-Lock or Anton Bauer mount | — |
| Input voltage | DC 12 to 24V | DC 12 to 24V | DC 12 to 24V | DC 12 to 24V | DC 12 to 24V | DC 12 to 24V | DC 12 to 24V | DC 12 to 24V | DC 24V |
| Input voltage (battery) | 14.8V nominal | 14.4V nominal | 14.8V nominal | 14.8V nominal | 14.8V nominal | 14.8V nominal | 14.8V nominal | 14.8V nominal | — |
| Environmental | |||||||||
| Operating temperature | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C |
| Storage temperature | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C |
| Operational Features | |||||||||
| Colour temperature | 3200K, 5500K, 6500K, 7500K, 9300K, User | — | 3200K, 5500K, 6500K, 7500K, 9300K, User | 3200K, 5500K, 6500K, 7500K, 9300K, User | 3200K, 5500K, 6500K, 7500K, 9300K, User | 3200K, 5500K, 6500K, 7500K, 9300K, User | 3200K, 5500K, 6500K, 7500K, 9300K, User | 3200K, 5500K, 6500K, 7500K, 9300K, User | 3200K, 5500K, 6500K, 7500K, 9300K, User |
| Comparison | Colour space, HDR, Gamma, Camera Log (side-by-side with original) | — | Colour space, HDR, Gamma, Camera Log (side-by-side with original) | Colour space, HDR, Gamma, Camera Log (side-by-side with original) | Colour space, HDR, Gamma, Camera Log (side-by-side with original) | Colour space, HDR, Gamma, Camera Log (side-by-side with original) | Colour space, HDR, Gamma, Camera Log (side-by-side with original) | Colour space, HDR, Gamma, Camera Log (side-by-side with original) | Colour space, HDR, Gamma, Camera Log (side-by-side with original) |
| Function buttons | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) | — | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) |
| Gamma | 1.8 to 2.8 | — | 1.8 to 2.8 | 1.8 to 2.8 | 1.8 to 2.8 | 1.8 to 2.8 | 1.8 to 2.8 | 1.8 to 2.8 | 1.8 to 2.8 |
| Image mirroring | Vertical flip, Horizontal flip | — | — | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip |
| Markers | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 17:9; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 256:135, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off |
| Menu control | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) | — | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) |
| Peaking | Red, Green, Blue, White, Black | — | Red, Green, Blue, White, Black | Red, Green, Blue, White, Black | Red, Green, Blue, White, Black | Red, Green, Blue, White, Black | Red, Green, Blue, White, Black | Red, Green, Blue, White, Black | Red, Green, Blue, White, Black |
| Remote control | GPI, LAN, RS422 In/Out | — | GPI, LAN, RS422 In/Out | GPI, LAN, RS422 In/Out | GPI, LAN, RS422 In/Out | GPI, LAN, RS422 In/Out | GPI, LAN, RS422 In/Out | GPI, LAN, RS422 In/Out | GPI, LAN, RS422 In/Out |
| Tally | Red, Green, Yellow | — | Red, Green, Yellow | Red, Green, Yellow | Red, Green, Yellow | Red, Green, Yellow | Red, Green, Yellow | Red, Green, Yellow | Red, Green, Yellow |
| Time code | LTC, VITC | — | LTC, VITC | LTC, VITC | LTC, VITC | LTC, VITC | LTC, VITC | LTC, VITC | LTC, VITC |
| UMD | User-defined text (7 colours) | — | User-defined text (7 colours) | User-defined text (7 colours) | User-defined text (7 colours) | User-defined text (7 colours) | User-defined text (7 colours) | User-defined text (7 colours) | User-defined text (7 colours) |
| View modes | Quad-View | Picture-by-Picture, Picture-in-Picture, Quad-View | Quad-View | Quad-View | Quad-View | Quad-View | Quad-View | Quad-View | Quad-View |
| Mounting | |||||||||
| Base brackets | Base brackets included | Base brackets included | Base brackets included | Base brackets included | Base brackets included | Base brackets included | Base brackets included | Base brackets included | Base brackets included |
| Gimbal bracket | — | — | — | Optional | — | — | — | — | — |
| Rack mount | — | — | — | 6U rack mount brackets (optional) | 6U rack mount brackets (optional) | 6U rack mount brackets (optional) | — | — | — |
| VESA mount | 75 x 75 mm, 100 x 100 mm (plate included) | VESA mount plate included | 75 x 75 mm, 100 x 100 mm (plate included) | 75 x 75 mm, 100 x 100 mm (plate included) | 75 x 75 mm, 100 x 100 mm (plate included) | 75 x 75 mm, 100 x 100 mm (plate included) | 75 x 75 mm, 100 x 100 mm (plate included) | 75 x 75 mm, 100 x 100 mm (plate included) | — |
| Wall mount | — | — | — | — | — | — | — | — | 400 x 400 mm (M6/30 mm screws) |
| Accessories | |||||||||
| Included | 15V DC Adapter, VESA Mount Plate, Battery Plate (V-mount or Anton Bauer), Base Bracket, USB Flash Disk | Carry case, Sun shade, VESA Mount Plate, V-Lock / Anton Bauer Mount, 15V DC Adapter, Base Bracket, TALLY connector, Fixing belt, User manual | 24V 7.5A Power Adapter, Base Brackets, USB Flash Disk, Battery Plate (V-mount or Anton Bauer), VESA Mount Plate, D-Tap to XLR Connector | 15V DC Adapter, VESA Mount Plate, Base Bracket, Battery Plate (V-Lock or Anton Bauer), USB Flash Disk | 15V DC Adapter, VESA Mount Plate, Base Bracket, Battery Plate (V-Lock or Anton Bauer), USB Flash Disk | 15V DC Adapter, VESA Mount Plate, Base Bracket, Battery Plate (V-Lock or Anton Bauer), USB Flash Disk | 15V DC Adapter, VESA Mount Plate, Battery Plate (V-mount or Anton Bauer), Base Bracket, USB Flash Disk | 15V DC Adapter, VESA Mount Plate, Battery Plate (V-mount or Anton Bauer), Base Bracket, USB Flash Disk | 24V 7.5A DC Adapter, Base Brackets, USB Flash Disk |
| Optional | Carry case & Sunshade, SFP Optical Fiber Module | Acrylic Screen Protector, WHDI accessories | SFP Optical Fiber | SFP Optical Fiber Module, Gimbal bracket, Rack mount brackets | SFP Optical Fiber Module, Gimbal bracket, Carry case & Sunshade, Rack mount brackets, Acrylic Screen Protector | SFP Optical Fiber Module, Gimbal bracket, Carry case & Sunshade, Rack mount brackets | Carry case & Sunshade, SFP Optical Fiber Module | SFP Optical Fiber Module | SFP Optical Fiber Module |
| Scopes | |||||||||
| Audio analysis | Audio vector, Level meter | — | Audio vector, Level meter | Audio vector, Level meter | Audio vector, Level meter | Audio vector, Level meter | Audio vector, Level meter | Audio vector, Level meter | Audio vector, Level meter |
| Video analysis | Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom | — | Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom | Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom | Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom | Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom | Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom | Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom | Waveform, Vectorscope, False colour, Histogram, Exposure, Focus peaking, Check field, Colour bar, Pixel zoom, Pixel-to-pixel, Marker, Freeze, H/V delay |
