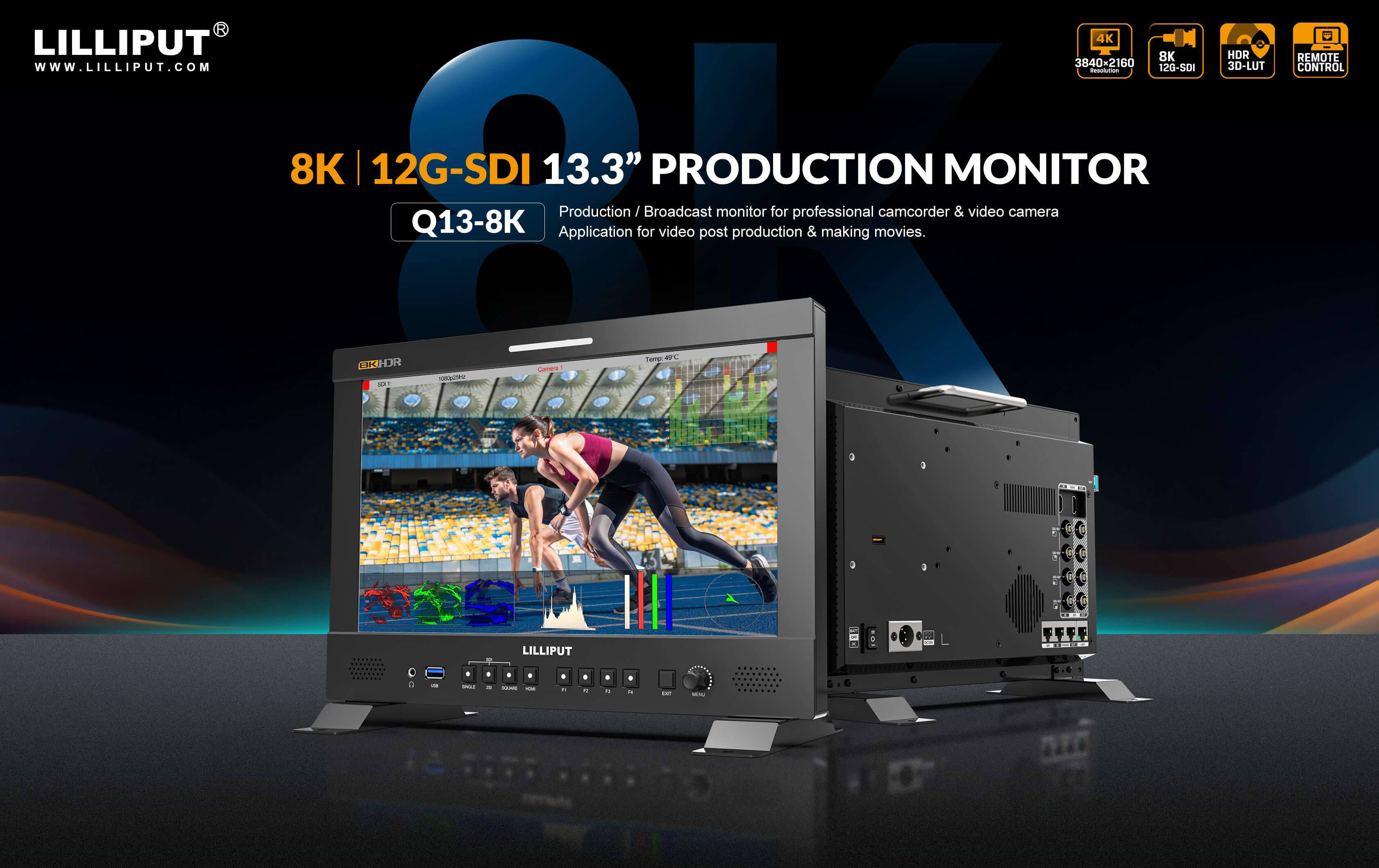

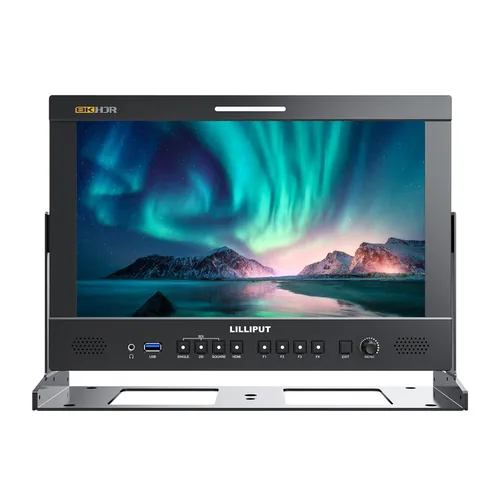

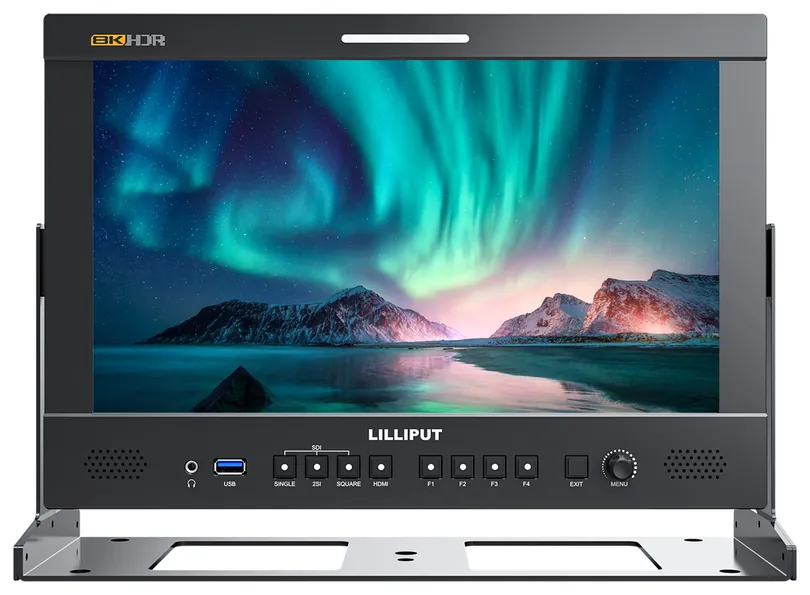

Key Features
- 13.3 inch 4K display, 300 cd/m², 1000:1 contrast
- 4x 12G-SDI (quad-link 8K), 1x 12G SFP+ (fiber optional), 1x HDMI 2.0

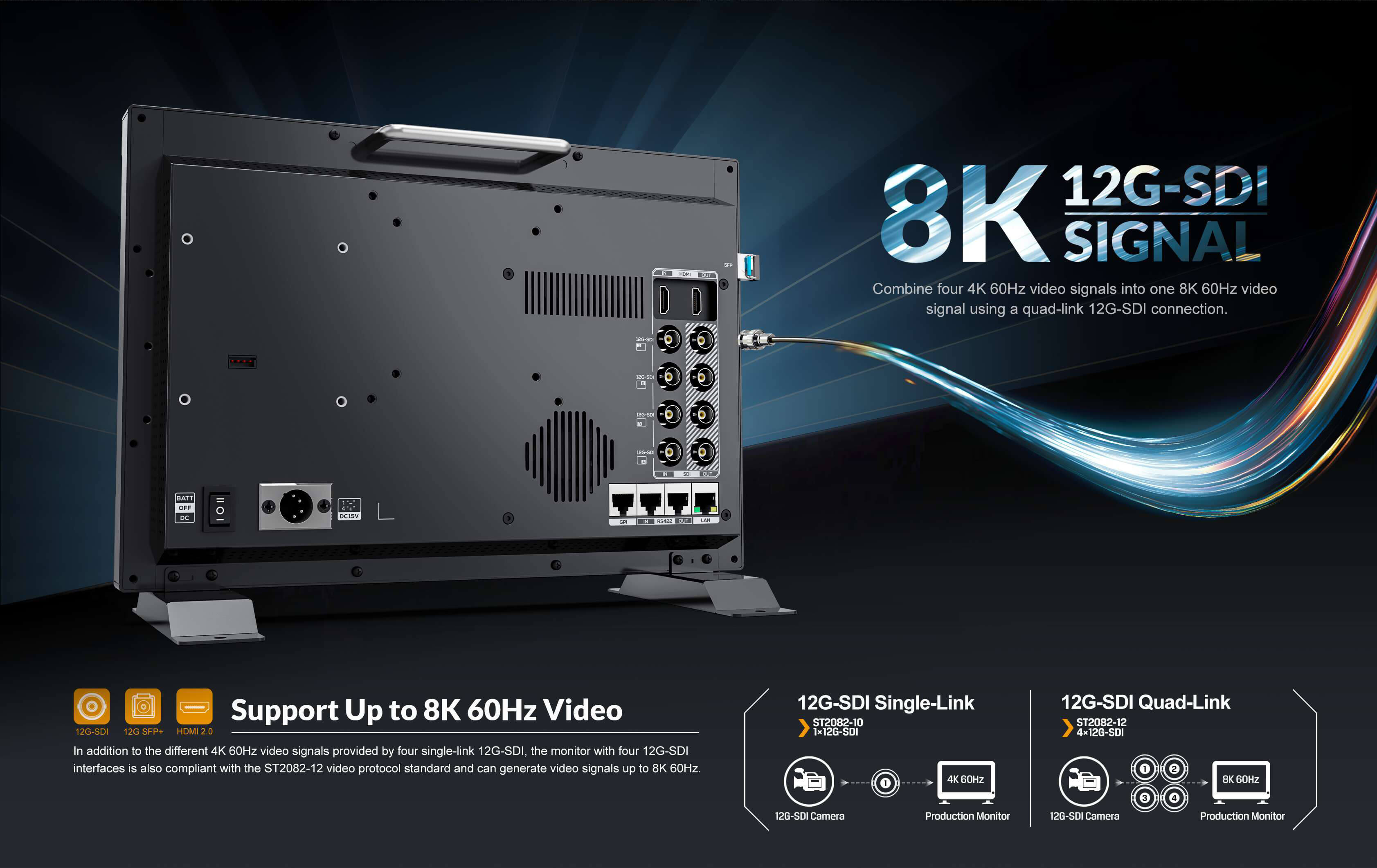

- Up to 8K 60Hz via quad-link 12G-SDI
- HDR: HLG, ST 2084 (300/1000/10000 cd/m²)
- Log formats: SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
- 3D LUT (.cube format); calibration to Rec.709
- V-Lock or Anton Bauer battery compatible
- GPI, LAN, RS422 remote control
- Versatile mounting: VESA 75 x 75 mm and VESA 100 x 100 mm, base brackets included, optional 6U rack mount brackets
Buy the Q13-8K From an Authorised Reseller
Lilliput's authorised resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the Q13-8K now, or if your country is not listed, browse all authorised resellers here.
- APODAX SL Opens in a new tab.
- AVNed B.V. Opens in a new tab.
- Broadcast Center S.R.L. Opens in a new tab.
- E-MOTION CREATIONS di Pierfrancesco Armati Opens in a new tab.
- Eastwood (Sound and Vision) Ltd Opens in a new tab.
- Más Que Vídeo Profesional, SA Opens in a new tab.
- Proactive UK Ltd Opens in a new tab.
- Production Gear Ltd Opens in a new tab.
- RCB Logic Limited Opens in a new tab.
- Wendys Broadcast Services Ltd Opens in a new tab.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data
Display
- Screen size
- 13.3 inch
- Aspect ratio
- 16:9
- Native resolution
- 3840 x 2160
- Panel type
- LED
- Brightness
- 300 cd/m²
- Contrast
- 1000:1
- Viewing angle
- 178°/178° (H/V)
- HDR
- HLG, ST 2084 300/1000/10000
- Supported log formats
- SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
- LUT support
- 3D-LUT (.cube format)

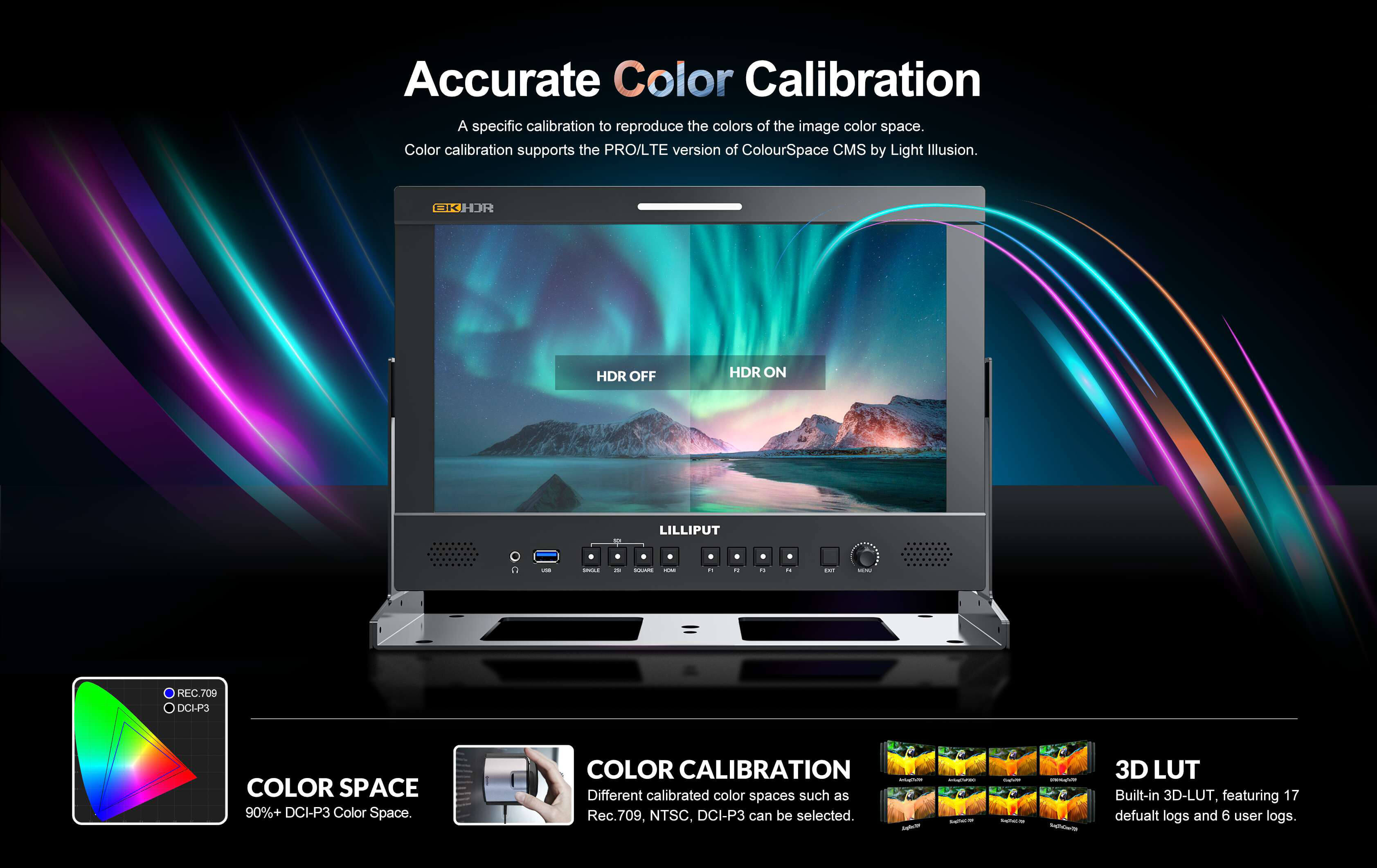

- Colour space
- Calibration to Rec.709 (optional calibration unit)

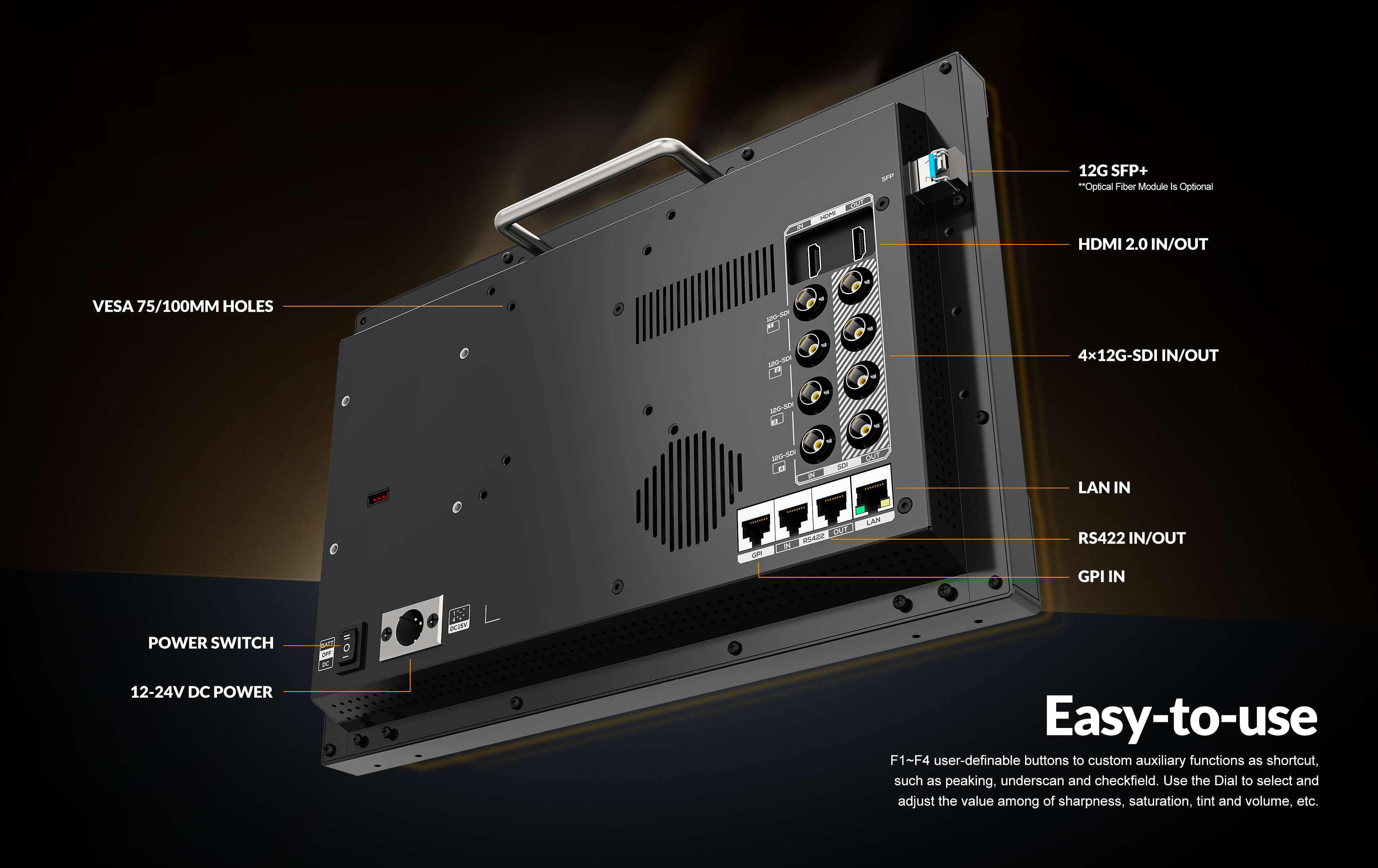

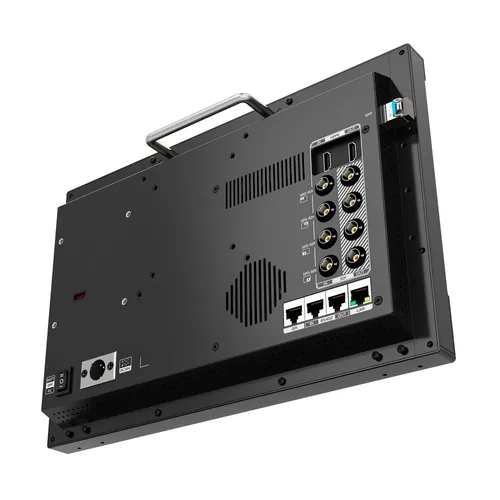

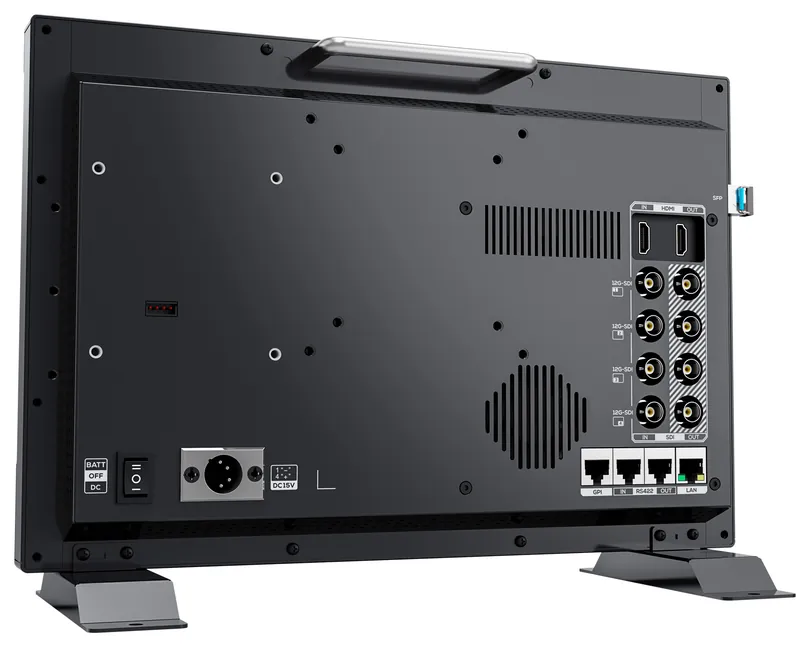

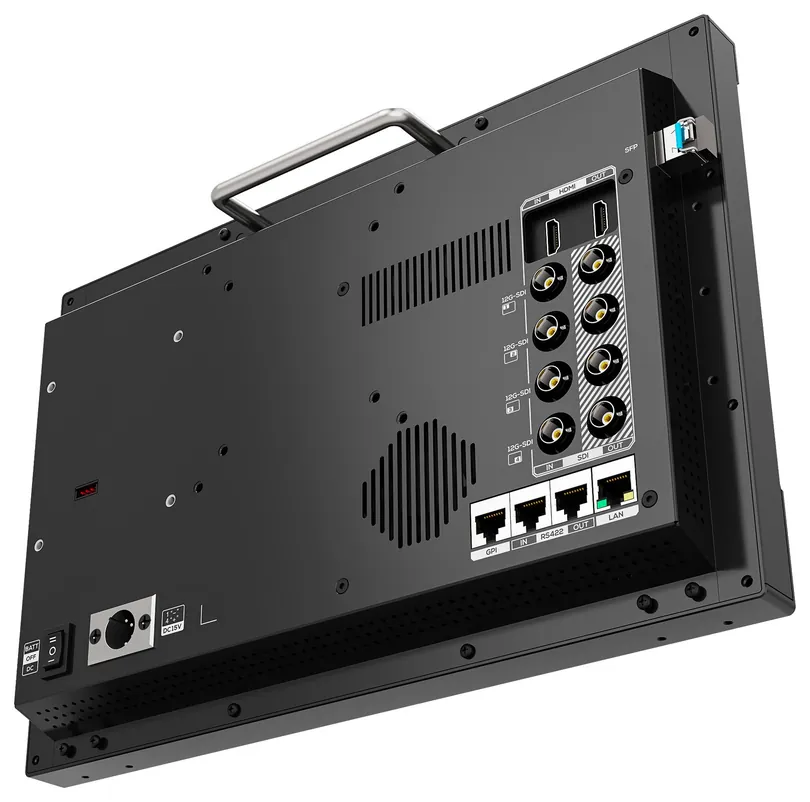

Connections
- Video inputs
- 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0
- Video outputs
- 4x 12G-SDI, 1x HDMI 2.0
- Audio
- 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers
Video Standards
- SFP
- 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
- HDMI 2.0
- 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- 12G-SDI
- 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60

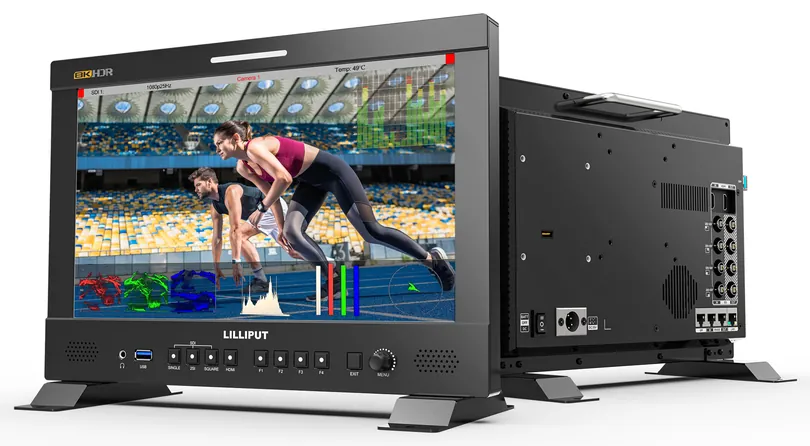

Scopes
- Video analysis
- Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom
- Audio analysis
- Audio vector, Level meter
Operational Features
- Menu control
- Custom Menu Knob (brightness, contrast, volume, peaking, etc.)
- Markers
- Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
- Function buttons
- F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.)

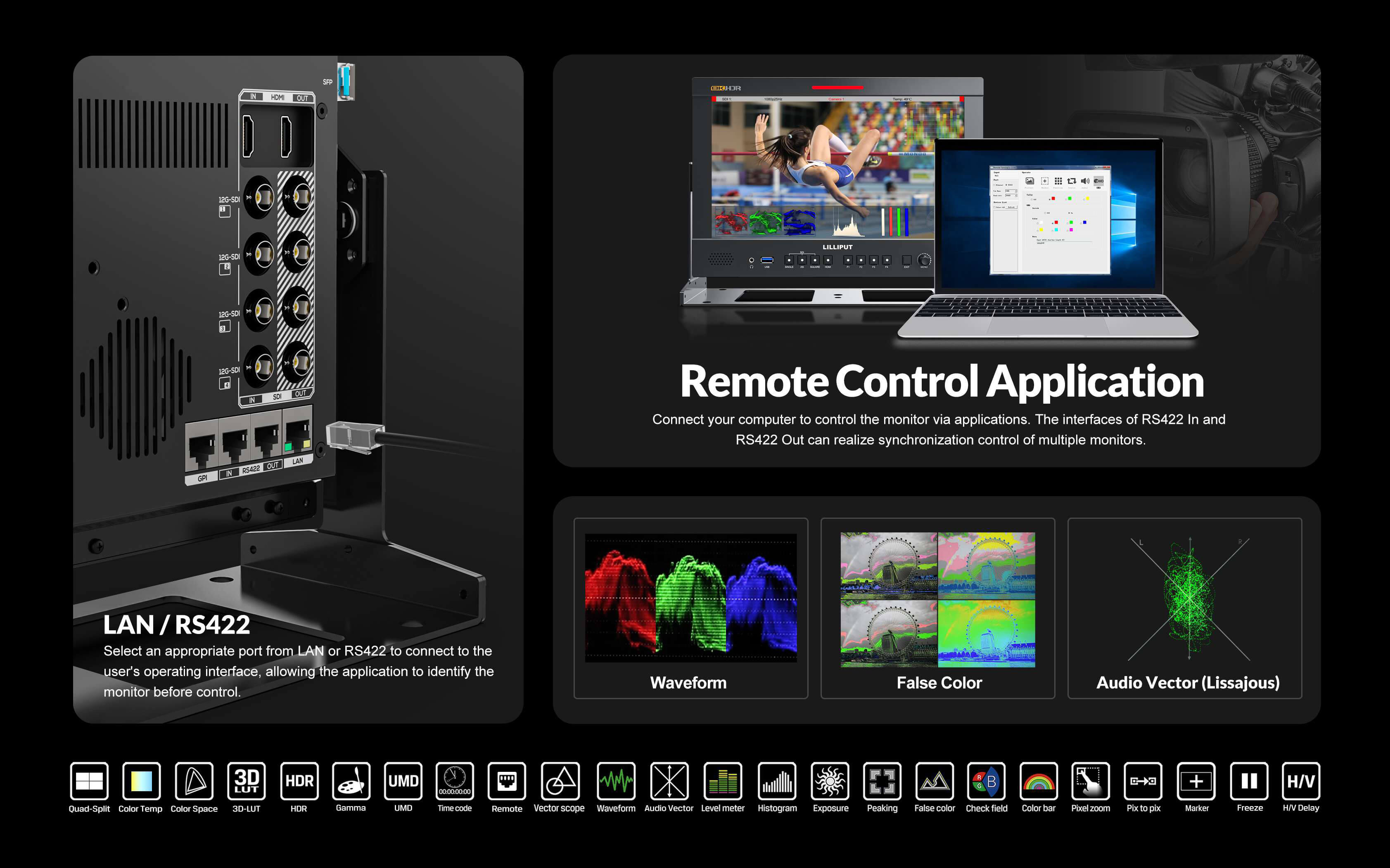

- Remote control
- GPI, LAN, RS422 In/Out

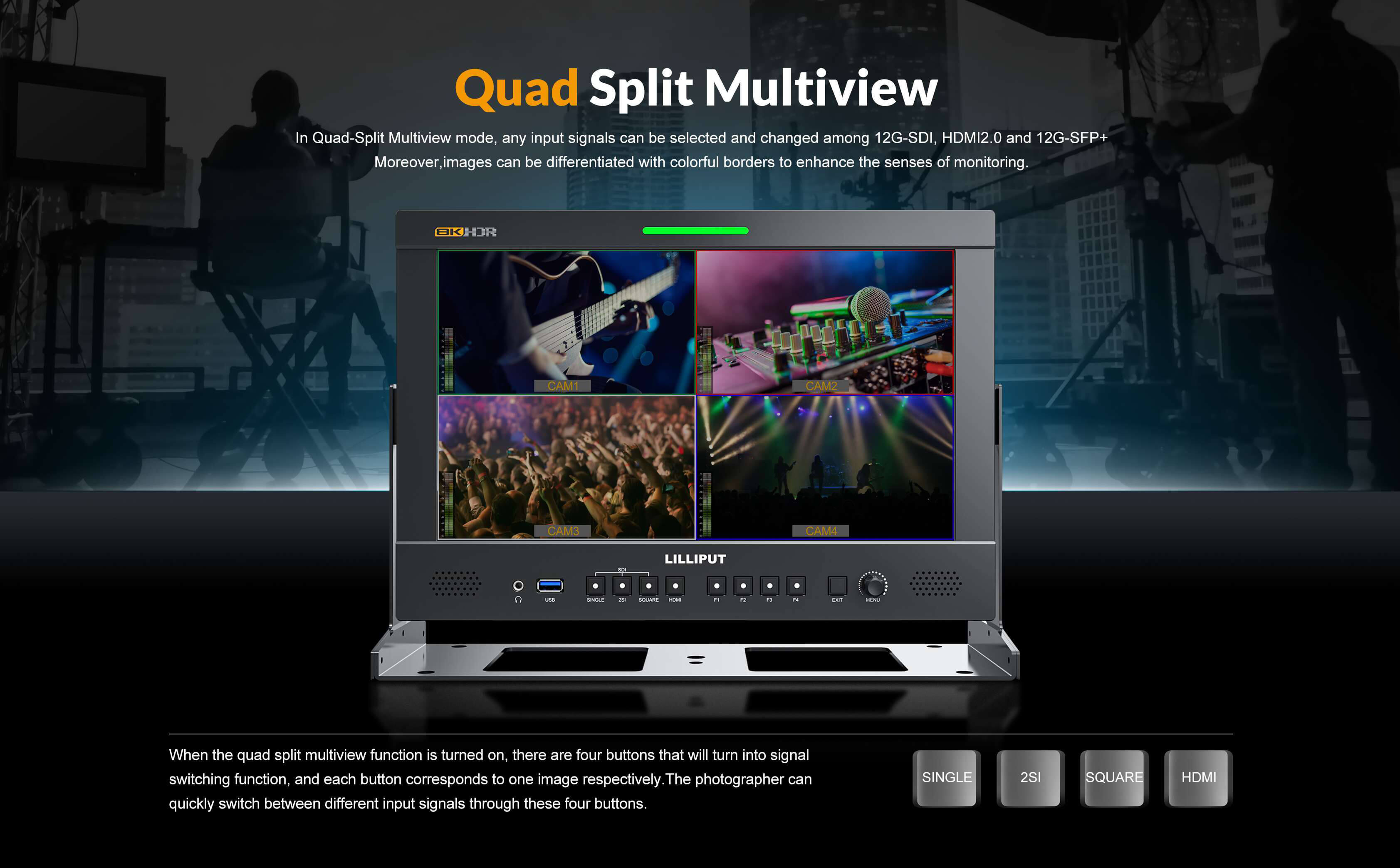

- View modes
- Quad-View
- Colour temperature
- 3200K, 5500K, 6500K, 7500K, 9300K, User
- Gamma
- 1.8 to 2.8
- Comparison
- Colour space, HDR, Gamma, Camera Log (side-by-side with original)
- Peaking
- Red, Green, Blue, White, Black
- Tally
- Red, Green, Yellow
- Time code
- LTC, VITC
- UMD
- User-defined text (7 colours)
- Image mirroring
- Vertical flip, Horizontal flip
Power
- Input voltage
- DC 12 to 24V
- Power consumption
- ≤36 W (15V)
- Compatible batteries
- V-Lock or Anton Bauer mount
- Input voltage (battery)
- 14.8V nominal
Environmental
- Operating temperature
- 0°C to 50°C
- Storage temperature
- -20°C to 60°C
Mechanical
- Dimensions
- 340 x 232.8 x 46 mm
- Weight
- 2.4 kg

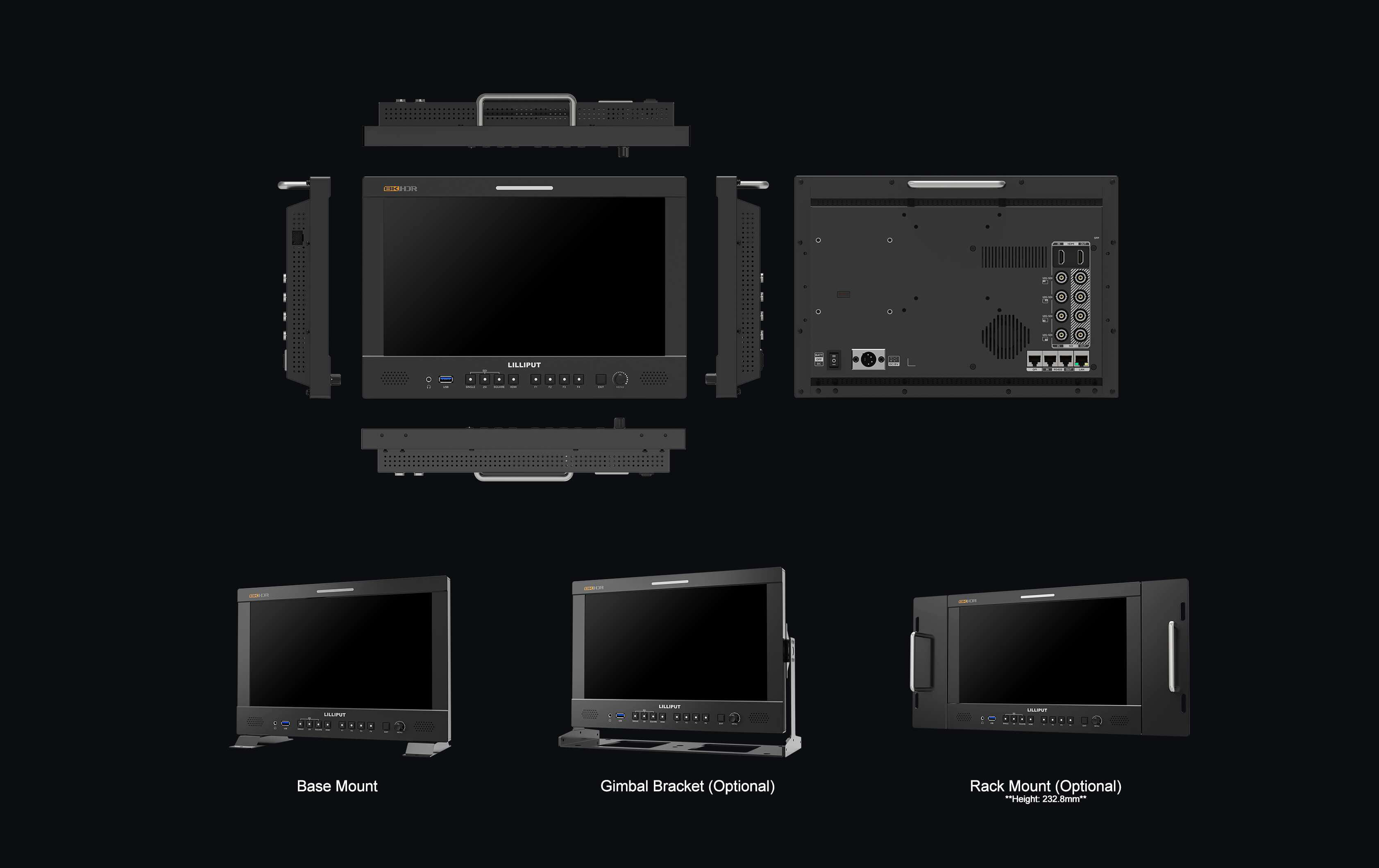

Mounting
- VESA mount
- 75 x 75 mm, 100 x 100 mm (plate included)
- Base brackets
- Base brackets included
- Gimbal bracket
- Optional

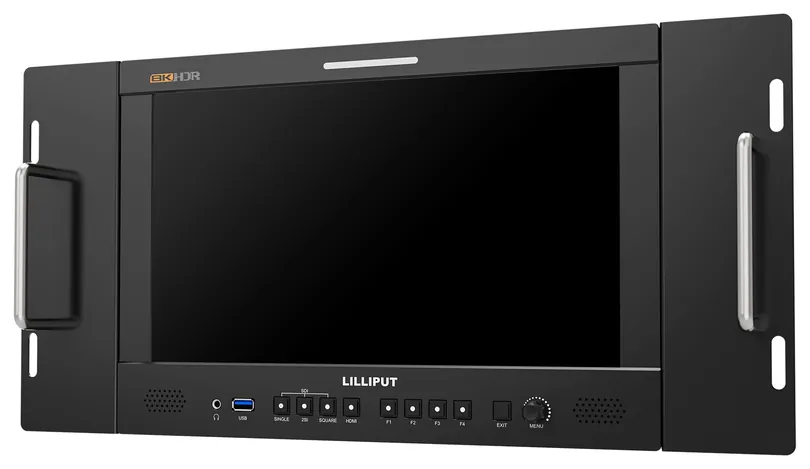

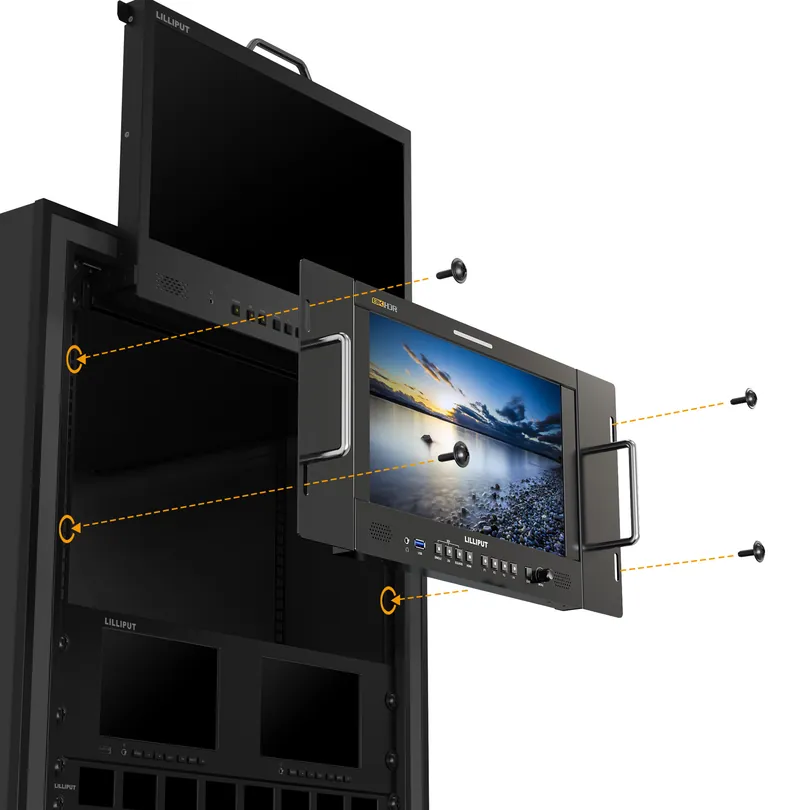

- Rack mount

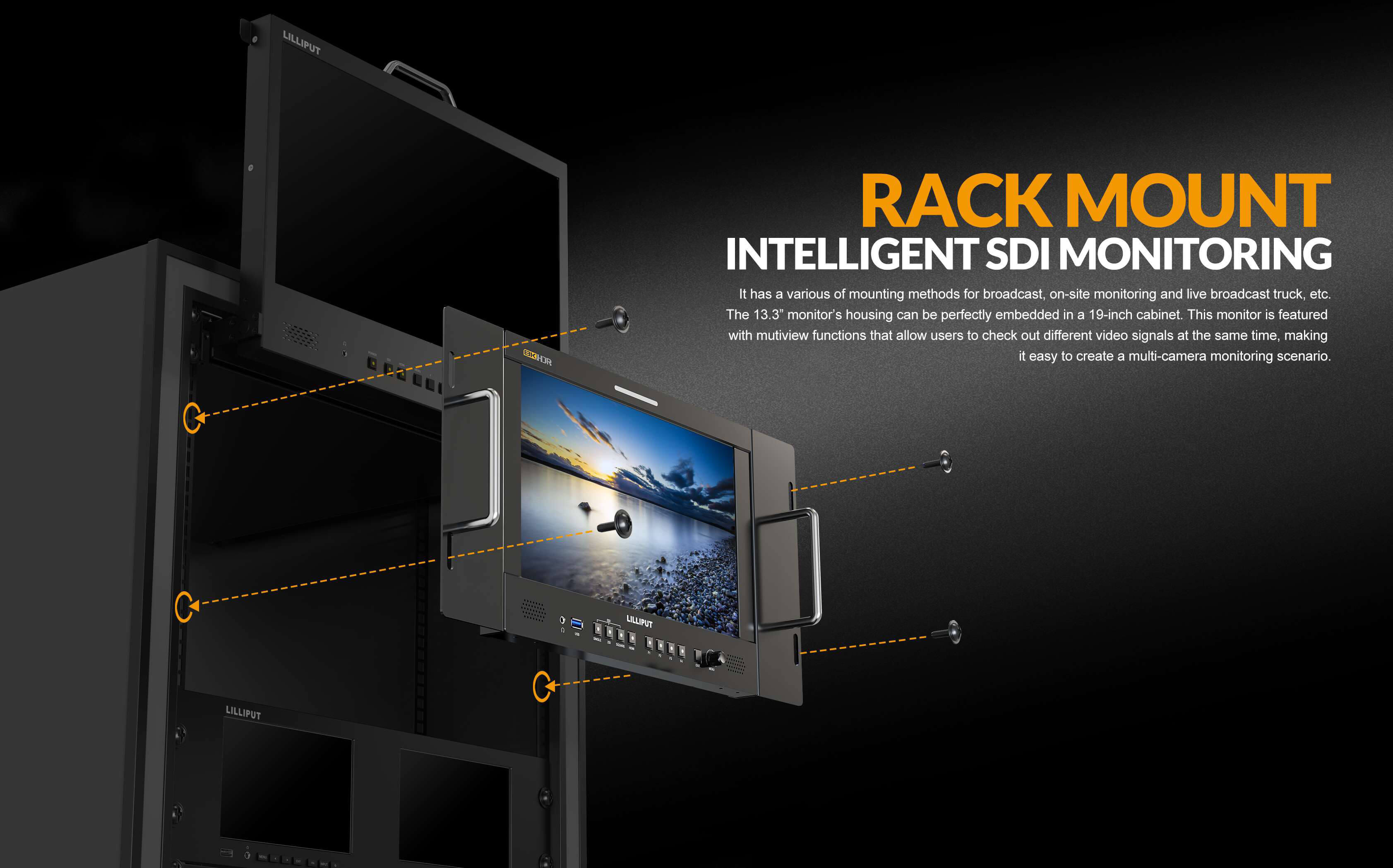

- 6U rack mount brackets (optional)
Accessories
Included
- 15V DC Adapter
- VESA Mount Plate
- Base Bracket
- Battery Plate (V-Lock or Anton Bauer)
- USB Flash Disk
Optional
- SFP Optical Fiber Module
- Gimbal bracket
- Rack mount brackets
Product Downloads
Similar Products
Compare key technical data across similar products.
| Technical Data | Q13-8K | Q7-12G | Q10 | Q17 | Q15-8K | Q18-8K | Q23-8K | Q28-8K | Q31-8K | Q43-8K |
|---|---|---|---|---|---|---|---|---|---|---|
| Display | ||||||||||
| Screen size | 13.3 inch | 7 inch | 10.1 inch | 17.3 inch | 15.6 inch | 17.3 inch | 23.8 inch | 28 inch | 31.5 inch | 43 inch |
| Native resolution | 3840 x 2160 | 1920 x 1200 | 1920 x 1200 | 1920 x 1080 | 3840 x 2160 | 3840 x 2160 | 3840 x 2160 | 3840 x 2160 | 3840 x 2160 | 3840 x 2160 |
| Anamorphic de-squeeze | — | — | — | 2x, 1.5x, 1.33x | — | — | — | — | — | — |
| Aspect ratio | 16:9 | 16:10 | 16:10 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Brightness | 300 cd/m² | 2000 cd/m² | 1500 cd/m² | 300 cd/m² | 600 cd/m² | 400 cd/m² | 300 cd/m² | 300 cd/m² | 350 cd/m² | 400 cd/m² |
| Colour space | Calibration to Rec.709 (optional calibration unit) | — | — | SMPTE-C, Rec.709, EBU, Native; calibration to Rec.709 (optional) | Calibration to Rec.709 (optional calibration unit) | Calibration to Rec.709 (optional calibration unit) | Calibration to Rec.709 (optional calibration unit) | Calibration to Rec.709 (optional calibration unit) | Calibration to Rec.709 (optional calibration unit) | Calibration to Rec.709 (optional calibration unit) |
| Contrast | 1000:1 | 1200:1 | 1000:1 | 1200:1 | 1700:1 | 1200:1 | 1000:1 | 1000:1 | 1300:1 | 1200:1 |
| HDR | HLG, ST 2084 300/1000/10000 | ST 2084 300/1000/10000 cd/m², HLG | ST 2084 300/1000/10000 cd/m², HLG | ST 2084 300/1000/10000, HLG | HLG, ST 2084 300/1000/10000 | HLG, ST 2084 300/1000/10000 | HLG, ST 2084 300/1000/10000 | HLG, ST 2084 300/1000/10000 | HLG, ST 2084 300/1000/10000 | HLG, ST 2084 300/1000/10000 |
| LUT support | 3D-LUT (.cube format) | 3D-LUT (.cube format) | 3D-LUT (.cube format) | 3D-LUT (.cube format) | 3D-LUT (.cube format) | 3D-LUT (.cube format) | 3D-LUT (.cube format) | 3D-LUT (.cube format) | 3D-LUT (.cube format) | 3D-LUT (.cube format) |
| Panel type | LED | LCD | LCD | LCD | LED | LED | LED | LED | LED | LED |
| Supported log formats | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2/SLog3, CLog, NLog, ArriLog, JLog or User | SLog2/SLog3, CLog, NLog, ArriLog, JLog or User | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined |
| Viewing angle | 178°/178° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) | 178°/178° (H/V) | 178°/178° (H/V) | 178°/178° (H/V) | 178°/178° (H/V) |
| Mechanical | ||||||||||
| Dimensions | 340 x 232.8 x 46 mm | 186 x 128 x 32.5 mm | 251 x 170 x 30.5 mm | 434 x 263 x 54 mm | 393 x 267 x 41.4 mm | 433.9 x 294.2 x 45.7 mm | 567 x 376.4 x 45.7 mm | 638 x 414.3 x 45.7 mm | 717.5 x 461.7 x 47.4 mm | 968.5 x 604.9 x 48.5 mm |
| Weight | 2.4 kg | 785 g | 1.1 kg | 3.2 kg | 2.9 kg | 3.9 kg | 7.4 kg | 8.6 kg | 13.0 kg | 14.5 kg |
| Connections | ||||||||||
| Video inputs | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 | 2x 12G-SDI, 1x HDMI 2.0, 1x Tally | 2x 12G-SDI, 1x HDMI 2.0, 1x Tally | 2x 12G-SDI, 2x 3G-SDI (4K Single/Dual/Quad Link), 1x HDMI 2.0, 1x SFP (optional optical module) | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 |
| Video outputs | 4x 12G-SDI, 1x HDMI 2.0 | 2x 12G-SDI, 1x HDMI 2.0 (4K 60Hz) | 2x 12G-SDI, 1x HDMI 2.0 (4K 60Hz) | 2x 12G-SDI, 2x 3G-SDI, 1x HDMI 2.0 | 4x 12G-SDI, 1x HDMI 2.0 | 4x 12G-SDI, 1x HDMI 2.0 | 4x 12G-SDI, 1x HDMI 2.0 | 4x 12G-SDI, 1x HDMI 2.0 | 4x 12G-SDI, 1x HDMI 2.0 | 4x 12G-SDI, 1x HDMI 2.0 |
| Audio | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 2x Built-in speakers | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers |
| Video Standards | ||||||||||
| 12G-SDI | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 | — | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| 3G-SDI | — | — | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | — | — | — | — | — |
| HDMI 2.0 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| SFP | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| Power | ||||||||||
| Power consumption | ≤36 W (15V) | ≤20 W (12V) | ≤37 W (12V) | ≤26.5 W | ≤37 W (15V) | ≤40 W (15V) | ≤60 W (15V) | ≤65 W (15V) | ≤65 W (15V) | ≤77 W (at 24V) |
| Compatible batteries | V-Lock or Anton Bauer mount | Sony NP-F (F970) via VESA 75 plate | Sony NP-F (F970) via VESA 75 plate | V-Lock or Anton Bauer mount | V-Lock or Anton Bauer mount | V-Lock or Anton Bauer mount | V-Lock or Anton Bauer mount | V-Lock or Anton Bauer mount | V-Lock or Anton Bauer mount | — |
| Input voltage | DC 12 to 24V | DC 7 to 24V | DC 7 to 24V | DC 12 to 24V | DC 12 to 24V | DC 12 to 24V | DC 12 to 24V | DC 12 to 24V | DC 12 to 24V | DC 24V |
| Input voltage (battery) | 14.8V nominal | — | — | 14.4V nominal | 14.8V nominal | 14.8V nominal | 14.8V nominal | 14.8V nominal | 14.8V nominal | — |
| Environmental | ||||||||||
| Operating temperature | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C |
| Storage temperature | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C |
| Operational Features | ||||||||||
| Colour temperature | 3200K, 5500K, 6500K, 7500K, 9300K, User | — | — | — | 3200K, 5500K, 6500K, 7500K, 9300K, User | 3200K, 5500K, 6500K, 7500K, 9300K, User | 3200K, 5500K, 6500K, 7500K, 9300K, User | 3200K, 5500K, 6500K, 7500K, 9300K, User | 3200K, 5500K, 6500K, 7500K, 9300K, User | 3200K, 5500K, 6500K, 7500K, 9300K, User |
| Comparison | Colour space, HDR, Gamma, Camera Log (side-by-side with original) | — | — | — | Colour space, HDR, Gamma, Camera Log (side-by-side with original) | Colour space, HDR, Gamma, Camera Log (side-by-side with original) | Colour space, HDR, Gamma, Camera Log (side-by-side with original) | Colour space, HDR, Gamma, Camera Log (side-by-side with original) | Colour space, HDR, Gamma, Camera Log (side-by-side with original) | Colour space, HDR, Gamma, Camera Log (side-by-side with original) |
| Function buttons | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) | User-definable (default: Peaking) | User-definable | — | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) |
| Gamma | 1.8 to 2.8 | — | — | — | 1.8 to 2.8 | 1.8 to 2.8 | 1.8 to 2.8 | 1.8 to 2.8 | 1.8 to 2.8 | 1.8 to 2.8 |
| Image mirroring | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip |
| Markers | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.33X, 1.3X, 1.5X, 2.0X, 2.0X MAG, Grid; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 1.5X, 2.0X, 2.0X MAG, Grid; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off |
| Menu control | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) | — | — | — | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) |
| Peaking | Red, Green, Blue, White, Black | — | — | — | Red, Green, Blue, White, Black | Red, Green, Blue, White, Black | Red, Green, Blue, White, Black | Red, Green, Blue, White, Black | Red, Green, Blue, White, Black | Red, Green, Blue, White, Black |
| Remote control | GPI, LAN, RS422 In/Out | — | — | LAN (10/100), RS422 In/Out, GPI (8-pin RJ45) | GPI, LAN, RS422 In/Out | GPI, LAN, RS422 In/Out | GPI, LAN, RS422 In/Out | GPI, LAN, RS422 In/Out | GPI, LAN, RS422 In/Out | GPI, LAN, RS422 In/Out |
| Tally | Red, Green, Yellow | — | — | Red, Green, Yellow | Red, Green, Yellow | Red, Green, Yellow | Red, Green, Yellow | Red, Green, Yellow | Red, Green, Yellow | Red, Green, Yellow |
| Time code | LTC, VITC | — | — | LTC, VITC | LTC, VITC | LTC, VITC | LTC, VITC | LTC, VITC | LTC, VITC | LTC, VITC |
| UMD | User-defined text (7 colours) | — | — | User-defined text; TSL V3.1 protocol | User-defined text (7 colours) | User-defined text (7 colours) | User-defined text (7 colours) | User-defined text (7 colours) | User-defined text (7 colours) | User-defined text (7 colours) |
| View modes | Quad-View | Picture-in-Picture | Picture-by-Picture, Picture-in-Picture | Quad-View | Quad-View | Quad-View | Quad-View | Quad-View | Quad-View | Quad-View |
| Mounting | ||||||||||
| Base brackets | Base brackets included | — | — | Base brackets (1 pair) included | Base brackets included | Base brackets included | Base brackets included | Base brackets included | Base brackets included | Base brackets included |
| Gimbal bracket | Optional | Included | Included | Included | — | — | — | — | — | — |
| Rack mount | 6U rack mount brackets (optional) | — | — | 6U rack mount brackets (optional) | 6U rack mount brackets (optional) | 6U rack mount brackets (optional) | — | — | — | — |
| Shoe mount | — | 3x 1/4 inch BSW | 3x 1/4 inch BSW | — | — | — | — | — | — | — |
| VESA mount | 75 x 75 mm, 100 x 100 mm (plate included) | 75 x 75 mm (battery plate included) | 75 x 75 mm (battery plate included) | 75 x 75 mm, 100 x 100 mm (external bracket) | 75 x 75 mm, 100 x 100 mm (plate included) | 75 x 75 mm, 100 x 100 mm (plate included) | 75 x 75 mm, 100 x 100 mm (plate included) | 75 x 75 mm, 100 x 100 mm (plate included) | 75 x 75 mm, 100 x 100 mm (plate included) | — |
| Wall mount | — | — | — | — | — | — | — | — | — | 400 x 400 mm (M6/30 mm screws) |
| Accessories | ||||||||||
| Included | 15V DC Adapter, VESA Mount Plate, Base Bracket, Battery Plate (V-Lock or Anton Bauer), USB Flash Disk | 12V 2A DC power adapter, Carry case, Gimbal bracket, VESA 75 mm F970 battery plate, Tally connector, User manual | 12V 3A DC power adapter, Carry case, Gimbal bracket, VESA 75 mm F970 battery plate, Tally connector | 15V DC Adapter, Gimbal bracket, Base Bracket, VESA Mount Plate, V-Lock or Anton Bauer Mount, Carry case, Acrylic Screen Protector, 8GB USB Flash Disk (User guide and software) | 15V DC Adapter, VESA Mount Plate, Base Bracket, Battery Plate (V-Lock or Anton Bauer), USB Flash Disk | 15V DC Adapter, VESA Mount Plate, Base Bracket, Battery Plate (V-Lock or Anton Bauer), USB Flash Disk | 15V DC Adapter, VESA Mount Plate, Battery Plate (V-mount or Anton Bauer), Base Bracket, USB Flash Disk | 15V DC Adapter, VESA Mount Plate, Battery Plate (V-mount or Anton Bauer), Base Bracket, USB Flash Disk | 15V DC Adapter, VESA Mount Plate, Battery Plate (V-mount or Anton Bauer), Base Bracket, USB Flash Disk | 24V 7.5A DC Adapter, Base Brackets, USB Flash Disk |
| Optional | SFP Optical Fiber Module, Gimbal bracket, Rack mount brackets | — | V-Lock / Anton Bauer battery plate | Carry case, Rack mount brackets, SFP Optical Fiber Module | SFP Optical Fiber Module, Gimbal bracket, Carry case & Sunshade, Rack mount brackets, Acrylic Screen Protector | SFP Optical Fiber Module, Gimbal bracket, Carry case & Sunshade, Rack mount brackets | Carry case & Sunshade, SFP Optical Fiber Module | Carry case & Sunshade, SFP Optical Fiber Module | SFP Optical Fiber Module | SFP Optical Fiber Module |
| Scopes | ||||||||||
| Audio analysis | Audio vector, Level meter | Level meter | Level meter | Audio vector, Level meter | Audio vector, Level meter | Audio vector, Level meter | Audio vector, Level meter | Audio vector, Level meter | Audio vector, Level meter | Audio vector, Level meter |
| Video analysis | Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom | Waveform, Peaking, False colour, Exposure, Histogram | Waveform, Peaking, False colour, Exposure, Histogram | Waveform (Multi, Y, YCbCr, RGB), Vector, Histogram, 4 Bar Display, Peaking, False colour (Default/Spectrum/ARRI/RED), Exposure, Check field | Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom | Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom | Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom | Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom | Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom | Waveform, Vectorscope, False colour, Histogram, Exposure, Focus peaking, Check field, Colour bar, Pixel zoom, Pixel-to-pixel, Marker, Freeze, H/V delay |
