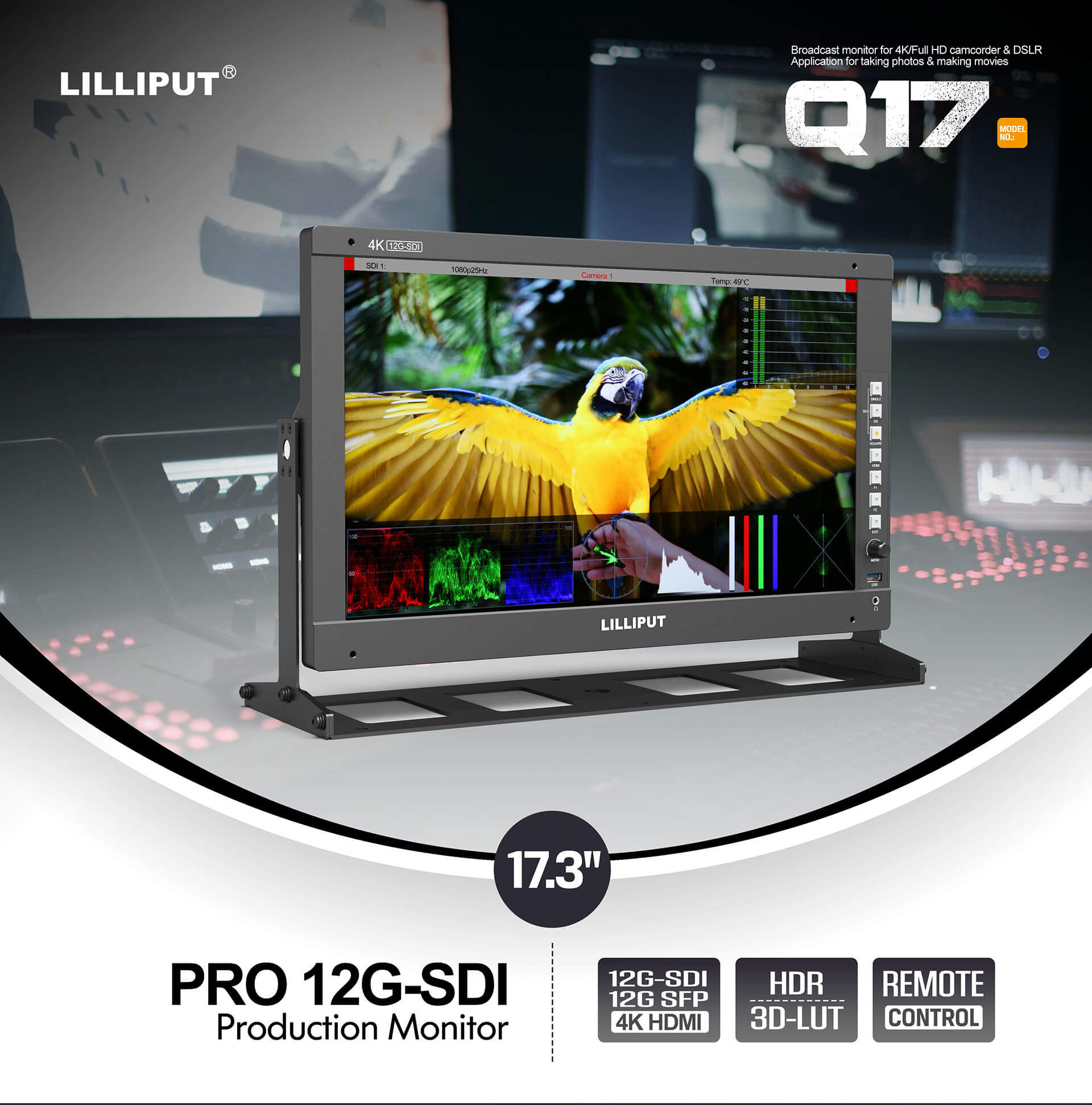

Key Features

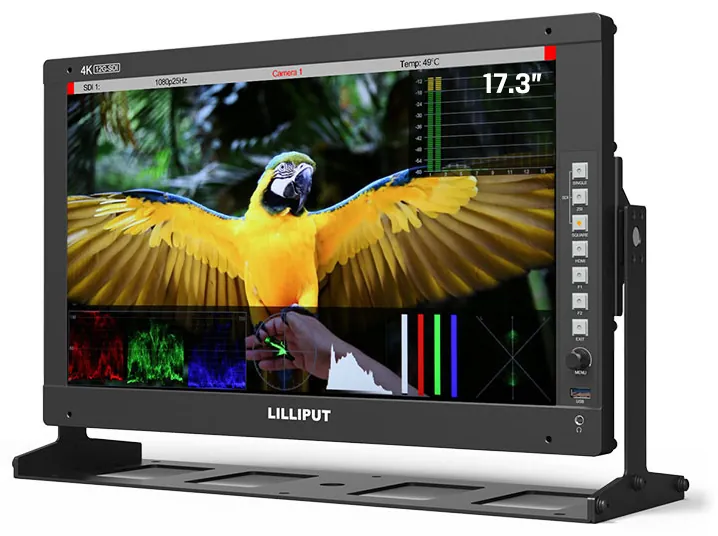

- 17.3 inch 1920 x 1080 display, 300 cd/m², 1200:1 contrast, 16:9

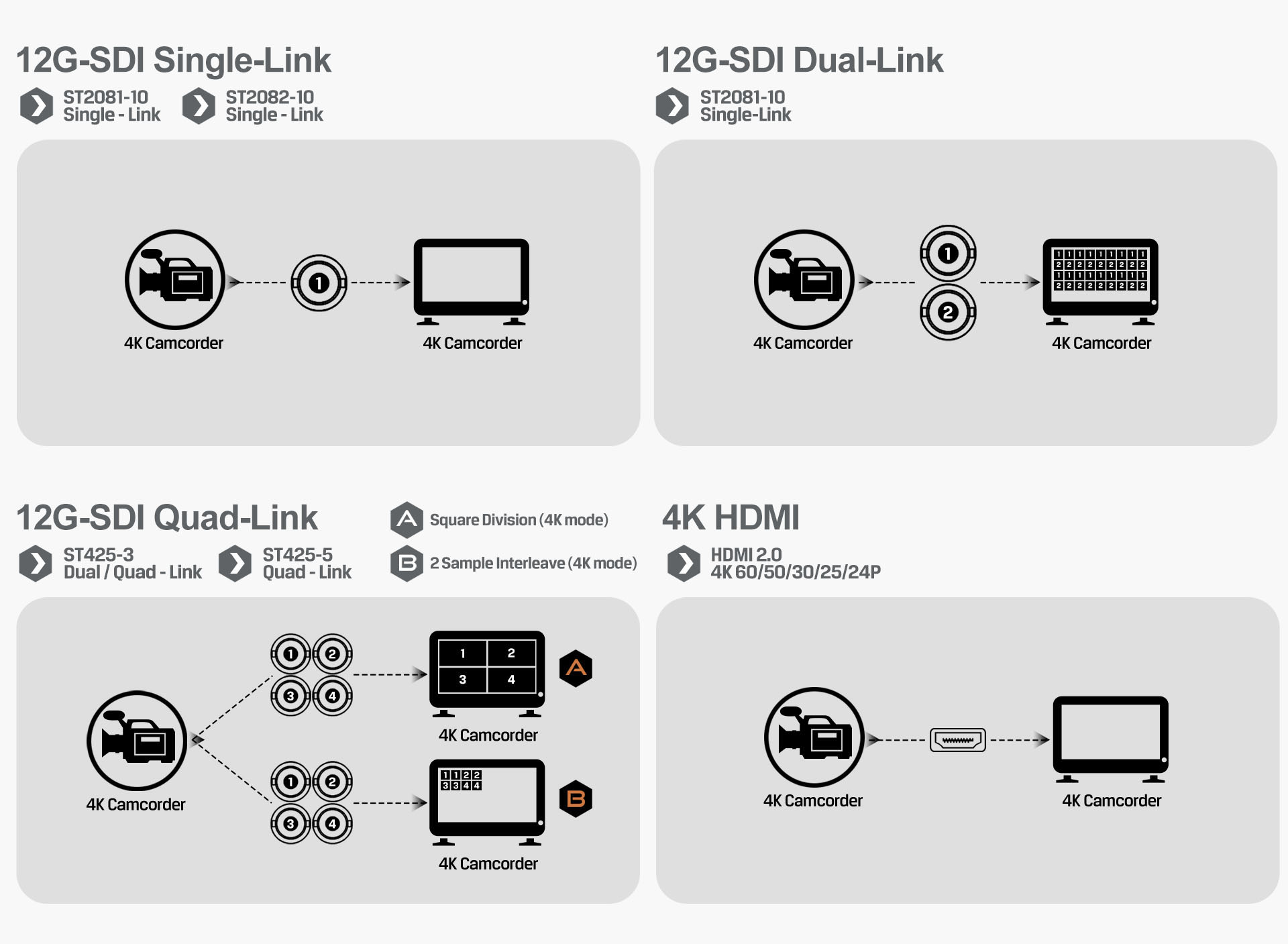

- 2x 12G-SDI, 2x 3G-SDI (Single/Dual/Quad Link 4K), 1x HDMI 2.0 input and loop output
- Optional SFP optical connector for fiber input
- HDR: ST 2084 300/1000/10000, HLG; 3D LUT (.cube); calibration to Rec.709
- Log formats: SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined

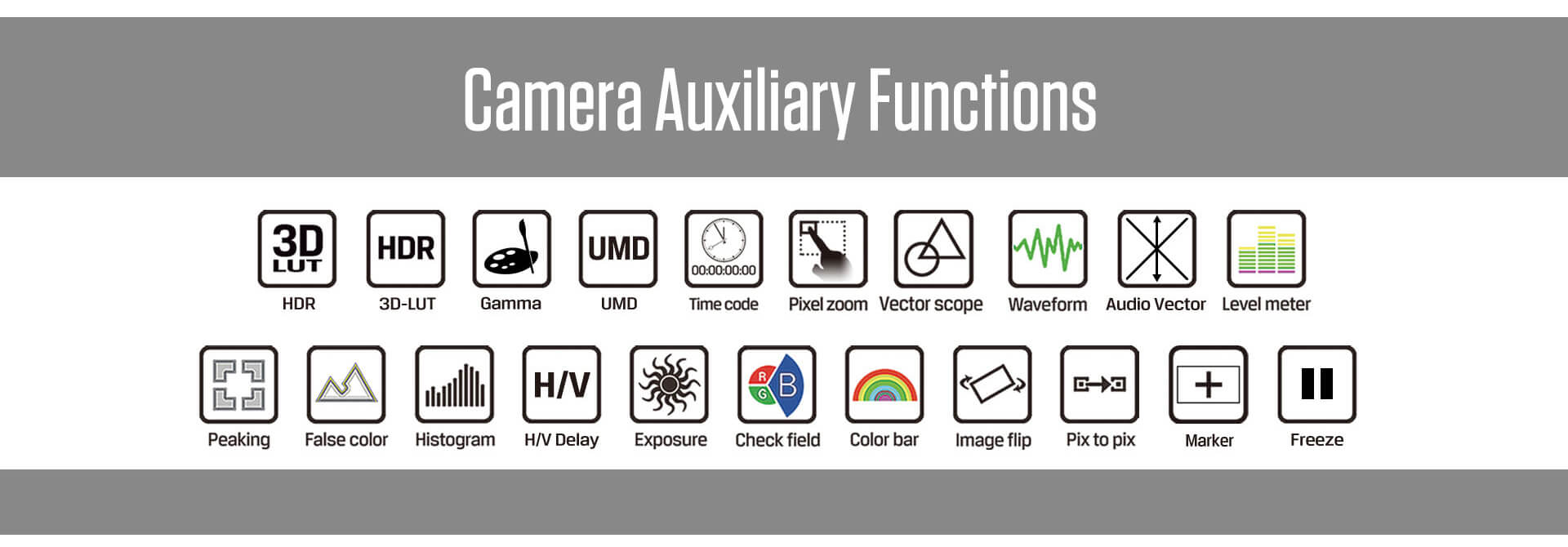

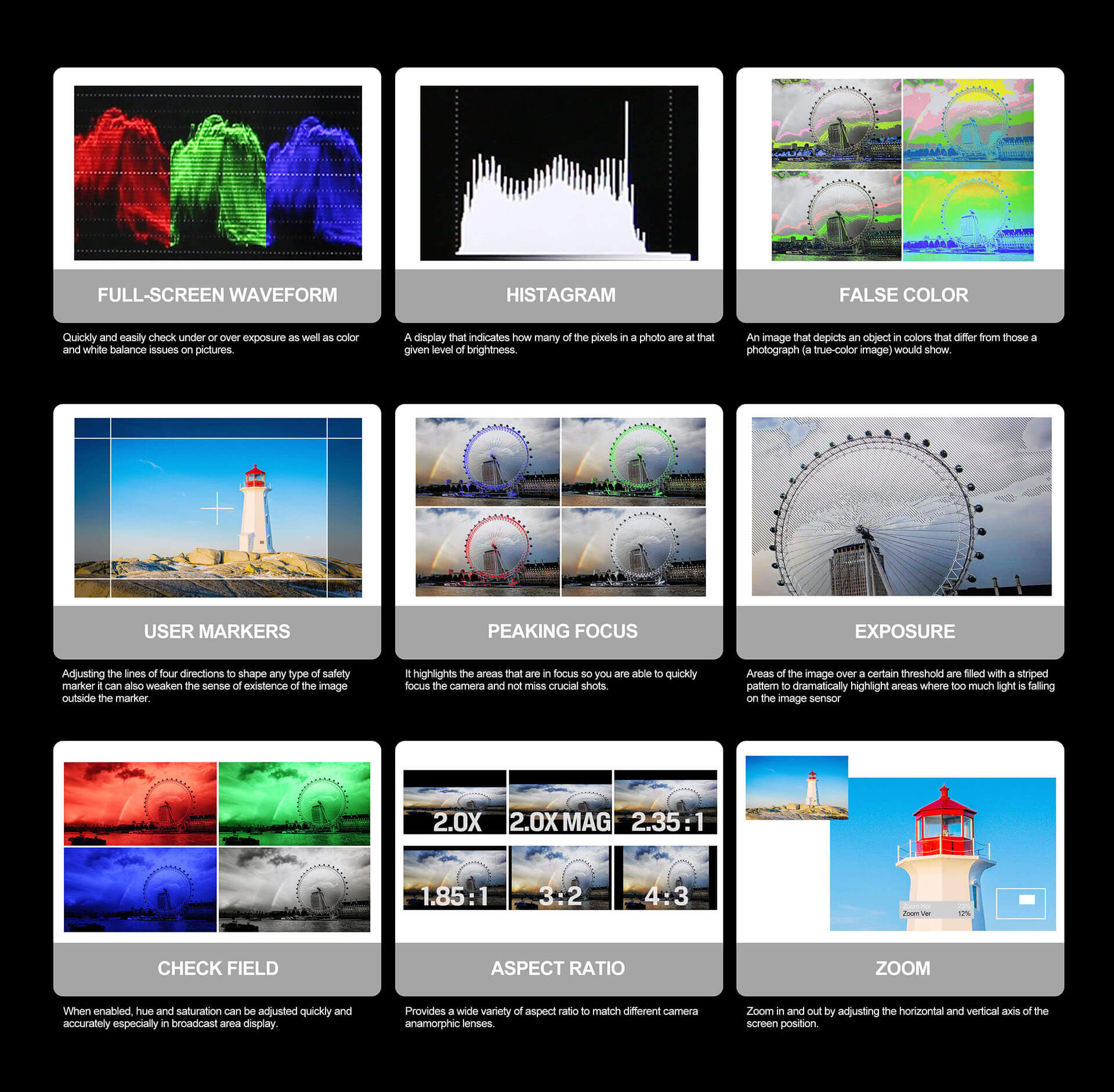

- Waveform, vector, histogram, 4 bar display, audio vector, level meter; peaking, false colour, exposure
- Anamorphic de-squeeze: 2x, 1.5x, 1.33x; tally (Red/Green/Yellow); time code LTC/VITC
- 3.2 kg; 434 x 263 x 54 mm; VESA 75 and 100; V-Lock or Anton Bauer battery plate included
- Versatile mounting: VESA 75 x 75 mm and VESA 100 x 100 mm, base brackets included, optional 6U rack mount brackets
Buy the Q17 From an Authorised Reseller
Lilliput's authorised resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the Q17 now, or if your country is not listed, browse all authorised resellers here.
- APODAX SL Opens in a new tab.
- AVNed B.V. Opens in a new tab.
- Broadcast Center S.R.L. Opens in a new tab.
- Camera World Limited Opens in a new tab.
- DigiBroadcast Co. Ltd Opens in a new tab.
- E-MOTION CREATIONS di Pierfrancesco Armati Opens in a new tab.
- Eastwood (Sound and Vision) Ltd Opens in a new tab.
- HDEWCameras Opens in a new tab.
- PBS Opens in a new tab.
- Proactive UK Ltd Opens in a new tab.
- RCB Logic Limited Opens in a new tab.
- Swiss Event Corporation AG Opens in a new tab.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data
Display
- Screen size
- 17.3 inch
- Aspect ratio
- 16:9
- Native resolution
- 1920 x 1080
- Panel type
- LCD
- Brightness
- 300 cd/m²
- Contrast
- 1200:1
- Viewing angle
- 170°/170° (H/V)
- HDR
- ST 2084 300/1000/10000, HLG
- Supported log formats
- SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined
- LUT support
- 3D-LUT (.cube format)
- Colour space
- SMPTE-C, Rec.709, EBU, Native; calibration to Rec.709 (optional)
- Anamorphic de-squeeze
- 2x, 1.5x, 1.33x

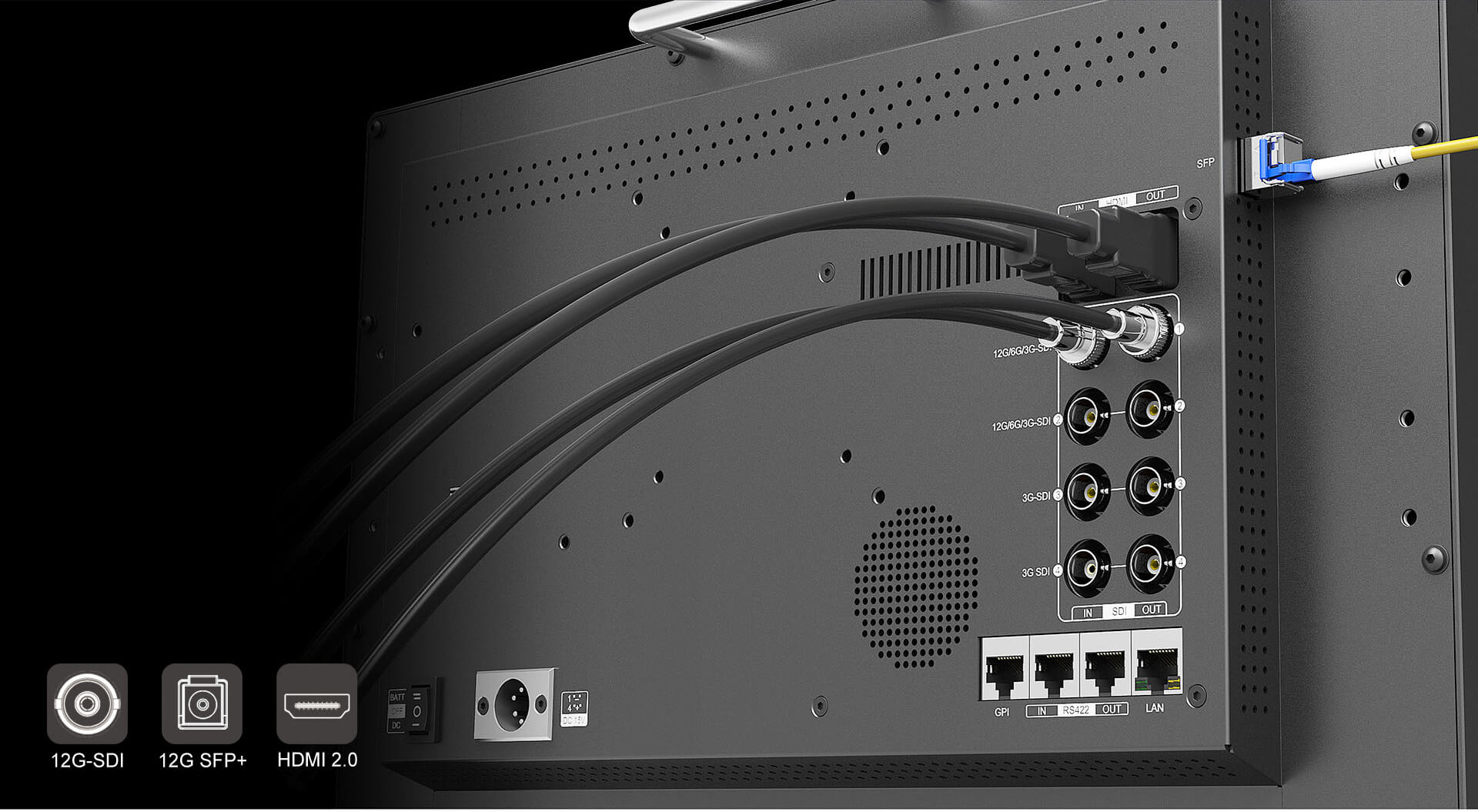

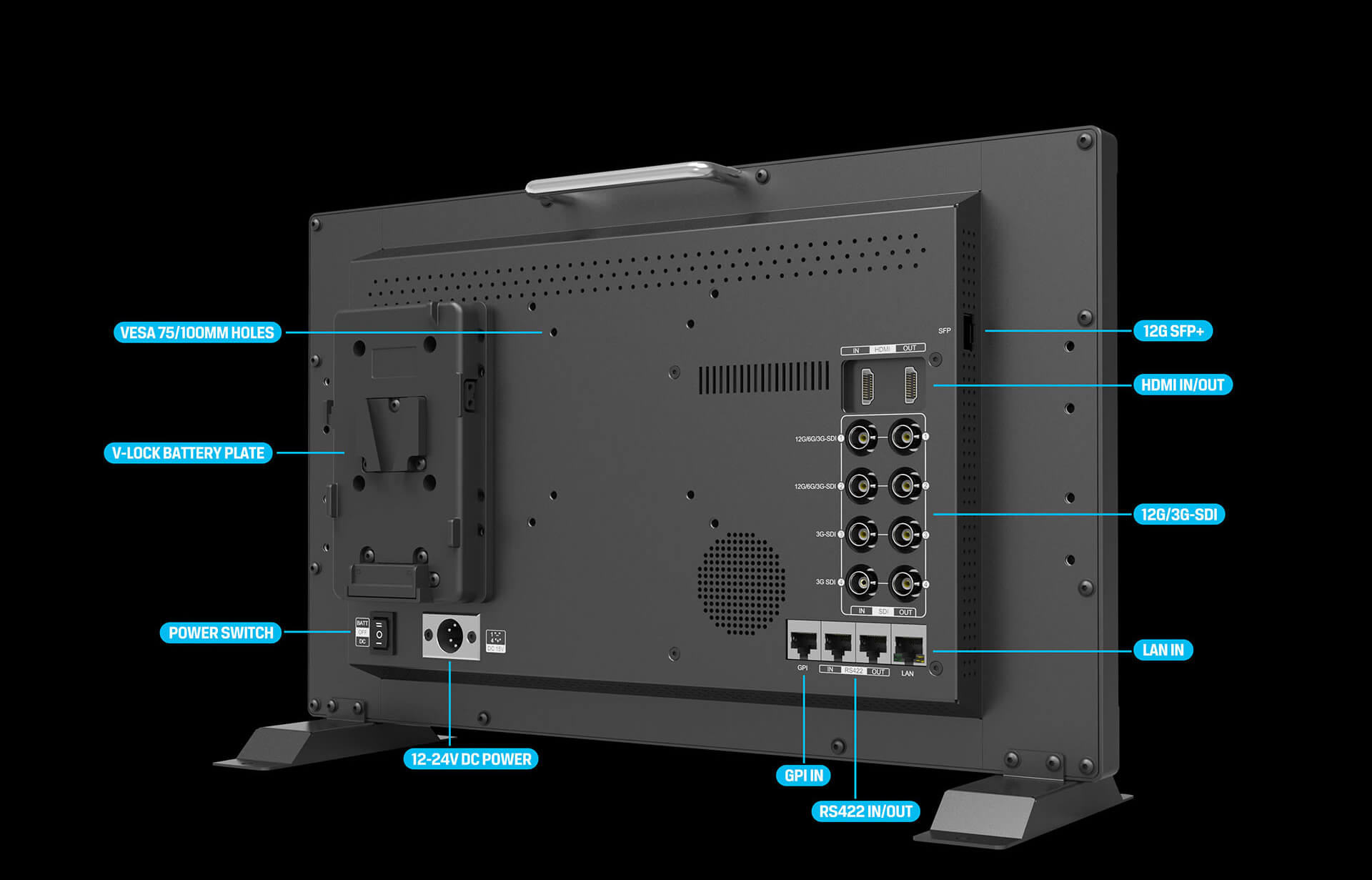

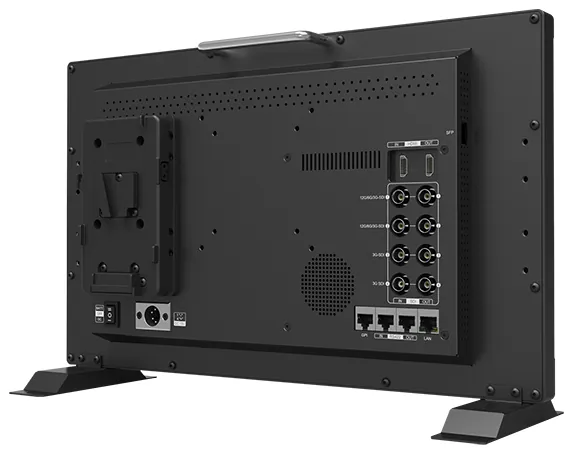

Connections
- Video inputs
- 2x 12G-SDI, 2x 3G-SDI (4K Single/Dual/Quad Link), 1x HDMI 2.0, 1x SFP (optional optical module)
- Video outputs
- 2x 12G-SDI, 2x 3G-SDI, 1x HDMI 2.0
- Audio
- 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 2x Built-in speakers
Video Standards
- 3G-SDI
- 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
- HDMI 2.0
- 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- SFP
- 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
Scopes
- Video analysis
- Waveform (Multi, Y, YCbCr, RGB), Vector, Histogram, 4 Bar Display, Peaking, False colour (Default/Spectrum/ARRI/RED), Exposure, Check field
- Audio analysis

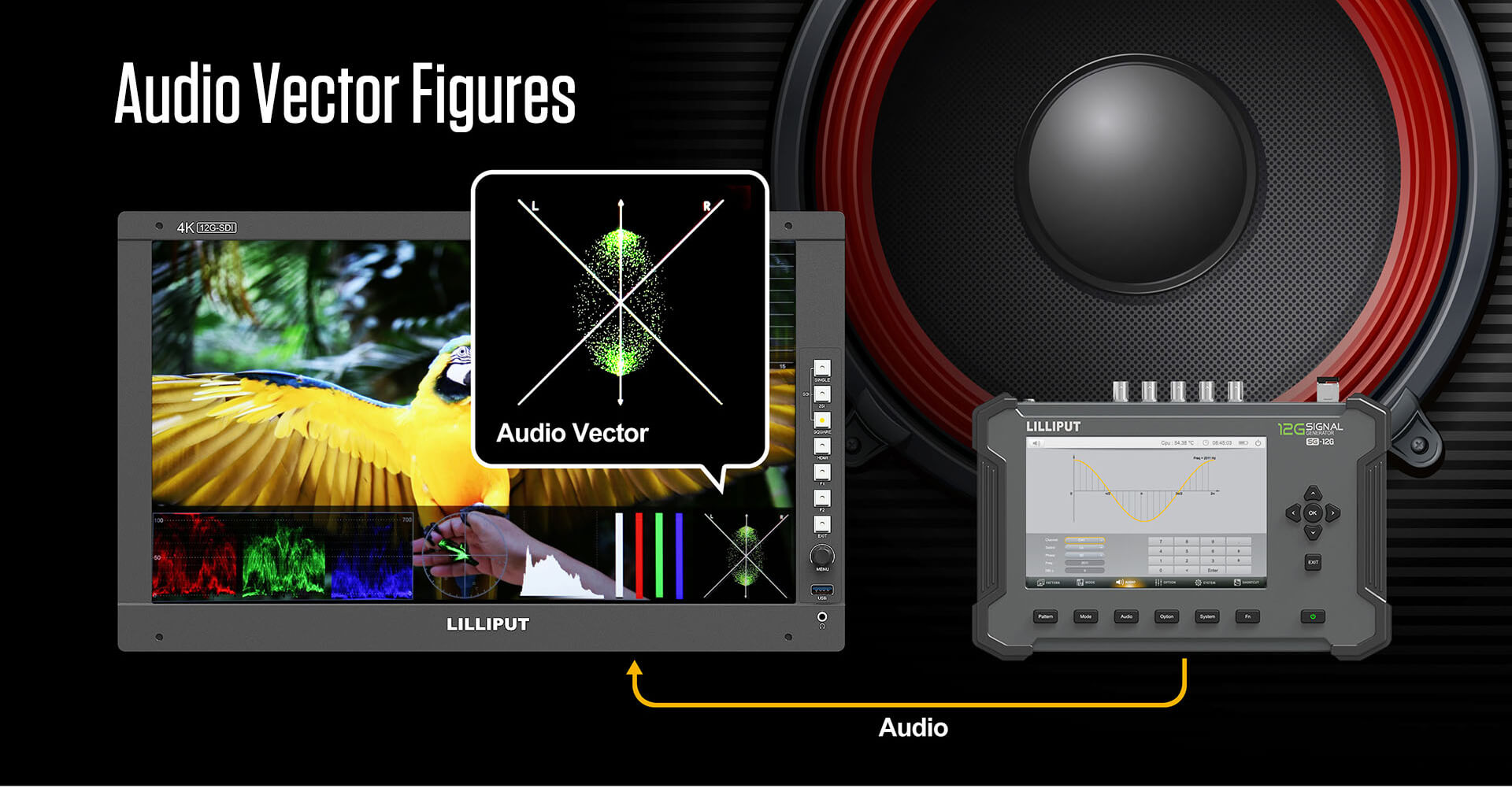

- Audio vector, Level meter
Operational Features
- Remote control

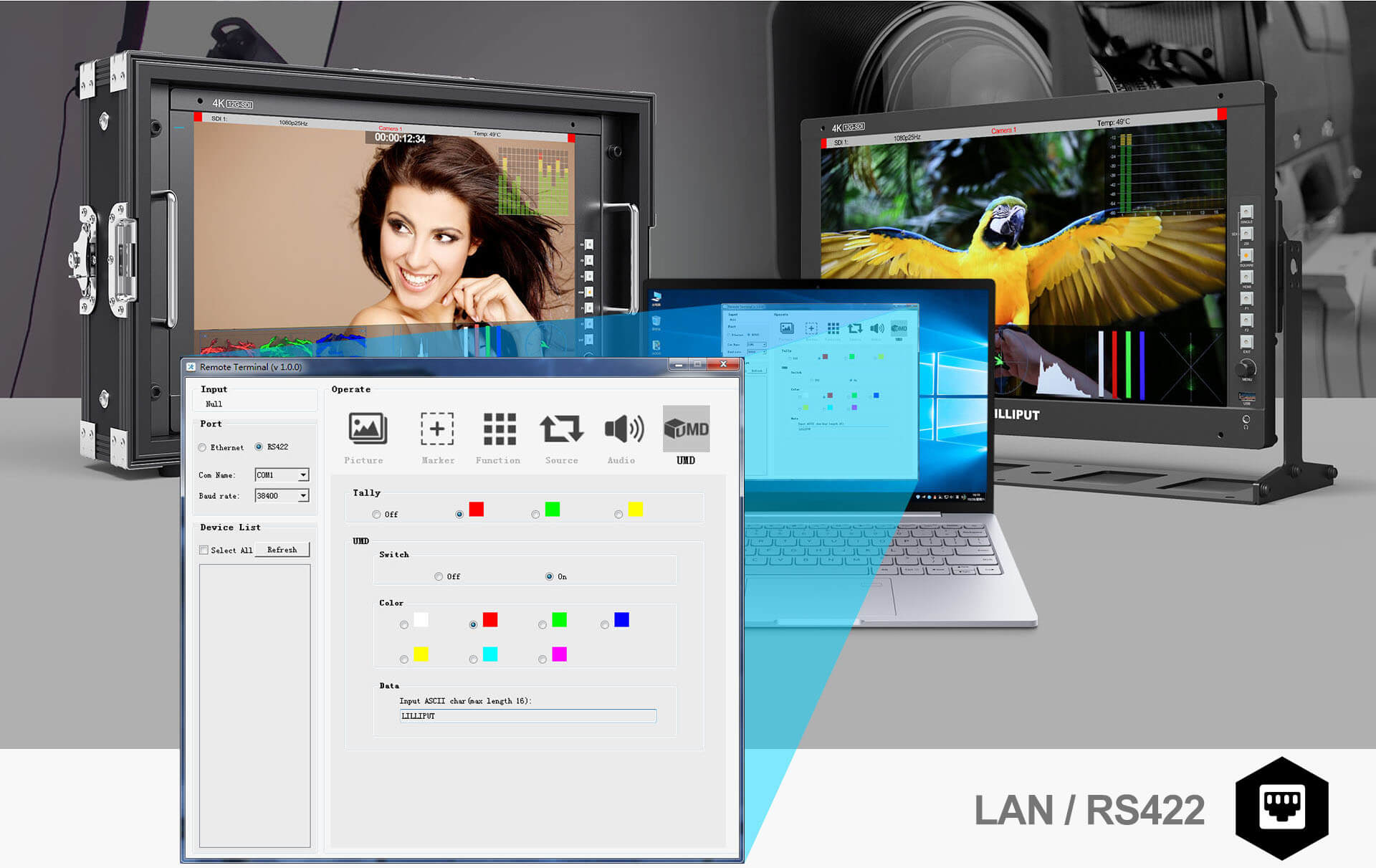

- LAN (10/100), RS422 In/Out, GPI (8-pin RJ45)
- Tally
- Red, Green, Yellow
- Time code
- LTC, VITC
- UMD
- User-defined text; TSL V3.1 protocol
- Markers
- Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
- Image mirroring
- Vertical flip, Horizontal flip
- View modes
- Quad-View
Power
- Input voltage
- DC 12 to 24V
- Power consumption
- ≤26.5 W
- Compatible batteries
- V-Lock or Anton Bauer mount
- Input voltage (battery)
- 14.4V nominal
Environmental
- Operating temperature
- 0°C to 50°C
- Storage temperature
- -20°C to 60°C

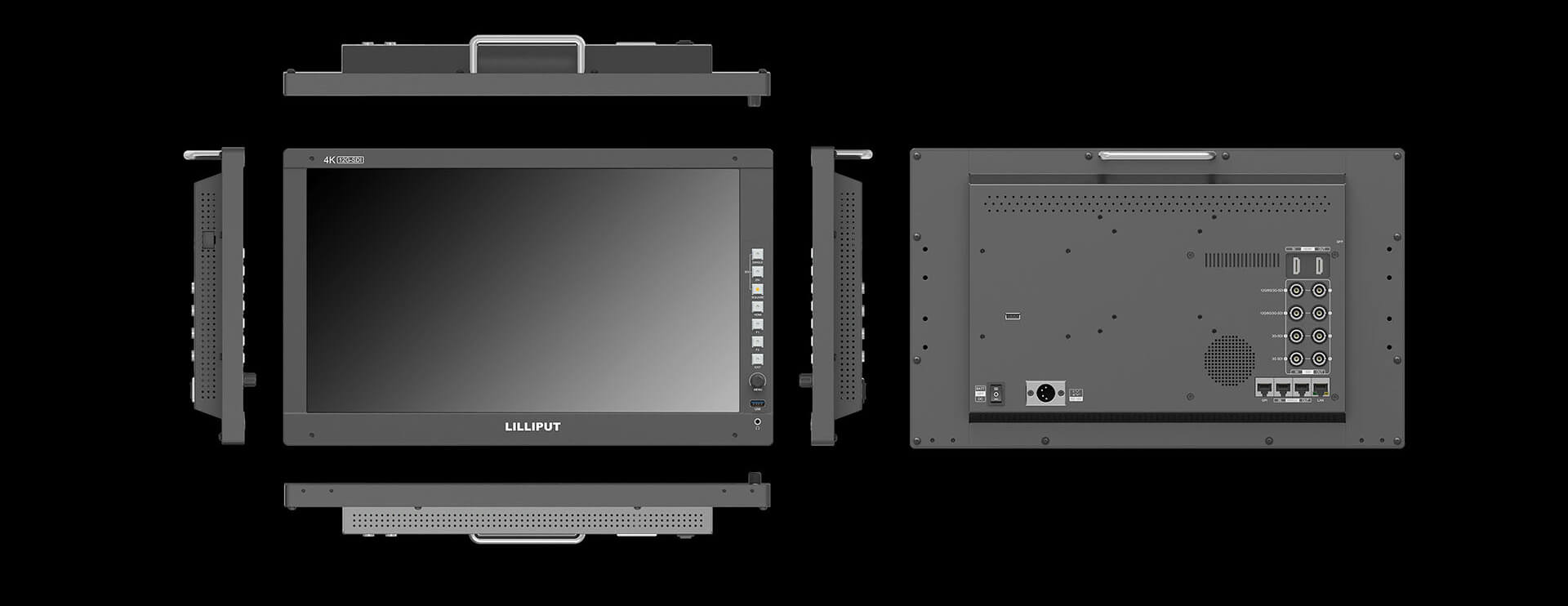

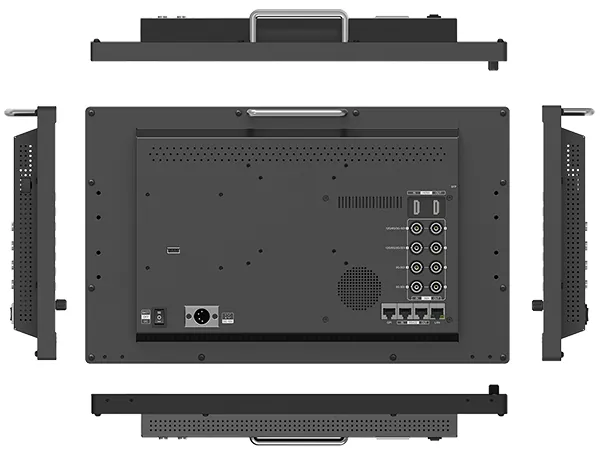

Mechanical
- Dimensions
- 434 x 263 x 54 mm
- Weight
- 3.2 kg

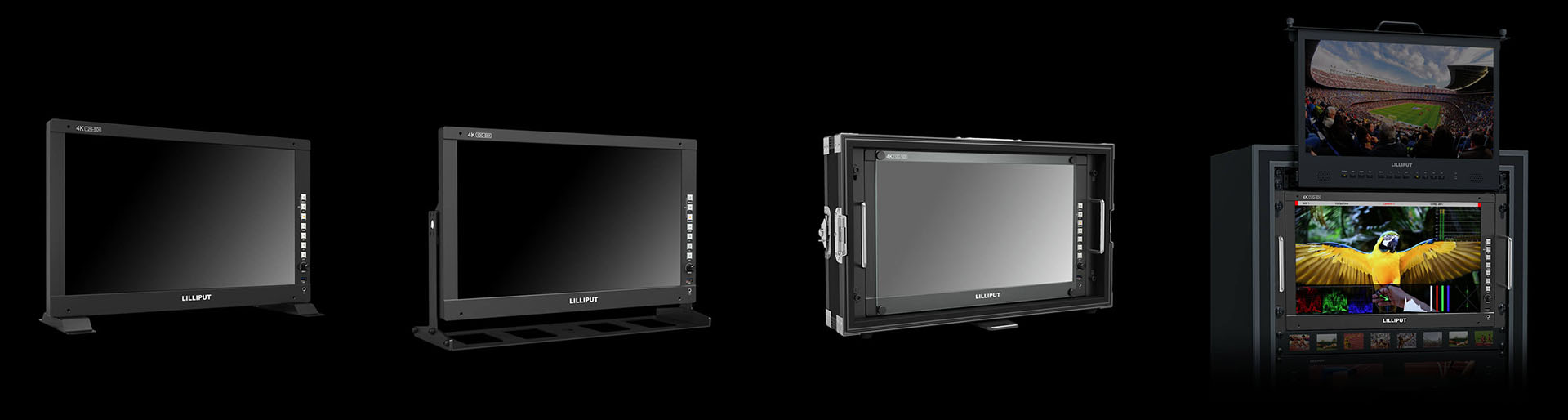

Mounting
- VESA mount
- 75 x 75 mm, 100 x 100 mm (external bracket)
- Base brackets
- Base brackets (1 pair) included
- Gimbal bracket
- Included
- Rack mount
- 6U rack mount brackets (optional)
Accessories
Included
- 15V DC Adapter
- Gimbal bracket
- Base Bracket
- VESA Mount Plate
- V-Lock or Anton Bauer Mount
- Carry case
- Acrylic Screen Protector
- 8GB USB Flash Disk (User guide and software)
Optional
- Carry case
- Rack mount brackets
- SFP Optical Fiber Module
Product Downloads
Similar Products
Compare key technical data across similar products.
| Technical Data | Q17 | Q18-8K | Q15-8K | Q13-8K | Q10 | Q23-8K | PVM220S | PVM220S-E | BM150-12G |
|---|---|---|---|---|---|---|---|---|---|
| Display | |||||||||
| Screen size | 17.3 inch | 17.3 inch | 15.6 inch | 13.3 inch | 10.1 inch | 23.8 inch | 21.5 inch | 21.5 inch | 15.6 inch |
| Native resolution | 1920 x 1080 | 3840 x 2160 | 3840 x 2160 | 3840 x 2160 | 1920 x 1200 | 3840 x 2160 | 1920 x 1080 | 1920 x 1080 | 3840 x 2160 |
| Anamorphic de-squeeze | 2x, 1.5x, 1.33x | — | — | — | — | — | — | — | — |
| Aspect ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:10 | 16:9 | 16:9 | 16:9 | 16:9 |
| Brightness | 300 cd/m² | 400 cd/m² | 600 cd/m² | 300 cd/m² | 1500 cd/m² | 300 cd/m² | 500 cd/m² | 1000 cd/m² | 330 cd/m² |
| Colour space | SMPTE-C, Rec.709, EBU, Native; calibration to Rec.709 (optional) | Calibration to Rec.709 (optional calibration unit) | Calibration to Rec.709 (optional calibration unit) | Calibration to Rec.709 (optional calibration unit) | — | Calibration to Rec.709 (optional calibration unit) | — | Calibration to Rec.709 (optional calibration unit) | — |
| Contrast | 1200:1 | 1200:1 | 1700:1 | 1000:1 | 1000:1 | 1000:1 | 1500:1 | 1000:1 | 1000:1 |
| HDR | ST 2084 300/1000/10000, HLG | HLG, ST 2084 300/1000/10000 | HLG, ST 2084 300/1000/10000 | HLG, ST 2084 300/1000/10000 | ST 2084 300/1000/10000 cd/m², HLG | HLG, ST 2084 300/1000/10000 | — | ST2084 300/1000/10000, HLG | — |
| LUT support | 3D-LUT (.cube format) | 3D-LUT (.cube format) | 3D-LUT (.cube format) | 3D-LUT (.cube format) | 3D-LUT (.cube format) | 3D-LUT (.cube format) | — | 3D-LUT (.cube format) | — |
| Panel type | LCD | LED | LED | LED | LCD | LED | LCD | LCD | LED |
| Supported log formats | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2/SLog3, CLog, NLog, ArriLog, JLog or User | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | — | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | — |
| Viewing angle | 170°/170° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) | 178°/178° (H/V) | 170°/170° (H/V) | 178°/178° (H/V) | 170°/170° (H/V) | 178°/178° (H/V) | 176°/176° (H/V) |
| Mechanical | |||||||||
| Dimensions | 434 x 263 x 54 mm | 433.9 x 294.2 x 45.7 mm | 393 x 267 x 41.4 mm | 340 x 232.8 x 46 mm | 251 x 170 x 30.5 mm | 567 x 376.4 x 45.7 mm | 508 x 321 x 47 mm | 508 x 321 x 47 mm | 389 x 267 x 38 mm |
| Weight | 3.2 kg | 3.9 kg | 2.9 kg | 2.4 kg | 1.1 kg | 7.4 kg | 5.39 kg | 4.75 kg | 3.4 kg |
| Dimensions (with case) | — | — | — | — | — | — | — | — | 524 x 305 x 170 mm |
| Weight (with case) | — | — | — | — | — | — | — | — | 12 kg |
| Connections | |||||||||
| Video inputs | 2x 12G-SDI, 2x 3G-SDI (4K Single/Dual/Quad Link), 1x HDMI 2.0, 1x SFP (optional optical module) | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 | 2x 12G-SDI, 1x HDMI 2.0, 1x Tally | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 | 2x 3G-SDI, 2x HDMI, 1x USB Type-C | 1x 3G-SDI, 1x HDMI 2.0 | 2x 12G-SDI, 2x 3G-SDI (4K single/dual/quad link), 1x HDMI 2.0, 3x HDMI 1.4 |
| Video outputs | 2x 12G-SDI, 2x 3G-SDI, 1x HDMI 2.0 | 4x 12G-SDI, 1x HDMI 2.0 | 4x 12G-SDI, 1x HDMI 2.0 | 4x 12G-SDI, 1x HDMI 2.0 | 2x 12G-SDI, 1x HDMI 2.0 (4K 60Hz) | 4x 12G-SDI, 1x HDMI 2.0 | 2x 3G-SDI | 1x 3G-SDI, 1x HDMI 2.0, 1x LAN 1000M | 2x 12G-SDI, 2x 3G-SDI (uncompressed 10-bit or 8-bit 4:2:2) |
| Audio | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 2x Built-in speakers | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers | 3G-SDI 2ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker | 3G-SDI 2ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker | 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker |
| Program output | — | — | — | — | — | — | 1x PGM HDMI + 1x PGM 3G-SDI (simultaneous, 1080p 24/25/30/50/60) | — | — |
| Video Standards | |||||||||
| 12G-SDI | — | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | — | — |
| 3G-SDI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | — | — | — | — | 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| HDMI | — | — | — | — | — | — | 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60 | — | — |
| HDMI 1.4 | — | — | — | — | — | — | — | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| HDMI 2.0 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| IP streaming | — | — | — | — | — | — | — | Push/Pull: YCbCr 4:2:2 (up to 32 Mbps @ 1080p60) | — |
| SFP | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | — | — |
| Streaming formats | — | — | — | — | — | — | — | Push: SRT, RTMP, Pull: RTMP, RTSP, HTTP, HTTPS, NDI®|HX (optional) | — |
| USB Type-C | — | — | — | — | — | — | 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60 | — | — |
| Power | |||||||||
| Power consumption | ≤26.5 W | ≤40 W (15V) | ≤37 W (15V) | ≤36 W (15V) | ≤37 W (12V) | ≤60 W (15V) | ≤33 W (15V) | ≤53 W (15V) | ≤32 W |
| Compatible batteries | V-Lock or Anton Bauer mount | V-Lock or Anton Bauer mount | V-Lock or Anton Bauer mount | V-Lock or Anton Bauer mount | Sony NP-F (F970) via VESA 75 plate | V-Lock or Anton Bauer mount | — | V-Lock or Anton Bauer mount (optional) | V-Lock or Anton Bauer mount |
| Input voltage | DC 12 to 24V | DC 12 to 24V | DC 12 to 24V | DC 12 to 24V | DC 7 to 24V | DC 12 to 24V | DC 12 to 24V | DC 9 to 24V | DC 12 to 24V |
| Input voltage (battery) | 14.4V nominal | 14.8V nominal | 14.8V nominal | 14.8V nominal | — | 14.8V nominal | — | 14.8V nominal | 14.4V nominal |
| Environmental | |||||||||
| Operating temperature | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | -20°C to 60°C | 0°C to 50°C | 0°C to 50°C |
| Storage temperature | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -30°C to 70°C | -20°C to 60°C | -20°C to 60°C |
| Record | |||||||||
| Storage | — | — | — | — | — | — | — | SD card | — |
| File segment | — | — | — | — | — | — | — | 1/5/10/20/30/60 min | — |
| Record file format | — | — | — | — | — | — | — | H.264 | — |
| Audio sample rate | — | — | — | — | — | — | — | 44.1 kHz / 48 kHz | — |
| Frame rates | — | — | — | — | — | — | — | 60/50/30/25/24 fps | — |
| Video resolution | — | — | — | — | — | — | — | 1920 x 1080, 1280 x 720, 720 x 480 | — |
| Operational Features | |||||||||
| Colour temperature | — | 3200K, 5500K, 6500K, 7500K, 9300K, User | 3200K, 5500K, 6500K, 7500K, 9300K, User | 3200K, 5500K, 6500K, 7500K, 9300K, User | — | 3200K, 5500K, 6500K, 7500K, 9300K, User | — | 5500K, 6500K, 7500K, 9300K, User | — |
| Comparison | — | Colour space, HDR, Gamma, Camera Log (side-by-side with original) | Colour space, HDR, Gamma, Camera Log (side-by-side with original) | Colour space, HDR, Gamma, Camera Log (side-by-side with original) | — | Colour space, HDR, Gamma, Camera Log (side-by-side with original) | — | Gamma/HDR, Colour space, Camera LUT | — |
| Function buttons | — | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) | User-definable | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) | F1, F2 user-definable | F1, F2 user-definable | — |
| Gamma | — | 1.8 to 2.8 | 1.8 to 2.8 | 1.8 to 2.8 | — | 1.8 to 2.8 | — | 1.8 to 2.8 | — |
| Image mirroring | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | — | — | — |
| Markers | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 1.5X, 2.0X, 2.0X MAG, Grid; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.3X, 1.5X, 1.8X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.3X, 1.5X, 1.8X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 17:9; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off |
| Menu control | — | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) | — | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) | — | — | — |
| Peaking | — | Red, Green, Blue, White, Black | Red, Green, Blue, White, Black | Red, Green, Blue, White, Black | — | Red, Green, Blue, White, Black | — | Red, Green, Blue, White, Black | — |
| Remote control | LAN (10/100), RS422 In/Out, GPI (8-pin RJ45) | GPI, LAN, RS422 In/Out | GPI, LAN, RS422 In/Out | GPI, LAN, RS422 In/Out | — | GPI, LAN, RS422 In/Out | — | — | — |
| Tally | Red, Green, Yellow | Red, Green, Yellow | Red, Green, Yellow | Red, Green, Yellow | — | Red, Green, Yellow | — | — | — |
| Time code | LTC, VITC | LTC, VITC | LTC, VITC | LTC, VITC | — | LTC, VITC | — | LTC, VITC | — |
| UMD | User-defined text; TSL V3.1 protocol | User-defined text (7 colours) | User-defined text (7 colours) | User-defined text (7 colours) | — | User-defined text (7 colours) | User-defined text with colour coding | — | — |
| View modes | Quad-View | Quad-View | Quad-View | Quad-View | Picture-by-Picture, Picture-in-Picture | Quad-View | Picture-by-Picture, Picture-in-Picture, PVW/PGM, Three-Way Split, Quad-View | — | Picture-by-Picture, Picture-in-Picture, Quad-View |
| Mounting | |||||||||
| Base brackets | Base brackets (1 pair) included | Base brackets included | Base brackets included | Base brackets included | — | Base brackets included | Base brackets included | Base brackets included | Base brackets included |
| Gimbal bracket | Included | — | — | Optional | Included | — | — | — | — |
| Rack mount | 6U rack mount brackets (optional) | 6U rack mount brackets (optional) | 6U rack mount brackets (optional) | 6U rack mount brackets (optional) | — | — | — | — | 6U rack mount brackets (optional) |
| Shoe mount | — | — | — | — | 3x 1/4 inch BSW | — | — | — | — |
| VESA mount | 75 x 75 mm, 100 x 100 mm (external bracket) | 75 x 75 mm, 100 x 100 mm (plate included) | 75 x 75 mm, 100 x 100 mm (plate included) | 75 x 75 mm, 100 x 100 mm (plate included) | 75 x 75 mm (battery plate included) | 75 x 75 mm, 100 x 100 mm (plate included) | 75 x 75 mm, 100 x 100 mm | 75 x 75 mm, 100 x 100 mm (external bracket); 75 x 75 mm (V-mount/Anton Bauer battery) | VESA mount plate included |
| Accessories | |||||||||
| Included | 15V DC Adapter, Gimbal bracket, Base Bracket, VESA Mount Plate, V-Lock or Anton Bauer Mount, Carry case, Acrylic Screen Protector, 8GB USB Flash Disk (User guide and software) | 15V DC Adapter, VESA Mount Plate, Base Bracket, Battery Plate (V-Lock or Anton Bauer), USB Flash Disk | 15V DC Adapter, VESA Mount Plate, Base Bracket, Battery Plate (V-Lock or Anton Bauer), USB Flash Disk | 15V DC Adapter, VESA Mount Plate, Base Bracket, Battery Plate (V-Lock or Anton Bauer), USB Flash Disk | 12V 3A DC power adapter, Carry case, Gimbal bracket, VESA 75 mm F970 battery plate, Tally connector | 15V DC Adapter, VESA Mount Plate, Battery Plate (V-mount or Anton Bauer), Base Bracket, USB Flash Disk | 15V DC Power Adapter, Base Bracket, USB Type-C Cable, User Manual | 15V 4A DC Power Adapter, Base Bracket, E-User Manual | Carry case, Sun shade, VESA Mount Plate, V-Lock / Anton Bauer Mount, 15V DC Adapter, Base Bracket, TALLY connector, Fixing belt, User manual |
| Optional | Carry case, Rack mount brackets, SFP Optical Fiber Module | SFP Optical Fiber Module, Gimbal bracket, Carry case & Sunshade, Rack mount brackets | SFP Optical Fiber Module, Gimbal bracket, Carry case & Sunshade, Rack mount brackets, Acrylic Screen Protector | SFP Optical Fiber Module, Gimbal bracket, Rack mount brackets | V-Lock / Anton Bauer battery plate | Carry case & Sunshade, SFP Optical Fiber Module | Battery Plate + D-Tap Cable, Swivel Stand, Carry case & Sunshade | Battery Plate + D-Tap Cable, Carry case & Sunshade | Acrylic Screen Protector, WHDI accessories, Rack mount brackets |
| Scopes | |||||||||
| Audio analysis | Audio vector, Level meter | Audio vector, Level meter | Audio vector, Level meter | Audio vector, Level meter | Level meter | Audio vector, Level meter | Level meter | Audio vector, Level meter | — |
| Video analysis | Waveform (Multi, Y, YCbCr, RGB), Vector, Histogram, 4 Bar Display, Peaking, False colour (Default/Spectrum/ARRI/RED), Exposure, Check field | Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom | Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom | Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom | Waveform, Peaking, False colour, Exposure, Histogram | Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom | Histogram, Exposure, Peaking, False colour (ARRI, RED), Check field, Freeze | Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Check field, Freeze, Colour bar | — |
