Key Features
- 21.5 inch 1920 x 1080 display, 500 cd/m², 1500:1 contrast, 170°/170° viewing angle
- 5 inputs: 2x 3G-SDI, 2x HDMI, 1x USB Type-C, 3G-SDI loop through

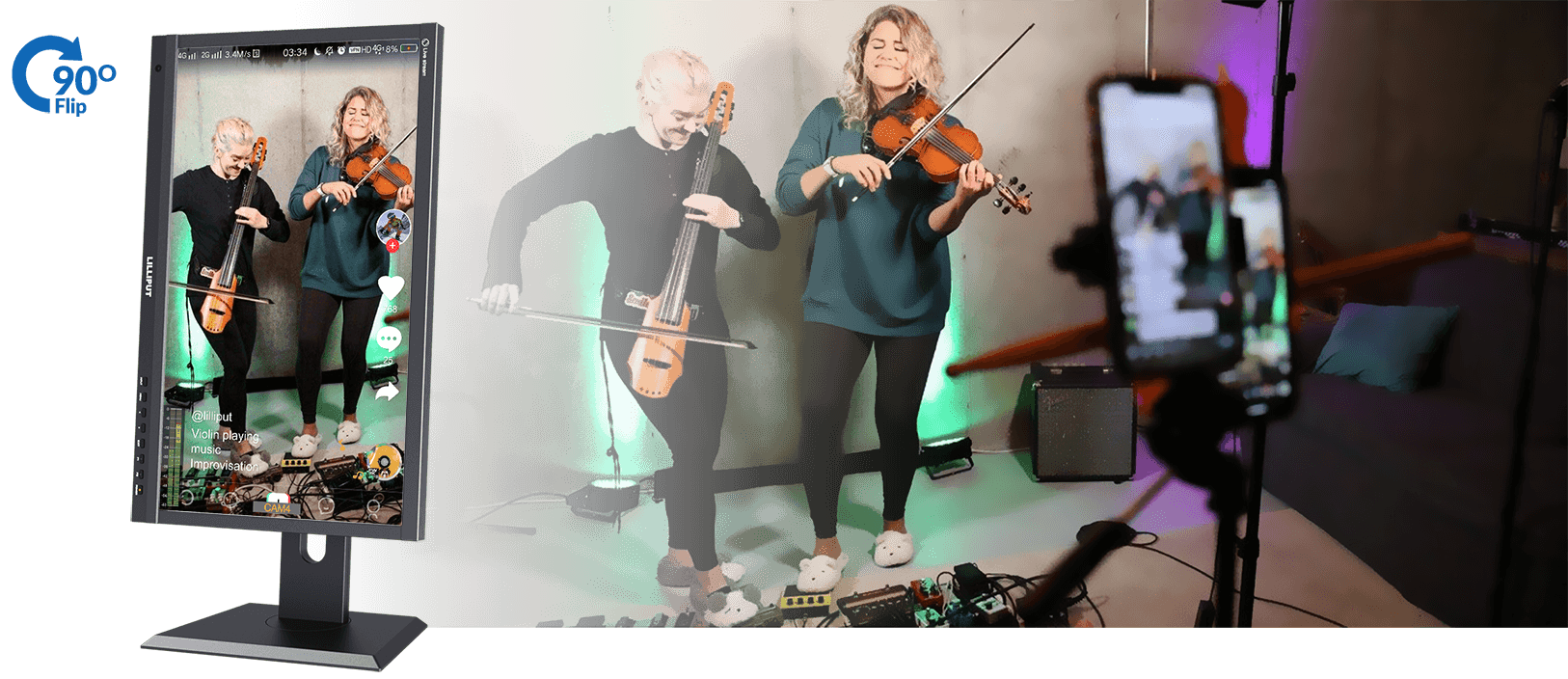

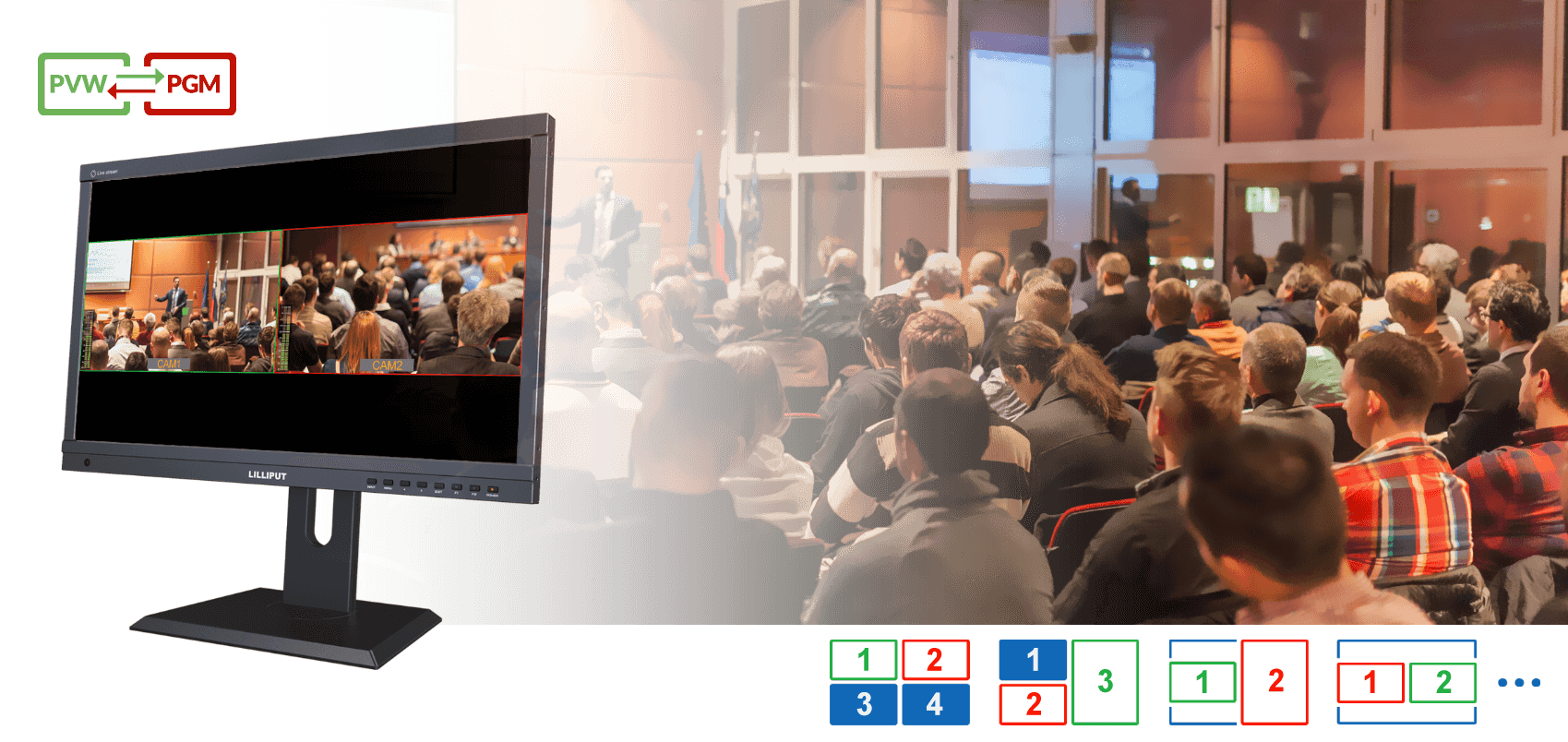

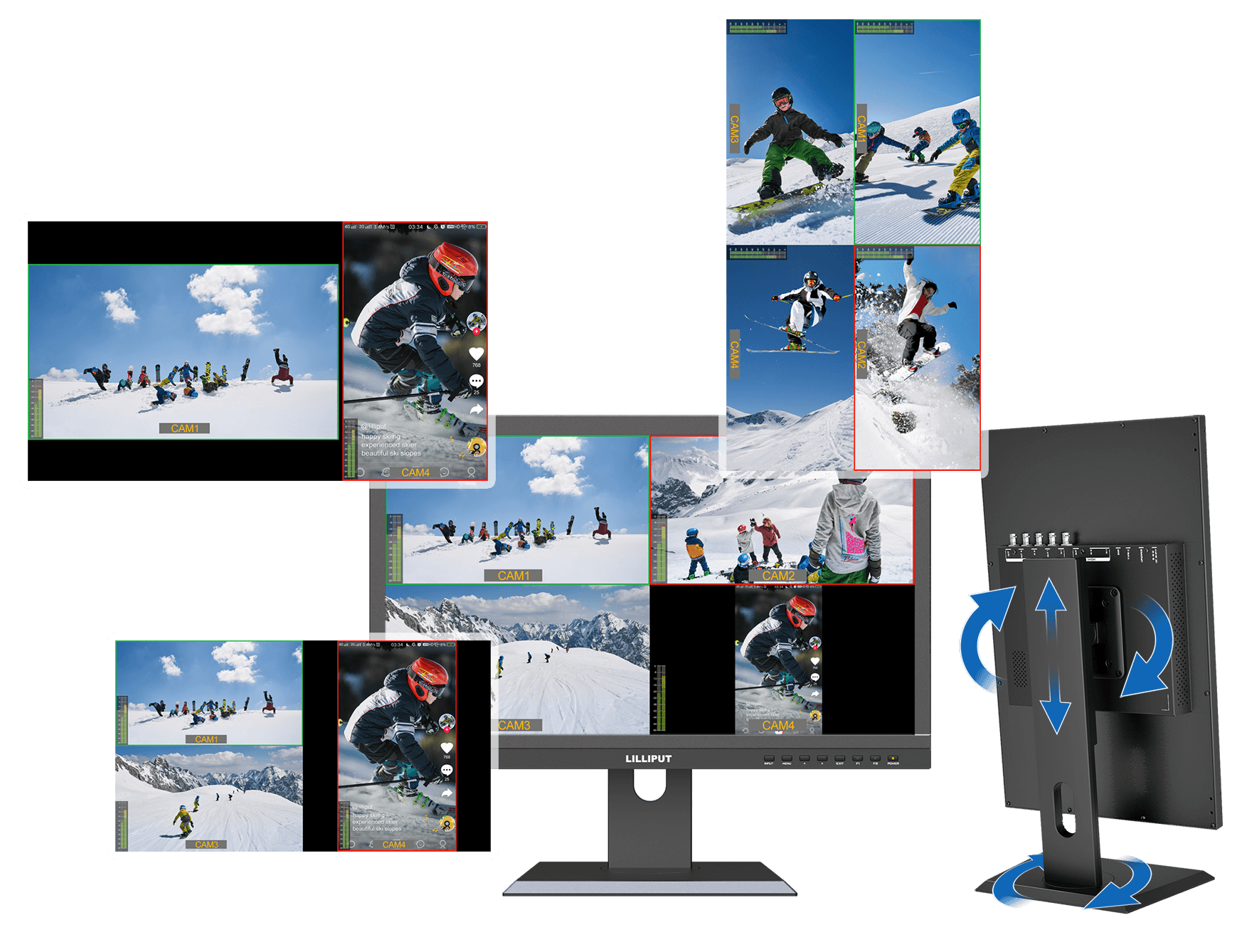

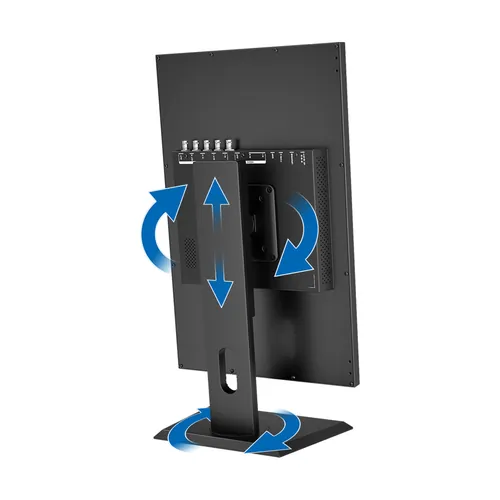

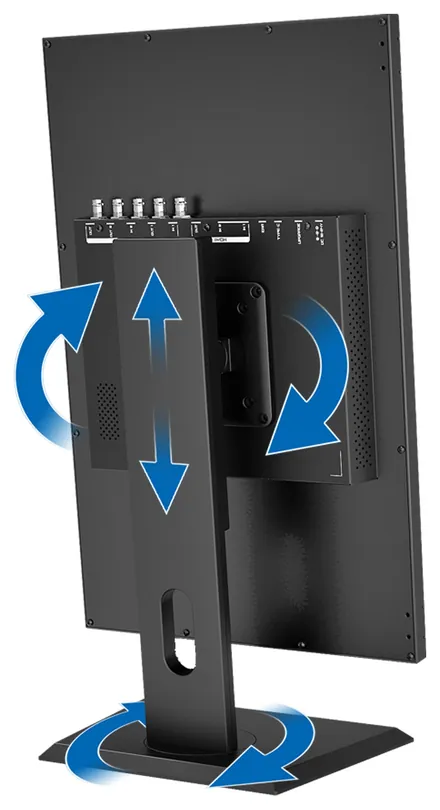

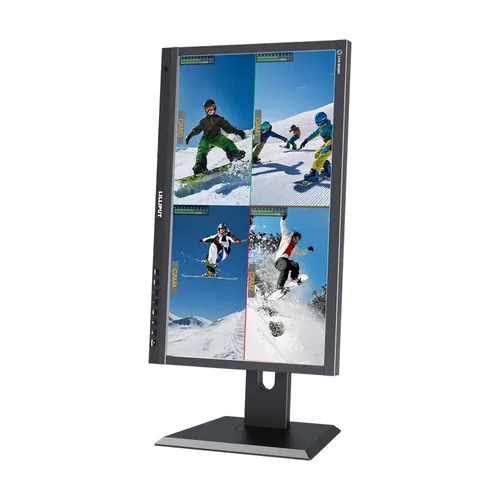

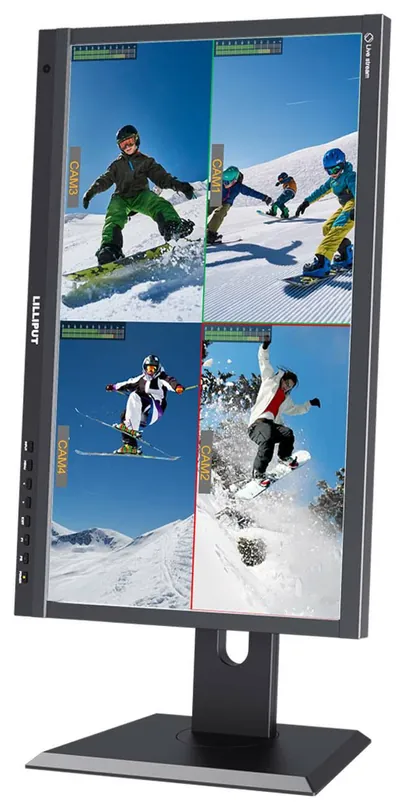

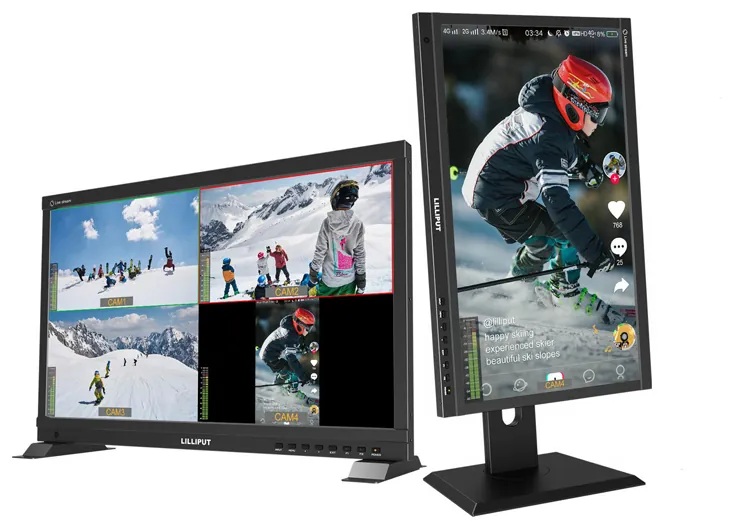

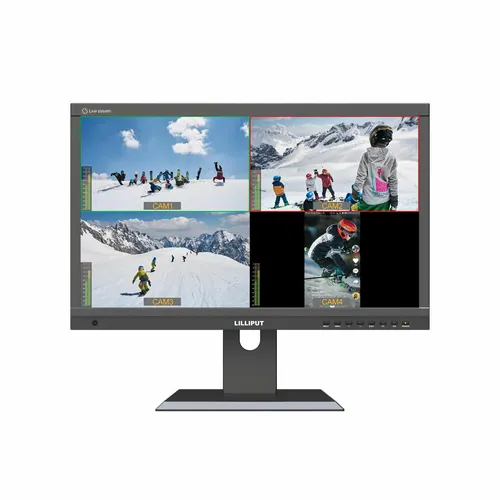

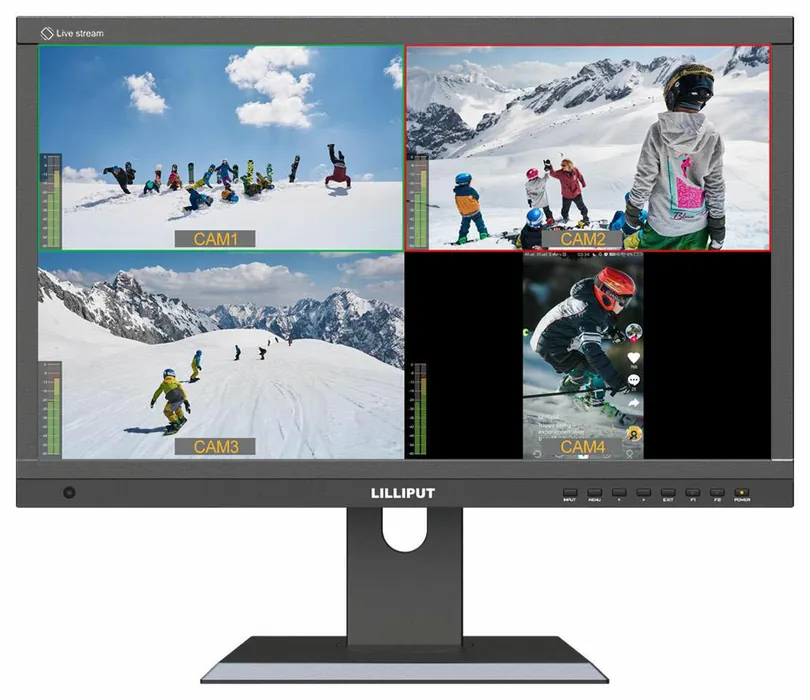

- Multiview with Quad-View, PVW/PGM switching, and multiple layout modes; 90° portrait rotation

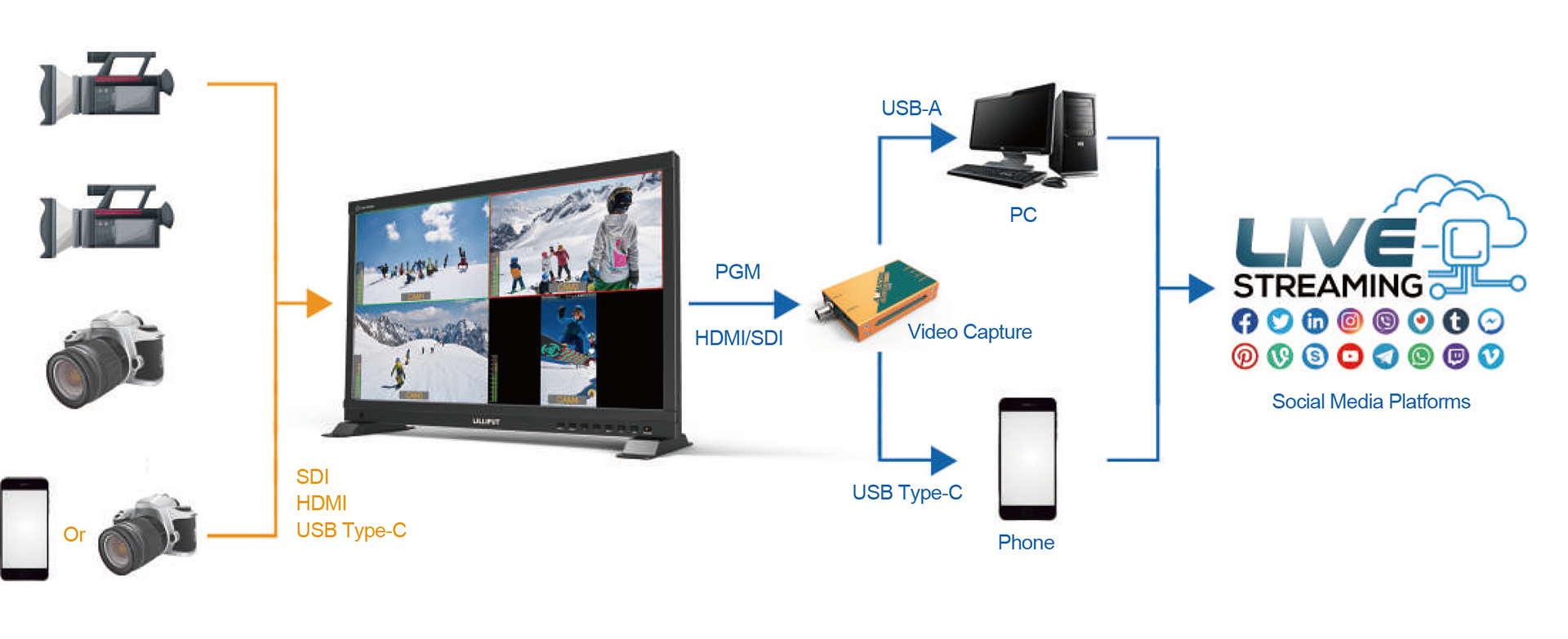

- PGM output on both HDMI and 3G-SDI simultaneously for live streaming and multi-camera production

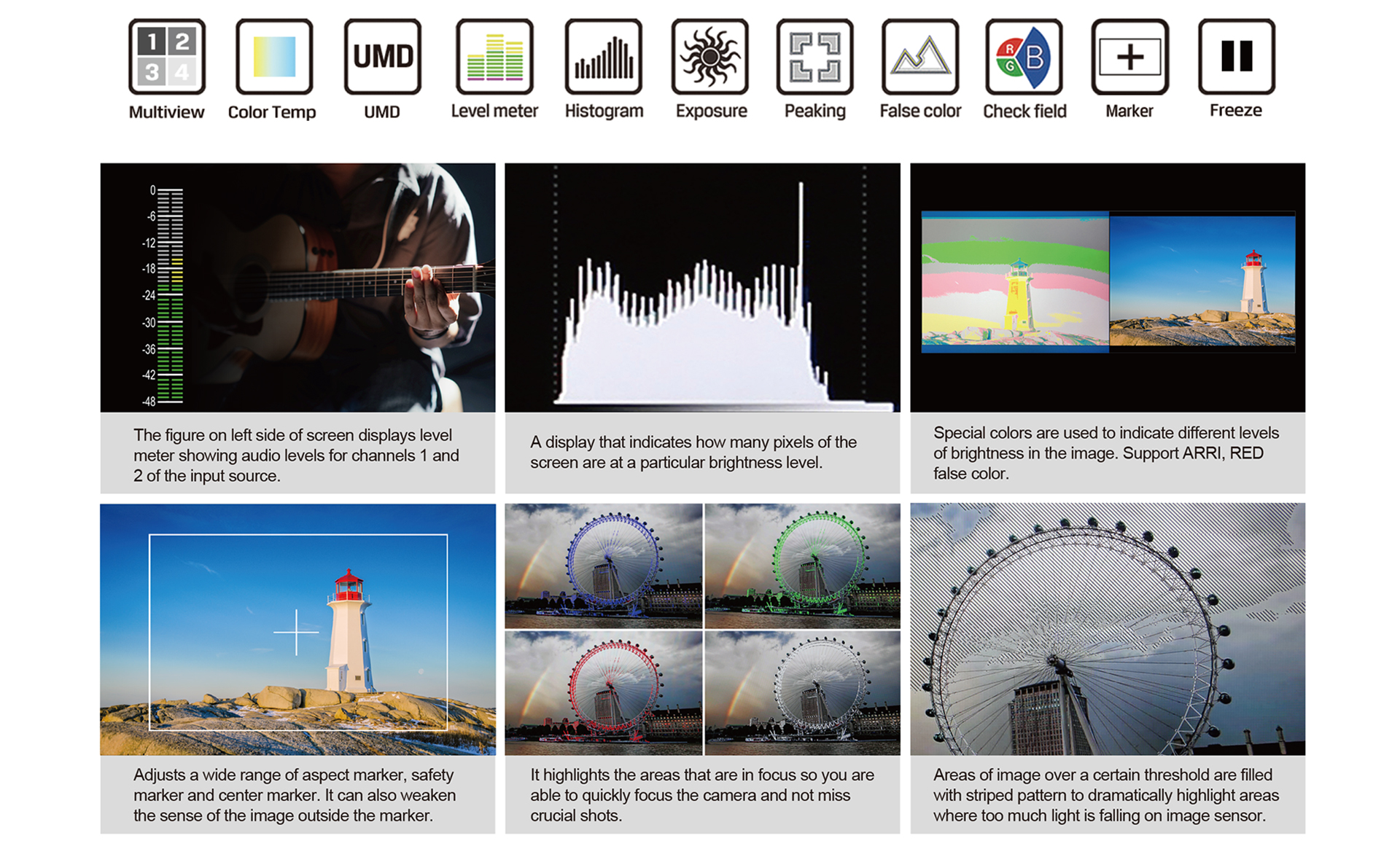

- Scopes: level meter, histogram, exposure, peaking, false colour (ARRI/RED), check field, marker, freeze

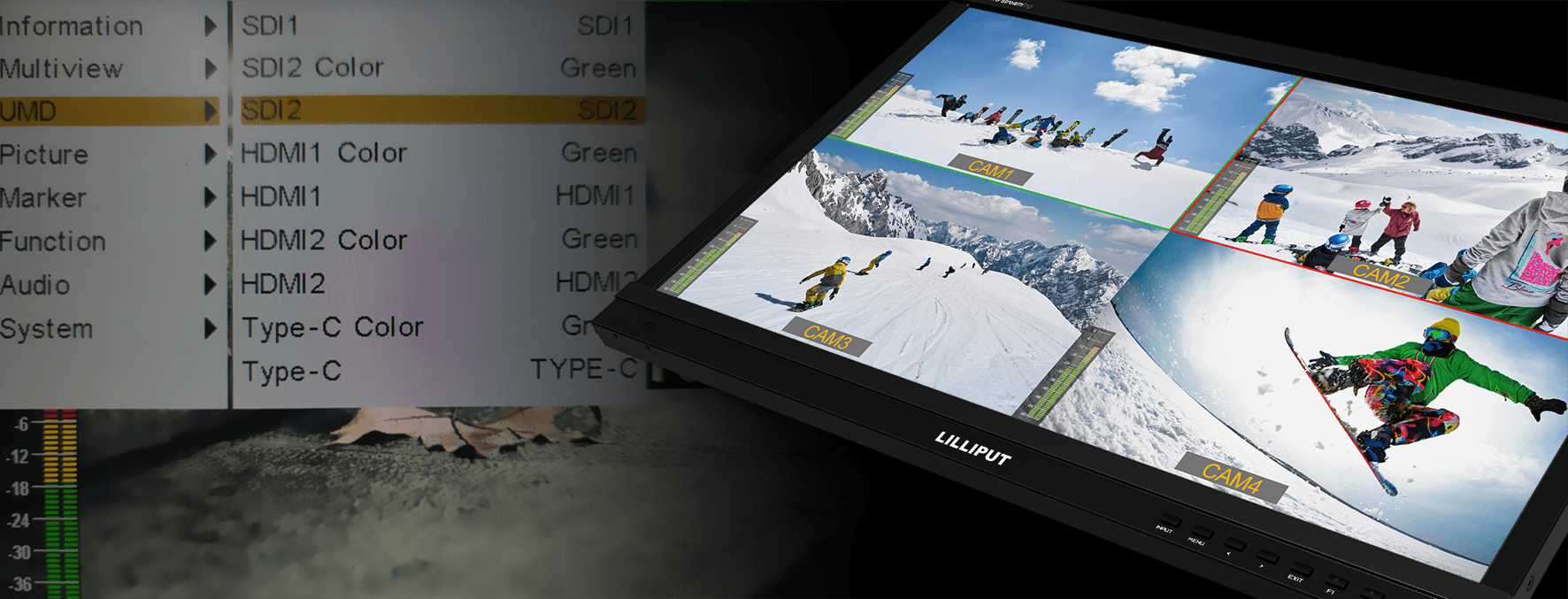

- UMD with per-input text labels and colour coding; F1/F2 programmable shortcut buttons
Buy the PVM220S From an Authorised Reseller
Lilliput's authorised resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the PVM220S now, or if your country is not listed, browse all authorised resellers here.
- 3D Broadcast Ltd Opens in a new tab.
- Camera World Limited Opens in a new tab.
- CineGearPro Ltd Opens in a new tab.
- E-MOTION CREATIONS di Pierfrancesco Armati Opens in a new tab.
- Eastwood (Sound and Vision) Ltd Opens in a new tab.
- Fotospecialisti d.o.o. Opens in a new tab.
- Más Que Vídeo Profesional, SA Opens in a new tab.
- Proactive UK Ltd Opens in a new tab.
- RCB Logic Limited Opens in a new tab.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data
Display
- Screen size
- 21.5 inch
- Aspect ratio
- 16:9
- Native resolution
- 1920 x 1080
- Panel type
- LCD
- Brightness
- 500 cd/m²
- Contrast
- 1500:1
- Viewing angle
- 170°/170° (H/V)

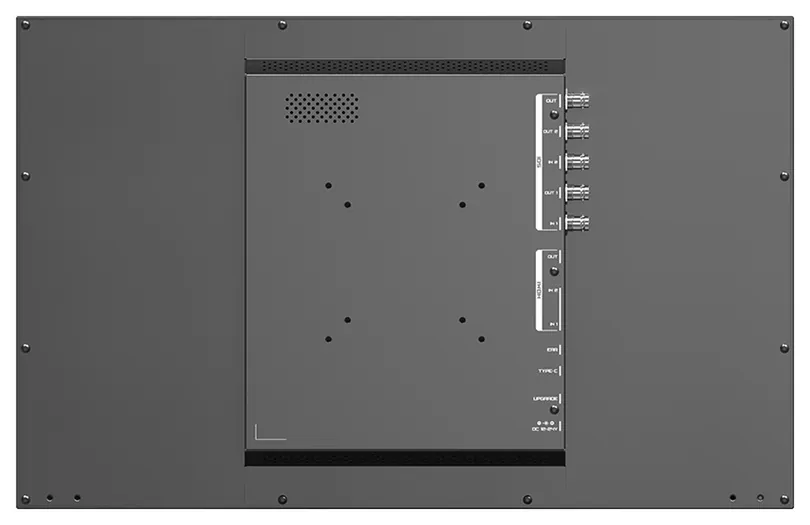

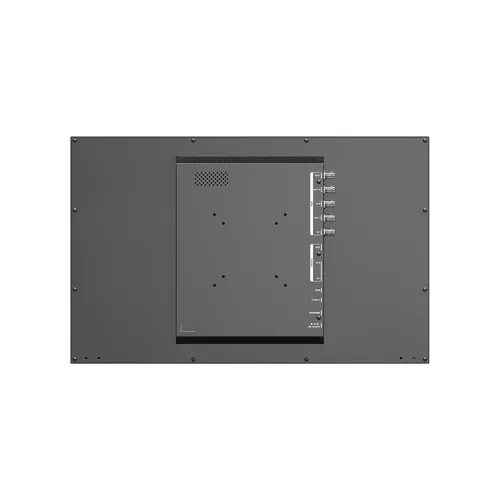

Connections
- Video inputs
- 2x 3G-SDI, 2x HDMI, 1x USB Type-C
- Video outputs
- 2x 3G-SDI
- Program output
- 1x PGM HDMI + 1x PGM 3G-SDI (simultaneous, 1080p 24/25/30/50/60)
- Audio
- 3G-SDI 2ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker
Video Standards
- 3G-SDI
- 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60
- HDMI
- 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60
- USB Type-C
- 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60
Scopes
- Video analysis
- Histogram, Exposure, Peaking, False colour (ARRI, RED), Check field, Freeze
- Audio analysis
- Level meter
Operational Features
- View modes
- Picture-by-Picture, Picture-in-Picture, PVW/PGM, Three-Way Split, Quad-View
- UMD
- User-defined text with colour coding
- Markers
- Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.3X, 1.5X, 1.8X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
- Function buttons
- F1, F2 user-definable
Power
- Input voltage
- DC 12 to 24V
- Power consumption
- ≤33 W (15V)
Environmental
- Operating temperature
- -20°C to 60°C
- Storage temperature
- -30°C to 70°C
Mechanical

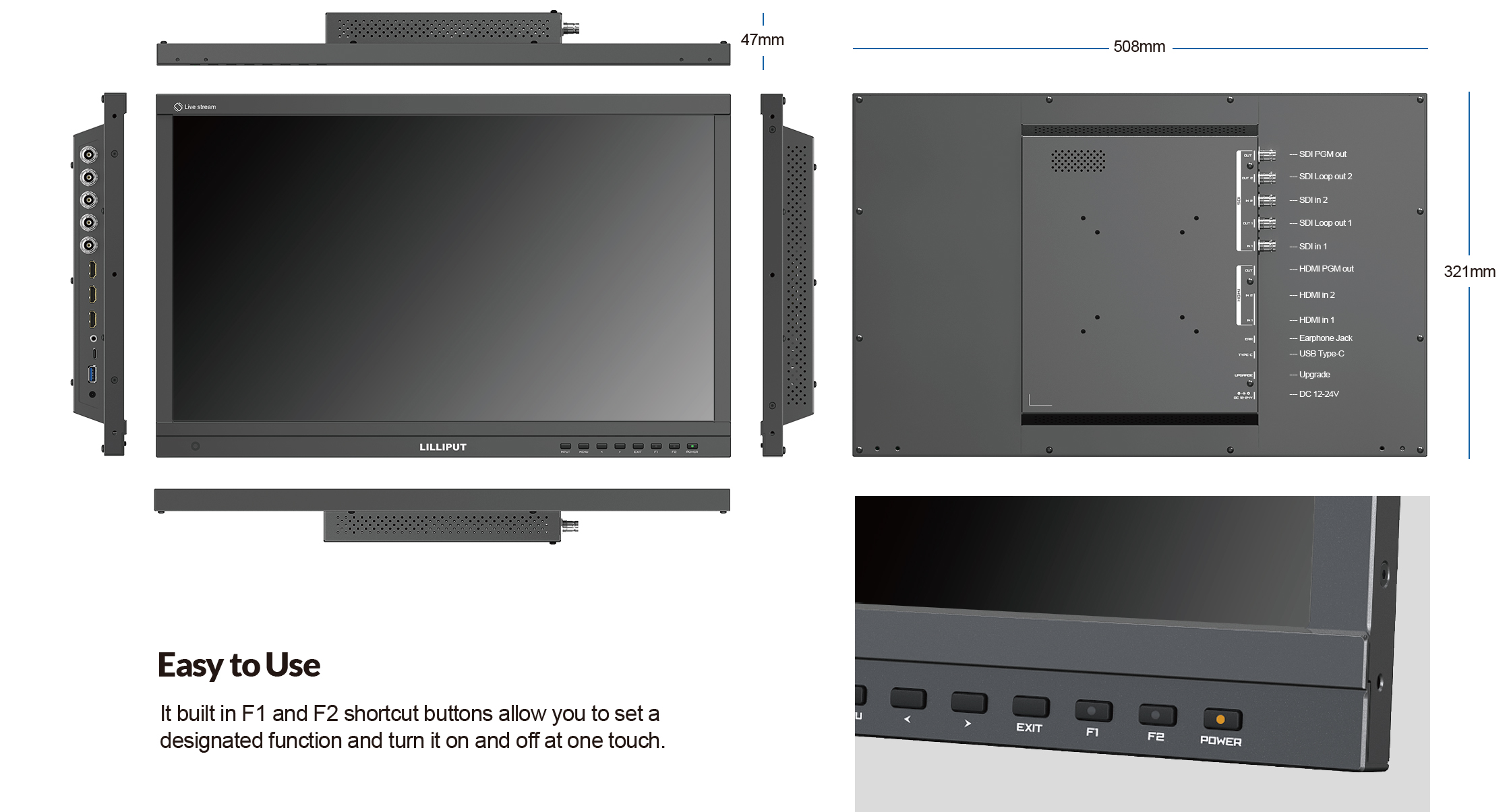

- Dimensions
- 508 x 321 x 47 mm
- Weight
- 5.39 kg
Mounting
- VESA mount
- 75 x 75 mm, 100 x 100 mm
- Base brackets
- Base brackets included
Accessories
Included
- 15V DC Power Adapter
- Base Bracket
- USB Type-C Cable
- User Manual
Optional
- Battery Plate + D-Tap Cable
- Swivel Stand
- Carry case & Sunshade
Similar Products
Compare key technical data across similar products.
| Technical Data | PVM220S | PVM220S-E | PVM220S-H | Q23-8K | PVM270S |
|---|---|---|---|---|---|
| Display | |||||
| Screen size | 21.5 inch | 21.5 inch | 21.5 inch | 23.8 inch | 27 inch |
| Native resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 3840 x 2160 | 1920 x 1080 |
| Aspect ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Brightness | 500 cd/m² | 1000 cd/m² | 1000 cd/m² | 300 cd/m² | 1000 cd/m² |
| Colour space | — | Calibration to Rec.709 (optional calibration unit) | Calibration to Rec.709 (optional calibration unit) | Calibration to Rec.709 (optional calibration unit) | Native, SMPTE-C, Rec.709, EBU (selectable) |
| Contrast | 1500:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 |
| HDR | — | ST2084 300/1000/10000, HLG | ST2084 300/1000/10000, HLG | HLG, ST 2084 300/1000/10000 | ST2084 300/1000/10000, HLG |
| LUT support | — | 3D-LUT (.cube format) | 3D-LUT (.cube format) | 3D-LUT (.cube format) | 3D-LUT (.cube format) |
| Panel type | LCD | LCD | LCD | LED | LCD |
| Supported log formats | — | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined | SLog2, SLog3, CLog, NLog, ArriLog, JLog, User defined |
| Viewing angle | 170°/170° (H/V) | 178°/178° (H/V) | 178°/178° (H/V) | 178°/178° (H/V) | 178°/178° (H/V) |
| Mechanical | |||||
| Dimensions | 508 x 321 x 47 mm | 508 x 321 x 47 mm | 508 x 321 x 47 mm | 567 x 376.4 x 45.7 mm | 644 x 409.1 x 55.3 mm |
| Weight | 5.39 kg | 4.75 kg | 4.7 kg | 7.4 kg | 8.8 kg |
| Connections | |||||
| Video inputs | 2x 3G-SDI, 2x HDMI, 1x USB Type-C | 1x 3G-SDI, 1x HDMI 2.0 | 1x 3G-SDI, 1x HDMI 2.0 | 4x 12G-SDI (8K quad-link), 1x 12G SFP+ (fiber module optional), 1x HDMI 2.0 | 2x 3G-SDI, 3x HDMI 2.0 |
| Video outputs | 2x 3G-SDI | 1x 3G-SDI, 1x HDMI 2.0, 1x LAN 1000M | 1x 3G-SDI, 1x HDMI 2.0 | 4x 12G-SDI, 1x HDMI 2.0 | 1x 3G-SDI (loop out), 1x 3G-SDI (PGM/LUT out), 1x HDMI 2.0 (loop / PGM / LUT out) |
| Audio | 3G-SDI 2ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker | 3G-SDI 2ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker | 3G-SDI 2ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers | 3G-SDI 2ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers |
| Program output | 1x PGM HDMI + 1x PGM 3G-SDI (simultaneous, 1080p 24/25/30/50/60) | — | — | — | PGM or LUT on shared 3G-SDI PGM/LUT OUT and HDMI OUT (1080p 24/25/30/50/60) |
| USB | — | — | — | — | LUT load and firmware update |
| Video Standards | |||||
| 12G-SDI | — | — | — | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — |
| 3G-SDI | 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| HDMI | 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60 | — | — | — | — |
| HDMI 2.0 | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| IP streaming | — | Push/Pull: YCbCr 4:2:2 (up to 32 Mbps @ 1080p60) | — | — | — |
| PGM/LUT Out | — | — | — | — | 1080p 24/25/30/50/60 |
| SFP | — | — | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — |
| Streaming formats | — | Push: SRT, RTMP, Pull: RTMP, RTSP, HTTP, HTTPS, NDI®|HX (optional) | — | — | — |
| USB Type-C | 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60 | — | — | — | — |
| Power | |||||
| Power consumption | ≤33 W (15V) | ≤53 W (15V) | ≤53 W (15V) | ≤60 W (15V) | ≤58 W (10V) |
| Compatible batteries | — | V-Lock or Anton Bauer mount (optional) | V-Lock or Anton Bauer mount (optional) | V-Lock or Anton Bauer mount | V-Lock or Anton Bauer mount |
| Input voltage | DC 12 to 24V | DC 9 to 24V | DC 9 to 24V | DC 12 to 24V | DC 10 to 24V |
| Input voltage (battery) | — | 14.8V nominal | 14.8V nominal | 14.8V nominal | 14.8V nominal |
| Power connector | — | — | — | — | 4-pin XLR (supplied 15V DC adapter) |
| Environmental | |||||
| Operating temperature | -20°C to 60°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C |
| Storage temperature | -30°C to 70°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C |
| Record | |||||
| Storage | — | SD card | — | — | — |
| File segment | — | 1/5/10/20/30/60 min | — | — | — |
| Record file format | — | H.264 | — | — | — |
| Audio sample rate | — | 44.1 kHz / 48 kHz | — | — | — |
| Frame rates | — | 60/50/30/25/24 fps | — | — | — |
| Video resolution | — | 1920 x 1080, 1280 x 720, 720 x 480 | — | — | — |
| Operational Features | |||||
| Colour temperature | — | 5500K, 6500K, 7500K, 9300K, User | 5500K, 6500K, 7500K, 9300K, User | 3200K, 5500K, 6500K, 7500K, 9300K, User | 6500K, 7500K, 9300K, User |
| Comparison | — | Gamma/HDR, Colour space, Camera LUT | Gamma/HDR, Colour space, Camera LUT | Colour space, HDR, Gamma, Camera Log (side-by-side with original) | — |
| Cross conversion | — | — | — | — | HDMI 2.0 ↔ 3G-SDI (bidirectional); up to 1080p 24/25/30/50/60 on PGM/LUT HDMI OUT and SDI PGM/LUT OUT; excludes SDI loop-out |
| Function buttons | F1, F2 user-definable | F1, F2 user-definable | F1, F2 user-definable | F1 to F4 user-definable (peaking, waveform, level meter, colour space, aspect marker, freeze, etc.) | F1, F2, F3 user-definable |
| Gamma | — | 1.8 to 2.8 | 1.8 to 2.8 | 1.8 to 2.8 | — |
| Image mirroring | — | — | — | Vertical flip, Horizontal flip | — |
| Markers | Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.3X, 1.5X, 1.8X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.3X, 1.5X, 1.8X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.3X, 1.5X, 1.8X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 9:16, 1.33X, 1.5X, 1.6X, 1.7X, 1.8X, 2.0X, 2.0X MAG; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off |
| Menu control | — | — | — | Custom Menu Knob (brightness, contrast, volume, peaking, etc.) | — |
| Peaking | — | Red, Green, Blue, White, Black | Red, Green, Blue, White, Black | Red, Green, Blue, White, Black | — |
| Remote control | — | — | — | GPI, LAN, RS422 In/Out | LAN (RJ45), GPI (8-pin RJ45) |
| Tally | — | — | — | Red, Green, Yellow | — |
| Time code | — | LTC, VITC | LTC, VITC | LTC, VITC | — |
| UMD | User-defined text with colour coding | — | — | User-defined text (7 colours) | User-defined text; per-source colour |
| View modes | Picture-by-Picture, Picture-in-Picture, PVW/PGM, Three-Way Split, Quad-View | — | — | Quad-View | Picture-by-Picture, PVW/PGM, Three-Way Split, Quad-View |
| Mounting | |||||
| Base brackets | Base brackets included | Base brackets included | Base brackets included | Base brackets included | Base stand included |
| VESA mount | 75 x 75 mm, 100 x 100 mm | 75 x 75 mm, 100 x 100 mm (external bracket); 75 x 75 mm (V-mount/Anton Bauer battery) | 75 x 75 mm, 100 x 100 mm (external bracket); 75 x 75 mm (V-mount/Anton Bauer battery) | 75 x 75 mm, 100 x 100 mm (plate included) | 75 x 75 mm, 100 x 100 mm (mount plate included) |
| Accessories | |||||
| Included | 15V DC Power Adapter, Base Bracket, USB Type-C Cable, User Manual | 15V 4A DC Power Adapter, Base Bracket, E-User Manual | 15V 4A DC Power Adapter, Base Bracket, E-User Manual | 15V DC Adapter, VESA Mount Plate, Battery Plate (V-mount or Anton Bauer), Base Bracket, USB Flash Disk | 15V DC power adapter (4-pin XLR), Base stand, V-mount or Anton Bauer battery plate, VESA mount plate, User manual |
| Optional | Battery Plate + D-Tap Cable, Swivel Stand, Carry case & Sunshade | Battery Plate + D-Tap Cable, Carry case & Sunshade | Battery Plate + D-Tap Cable, Carry case & Sunshade | Carry case & Sunshade, SFP Optical Fiber Module | Carry case & Sunshade |
| Scopes | |||||
| Audio analysis | Level meter | Audio vector, Level meter | Audio vector, Level meter | Audio vector, Level meter | Level meter |
| Video analysis | Histogram, Exposure, Peaking, False colour (ARRI, RED), Check field, Freeze | Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Check field, Freeze, Colour bar | Waveform (Y, YCbCr, RGB), Vector, Histogram, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Check field, Freeze, Colour bar | Waveform, Vector, Histogram, False colour, Exposure, Check field, Colour bar, Pixel zoom | Waveform, Histogram, Peaking, False colour, Exposure, Check field, Freeze |
