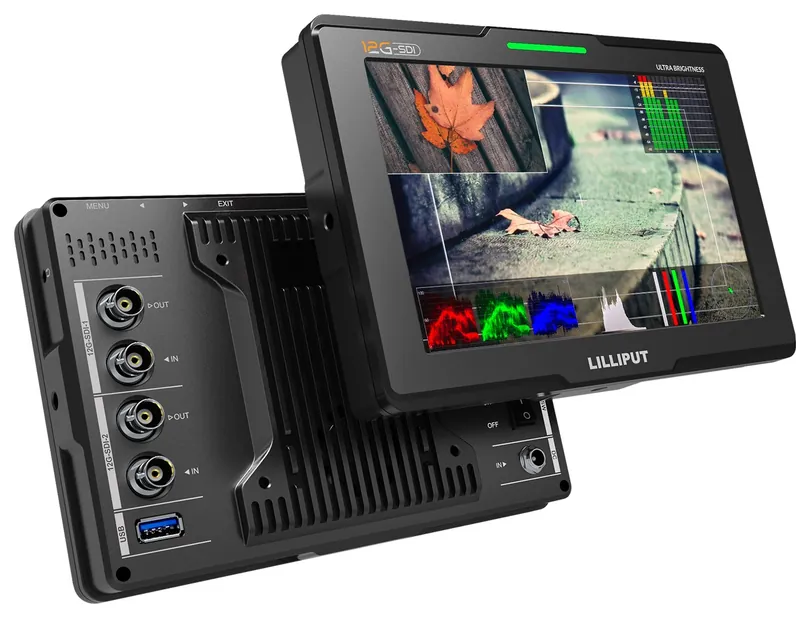

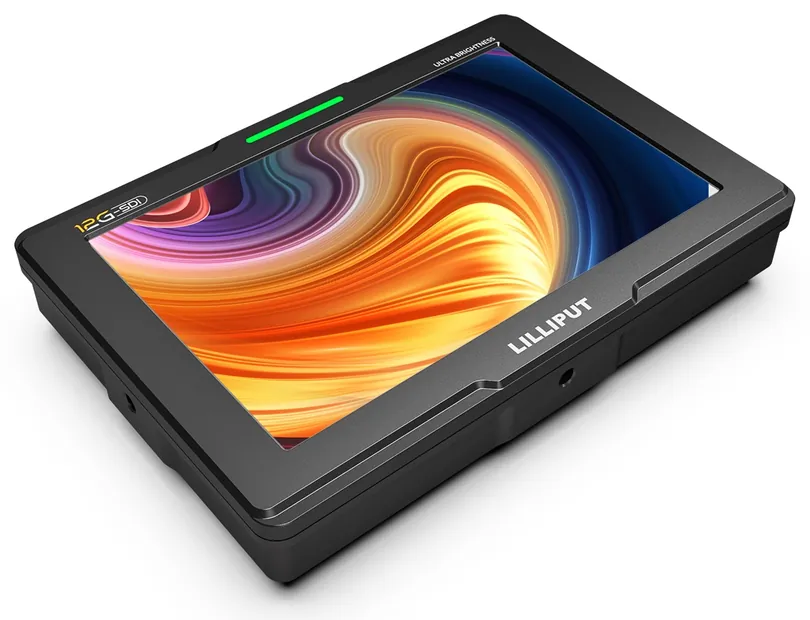

Key Features
- 7 inch 1920 x 1200 LCD display, 2000 cd/m² high brightness, 1200:1 contrast, 16:10 aspect ratio
- 2x 12G-SDI and 1x HDMI 2.0 input/output, 4K 60Hz support
- HDR ST 2084 (300/1000/10000 cd/m²) and HLG; 3D LUT (.cube); 17 default camera logs plus 6 user LUTs

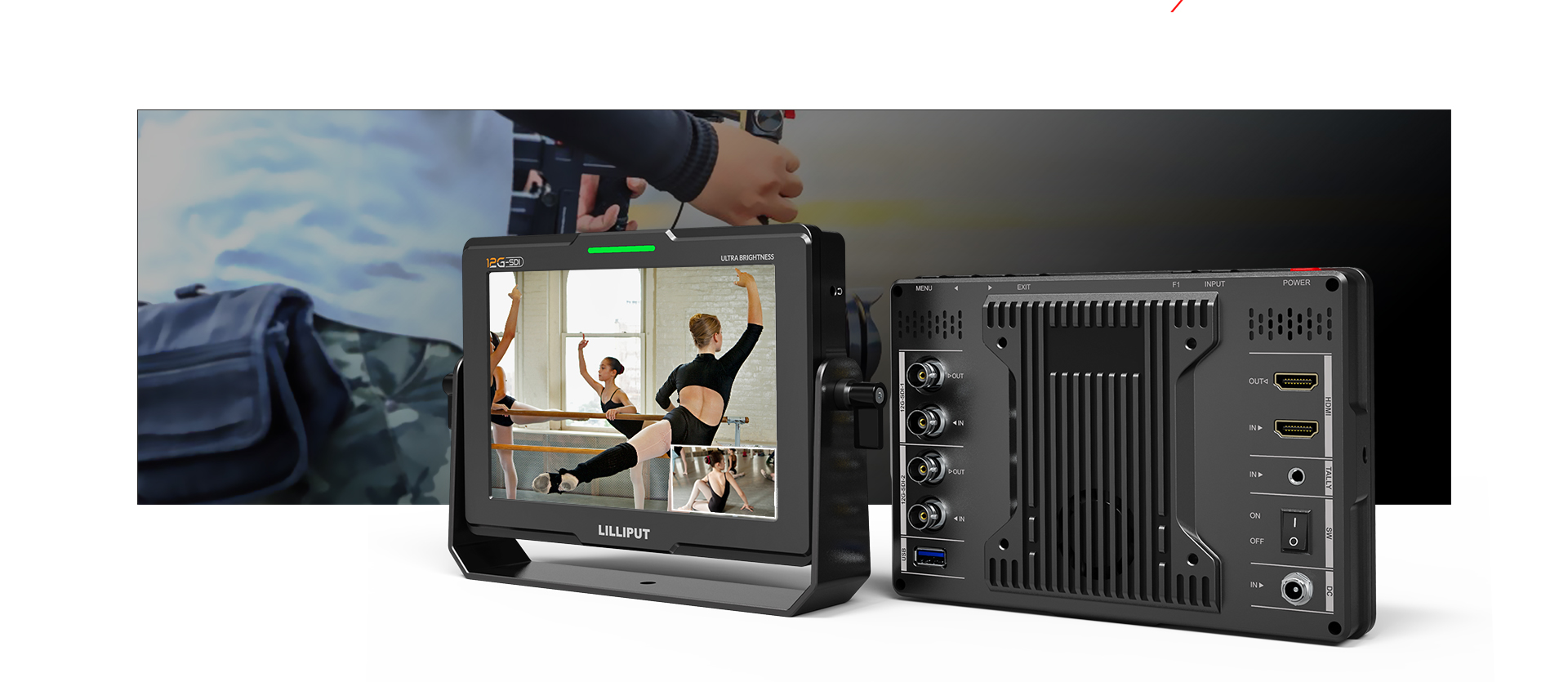

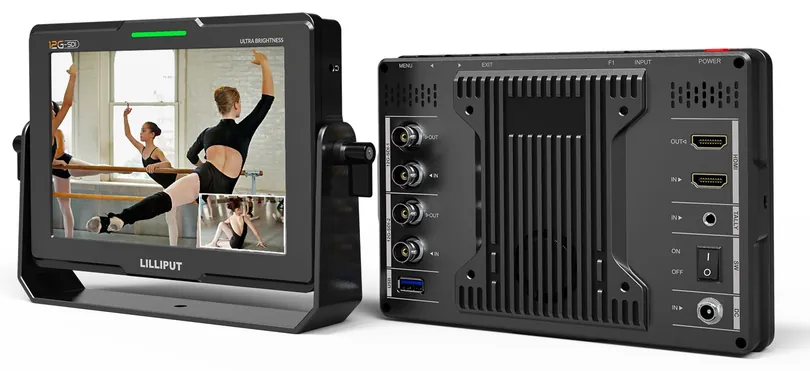

- Tally connector; 12G-SDI picture-in-picture
- 785 g; 186 x 128 x 32.5 mm; VESA 75 and Gimbal bracket; mini hot shoe compatible
- NP-F (F970) battery compatible via VESA 75 plate; F1 user-definable function button
Buy the Q7-12G From an Authorised Reseller
Lilliput's authorised resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the Q7-12G now, or if your country is not listed, browse all authorised resellers here.
- APODAX SL Opens in a new tab.
- AVNed B.V. Opens in a new tab.
- Broadcast Center S.R.L. Opens in a new tab.
- E-MOTION CREATIONS di Pierfrancesco Armati Opens in a new tab.
- Eastwood (Sound and Vision) Ltd Opens in a new tab.
- Fotospecialisti d.o.o. Opens in a new tab.
- MISS NUMERIQUE Opens in a new tab.
- NEFAL service & consulting e. K. Opens in a new tab.
- Proactive UK Ltd Opens in a new tab.
- Production Gear Ltd Opens in a new tab.
- RCB Logic Limited Opens in a new tab.
- Swiss Event Corporation AG Opens in a new tab.
- Voosestore AB Opens in a new tab.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data
Display
- Screen size
- 7 inch
- Aspect ratio
- 16:10
- Native resolution
- 1920 x 1200
- Panel type
- LCD
- Brightness
- 2000 cd/m²
- Contrast
- 1200:1
- Viewing angle
- 170°/170° (H/V)
- HDR
- ST 2084 300/1000/10000 cd/m², HLG
- Supported log formats
- SLog2/SLog3, CLog, NLog, ArriLog, JLog or User
- LUT support
- 3D-LUT (.cube format)

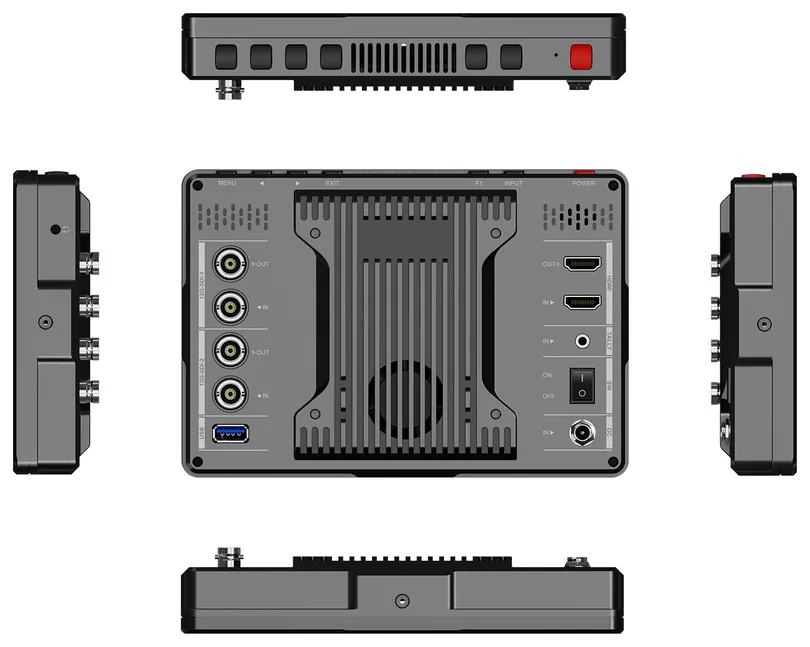

Connections
- Video inputs
- 2x 12G-SDI, 1x HDMI 2.0, 1x Tally
- Video outputs
- 2x 12G-SDI, 1x HDMI 2.0 (4K 60Hz)
- Audio
- 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker
Video Standards
- HDMI 2.0
- 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50
- 12G-SDI
- 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50

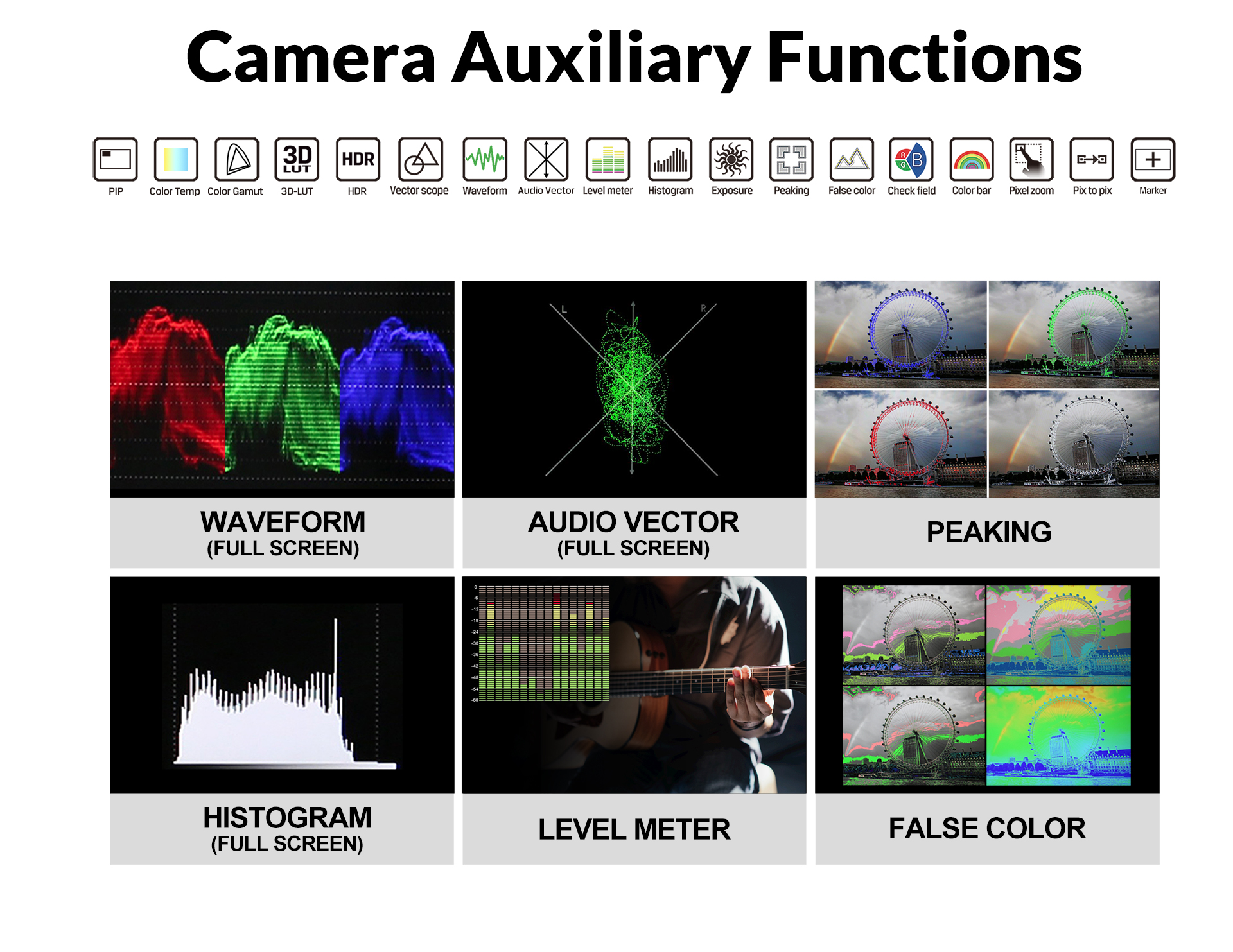

Scopes
- Video analysis
- Waveform, Peaking, False colour, Exposure, Histogram
- Audio analysis
- Level meter
Operational Features
- Function buttons
- User-definable (default: Peaking)
- Markers
- Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.33X, 1.3X, 1.5X, 2.0X, 2.0X MAG, Grid; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
- Image mirroring
- Vertical flip, Horizontal flip
- View modes
- Picture-in-Picture
Power
- Input voltage
- DC 7 to 24V
- Power consumption
- ≤20 W (12V)
- Compatible batteries
- Sony NP-F (F970) via VESA 75 plate
Environmental
- Operating temperature
- 0°C to 50°C
- Storage temperature
- -20°C to 60°C

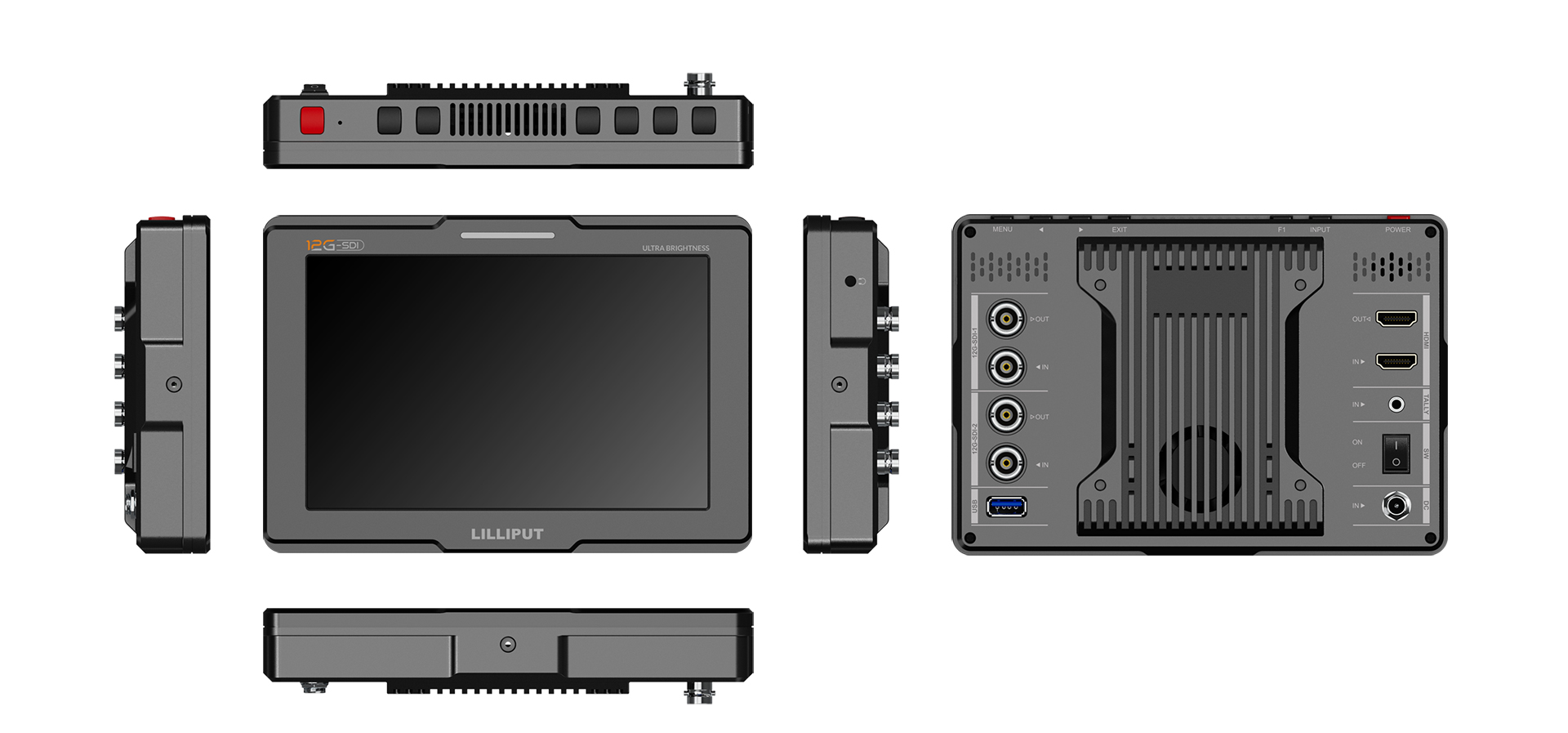

Mechanical
- Dimensions
- 186 x 128 x 32.5 mm
- Weight
- 785 g
Mounting
- VESA mount
- 75 x 75 mm (battery plate included)
- Shoe mount
- 3x 1/4 inch BSW

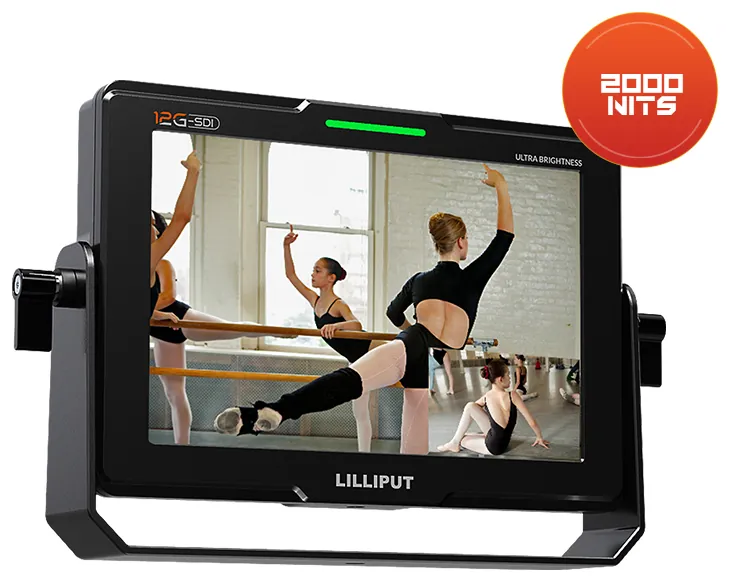

- Gimbal bracket
- Included
Accessories
Included
- 12V 2A DC power adapter
- Carry case
- Gimbal bracket
- VESA 75 mm F970 battery plate
- Tally connector
- User manual
Product Downloads
Similar Products
Compare key technical data across similar products.
| Technical Data | Q7-12G | H7S | FS7 | A7S | HT7S |
|---|---|---|---|---|---|
| Display | |||||
| Screen size | 7 inch | 7 inch | 7 inch | 7 inch | 7 inch |
| Native resolution | 1920 x 1200 | 1920 x 1200 | 1920 x 1200 | 1920 x 1200 | 1920 x 1200 |
| Touch screen | — | — | — | — | Capacitive touch |
| Aspect ratio | 16:10 | 16:10 | 16:10 | 16:10 | 16:10 |
| Brightness | 2000 cd/m² | 1800 cd/m² | 500 cd/m² | 500 cd/m² | 2000 cd/m² |
| Colour space | — | — | ITU-R BT.709 | ITU-R BT.709 | 100% BT.709 |
| Contrast | 1200:1 | 1200:1 | 1000:1 | 1000:1 | 1200:1 |
| HDR | ST 2084 300/1000/10000 cd/m², HLG | HLG, ST 2084 300, ST 2084 1000, ST 2084 10000 | — | — | HLG, ST 2084 300, ST 2084 1000, ST 2084 10000 |
| LUT support | 3D-LUT (.cube format) | 3D-LUT (.cube format, 17x17x17 BGR) | — | — | 3D-LUT (.cube format, 17x17x17 or 33x33x33 BGR) |
| Panel type | LCD | LCD | IPS | IPS | LCD |
| Supported log formats | SLog2/SLog3, CLog, NLog, ArriLog, JLog or User | SLog2, SLog3, User (1 to 6) | — | — | SLog2, SLog3, ArriLog, CLog, VLog, JLog, NLog, User (1 to 6) |
| Viewing angle | 170°/170° (H/V) | 160°/160° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) | 160°/160° (H/V) |
| Mechanical | |||||
| Dimensions | 186 x 128 x 32.5 mm | 225 x 155 x 23 mm | 182 x 124 x 22 mm | 182.1 x 124 x 20.5 mm | 186 x 128 x 29 mm |
| Weight | 785 g | 535 g | 405 g | 320 g | 520 g |
| Connections | |||||
| Video inputs | 2x 12G-SDI, 1x HDMI 2.0, 1x Tally | 1x 3G-SDI, 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 1.4 | 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 2.0 |
| Video outputs | 2x 12G-SDI, 1x HDMI 2.0 (4K 60Hz) | 1x 3G-SDI, 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 1.4 | 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) |
| Audio | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker | 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker | 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker | HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker | 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit), HDMI 8ch 24-bit |
| Video Standards | |||||
| 12G-SDI | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 | — | — | — | — |
| 3G-SDI | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| HDMI 1.4 | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — |
| HDMI 2.0 | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 | — | — | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| Power | |||||
| Power consumption | ≤20 W (12V) | ≤15 W | ≤12 W | ≤12 W | ≤16 W (15V) |
| Compatible batteries | Sony NP-F (F970) via VESA 75 plate | Sony NP-F series (F970) | Sony NP-F (F970), Canon LP-E6 | Sony NP-F (F970), Canon LP-E6 | Sony NP-F series |
| Input voltage | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V |
| Input voltage (battery) | — | 7.2V nominal | 7.2V nominal | 7.2V nominal | — |
| Environmental | |||||
| Operating temperature | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C |
| Storage temperature | -20°C to 60°C | -10°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C |
| Operational Features | |||||
| Anamorphic de-squeeze | — | — | — | — | 1.33X, 1.5X, 1.8X, 2X, 2X MAG |
| Camera control | — | — | — | — | LANC (Sony S-Lanc compatible) |
| Colour temperature | — | 6500K, 7500K, 9300K, User | — | — | 3200K, 5500K, 6500K, 7500K, 9300K, User |
| Comparison | — | — | — | — | Gamma/HDR, Colour space, Camera LUT |
| DSLR presets | — | 5D2, 5D3 | — | — | — |
| Display scan | — | Fullscan, Overscan, Underscan | — | — | Aspect, Pixel to pixel, Zoom |
| Freeze | — | On/Off | — | — | On/Off |
| Function buttons | User-definable (default: Peaking) | F1 user-definable; INPUT key switches HDMI and SDI | User-definable (peaking, level meter, centre marker, aspect marker, false colour, exposure, histogram, etc.) | User-definable (peaking, level meter, centre marker, aspect marker, false colour, exposure, histogram, etc.) | FN user-definable |
| Gamma | — | 1.8 to 2.6 | — | — | 1.8 to 2.8 |
| H/V delay | — | — | — | — | Horizontal, Vertical, H/V |
| Image mirroring | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | — | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip |
| Markers | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.33X, 1.3X, 1.5X, 2.0X, 2.0X MAG, Grid; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.33X, 1.5X, 1.8X, 2X, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off |
| Menu control | — | — | — | — | Capacitive touch menu; centre swipe menu; left/right backlight and volume shortcuts |
| Overscan | — | — | — | — | On/Off |
| Peaking | — | Red, Green, Blue, White, Black | — | — | Red, Green, Blue, White |
| Tally | — | Red, Green | — | — | — |
| Time code | — | LTC, VITC | — | — | LTC, VITC |
| Touch gestures | — | — | — | — | Centre swipe: menu; left/right swipe: backlight/volume; two-finger zoom; shortcut menu swipe |
| View modes | Picture-in-Picture | — | — | — | — |
| Zoom | — | 1.5x, 2x, 3x, 4x | — | — | — |
| Mounting | |||||
| Gimbal bracket | Included | — | — | — | — |
| Shoe mount | 3x 1/4 inch BSW | 4x 1/4 inch BSW | 3x 1/4 inch BSW | 3x 1/4 inch BSW | 3x 1/4 inch BSW |
| VESA mount | 75 x 75 mm (battery plate included) | — | — | — | — |
| Scopes | |||||
| Audio analysis | Level meter | Level meter | Level meter | Level meter | Level meter |
| Video analysis | Waveform, Peaking, False colour, Exposure, Histogram | Peaking, False colour, Exposure, Histogram, Check field | Peaking, False colour, Exposure, Histogram | Peaking, False colour, Exposure, Histogram | Waveform (Multi, Y, YCbCr, RGB), Vector, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Histogram, Check field |
| Accessories | |||||
| Included | 12V 2A DC power adapter, Carry case, Gimbal bracket, VESA 75 mm F970 battery plate, Tally connector, User manual | HDMI A/C cable, Tally control line, Mini shoe mount, USB drive disk, Carry-on bag, User manual | 12V DC adapter, Sun shade, HDMI A/C cable, Shoe mount, NP-F series battery plate, User manual | Folding sun shade, Silicone rubber case, HDMI A/C cable, Battery plate (F970), Hot shoe mount, User manual | 0.8 m HDMI A-D cable, LANC cable, Mini shoe mount, USB drive disk |
| Optional | — | 12V 2A DC power adapter | VESA mount plate, V-Lock / Anton Bauer battery mount | — | 12V 2A DC power adapter, Battery plate adapter, Wireless video transmission, Carry case |
