Key Features

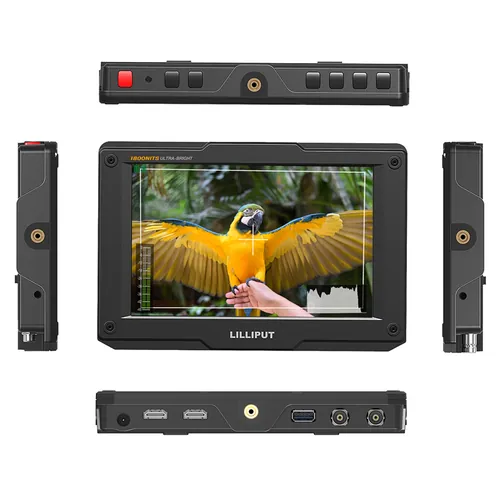

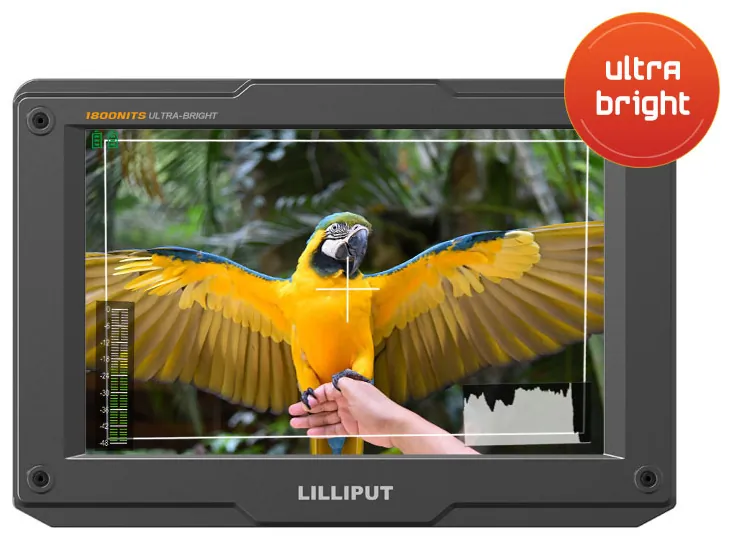

- 7 inch 1920 x 1200 LCD display, 1800 cd/m² high brightness, 1200:1 contrast, 16:10 aspect ratio

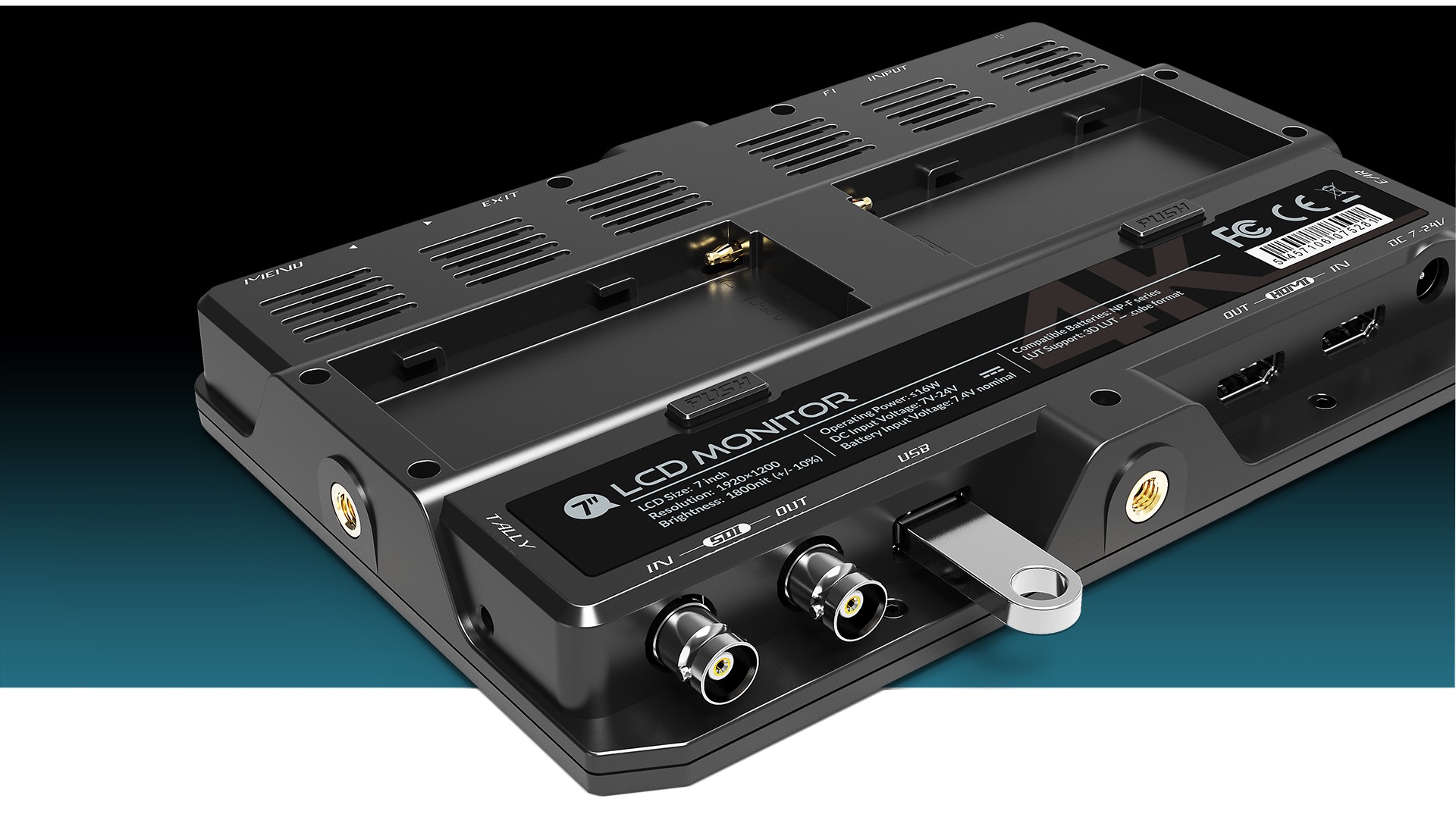

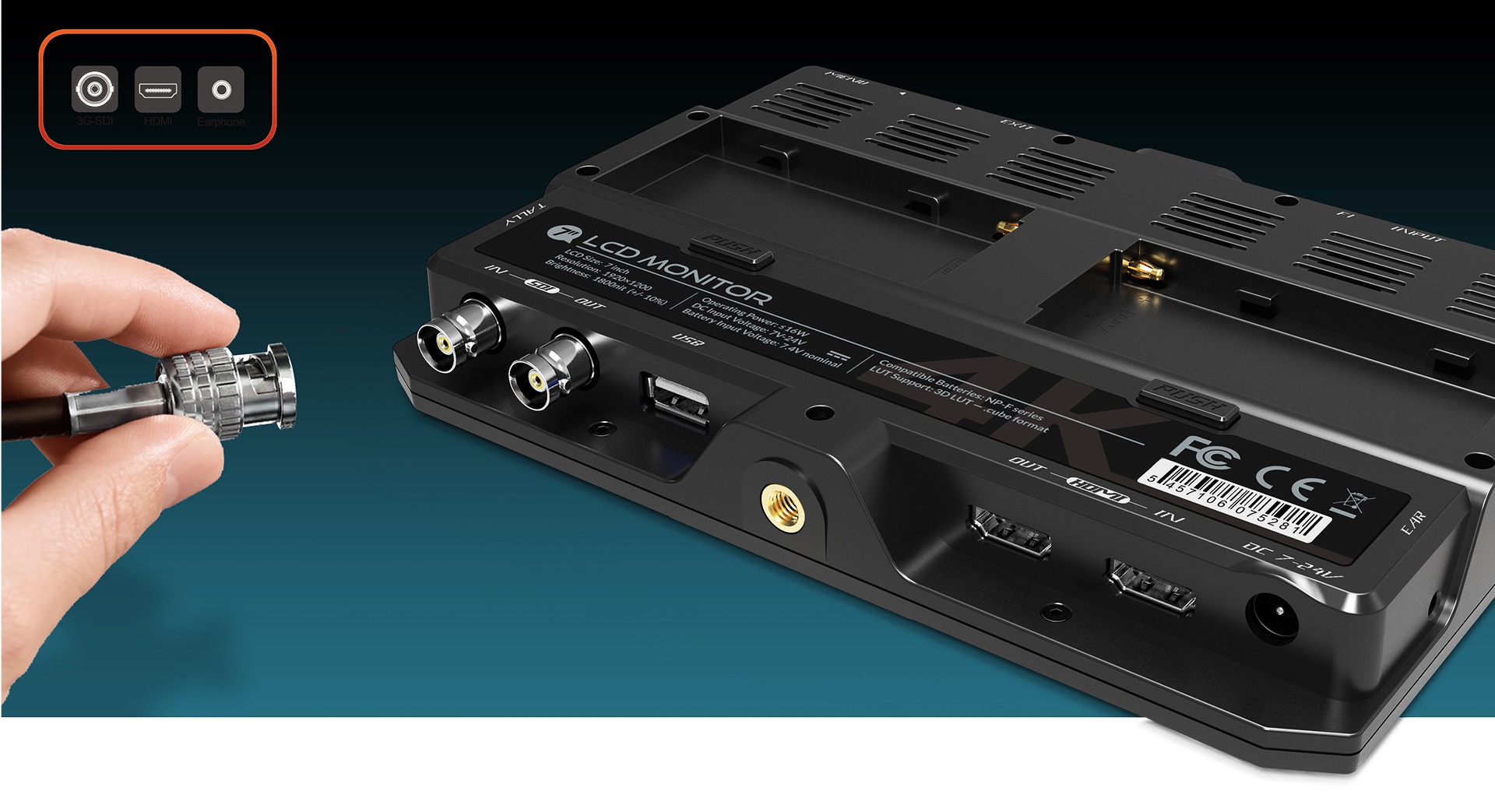

- 1x 3G-SDI and 1x HDMI 1.4 input/output with loop-through; 4K HDMI (2160p 24/25/30)

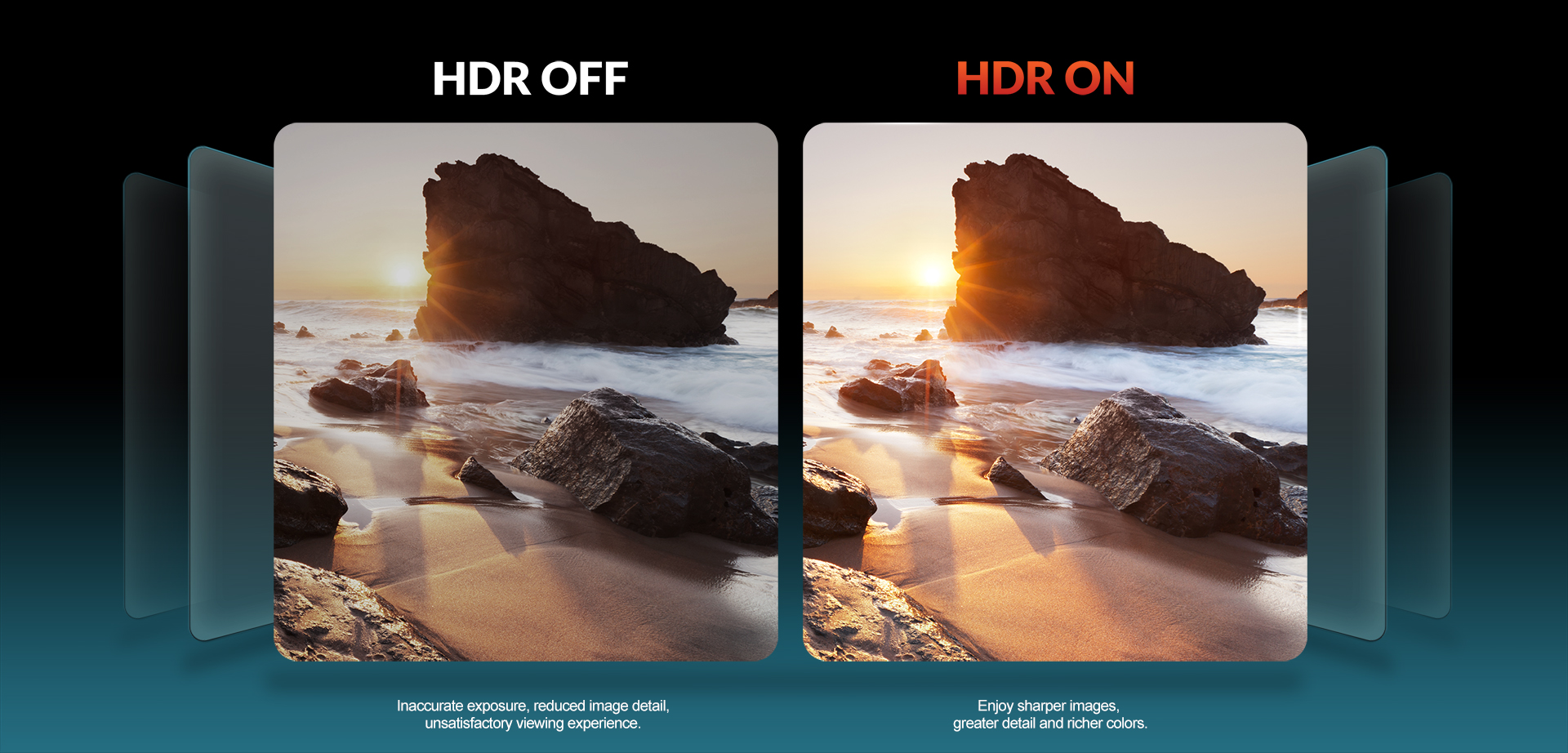

- HDR ST 2084 (300/1000/10000 cd/m²) and HLG; 3D LUT (.cube); 8 default camera logs plus 6 user LUTs

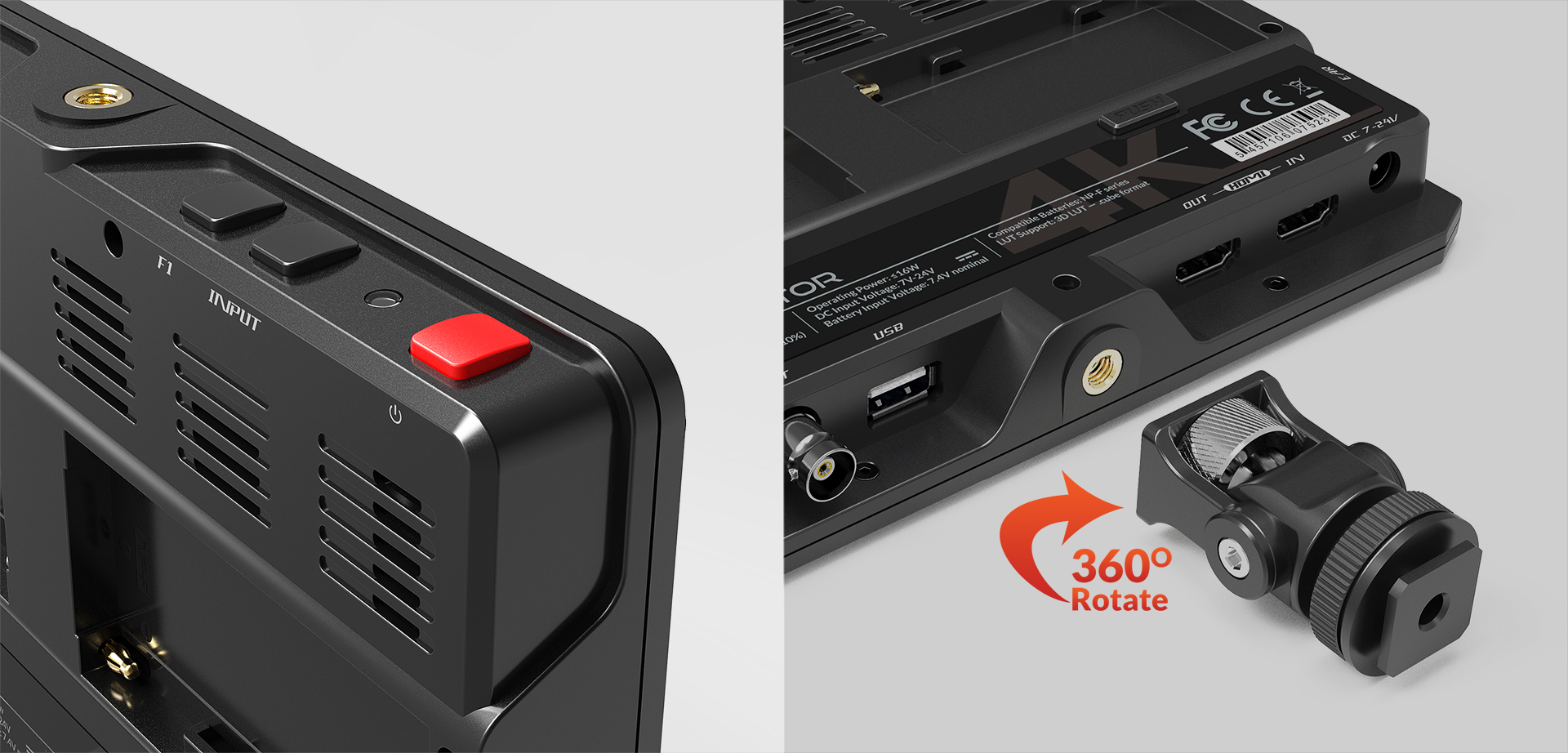

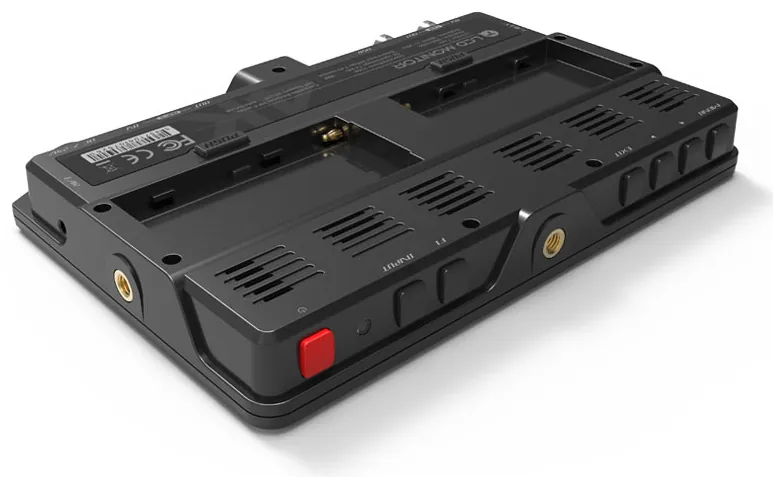

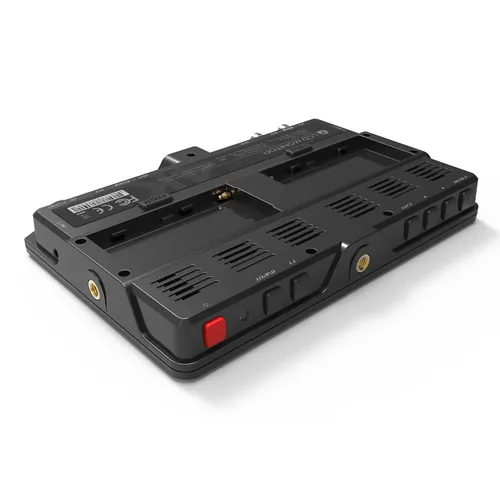

- F1 and F2 user-definable function buttons; INPUT key switches HDMI and SDI sources

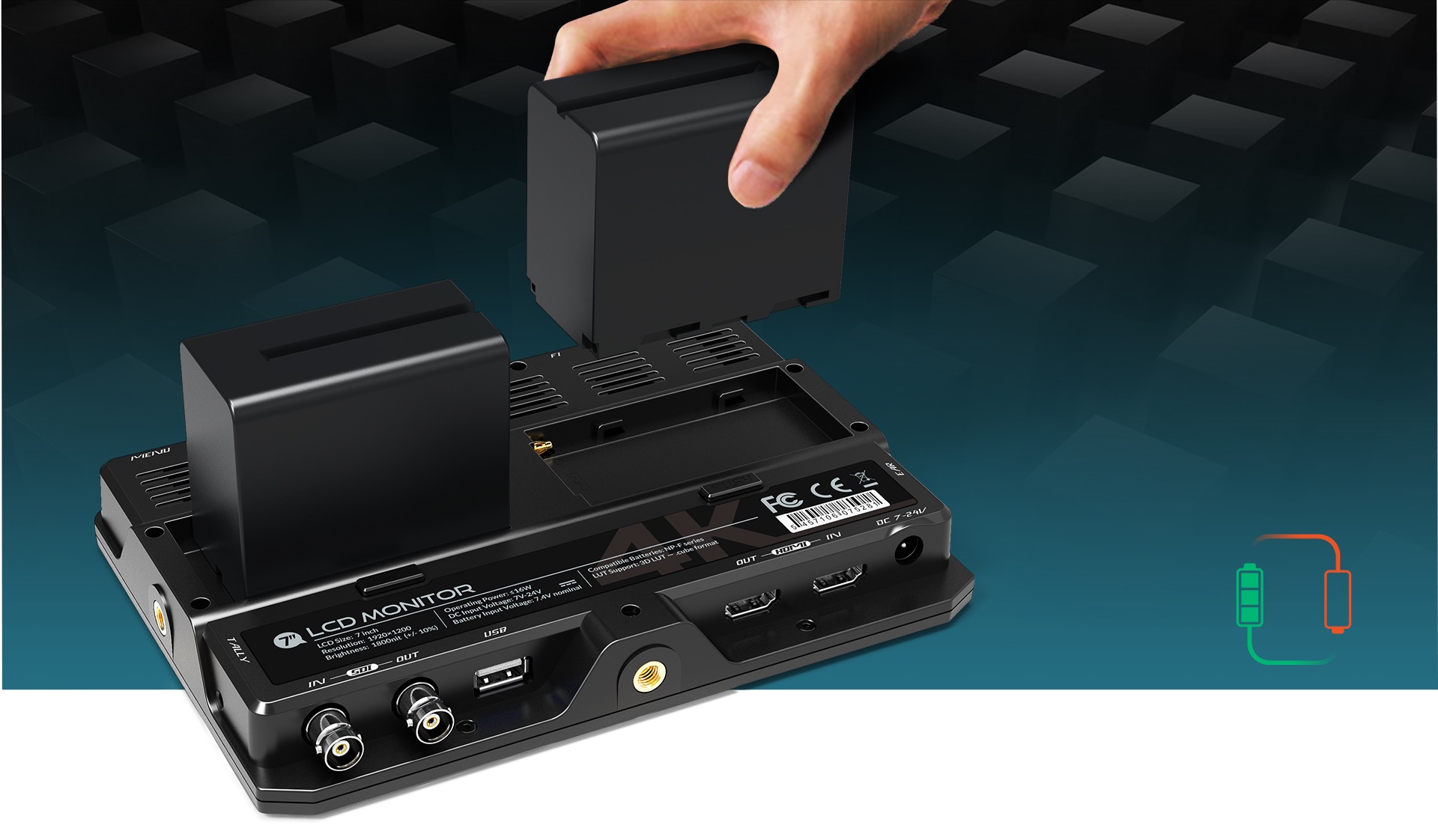

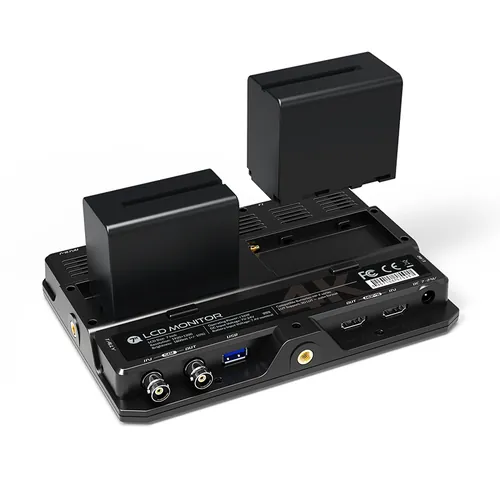

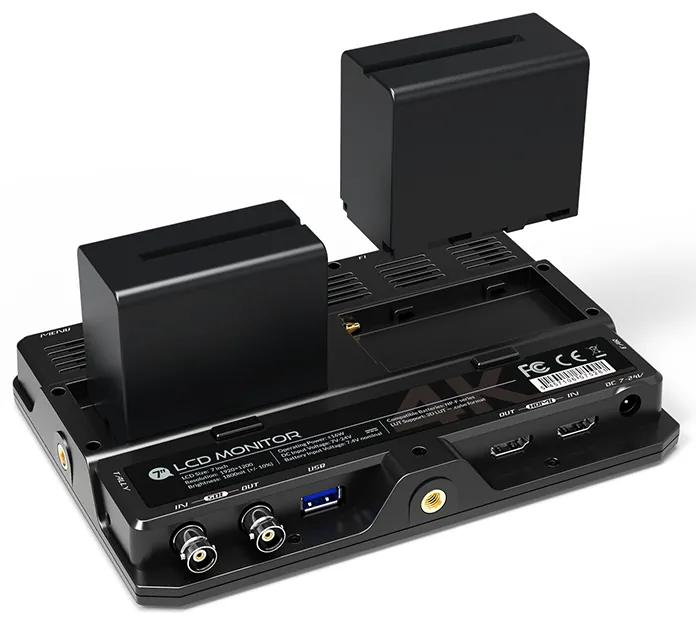

- Tally input (red/green); dual NP-F battery plate; 535 g; 225 x 155 x 23 mm; 4x 1/4 inch BSW mounting
Buy the H7S From an Authorised Reseller
Lilliput's authorised resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the H7S now, or if your country is not listed, browse all authorised resellers here.
- APODAX SL Opens in a new tab.
- AVNed B.V. Opens in a new tab.
- Camera World Limited Opens in a new tab.
- D&P Multimedia Products Ltd Opens in a new tab.
- DigiBroadcast Co. Ltd Opens in a new tab.
- Fotospecialisti d.o.o. Opens in a new tab.
- MISS NUMERIQUE Opens in a new tab.
- NEFAL service & consulting e. K. Opens in a new tab.
- RCB Logic Limited Opens in a new tab.
- Wendys Broadcast Services Ltd Opens in a new tab.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data
Display
- Screen size
- 7 inch
- Aspect ratio
- 16:10
- Native resolution
- 1920 x 1200
- Panel type
- LCD
- Brightness
- 1800 cd/m²
- Contrast
- 1200:1
- Viewing angle
- 160°/160° (H/V)
- HDR
- HLG, ST 2084 300, ST 2084 1000, ST 2084 10000
- Supported log formats
- SLog2, SLog3, User (1 to 6)
- LUT support
- 3D-LUT (.cube format, 17x17x17 BGR)
Connections
- Video inputs

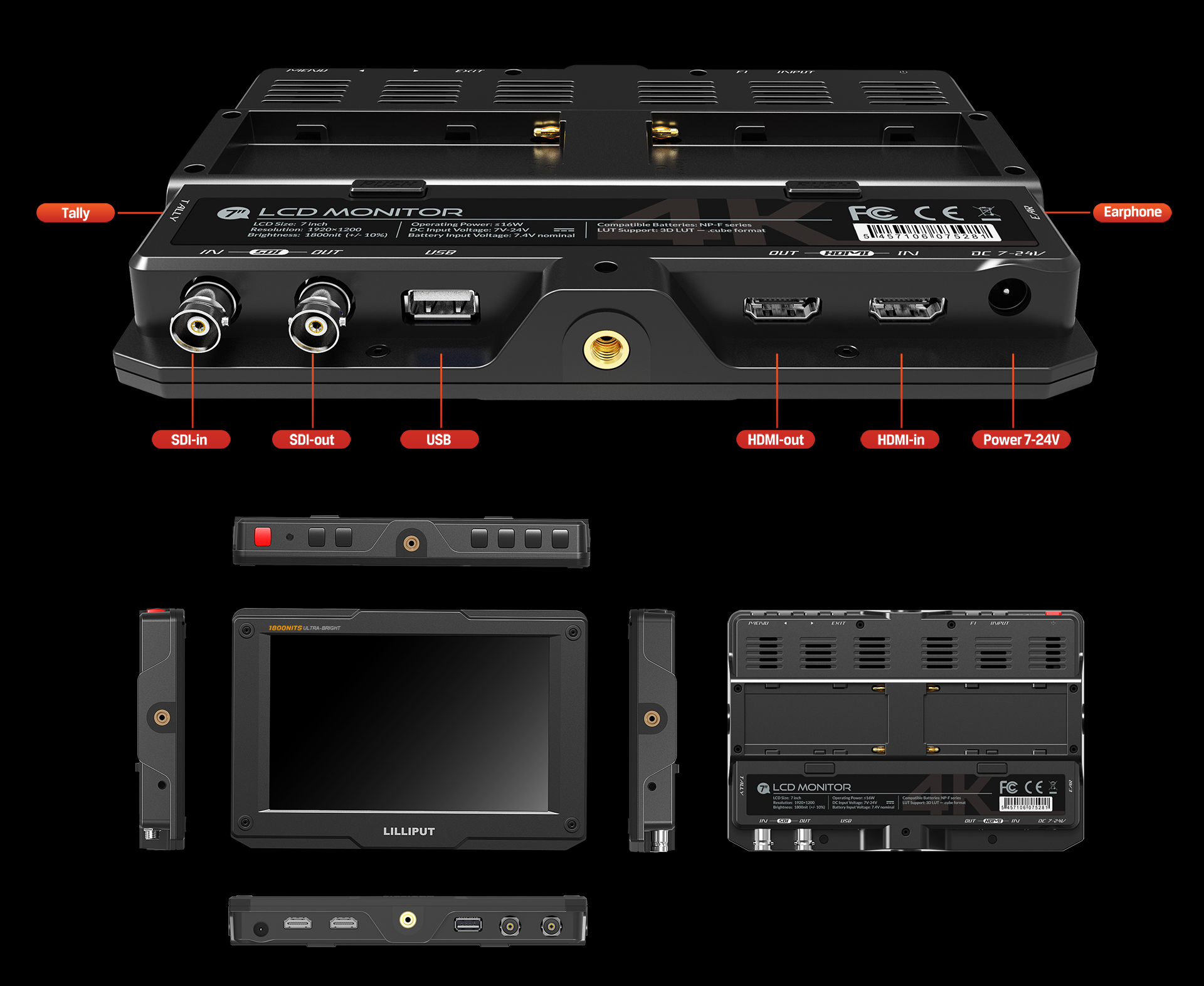

- 1x 3G-SDI, 1x HDMI 1.4
- Video outputs
- 1x 3G-SDI, 1x HDMI 1.4
- Audio
- 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker
Video Standards
- 3G-SDI
- 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
- HDMI 1.4
- 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60

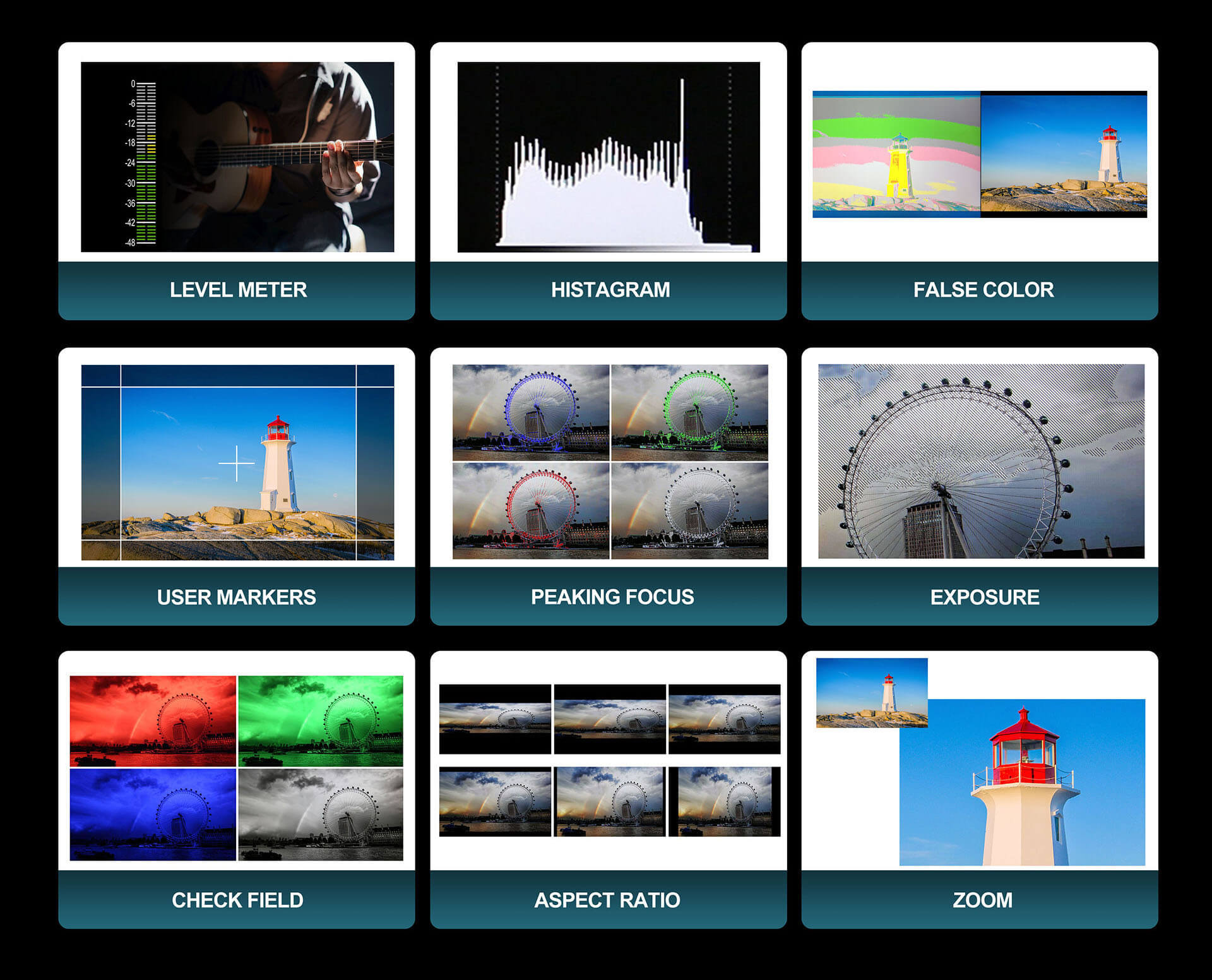

Scopes
- Video analysis
- Peaking, False colour, Exposure, Histogram, Check field
- Audio analysis
- Level meter
Operational Features
- Markers
- Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
- Function buttons
- F1 user-definable; INPUT key switches HDMI and SDI
- Colour temperature
- 6500K, 7500K, 9300K, User
- Gamma
- 1.8 to 2.6
- Peaking
- Red, Green, Blue, White, Black
- Tally
- Red, Green
- Time code
- LTC, VITC
- Display scan
- Fullscan, Overscan, Underscan
- Zoom
- 1.5x, 2x, 3x, 4x
- Freeze
- On/Off
- DSLR presets
- 5D2, 5D3
- Image mirroring
- Vertical flip, Horizontal flip
Power
- Input voltage
- DC 7 to 24V
- Power consumption
- ≤15 W
- Compatible batteries
- Sony NP-F series (F970)
- Input voltage (battery)
- 7.2V nominal
Environmental
- Operating temperature
- 0°C to 50°C
- Storage temperature
- -10°C to 60°C
Mechanical
- Dimensions
- 225 x 155 x 23 mm
- Weight
- 535 g
Mounting

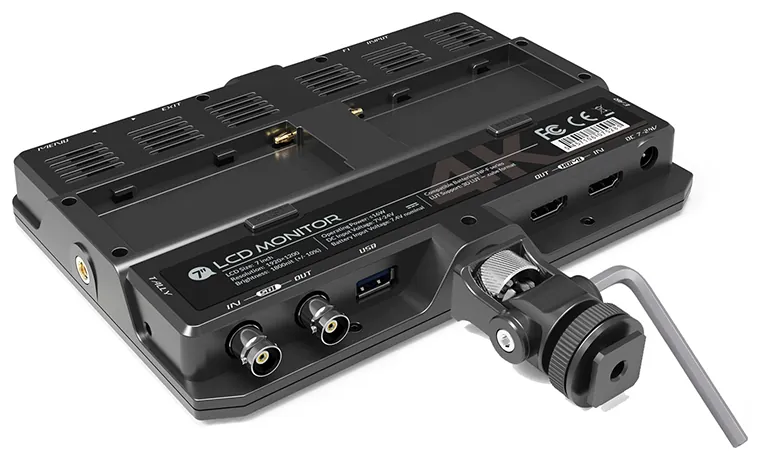

- Shoe mount
- 4x 1/4 inch BSW
Accessories
Included
- HDMI A/C cable
- Tally control line
- Mini shoe mount
- USB drive disk
- Carry-on bag
- User manual
Optional
- 12V 2A DC power adapter
Product Downloads
Similar Products
Compare key technical data across similar products.
| Technical Data | H7S | HT7S | FS7 | A7S | Q7-12G |
|---|---|---|---|---|---|
| Display | |||||
| Screen size | 7 inch | 7 inch | 7 inch | 7 inch | 7 inch |
| Native resolution | 1920 x 1200 | 1920 x 1200 | 1920 x 1200 | 1920 x 1200 | 1920 x 1200 |
| Touch screen | — | Capacitive touch | — | — | — |
| Aspect ratio | 16:10 | 16:10 | 16:10 | 16:10 | 16:10 |
| Brightness | 1800 cd/m² | 2000 cd/m² | 500 cd/m² | 500 cd/m² | 2000 cd/m² |
| Colour space | — | 100% BT.709 | ITU-R BT.709 | ITU-R BT.709 | — |
| Contrast | 1200:1 | 1200:1 | 1000:1 | 1000:1 | 1200:1 |
| HDR | HLG, ST 2084 300, ST 2084 1000, ST 2084 10000 | HLG, ST 2084 300, ST 2084 1000, ST 2084 10000 | — | — | ST 2084 300/1000/10000 cd/m², HLG |
| LUT support | 3D-LUT (.cube format, 17x17x17 BGR) | 3D-LUT (.cube format, 17x17x17 or 33x33x33 BGR) | — | — | 3D-LUT (.cube format) |
| Panel type | LCD | LCD | IPS | IPS | LCD |
| Supported log formats | SLog2, SLog3, User (1 to 6) | SLog2, SLog3, ArriLog, CLog, VLog, JLog, NLog, User (1 to 6) | — | — | SLog2/SLog3, CLog, NLog, ArriLog, JLog or User |
| Viewing angle | 160°/160° (H/V) | 160°/160° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) |
| Mechanical | |||||
| Dimensions | 225 x 155 x 23 mm | 186 x 128 x 29 mm | 182 x 124 x 22 mm | 182.1 x 124 x 20.5 mm | 186 x 128 x 32.5 mm |
| Weight | 535 g | 520 g | 405 g | 320 g | 785 g |
| Connections | |||||
| Video inputs | 1x 3G-SDI, 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 2.0 | 1x 3G-SDI, 1x HDMI 1.4 | 1x HDMI 1.4 | 2x 12G-SDI, 1x HDMI 2.0, 1x Tally |
| Video outputs | 1x 3G-SDI, 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) | 1x 3G-SDI, 1x HDMI 1.4 | 1x HDMI 1.4 | 2x 12G-SDI, 1x HDMI 2.0 (4K 60Hz) |
| Audio | 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker | 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit), HDMI 8ch 24-bit | 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker | HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker |
| Video Standards | |||||
| 12G-SDI | — | — | — | — | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 |
| 3G-SDI | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | — |
| HDMI 1.4 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — |
| HDMI 2.0 | — | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | — | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 |
| Power | |||||
| Power consumption | ≤15 W | ≤16 W (15V) | ≤12 W | ≤12 W | ≤20 W (12V) |
| Compatible batteries | Sony NP-F series (F970) | Sony NP-F series | Sony NP-F (F970), Canon LP-E6 | Sony NP-F (F970), Canon LP-E6 | Sony NP-F (F970) via VESA 75 plate |
| Input voltage | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V |
| Input voltage (battery) | 7.2V nominal | — | 7.2V nominal | 7.2V nominal | — |
| Environmental | |||||
| Operating temperature | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C |
| Storage temperature | -10°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C |
| Operational Features | |||||
| Anamorphic de-squeeze | — | 1.33X, 1.5X, 1.8X, 2X, 2X MAG | — | — | — |
| Camera control | — | LANC (Sony S-Lanc compatible) | — | — | — |
| Colour temperature | 6500K, 7500K, 9300K, User | 3200K, 5500K, 6500K, 7500K, 9300K, User | — | — | — |
| Comparison | — | Gamma/HDR, Colour space, Camera LUT | — | — | — |
| DSLR presets | 5D2, 5D3 | — | — | — | — |
| Display scan | Fullscan, Overscan, Underscan | Aspect, Pixel to pixel, Zoom | — | — | — |
| Freeze | On/Off | On/Off | — | — | — |
| Function buttons | F1 user-definable; INPUT key switches HDMI and SDI | FN user-definable | User-definable (peaking, level meter, centre marker, aspect marker, false colour, exposure, histogram, etc.) | User-definable (peaking, level meter, centre marker, aspect marker, false colour, exposure, histogram, etc.) | User-definable (default: Peaking) |
| Gamma | 1.8 to 2.6 | 1.8 to 2.8 | — | — | — |
| H/V delay | — | Horizontal, Vertical, H/V | — | — | — |
| Image mirroring | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | — | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip |
| Markers | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.33X, 1.5X, 1.8X, 2X, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.33X, 1.3X, 1.5X, 2.0X, 2.0X MAG, Grid; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off |
| Menu control | — | Capacitive touch menu; centre swipe menu; left/right backlight and volume shortcuts | — | — | — |
| Overscan | — | On/Off | — | — | — |
| Peaking | Red, Green, Blue, White, Black | Red, Green, Blue, White | — | — | — |
| Tally | Red, Green | — | — | — | — |
| Time code | LTC, VITC | LTC, VITC | — | — | — |
| Touch gestures | — | Centre swipe: menu; left/right swipe: backlight/volume; two-finger zoom; shortcut menu swipe | — | — | — |
| View modes | — | — | — | — | Picture-in-Picture |
| Zoom | 1.5x, 2x, 3x, 4x | — | — | — | — |
| Mounting | |||||
| Gimbal bracket | — | — | — | — | Included |
| Shoe mount | 4x 1/4 inch BSW | 3x 1/4 inch BSW | 3x 1/4 inch BSW | 3x 1/4 inch BSW | 3x 1/4 inch BSW |
| VESA mount | — | — | — | — | 75 x 75 mm (battery plate included) |
| Accessories | |||||
| Included | HDMI A/C cable, Tally control line, Mini shoe mount, USB drive disk, Carry-on bag, User manual | 0.8 m HDMI A-D cable, LANC cable, Mini shoe mount, USB drive disk | 12V DC adapter, Sun shade, HDMI A/C cable, Shoe mount, NP-F series battery plate, User manual | Folding sun shade, Silicone rubber case, HDMI A/C cable, Battery plate (F970), Hot shoe mount, User manual | 12V 2A DC power adapter, Carry case, Gimbal bracket, VESA 75 mm F970 battery plate, Tally connector, User manual |
| Optional | 12V 2A DC power adapter | 12V 2A DC power adapter, Battery plate adapter, Wireless video transmission, Carry case | VESA mount plate, V-Lock / Anton Bauer battery mount | — | — |
| Scopes | |||||
| Audio analysis | Level meter | Level meter | Level meter | Level meter | Level meter |
| Video analysis | Peaking, False colour, Exposure, Histogram, Check field | Waveform (Multi, Y, YCbCr, RGB), Vector, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Histogram, Check field | Peaking, False colour, Exposure, Histogram | Peaking, False colour, Exposure, Histogram | Waveform, Peaking, False colour, Exposure, Histogram |
