Key Features

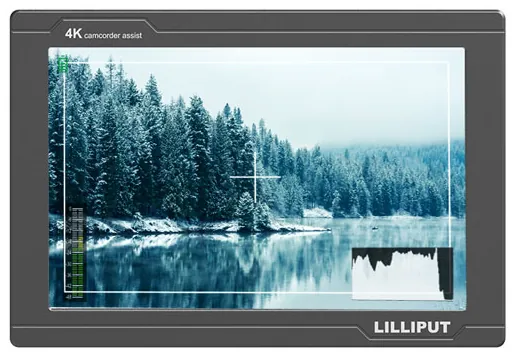

- 7 inch 1920 x 1200 IPS display, 500 cd/m², 1000:1 contrast, 16:10 aspect ratio
- 1x 3G-SDI and 1x HDMI 1.4 input and loop output, 4K passthrough (2160p 24/25/30)
- 405 g; 182 x 124 x 22 mm; compact design
- Shoe mount: 1/4 inch British Standard Whitworth (BSW) thread
- NP-F (F970) and LP-E6 battery compatible; F1/F2 user-definable (peaking, level meter, false colour, etc.)
- Centre marker, aspect marker, safety marker, peaking, false colour, exposure, histogram, level meter; optional VESA and V-Lock/Anton Bauer mounts
Buy the FS7 From an Authorised Reseller
Lilliput's authorised resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the FS7 now, or if your country is not listed, browse all authorised resellers here.
- APODAX SL Opens in a new tab.
- AVNed B.V. Opens in a new tab.
- Camera World Limited Opens in a new tab.
- DigiBroadcast Co. Ltd Opens in a new tab.
- E-MOTION CREATIONS di Pierfrancesco Armati Opens in a new tab.
- Eastwood (Sound and Vision) Ltd Opens in a new tab.
- Fotospecialisti d.o.o. Opens in a new tab.
- HDEWCameras Opens in a new tab.
- MISS NUMERIQUE Opens in a new tab.
- PBS Opens in a new tab.
- Proactive UK Ltd Opens in a new tab.
- Production Gear Ltd Opens in a new tab.
- RCB Logic Limited Opens in a new tab.
- Swiss Event Corporation AG Opens in a new tab.
- Voosestore AB Opens in a new tab.
- Wendys Broadcast Services Ltd Opens in a new tab.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data
Display
- Screen size
- 7 inch
- Aspect ratio
- 16:10
- Native resolution
- 1920 x 1200
- Panel type
- IPS
- Brightness
- 500 cd/m²
- Contrast
- 1000:1
- Viewing angle
- 170°/170° (H/V)
- Colour space
- ITU-R BT.709

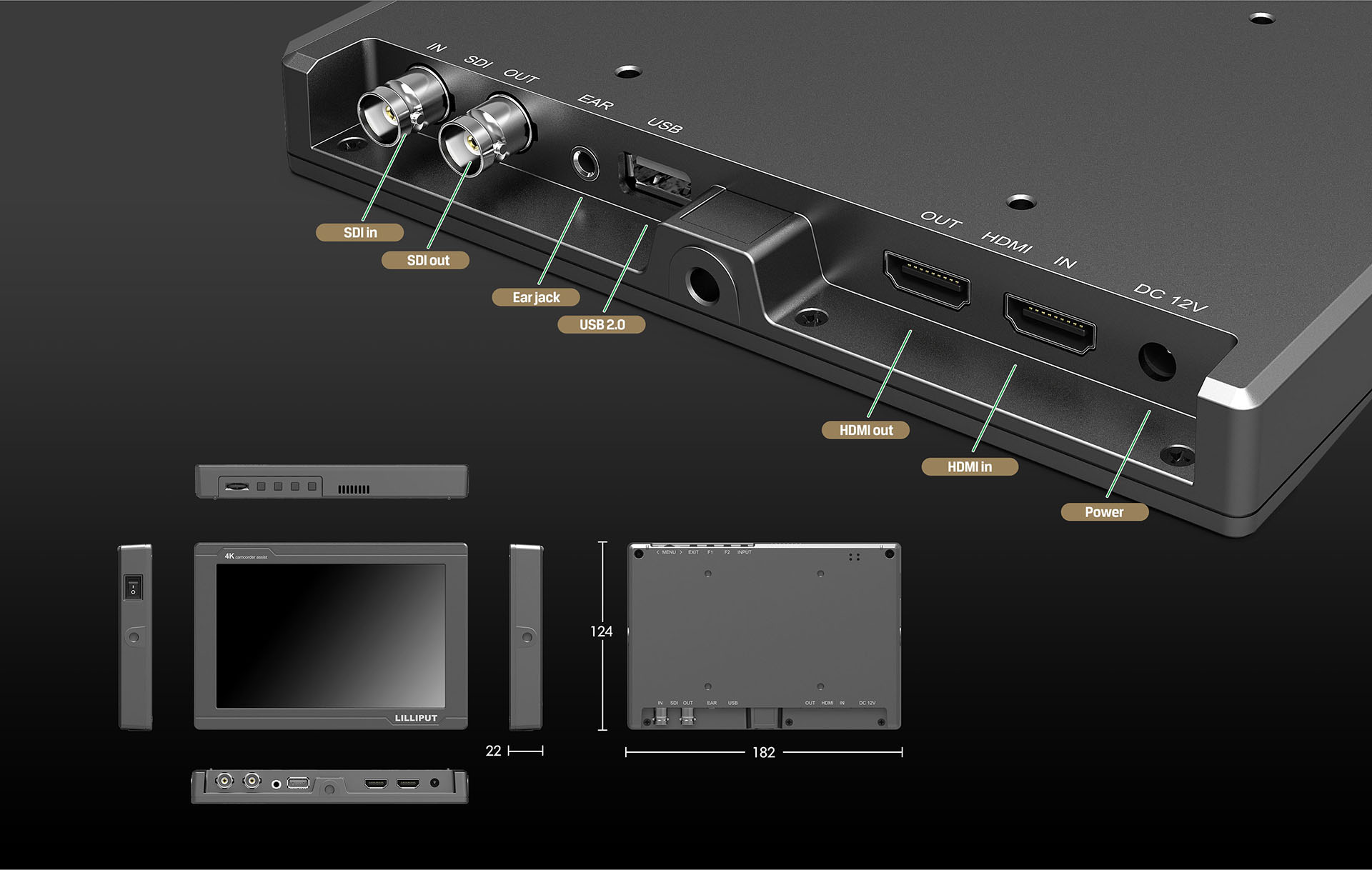

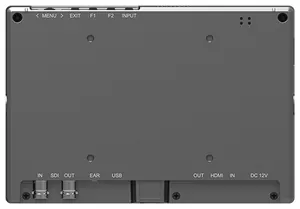

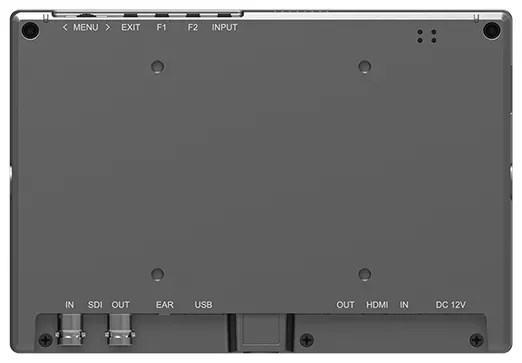

Connections

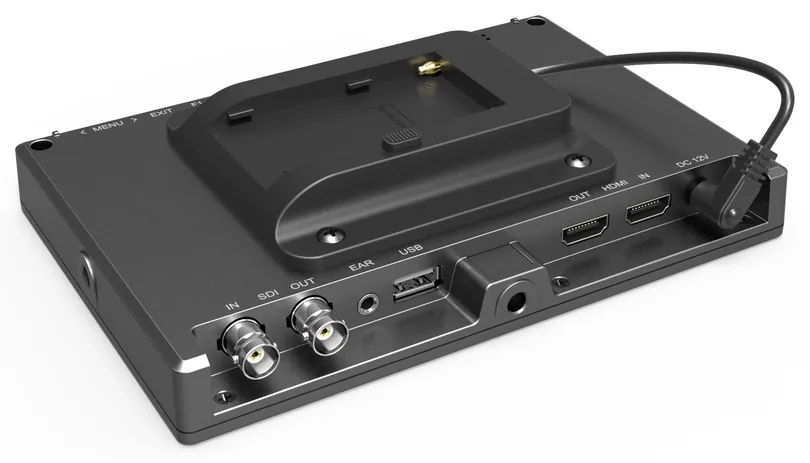

- Video inputs
- 1x 3G-SDI, 1x HDMI 1.4
- Video outputs
- 1x 3G-SDI, 1x HDMI 1.4
- Audio
- 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker
Video Standards
- 3G-SDI
- 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
- HDMI 1.4
- 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
Scopes
- Video analysis
- Peaking, False colour, Exposure, Histogram
- Audio analysis
- Level meter
Operational Features
- Function buttons
- User-definable (peaking, level meter, centre marker, aspect marker, false colour, exposure, histogram, etc.)
- Markers
- Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
Power
- Input voltage
- DC 7 to 24V
- Power consumption
- ≤12 W

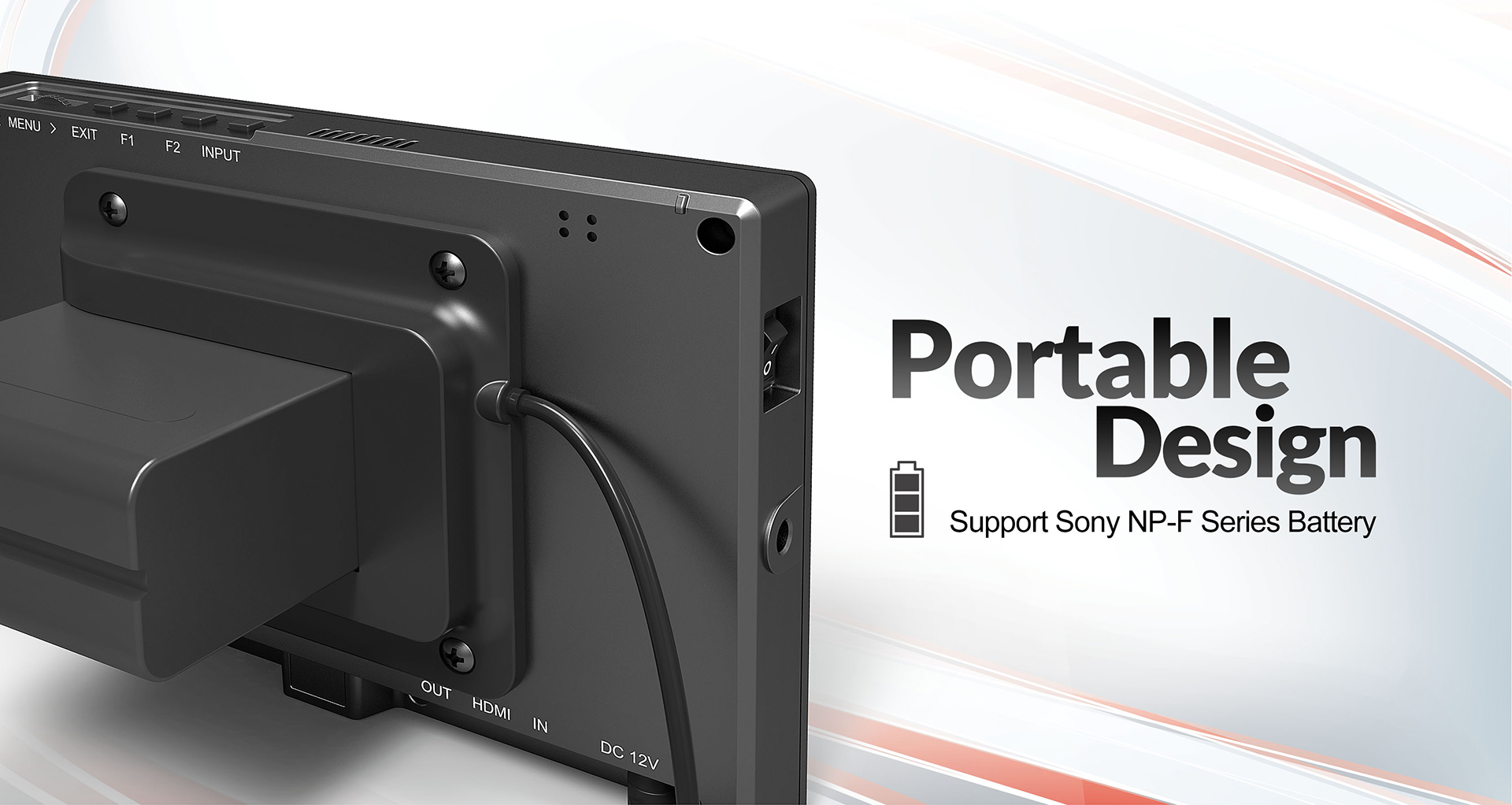

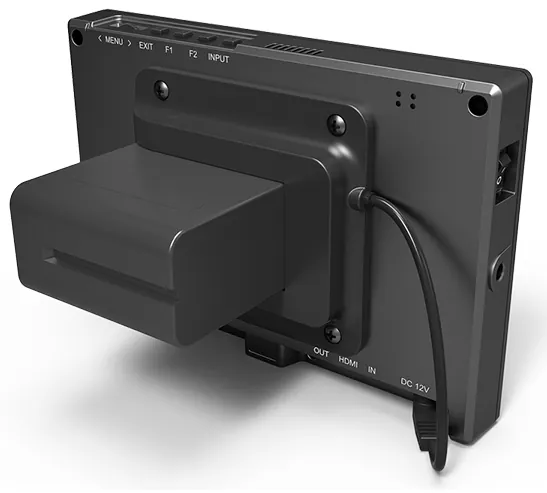

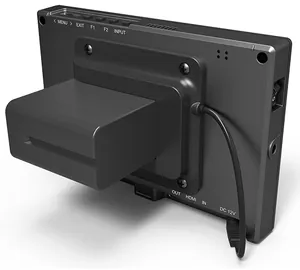

- Compatible batteries
- Sony NP-F (F970), Canon LP-E6
- Input voltage (battery)
- 7.2V nominal
Environmental
- Operating temperature
- 0°C to 50°C
- Storage temperature
- -20°C to 60°C
Mechanical
- Dimensions
- 182 x 124 x 22 mm
- Weight
- 405 g
Mounting
- Shoe mount
- 3x 1/4 inch BSW
Accessories
Included
- 12V DC adapter

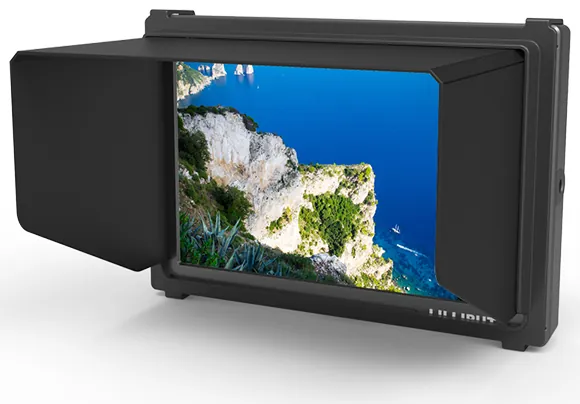

- Sun shade
- HDMI A/C cable
- Shoe mount
- NP-F series battery plate
- User manual
Optional
- VESA mount plate
- V-Lock / Anton Bauer battery mount
Product Downloads
Similar Products
Compare key technical data across similar products.
| Technical Data | FS7 | H7S | A7S | Q7-12G | HT7S |
|---|---|---|---|---|---|
| Display | |||||
| Screen size | 7 inch | 7 inch | 7 inch | 7 inch | 7 inch |
| Native resolution | 1920 x 1200 | 1920 x 1200 | 1920 x 1200 | 1920 x 1200 | 1920 x 1200 |
| Touch screen | — | — | — | — | Capacitive touch |
| Aspect ratio | 16:10 | 16:10 | 16:10 | 16:10 | 16:10 |
| Brightness | 500 cd/m² | 1800 cd/m² | 500 cd/m² | 2000 cd/m² | 2000 cd/m² |
| Colour space | ITU-R BT.709 | — | ITU-R BT.709 | — | 100% BT.709 |
| Contrast | 1000:1 | 1200:1 | 1000:1 | 1200:1 | 1200:1 |
| HDR | — | HLG, ST 2084 300, ST 2084 1000, ST 2084 10000 | — | ST 2084 300/1000/10000 cd/m², HLG | HLG, ST 2084 300, ST 2084 1000, ST 2084 10000 |
| LUT support | — | 3D-LUT (.cube format, 17x17x17 BGR) | — | 3D-LUT (.cube format) | 3D-LUT (.cube format, 17x17x17 or 33x33x33 BGR) |
| Panel type | IPS | LCD | IPS | LCD | LCD |
| Supported log formats | — | SLog2, SLog3, User (1 to 6) | — | SLog2/SLog3, CLog, NLog, ArriLog, JLog or User | SLog2, SLog3, ArriLog, CLog, VLog, JLog, NLog, User (1 to 6) |
| Viewing angle | 170°/170° (H/V) | 160°/160° (H/V) | 170°/170° (H/V) | 170°/170° (H/V) | 160°/160° (H/V) |
| Mechanical | |||||
| Dimensions | 182 x 124 x 22 mm | 225 x 155 x 23 mm | 182.1 x 124 x 20.5 mm | 186 x 128 x 32.5 mm | 186 x 128 x 29 mm |
| Weight | 405 g | 535 g | 320 g | 785 g | 520 g |
| Connections | |||||
| Video inputs | 1x 3G-SDI, 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 1.4 | 1x HDMI 1.4 | 2x 12G-SDI, 1x HDMI 2.0, 1x Tally | 1x 3G-SDI, 1x HDMI 2.0 |
| Video outputs | 1x 3G-SDI, 1x HDMI 1.4 | 1x 3G-SDI, 1x HDMI 1.4 | 1x HDMI 1.4 | 2x 12G-SDI, 1x HDMI 2.0 (4K 60Hz) | 1x 3G-SDI, 1x HDMI 2.0 (4K 60Hz) |
| Audio | 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker | 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker | HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit), 1x Built-in speaker | 3G-SDI 16ch 48kHz 24-bit, HDMI 8ch 24-bit, 3.5 mm ear jack, 1x Built-in speaker | 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit), HDMI 8ch 24-bit |
| Video Standards | |||||
| 12G-SDI | — | — | — | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50 | — |
| 3G-SDI | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| HDMI 1.4 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | — |
| HDMI 2.0 | — | — | — | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| Power | |||||
| Power consumption | ≤12 W | ≤15 W | ≤12 W | ≤20 W (12V) | ≤16 W (15V) |
| Compatible batteries | Sony NP-F (F970), Canon LP-E6 | Sony NP-F series (F970) | Sony NP-F (F970), Canon LP-E6 | Sony NP-F (F970) via VESA 75 plate | Sony NP-F series |
| Input voltage | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V |
| Input voltage (battery) | 7.2V nominal | 7.2V nominal | 7.2V nominal | — | — |
| Environmental | |||||
| Operating temperature | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C |
| Storage temperature | -20°C to 60°C | -10°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C |
| Operational Features | |||||
| Anamorphic de-squeeze | — | — | — | — | 1.33X, 1.5X, 1.8X, 2X, 2X MAG |
| Camera control | — | — | — | — | LANC (Sony S-Lanc compatible) |
| Colour temperature | — | 6500K, 7500K, 9300K, User | — | — | 3200K, 5500K, 6500K, 7500K, 9300K, User |
| Comparison | — | — | — | — | Gamma/HDR, Colour space, Camera LUT |
| DSLR presets | — | 5D2, 5D3 | — | — | — |
| Display scan | — | Fullscan, Overscan, Underscan | — | — | Aspect, Pixel to pixel, Zoom |
| Freeze | — | On/Off | — | — | On/Off |
| Function buttons | User-definable (peaking, level meter, centre marker, aspect marker, false colour, exposure, histogram, etc.) | F1 user-definable; INPUT key switches HDMI and SDI | User-definable (peaking, level meter, centre marker, aspect marker, false colour, exposure, histogram, etc.) | User-definable (default: Peaking) | FN user-definable |
| Gamma | — | 1.8 to 2.6 | — | — | 1.8 to 2.8 |
| H/V delay | — | — | — | — | Horizontal, Vertical, H/V |
| Image mirroring | — | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip | Vertical flip, Horizontal flip |
| Markers | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.3X, 2.0X, 2.0X MAG, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 3:2, 1.33X, 1.3X, 1.5X, 2.0X, 2.0X MAG, Grid; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | Aspect markers: 16:9, 1.85:1, 2.35:1, 2.39:1, 4:3, 3:2, 1.33X, 1.5X, 1.8X, 2X, Grid, User; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off |
| Menu control | — | — | — | — | Capacitive touch menu; centre swipe menu; left/right backlight and volume shortcuts |
| Overscan | — | — | — | — | On/Off |
| Peaking | — | Red, Green, Blue, White, Black | — | — | Red, Green, Blue, White |
| Tally | — | Red, Green | — | — | — |
| Time code | — | LTC, VITC | — | — | LTC, VITC |
| Touch gestures | — | — | — | — | Centre swipe: menu; left/right swipe: backlight/volume; two-finger zoom; shortcut menu swipe |
| View modes | — | — | — | Picture-in-Picture | — |
| Zoom | — | 1.5x, 2x, 3x, 4x | — | — | — |
| Mounting | |||||
| Gimbal bracket | — | — | — | Included | — |
| Shoe mount | 3x 1/4 inch BSW | 4x 1/4 inch BSW | 3x 1/4 inch BSW | 3x 1/4 inch BSW | 3x 1/4 inch BSW |
| VESA mount | — | — | — | 75 x 75 mm (battery plate included) | — |
| Scopes | |||||
| Audio analysis | Level meter | Level meter | Level meter | Level meter | Level meter |
| Video analysis | Peaking, False colour, Exposure, Histogram | Peaking, False colour, Exposure, Histogram, Check field | Peaking, False colour, Exposure, Histogram | Waveform, Peaking, False colour, Exposure, Histogram | Waveform (Multi, Y, YCbCr, RGB), Vector, Peaking, False colour (Default, Spectrum, ARRI, RED), Exposure, Histogram, Check field |
| Accessories | |||||
| Included | 12V DC adapter, Sun shade, HDMI A/C cable, Shoe mount, NP-F series battery plate, User manual | HDMI A/C cable, Tally control line, Mini shoe mount, USB drive disk, Carry-on bag, User manual | Folding sun shade, Silicone rubber case, HDMI A/C cable, Battery plate (F970), Hot shoe mount, User manual | 12V 2A DC power adapter, Carry case, Gimbal bracket, VESA 75 mm F970 battery plate, Tally connector, User manual | 0.8 m HDMI A-D cable, LANC cable, Mini shoe mount, USB drive disk |
| Optional | VESA mount plate, V-Lock / Anton Bauer battery mount | 12V 2A DC power adapter | — | — | 12V 2A DC power adapter, Battery plate adapter, Wireless video transmission, Carry case |
