Key Features

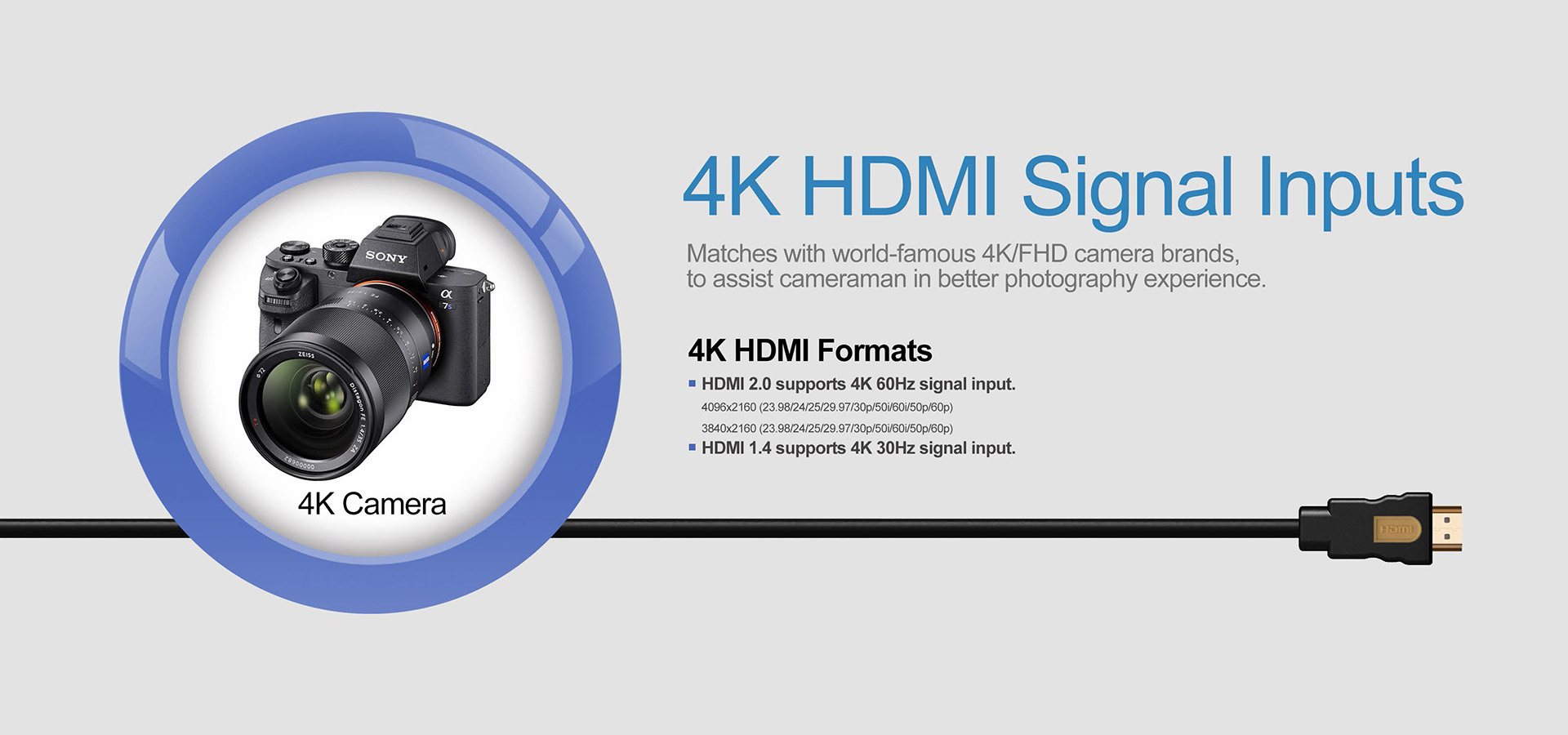

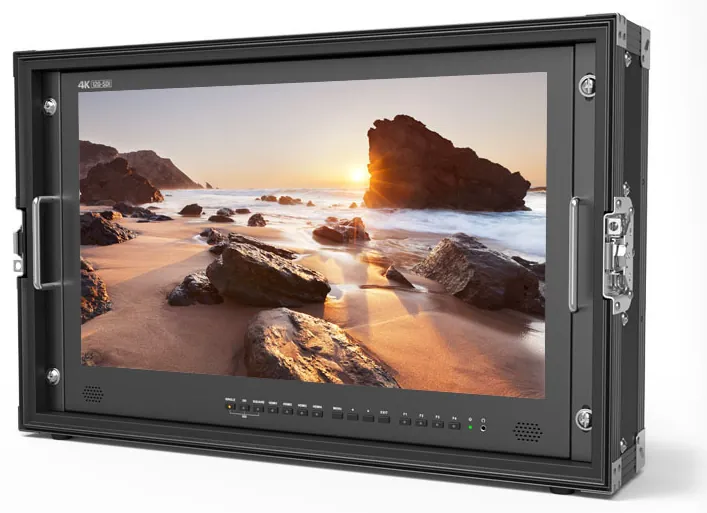

- 23.8 inch 4K display, 300 cd/m², 1000:1 contrast

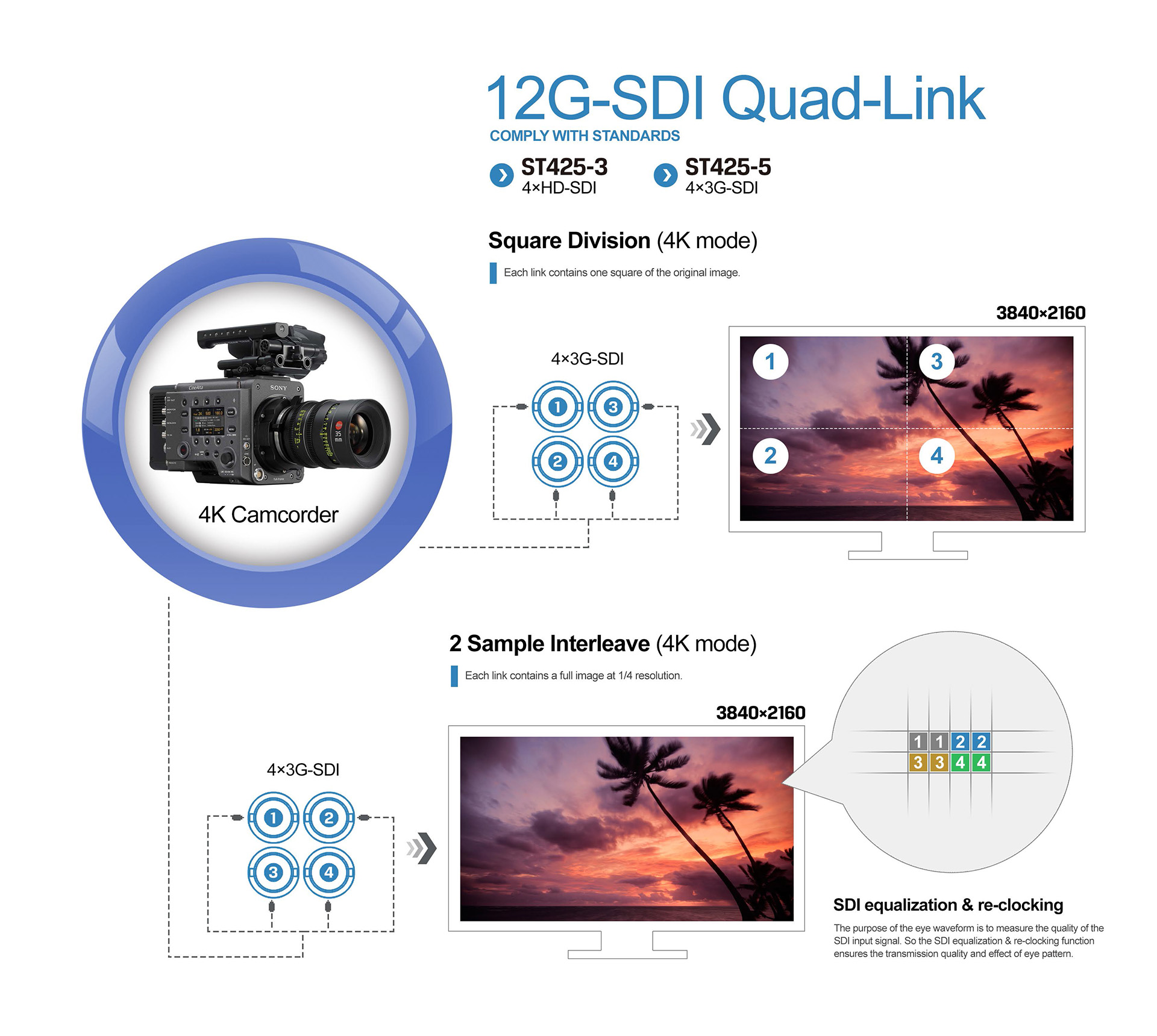

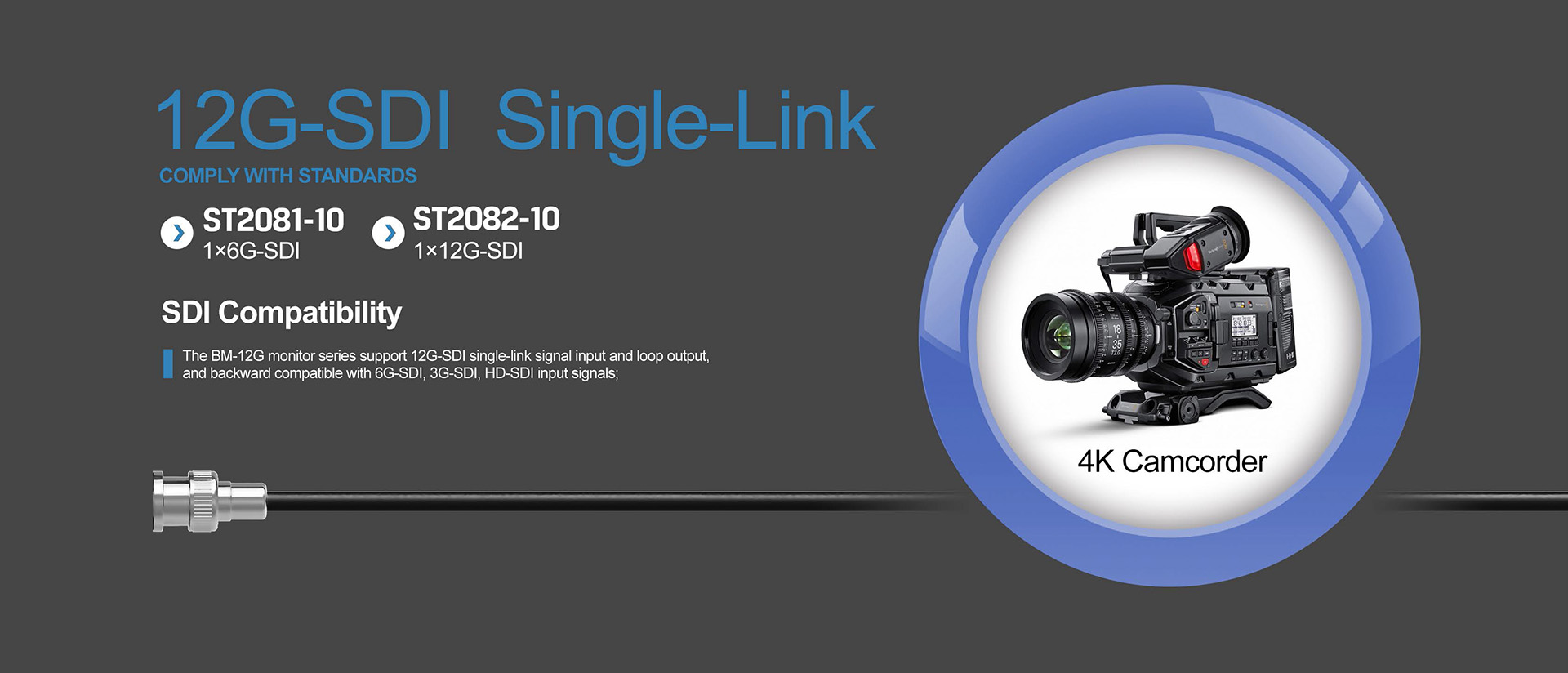

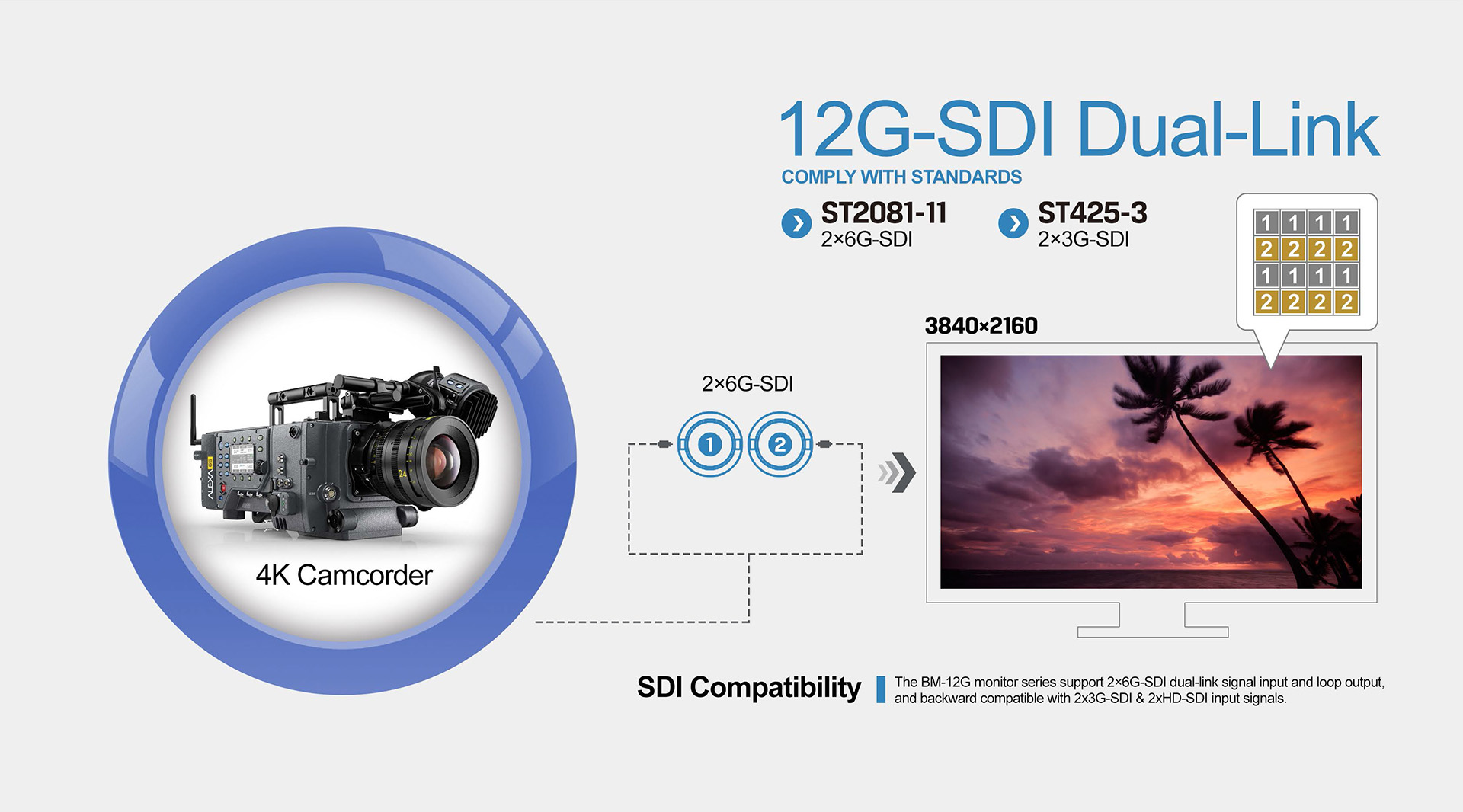

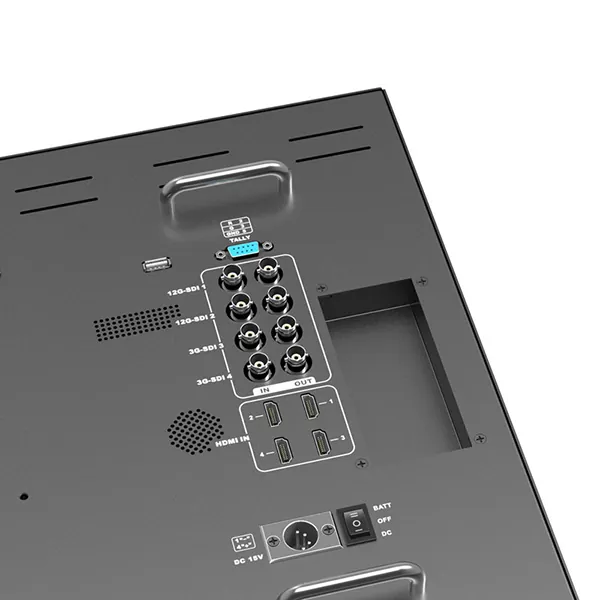

- 2x 12G-SDI, 2x 3G-SDI (4K single/dual/quad link)
- 1x HDMI 2.0, 3x HDMI 1.4, multi-input flexibility
- Video loop output: uncompressed true 10-bit or 8-bit 4:2:2
- Supplied with enclosed flight case and sun shade, ideal for transport between sets and venues
- V-Lock or Anton Bauer battery compatible
- TALLY connector; 12ch 3G-SDI audio, 2ch HDMI audio
Buy the BM230-12G From an Authorised Reseller
Lilliput's authorised resellers are carefully selected for their industry expertise and highest standards of customer service. Find direct links to buy the BM230-12G now, or if your country is not listed, browse all authorised resellers here.
- AVNed B.V. Opens in a new tab.
- DigiBroadcast Co. Ltd Opens in a new tab.
- E-MOTION CREATIONS di Pierfrancesco Armati Opens in a new tab.
- Eastwood (Sound and Vision) Ltd Opens in a new tab.
- Fotospecialisti d.o.o. Opens in a new tab.
- HDEWCameras Opens in a new tab.
- Más Que Vídeo Profesional, SA Opens in a new tab.
- Proactive UK Ltd Opens in a new tab.
- RCB Logic Limited Opens in a new tab.
All other authorised resellers in
No resellers match your country. View all authorised resellers or contact us.
Technical Data
Display
- Screen size
- 23.8 inch
- Aspect ratio
- 16:9
- Native resolution
- 3840 x 2160
- Panel type
- LED
- Brightness
- 300 cd/m²
- Contrast
- 1000:1
- Viewing angle
- 178°/178° (H/V)

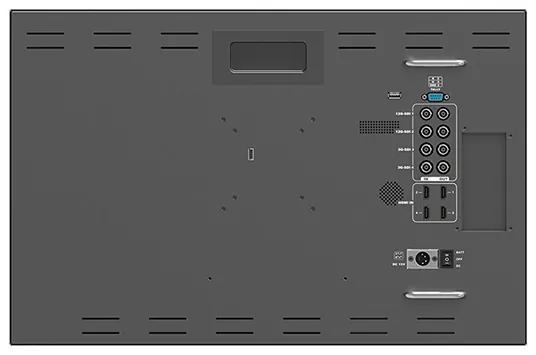

Connections
- Video inputs
- 2x 12G-SDI, 2x 3G-SDI (4K single/dual/quad link), 1x HDMI 2.0, 3x HDMI 1.4
- Video outputs
- 2x 12G-SDI, 2x 3G-SDI (uncompressed 10-bit or 8-bit 4:2:2)
- Audio
- 3G-SDI 12ch 48kHz 24-bit, HDMI 2ch 24-bit, 3.5 mm ear jack, 2x Built-in speakers
Video Standards
- 3G-SDI
- 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
- HDMI 1.4
- 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- HDMI 2.0
- 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
Operational Features
- View modes

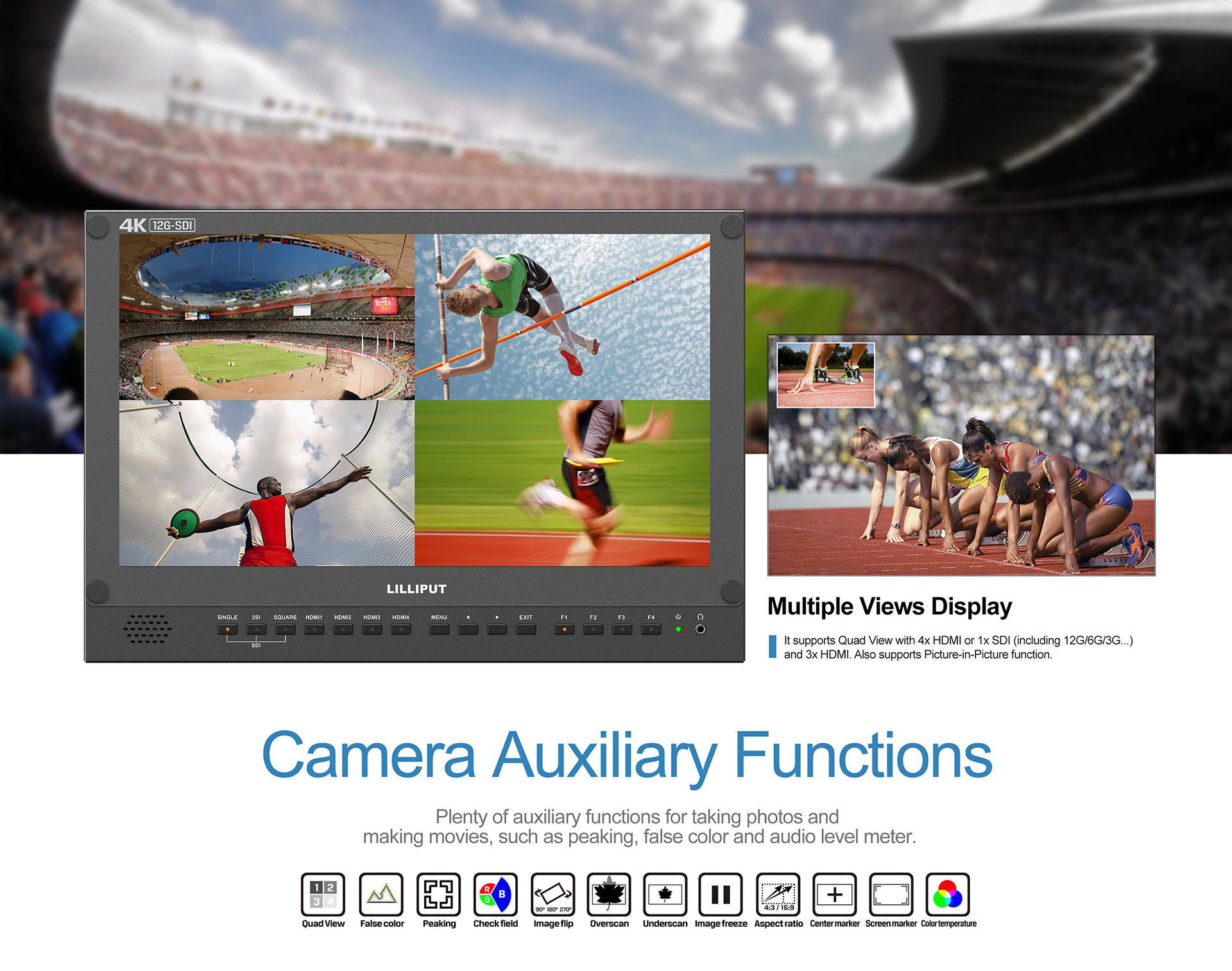

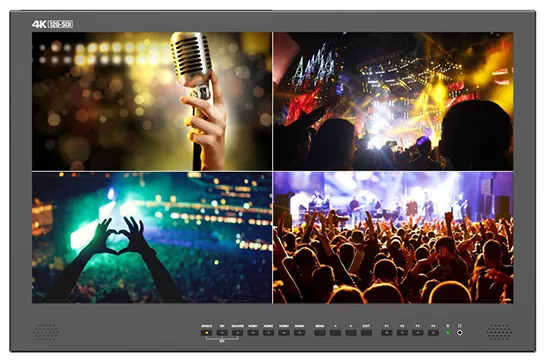

- Picture-by-Picture, Picture-in-Picture, Quad-View
- Markers
- Aspect markers: 16:9, 1.85:1, 2.35:1, 4:3, 17:9; Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off
Power
- Input voltage
- DC 12 to 24V
- Power consumption
- ≤61.5 W
- Compatible batteries
- V-Lock or Anton Bauer mount
- Input voltage (battery)
- 14.4V nominal
Environmental
- Operating temperature
- 0°C to 50°C
- Storage temperature
- -20°C to 60°C
Mechanical

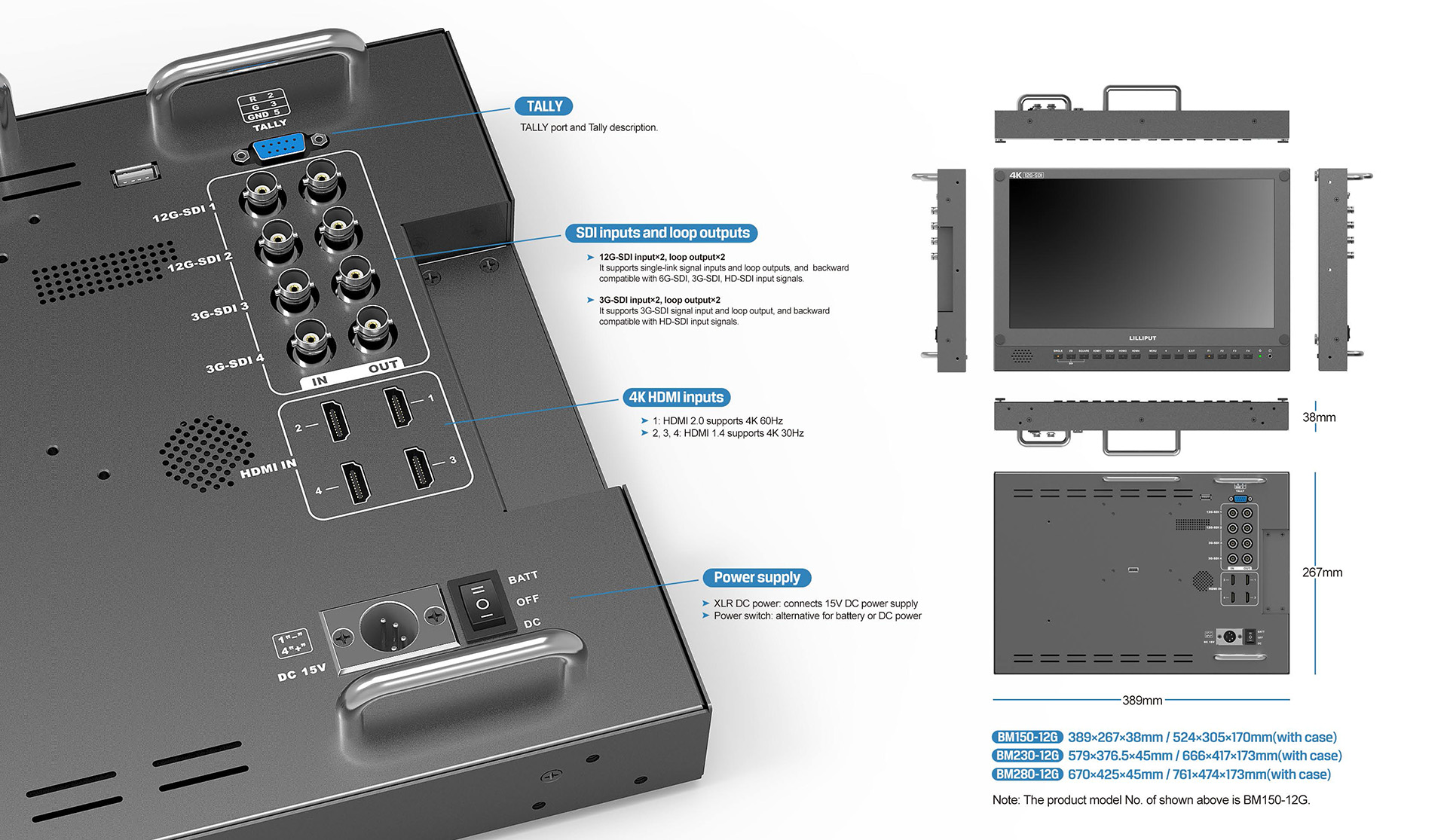

- Dimensions
