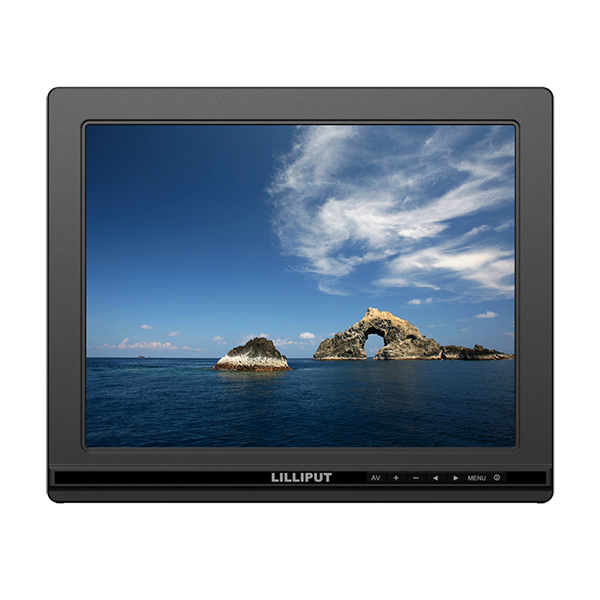

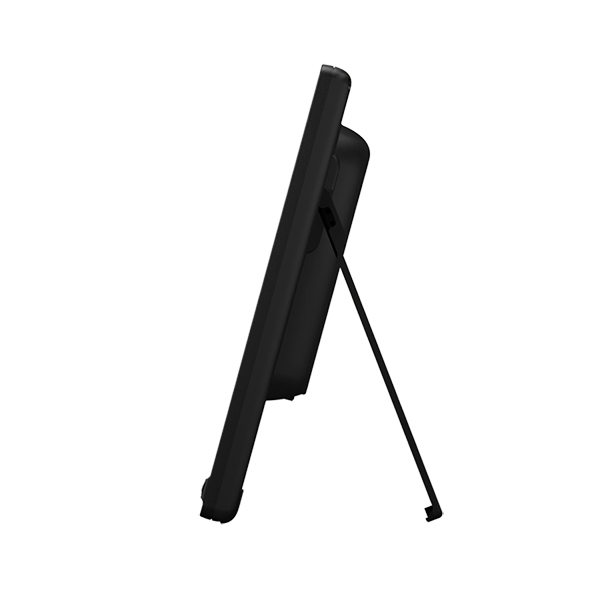

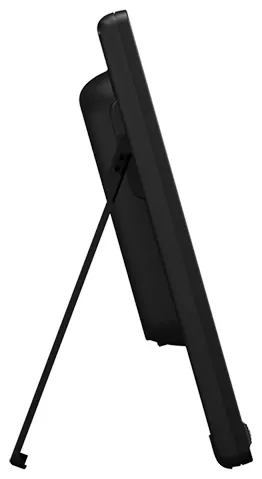

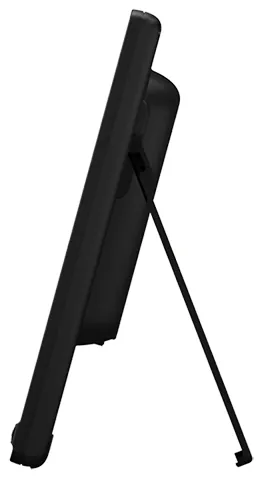

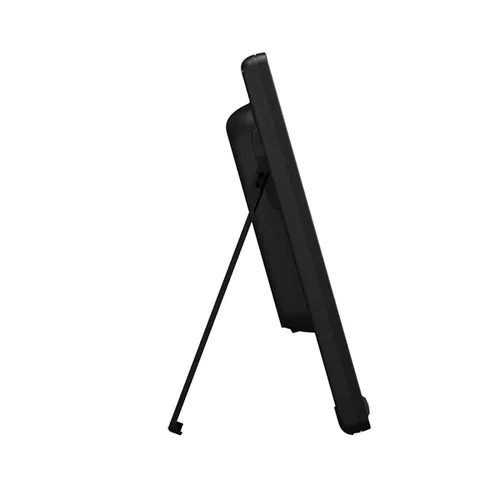

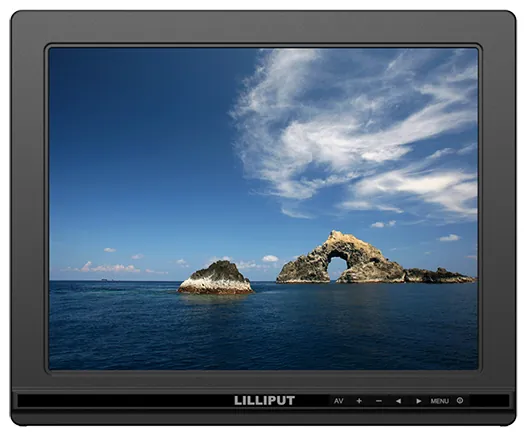

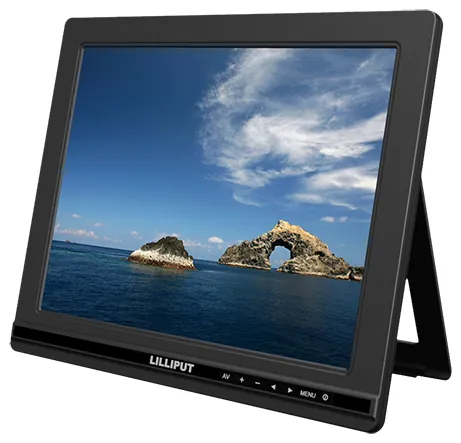

FA1000
9.7 inch industrial monitor. 1024 x 768, 420 cd/m². HDMI, VGA, 2x Composite. DC 7 to 24V, ≤10 W. Resistive touch optional. For kiosks, control panels, and industrial applications.
Key Features
- 9.7 inch 1024 x 768 LCD, 420 cd/m², 900:1 contrast, 4:3
- 1x HDMI, 1x VGA, 2x Composite, versatile inputs
- DC 7 to 24V, ≤10 W; -20°C to 60°C operating
- 234.4 x 192.5 x 29 mm; 625 g; VESA
Product Enquiry
Request a quote or ask a question about the FA1000. Our UK team will respond promptly.
Technical Data
Display
- Screen size
- 9.7 inch
- Aspect ratio
- 4:3
- Native resolution
- 1024 x 768
- Panel type
- LCD
- Brightness
- 420 cd/m²
- Contrast
- 900:1
- Viewing angle
- 160°/174° (H/V)
- Touch screen
- 5-wire resistive (optional)
Connections
- Video inputs
- 1x HDMI, 1x VGA, 2x Composite
- Audio
- 1x Built-in speaker, 3.5 mm ear jack
- Additional connections
- 1x Mini USB (for touch) (optional)
Video Standards
- HDMI
- 1080p 50/60, 1080i 50/60, 720p 50/60
- VGA
- 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
- Composite
- 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
Power
- Input voltage
- DC 7 to 24V
- Power consumption
- ≤10 W
Environmental
- Operating temperature
- -20°C to 60°C
- Storage temperature
- -30°C to 70°C
Mechanical
- Dimensions
- 234.4 x 192.5 x 29 mm
- Weight
- 625 g

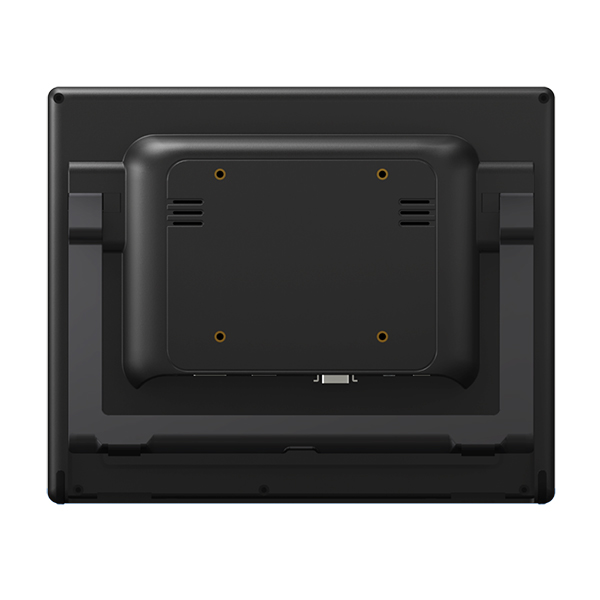

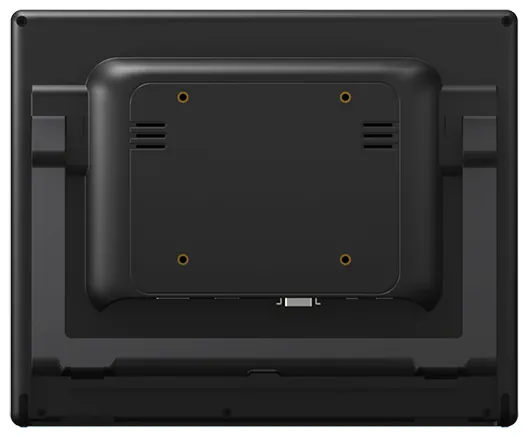

Mounting
- VESA mount
- 75 x 75 mm
Accessories
Included
- 12V DC Adapter
- Remote Control
- HDMI A-C Cable
- HDMI to DVI Cable
- SKS Cable to VGA & RCA
- CD Driver
- Manual
Optional
- VESA Folding Bracket
- VESA Rail Slot
Included (with Touch Screen)
- Mini USB Cable (Touch Function)
- Touch Pen
Similar Products
Compare key technical data across similar products.
| Technical Data | FA1000 | FA1014 | FA1016 | UM70 | UM80 | UM900 | UM1010 | TK1019 |
|---|---|---|---|---|---|---|---|---|
| Display | ||||||||
| Screen size | 9.7 inch | 10.1 inch | 10.1 inch | 7 inch | 8 inch | 9.7 inch | 10.1 inch | 10.1 inch |
| Native resolution | 1024 x 768 | 1280 x 800 | 1920 x 1200 | 800 x 480 | 800 x 480 | 1024 x 768 | 1024 x 600 | 1920 x 1200 |
| Touch screen | 5-wire resistive (optional) | 10-point PCAP (optional) | 10-point PCAP (optional) | 4-wire resistive (optional) | 4-wire resistive (optional) | 4-wire resistive (5-wire optional) (optional) | 4-wire resistive (5-wire optional) (optional) | 10-point PCAP (optional) |
| Aspect ratio | 4:3 | 16:10 | 16:10 | 16:9 | 4:3 | 4:3 | 16:10 | 16:10 |
| Brightness | 420 cd/m² | 350 cd/m² | 320 cd/m² | 250 cd/m² | 250 cd/m² | 300 cd/m² | 250 cd/m² | 1500 cd/m² |
| Contrast | 900:1 | 800:1 | 1000:1 | 500:1 | 500:1 | 600:1 | 500:1 | 1000:1 |
| LED lifetime | — | — | — | — | — | — | — | 50,000 h |
| Panel type | LCD | LCD | LCD | LCD | LCD | LCD | LCD | LCD |
| Viewing angle | 160°/174° (H/V) | 170°/170° (H/V) | 175°/175° (H/V) | 140°/120° (H/V) | 140°/120° (H/V) | 178°/178° (H/V) | 140°/110° (H/V) | 170°/170° (H/V) |
| Mechanical | ||||||||
| Dimensions | 234.4 x 192.5 x 29 mm | 250 x 170 x 32.3 mm | 252 x 157 x 25 mm | 188 x 123 x 25.8 mm | 200 x 156 x 25 mm | 242 x 195 x 15 mm | 253.5 x 162.5 x 34 mm (61 mm with bracket) | 264 x 183 x 35.6 mm |
| Weight | 625 g | 560 g | 535 g | 385 g | 536 g | 675 g (without bracket), 1175 g (with bracket) | 1004 g | 1.31 kg |
| Connections | ||||||||
| Video inputs | 1x HDMI, 1x VGA, 2x Composite | 1x HDMI, 1x VGA, 1x Composite | 1x HDMI 1.4, 1x VGA | 1x USB Type-A | 1x USB Type-A | 1x HDMI 1.4, 1x Mini USB | 1x USB Type-A | 1x HDMI 1.4b, 1x VGA |
| Audio | 1x Built-in speaker, 3.5 mm ear jack | 1x Built-in speaker, 3.5 mm ear jack (2ch 48kHz 24-bit) | 1x Built-in speaker, HDMI 2ch 24-bit, 3.5 mm ear jack (2ch 48kHz 24-bit) | — | — | 2x Built-in speakers, 3.5 mm ear jack (2ch 48kHz 24-bit) | — | 1x Built-in speaker, HDMI audio, 3.5 mm ear jack (2ch 48kHz 24-bit) |
| Additional connections | 1x Mini USB (for touch) (optional) | — | 1x USB (for touch) (optional) | 1x USB (for touch) (optional) | 1x USB (for touch) (optional) | 1x Mini USB (for touch) (optional) | 1x USB (for touch) (optional) | 1x USB-C (touch, video, power) (optional) |
| Video Standards | ||||||||
| Composite | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | — | — | — | — | — |
| HDMI | 1080p 50/60, 1080i 50/60, 720p 50/60 | 1080p 50/60, 1080i 50/60, 720p 50/60 | — | — | — | — | — | — |
| HDMI 1.4 | — | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | — | 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 | — | — |
| HDMI 1.4b | — | — | — | — | — | — | — | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| VGA | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 | — | — | — | — | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| Power | ||||||||
| Power consumption | ≤10 W | ≤10 W | ≤10 W | ≤4.5 W | ≤4.5 W | ≤9 W | ≤6 W | ≤19 W (12V) |
| Input voltage | DC 7 to 24V | DC 7 to 24V | DC 7 to 24V | DC 5V (USB) | DC 5V (USB) | DC 5V | DC 5V | DC 12 to 24V |
| Environmental | ||||||||
| Operating temperature | -20°C to 60°C | 0°C to 50°C | 0°C to 50°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 70°C |
| IP rating | — | — | — | — | — | — | — | IP65 front panel (IEC60529) |
| Storage temperature | -30°C to 70°C | -20°C to 60°C | -20°C to 60°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 80°C |
| Mounting | ||||||||
| Mounting Screws | — | — | — | — | — | — | — | 4x Wall Mount Screws |
| Stand | — | — | — | — | — | — | — | Desktop Foldable Stand (optional) |
| VESA mount | 75 x 75 mm | — | 75 x 75 mm | — | 75 x 75 mm | 75 x 75 mm | 75 x 75 mm | 75 x 75 mm |
| Accessories | ||||||||
| Included | 12V DC Adapter, Remote Control, HDMI A-C Cable, HDMI to DVI Cable, SKS Cable to VGA & RCA, CD Driver, Manual | 12V DC Adapter, Remote Control, HDMI A-A Cable, VGA Cable, Composite Cable, I/O Control Line, Manual | 12V DC Adapter, HDMI A-A Cable, VGA Cable, CD Driver, Manual | CD Driver, Manual | CD Driver, Manual | 5V DC Adapter, HDMI A/C Cable, CD Driver, Car Power Adapter, Manual | 5V DC Adapter, CD Driver, Manual | 12V 3A Power Adapter, HDMI A-A Cable, 4x Screw Kits, 4x Wall Mount Screws |
| Optional | VESA Folding Bracket, VESA Rail Slot | Car Power Adapter, HDMI to DVI Cable (with touch), VESA Folding Bracket, Gimbal bracket, VESA Rail Slot, 2x Battery Plate, VESA Battery Plate | VESA Folding Bracket, Gimbal bracket | — | VESA Rail Slot, VESA Folding Bracket | VESA Folding Bracket, VESA Rail Slot | VESA Rail Slot | Foldable Stand, Remote Control, HDMI Cable Lock |
| Control | ||||||||
| I/O | — | 1 | — | — | — | — | — | — |
| Operational Features | ||||||||
| Markers | — | Safety marker: 80%, 85%, 88%, 90%, 93%, 95%; Centre marker: On/Off | — | — | — | — | — | — |
